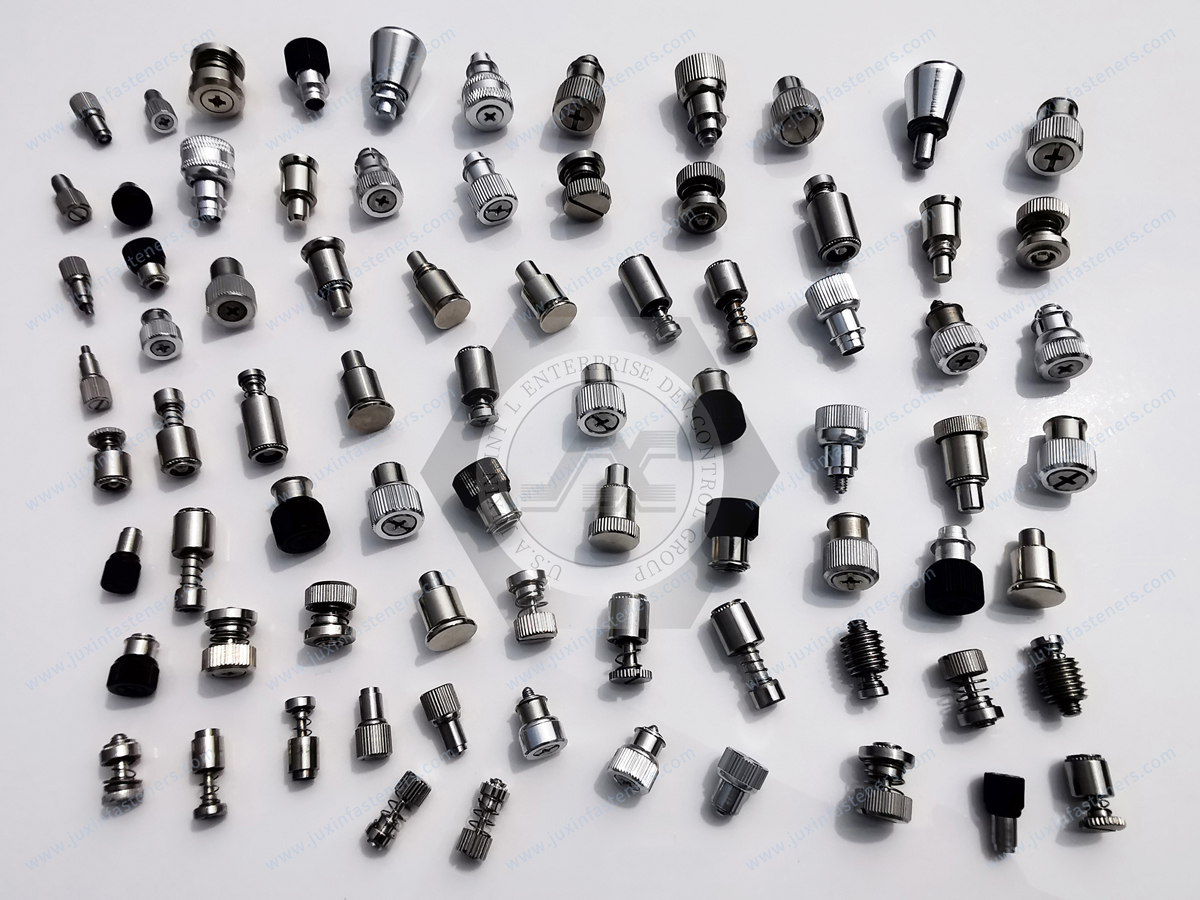

Captive Panel Screw – Low Profile Knob, Spring-Loaded | JX-PF30, JX-PF31, JX-PF32

JUXIN FASTENERS supplies JX-PF30, JX-PF31 and JX-PF32 captive panel screws with low-profile knurled knobs and spring-loaded mechanisms for removable sheet-metal panels.

These self-clinching panel fasteners combine a slotted, finger-operable knob with a captive screw assembly that remains attached to the panel when disengaged.

The low-profile design helps reduce external projection, while the spring-loaded mechanism supports convenient panel opening and repeated maintenance access.

Applications include electronic enclosures, industrial control cabinets, server equipment, machinery access covers and equipment consoles.

Metric M3–M6 and selected Unified inch thread options are referenced for this product family.

Individual dimensions, materials, installation conditions and configuration availability must be confirmed against the JUXIN product drawings and specifications.

Inquire Now Next Product Download

Product Specification

Captive Panel Screw – Low Profile Knob, Spring-Loaded

JX-PF30, JX-PF31 and JX-PF32 Industrial Panel Fastening Solutions

JUXIN FASTENERS supplies spring-loaded captive panel screws designed for equipment manufacturers requiring permanently retained fastening hardware in removable sheet-metal panels.

The JX-PF30, JX-PF31 and JX-PF32 product family features a compact knurled operating knob, a slotted drive and a spring-loaded screw assembly.

The captive design allows the screw to remain attached to the panel after disengagement from its mating thread.

This helps simplify repeated access and reduces the risk of loose screws being dropped or misplaced during equipment maintenance.

The low-profile knob is particularly useful in industrial applications where external clearance, equipment appearance and access-panel functionality must be considered together.

Product Features

Low-profile knurled knob for compact panel assemblies.

Slotted drive for screwdriver operation.

Finger-operable knob where hand access and tightening requirements permit.

Spring-loaded captive screw mechanism.

Self-clinching mounting configuration for compatible sheet-metal panels.

Retained hardware for repeated panel removal and installation.

Metric and Unified inch thread options, subject to model availability.

Suitable for industrial enclosure and equipment access-panel applications.

Product Identification and Technical Range

Product series: JX-PF30, JX-PF31 and JX-PF32.

Product category: Captive panel screws.

Product description: Low Profile Knob, Spring-Loaded.

Head style: Knurled knob with slotted drive.

Fastening mechanism: Spring-loaded captive screw assembly.

Mounting method: Self-clinching installation.

Referenced metric threads: M3, M4, M5 and M6.

Referenced Unified inch threads: Selected #4 through 1/4 in. configurations.

Materials: Stainless steel options listed for review; exact component materials must be confirmed.

Additional material and finish reference: Steel configurations with bright nickel finish over copper flash, subject to product-specific confirmation.

Technical documentation: JUXIN product PDF and CAD drawings, pages 43–44.

Special requirements: Custom dimensions and configurations subject to technical evaluation.

Low-Profile Knob Design

The primary design advantage of this captive panel screw family is its reduced knob projection.

Conventional thumb screws may extend significantly above the surface of a panel.

In compact industrial equipment, excessive head height can interfere with adjacent covers, sliding components or neighboring equipment.

A low-profile knob helps address these packaging constraints while retaining an accessible operating surface.

The knurled exterior improves manual grip, and the screwdriver slot provides another method of operation.

Engineers should distinguish low-profile construction from true flush mounting.

The installed knob may still project above the panel surface.

Actual head height and clearance must be checked using the dimensional drawing for the selected configuration.

Spring-Loaded Captive Screw Operation

The captive screw is retained within its mounting assembly.

When the screw is disengaged from the mating thread, the spring-loaded mechanism allows the screw to move toward its intended retracted position.

This arrangement reduces loose-hardware handling during service operations.

The captive screw remains with the removable panel rather than becoming a separate component.

The spring mechanism does not replace the threaded connection's clamping function.

When the panel is secured, the screw must engage the mating thread sufficiently to provide the required joint performance.

The exact spring travel, screw extension and retracted position depend on the selected model.

These dimensions should be verified before approving the assembly design.

Knurled Head and Slotted Drive

The knob combines two operating methods.

The knurled exterior provides a surface that can be turned by hand.

The slotted drive allows a screwdriver to be used where access, operator preference or tightening requirements make tool operation more appropriate.

This combination can be useful for service covers opened frequently during equipment inspection.

However, manual operation is not automatically suitable for every application.

Where a specified tightening torque or joint preload is required, the OEM should establish an appropriate installation procedure.

The slotted head also requires sufficient screwdriver clearance.

Engineers should evaluate tool access before selecting a fastening location close to enclosure walls or structural obstructions.

Self-Clinching Installation

JX-PF captive panel screws are intended for installation in compatible sheet-metal panels using a suitable pressing process.

A prepared mounting hole receives the fastener's retention features.

Controlled squeezing force establishes the mechanical attachment between the mounting retainer and the panel.

The installation process must preserve the operation of the captive screw and spring mechanism.

Mounting-hole dimensions, panel thickness, substrate hardness and installation tooling must match the selected fastener.

The supplied reference information identifies certain configurations suitable for relatively thin panels, including a 0.030 in. / approximately 0.76 mm minimum sheet thickness.

This minimum thickness is not universal across JX-PF30, JX-PF31 and JX-PF32.

Different mounting-shank configurations may require different sheet thicknesses.

The supplied reference also identifies HRB 60 as a panel hardness limit for certain steel configurations.

The applicable limits must be verified for the exact JUXIN product and panel material.

Installation Design and Panel Compatibility

The panel must have sufficient material around the mounting hole to support the self-clinching retention features.

The designer should review minimum edge distance, mounting-hole tolerance and panel deformation during installation.

Insufficient edge distance can affect the panel's ability to retain the fastener.

Excessive installation force can distort the mounting area or interfere with the spring-loaded mechanism.

An incorrect mounting-hole diameter can reduce retention or prevent proper installation.

After installation, the captive screw should move as intended without binding.

The mounting retainer should remain securely fixed in the panel.

These characteristics should be confirmed during initial assembly trials.

PF30, PF31 and PF32 Selection

The JX-PF30, JX-PF31 and JX-PF32 series should be treated as related configurations rather than identical products with interchangeable part numbers.

Their installation geometry and compatible panel thickness may differ.

For example, industry reference catalogs distinguish PF30, PF31 and PF32 using mounting-shank dimensions and minimum sheet-thickness requirements.

Therefore, the correct series should be selected using the actual panel thickness and approved dimensional drawing.

An engineer should not select PF32 solely because it has a larger series number.

Likewise, a PF30 installation requirement should not automatically be used for PF31 or PF32.

The exact part number, thread, screw length and mounting geometry must be confirmed together.

Metric and Unified Thread Selection

The product family includes metric and selected Unified inch thread configurations.

Metric references include M3, M4, M5 and M6.

Unified inch references include selected sizes from #4 to 1/4 in.

The available combination of thread size and PF series must be checked against the approved product specification.

ISO 261 and ISO 965 are relevant to ISO metric thread designations and tolerances.

ASME B1.1 is relevant to Unified inch screw threads.

Metric and Unified threads are not interchangeable merely because their nominal diameters are similar.

For OEM sourcing, the thread designation must include the correct diameter and pitch.

Mating screw and threaded-component compatibility should be verified before production release.

Material and Surface Finish Considerations

The supplied product information lists stainless steel grades including SUS302, SUS303, SUS316, SUS410, SUS420 and SUS430.

These grades have different mechanical and corrosion-resistance characteristics.

Their availability must be confirmed for the selected captive panel screw configuration.

A spring-loaded captive panel screw is an assembly containing several functional components.

The screw, spring, knob and mounting retainer may require different material properties.

Therefore, a general stainless steel material listing should not be interpreted as confirmation that every component is made from the same grade.

The supplied reference also describes certain steel configurations with bright nickel plating over a copper flash base.

This finish should only be specified where the selected product configuration supports it.

Material, coating and corrosion requirements should be confirmed through the approved drawing and purchasing specification.

Engineering Consideration: Installed Height

A common design mistake is to compare captive panel screws only by thread size.

For low-profile products, the installed knob height may be just as important.

The engineer should evaluate the fastener in both the engaged and disengaged positions.

The knob may occupy a different axial position depending on the spring-loaded mechanism.

This can affect enclosure clearance.

For example, a removable panel positioned close to a sliding tray may require enough clearance for the captive screw in its disengaged condition.

The drawing should therefore be reviewed for both operating positions where applicable.

Engineering Consideration: Screw Reach and Panel Stack-Up

The screw must reach its mating thread after passing through the relevant panel stack-up.

This may include the removable panel, mounting hardware, spacers, washers or other components.

Insufficient screw extension can prevent reliable thread engagement.

Excessive screw length may cause bottoming or interference with internal equipment.

The required screw reach should be evaluated together with spring travel and the intended clamped position.

This is particularly important when replacing an existing captive screw with an alternative configuration.

Matching thread diameter alone does not establish interchangeability.

Engineering Consideration: Service Frequency

Captive panel screws are especially useful in assemblies that require repeated access.

For equipment opened frequently, the designer should consider operator ergonomics, spring operation and mating-thread durability.

The knob should be accessible without excessive effort.

The screwdriver slot should remain usable throughout the expected service life.

The mating thread should withstand the intended maintenance cycle.

Where frequent repeated operation is expected, the OEM may specify functional cycling tests.

No fixed reuse-cycle rating should be assumed without validated product data.

Applications in Electronic Enclosures

Electronic enclosures often require removable access panels for wiring, inspection or component replacement.

Captive panel screws reduce the need to handle loose screws during maintenance.

The low-profile knob can also reduce external projection on compact equipment housings.

Applications in Industrial Control Cabinets

Industrial control cabinets may contain removable covers and protective panels.

Spring-loaded captive screws can support repeated access while keeping fastening hardware attached to the cover.

The mounting configuration must be compatible with the cabinet's sheet-metal thickness and hardness.

Applications in Server and Network Equipment

Server enclosures, telecommunications housings and network equipment may require compact fastening hardware for removable panels.

A captive screw can reduce loose-part handling during service.

The engineer should verify the available head clearance, mating thread and installation requirements.

Applications in Industrial Machinery

Machine access covers may require periodic removal for inspection, adjustment or replacement of internal components.

Captive panel screws can help keep the fastening hardware associated with the correct panel.

The joint must still satisfy the equipment's mechanical and safety requirements.

Applications in Test and Measurement Equipment

Test equipment often combines limited enclosure space with repeated maintenance access.

Low-profile captive screws may be suitable where conventional protruding thumb screws are undesirable.

Applications in Electrical Equipment

Electrical equipment housings may benefit from retained panel fasteners that reduce the chance of loose metal hardware entering the enclosure.

The complete design must comply with the applicable electrical equipment requirements.

Captive Panel Screws Versus Conventional Thumb Screws

A conventional thumb screw is removed completely from its mating thread and may become a loose component.

A captive panel screw remains retained in its mounting assembly.

This can simplify service operations and reduce lost hardware.

However, the captive assembly requires appropriate mounting geometry and installation conditions.

The correct choice depends on the panel design, maintenance frequency and assembly requirements.

Captive Panel Screws Versus Quarter-Turn Fasteners

Quarter-turn fasteners can provide rapid panel access.

Threaded captive panel screws use conventional threaded engagement.

A threaded captive screw may be preferred where the design requires a specific mating thread or threaded fastening arrangement.

A quarter-turn solution may be more suitable where very rapid opening is the primary requirement.

The selection should consider joint performance, access frequency, vibration, clearance and total installation cost.

OEM Procurement and Supplier Qualification

For purchasing teams, captive panel screws should be evaluated as functional assemblies rather than ordinary screws.

A supplier qualification review should consider the complete assembly geometry, spring function, mounting retainer, material specification and thread compatibility.

The product drawing should identify the exact PF series and required thread configuration.

For replacement projects, the OEM should compare installed dimensions, screw travel, panel thickness compatibility and mounting-hole requirements.

Two captive screws may look similar but differ significantly in installation geometry.

Dimensional similarity does not automatically establish functional interchangeability.

Quality Inspection and Functional Testing

A suitable inspection plan may include dimensional verification, thread inspection, material confirmation and functional operation checks.

The mounting retainer should remain securely attached to the panel.

The screw should move through its intended range without binding.

The spring-loaded mechanism should operate correctly.

The screw should engage its mating thread without abnormal interference.

Where repeated service is expected, functional cycle testing may be appropriate.

The required acceptance criteria should be defined by the OEM and the approved product specification.

Captive Panel Screw – Low Profile Knob, Spring-Loaded | JX-PF30, JX-PF31, JX-PF32

Frequently Asked Questions

What is a captive panel screw with a low-profile knob?

It is a retained panel screw assembly featuring a compact operating knob designed to reduce external projection.

What does spring-loaded mean?

The captive screw incorporates a spring mechanism that controls its axial movement and supports the intended disengaged position.

What is the benefit of the knurled knob?

The knurled surface provides a finger-grip feature for manual operation where appropriate.

Can the screw also be operated with a tool?

Yes. The slotted head allows screwdriver operation.

Are JX-PF30, JX-PF31 and JX-PF32 interchangeable?

Not automatically. Installation geometry, panel thickness requirements and other dimensions must be compared using approved drawings.

Can these fasteners be installed in thin panels?

Certain configurations are intended for thin sheet-metal panels. The minimum sheet thickness must be verified for the selected model.

Can stainless steel versions be supplied?

Stainless steel material options can be reviewed, subject to the exact configuration and technical specification.

Are metric and inch threads available?

The product family references metric M3–M6 and selected Unified inch sizes. Availability varies by configuration.

Can custom dimensions be requested?

Custom requirements can be evaluated using the customer's drawing and application specifications.
