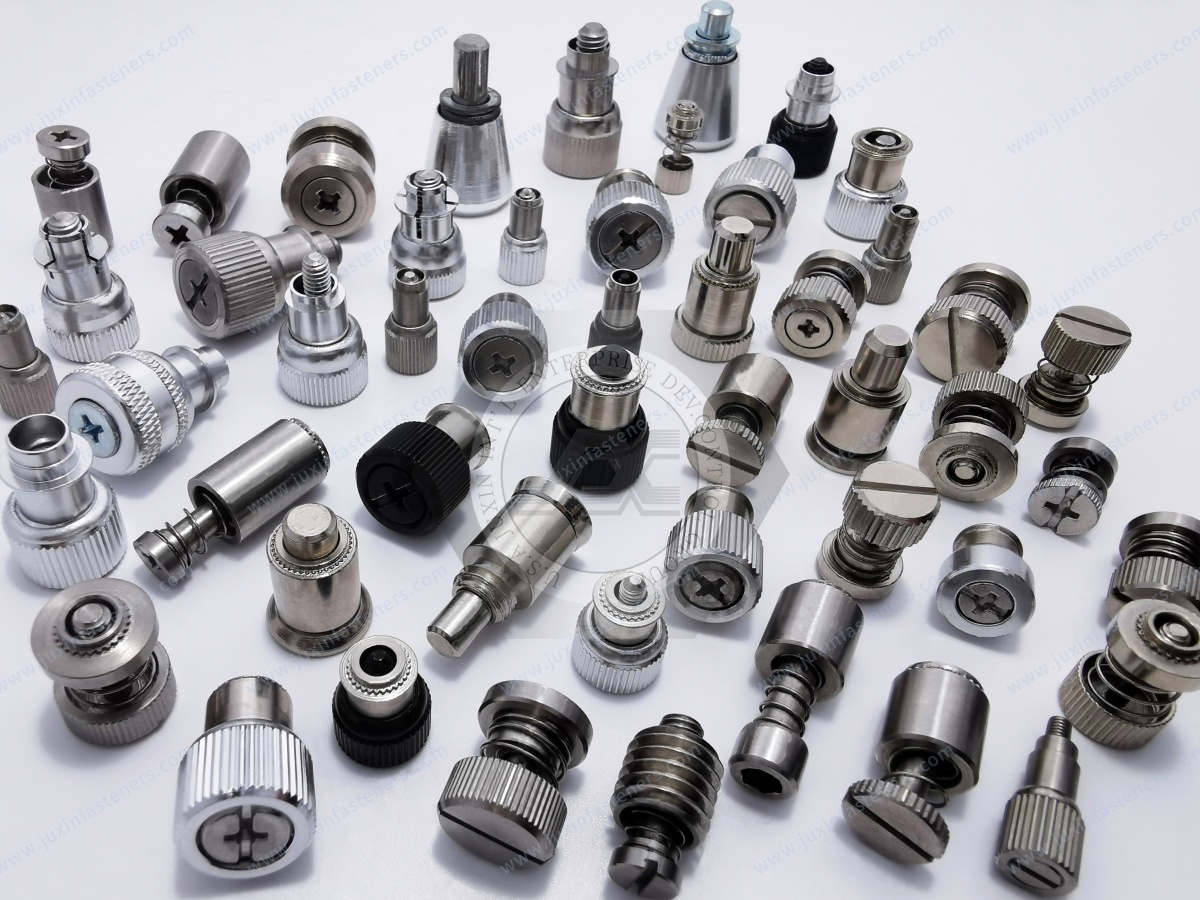

Spring-Loaded Captive Panel Screws – JX-PFC2 / JX-PFS2

Spring-Loaded Captive Panel Screws – JX-PFC2 / JX-PFS2

Pre-Assembled Captive Fastening Solutions for Industrial Equipment and Removable Access Panels

JUXIN FASTENERS supplies JX-PFC2 and JX-PFS2 spring-loaded captive panel screws for industrial equipment manufacturers requiring reliable retained threaded hardware in removable panels.

These fasteners combine a screw-head operating interface, an integrated spring mechanism and a captive retaining assembly.

The screw remains associated with the mounting panel when disengaged from its mating thread, reducing loose hardware during installation, inspection and maintenance.

Unlike concealed-head tool-only captive screws, the standard JX-PFC2 / JX-PFS2 product family is identified for tool or finger operation, depending on the actual head geometry and assembly conditions.

The series is relevant to electronic enclosures, industrial control cabinets, electrical equipment covers, machinery access panels and serviceable equipment consoles.

Product Overview

Product series: JX-PFC2 and JX-PFS2

Product category: Spring-loaded captive panel screws

Head configuration: Screw head

Assembly: Pre-assembled captive screw mechanism

Operating method: Tool or finger operation, subject to configuration

Spring mechanism: Integrated spring-loaded construction

Referenced Unified thread sizes: #4 through 1/4 inch

Referenced metric thread sizes: M3 through M6

Screw lengths: Three options referenced for most sizes

Material options: Steel and stainless steel

Application: Removable industrial equipment panels

Technical documentation: Product PDF and CAD drawings, pages 47–48

Customization: OEM drawing-based technical review

Exact thread pitches, screw lengths, installed dimensions, mounting-hole requirements and spring travel must be confirmed from the approved model-specific drawing.

Pre-Assembled Spring-Loaded Construction

JX-PFC2 and JX-PFS2 are described as completely pre-assembled spring-loaded panel fasteners.

The captive screw assembly incorporates the screw, spring and retaining components required for its intended operation.

This reduces the need to assemble individual captive screw components during equipment production.

The spring supports the screw's intended axial movement.

When disengaged, the screw remains retained within the mounting assembly.

The actual retracted position and available travel depend on the selected part number.

The spring does not replace the threaded connection's clamping function.

Adequate mating thread engagement is still required.

Tool or Finger Operation

The supplied product information identifies tool or finger operation.

This distinguishes the standard JX-PFC2 / JX-PFS2 family from the tool-only JX-PFC2P configuration.

Whether finger operation is practical depends on the screw-head dimensions, available access and tightening requirements.

A compatible tool may be required when controlled tightening is necessary.

The exact drive recess and tool size must be verified from the approved drawing.

Finger operation should not be assumed suitable for every tightening condition.

The OEM should establish the required assembly procedure according to the actual joint design.

Steel and Stainless Steel Selection

The product family is referenced as available in steel or stainless steel.

These materials may be selected according to environmental conditions, mechanical requirements and cost considerations.

The exact material associated with each part number must be confirmed before ordering.

The supplied stainless steel references include SUS302, SUS303, SUS316, SUS410, SUS420 and SUS430.

These grades differ in corrosion resistance, hardness and manufacturability.

The screw, spring and retainer may require different material grades or conditions.

Therefore, a general stainless steel listing does not establish that every component uses the same grade.

Where international material specifications are required, the applicable ASTM, SAE or EN designation should be agreed in the purchasing specification.

No material equivalence should be assumed without verification.

Corrosion Resistance and Surface Treatment

Steel captive panel screws may require a suitable surface finish according to the operating environment.

Stainless steel configurations may be considered where corrosion resistance is important.

However, the complete assembly must be evaluated.

The screw, spring and retainer may have different exposure and corrosion characteristics.

For applicable stainless steel components, ASTM A967/A967M may be used when passivation is specified.

Any passivation or corrosion-performance claim must be supported by the actual processing and inspection documentation.

No specific corrosion rating should be assumed without validated data.

Unified Inch Thread Options

The supplied product information references Unified inch thread sizes from #4 through 1/4 inch.

ASME B1.1 provides a relevant framework for Unified screw threads.

The exact thread pitch and tolerance class must be confirmed.

The mating threaded component must use a compatible thread.

A nominal thread diameter alone is insufficient for production specification.

OEM drawings should identify the complete thread designation.

Metric M3–M6 Thread Options

The supplied product information also references metric thread sizes from M3 through M6.

ISO 261 and ISO 965 provide relevant references for metric thread dimensions and tolerances.

The exact thread designation must be confirmed for the selected configuration.

Metric and Unified threads are not interchangeable.

An M3 screw should not be substituted for a Unified #4 screw based only on approximate diameter.

For international OEM projects, the thread system should remain clearly identified throughout engineering approval and purchasing.

Screw-Length Selection

Most sizes are referenced as having three screw-length options.

The correct length depends on the complete assembly stack-up.

Relevant dimensions include the mounting panel thickness, mating thread location, required thread engagement and available clearance.

A screw that is too short may not engage the mating thread adequately.

A screw that is too long may bottom out or interfere with internal components.

The spring-loaded screw's engaged and disengaged positions must also be considered.

The correct length should be selected from the approved product drawing.

Panel Installation and Mounting Requirements

The JX-PFC2 / JX-PFS2 assembly must be installed into a compatible mounting panel using the method specified for the selected configuration.

Mounting-hole dimensions, panel thickness, material properties and installation tooling are important.

The retainer must remain securely installed while allowing the intended screw movement.

The supplied information describes captive panel fasteners used in thin-panel applications.

However, minimum sheet thickness and maximum substrate hardness must be confirmed for each product configuration.

Installation limits from another captive screw series should not be applied automatically.

A representative installation trial may be appropriate before production approval.

Engineering Trade-Off: Captive Screws Versus Loose Screws

A conventional screw becomes a separate component when fully removed.

A captive screw remains associated with the panel.

This can reduce lost hardware and simplify maintenance handling.

For electronic and electrical equipment, reducing loose conductive components may help control certain service-related risks.

However, captive screws require a suitable mounting arrangement.

The OEM should evaluate the total assembly cost, service frequency and installation requirements.

For frequently serviced equipment, retained hardware may provide meaningful operational benefits.

Engineering Trade-Off: Spring-Loaded Versus No-Spring Captive Screws

Spring-loaded captive screws support controlled axial movement through an integrated spring.

No-spring captive screws use a different retention arrangement.

Spring-loaded configurations may be useful where the screw must move toward a defined disengaged position.

No-spring configurations may be appropriate where compactness or simpler construction is preferred.

The selection should consider the panel removal path, required screw clearance and maintenance procedure.

Spring-loaded construction does not automatically guarantee interference-free panel removal.

The actual screw travel must be verified.

Engineering Trade-Off: Tool or Finger Operation Versus Tool-Only Access

JX-PFC2 and JX-PFS2 are identified for tool or finger operation.

This may be useful for equipment covers requiring convenient maintenance access.

JX-PFC2P uses a concealed-head tool-only arrangement.

It may be more appropriate where access is intended to require a tool.

The choice should reflect service frequency, operator requirements and equipment safety considerations.

A finger-operable captive screw should not automatically be selected for a panel that must require tool access.

Equipment Safety and UL 508 Considerations

The supplied product information references UL 508 operator-access applications.

This should be treated as an equipment-design context rather than proof of product certification.

UL 508 may be relevant to certain industrial control equipment, while other equipment categories may be governed by different standards.

The captive screw's operating characteristics can contribute to the overall enclosure design.

However, the fastener alone does not establish compliance with an equipment safety standard.

Any UL approval or certification claim must be supported by valid documentation covering the applicable product.

The OEM must evaluate the complete equipment against its governing requirements.

Industrial Applications

Industrial Control Cabinets

Spring-loaded captive panel screws can secure removable access covers used for maintenance and inspection.

Electronic Equipment Enclosures

Retained screws can reduce loose-hardware handling during repeated enclosure opening.

Electrical Equipment Housings

Captive screws may be suitable for removable service panels where the complete equipment design permits the intended access method.

Industrial Machinery

Machine covers and equipment consoles may require retained threaded fastening for periodic maintenance.

Test and Measurement Equipment

Instrument housings may use spring-loaded captive screws where repeated access is necessary.

Telecommunications Equipment

Communication equipment may incorporate removable covers requiring retained hardware.

EV Charging Equipment

Captive panel screws may be considered for suitable equipment covers, subject to access requirements and applicable safety standards.

Industrial Automation Modules

Automation equipment may benefit from retained fasteners in serviceable electronic and mechanical assemblies.

Engineering Example: Industrial Control Cabinet Cover

Consider an industrial control cabinet with a removable access cover.

The cover is opened periodically for inspection.

Using conventional screws requires maintenance personnel to handle separate loose fasteners.

A JX-PFC2 or JX-PFS2 spring-loaded captive screw arrangement can retain the screws in the cover.

The spring-loaded mechanism supports the intended disengaged screw position.

The operating head allows tool or finger operation where the selected configuration and access conditions permit.

Before approval, the engineer should verify mounting-hole dimensions, panel thickness, mating thread engagement and screw travel.

The selected material should also be suitable for the operating environment.

This example illustrates how retained fastening can improve maintenance handling without changing the fundamental requirements of the threaded joint.

JX-PFC2 / JX-PFS2 Versus JX-PFC2P

JX-PFC2 and JX-PFS2 are standard spring-loaded captive panel screw configurations intended for tool or finger operation.

JX-PFC2P is a tool-only, concealed-head, non-flush spring-loaded configuration.

The primary distinction is the intended access method and head arrangement.

These product families should not be treated as interchangeable without reviewing the mounting dimensions, screw travel and operating requirements.

JX-PFC2 / JX-PFS2 Versus Low-Profile Knob Captive Screws

Low-profile knob captive screws such as JX-PF30, JX-PF50 and JX-PF60 provide alternative operating-head designs.

The appropriate choice depends on available clearance, operating preference and maintenance requirements.

A larger knob may improve manual accessibility.

A compact screw-head configuration may be more appropriate where space is limited.

The exact dimensions must be compared before substitution.

OEM Procurement and Supplier Qualification

For procurement teams, the complete captive screw configuration should be specified rather than purchasing only by nominal thread size.

A suitable sourcing specification identifies the series, thread, screw length, material, surface finish and mounting requirements.

For replacement projects, the engineering team should compare installed height, spring travel and mounting-hole dimensions.

Visual similarity is not sufficient to establish interchangeability.

Drawing review and sample approval can help reduce production risk.

RFQ Information

Product series: JX-PFC2 or JX-PFS2

Required Unified or metric thread

Screw length and spring travel

Mounting panel material and thickness

Mounting-hole dimensions

Operating-head and tool-access requirements

Mating thread specification

Material and surface finish

Expected order quantity and annual demand

Engineering drawing and revision level

Inspection and functional testing requirements

Packaging and labeling requirements

Providing these details helps JUXIN FASTENERS review the intended application and prepare an accurate quotation.

Quality and Functional Verification

A suitable inspection plan may include dimensional inspection, thread verification, material confirmation and functional checks.

The screw should remain captive when disengaged.

The spring-loaded mechanism should operate smoothly.

The mounting retainer should remain secure.

The screw should engage the mating thread without abnormal interference.

Where required, the OEM may specify repeated operation testing.

The test method and acceptance criteria should be agreed before production.

No fixed spring force, retention load, tightening torque or service-life rating should be assumed without validated product data.

Frequently Asked Questions

What are JX-PFC2 and JX-PFS2?

They are pre-assembled spring-loaded captive panel screw configurations for retained threaded fastening in removable equipment panels.

Are they spring-loaded?

Yes. Both series are identified as spring-loaded captive panel fasteners.

Can they be operated by hand?

The product family references tool or finger operation, depending on the selected configuration and assembly conditions.

What thread sizes are referenced?

Unified #4 through 1/4 inch and metric M3 through M6, subject to configuration availability.

Are steel and stainless steel options available?

Both material families are referenced. Exact availability must be confirmed for the selected part number.

Are multiple screw lengths available?

Most sizes are referenced as having three screw-length options.

Are these fasteners UL certified?

Product-specific UL certification has not been established from the supplied information.

Can custom dimensions be requested?

Custom requirements can be reviewed using customer engineering drawings and application specifications.

Related JUXIN FASTENERS Products

Tool-Only Captive Panel Screws – JX-PFC2P

For concealed-head, tool-operated service-access panels.

Low-Profile Slotted Captive Panel Screws – JX-PF30 / JX-PF31 / JX-PF32

For spring-loaded captive fastening with low-profile slotted operating knobs.

Phillips and Six-Lobe Captive Panel Screws – JX-PF50 / JX-PF60

For low-profile spring-loaded captive screws with recessed-drive options.

No-Spring Captive Panel Screws – JX-PFHV

For compact retained fastening without spring-assisted retraction.

Self-Clinching Standoffs

For threaded support and spacing in compatible sheet-metal assemblies.

Floating Self-Clinching Nuts

For sheet-metal mounting points requiring limited alignment compensation.

Link these related product names to their corresponding verified JUXIN FASTENERS pages using descriptive anchor text.

Request a JX-PFC2 / JX-PFS2 OEM Quotation

JUXIN FASTENERS supplies spring-loaded captive panel fastening solutions for industrial equipment manufacturers, electronic enclosure designers, sheet-metal fabricators and international OEM procurement teams.

For JX-PFC2 or JX-PFS2 inquiries, please provide the required thread size, screw length, panel material, sheet thickness, mounting geometry and expected order quantity.

Engineering drawings, annual demand and inspection requirements will help support technical review and quotation preparation.

Email: info@juxinfasteners.com

Website: www.juxinfasteners.com

JX-PFC2 and JX-PFS2 spring-loaded captive panel screws can be supplied with protective inner packaging and export cartons according to confirmed order requirements.

Packaging arrangements are selected to help protect the screw heads, threads, springs and retaining components during handling and transportation.

Custom carton quantities, part-number labeling, batch identification and OEM packaging requirements can be reviewed before order confirmation.

Packaging Standard

At Juxin Fasteners, we apply standardized export packaging to ensure product protection, traceability, and compliance with international logistics requirements.

1. Standard Export Packaging

Unless otherwise specified, all products will be packed according to our factory standard export packaging, which includes:

Moisture-resistant inner protection

Poly bag or small box packing as required

Reinforced export cartons

Clear labeling with part number, specification, batch number, and quantity

Palletizing for sea or air shipment when necessary

Our standard packaging is designed to ensure safe transportation, efficient warehousing, and long-distance international shipping.

2. Customized Packaging Options

We also provide customized packaging solutions according to customer requirements, including but not limited to:

Private labeling

Customized barcodes

Specific carton dimensions

Retail packaging

Special pallet configuration

Customer-specific marking and identification

So that you know, customized packaging may involve additional costs and extended lead time depending on the complexity of the requirements.

3. Compliance & Quality Assurance

All packaging processes are controlled under our ISO 9001 quality management system to ensure consistency, traceability, and product integrity throughout the supply chain.
