Self-Clinching Standoffs for Telecom Enclosures & PCB Mounting

Telecommunications enclosures, AI server chassis, data center equipment and industrial electronic cabinets frequently require reliable

mounting interfaces between thin sheet metal structures and internal electronic assemblies.

These assemblies may include:

• Printed circuit boards

• Network communication modules

• Power supply control boards

• Telecom routing equipment

• Sensor modules

• Electronic controllers

• Equipment mounting brackets

• Internal chassis components

The mounting interface must often provide both a threaded attachment point and a controlled distance between the electronic assembly and the enclosure panel.

Self-clinching standoffs combine a permanent sheet metal attachment with a defined spacing height.

They can reduce the need for separate loose spacers and provide repeatable mounting positions when the fastener, panel and installation process are correctly specified.

However, a self-clinching standoff does not automatically provide electrical grounding, insulation, waterproofing or unlimited load capacity.

Its performance depends on the complete assembly.

JUXIN FASTENERS supplies self-clinching fastening components, including standoffs, nuts and studs, for industrial sheet metal applications.

This guide explains how engineers and OEM sourcing teams should evaluate self-clinching standoffs for telecom enclosures, PCB mounting and high-density electronic equipment.

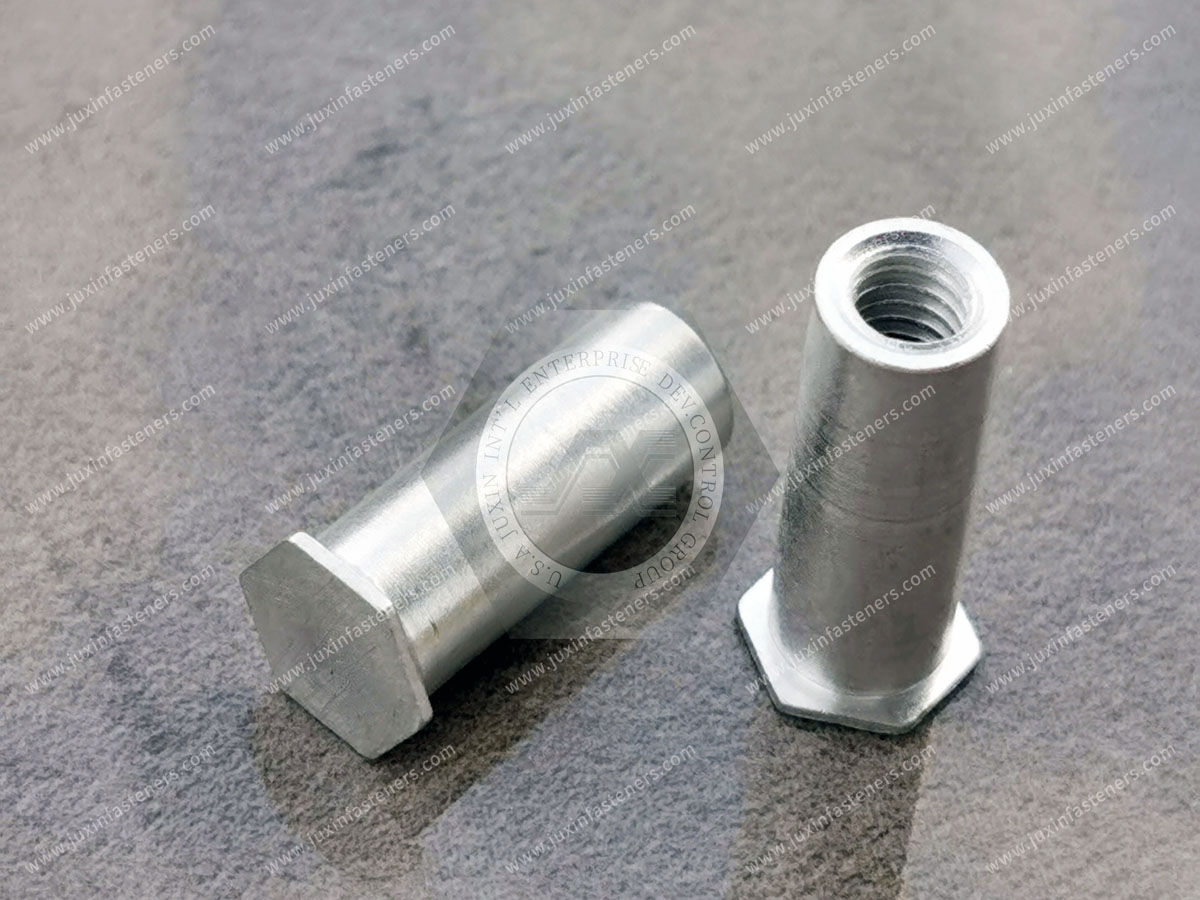

What Is a Self-Clinching Standoff?

A self-clinching standoff is a spacing component designed to become permanently retained in suitable sheet metal through controlled press installation.

Depending on its construction, it may provide:

• An internal thread

• A through-hole

• An unthreaded clearance hole

• A blind threaded hole

• A defined mounting height

The host sheet deforms into the fastener's retention geometry during installation.

This creates a mechanical connection between the standoff and the panel.

The installed component then serves as a mounting or spacing interface.

Common Product Names

Engineers and procurement teams may search for:

• Self-clinching standoff

• Press-in standoff

• Sheet metal standoff

• Threaded standoff

• PCB mounting standoff

• PCB support standoff

• Blind threaded standoff

• Through-hole standoff

• Metal PCB spacer

These terms may overlap, but they do not always describe identical products.

The drawing should establish the exact geometry and function.

Information Gain: A Standoff Performs Two Separate Mechanical Functions

A self-clinching standoff must perform:

Function 1: Panel Retention

The clinching feature must remain securely attached to the sheet metal.

Function 2: Controlled Spacing

The standoff body must establish the required distance between the panel and the mounted component.

These functions should be evaluated separately.

A standoff may have adequate push-out resistance but an incorrect height.

Alternatively, it may have the correct height but insufficient retention in the panel.

For PCB mounting, both can affect the final assembly.

Why Telecom Equipment Uses Self-Clinching Standoffs

Telecommunications equipment may require:

• Compact electronic packaging

• Repeatable PCB mounting heights

• Permanent threaded interfaces

• Reduced loose-hardware handling

• Efficient sheet metal assembly

• Reliable service access

• Controlled component clearances

Potential applications include:

• Telecom base station enclosures

• Network communication cabinets

• Outdoor telecommunications equipment

• Fiber-optic equipment housings

• Power supply cabinets

• Network switch chassis

• Industrial communication modules

• Control electronics enclosures

The correct standoff depends on the actual panel material, component geometry and environmental requirements.

Self-Clinching Standoffs in AI Server Chassis

AI server and data center equipment may contain dense electronic assemblies requiring controlled mounting interfaces.

Potential applications include:

• Control boards

• Power management boards

• Auxiliary PCBs

• Internal electronic modules

• Chassis-mounted brackets

The required spacing height should be determined from the complete mechanical and electrical design.

A standoff should not be selected solely because it matches the PCB screw size.

Engineering Challenge 1: PCB Mounting Height

A standoff establishes the nominal separation between the host panel and the mounted component.

This distance may be important for:

• Component clearance

• Connector alignment

• Electrical isolation

• Cable routing

• Cooling airflow

• Assembly accessibility

The required height should be specified according to the assembly.

Information Gain: Nominal Standoff Height Is Not the Same as Final PCB Clearance

The actual clearance may depend on:

• Standoff height

• Sheet metal geometry

• PCB thickness

• PCB flatness

• Fastener seating

• Mounting hardware

• Manufacturing tolerances

Therefore, a drawing specifying a nominal standoff height does not by itself define every clearance in the finished assembly.

The complete stack-up should be reviewed.

Engineering Challenge 2: Tolerance Stack-Up

High-density electronic equipment may use multiple mounting points.

If the standoff heights or panel geometry vary, the PCB may experience uneven support.

Potential consequences include:

• PCB bending

• Connector misalignment

• Uneven mounting pressure

• Localized mechanical stress

• Assembly difficulty

The relevant tolerances should be defined according to the actual assembly.

Information Gain: Multiple Standoffs Can Overconstrain a PCB

Consider a PCB supported by several rigid mounting points.

If the support heights differ, tightening the screws may force the board to conform to the mounting geometry.

This can introduce bending stress.

Therefore, engineers should evaluate:

• Number of mounting points

• Standoff height tolerance

• Panel flatness

• PCB stiffness

• Connector location

• Screw tightening procedure

More mounting points do not automatically create a better mechanical design.

Engineering Challenge 3: Sheet Metal Compatibility

Self-clinching installation depends on controlled deformation of the host sheet.

Important factors include:

• Panel material

• Panel hardness

• Panel thickness

• Installation hole diameter

• Edge distance

• Installation force

• Tooling access

A standoff suitable for one steel panel may not be appropriate for a harder stainless steel sheet.

The fastener and panel must be evaluated together.

Information Gain: A Standoff Can Be Dimensionally Correct but Mechanically Incompatible

A standoff may have:

• Correct thread

• Correct height

• Correct outer diameter

Yet still fail to install reliably in the specified panel.

This can occur if the sheet is too hard or too thin for the clinching design.

Therefore, procurement specifications should include the host panel requirements.

Engineering Challenge 4: Push-Out Resistance

Push-out resistance describes the axial force required to displace an installed standoff from the panel under a defined test condition.

It depends on:

• Standoff geometry

• Sheet thickness

• Sheet material

• Sheet hardness

• Installation hole

• Installation process

The required performance should be established according to the application.

Engineering Challenge 5: Torque-Out Resistance

Torque-out resistance describes the installed standoff's resistance to rotation within the host panel.

Insufficient torque-out resistance may cause the standoff to rotate when the mating screw is tightened or removed.

Potential contributing factors include:

• Incorrect hole size

• Incompatible sheet material

• Insufficient installation force

• Incorrect fastener geometry

• Panel damage

Information Gain: Push-Out and Torque-Out Are Not Interchangeable Performance Measures

Push-Out: Resistance to axial displacement.

Torque-Out: Resistance to rotation.

A standoff may perform well in one test but poorly in the other.

For threaded PCB mounting, both may be relevant.

The required acceptance criteria should be defined according to the actual assembly.

Engineering Challenge 6: Installation Hole Geometry

The installation hole must match the selected standoff design.

Important factors include:

• Hole diameter

• Hole roundness

• Burr condition

• Edge distance

• Panel flatness

• Installation-side orientation

An incorrect hole may reduce retention or cause installation damage.

The hole specification should follow the actual fastener design.

Information Gain: The Hole Diameter Is a Functional Dimension

For a conventional screw clearance hole, the main purpose is often to allow the screw to pass through.

For a self-clinching standoff, the hole is part of the retention mechanism.

Therefore, installation hole tolerance can directly influence the mechanical performance of the joint.

This is why an alternative standoff supplier should not be approved solely by matching the thread and height.

Engineering Challenge 7: Installation Force

Self-clinching standoffs are generally installed using controlled pressing.

The required force depends on:

• Standoff design

• Panel material

• Panel thickness

• Tooling

• Panel support

Insufficient force may prevent complete clinching.

Excessive force may deform the panel or damage the standoff.

The installation process should follow the applicable product specification.

Information Gain: More Press Force Does Not Always Improve Retention

If a standoff has inadequate retention, increasing press force may not solve the problem.

The actual cause may be:

• Oversized hole

• Incorrect panel hardness

• Insufficient sheet thickness

• Incorrect fastener geometry

• Tooling misalignment

The correct response is to identify the cause and validate the installation process.

Engineering Challenge 8: Electrical Grounding

Metal standoffs may form part of an intentional electrical connection between a PCB and a metal chassis.

However, electrical continuity depends on:

• Standoff material

• Panel material

• Surface coating

• Contact geometry

• PCB mounting pad design

• Screw contact

• Corrosion

• Installation condition

A self-clinching standoff does not automatically provide a verified low-resistance grounding path.

Information Gain: Mechanical Retention Does Not Prove Electrical Bonding

A standoff may pass push-out and torque-out testing.

That does not prove the electrical bonding path meets the equipment requirement.

For grounding applications, engineers should define:

• Intended current path

• Contact surfaces

• Surface coating

• Bonding resistance requirement

• Verification method

Mechanical and electrical performance should be evaluated separately.

Engineering Challenge 9: Electrical Isolation

Not every PCB mounting point should be grounded.

Some assemblies require electrical isolation between the board and the chassis.

A conductive metal standoff may create an unintended electrical connection if the PCB design does not provide adequate isolation.

Potential solutions may involve:

• Insulating washers

• Nonconductive spacers

• Appropriate PCB keep-out regions

• Alternative mounting architecture

The correct approach depends on the electrical design.

Information Gain: Grounding and Isolation Are Opposite Requirements

A standoff cannot be assumed to satisfy both grounding and insulation requirements.

The engineer should first identify whether the mounting point is intended to be:

Conductive

or

Electrically Isolated

This decision affects material selection, PCB layout and assembly design.

Engineering Challenge 10: EMI and EMC

Electronic enclosures may require electromagnetic compatibility.

However, self-clinching standoffs do not independently establish EMI shielding performance.

EMC behavior depends on the complete equipment design, including:

• Chassis bonding

• Cable routing

• Shielding

• Grounding

• Gaskets

• Panel interfaces

Fasteners may contribute to the system but should not be described as universal EMI solutions.

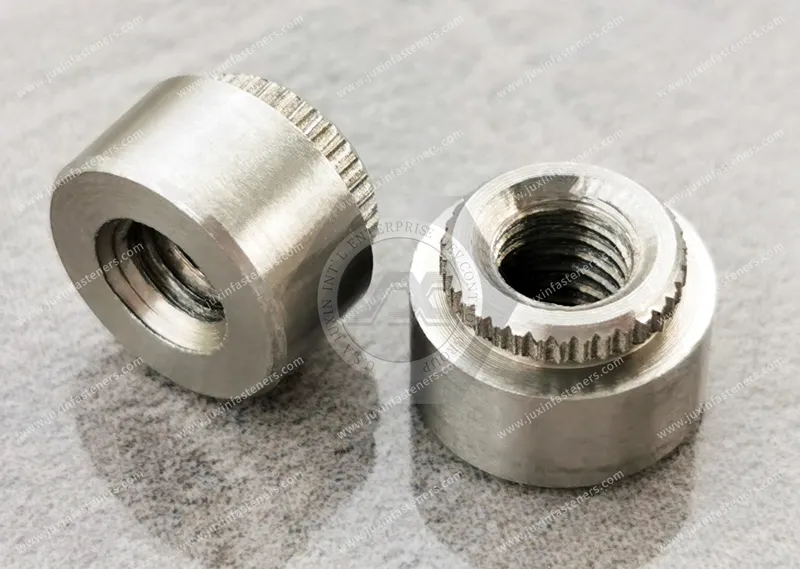

Through-Hole Self-Clinching Standoffs

Through-hole standoffs contain an opening extending through the component.

Depending on the design, the opening may be:

• Threaded

• Unthreaded

• Partially threaded

The term through-hole does not automatically mean that any screw can pass freely through the component from either direction.

The actual drawing must define the hole geometry.

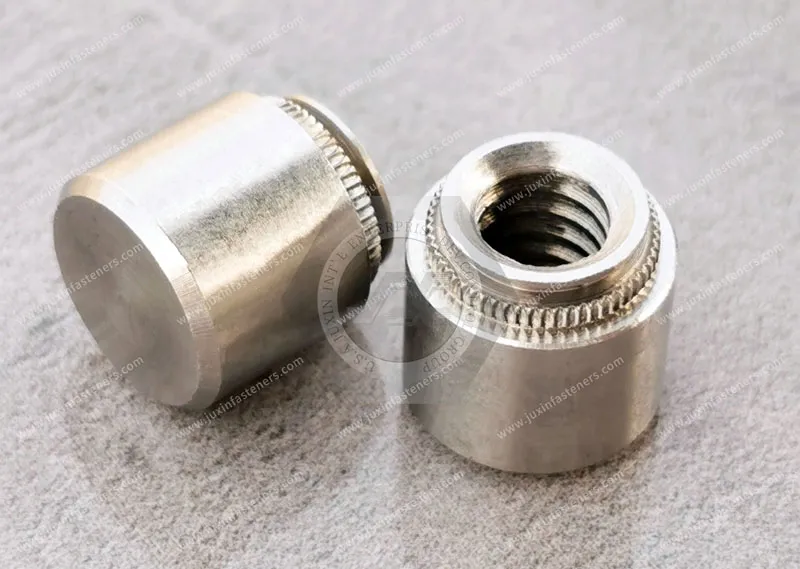

Blind Threaded Self-Clinching Standoffs

Blind threaded standoffs have an internal thread that does not pass completely through the component.

They may be selected where:

• Screw penetration must be limited

• A closed threaded end is required

• Internal clearance is restricted

However, a blind threaded standoff is not automatically a waterproof or pressure-tight component.

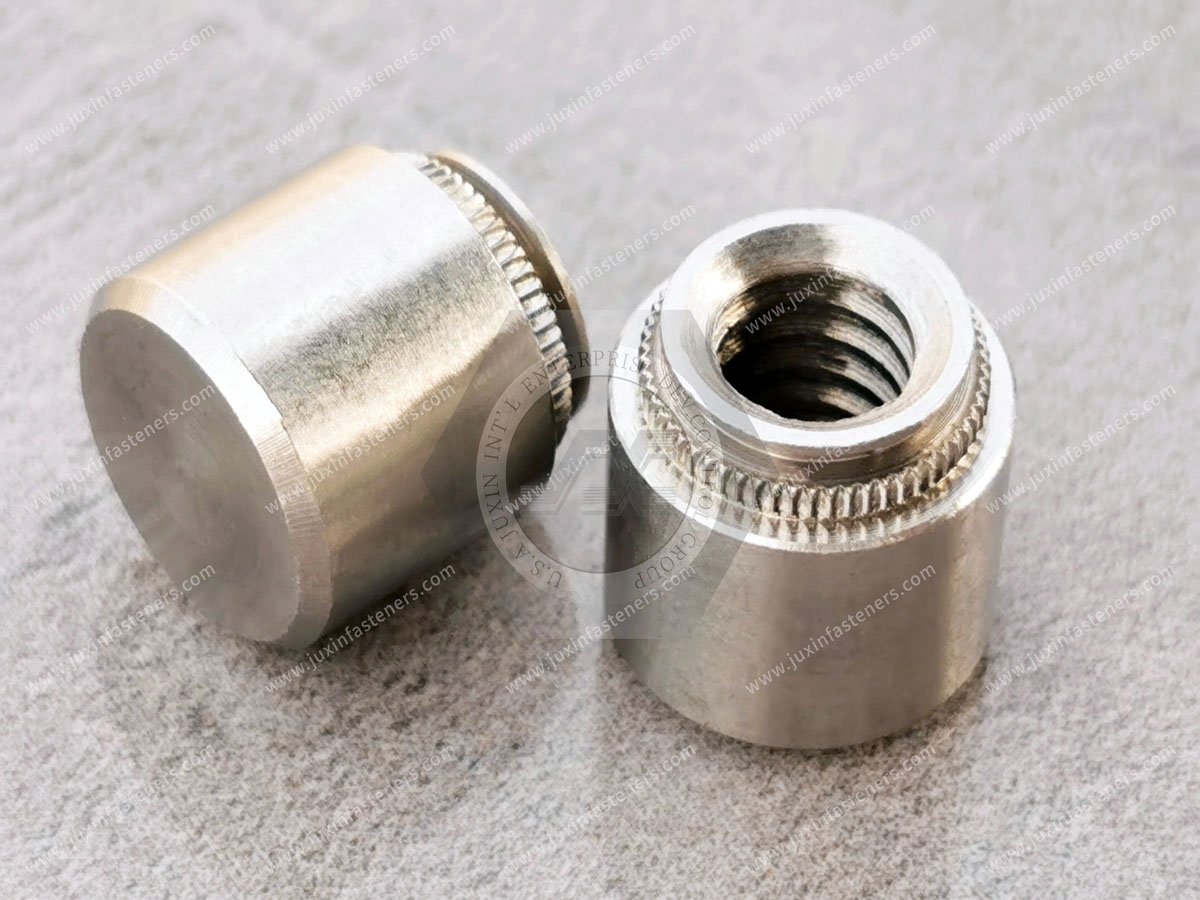

Information Gain: Blind Thread Does Not Mean Sealed Enclosure

A blind threaded standoff may close the threaded passage through the component.

But the installation interface between the standoff and the sheet metal may still allow leakage.

Therefore, enclosure sealing must be evaluated at the complete assembly level.

Where ingress protection is required, the OEM should specify the applicable enclosure requirement and validation method.

Unthreaded Self-Clinching Standoffs

Unthreaded standoffs provide spacing and a clearance opening rather than an internal thread.

They may be suitable for selected alignment or mounting applications.

The correct product depends on:

• Fastener arrangement

• Mounting direction

• Clearance

• Load

• Assembly sequence

Unthreaded and threaded standoffs should not be treated as interchangeable.

Carbon Steel Self-Clinching Standoffs

Carbon steel standoffs may be suitable for compatible sheet metal applications.

Selection should consider:

• Mechanical properties

• Fastener hardness

• Panel hardness

• Corrosion protection

• Installation requirements

The exact material and finish should follow the drawing.

Stainless Steel Self-Clinching Standoffs

Stainless steel may be considered for corrosion resistance.

However, stainless steel standoffs are not automatically suitable for stainless steel panels.

The material and hardness relationship must be reviewed.

The actual stainless steel grade should also be selected according to the service environment.

Information Gain: Corrosion Resistance and Clinching Compatibility Are Separate Requirements

A stainless steel standoff may offer useful corrosion resistance.

But it may not install correctly in a particular hard stainless steel sheet.

The engineer must satisfy both:

Environmental Compatibility

and

Mechanical Installation Compatibility

If the requirements conflict, another fastening architecture may be necessary.

Surface Finish Considerations

Potential finish requirements may include:

• Zinc-based coatings

• Zinc-nickel coatings

• Stainless steel passivation where appropriate

• Other customer-specified treatments

The selected finish should consider:

• Corrosion exposure

• Dimensional effects

• Thread fit

• Electrical contact

• Installation behavior

ASTM B117 may be used for specified salt spray testing, but results do not directly predict field service life.

Information Gain: Coating Can Affect Electrical Contact

A coating selected for corrosion protection may also affect the electrical interface.

For example, insulating surface layers can interrupt intended conductive contact.

Therefore, electrical bonding requirements should be considered during finish selection.

Self-Clinching Standoffs vs Loose Threaded Spacers

Neither solution is universally superior.

The correct choice depends on production volume, serviceability and panel design.

Self-Clinching Standoffs vs Welded Standoffs

Self-clinching standoffs use mechanical press installation.

Welded standoffs use a welding process.

The correct method depends on:

• Panel material

• Weldability

• Panel thickness

• Production process

• Required strength

• Surface finish

• Tooling access

Self-clinching installation avoids welding heat but may still introduce local mechanical deformation.

Self-Clinching Standoffs vs Self-Clinching Nuts

A self-clinching nut provides a permanent internal thread.

A self-clinching standoff provides a defined spacing height.

If a PCB requires separation from the chassis, a standoff may be more appropriate.

If the application only requires an internal thread in the panel, a clinch nut may be sufficient.

Self-Clinching Standoffs vs PCB Plastic Supports

Plastic PCB supports may provide spacing and retention without the same conductive behavior as metal standoffs.

Depending on the design, they may use:

• Snap-in features

• Push-in mounting

• Threaded attachment

• Other retention methods

Selection should consider:

• Electrical isolation

• Mechanical load

• Temperature

• Material behavior

• Serviceability

A plastic PCB support should not automatically be substituted for a metal self-clinching standoff.

Information Gain: Material Selection Can Change the Electrical Architecture

Replacing a metal standoff with a plastic support may remove an intended grounding path.

Replacing a plastic support with a metal standoff may create an unintended conductive path.

Therefore, material substitution requires both mechanical and electrical review.

Design for Manufacturability

Before finalizing the enclosure drawing, engineers should confirm:

• Panel material

• Panel hardness

• Panel thickness

• Installation hole

• Edge distance

• Standoff height

• Thread size

• Tooling access

• Installation force

• Surface finish

• Electrical requirements

The design should also account for nearby bends, ribs and other features that may interfere with installation tooling.

Information Gain: Installation Access Must Be Reviewed Before Panel Forming

A standoff may fit within the final enclosure.

However, the manufacturing process may not provide sufficient access for the installation press and support tooling after the panel is formed.

Therefore, the installation sequence should be reviewed before the sheet metal design is finalized.

Engineer Search Path: How to Select a Self-Clinching Standoff

Step 1: Define the Mounting Function

Is the standoff supporting a PCB, bracket or electronic module?

Step 2: Define the Required Height

Specify the functional spacing requirement.

Step 3: Confirm Panel Material

Identify the material and grade.

Step 4: Confirm Panel Hardness

Check compatibility with the standoff.

Step 5: Confirm Panel Thickness

Verify the minimum installation thickness.

Step 6: Define Installation Hole

Use the correct product-specific hole specification.

Step 7: Define Thread or Clearance Hole

Specify the required internal geometry.

Step 8: Define Mechanical Requirements

Consider push-out, torque-out and assembly loads.

Step 9: Define Electrical Requirements

Determine whether grounding or isolation is required.

Step 10: Validate the Assembly

Confirm installation, spacing and functional performance.

Procurement Search Path: What to Include in an RFQ

For accurate technical review and quotation, provide:

• Product drawing or reference specification

• Thread size

• Standoff height

• Outer dimensions

• Through-hole or blind-hole configuration

• Fastener material

• Panel material

• Panel hardness where available

• Panel thickness

• Installation hole diameter

• Surface finish

• Required push-out resistance

• Required torque-out resistance

• Electrical bonding or isolation requirements

• Prototype quantity

• Annual purchasing forecast

• Packaging requirements

• Required documentation

For custom standoffs, provide a 2D drawing and available 3D model.

Information Gain: Height-Matched Standoffs May Still Be Non-Interchangeable

Two standoffs may have the same:

• Thread size

• Nominal height

• Outer diameter

But differ in:

• Clinching geometry

• Installation hole

• Minimum sheet thickness

• Material hardness

• Installation force

• Retention performance

Therefore, alternative sourcing must verify installation compatibility.

Supplier Qualification and Alternate Sourcing

A practical OEM qualification process may follow:

Existing Part Review → Drawing Review → Panel Compatibility → Installation Hole Verification → Sample → Press Installation

→ Push-Out / Torque-Out Evaluation → PCB Assembly Test → Golden Sample Approval → Production

Where electrical bonding is required, the qualification process should also include the appropriate electrical verification.

Golden Sample Control

An approved sample should be linked to:

• Drawing revision

• Material specification

• Surface finish

• Critical dimensions

• Installation conditions

• Required functional results

This helps establish a controlled production reference.

Quality and Inspection Requirements

Depending on the project, inspection may include:

• Dimensional verification

• Thread inspection

• Standoff height measurement

• Material verification

• Surface finish inspection

• Installation evaluation

• Push-out testing

• Torque-out testing

• Electrical continuity testing where specified

Additional documentation, including EN 10204 inspection documents where applicable, should be agreed during RFQ review.

International Standards and Technical References

Depending on the actual product and application, relevant references may include:

• ISO metric thread specifications

• ASME/ANSI inch-thread specifications

• Applicable ISO or ASTM material specifications

• ISO 3506 series for relevant stainless steel fastener mechanical-property requirements within its scope

• ASTM B117 for specified salt spray testing

• EN 10204 for agreed inspection documentation

• Customer-specific standoff drawings and installation requirements

Self-clinching standoff geometry and retention performance are frequently controlled by product-specific specifications.

No universal ISO or DIN standard should be assumed to define every standoff design.

Custom Self-Clinching Standoffs for OEM Applications

Standard standoffs cover many electronic enclosure applications.

Custom requirements may include:

• Nonstandard height

• Special thread sizes

• Blind or through-hole geometry

• Restricted installation space

• Special materials

• Customer-specific retention requirements

• Special surface finishes

JUXIN FASTENERS can review drawing-based custom standoff requirements according to actual manufacturing feasibility.

Related JUXIN FASTENERS Engineering Solutions

Self-Clinching Standoffs for AI Server Chassis & Electronic Enclosures

A broader guide to self-clinching standoff selection for server chassis and electronic equipment.

AI Data Center Server Rack & Cabinet Fastening Solutions

An overview of fastening technologies for server racks, cabinets and data center infrastructure.

Self-Clinching Fasteners for Telecom Cabinets & AI Data Center Enclosures

Broader self-clinching fastener selection for thin sheet metal equipment.

Self-Clinching Nuts for Power Electronics & Sheet Metal Enclosures

Permanent internal threads for compatible sheet metal panels.

Nylon & Plastic Fasteners for Electronics, PCB Assemblies & Equipment Enclosures

Nonmetallic fastening and spacing solutions for selected electronic assemblies.

Captive Panel Fastening Solutions for Semiconductor Equipment & Robotic Enclosures

Retained hardware for serviceable equipment panels and industrial machinery.

These related solutions help engineers compare spacing, threading, electrical isolation and serviceability requirements.

Request a Self-Clinching Standoff Quotation

Are you sourcing self-clinching standoffs for:

• Telecom base station enclosures

• AI server chassis

• Data center equipment

• Network communication cabinets

• PCB mounting assemblies

• Power electronics cabinets

• Industrial control equipment

• Electronic module housings

JUXIN FASTENERS can review standard and drawing-based self-clinching standoff requirements for industrial OEM applications.

For an efficient technical review, send:

Drawing + Standoff Height + Thread Size + Panel Material + Panel Thickness + Installation Hole + Surface Finish + Quantity

If your project requires electrical grounding, isolation or special retention performance, include the relevant requirements.

The objective is to select a standoff that satisfies the actual mechanical and electrical assembly requirements—not merely one that matches the nominal height and thread size.

JUXIN FASTENERS

Website: www.juxinfasteners.com

Engineering & RFQ: info@juxinfasteners.com

Send your drawing and application requirements for technical review and quotation.

Packaging Standard

At Juxin Fasteners, we apply standardized export packaging to ensure product protection, traceability, and compliance with international logistics requirements.

1. Standard Export Packaging

Unless otherwise specified, all products will be packed according to our factory standard export packaging, which includes:

Moisture-resistant inner protection

Poly bag or small box packing as required

Reinforced export cartons

Clear labeling with part number, specification, batch number, and quantity

Palletizing for sea or air shipment when necessary

Our standard packaging is designed to ensure safe transportation, efficient warehousing, and long-distance international shipping.

2. Customized Packaging Options

We also provide customized packaging solutions according to customer requirements, including but not limited to:

Private labeling

Customized barcodes

Specific carton dimensions

Retail packaging

Special pallet configuration

Customer-specific marking and identification

So that you know, customized packaging may involve additional costs and extended lead time depending on the complexity of the requirements.

3. Compliance & Quality Assurance

All packaging processes are controlled under our ISO 9001 quality management system to ensure consistency, traceability, and product integrity throughout the supply chain.
