Industrial HVAC & Chiller Fasteners: Vibration-Resistant Mounting and OEM Hardware

Industrial HVAC systems, commercial chillers and precision cooling equipment depend on mechanical fasteners to secure compressor assemblies, support frames,

fan modules, condenser structures, access panels and electrical control enclosures.

These systems serve a wide range of applications, including commercial buildings, industrial process cooling, data centers, manufacturing facilities and large-scale refrigeration equipment.

Fastening requirements vary significantly within each system.

A bolt securing a compressor mounting bracket has different mechanical requirements from a self-clinching nut installed in a thin sheet metal control cabinet or a captive screw used on a gasketed service panel.

For mechanical and structural engineers, important considerations include joint loading, vibration, bolt preload, panel stiffness, material compatibility, corrosion exposure and thermal expansion.

Manufacturing engineers and production managers must also evaluate installation accessibility, assembly repeatability, tightening procedures, inspection efficiency and serviceability.

Procurement and supplier development teams need to assess standard and custom fastener availability, drawing conformity,

alternative sourcing, minimum order quantities, delivery planning and long-term supply arrangements.

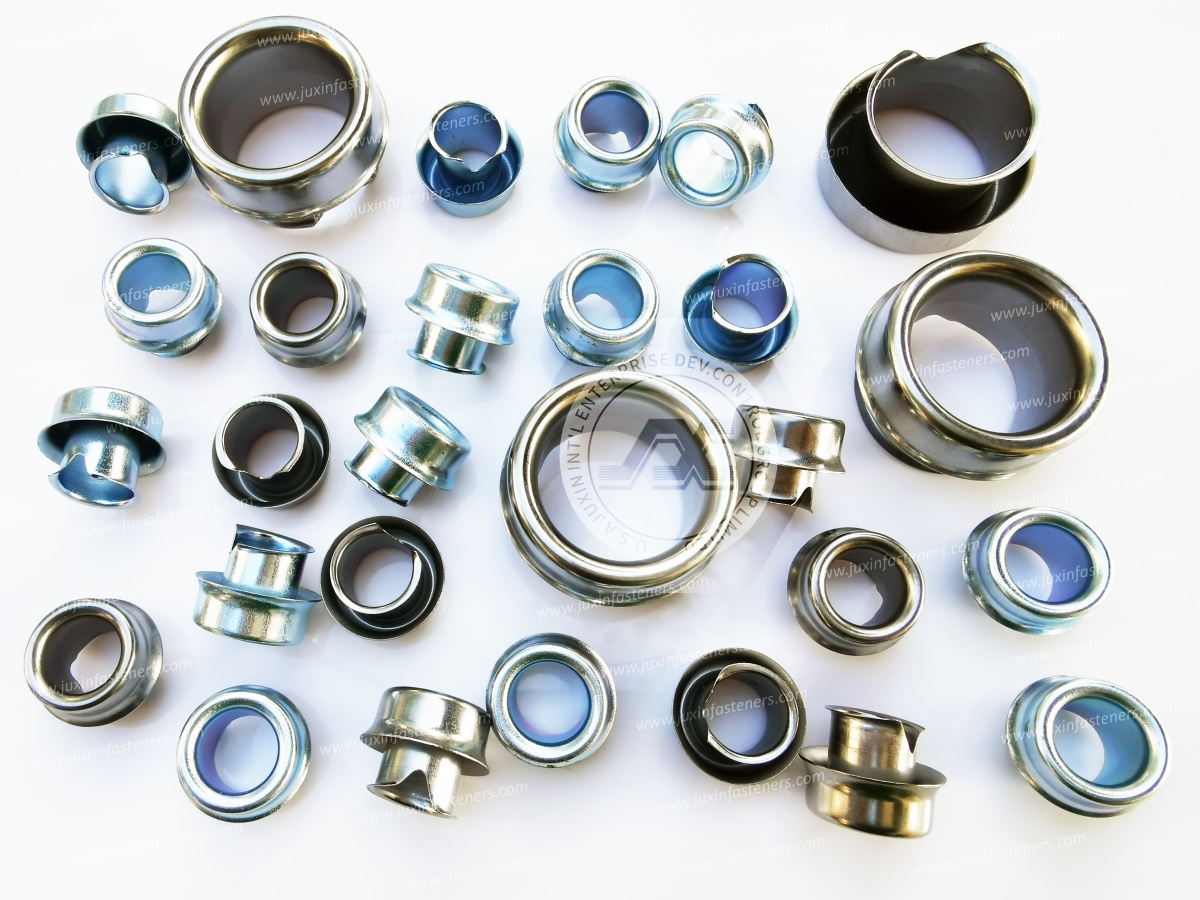

JUXIN FASTENERS supplies industrial bolts, machine screws, nuts, washers, prevailing-torque lock nuts, self-clinching fasteners, threaded standoffs,

captive hardware and drawing-based custom metal components for suitable industrial HVAC and cooling equipment applications.

This guide examines fastening selection for commercial chillers, precision air conditioning equipment, condenser units and related cooling machinery,

 with emphasis on vibration-resistant mounting, sheet metal joint design, corrosion protection and OEM sourcing.

Fastening Applications in Industrial HVAC and Chiller Equipment

Industrial cooling systems contain multiple fastening zones with different design requirements.

The appropriate fastener depends on the actual mechanical function.

A screw suitable for a lightweight cabinet panel should not automatically be used for a compressor mounting connection.

Chiller Compressor Mounting Bolts and Joint Stability

Industrial chillers may use different compressor technologies, including screw, scroll, reciprocating and centrifugal designs.

These systems generate different mechanical loads and vibration characteristics.

Fasteners securing compressor frames, motor brackets and associated supports must be selected according to the actual joint design.

Important factors include:

• Static equipment weight

• Dynamic loading

• Joint stiffness

• Bolt preload

• Grip length

• Mounting hole geometry

• Installation conditions

• Maintenance requirements

High-Strength Bolt Selection

For applicable metric carbon steel and alloy steel bolts, ISO 898-1 specifies mechanical property classes such as 8.8, 10.9 and 12.9.

Higher property classes provide higher specified mechanical strength, but they are not automatically preferable for every chiller mounting application.

The appropriate class depends on the required joint strength, preload, fatigue behavior, environmental exposure and installation conditions.

Engineering insight: Selecting a stronger bolt does not automatically correct joint movement caused by insufficient preload, bracket deformation or poor mounting geometry.

The complete connection must be evaluated.

Vibration Isolator Mounting and Fastener Selection

Industrial chillers and precision cooling equipment may use vibration isolators to reduce transmission of mechanical vibration.

These may include elastomeric mounts, spring isolators or other engineered mounting arrangements.

Fasteners securing isolators must be selected according to the actual load path and isolator design.

Static and Dynamic Loads

The mounting assembly must accommodate the relevant equipment loads.

Installation Geometry

Fastener length, washers, mounting holes and bracket thickness can influence installation.

Isolation Performance

Overtightening or incorrect assembly may interfere with the intended isolator function in certain designs.

Engineering insight: A vibration isolator changes how loads are transmitted through the mounting structure.

The fastener should be evaluated as part of the complete mounting system rather than as an isolated component.

Vibration-Resistant Lock Nuts for HVAC Equipment

Fans, compressors and associated rotating equipment may generate vibration.

Where rotational loosening is a concern, suitable locking arrangements may be considered.

Potential options include:

• All-metal prevailing-torque lock nuts

• Nylon-insert lock nuts where appropriate

• Properly designed preloaded joints

• Application-specific locking methods

All-Metal Prevailing-Torque Lock Nuts

All-metal prevailing-torque lock nuts use a mechanical locking feature to resist rotation.

Depending on the product design, ISO 7042 and related specifications may apply.

They may be considered for selected compressor support brackets, fan mounting structures and auxiliary equipment connections.

Prevailing Torque vs. Joint Preload

Prevailing torque is the resistance generated by a locking feature during thread engagement.

Joint preload is the clamping force holding the assembly together.

These are different characteristics.

Engineering insight: A locking nut may resist rotational loosening but cannot independently prevent preload loss caused by joint settlement, thermal effects or component deformation.

Correct joint design and installation remain essential.

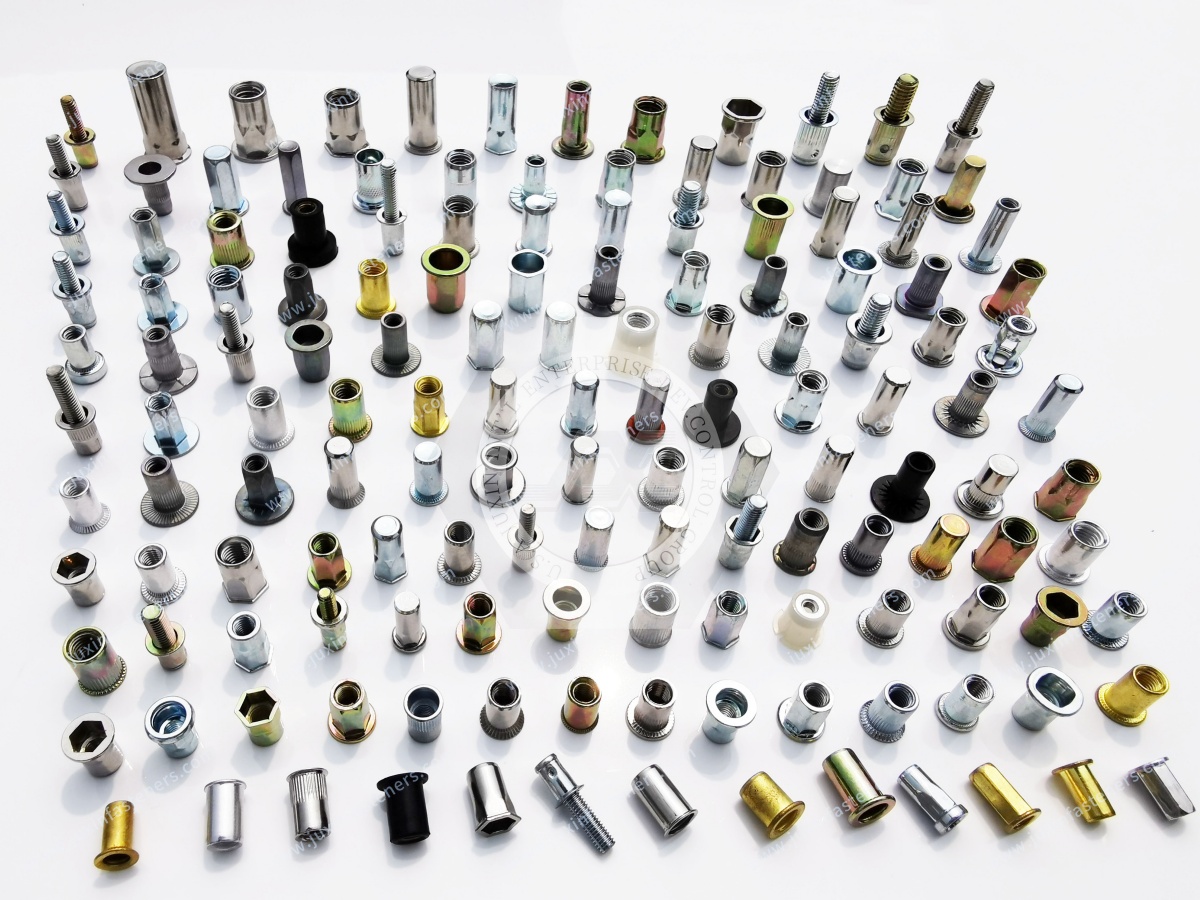

Thin Sheet Metal Fastening in Precision Cooling Cabinets

Precision air conditioning equipment and industrial HVAC enclosures often use formed sheet metal panels.

Potential materials include galvanized steel, coated carbon steel, stainless steel and aluminum.

The appropriate fastening method depends on:

• Panel thickness

• Panel hardness

• Hole geometry

• Joint loading

• Required service life

• Assembly sequence

• Maintenance access

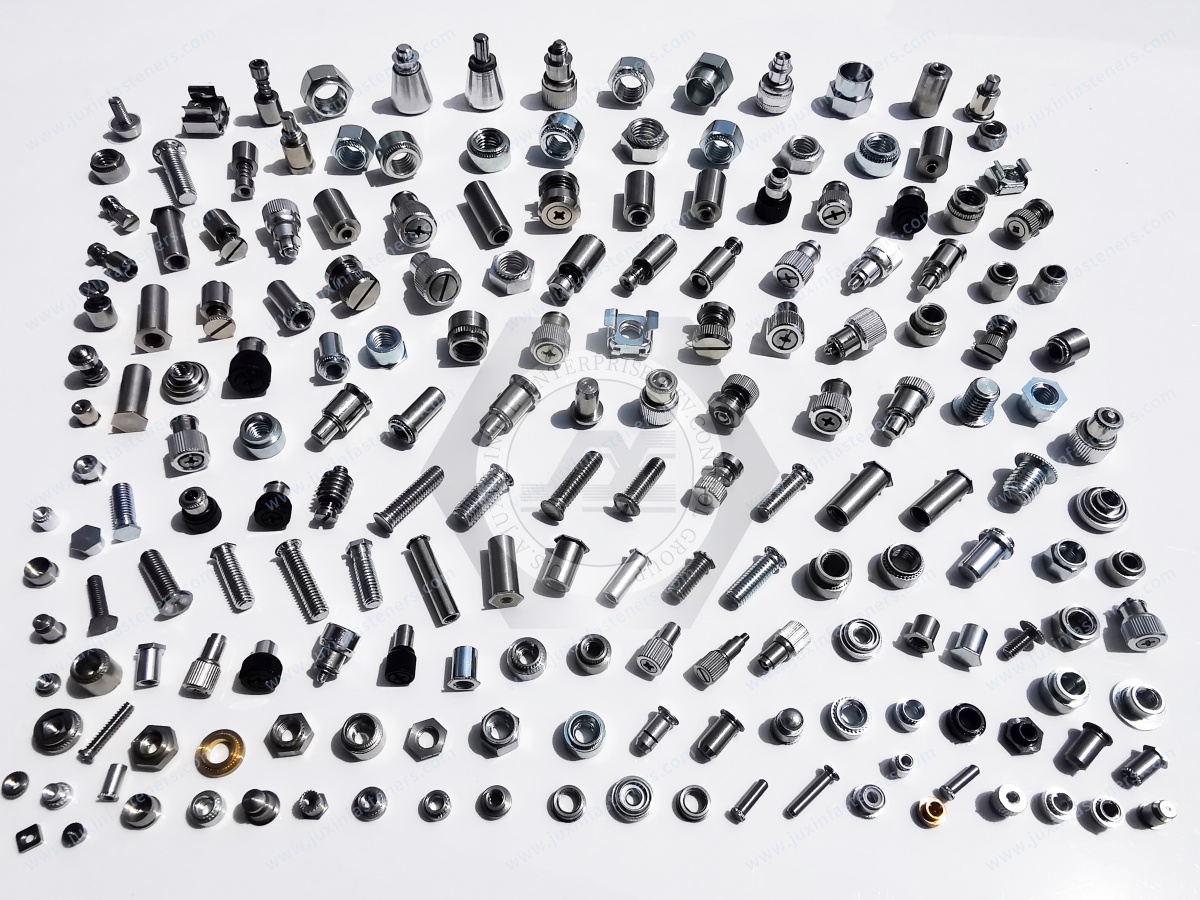

Self-Clinching Nuts

Self-clinching nuts can provide reusable internal threads in suitable sheet metal.

Their installation depends on the selected fastener design and the relationship between panel thickness, hardness and hole dimensions.

Self-Clinching Studs

Self-clinching studs may provide fixed mounting points for internal brackets and equipment modules.

Threaded Standoffs

Threaded standoffs may support electrical modules, control boards and other enclosure components.

Direct Thread-Forming Screws

Thread-forming screws may be considered for certain sheet metal connections.

Their suitability depends on the substrate, screw geometry, hole preparation and expected maintenance frequency.

Engineering insight: Thin sheet metal fastening should not be selected solely by nominal screw diameter.

Panel thickness, hardness, joint loading and the number of expected assembly cycles can determine whether direct threading or a separate threaded attachment point is more appropriate.

Self-Clinching Fasteners: Installation Limits and Design Considerations

Self-clinching fasteners are commonly associated with sheet metal assembly, but they are not universally suitable for every panel.

Important design considerations include:

• Minimum panel thickness

• Maximum panel hardness

• Installation hole diameter

• Edge distance

• Fastener geometry

• Installation force

• Push-out resistance

• Torque-out resistance

Galvanized Sheet Metal

Some galvanized steel panels may be suitable for self-clinching fasteners, depending on the material properties and fastener design.

However, coating condition, panel hardness and installation requirements must be evaluated.

Stainless Steel Panels

Certain stainless steel panels may require fastener designs specifically intended for harder sheet materials.

Engineering insight: A self-clinching fastener that performs well in mild steel may not provide equivalent retention in a harder stainless steel panel.

The OEM should verify installation compatibility and retention requirements before approving an alternative product.

Gasket Compression and HVAC Enclosure Air Leakage

Industrial HVAC equipment may use gaskets to reduce air leakage, moisture ingress or unwanted airflow between enclosure sections.

Fasteners may help maintain the mechanical clamping needed for these sealing arrangements.

However, airtightness depends on the complete joint design.

Relevant factors include:

• Gasket material

• Gasket thickness

• Compression characteristics

• Panel flatness

• Fastener spacing

• Joint stiffness

• Installation procedure

• Operating pressure difference

Insufficient Compression

Insufficient compression may allow leakage through the joint.

Excessive Compression

Excessive tightening may deform thin sheet metal or overcompress the gasket.

Uneven Fastener Spacing

Inadequate spacing or poor panel stiffness may produce nonuniform compression.

Engineering insight: A fastener cannot independently guarantee an airtight or watertight HVAC enclosure.

The gasket, panel geometry, clamping arrangement and complete assembly must be evaluated together.

For demanding applications, the equipment manufacturer should define the required enclosure or air leakage testing.

Captive Panel Screws for HVAC Maintenance Access

Industrial chillers and precision cooling systems may require periodic inspection and servicing.

Access panels may provide entry to filters, fans, controls and other equipment components.

Captive panel screws remain retained in the panel when disengaged from the mating thread.

Potential benefits include:

• Reduced loose-part handling

• Easier access during maintenance

• Simplified panel removal and reinstallation

• Improved service workflow

However, captive retention does not automatically establish sealing, vibration resistance or structural load capacity.

Engineering insight: Serviceable panel fasteners should be selected according to maintenance frequency, panel thickness, retention requirements and gasketed joint design.

Corrosion Protection for Outdoor Chillers and Condenser Units

Outdoor cooling equipment may be exposed to rain, humidity, condensation, airborne contaminants and temperature changes.

Potential material and coating options include:

• Zinc-plated carbon steel

• Zinc-nickel-coated steel where specified

• Zinc-flake coating systems

• Stainless steel

• Customer-specified protective finishes

Zinc-Nickel Coatings

Zinc-nickel coatings may be considered for selected steel fasteners requiring corrosion protection.

Performance depends on the coating system, thickness, passivation and test conditions.

Zinc-Flake Coatings

Zinc-flake systems may be suitable for selected industrial fasteners.

For susceptible high-strength steel components, coating selection should consider hydrogen embrittlement risk.

Stainless Steel Fasteners

Stainless steel may be suitable for selected outdoor cooling equipment applications.

Applicable parts of ISO 3506 define mechanical properties for relevant stainless steel fasteners.

However, stainless steel should not automatically replace high-strength carbon steel bolts without mechanical evaluation.

Salt Spray Testing

ASTM B117 defines a laboratory salt spray test method.

It can support evaluation of specified coating systems.

However, salt spray hours do not directly predict service life in actual outdoor HVAC environments.

Engineering insight: Outdoor exposure, coastal conditions and internal condensation can create different corrosion environments within the same cooling equipment system.

Material and coating selection should reflect the actual fastener location.

Condensation, Thermal Cycling and Mixed-Material Joints

Industrial cooling equipment may experience condensation and temperature changes.

Some assemblies combine steel fasteners, aluminum structures, copper components and polymer materials.

These materials have different thermal expansion characteristics.

Potential concerns include:

• Differential thermal expansion

• Joint relaxation

• Moisture accumulation

• Galvanic corrosion

• Coating damage

• Changes in installation friction

Internal vs. External Exposure

A fastener exposed to external rain may require different protection from one located inside a temperature-controlled enclosure.

Mixed-Metal Contact

Dissimilar metals may contribute to galvanic corrosion when electrically connected in the presence of a suitable electrolyte.

The actual risk depends on the materials, exposure conditions and joint design.

Engineering insight: The presence of condensation does not automatically mean every fastener in the equipment requires the same material or protective coating.

A location-based specification can improve both technical suitability and purchasing efficiency.

Custom Fasteners for Industrial HVAC OEMs

Standard catalog fasteners may not satisfy every cooling equipment design.

Drawing-based custom hardware may be required for:

• Special screw lengths

• Modified head geometry

• Custom threaded studs

• Precision shoulders

• Special nuts

• Drawing-specific washers

• Custom mounting pins

• Controlled-length spacers

• Equipment bracket components

JUXIN FASTENERS supports drawing-based inquiry review for industrial fastening components.

Manufacturing feasibility depends on material, geometry, tolerances and production quantity.

Cold Forming

Cold forming may be appropriate for selected fastener geometries and production volumes.

CNC Machining

CNC machining may be appropriate for complex geometries, controlled shoulders and drawing-specific features.

Some components may require a combination of forming and secondary machining.

Engineering insight: Custom fastener drawings should distinguish critical functional dimensions from noncritical features.

Unnecessarily restrictive tolerances can increase manufacturing cost without improving equipment reliability.

Manufacturing Efficiency in HVAC and Chiller Assembly

Production managers and manufacturing engineers must balance mechanical performance with assembly speed, repeatability and cost.

Installation Accessibility

Cooling equipment frames and cabinets may contain restricted mounting locations.

Fastener head geometry and tool clearance should be considered during design.

Assembly Sequence

Self-clinching fasteners may be installed during sheet metal fabrication before final equipment assembly.

This can reduce loose-part handling during later production stages.

Torque Control

Installation procedures should be appropriate for the actual fastener, coating and joint.

Maintenance

Cooling equipment may require periodic servicing.

The OEM should define when fasteners may be reused and when replacement is required.

Total Assembly Cost

Fastener unit price is only one part of total manufacturing cost.

Installation labor, inspection, rework, maintenance and supply continuity should also be considered.

International Standards and Technical Requirements

Applicable standards depend on the specific fastener and equipment application.

Custom mounting hardware and specialized cooling equipment components may require drawing-specific dimensions and functional validation.

Metric, UNC, UNF and other thread systems must be treated as separate specifications.

OEM Supplier Qualification and Alternative Sourcing

Industrial HVAC manufacturers may seek alternative suppliers for bolts, nuts, washers, locking hardware, self-clinching fasteners and custom components.

Supplier qualification should consider both technical conformity and commercial supply requirements.

Material Traceability and Inspection Documents

Some industrial HVAC equipment projects require material inspection documentation under EN 10204.

The specific document type should be identified during procurement.

An EN 10204 3.1 inspection certificate should not be assumed for every standard industrial fastener.

Where required, documentation availability and traceability requirements must be confirmed before order acceptance.

Alternative Sourcing: Functional Equivalence Matters

Two fasteners with the same nominal dimensions may differ in:

• Material grade

• Mechanical properties

• Head geometry

• Grip length

• Thread position

• Coating thickness

• Installation friction

• Locking characteristics

For demanding cooling equipment applications, dimensional similarity alone does not establish functional equivalence.

The OEM should define the required validation and approval procedures.

Request Industrial HVAC and Chiller Fasteners

JUXIN FASTENERS supports OEM sourcing and drawing-based technical review for industrial fasteners used in suitable HVAC and cooling equipment applications.

For commercial chillers, precision air conditioning systems, CRAC and CRAH units, condenser equipment and industrial cooling machinery, please provide:

• 2D drawings and available 3D models

• Fastener type and thread specification

• Material and mechanical property requirements

• Joint loading and installation conditions

• Panel thickness and hardness where applicable

• Required surface treatment

• Inspection and testing requirements

• Prototype quantity and annual forecast

• Packaging and delivery requirements

For gasketed enclosures or vibration-sensitive compressor mounts, please also identify the applicable assembly requirements and validation criteria.

Our team can review the supplied information to discuss suitable standard and custom fastening options and quotation feasibility.

Website: www.juxinfasteners.com

OEM Technical Review & RFQ: info@juxinfasteners.com

Send your drawings and purchasing requirements to discuss fastening solutions for your next industrial HVAC or chiller equipment project.

Related JUXIN FASTENERS Engineering Solutions

• HVAC Sheet Metal Fasteners & Vibration-Resistant Hardware for Commercial Air Handling Units — sheet metal fastening for AHU enclosures.

• Industrial Compressor Fasteners & Vibration-Resistant Hardware for Pneumatic Equipment — compressor mounting and mechanical joint design.

• Data Center Liquid Cooling Fasteners: Cold Plate Mounting & OEM Thermal Hardware — fastening for liquid-cooled server equipment.

• All-Metal Prevailing-Torque Lock Nuts for High-Vibration Industrial Assemblies — vibration-resistant mechanical fastening.

• Custom Cold-Headed Fasteners & Special Formed Parts for Industrial OEMs — drawing-based custom fastener sourcing.

These related topics provide additional guidance on industrial equipment mounting, sheet metal assembly, vibration-resistant hardware and OEM supplier qualification.
