DIN985 Aluminum Nylon Self-Locking Nuts for Aerospace Applications | Lightweight High-Reliability Anti-Loosening Fastener Solution Introduction: Critical Fastener Reliability in Aerospace Engineering

DIN985 Aluminum Nylon Self-Locking Nuts for Aerospace Applications | Lightweight High-Reliability Anti-Loosening Fastener Solution

Introduction: Critical Fastener Reliability in Aerospace Engineering

In aerospace manufacturing, every fastening point is a safety-critical interface. Under continuous flight vibration, thermal cycling, and mechanical stress, traditional fasteners face a persistent risk of loosening, which can compromise structural integrity and operational safety.

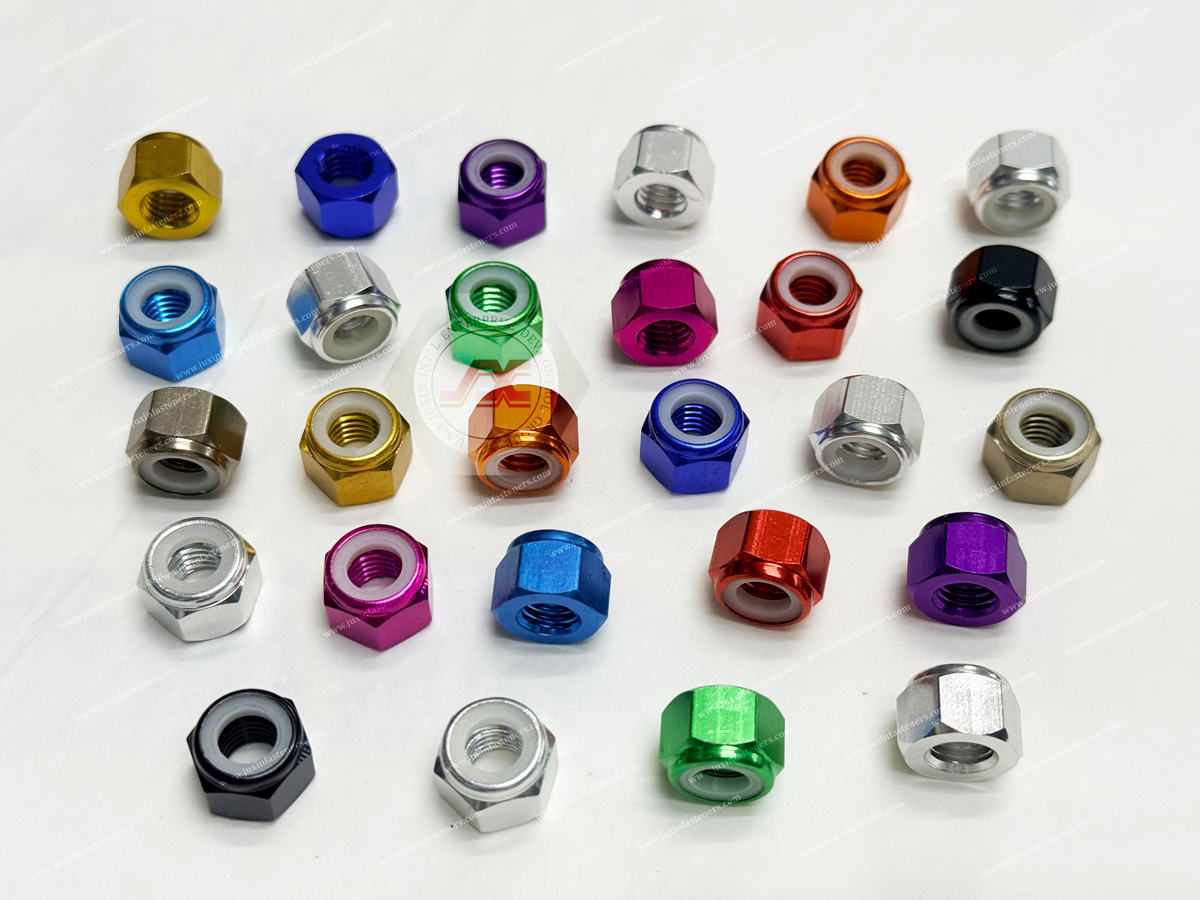

DIN985 Aluminum Nylon Self-Locking Nuts provide a proven aerospace-grade anti-loosening solution. Engineered with a lightweight aluminum alloy body and a high-performance nylon 6/6 insert, these aluminum-nylon self-locking nuts deliver stable prevailing torque while significantly reducing overall system weight.

They are widely used in aircraft structures, interior assemblies, and onboard equipment mounting systems, where reliability and weight optimization are equally critical.

1. Engineering Principle of DIN985 Aluminum Nylon Self-Locking Nuts

The DIN985 Aluminum Nylon Self-Locking Nut is an effective torque-type anti-loosening fastener designed for high-vibration aerospace environments.

Structural Design Concept

Each nut consists of:

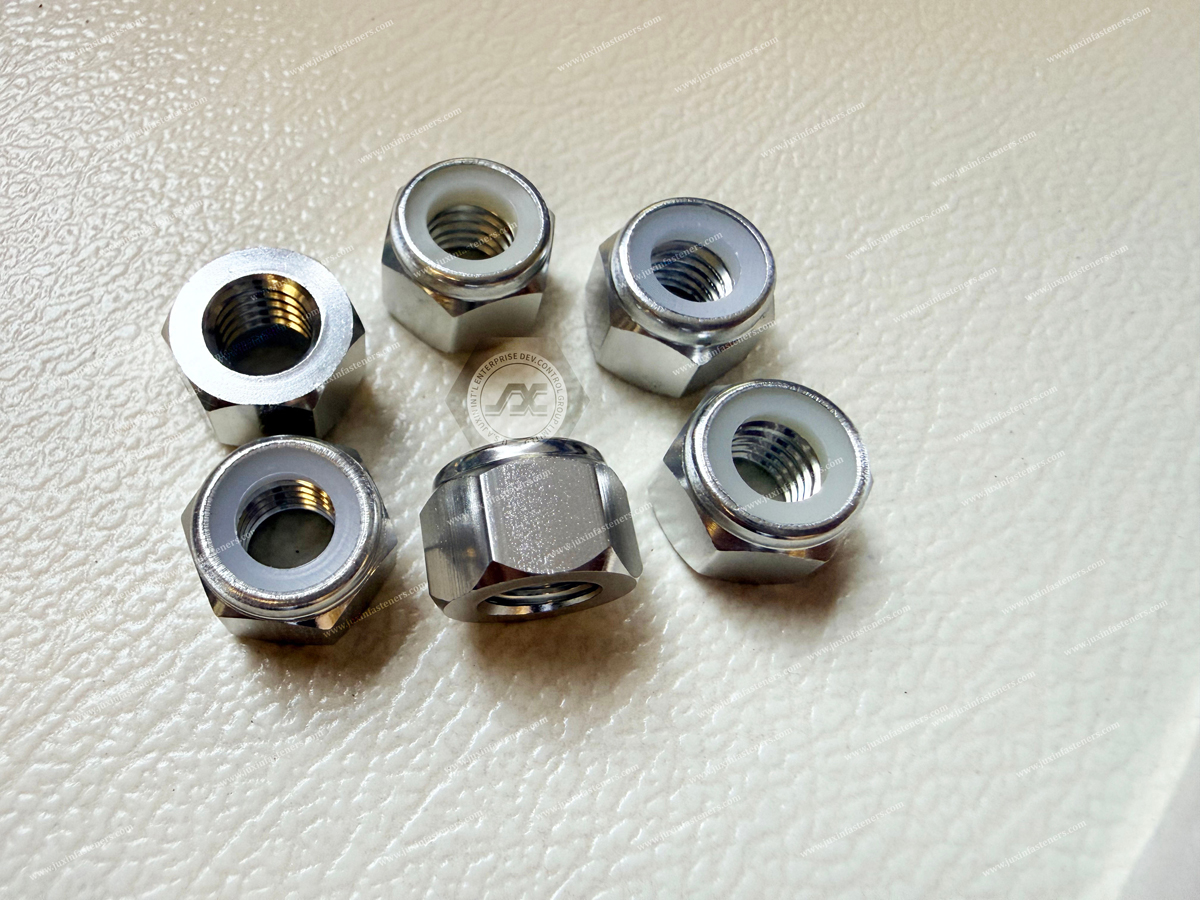

• A precision-machined aluminum alloy body

• A non-metallic nylon 6/6 insert ring embedded at the top thread section

The aluminum body provides structural strength and light weight, while the nylon insert provides self-locking.

Anti-Loosening Mechanism

When the bolt is tightened:

• The bolt threads compress the nylon insert

• The nylon undergoes controlled elastic deformation

• Continuous radial pressure is generated on the thread flanks

• Frictional resistance prevents rotational loosening

This mechanism is classified as friction-based prevailing torque locking, ensuring stable joint integrity under continuous vibration and impact loads.

 2. Key Performance Characteristics in Aerospace Applications

The performance of aluminum nylon self-locking nuts (DIN985 standard) is defined by strict engineering parameters:

2.1 Operating Temperature Range

• Standard range: -50°C to +100°C

• Short-term tolerance: up to +120°C

This makes them suitable for most aircraft structural and interior environments, excluding extreme high-temperature zones such as engine exhaust systems.

 2.2 Exceptional Anti-Vibration Performance

• Vibration service life is several to tens of times longer than conventional locking nuts

• Significantly reduces risk of loosening under continuous flight      vibration

• Improves overall structural connection reliability

 2.3 Reusability Limitation

• Nylon insert performance degrades with repeated use

• Recommended reuse cycle: maximum 3–5 installations

• Critical aerospace joints require replacement during      maintenance cycles

 3. Aerospace Application Scenarios

The DIN985 Aluminum Nylon Self-Locking Nut is widely used in non-extreme aerospace environments where lightweight and reliability are both required.

3.1 Aircraft Structural Assemblies

• Fuselage secondary structures

• Lightweight frame connections

• Non-critical load-bearing joints

These applications benefit from stable torque retention under long-term vibration.

 3.2 Interior Panel Systems

• Cabin interior panel fastening

• Seat frame assemblies

• Decorative structural components

Here, weight reduction and ease of maintenance are key advantages.

 3.3 Avionics and Onboard Equipment Mounting

• Electronic equipment housings

• Sensor mounting brackets

• Control module fixation points

The aluminum body helps reduce total system mass while maintaining reliable fastening performance.

 3.4 Hybrid Fastening Systems

In advanced aerospace assemblies, DIN985 aluminum nylon self-locking nuts are often used alongside:

• High-lock bolts

• Precision aerospace fasteners

• Redundant locking systems

This combination enhances overall system reliability.

4. Core Advantages in Aerospace Manufacturing

4.1 High Reliability and Flight Safety

The pre-applied prevailing torque design significantly reduces loosening risk under:

• Continuous vibration

• Pressure fluctuations

• Dynamic structural loading

Field engineering data shows that properly applied systems can reduce vibration-induced loosening failure rates by over 85%.

 4.2 Significant Lightweight Optimization

Compared with all-steel locking nuts:

• Aluminum alloy structure provides substantial weight reduction

• Supports aerospace lightweight engineering requirements

• Contributes to fuel efficiency and payload optimization

 4.3 Simplified Assembly and Lower Lifecycle Cost

• No need for washers, locking wires, or cotter pins

• Faster assembly in production environments

• Reduced maintenance complexity

In many aerospace applications, the total system cost is lower than that of conventional nut-and-washer locking solutions.

 5. Industry Standards and Quality Control Requirements

To ensure aerospace-grade reliability, DIN985 aluminum nylon self-locking nuts must comply with strict international and aviation standards.

5.1 Key Standard Reference

• Aviation aluminum alloy floating self-locking nuts with MJ threads)

This standard defines:

• Material composition requirements

• Structural design specifications

• MJ thread parameters used in aerospace systems

• Self-locking performance criteria

• Vibration and torque testing methods

It provides a unified engineering baseline for consistent aerospace quality.

 5.2 Critical Engineering Torque Parameters

Two key performance metrics must be strictly controlled:

• Self-locking torque: resistance during initial thread engagement

• Prevailing locking torque: final torque required to secure the joint

Proper installation ensures:

• Effective anti-loosening performance

• No thread damage or over-stressing

 6. Comparison with Other Aerospace Anti-Loosening Methods

6.1 Mechanical Locking (Cotter Pins / Safety Wire)

• Extremely high reliability

• Complex installation and maintenance

• Time-consuming assembly process

6.2 Spring Washers

• Limited performance under high vibration

• Gradual loss of elastic force over time

6.3 Metal Lock Nuts

• Suitable for high-temperature environments

• Higher installation torque requirement

• Less effective in continuous vibration conditions

 6.4 Engineering Position of DIN985 Aluminum Nylon Self-Locking Nuts

Aluminum nylon self-locking nuts provide the best balance of:

• Lightweight design

• Vibration resistance

• Assembly efficiency

• Lifecycle cost optimization

 7. Engineering Selection and Maintenance Guidelines

To ensure optimal performance in aerospace applications:

Selection Considerations:

• Confirm operating temperature zone

• Evaluate vibration intensity and frequency

• Match thread specification (including MJ aerospace threads)

• Verify material compatibility with mating structures

Maintenance Recommendations:

• Replace after 3–5 disassembly cycles

• Avoid reuse in critical load-bearing joints

• Conduct torque verification during scheduled inspections

Conclusion: Lightweight Safety-Critical Fastening for Aerospace Systems

DIN985 Aluminum Nylon Self-Locking Nuts represent a highly optimized aerospace fastening solution combining:

• Lightweight aluminum alloy engineering

• Nylon 6/6 prevailing torque locking technology

• Proven anti-vibration performance

• Compliance with aerospace industry standards

As aerospace engineering continues to prioritize safety, weight reduction, and maintainability, these aluminum-nylon self-locking nuts remain a critical component of modern aircraft design and assembly systems.

For aerospace OEMs, procurement engineers, and structural designers, selecting certified DIN985 aluminum-nylon self-locking nuts ensures long-term reliability, reduces maintenance risk, and optimizes system performance under demanding flight conditions.
