DIN985 Carbon Steel Nylon Self-Locking Nuts for Lighting Equipment Manufacturing | Reliable Anti-Loosening Fastener Solution

DIN985 Carbon Steel Nylon Self-Locking Nuts for Lighting Equipment Manufacturing | Reliable Anti-Loosening Fastener Solution

Introduction: Stable Fastening for High-Performance Lighting Systems

In lighting equipment manufacturing, structural stability and electrical reliability are critical to performance and safety. Whether in stage lighting systems, film and television lighting rigs, automotive lighting modules, or large-scale outdoor installations, fastener loosening due to vibration, transport impacts, and thermal cycling is a common engineering challenge.

DIN985 carbon steel nylon self-locking nuts provide a proven and cost-effective solution to this issue. As high-performance carbon steel nylon self-locking nuts, they integrate a durable carbon steel body with a nylon 6/6 insert, delivering reliable anti-loosening performance in dynamic lighting environments.

1. Working Principle of DIN985 Carbon Steel Nylon Self-Locking Nuts

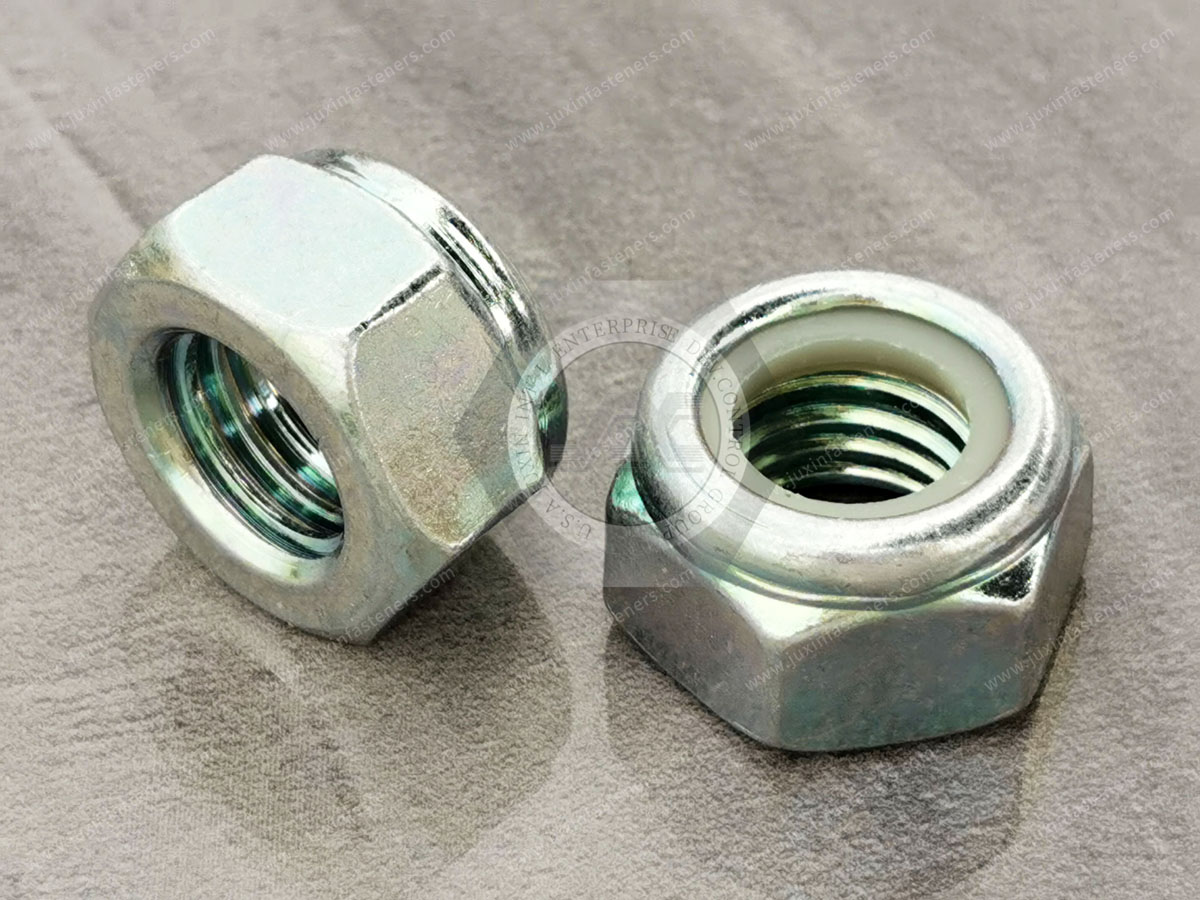

The core of DIN985 nylon self-locking nuts is the prevailing torque locking mechanism created by the nylon insert.

Structure:

• Carbon steel nut body (high strength, cost-efficient)

• Nylon 6/6 insert embedded at the thread top

Function:

When tightening the bolt:

• The bolt compresses the nylon insert

• Elastic deformation occurs in the nylon material

• Continuous radial pressure is generated

• Frictional resistance increases significantly

• Vibration-induced loosening is effectively prevented

This makes carbon steel nylon self-locking nuts DIN985 highly suitable for lighting systems exposed to frequent movement and vibration.

 2. Core Advantages in Lighting Equipment Applications

2.1 Excellent Anti-Loosening and Vibration Resistance

Lighting systems often experience:

• Continuous vibration from motors and moving heads

• Transport shocks in rental lighting systems

• Wind-induced movement in outdoor installations

DIN985 carbon steel nylon self-locking nuts provide:

• Vibration life is several to tens of times longer than standard      nuts

• Stable preload retention over long-term operation

• Reduced risk of optical misalignment or mechanical failure

 2.2 Wide Operating Temperature Adaptability

• Nylon insert working range: -50°C to +100°C

• Short-term tolerance up to +120°C

• Suitable for most LED lighting, stage lighting, and outdoor      lighting environments

 2.3 Carbon Steel Strength and Cost Efficiency

The carbon steel body provides:

• High mechanical strength for structural loads

• Excellent cost-performance ratio for mass production

• Compatibility with various surface treatments (zinc plating,      black coating, etc.)

This makes it ideal for OEM lighting manufacturers and large-scale production.

 2.4 Additional Electrical and Assembly Benefits

• Nylon insert provides partial insulation

• Reduces micro-electrochemical corrosion between threads

• Helps improve assembly stability in electronic lighting systems

• Compatible with automated tightening systems

 3. Application Solutions in Lighting Equipment Manufacturing

3.1 Optical Module and Precision Component Fixing

Used in:

• Lens assemblies

• Reflectors

• Color wheels and gobos

• Motor-driven optical systems

Engineering Benefit:

• Prevents optical misalignment due to micro-vibration

• Maintains beam accuracy and projection stability

• Ensures consistent lighting performance in professional      environments

 3.2 Structural Frames and Housing Assembly

Used for:

• Lighting housings

• Heat sink structures

• Hanging brackets and truss connectors

• Moving head lamp arms

Benefits of DIN985 carbon steel nylon self-locking nuts:

• Prevents structural loosening during long-term operation

• Enhances safety in suspended lighting systems

• Improves mechanical durability in touring lighting rigs

 3.3 Electrical Modules and PCB Installation

Used in:

• Power supply modules

• Control boards

• Cooling fans

• Driver circuits

Benefit:

• Nylon insulation reduces short-circuit risk

• Maintains stable mounting under vibration

• Improves reliability of electronic lighting systems

 3.4 Automotive and Mobile Lighting Systems

Used in:

• Automotive headlights and tail lamps

• Stage lighting trucks

• Portable lighting systems

Benefit:

• High resistance to road vibration and shock

• Suitable for automated assembly lines

• Ensures stable performance under continuous motion

 4. Engineering Selection and Installation Guidelines

4.1 Standard Compliance

For reliable performance, DIN985 carbon steel nylon self-locking nuts should meet:

• DIN 985 / DIN EN ISO 7040 standards

• ISO 7041 compatibility where applicable

• Metric thread range: M3–M36

 4.2 Strength Grade Selection

Typical grades include:

• Grade 5 / 8 / 9 / 10 (based on load requirements)

• Higher grades recommended for structural lighting systems

 4.3 Reusability Control

• Recommended reuse: 3–5 times maximum

• Nylon insert loses elasticity after repeated tightening

• Critical lighting installations should use scheduled replacement

 4.4 Installation Best Practices

• Dry installation recommended (no lubrication)

• Ensure clean and undamaged bolt threads

• Use torque-controlled tightening tools

• Fully engage the nylon insert during the tightening cycle

Proper installation ensures maximum locking performance.

 5. Comparison with Alternative Fastening Methods

5.1 Compared to Spring Washers

• Spring washers lose elasticity over time

• Require additional components

• Less effective under continuous vibration

DIN985 carbon steel nylon self-locking nuts integrate locking into one component, improving reliability and assembly efficiency.

 5.2 Compared to Ordinary Nuts + Washers

• More assembly steps required

• Higher risk of incorrect installation

• Lower vibration resistance

Nylon self-locking nuts simplify production and improve consistency.

 5.3 Compared to All-Metal Lock Nuts

• All-metal nuts perform better in high-temperature environments

• Carbon steel nylon nuts provide better insulation and smoother torque characteristics

• More suitable for electronic and lighting systems

 6. Supply Chain and Quality Considerations

High-quality carbon steel nylon self-locking nuts DIN985 should ensure:

• Stable nylon 6/6 insert quality

• Accurate thread tolerances

• Consistent prevailing torque performance

• Reliable surface coating (zinc or anti-corrosion finish)

• Compliance with international fastening standards

Conclusion: A Reliable Fastening Solution for Modern Lighting Systems

DIN985 Carbon Steel Nylon Self-Locking Nuts are a widely adopted engineering solution in lighting equipment manufacturing, offering a strong balance of:

• High vibration resistance

• Reliable anti-loosening performance

• Cost-effective carbon steel structure

• Electrical insulation support

• Easy installation and automation compatibility

For engineers, procurement teams, and lighting manufacturers, these carbon steel nylon self-locking nuts DIN985 provide a dependable fastening solution that ensures:

✔ Stable optical performance
✔ Long-term structural safety
✔ Reduced maintenance cost
✔ High-efficiency assembly processes

In modern lighting systems where precision, reliability, and durability are essential, DIN985 nylon self-locking nuts remain a core fastening component for ensuring safe and stable operation.
