DIN985 High Strength Nylon Self-Locking Nuts | Automotive Anti-Loosening Fastening Solution for Vibration-Critical Applications Introduction: Reliable Fastening for High-Load Automotive Systems

DIN985 High Strength Nylon Self-Locking Nuts | Automotive Anti-Loosening Fastening Solution for Vibration-Critical Applications

Introduction: Reliable Fastening for High-Load Automotive Systems

In modern automotive manufacturing, fastener reliability is a critical factor affecting vehicle safety, durability, and long-term performance. Components in the powertrain, chassis, suspension, and electrical systems are continuously exposed to vibration, shock loads, and thermal cycling, all of which increase the risk of loosening failures.

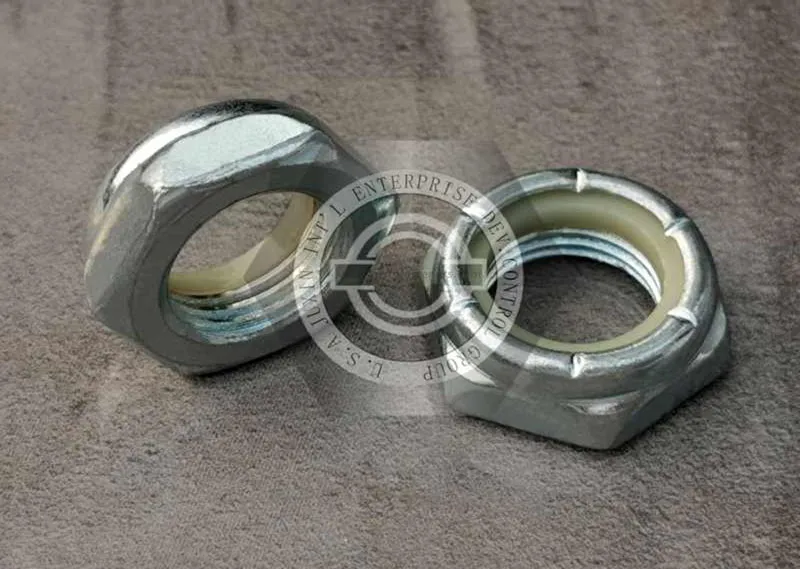

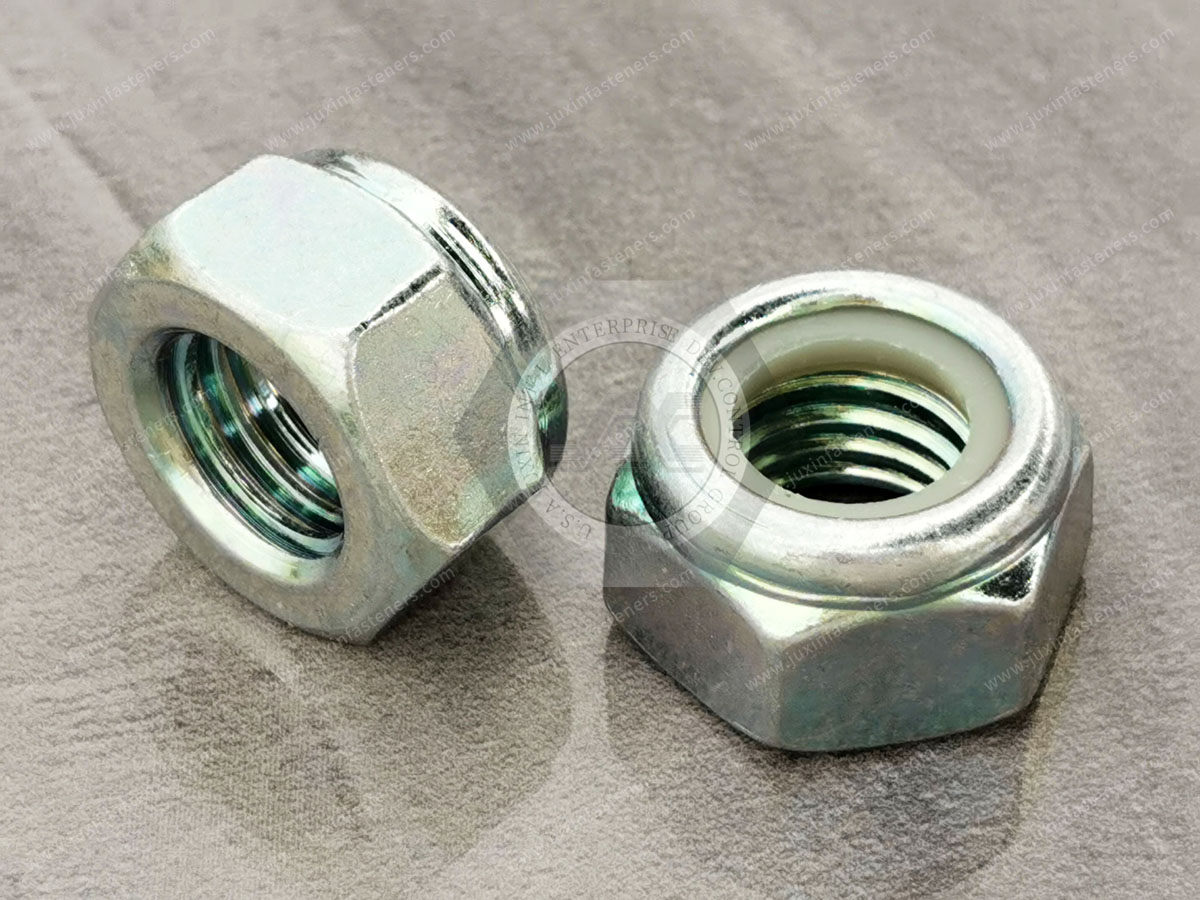

DIN985 high-strength nylon self-locking nuts are engineered to solve this challenge. As advanced high-strength nylon self-locking nuts, they combine a robust metal body with a nylon 6/6 insert to deliver stable prevailing torque and long-term vibration resistance in demanding automotive environments.

1. Engineering Principle of DIN985 High-Strength Nylon Self-Locking Nuts

The core structure of DIN985 high-strength nylon self-locking nuts consists of:

• High-strength carbon steel or stainless steel nut body

• Nylon 6/6 insert embedded at the upper thread zone

Working Mechanism:

When the bolt is tightened:

• The bolt compresses the nylon insert

• Elastic deformation occurs inside the nylon ring

• Continuous radial pressure is generated on the bolt threads

• Frictional resistance increases significantly

• Vibration-induced loosening is effectively prevented

This is classified as an effective torque-type anti-loosening mechanism, widely recognized in automotive engineering.

 2. Core Performance Advantages

2.1 High Strength and Superior Vibration Resistance

DIN985 high-strength nylon self-locking nuts are designed for dynamic load environments:

• Vibration life is several to tens of times longer than standard      nuts

• Stable preload retention under continuous mechanical stress

• Excellent resistance to shock and cyclic loading

This makes them ideal for automotive systems exposed to long-term vibration.

 2.2 Wide Operating Temperature Range

• Nylon insert operating range: -50°C to +100°C

• Short-term tolerance up to +120°C

• Suitable for most automotive operating environments outside extreme exhaust heat zones

 2.3 High-Strength Material Construction

Depending on application requirements, the nut body is manufactured from:

• High-strength carbon steel

• Stainless steel (for corrosion resistance applications)

Typical strength grades:

• Grade 8

• Grade 9

• Grade 10

• Grade 12 (for heavy-duty applications)

This ensures compatibility with high-load automotive assemblies.

 2.4 Cost and Assembly Efficiency

Compared to traditional fastening systems:

• No need for spring washers or additional locking components

• One-step installation process

• Reduced assembly time in mass production

• Lower overall lifecycle cost in high-reliability applications

 3. Automotive Application Solutions

3.1 Powertrain System Fastening

Used in:

• Engine assemblies

• Transmission housings

• Auxiliary drivetrain components

Engineering Benefit:

• Prevents loosening under continuous engine vibration

• Improves mechanical stability and operational safety

• Reduces maintenance and failure risk

 3.2 Chassis and Suspension Systems

Used in:

• Suspension links

• Subframes

• Control arms

• Stabilizer bar connections

Benefits of DIN985 high-strength nylon self-locking nuts:

• Maintains joint integrity under road impact

• Ensures driving stability and handling precision

• Reduces long-term structural fatigue risk

 3.3 Vehicle Body Structural Connections

Used in:

• Body-in-white assemblies

• Reinforcement brackets

• Safety-critical mounting points

Benefit:

• Improves structural rigidity

• Prevents vibration-induced loosening in long-term operation

• Enhances overall vehicle durability

 3.4 Automotive Electrical Systems

Used in:

• ECU mounting

• Sensor brackets

• Wiring harness supports

Benefit:

• Nylon insert provides partial electrical insulation

• Reduces short-circuit and micro-movement risks

• Ensures stable electronic system performance

 4. Engineering Selection and Usage Guidelines

4.1 Standards Compliance

For automotive applications, DIN985 high-strength nylon self-locking nuts should comply with:

• DIN 985 / DIN EN ISO 7040 (Type I)

• ISO 7041 (Type II non-metal insert variants)

• Metric thread range: M3–M36

Standard compliance ensures interchangeability and reliability.

 4.2 Strength Grade Selection

Selection must be based on load conditions:

• Grade 8–10: standard automotive assemblies

• Grade 12: high-load structural and safety-critical systems

 4.3 Reusability Control

• Recommended reuse: 3–5 cycles maximum

• Nylon insert loses elasticity after repeated tightening

• Critical automotive components should follow replacement      schedules

 4.4 Installation Requirements

• Dry installation recommended (no lubricants)

• Use torque-controlled tightening tools

• Ensure full engagement through the nylon insert zone

• Avoid over-tightening to protect insert integrity

Proper installation is essential for achieving full locking performance.

 5. Comparison with Other Automotive Locking Methods

5.1 Compared to Nut + Spring Washer Systems

• Multiple components increase assembly complexity

• Lower long-term vibration resistance

• Higher risk of assembly errors

DIN985 high-strength nylon self-locking nuts integrate locking into a single component for greater reliability.

 5.2 Compared to Double-Nut Locking

• Requires additional space and assembly time

• Less suitable for automated production lines

• Higher labor cost

Nylon self-locking nuts offer faster and more consistent installation.

 5.3 Compared to All-Metal Lock Nuts

• All-metal designs perform better in extreme heat

• Nylon designs offer smoother torque and better damping

• Better suited for general automotive and electrical systems

 6. Technology Development and Innovation Trends

The DIN985 high-strength nylon self-locking nut continues to evolve through engineering innovation, including:

• Drainage channel designs to prevent moisture retention

• Anti-detachment structural improvements for nylon inserts

• Optimized torque stability under vibration environments

• Slide-rail and locking structure innovations for adaptive      preload control

In addition, automotive fastening systems are increasingly adopting:

• Dual-locking nut systems

• Enhanced friction-based hybrid locking technologies

• Lightweight high-strength alloy optimization

These innovations further improve safety and reduce maintenance requirements.

Conclusion: A Proven High-Reliability Fastening Solution for Automotive Engineering

DIN985 high-strength nylon self-locking nuts provide a mature and highly effective fastening solution for automotive manufacturing by combining:

• High strength mechanical performance

• Reliable nylon damping anti-loosening mechanism

• Excellent vibration resistance

• Cost-efficient mass production suitability

• Wide compatibility with automotive systems

For engineers, procurement teams, and automotive OEMs, these high-strength nylon self-locking nuts DIN985 deliver a balanced solution that ensures:

✔ Long-term vibration stability
✔ Improved vehicle safety
✔ Reduced maintenance cost
✔ Efficient assembly process
✔ Enhanced structural reliability

In modern automotive engineering, where performance, safety, and durability are critical, DIN985 nylon self-locking nuts remain an essential fastening technology for high-reliability applications.

Packaging Standard

At Juxin Fasteners, we apply standardized export packaging to ensure product protection, traceability, and compliance with international logistics requirements.

1. Standard Export Packaging

Unless otherwise specified, all products will be packed according to our factory standard export packaging, which includes:

Moisture-resistant inner protection

Poly bag or small box packing as required

Reinforced export cartons

Clear labeling with part number, specification, batch number, and quantity

Palletizing for sea or air shipment when necessary

Our standard packaging is designed to ensure safe transportation, efficient warehousing, and long-distance international shipping.

2. Customized Packaging Options

We also provide customized packaging solutions according to customer requirements, including but not limited to:

Private labeling

Customized barcodes

Specific carton dimensions

Retail packaging

Special pallet configuration

Customer-specific marking and identification

So that you know, customized packaging may involve additional costs and extended lead time depending on the complexity of the requirements.

3. Compliance & Quality Assurance

All packaging processes are controlled under our ISO 9001 quality management system to ensure consistency, traceability, and product integrity throughout the supply chain.
