DIN985 Stainless Steel Nylon Self-Locking Nuts for Rail Transit Applications | High-Reliability Anti-Loosening Fastener Solution Introduction: Mission-Critical Fastening for Rail Transit Engineering

DIN985 Stainless Steel Nylon Self-Locking Nuts for Rail Transit Applications | High-Reliability Anti-Loosening Fastener Solution

Introduction: Mission-Critical Fastening for Rail Transit Engineering

In rail transit equipment manufacturing, fastening reliability is directly linked to operational safety, passenger protection, and long-term maintenance cost control. Continuous vibration, cyclic impact loads, humidity, and corrosive environments create one of the most demanding operating conditions for mechanical joints.

DIN985 Stainless Steel Nylon Self-Locking Nuts provide a proven engineering solution for these challenges. As advanced stainless-steel nylon self-locking nuts, they combine the corrosion resistance of stainless steel with the prevailing torque-locking performance of a nylon insert, delivering long-life anti-loosening stability for rail vehicles and infrastructure systems.

They are widely used in car body structures, bogie assemblies, interior systems, and onboard equipment mounting points, where vibration resistance and reliability are critical.

1. Engineering Principle of DIN985 Stainless Steel Nylon Self-Locking Nuts

The DIN985 stainless steel nylon self-locking nut is an effective torque-type anti-loosening fastener designed for high-vibration transport environments.

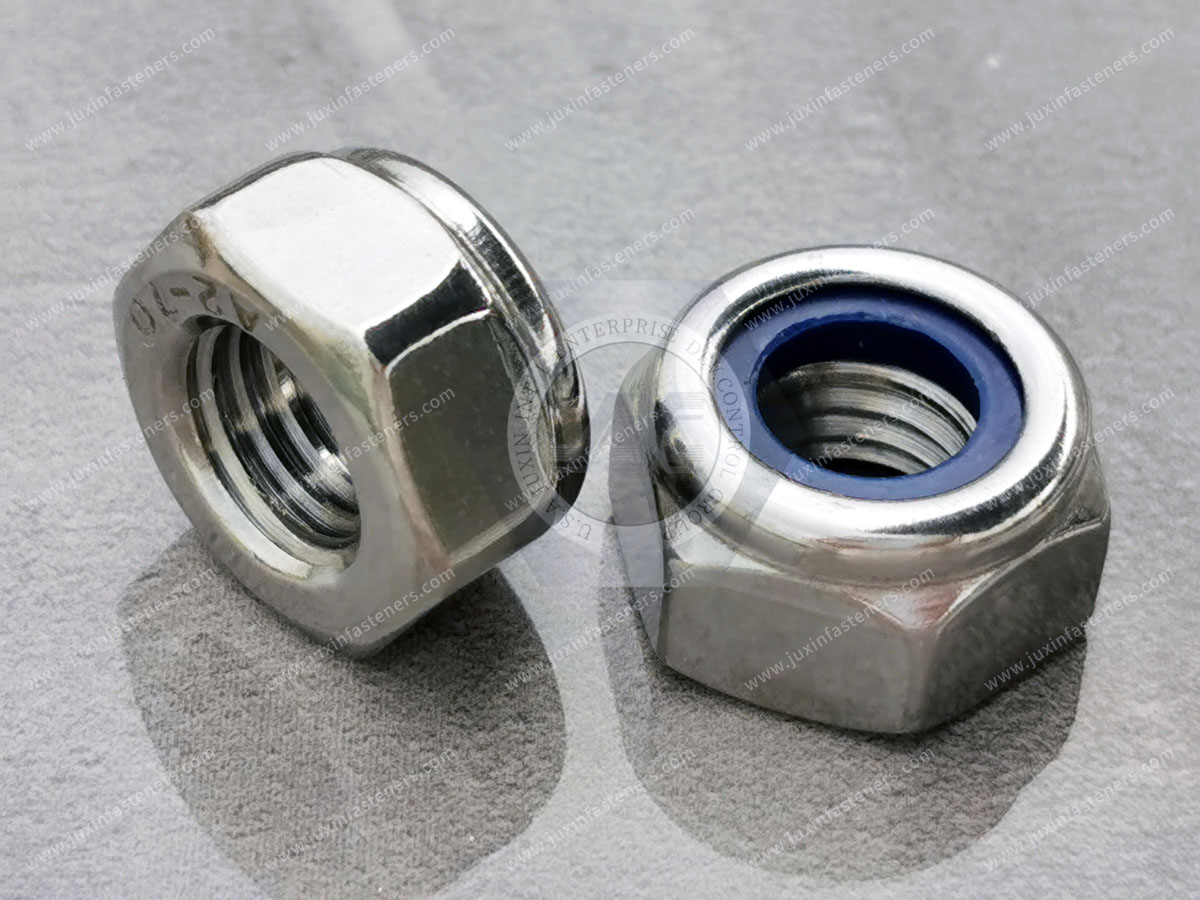

Structural Composition:

• Stainless steel nut body (commonly A2-70 / A4-80 grades)

• Nylon 6/6 insert at the thread locking zone

Locking Mechanism:

When the bolt is tightened:

• The bolt compresses the nylon insert

• The nylon undergoes controlled elastic deformation

• Radial pressure is generated on the threads

• Frictional resistance increases significantly

• Rotation loosening under vibration is prevented

This mechanism ensures stable torque retention even under long-term dynamic rail operation.

 2. Core Advantages in Rail Transit Applications

2.1 Superior Anti-Vibration Performance

Stainless steel nylon self-locking nuts (DIN985 standard) deliver outstanding vibration resistance:

• Vibration fatigue life is several to tens of times longer than conventional fasteners

• Maintains preload stability under continuous rail-induced vibration

• Reduces risk of structural loosening in critical assemblies

This is essential for high-speed trains, metro systems, and freight rail vehicles.

 2.2 Excellent Corrosion Resistance for Harsh Environments

Rail transit operates in environments exposed to:

• Humidity

• Salt spray

• Temperature fluctuations

• Urban pollution

Stainless steel body options such as:

• A2-70 (304 stainless steel)

• A4-80 (316 stainless steel for marine or high-corrosion      environments)

provide long-term corrosion protection and structural durability.

 2.3 Wide Temperature Adaptability

• Nylon insert operating range: -50°C to +100°C

• Suitable for most rail operating environments

• Provides sealing and electrical insulation benefits

 2.4 Standardization and Engineering Reliability

DIN985 stainless steel nylon self-locking nuts comply with international standards:

• ISO 7040 / ISO 7041

• Defined strength grades (8, 9, 10, 12)

• Standardized dimensional series for global compatibility

This ensures predictable performance in OEM design and maintenance systems.

 3. Application Areas in Rail Transit Equipment

3.1 Car Body Structural Systems

• Interior and exterior frame connections

• Load-bearing structural joints

• Panel mounting systems

These connections require long-term stability under continuous vibration.

 3.2 Bogie and Underframe Assemblies

• Suspension mounting points

• Bracket and linkage connections

• Equipment support structures

These areas experience high-frequency mechanical stress and shock loads.

 3.3 Onboard Equipment Installation

• Electrical cabinet mounting

• Control system enclosures

• Communication and monitoring systems

Ensures stable performance of critical onboard electronics.

 3.4 Interior Systems and Auxiliary Components

• Seat structures

• Handrail systems

• HVAC and piping supports

Provides secure fastening with simplified installation.

 4. Engineering Advantages Over Traditional Locking Methods

4.1 Compared with Double-Nut Systems

• More compact structure

• Faster installation (single fastening step)

• Higher axial load retention under vibration

 4.2 Compared with Spring Washers

• No fatigue degradation over time

• More stable long-term locking performance

• Reduced risk of loosening in continuous vibration environments

 4.3 Compared with Adhesive Locking

• Fully removable and maintainable

• No chemical aging or contamination risk

• More suitable for rail maintenance cycles

 5. Engineering Limitations and Selection Considerations

5.1 Temperature Constraint

• Nylon performance decreases above +120°C

• Brake system or high-heat zones require evaluation

• Alternative: all-metal self-locking nuts may be preferred in      extreme heat areas

 5.2 Reusability Limitation

• Recommended reuse: 3–5 cycles maximum

• Nylon insert deformation is irreversible over time

• Critical rail components require scheduled replacement strategy

 5.3 Installation Requirements

• Dry installation recommended (no lubrication)

• Torque must be controlled using calibrated torque tools

• Improper torque affects prevailing locking performance

 5.4 Maintenance Strategy

• Include in preventive maintenance inspection plans

• Monitor torque retention in high-vibration zones

• Replace proactively in safety-critical assemblies

 6. Industry Standards and Quality Control

For rail transit applications, DIN985 stainless steel nylon self-locking nuts must comply with strict quality and traceability requirements:

• ISO 7040 / ISO 7041 international standards

• Mechanical property grades (A2-70 / A4-80)

• Batch-level traceability documentation

• Torque performance and vibration test validation

Quality assurance systems ensure consistency across large-scale rail manufacturing projects.

 7. Technology Development and Innovation Trends

The stainless steel nylon self-locking nut industry continues to evolve with engineering improvements such as:

• Optimized nylon insertion precision for improved torque stability

• Drainage groove designs to prevent moisture retention

• Enhanced anti-loosening geometries for longer service life

• Improved injection molding and assembly consistency

• Increased automation in manufacturing and quality inspection

These innovations further improve reliability in high-speed rail systems and metro networks.

Conclusion: A Proven Fastening Solution for Rail Transit Safety and Reliability

DIN985 Stainless Steel Nylon Self-Locking Nuts deliver a highly reliable fastening solution for rail transit engineering by combining:

• Stainless steel corrosion resistance

• Nylon 6/6 prevailing torque locking technology

• High vibration resistance performance

• Standardized global engineering compatibility

For rail OEMs, maintenance engineers, and procurement teams, these stainless steel nylon self-locking nuts provide a balanced solution of:

✔ Long-term operational safety
✔ Anti-vibration stability
✔ Corrosion resistance
✔ Maintenance efficiency
✔ Standardized global usability

In demanding rail transit environments where safety and reliability are non-negotiable, DIN985 stainless steel nylon self-locking nuts remain a trusted and widely adopted fastening technology.
