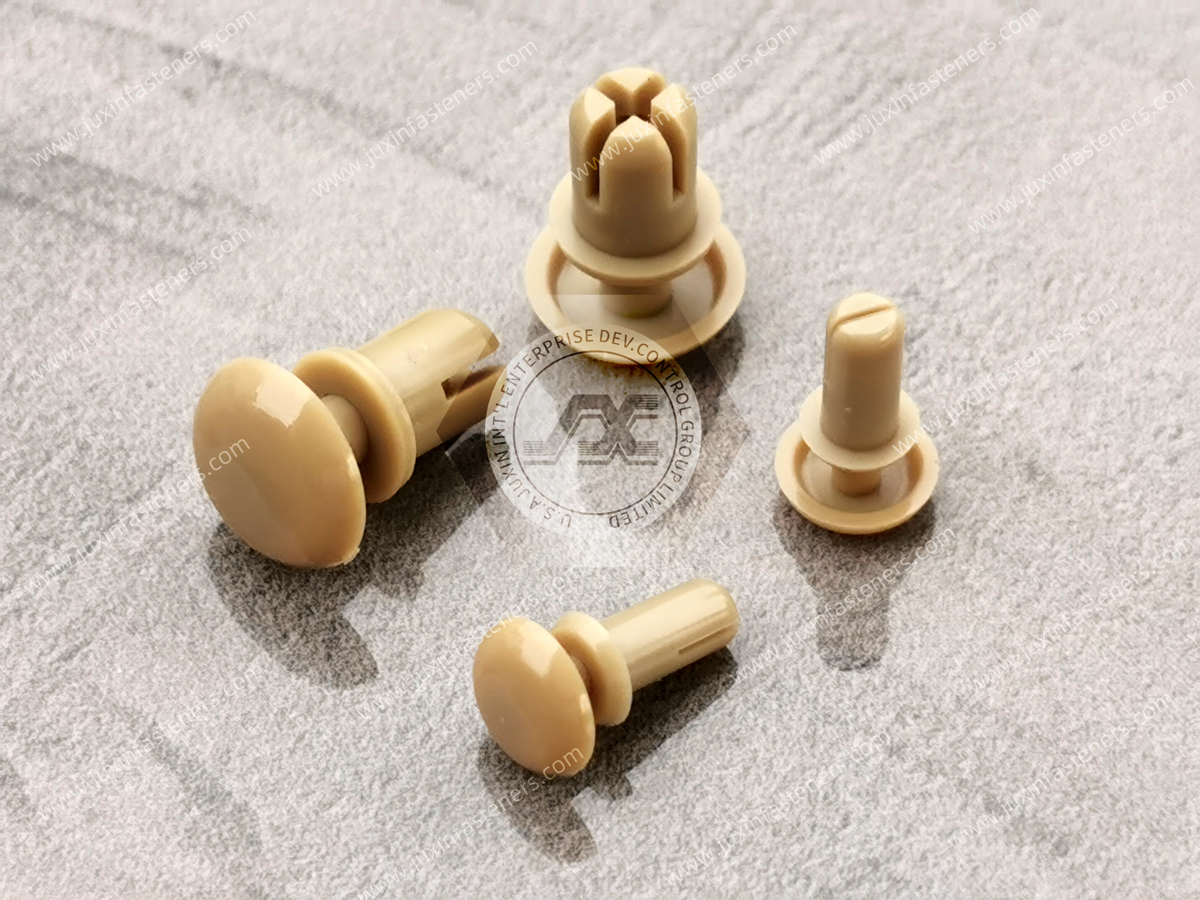

Nylon Rivets for Base Station Antennas

Nylon Rivets for Base Station Antennas

Low PIM Fastening Solutions for RF Systems and Telecom Infrastructure

In modern RF systems and telecom infrastructure, base station antennas require extremely stable signal performance, lightweight structures, and long-term reliability.

One of the most critical but often overlooked factors is fastening technology inside the antenna system.

A complete solution combining Nylon Rivets, PCB Hardware, and precision plastic fasteners provides a Low PIM, lightweight, and high-efficiency assembly solution that meets current European and North American engineering standards.

 1. Engineering Challenge in RF Antenna Systems

Base station antennas and RF equipment must operate under strict conditions:

• Low Passive Intermodulation (Low PIM) requirements

• Multi-material assemblies (aluminum, PCB, composites)

• Limited internal space and high-density layouts

• Outdoor environments (temperature, humidity, vibration)

• Long lifecycle reliability expectations

Traditional fastening methods—especially metal fasteners and adhesive-based plastic rivets—limit both performance and manufacturability.

2. Complete Fastening Solution for Telecom Applications

We offer a comprehensive fastening system for antenna and RF equipment manufacturing:

PCB Hardware for RF Stability

• PCB Spacers / Spacers & Standoffs / Round Unthreaded PA      Spacers

• PCB Mounting Pillars / PCB Supports / PCB Mounting Feet

• Card Guides / Card Ejector Systems

• PCB LED Mounting Hardware / PCB Fan Parts

Insulation & Protection Components

• Screw Grommets / Transistor Insulators

• Retaining Washers / Finishing Washers

Precision Fasteners

• Machine Screws – Pan Head

• Cap Screws – Ultra Low Head – PEEK

• Captive Screws – Cap Head / Cage Nuts

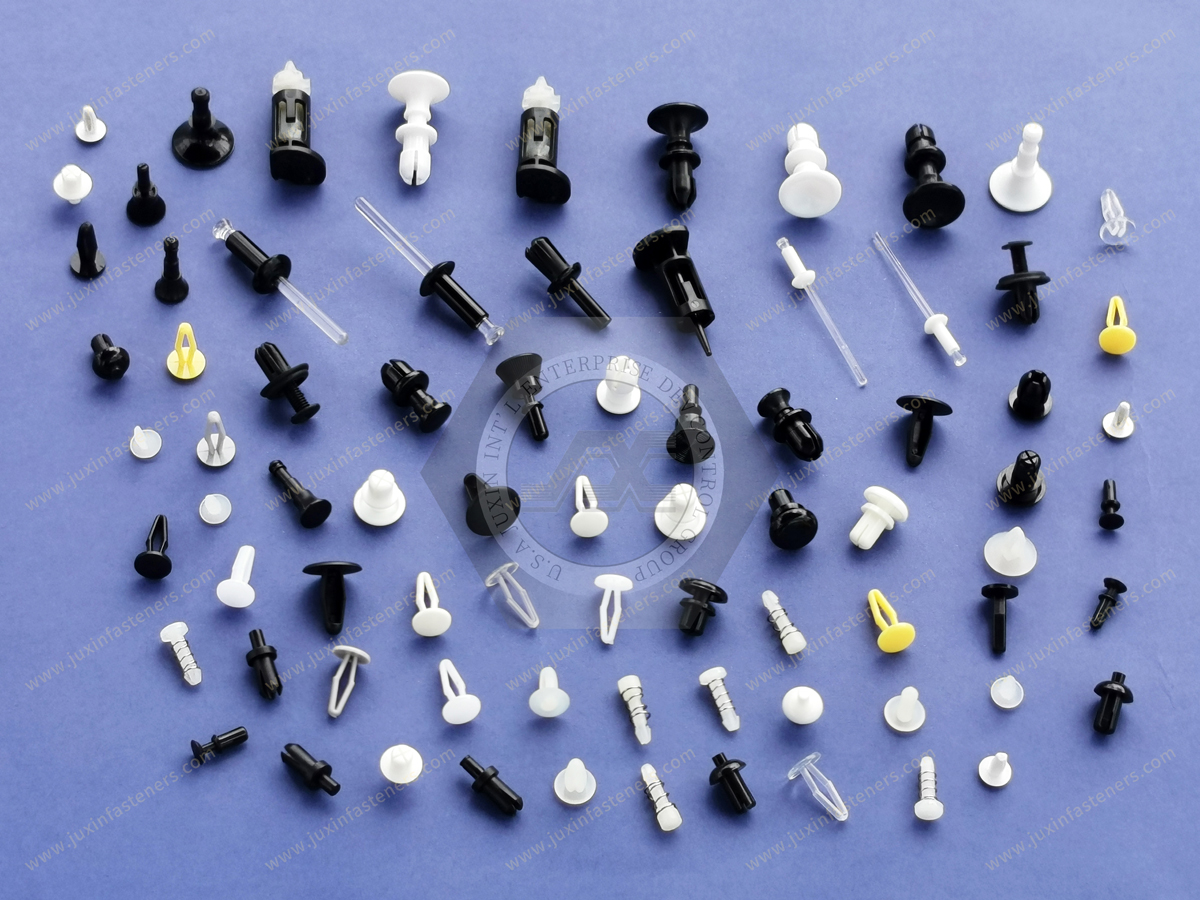

Rivets & Panel Fastening Systems

• Nylon Rivets / Plastic Rivets / Snap Rivets

• Push-In Rivets / Barbed Rivets / Drive Fasteners

• Blind Rivets / Removable Rivets / Ratchet Rivets

• Push-In Rivets – Tough Rivet (for structural panels)

 3. Eliminating PIM: The Key Value of Nylon Rivets

✔ The Problem: Metal-Induced PIM

In RF systems, metal-to-metal contact points can generate nonlinear electrical effects, resulting in Passive Intermodulation (PIM).

This leads to:

• Signal interference

• Reduced transmission quality

• System instability

✔ The Solution: Non-Metallic Fastening

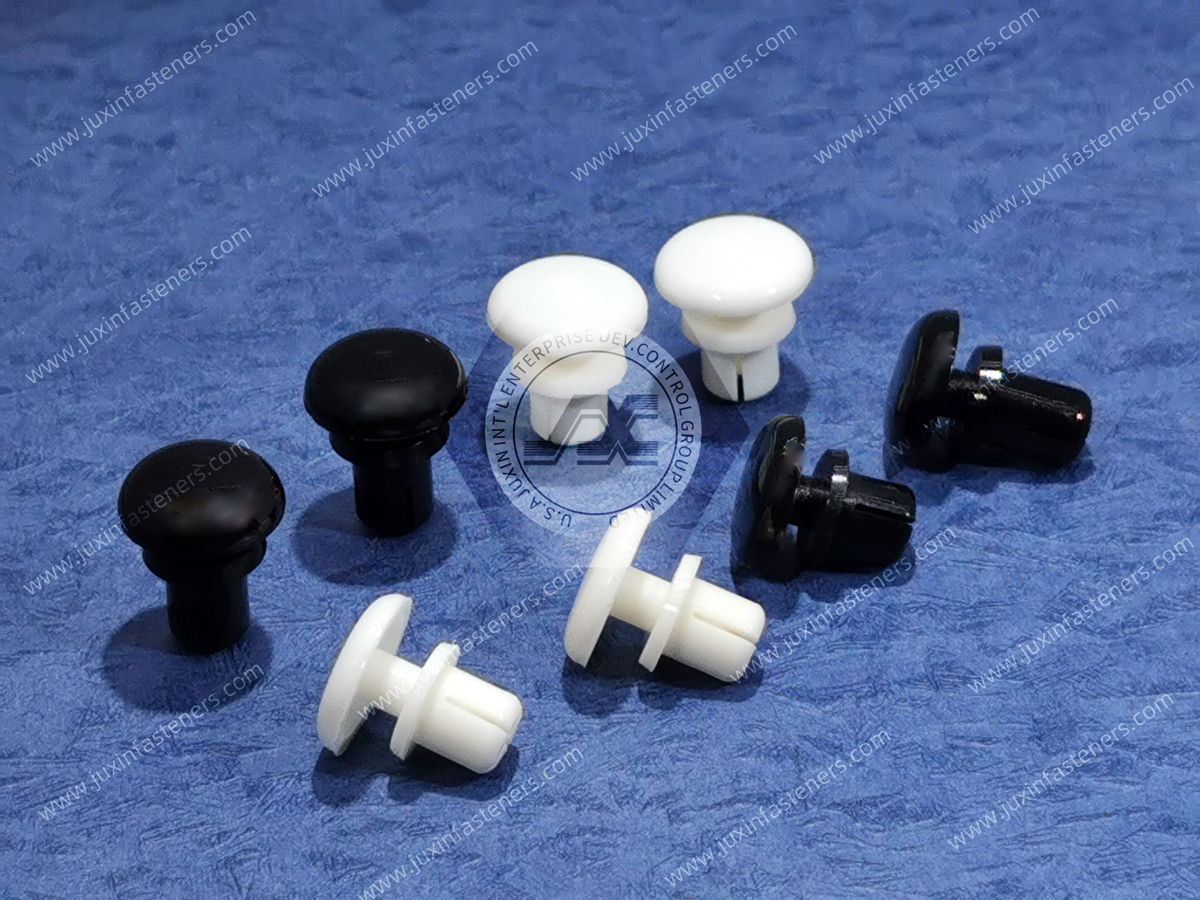

Nylon Rivets (anti-loosening plastic rivets) provide:

• Zero metal contact points

• Elimination of PIM sources

• Improved signal integrity and RF performance

This makes them an essential component in Low PIM antenna design.

 4. Self-Locking Structure for High-Efficiency Assembly

Traditional plastic rivets often require adhesive bonding, which:

• Increases assembly time

• Adds process complexity

• Limits compact design

✔ Advanced Self-Locking Nylon Rivets

Modern designs feature:

• Integrated mechanical self-locking structures

• Stable retention without adhesives

• Consistent clamping force

Result:

• Faster assembly

• Simplified structural design

• Reduced production cost

5. Lightweight & Cost-Efficient Engineering

✔ Lightweight Advantage

Compared to metal fasteners, nylon rivets:

• Reduce antenna weight

• Improve installation efficiency

• Lower transportation and handling costs

✔ Cost Optimization

• Competitive manufacturing cost

• Scalable for high-volume telecom production

• Reduced total assembly cost

 6. Precision Engineering & Manufacturing Control

Structural Design

• Equal-strength design principles

• Finite Element Analysis (FEA) optimization

• Reinforced self-locking geometry

Injection Molding Technology

• Materials: PA6 / PA66 engineering plastics

• Controlled shrinkage rate (~1.016%)

• Tight tolerance control (±0.05 mm critical areas)

Process Parameters

• Controlled molding pressure for dimensional stability

• High repeatability for mass production

 7. Performance Validation for Telecom Standards

To meet European and North American telecom requirements, products undergo:

• Pull-out force testing

• Clamping force validation

• Thermal cycling (high/low temperature)

• Vibration resistance testing

• Environmental durability testing

Results:

• Qualification rate: >99%

• Stable performance in outdoor RF environments

 8. Material Innovation for RF Environments

High-Performance Nylon

• Flame-retardant grades available

• Reinforced nylon for higher strength

Thermal & Environmental Optimization

• Selected material grades for:

• Temperature resistance

• Moisture stability

Advanced Polymers

• PPS and LCP materials for specialized RF applications

• Suitable for high-temperature and precision components

 9. Intelligent Assembly & Reliability Enhancement

To ensure consistent performance under varying environmental conditions:

Smart Assembly Technology

• Real-time force and displacement monitoring

• Adaptive assembly parameter adjustment

• Closed-loop compensation

Benefits:

• Prevents installation damage

• Maintains long-term fastening stability

• Improves reliability of RF connection nodes

 10. Application Areas

• Base Station Antennas

• RF Systems and Modules

• Telecom Infrastructure Equipment

• Outdoor Communication Cabinets

• Networking Hardware & Signal Systems

11. Conclusion: Low PIM Fastening for Next-Generation RF Systems

As RF systems continue to demand higher signal integrity and reliability, fastening solutions must evolve accordingly.

Nylon Rivets, PCB Hardware, and plastic fastening systems provide:

• Low PIM performance

• Lightweight structural solutions

• Simplified assembly processes

• Long-term environmental reliability

They are now a core enabling technology in modern telecom and RF engineering.

Packaging Standard

At Juxin Fasteners, we apply standardized export packaging to ensure product protection, traceability, and compliance with international logistics requirements.

1. Standard Export Packaging

Unless otherwise specified, all products will be packed according to our factory standard export packaging, which includes:

Moisture-resistant inner protection

Poly bag or small box packing as required

Reinforced export cartons

Clear labeling with part number, specification, batch number, and quantity

Palletizing for sea or air shipment when necessary

Our standard packaging is designed to ensure safe transportation, efficient warehousing, and long-distance international shipping.

2. Customized Packaging Options

We also provide customized packaging solutions according to customer requirements, including but not limited to:

Private labeling

Customized barcodes

Specific carton dimensions

Retail packaging

Special pallet configuration

Customer-specific marking and identification

So that you know, customized packaging may involve additional costs and extended lead time depending on the complexity of the requirements.

3. Compliance & Quality Assurance

All packaging processes are controlled under our ISO 9001 quality management system to ensure consistency, traceability, and product integrity throughout the supply chain.
