Capacitor Discharge Stud Welding Solutions for Advanced Industrial Manufacturing Applications

High-Performance Stud Welding Technology for OEM Engineers and Global Procurement Teams

Capacitor discharge stud welding machines are an advanced fastening technology widely used in modern industrial manufacturing due to their high welding speed, low heat input, minimal distortion, and excellent fastening reliability.

For industries requiring strong threaded fastening on thin metal sheets, capacitor discharge stud welding (CD stud welding) provides an efficient alternative to traditional welding methods. This technology is especially suitable for applications where surface appearance, dimensional accuracy, and production efficiency are critical.

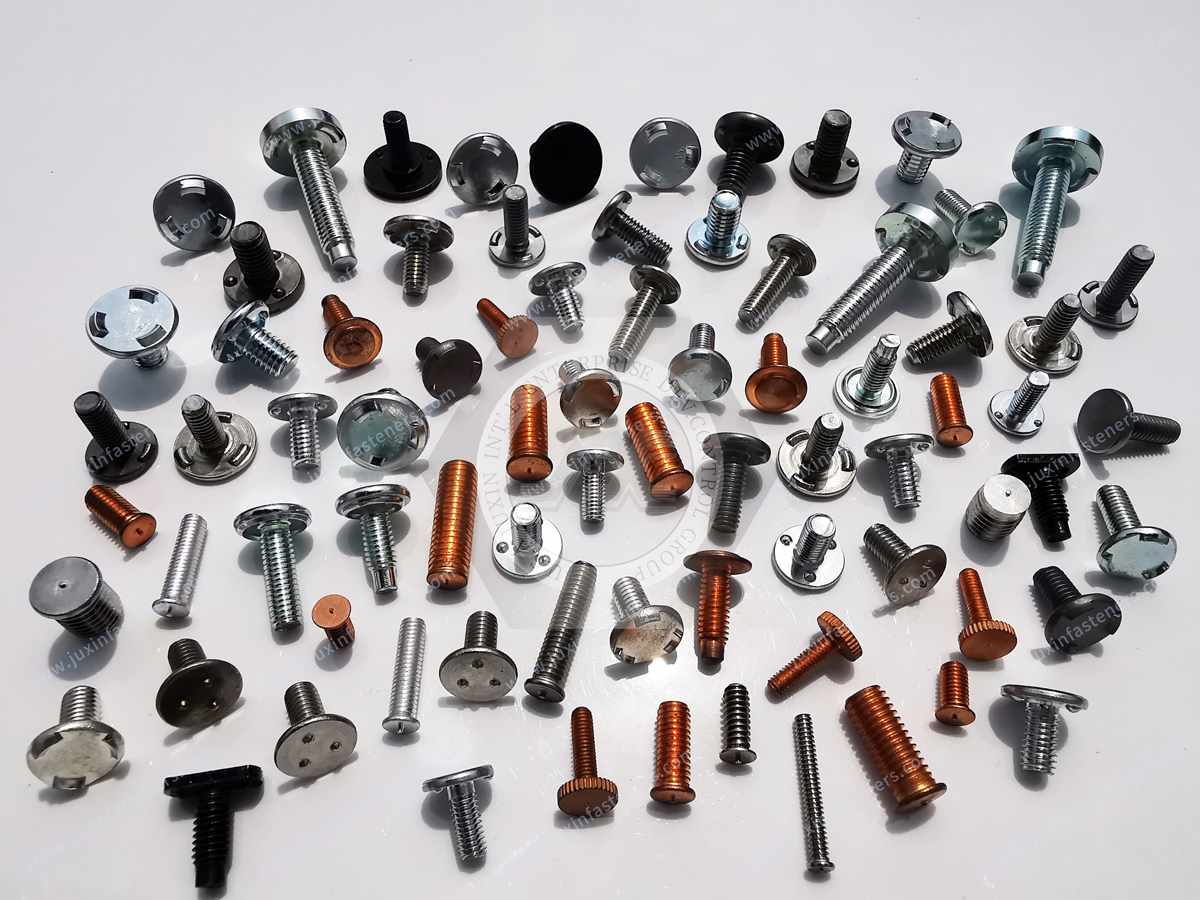

Juxin Fasteners specializes in supplying OEM welding studs, capacitor discharge welding studs, CD stud welding fasteners, and customized fastening solutions for global manufacturers, supporting engineering teams and procurement departments across multiple industries.

What Is Capacitor Discharge Stud Welding?

Capacitor discharge stud welding is a high-speed welding process that uses stored electrical energy from capacitors to create a controlled welding arc between the stud and the base material.

The process delivers a large amount of energy within milliseconds, creating a strong metallurgical bond while minimizing heat affected zones.

Compared with conventional welding methods, capacitor discharge stud welding offers:

• Extremely short welding time

• Low thermal deformation

• No need for shielding gas

• High production efficiency

• Suitable for thin sheet metal applications

• Excellent repeatability for automated assembly lines

The welding energy is determined by capacitor capacity and charging voltage:

W = CU²

Where:

• W = Welding energy

• C = Capacitor capacitance

• U = Charging voltage

This precise energy control enables manufacturers to achieve consistent weld quality across different materials and stud diameters.

Types of Capacitor Discharge Stud Welding Processes

1. Arc Draw Capacitor Discharge Stud Welding

Arc draw stud welding operates similarly to short-cycle arc stud welding.

Typical welding time:

• Approximately 3–10 milliseconds

Advantages:

• Strong weld penetration

• Reliable connection strength

• Suitable for carbon steel and stainless steel studs

• Widely used in automotive and industrial manufacturing

2. Arc Stub Capacitor Discharge Stud Welding

Arc stub welding includes:

Contact Type CD Stud Welding

• Welding time: ≤3 milliseconds

• Suitable for fast production environments

• Commonly used for small diameter studs

Gap Type CD Stud Welding

• Welding time: approximately 1 millisecond

• Suitable for aluminum and aluminum alloys

• Can be performed without shielding gas

This makes gap-type capacitor discharge stud welding highly valuable for:

• EV battery pack structures

• Aluminum automotive components

• Lightweight aerospace assemblies

Advantages of Capacitor Discharge Stud Welding for Industrial Applications

1. Minimal Heat Distortion

Traditional welding processes may cause deformation or damage to thin sheet materials.

Capacitor discharge stud welding produces extremely low heat input, making it ideal for:

• Sheet metal fabrication

• Electrical cabinets

• HVAC equipment

• Medical equipment housings

• Precision machinery components

2. High-Speed Automated Production

Production efficiency depends on capacitor charging speed.

Typical productivity:

• Manual operation: approximately 8 studs per minute

• Automated production lines: up to 60 studs per minute

This makes CD stud welding suitable for:

• Automotive production lines

• Robotics assembly systems

• High-volume OEM manufacturing

3. No Shielding Gas Required

Unlike traditional arc welding, capacitor discharge stud welding does not require external shielding gas.

Benefits include:

• Lower operating cost

• Easier automation

• Cleaner production environment

• Reduced equipment complexity

Capacitor Discharge Stud Welding Applications

Automotive and EV Battery Pack Manufacturing

The automotive industry requires lightweight, strong, and reliable fastening systems.

Capacitor discharge welded studs are widely used for:

• EV battery pack housings

• Battery tray assemblies

• Vehicle body structures

• Interior components

• Electronic control units

• Thermal management systems

Juxin Fasteners provides OEM-grade automotive welding studs and customized stud welding fasteners designed for demanding vehicle manufacturing environments.

Rail Transit Industry

Rail vehicles require fastening systems with excellent vibration resistance and long-term durability.

CD stud welding solutions are used in:

• Railway interior panels

• Aluminum train structures

• High-speed rail components

• Electrical equipment mounting systems

Aerospace Manufacturing

Aerospace applications require lightweight materials and precision fastening.

Capacitor discharge stud welding supports:

• Aluminum alloy structures

• Aircraft interior assemblies

• Lightweight panels

• Equipment mounting systems

Electrical Cabinets and Control Equipment

Electrical cabinet manufacturers use welded studs for:

• Cable management systems

• Grounding components

• Mounting brackets

• Control panel assemblies

Advantages:

• Fast installation

• Strong mechanical connection

• No backside access required

HVAC Equipment Manufacturing

HVAC systems often require fastening solutions on thin sheet metal.

Applications include:

• Air handling units

• Ventilation equipment

• Refrigeration systems

• Sheet metal enclosures

CD welded studs provide secure attachment points without damaging finished surfaces.

Medical Equipment Manufacturing

Medical equipment requires:

• Clean assembly processes

• High precision

• Reliable fastening performance

Applications include:

• Medical device frames

• Equipment cabinets

• Stainless steel housings

Construction and Machinery Industry

Capacitor discharge stud welding is widely applied in:

• Construction equipment

• Agricultural machinery

• Heavy machinery panels

• Metal structures

Robotics and Automation Equipment

Robotics manufacturers require efficient fastening solutions for:

• Robot housings

• Automation equipment frames

• Control systems

• Precision sheet metal assemblies

Sheet Metal Fabrication

CD stud welding is one of the preferred solutions for sheet metal manufacturers because it provides:

• Strong threaded connection points

• No drilling requirement

• Reduced assembly time

• Improved product appearance

Welding Parameters for High-Quality Stud Welding

To achieve reliable welding results, engineers should optimize:

• Welding current

• Charging voltage

• Welding time

• Lift height

• Stud extension length

• Insertion speed

• Stud diameter

• Base material thickness

Recommended polarity:

Carbon Steel and Ferrous Materials

Straight polarity

Provides stable arc characteristics and strong weld quality.

Copper, Aluminum and Aluminum Alloys

Reverse polarity

Improves welding performance on non-ferrous materials.

Safety Requirements for Capacitor Discharge Stud Welding Machines

Professional CD stud welding equipment should include:

• Current limiting protection

• Automatic capacitor discharge systems

• Over-voltage protection

• Safe operating controls

Proper parameter adjustment and machine maintenance are essential for stable production quality.

Juxin Fasteners – OEM Stud Welding Fastener Solutions

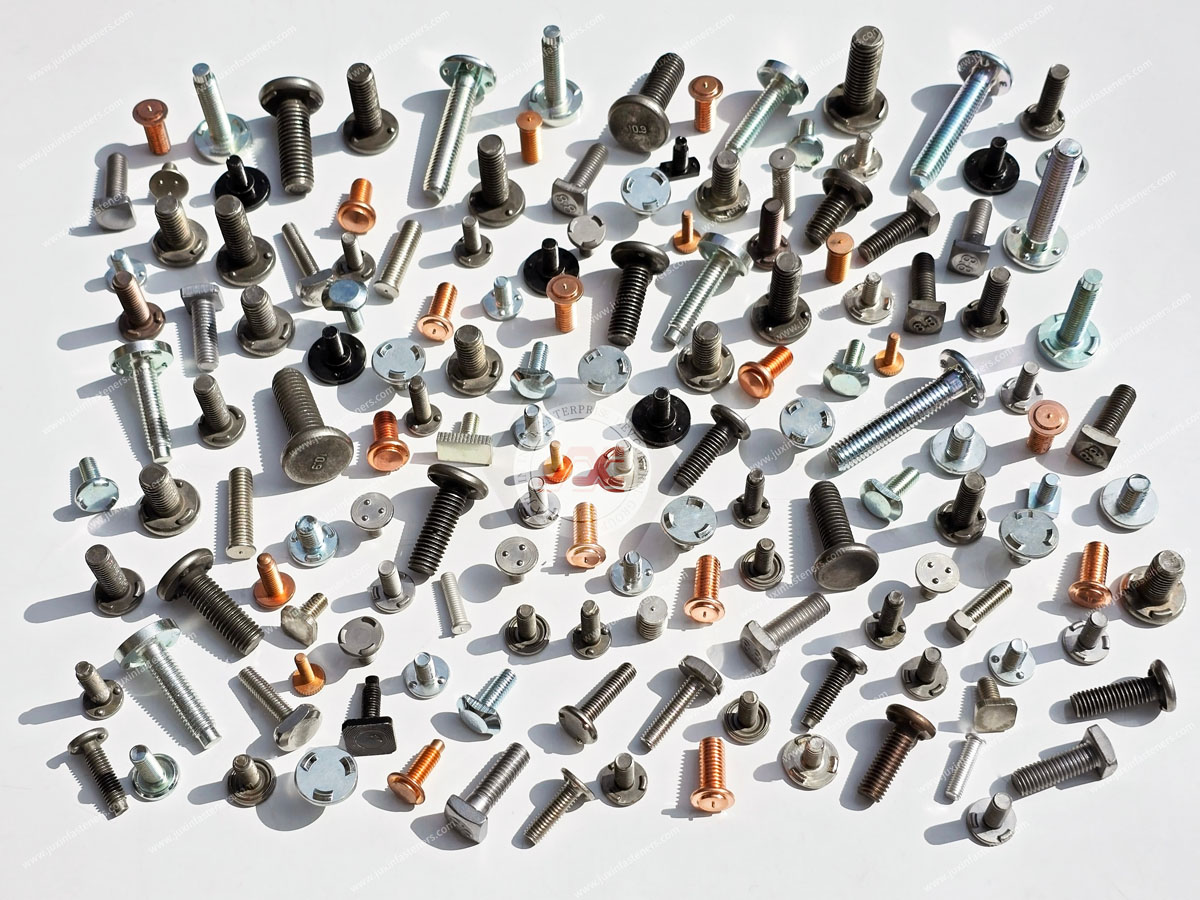

Juxin Fasteners provides professional welding stud fasteners, capacitor discharge welding studs, threaded studs, and customized OEM fastening components for international manufacturers.

Our solutions support:

• Automotive OEM suppliers

• EV battery manufacturers

• Rail transit companies

• Aerospace manufacturers

• Electrical equipment producers

• HVAC manufacturers

• Medical equipment companies

• Machinery manufacturers

• Robotics integrators

• Sheet metal fabrication factories

With extensive experience in precision fastener manufacturing, Juxin Fasteners supports customers with:

✔ Customized drawings and specifications
✔ OEM production capability
✔ Multiple material options
✔ Surface treatment solutions
✔ Engineering support
✔ Stable global supply chain
