Engineering Guide to Facade Bracket Anchoring, Steel-to-Concrete Connections, Installation Quality and OEM Fastener Procurement

Expansion bolts and other post-installed mechanical anchors play an important role in construction fastening, particularly where steel brackets,

 building-service equipment and selected curtain wall support components must be connected to existing concrete structures.

Curtain wall installation presents a more demanding engineering challenge than ordinary bracket fixing.

The connection between a facade system and the supporting building structure must account for dead loads, wind actions, structural movement,

installation tolerances, concrete geometry, corrosion exposure and long-term service conditions.

For structural engineers, facade designers, mechanical engineers, manufacturing engineers and procurement teams, the correct expansion anchor is not determined by bolt diameter alone.

The complete connection includes the facade component, support bracket, base plate, fastener assembly, post-installed anchor, concrete substrate and installation procedure.

Juxin Fasteners supplies industrial fastening components, including expansion bolts, concrete anchoring hardware, bolts, nuts, washers and drawing-based OEM fastening components.

This engineering guide examines the selection of expansion bolts for construction and suitable curtain wall applications,

with particular attention to bracket design, concrete anchoring, site installation, quality control and industrial procurement.

What Are Expansion Bolts for Construction?

An expansion bolt is a mechanical anchor that develops engagement with a suitable base material through an expanding component or mechanism.

Expansion bolts are commonly used for post-installed fastening where the concrete structure already exists.

Depending on the anchor design, the assembly may include:

• A threaded stud or bolt

• An expansion clip or sleeve

• A tapered cone or wedge

• A nut and washer

• Other product-specific setting components

When installed according to the manufacturer's instructions, the expansion mechanism develops contact pressure and mechanical engagement against the surrounding substrate.

The resulting connection can resist specified loads within the anchor's assessed conditions.

Common International Product Terms

Construction engineers and purchasing teams may search for:

• Expansion bolts for concrete

• Concrete expansion anchors

• Mechanical expansion anchors

• Wedge anchor bolts

• Sleeve expansion anchors

• Post-installed concrete anchors

• Curtain wall expansion bolts

• Facade bracket anchors

• Curtain wall fixing bolts

• Steel-to-concrete anchors

• Heavy-duty construction anchors

• Concrete anchors for facade supports

These terms overlap commercially but do not describe technically identical products.

Expansion Bolts Are Not a Single Anchor Design

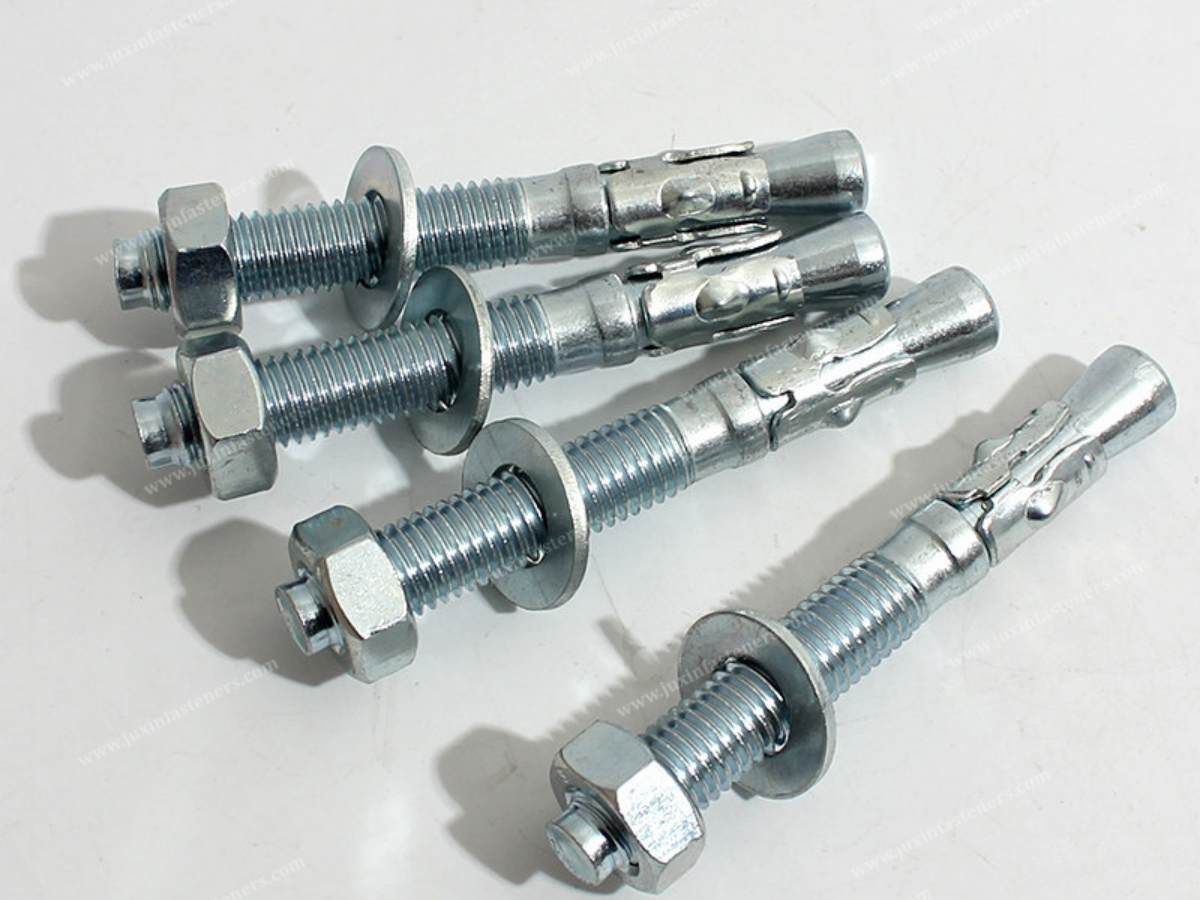

Wedge anchors, sleeve anchors and internally threaded expansion anchors use different mechanical arrangements.

Their suitability for concrete, masonry, cracked concrete, overhead installation or structural connections depends on the exact product and its technical qualification.

How Mechanical Expansion Anchors Transfer Loads

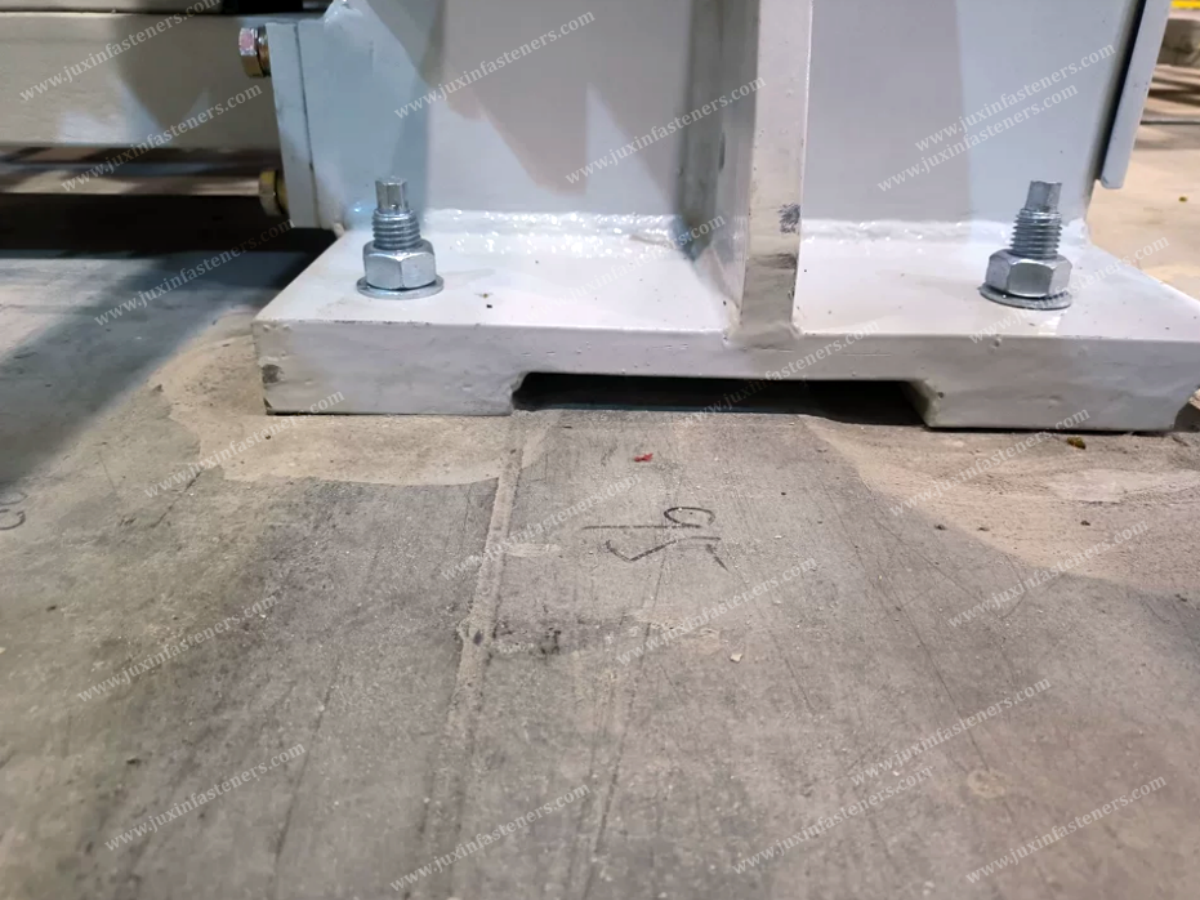

A typical steel-to-concrete anchoring load path is:

Attached component → steel bracket or base plate → anchor assembly → expansion mechanism → surrounding concrete.

For curtain wall construction, the load path may begin at a glass panel or facade unit and continue through several structural components before reaching the anchor.

The complete load path must be considered.

Mechanical Expansion

The expanding component engages the wall of the drilled hole.

Tensile Resistance

The anchor resists forces tending to pull the fixture away from the concrete.

Shear Resistance

The connection resists forces acting across the anchor axis.

Combined Loading

Facade brackets frequently generate simultaneous tension and shear.

Eccentric Loading

Loads applied away from the concrete surface can create moments and uneven forces within the anchor group.

Important Engineering Principle

The nominal steel strength of an expansion bolt does not independently establish the capacity of the complete connection.

Concrete resistance, embedment, edge distance, anchor spacing and fixture stiffness may govern the design.

Where Are Expansion Bolts Used in Construction?

Suitable mechanical expansion anchors may be considered for:

• Curtain wall support components

• Facade-related brackets

• Steel support frames

• Architectural metalwork

• Handrails and guardrails

• Equipment brackets

• Pipe and cable supports

• HVAC equipment

• Electrical equipment

• Building-service installations

• Industrial building components

• Machinery support accessories

• Safety barriers

• Renovation and retrofit projects

These applications differ significantly in loading and safety requirements.

A product suitable for an indoor equipment bracket must not automatically be specified for a safety-critical facade connection.

Curtain Wall Systems: Understanding the Connection

A curtain wall is a non-loadbearing exterior building envelope system that transfers its own weight and applicable environmental actions to the supporting structure.

Although a curtain wall does not ordinarily support the building's primary gravity loads, its connections are structurally important.

Curtain wall anchoring must accommodate the actions and movements specified by the facade and structural design.

Typical Curtain Wall Components

Depending on the system, the assembly may include:

• Glass panels or other infill materials

• Mullions and transoms

• Unitized facade panels

• Steel or aluminum support brackets

• Dead-load support connections

• Wind-load restraint connections

• Bolts, nuts and washers

• Cast-in or post-installed concrete anchoring systems

• Movement and adjustment provisions

The connection between the curtain wall bracket and concrete is only one part of this assembly.

Unitized Curtain Wall Systems

Unitized curtain walls use prefabricated facade units.

Their installation can require accurately positioned brackets, predictable tolerances and controlled load transfer.

Stick-Built Curtain Wall Systems

Stick-built systems are assembled from individual framing components on site.

The fixing arrangement depends on the facade design, installation sequence and supporting structure.

Engineering Information Gain: The Facade Bracket and Concrete Anchor Have Different Functions

The facade bracket transfers loads and may provide adjustment.

The concrete anchor transfers forces from the bracket into the supporting concrete.

A high-strength anchor cannot compensate for an incorrectly designed bracket, inadequate base plate stiffness or an unsuitable concrete member.

Expansion Bolts for Curtain Wall Installation

Post-installed expansion anchors may be considered for selected curtain wall brackets and related steel-to-concrete connections where permitted by the project design.

Potential applications include:

• Suitable facade support brackets

• Secondary facade support components

• Selected steel-to-concrete connections

• Architectural support frames

• Retrofit facade brackets

• Building-envelope accessory supports

For primary or safety-critical facade attachments, the anchor must be specifically suitable for the required conditions and supported by the necessary engineering documentation.

Dead-Load Connections

Dead-load connections transfer the permanent weight of the curtain wall system into the supporting structure.

The bracket and anchor group must be designed for the actual load path.

Wind-Load Connections

Wind actions may produce positive and negative pressure on the facade.

The resulting forces must be transferred through the curtain wall framing and its connections.

Combined Actions

Some brackets are subjected to multiple actions.

Their anchor groups must be evaluated for the actual load combinations.

Thermal Movement

Curtain wall systems may expand or contract due to temperature changes.

The movement provisions must be designed within the facade connection system.

Building Movement

Floor deflection, interstory drift, creep, shrinkage and other structural movements may influence facade connection requirements.

Critical Design Distinction

An anchor should not be expected to provide movement accommodation simply because its bracket has a slotted hole.

The intended sliding, restraint and load-transfer mechanisms must be specifically designed.

Curtain Wall Bracket Load Path

A simplified facade load path can be described as:

Facade panel → framing or unit connection → support bracket → concrete anchor group → structural concrete.

At each interface, engineers should verify:

• Force direction

• Connection stiffness

• Load distribution

• Movement compatibility

• Fastener engagement

• Corrosion compatibility

• Installation tolerances

Engineering Information Gain: The Most Heavily Loaded Anchor May Not Be the Closest to the Applied Force

When a bracket creates an overturning moment, some anchors may experience tension while other parts of the base plate bear against the concrete.

The force distribution depends on the bracket and base plate geometry, contact conditions and applicable design model.

Anchor-group calculations should not assume equal loading without justification.

Slab-Edge Anchoring for Curtain Wall Brackets

Curtain wall brackets are frequently located near concrete slab edges.

These locations create particular anchoring challenges.

Restricted Edge Distance

The available concrete distance between the anchor and slab edge may be limited.

Limited Concrete Thickness

The floor slab must provide sufficient thickness for the specified anchoring configuration.

Reinforcement Congestion

Slab-edge reinforcement may restrict drilling locations.

Anchor Group Geometry

Multiple anchors can interact through overlapping concrete failure regions.

Eccentric Bracket Loads

The distance between the facade load and the concrete support may generate significant moments.

Installation Tolerances

Actual slab-edge positions may differ from design assumptions.

Potential Concrete Failure Mechanisms

Depending on the anchor and connection, relevant mechanisms may include:

• Concrete cone breakout

• Concrete edge breakout

• Concrete splitting

• Anchor pullout

• Concrete pryout

• Anchor steel failure

• Anchor-group interaction

Engineering Information Gain: Do Not Solve Every Slab-Edge Problem by Increasing Anchor Diameter

A larger anchor may increase some steel resistance while requiring a larger drilled hole or different edge geometry.

If concrete breakout governs the design, increasing anchor diameter may not resolve the limitation.

The engineer should identify the governing failure mode before changing the anchor configuration.

Cast-In Anchor Channels vs. Post-Installed Expansion Anchors

Curtain wall projects may use different fastening technologies depending on the construction stage and project requirements.

Cast-In Anchor Channels

Cast-in channels can provide planned attachment points and, depending on the system, longitudinal adjustment.

They require coordination before concrete placement.

Post-Installed Expansion Anchors

Post-installed anchors can be considered when concrete has already been cast and suitable anchoring conditions are available.

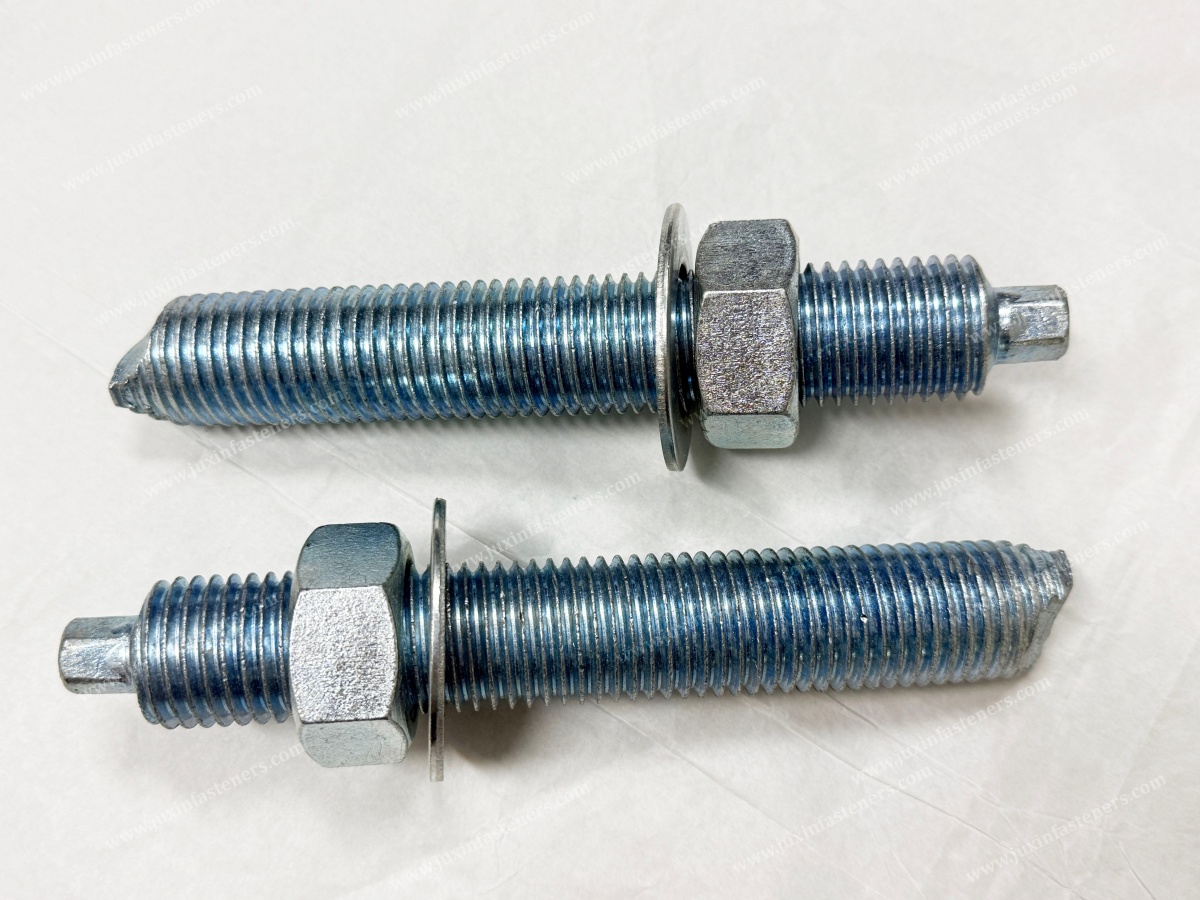

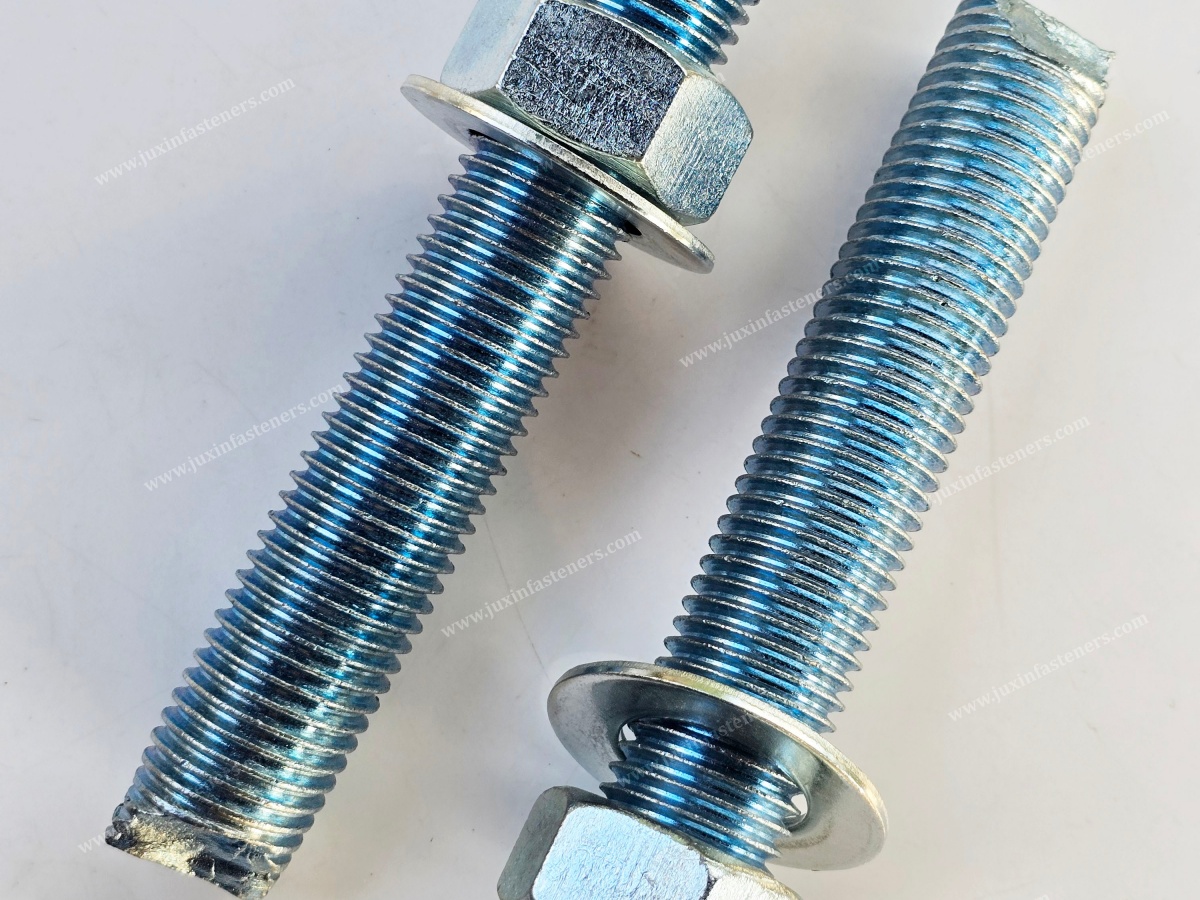

Bonded Anchors

Bonded systems use an approved adhesive and compatible anchoring element.

Their suitability depends on the exact product, installation conditions and design.

Alternative Selection

The most appropriate solution depends on:

• Construction stage

• Concrete geometry

• Load requirements

• Required adjustment

• Installation access

• Technical qualification

• Inspection requirements

• Project cost

Important Limitation

A post-installed expansion anchor must not be substituted for a specified cast-in channel or bonded system without engineering approval.

Curtain Wall Installation Tolerances and Slotted Holes

Facade installation requires accurate positioning while accommodating normal construction tolerances.

Potential sources of variation include:

• Concrete slab-edge location

• Concrete surface flatness

• Embedded reinforcement

• Bracket fabrication tolerances

• Curtain wall unit dimensions

• Building survey tolerances

• Installation sequencing

Slotted-Hole Brackets

Slotted holes may provide adjustment in a defined direction.

However, the effect on bolt bearing, clamping, slip resistance and anchor load transfer must be evaluated.

Washer Configuration

Special washers or bearing plates may be required for some slotted-hole connections.

Stand-Off Brackets

Where the bracket is offset from the concrete surface, additional anchor bending or prying effects may arise.

Shim and Grout Layers

Shims, grout or other bearing materials can influence the load path and connection stiffness.

Information Gain: Adjustment Range Must Be Designed, Not Improvised

Field installers should not enlarge anchor holes, add unapproved washers or modify brackets to compensate for unexpected construction tolerances.

A suitable adjustment strategy should be established before production and installation.

Concrete Substrate Selection for Facade Anchors

Concrete substrate conditions directly affect mechanical anchoring performance.

Normal-Weight Concrete

The specified concrete strength and geometry must be verified.

Cracked Concrete

Certain mechanical anchors are evaluated for cracked concrete.

Other products are limited to uncracked concrete.

Precast Concrete

Precast facade-supporting elements may have restricted thickness, reinforcement or edge geometry.

Existing Concrete

Retrofit projects may require investigation of:

• Concrete condition

• Existing reinforcement

• Previous drilled holes

• Cracking

• Deterioration

• Available member thickness

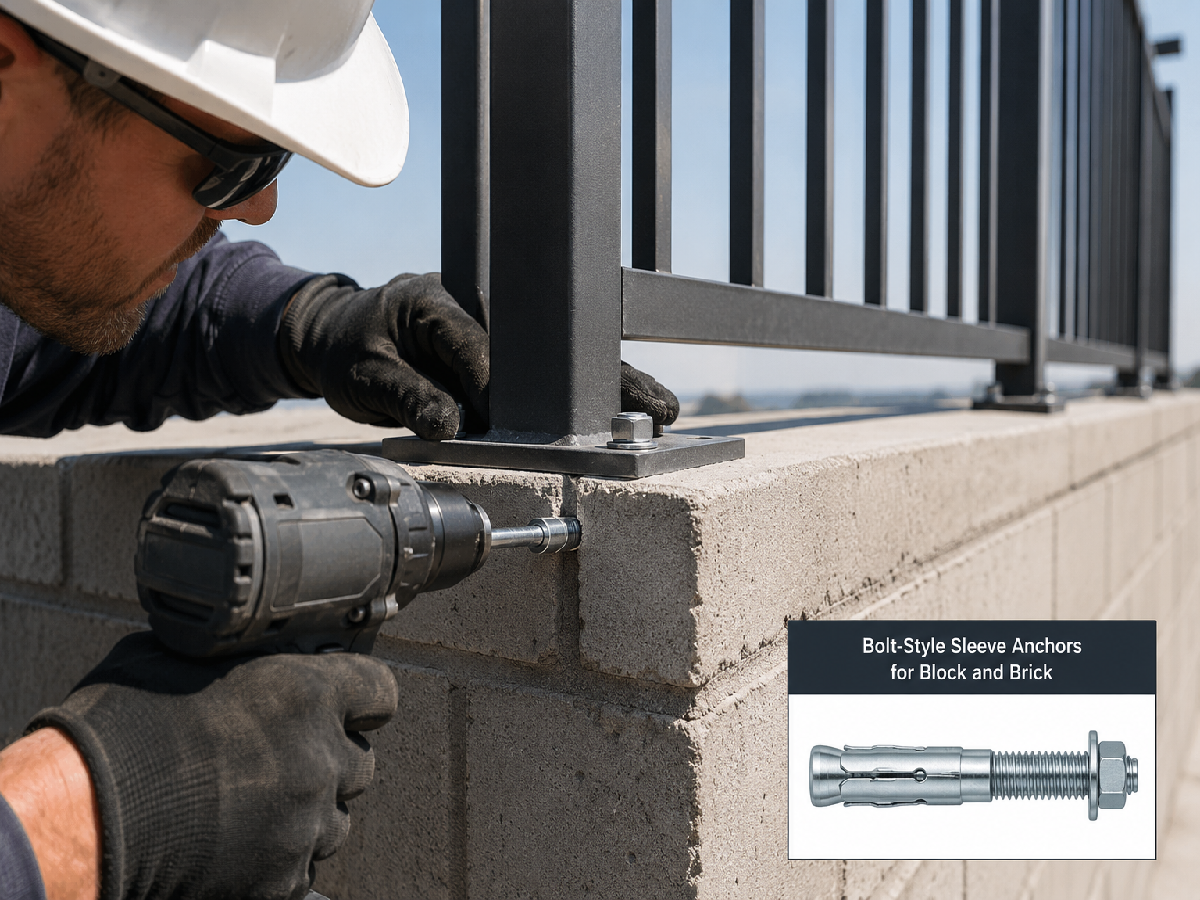

Masonry Substrates

Some expansion anchor systems are suitable for specified masonry materials.

A conventional concrete expansion anchor must not automatically be used in hollow masonry or weak brick.

Concrete Selection Matrix

Expansion Anchor Diameter, Length and Embedment

Correct dimension selection is essential.

Nominal Diameter

The nominal diameter identifies the anchor size but does not independently establish the resistance of the installed connection.

Overall Anchor Length

The selected length must accommodate the fixture and installation configuration.

Fixture Thickness

Curtain wall brackets, base plates and washers influence the required anchor length.

Effective Embedment

Effective embedment is a product-specific design parameter.

It must not be confused with the total anchor length or drilled-hole depth.

Drill Diameter

The hole diameter must match the exact product's installation requirements.

Hole Depth

The drilled hole must provide sufficient clearance for the approved installation.

Setting Torque

Torque-controlled expansion anchors require the specified setting procedure.

Engineering Selection Matrix

Base Plate Stiffness and Anchor Group Design

The facade support bracket and anchor group form a mechanical system.

Bracket Stiffness

A flexible bracket may produce different anchor forces than a rigid bracket.

Anchor Group Arrangement

Anchor positions influence resistance to moments and combined loads.

Concrete Contact

Contact conditions between the bracket and concrete affect force transfer.

Fixture-Hole Clearance

Clearance holes and slotted holes may influence how shear is transferred.

Anchor Bending

Stand-off or offset connections may introduce bending into the anchor.

Information Gain: Anchor Quantity Is Not a Substitute for Proper Layout

Adding more anchors does not guarantee a proportional increase in connection capacity.

Concrete breakout regions, anchor spacing, edge distances and bracket stiffness can limit the benefit.

Construction and Steel Structure Applications

Beyond curtain walls, expansion anchors may be used for suitable steel-to-concrete connections involving:

• Structural support brackets

• Equipment platforms

• Handrails

• Guardrails

• Access systems

• Pipe supports

• Cable tray brackets

• Architectural metalwork

• Building-service frames

• Industrial building components

Steel Structure Installation

Post-installed anchors may connect suitable steel brackets or auxiliary structures to concrete.

They should not be confused with structural bolts used for primary steel-to-steel joints.

Handrails and Guardrails

These connections may be safety-critical and require appropriate design loads and product qualification.

Renovation and Retrofit

Existing concrete conditions and construction tolerances may be more uncertain than in new construction.

MEP and Building-Service Applications

Mechanical, electrical and plumbing installations create extensive demand for reliable construction fastening.

Potential applications include:

• HVAC equipment supports

• Ventilation duct brackets

• Pipe supports

• Cable trays

• Electrical conduits

• Equipment frames

• Plumbing fixtures

• Fire protection support components

• Utility installations

Distributed Loads

MEP systems may have multiple fixing points across long runs.

Thermal Movement

Pipework and other services may experience thermal expansion and contraction.

Vibration

Mechanical equipment can introduce dynamic actions.

Installation Productivity

Large construction projects may require many repeated drilling and setting operations.

Engineering Information Gain: Separate Support-System Movement from Anchor Movement

Pipe or duct movement should be accommodated by the engineered support system.

It should not be assumed that loosening or partially setting an expansion anchor is an acceptable movement solution.

Curtain Wall Anchor Material and Corrosion Protection

Facade connections may be exposed to humidity, condensation, outdoor weather and potentially aggressive environments.

Zinc-Plated Carbon Steel

Zinc-plated steel may be suitable for certain controlled indoor applications.

Its suitability for exposed facade locations must be evaluated.

Hot-Dip Galvanized Anchor Systems

Some mechanical anchor systems are available with qualified galvanized configurations.

Coating thickness, thread fit and expansion behavior must be considered.

Stainless Steel Expansion Anchors

Certain stainless steel anchor systems are intended for corrosion-resistant applications.

The actual material grade and product qualification must be verified.

304 Stainless Steel

Suitable 304 stainless steel anchor systems may be considered for certain environments.

316 Stainless Steel

Suitable 316 stainless steel systems may provide increased resistance to some corrosive conditions.

However, chloride-related corrosion remains a consideration.

Dissimilar Metal Contact

Curtain wall brackets may involve aluminum, stainless steel and coated carbon steel components.

Where dissimilar metals are exposed to moisture, galvanic corrosion should be evaluated.

Crevice Conditions

Moisture trapped between components may create localized corrosion risks.

Coating Damage

Drilling, installation and handling can damage protective finishes.

Material Selection Matrix

Relevant Material and Coating Standards

Depending on the specified product, relevant references may include:

• ISO 898-1 for applicable carbon and alloy steel fastener mechanical properties

• ISO 3506 for applicable stainless steel fastener mechanical properties

• ISO 4042 for electroplated fastener coatings

• ISO 10684 for applicable hot-dip galvanized fasteners

• ISO 9227 and ASTM B117 for laboratory salt spray testing

These standards do not independently establish concrete anchoring resistance.

Hydrogen Embrittlement

Certain hardened steel fasteners may be susceptible to hydrogen embrittlement.

Material properties, heat treatment and coating processes should be considered where relevant.

Corrosion Testing Limitations

Salt spray test duration should not be treated as a direct prediction of facade service life.

Installation Procedure for Construction Expansion Anchors

Correct installation is essential to achieving the intended anchoring performance.

The exact manufacturer's instructions and project requirements govern.

Verify the Anchor Location

Check the approved bracket drawing and anchor layout.

Confirm the Substrate

Identify the concrete type, condition and available thickness.

Check Reinforcement and Services

Avoid damaging reinforcement or embedded services.

Drill the Hole

Use the specified drill diameter, method and depth.

Prepare the Hole

Follow the product-specific hole-cleaning requirements.

Position the Fixture

Install the bracket or support component in the approved position.

Insert and Set the Anchor

Follow the exact installation sequence for the selected anchor.

Apply the Specified Setting Torque

Use the approved setting procedure and tools.

Inspect the Installation

Verify the required acceptance criteria.

Important Tool Restriction

Do not assume that every expansion anchor permits impact-wrench setting.

Some products require a controlled torque procedure and prohibit specific tools.

Installation Quality-Control Checklist

Common Installation Failures

Oversized Drill Hole

May reduce mechanical engagement.

Insufficient Hole Depth

May prevent correct seating.

Incorrect Setting Torque

May cause incomplete expansion or damage.

Concrete Cracking

May indicate unsuitable geometry, substrate conditions or installation problems.

Unapproved Bracket Modification

May alter load transfer and anchor forces.

Incorrect Washer or Nut

May compromise the specified assembly.

Corrosion Damage

May reduce long-term durability.

Engineering Information Gain: The Site Installation Procedure Should Match the Approved Design

The engineering drawing, anchor specification, installation tool and inspection criteria should form a consistent package.

When one part changes, the effect on the complete connection should be reviewed.

Curtain Wall Installation Coordination and Production Efficiency

Curtain wall installation is both an engineering and a production-management activity.

For unitized facade projects, repetitive installation quality can affect overall construction progress.

Preinstallation Planning

Useful activities include:

• Confirming bracket drawings

• Verifying concrete dimensions

• Surveying slab-edge conditions

• Coordinating anchor locations

• Checking installation access

• Reviewing approved fastener specifications

Tool Standardization

Consistent tools and work instructions can reduce installation variation.

Bracket Identification

Clear part numbers and orientation markings can reduce assembly errors.

Fastener Packaging

Packaging by bracket type or installation area may reduce sorting time.

Quality Inspection

Inspection requirements should be established before installation begins.

Rework Control

Unapproved redrilling, relocation or replacement of anchors can create structural risks.

Information Gain: A Small Installation Tolerance Problem Can Become a Large Project Cost

Curtain wall projects may involve repeated connections across many floors.

A bracket that requires field modification at every location can create substantial labor, inspection and schedule consequences.

Early coordination between facade designers, bracket manufacturers, anchor suppliers and installation contractors can reduce these risks.

International Engineering Standards and Technical Qualification

EN 13830 — Curtain Walling Product Standard

EN 13830 addresses curtain walling product requirements in the European framework.

It does not replace the structural design and product-specific qualification required for concrete anchors.

EN 1992-4 — Design of Fastenings for Use in Concrete

EN 1992-4 provides European design provisions for applicable concrete fastening systems.

European Technical Assessments

An ETA provides assessed characteristics for a specific construction product.

Depending on the product, it may identify:

• Approved anchor models

• Sizes and configurations

• Intended substrates

• Cracked or uncracked concrete suitability

• Effective embedment

• Characteristic resistance

• Installation conditions

• Environmental limitations

• Seismic performance, where assessed

EAD 330232-02-0601

This European Assessment Document concerns mechanical fasteners for use in concrete.

The exact product's applicable assessment basis must be verified.

ACI 318 Chapter 17

ACI 318 Chapter 17 provides design provisions for anchoring to concrete in applicable North American projects.

ACI 355.2

ACI 355.2 addresses qualification of post-installed mechanical anchors for concrete.

ICC-ES Evaluation Reports

ICC-ES reports provide product-specific evaluation information under stated conditions.

Project-Specific Facade Requirements

Curtain wall projects may also require compliance with relevant building codes, facade performance specifications and structural movement criteria.

The applicable edition and local jurisdiction must be confirmed.

Critical Qualification Boundary

An ETA, ICC-ES report or other technical approval issued for a competitor's anchor does not qualify a visually similar product from another supplier.

For safety-critical facade applications, the actual supplied anchor must satisfy the required engineering and documentation conditions.

Metric and Inch-Based Expansion Anchor Specifications

Expansion anchors may be supplied with metric or inch-based threaded components.

The exact thread designation must be specified.

Metric, UNC, UNF, BSW and BSF threads are not directly interchangeable.

Inch conversions of metric dimensions are reference values only.

Product Substitution and OEM Engineering Review

Facade projects may require replacement or alternative fastening components.

However, anchor substitution should not be based on dimensions alone.

Substitution Review Checklist

Information Gain: Identical Dimensions Do Not Prove Interchangeability

Two expansion anchors may have the same nominal diameter, overall length and thread designation but different expansion mechanisms,

installation torques, assessed resistance and minimum edge distances.

A supplier substitution must be reviewed as an engineering change.

Manufacturing Consistency for Construction Fasteners

Industrial fastener supply requires control of the specified product configuration.

Dimensional Consistency

Relevant dimensions may include:

• Anchor diameter

• Overall length

• Thread dimensions

• Expansion component geometry

• Nut and washer dimensions

Material Consistency

The specified mechanical properties must be maintained.

Surface Treatment Consistency

Coating changes may affect corrosion behavior, dimensions and installation.

Assembly Compatibility

The nut, washer and expansion component must match the specified anchor.

Traceability

Lot identification may be required for quality control or project records.

Change Control

Changes to geometry, material, heat treatment, coating or expansion components may require reassessment.

Packaging

Suitable packaging can help prevent mixing of anchor sizes, materials and lengths.

Construction Fastener Procurement and Supplier Development

Procurement teams should evaluate both technical conformity and commercial reliability.

Product Specification

Confirm:

• Anchor type

• Diameter

• Length

• Thread designation

• Material

• Mechanical properties

• Surface finish

• Nut and washer configuration

Technical Documentation

Determine whether the project requires:

• Product drawings

• Installation instructions

• Material documentation

• Inspection reports

• ETA or ICC-ES evaluations

• Other project-specific records

Commercial Requirements

Define:

• Sample quantity

• MOQ expectations

• Initial order quantity

• Annual forecast

• Packaging

• Required lead time

• Delivery destination

• Repeat-order requirements

Supply Chain Risk

Changing anchor types after construction has started may require redesign, revised installation instructions and additional approval.

Information Gain: Procurement Should Separate Commodity Fasteners from Qualified Anchoring Systems

Standard nuts, washers and general threaded hardware may be sourced according to their applicable specifications.

Safety-critical concrete anchoring systems require additional attention to product-specific qualification and installation conditions.

The two purchasing categories should not be managed as if they have identical approval requirements.

Why Source Expansion Bolts and Industrial Fasteners from Juxin Fasteners?

Juxin Fasteners has more than 20 years of experience in international industrial fastener supply.

Our industrial fastening portfolio includes:

• Expansion bolts

• Concrete anchoring hardware

• Bolts and screws

• Nuts and washers

• Structural fastening components

• Rivet nuts

• Welding nuts

• Self-clinching fasteners

• Custom threaded components

• CNC machined parts

• Drawing-based OEM fastening hardware

We support technical and commercial inquiries involving:

• Product drawings

• Dimensions and tolerances

• Material requirements

• Surface finishes

• Industrial applications

• Inspection specifications

• Packaging

• Bulk procurement

• Delivery requirements

Specific product availability, manufacturing feasibility, MOQ, lead times and technical documentation must be confirmed for each inquiry.

For structural or safety-critical curtain wall anchoring, the required product qualification and engineering approval remain essential.

Construction Applications Supported by Industrial Fastening Solutions

Commercial Buildings

Suitable brackets, building-service supports, equipment fixtures and architectural metalwork.

Industrial Buildings

Equipment brackets, steel support frames, pipe systems, cable supports and machinery accessories.

Curtain Wall Systems

Suitable mechanical fastening components for facade-related applications where permitted by the project design.

Infrastructure Construction

Selected utility brackets, service equipment and auxiliary support structures.

Renovation and Retrofit

Post-installed fastening solutions for existing concrete structures, subject to substrate investigation and engineering approval.

Frequently Asked Questions

What are expansion bolts used for in construction?

Expansion bolts are used to secure suitable brackets, support frames, equipment and building-service components to qualified substrates.

Can expansion bolts be used for curtain wall installation?

Certain qualified mechanical expansion anchors may be used for suitable curtain wall connections when the complete bracket, concrete and anchor system satisfies the project design.

What is the difference between a curtain wall bracket and an expansion anchor?

The bracket transfers loads from the facade assembly. The expansion anchor transfers forces from the bracket into the supporting substrate.

Are expansion bolts suitable for slab-edge installation?

Some products may be suitable for specified slab-edge conditions. Edge distance, concrete thickness, reinforcement and anchor-group design must be evaluated.

Can expansion anchors be used in cracked concrete?

Some products have cracked-concrete qualifications. Others do not.

Are wedge anchors and sleeve anchors interchangeable?

No. Their mechanisms and technical performance may differ.

Can expansion bolts replace cast-in anchor channels?

Only where the alternative connection satisfies the required engineering and approval conditions.

Can a slotted-hole bracket accommodate curtain wall movement?

Only where the slot and complete connection have been designed for the intended movement and load transfer.

What is effective embedment?

Effective embedment is a product-specific anchoring depth used in engineering design.

How important is anchor edge distance?

Edge distance can significantly influence concrete breakout and splitting resistance.

What installation torque should be used?

Use the specified setting torque and procedure for the exact anchor product.

Can impact wrenches be used to set expansion anchors?

Only where the specific product instructions permit them.

Are stainless steel expansion anchors better for exterior facades?

They may provide suitable corrosion resistance in some environments, but the actual material, exposure and product qualification must be verified.

Can expansion anchors be used for overhead construction supports?

Only where the selected product is suitable for the intended overhead application.

Are expansion bolts suitable for seismic facade connections?

Certain qualified systems may be suitable. The actual seismic design and product evaluation must be checked.

Can a different supplier's expansion anchor replace a specified brand?

Only after the required engineering and product documentation review.

Can Juxin Fasteners review custom curtain wall fastening components?

Yes. Drawing-based industrial fastening inquiries can be reviewed for technical and commercial feasibility, subject to applicable product qualification requirements.

Curtain Wall and Construction Fastener RFQ Checklist

For efficient technical review and quotation, please provide the following information where available.

Product Information

• Expansion anchor type

• Existing product reference

• Technical drawing

• Nominal diameter

• Overall length

• Thread designation

• Material

• Surface finish

• Nut and washer configuration

Facade and Bracket Information

• Curtain wall system type

• Bracket drawing

• Base plate dimensions

• Fixture thickness

• Slotted-hole configuration

• Required adjustment range

• Stand-off distance

• Contact or grout conditions

• Installation access

Concrete Information

• Concrete strength

• Cracked or uncracked condition

• Concrete member thickness

• Slab-edge distance

• Anchor spacing

• Reinforcement constraints

• Existing or new construction

Engineering Requirements

• Dead-load forces

• Wind-load forces

• Combined loading

• Eccentric bracket forces

• Building movement requirements

• Seismic requirements, if applicable

• Required effective embedment

• Applicable design standard

• Required ETA or ICC-ES documentation

Installation Requirements

• Drill diameter

• Hole depth

• Hole preparation

• Setting torque

• Installation tools

• Inspection requirements

• Rework restrictions

Commercial Requirements

• Sample quantity

• Initial order quantity

• Annual forecast

• MOQ expectations

• Packaging

• Delivery schedule

• Delivery destination

Request Expansion Bolt and Curtain Wall Fastening Solutions

Juxin Fasteners welcomes inquiries from curtain wall system suppliers, facade contractors, construction engineering companies, industrial OEMs,

structural and mechanical engineers, manufacturing engineers, production managers, supplier development teams and international procurement professionals.

Whether your project requires expansion bolts, construction anchoring hardware, standard threaded fasteners or drawing-based curtain wall fastening components,

the technical review should begin with the actual connection design and installation requirements.

Send us your drawings, product specifications, material requirements, surface treatment details, expected quantities and delivery requirements.

For structural and safety-critical facade anchoring, please also provide the necessary engineering and product qualification requirements.

Company: Juxin Fasteners

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Reliable Curtain Wall Installation Depends on Coordinated Bracket Design, Verified Concrete Anchoring, Controlled Installation and Consistent Fastener Supply.
