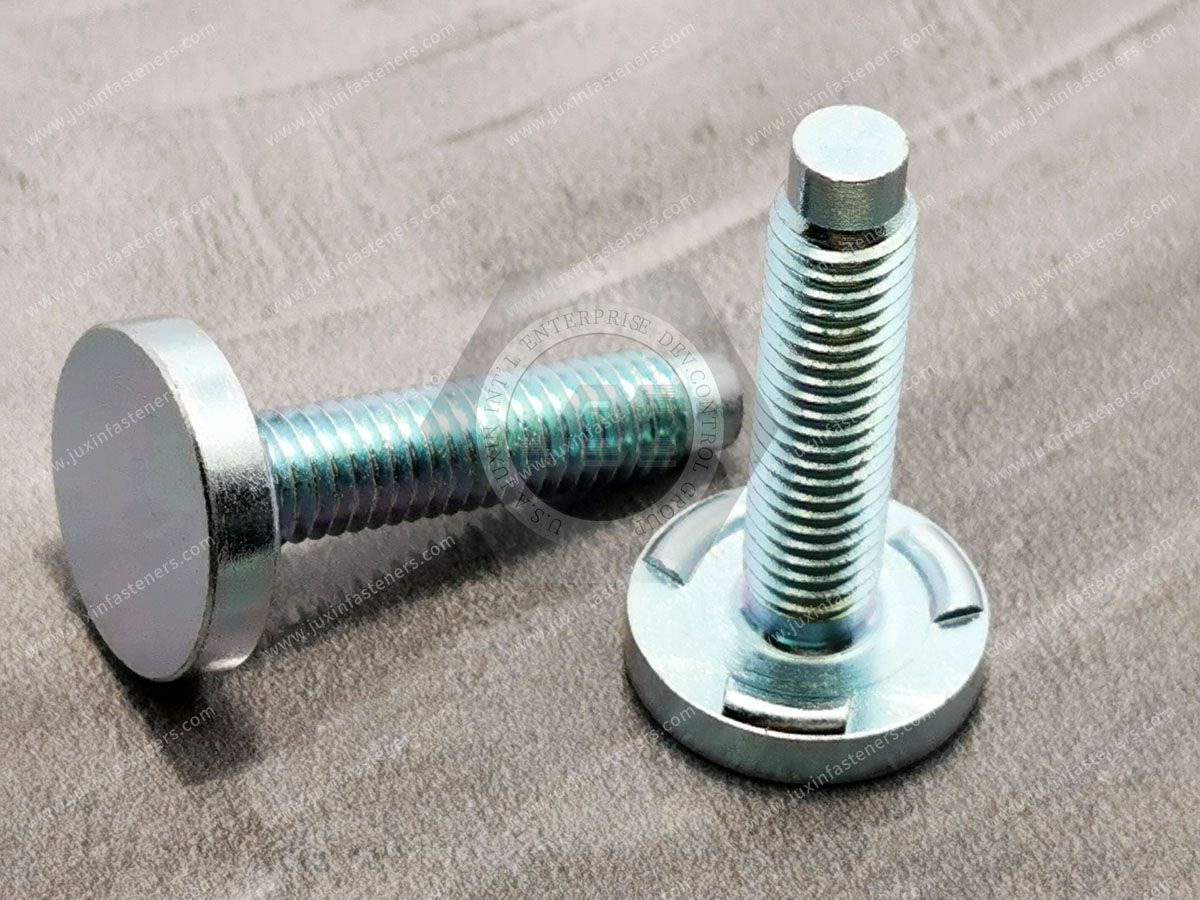

DIN34817 Weld Studs for Automotive Body Assembly

DIN34817 Weld Studs for Automotive Body Assembly

Introduction

Weld studs are a key fastener solution in automotive body assembly, providing strong threaded points in steel sheets. The DIN34817 standard defines weld studs suitable for high-strength structural applications, supporting load classes 8.8 and 10.9.They are used in:

Chassis assembly

• Structural reinforcement

• Mounting brackets for components

 Material and Strength Selection

• Carbon steel: Most common, high      strength, economical

• Stainless steel: Corrosion      resistance for exterior panels

• Strength grades: 8.8 for general      structural applications, 10.9 for heavy-load and high-stress areas

Choosing the right material ensures optimal vibration resistance, torque retention, and load-carrying capability.

Installation Considerations

DIN34817 weld studs require:

1. Surface preparation: Clean, smooth      parent material ensures proper weld

2. Welding equipment: Stud welding gun      with correct settings

3. Weld inspection: Visual and      non-destructive testing ensures quality

4. Torque application: Proper torque      during assembly prevents loosening

 Advantages of Weld Studs

• High mechanical strength

• Resistant to vibration and torque-induced loosening

• Permanent threaded attachment without additional nuts

• Suitable for hollow or thin-walled steel panels

Automotive Applications

• Roof and door panels

• Seat bracket assembly

• Engine bay mounts

• Reinforcement of battery tray and electronic module brackets

DIN34817 weld studs provide consistent performance, even in high-vibration, high-load automotive environments.
