Introduction

Electrical and power distribution equipment often uses plastic or thin-sheet-metal enclosures to house switches, circuit breakers, and connectors. Thread insert nuts provide reliable, reusable threaded points in these materials, ensuring durable assemblies and ease of maintenance.

Benefits:

• Strong internal threads in plastics and thin metals

• Protection against stripping or loosening

• Compatibility with high-temperature and industrial environments

• Enables repeated assembly/disassembly

Material Selection

• Brass: Excellent creep resistance, common in high-temperature electrical housings

• Stainless Steel: Corrosion-resistant, suitable for outdoor enclosures

• Aluminum: Lightweight, suitable for weight-sensitive components

 Installation Guidelines

1. Hole preparation: Correct diameter ensures optimal pull-out

2. Plastic flow: Ensure sufficient plastic fills knurls and undercuts

3. Torque control: Apply recommended installation torque to prevent loosening

4. Flush installation: The insert head should be flush or slightly sub-flush for safety and performance

Self-Tapping Inserts

• Provide excellent pull-out strength

• Thread profile designed to reduce stress in plastic

• Require proper pilot holes and alignment

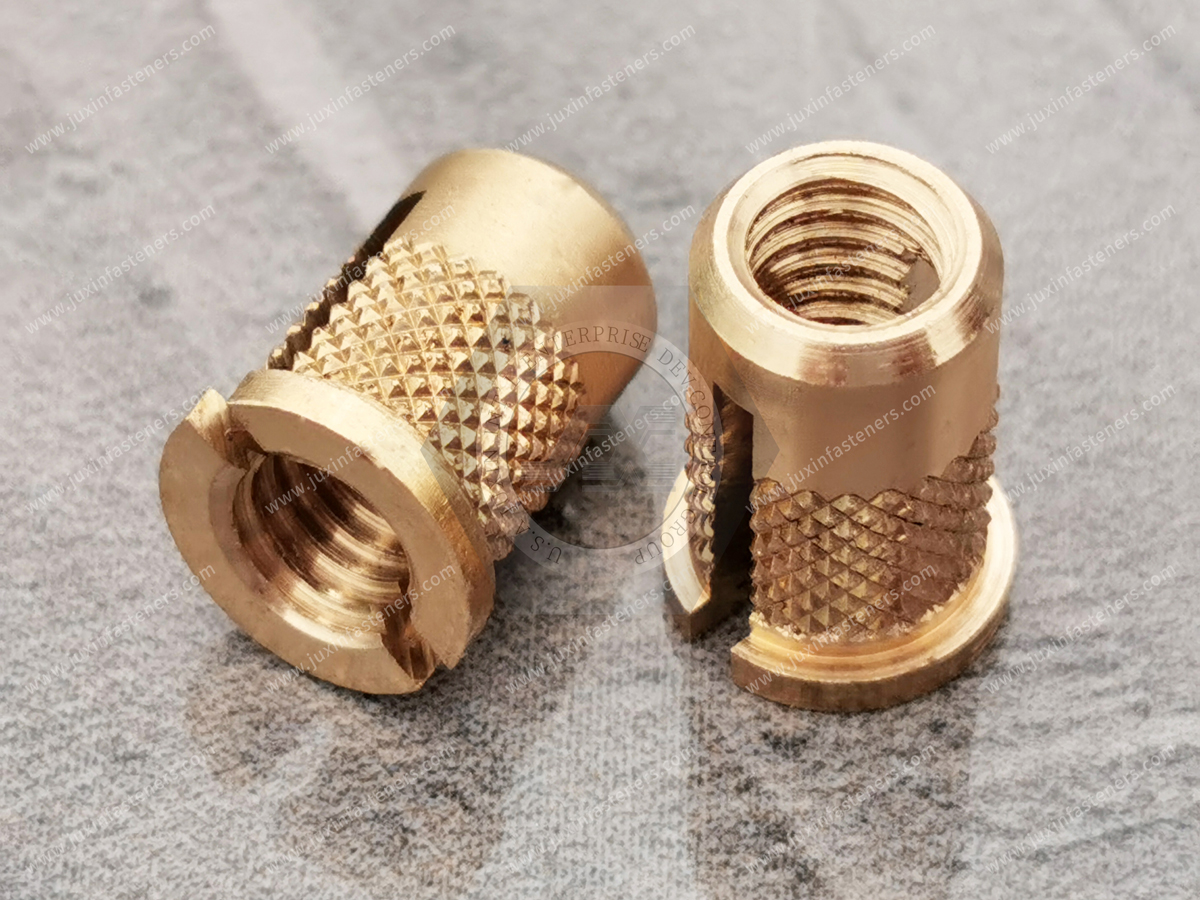

 Press-In Inserts

• Cost-effective for lower load applications

• Helical knurls create torque resistance and moderate pull-out strength

• Easy to install with press tools

 Molded-In Inserts

• Maximum torque and pull-out strength

• Installed during plastic molding

• Critical for high-load industrial enclosures and battery modules

 Applications

• Electrical control boxes

• Power distribution panels

• Circuit breaker enclosures

• Instrument housings

Thread inserts ensure durability and reliability while enabling serviceability.
