Flange Nuts Installation Guide: Reliable Fastening Solutions for Industrial Applications

Professional Flange Nut Manufacturer for OEM Industrial Fastening Solutions

In industrial manufacturing, a reliable fastening connection is essential to ensure equipment safety, structural stability, and long-term performance.

Flange nuts are widely used fastening components designed with an integrated flange base that works as a built-in washer. Compared with standard hex nuts, hex flange nuts provide a larger bearing surface, better load distribution, and improved resistance against loosening.

As a professional flange nut manufacturer, JUXIN FASTENERS supplies high-quality DIN 6923 flange nuts, serrated flange nuts, stainless steel flange nuts, and customized OEM flange nuts for automotive, machinery, electrical equipment, construction, and industrial applications.

This article explains the flange nut structure, materials, installation methods, locking solutions, and industrial applications to help engineers select and install the correct fastening solution.

What Is a Flange Nut?

A flange nut is a type of hexagonal nut with an integrated circular flange at the bottom.

The flange works similarly to a washer by:

• Increasing the contact area

• Reducing surface pressure

• Improving fastening stability

• Preventing damage to the connected material

Compared with traditional hex nuts, flange nuts eliminate the need for separate washers in many applications, improving assembly efficiency and reducing component quantity.

Common names include:

• Hex flange nuts

• Flanged hex nuts

• Serrated flange nuts

• Washer face nuts

• Automotive flange nuts

Main Types of Flange Nuts

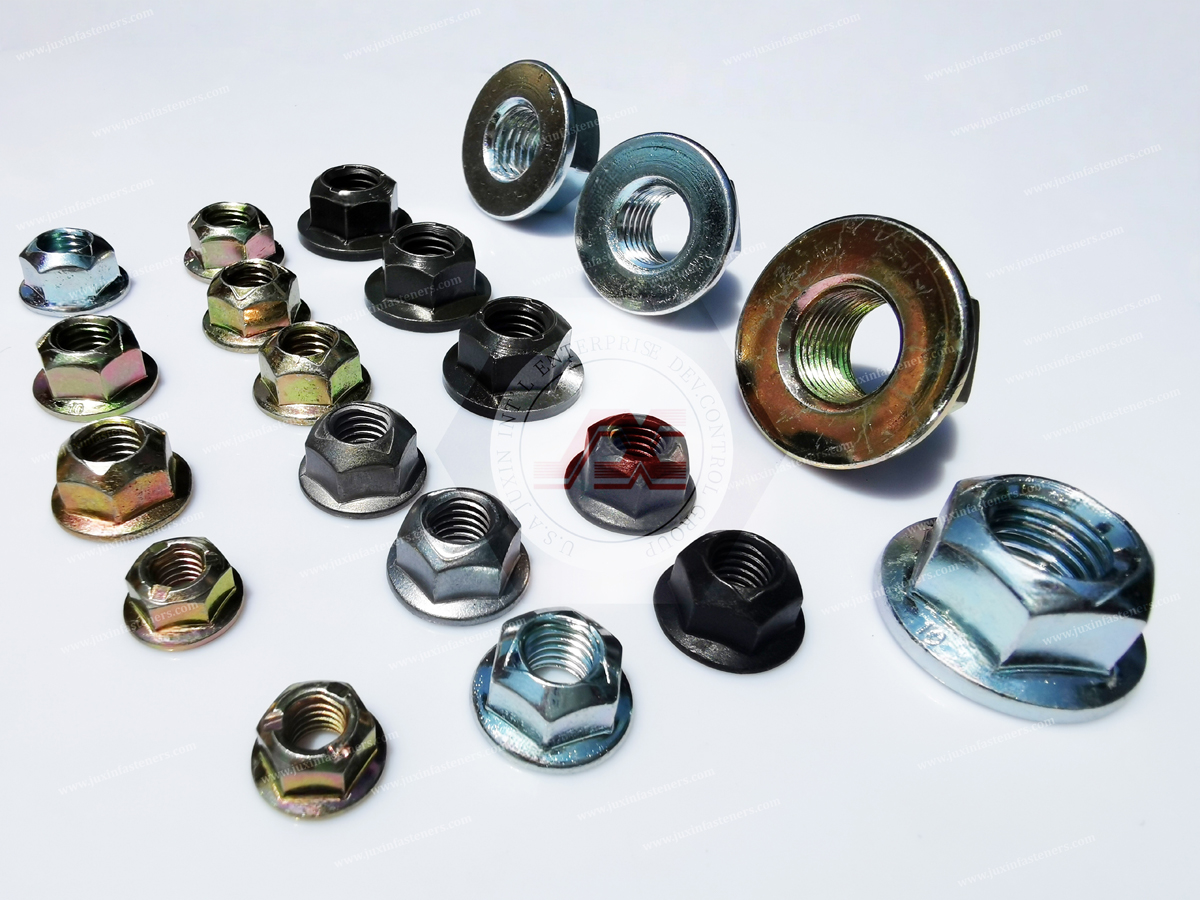

1. DIN 6923 Hex Flange Nuts

DIN 6923 flange nuts are one of the most commonly used flange nut standards worldwide.

Features:

✔ Integrated flange design
✔ Excellent load distribution
✔ Easy installation
✔ Suitable for automated assembly

Applications:

• Automotive components

• Machinery manufacturing

• Electrical equipment

• Sheet metal assemblies

2. Serrated Flange Nuts

Serrated flange nuts include teeth or serrations underneath the flange surface.

During tightening, the serrated teeth grip the mating surface and create a locking effect.

Advantages:

• Excellent vibration resistance

• Reduced risk of loosening

• No additional locking washer required

• Suitable for dynamic applications

Common applications:

• Automotive assemblies

• Engines

• Industrial machinery

• Transportation equipment

3. Stainless Steel Flange Nuts

For applications requiring high corrosion resistance, stainless steel flange nuts are an ideal solution.

Available materials:

Stainless Steel 304 Flange Nuts

Suitable for:

• General industrial applications

• Food processing equipment

• Electrical systems

Stainless Steel 316 Flange Nuts

Recommended for:

• Marine environments

• Chemical equipment

• Outdoor structures

• High corrosion environments

4. Custom OEM Flange Nuts

Many industrial applications require customized flange nuts according to:

• Customer drawings

• Special thread specifications

• Material requirements

• Surface treatment requirements

JUXIN FASTENERS provides OEM custom flange nuts manufacturing services for global industrial customers.

Flange Nut Materials and Specifications

Common flange nut materials include:

Carbon Steel

Popular grades:

• Low carbon steel

• Medium carbon steel

• Grade 8 steel

• Class 10 steel

Applications:

• Machinery

• Automotive

• General industrial equipment

Stainless Steel

Grades:

• SUS304

• SUS316

Advantages:

• Excellent corrosion resistance

• Long service life

• Good appearance

Special Alloy Materials

Available options:

• Brass

• Aluminum alloy

• High-strength alloy steel

Common Flange Nut Sizes

JUXIN FASTENERS supplies standard and customized sizes including:

• M5 flange nuts

• M6 flange nuts

• M8 flange nuts

• M10 flange nuts

• M12 flange nuts

• M16 flange nuts

• M20 flange nuts

Other thread specifications available:

• UNC

• UNF

• Custom threads according to drawings

Flange Nut Surface Treatments

To improve corrosion resistance and durability, flange nuts can be supplied with various surface finishes.

Zinc Plating

Common options:

• Clear zinc plating

• Blue zinc plating

• Yellow zinc plating

• Black zinc plating

Advantages:

• Cost-effective corrosion protection

• Suitable for general industrial applications

Zinc Nickel Plating

Zinc nickel coated flange nuts provide higher corrosion resistance compared with standard zinc plating.

Advantages:

✔ Excellent salt spray performance
✔ Better wear resistance
✔ Suitable for automotive environments
✔ Improved durability

Other Surface Treatments

Available finishes:

• Nickel plating

• Black oxide

• Phosphate coating

• Dacromet / Geomet coating

• Chrome plating

Flange Nut Installation Guide for Industrial Applications

Correct installation is critical to achieving reliable fastening performance.

Improper installation may cause:

• Loosening

• Thread damage

• Uneven load distribution

• Equipment failure

Step 1: Check Flange Nut Specifications Before Installation

Before assembly, confirm:

• Nut size

• Thread specification

• Material grade

• Surface treatment

• Compatibility with bolt specifications

Inspect the flange nut for:

• Thread damage

• Surface defects

• Contamination

Step 2: Prepare Proper Installation Tools

Recommended tools include:

• Open-end wrench

• Socket wrench

• Torque wrench

For precision industrial applications, using a torque wrench is recommended to ensure correct tightening force.

Step 3: Align the Bolt and Flange Nut Correctly

Before tightening:

1. Align the bolt and nut threads

2. Ensure the flange surface contacts the workpiece evenly

3. Avoid cross-threading

Proper alignment improves:

• Connection strength

• Thread life

• Assembly reliability

Step 4: Tighten the Flange Nut According to Torque Requirements

During tightening:

• Apply torque gradually

• Follow recommended torque values

• Avoid over-tightening

Over-tightening may cause:

• Thread deformation

• Material damage

• Reduced fatigue performance

Under-tightening may result in:

• Vibration loosening

• Poor connection stability

Step 5: Final Inspection After Installation

After installation, check:

✔ Proper tightening torque
✔ Correct flange contact
✔ No thread damage
✔ Stable connection performance

Flange Nut Locking Solutions

Different applications require different anti-loosening solutions.

Serrated Locking

Used for:

• Medium vibration environments

• Automotive assemblies

• Machinery

The serrated flange surface creates mechanical resistance against rotation.

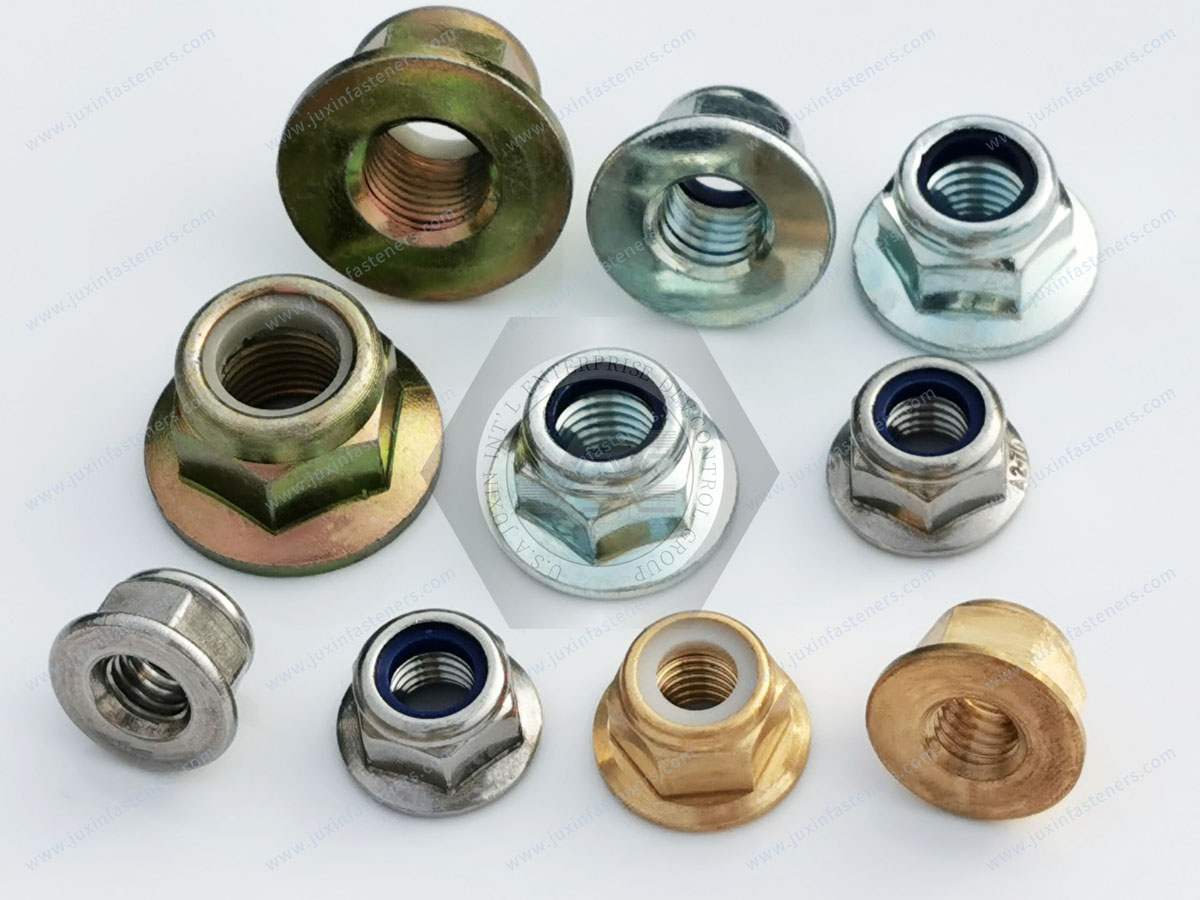

Nylon Insert Locking

Used for:

• Low vibration applications

• Precision equipment

Metal Locking

Recommended for:

• High temperature

• Heavy vibration

• Safety-critical applications

Industrial Applications of Flange Nuts

Automotive Industry

Automotive manufacturers widely use flange nuts for:

• Vehicle chassis

• Engine components

• Suspension systems

• Battery structures

• Body assemblies

The vibration resistance and assembly efficiency make flange nuts an important automotive fastening solution.

Machinery Manufacturing

Applications include:

• CNC machines

• Industrial robots

• Automation equipment

• Agricultural machinery

• Construction equipment

Electrical Equipment

Flange nuts are used in:

• Electrical cabinets

• Control systems

• Communication equipment

• Power equipment

Construction and Infrastructure

Applications include:

• Steel structures

• Outdoor equipment

• Structural connections

• Mechanical installations

Why Choose JUXIN FASTENERS for Flange Nuts?

JUXIN FASTENERS specializes in OEM industrial fastening solutions for global manufacturers.

Our capabilities include:

✔ DIN standard flange nuts production
✔ Custom flange nut manufacturing
✔ Stainless steel flange nuts
✔ Serrated flange nuts
✔ Automotive fastening solutions
✔ Customized surface treatments

We support customers with:

• Engineering consultation

• Material selection

• Surface treatment solutions

• OEM production

• Export packaging
