Hexagon Slotted Nuts (Castle Nuts) – Features, Installation Methods and Industrial Applications

Precision Locking Solutions for Automotive, Machinery and Industrial Equipment

Hexagon Slotted Nuts, also known as Castle Nuts, are high-performance mechanical fasteners designed for applications requiring reliable locking performance under vibration, shock loads, and heavy-duty operating conditions.

As a professional Hexagon Slotted Nuts Manufacturer and OEM Fastener Supplier, JUXIN FASTENERS provides customized slotted nuts manufactured according to international standards including DIN 935, ISO standards, and customer-specific drawings. Our slotted nuts are widely used in automotive components, machinery manufacturing, aerospace equipment, industrial assemblies, and high-load mechanical systems.

The unique slotted design allows the use of a cotter pin or locking wire, creating an additional mechanical locking function that prevents unwanted loosening during operation.

What Are Hexagon Slotted Nuts?

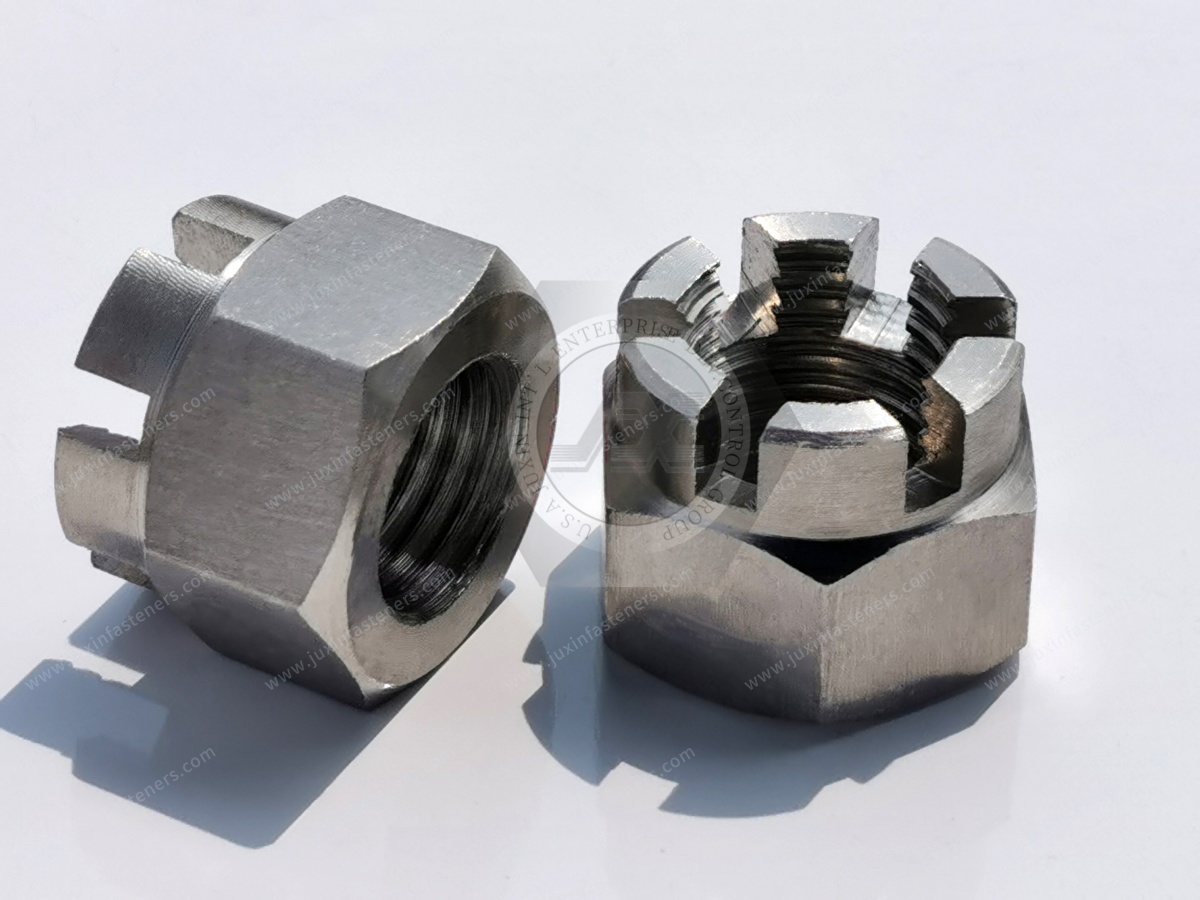

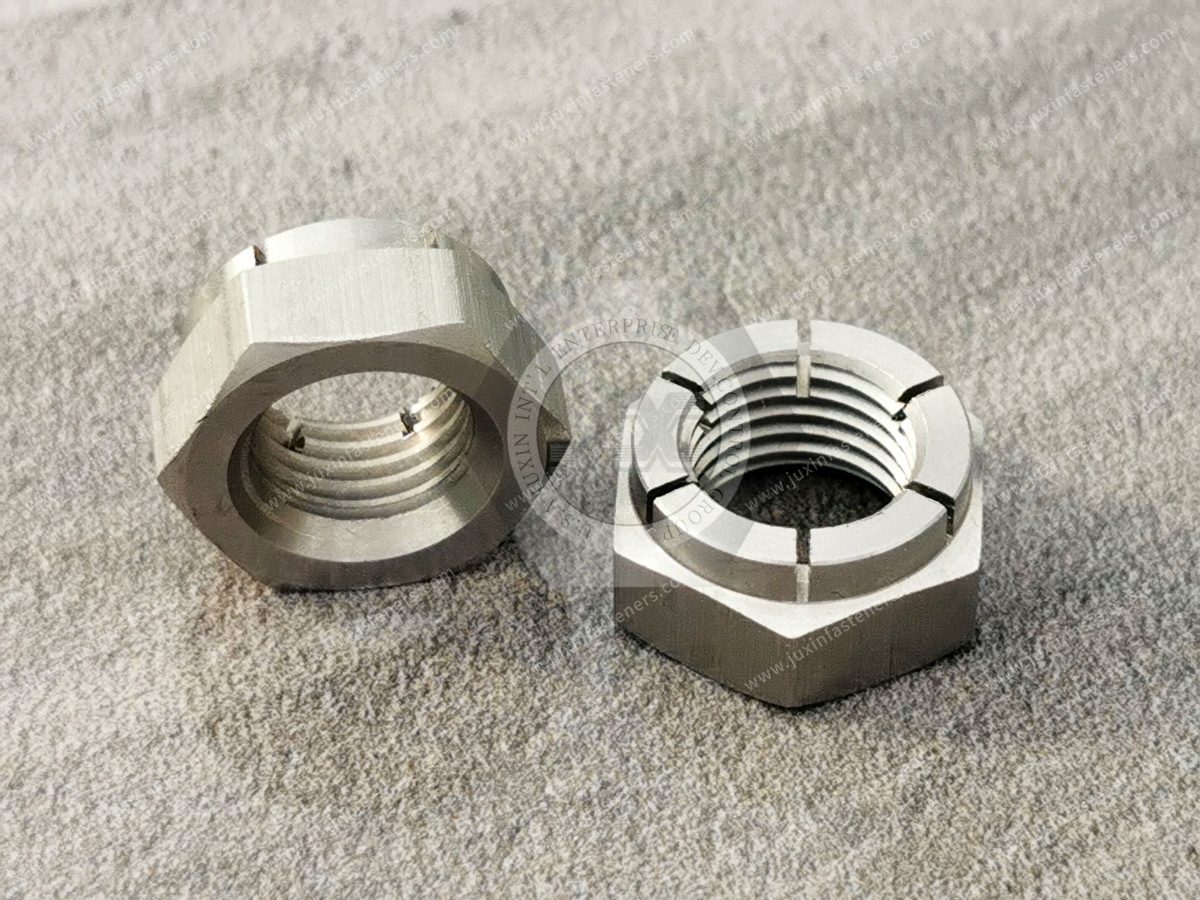

A Hexagon Slotted Nut is a six-sided nut with precision-machined slots on the top surface. These slots are designed to work together with a cotter pin passing through a drilled bolt or threaded shaft.

Compared with standard hex nuts, slotted nuts provide enhanced safety and reliability in applications where fastener loosening may cause equipment failure or safety risks.

Common types include:

• Standard Hexagon Slotted Nuts

• High-Type Slotted Nuts

• Low-Profile Slotted Nuts

• Fine Thread Slotted Nuts

• Custom OEM Slotted Nuts

Different designs are selected according to load requirements, installation space, and application conditions.

Hexagon Slotted Nuts Standards and Specifications

JUXIN FASTENERS manufactures slotted nuts according to internationally recognized standards.

Common Standards

• DIN 935 Hexagon Slotted Nuts

• ISO Slotted Nut Standards

• Customer drawings and OEM specifications

Slot Quantity

The number of slots depends on the nut size:

• Up to M39: 6 slots

• M42–M68: 8 slots

• M72 and above: 10 slots

The slot design ensures proper alignment with cotter pins and provides secure mechanical locking.

Materials and Strength Grades

To meet different industrial requirements, hexagon slotted nuts are available in various materials.

Carbon Steel Slotted Nuts

Typical strength classes:

• Grade 6

• Grade 8

• Grade 10

Reference standard:

DIN EN ISO 898-2

Suitable for:

• Automotive assemblies

• Heavy machinery

• Industrial equipment

Stainless Steel Slotted Nuts

Available grades:

• A2-50

• A2-70

• Other stainless grades according to customer requirements

Reference standard:

DIN EN ISO 3506-2

Advantages:

• Excellent corrosion resistance

• Suitable for outdoor and harsh environments

• Long service life

Non-Ferrous Metal Slotted Nuts

Materials include:

• Brass

• Copper alloys

• Special alloys

Reference standard:

DIN EN 28839

Suitable for:

• Electrical equipment

• Precision machinery

• Special industrial applications

High Torque Capacity and Reliable Anti-Loosening Performance

One of the key advantages of Hexagon Slotted Nuts is their excellent locking capability.

During operation, mechanical equipment may experience:

• Continuous vibration

• Impact loads

• Temperature changes

• Repeated mechanical stress

Standard nuts may gradually loosen under these conditions.

The slotted nut design allows additional locking through cotter pins, providing:

✓ Improved vibration resistance
✓ Higher fastening reliability
✓ Enhanced equipment safety
✓ Longer service life of assemblies

For safety-critical applications, slotted nuts are often preferred over conventional nuts.

Easy Installation and Removal Methods

Hexagon Slotted Nuts are designed for convenient installation and maintenance.

Installation Method

1. Select the correct size slotted nut according to the bolt specification.

2. Tighten the nut using a suitable wrench.

3. Align the slot with the drilled hole on the bolt.

4. Insert and secure the cotter pin.

This locking method provides a secure connection while allowing future maintenance.

How to Remove Hexagon Slotted Nuts

Method 1: Using a Slotted Nut Wrench

Recommended procedure:

1. Select the correct wrench according to the nut size.

2. Insert the wrench into the nut slots.

3. Rotate counterclockwise until the nut is removed.

Method 2: Using a Flat Screwdriver

For smaller applications:

1. Select a screwdriver matching the slot width.

2. Insert carefully into the slot.

3. Rotate slowly to loosen the nut.

Avoid excessive force to prevent thread damage.

Hexagon Slotted Nuts Industrial Applications

Due to their excellent locking performance and reliability, slotted nuts are widely used in industries requiring secure mechanical fastening.

Automotive Industry

Hexagon Slotted Nuts are commonly used in:

• Vehicle suspension systems

• Steering components

• Chassis assemblies

• Engine-related components

• Heavy truck applications

Automotive manufacturers choose slotted nuts because they provide stable fastening performance under vibration and dynamic loads.

JUXIN FASTENERS supports automotive OEM customers with customized fastener solutions according to drawings and specifications.

Machinery Manufacturing

Slotted nuts are widely applied in:

• Industrial machinery

• Hydraulic equipment

• Pressure vessels

• Heavy mechanical structures

• Steel structures

Their locking reliability makes them suitable for equipment operating under continuous loads.

Aerospace Applications

In aerospace and aviation equipment, fastening safety is critical.

Hexagon Slotted Nuts are used for:

• Aircraft mechanical assemblies

• Engine components

• Structural connections

• Maintenance applications

High-strength materials and precision manufacturing ensure reliable performance in demanding environments.

Railway and Heavy Equipment

Slotted nuts are also used in:

• Railway equipment

• Construction machinery

• Agricultural machinery

• Mining equipment

These applications require fasteners capable of handling vibration, impact, and extreme working conditions.

Why Choose JUXIN FASTENERS for Hexagon Slotted Nuts?

JUXIN FASTENERS is a professional OEM fastener manufacturer specializing in customized industrial fastening solutions.

Our advantages include:

✓ OEM production according to customer drawings
✓ DIN and ISO standard fasteners
✓ Carbon steel, stainless steel and special materials
✓ Multiple surface treatments available
✓ Automotive and industrial supply experience
✓ Quality control throughout manufacturing process
✓ Global export experience

We provide reliable fastening solutions for engineers, purchasing teams, and OEM manufacturers worldwide.

Customized Hexagon Slotted Nuts Supplier

Whether you need standard DIN 935 Castle Nuts, high-strength locking nuts, or customized slotted nuts for special applications, JUXIN FASTENERS can provide professional manufacturing support.

Contact our engineering team for drawings, specifications, samples, and quotations.
