Metric Tab Lock Washers: Types, Advantages, Installation & Industrial Applications

What Is a Metric Tab Lock Washer?

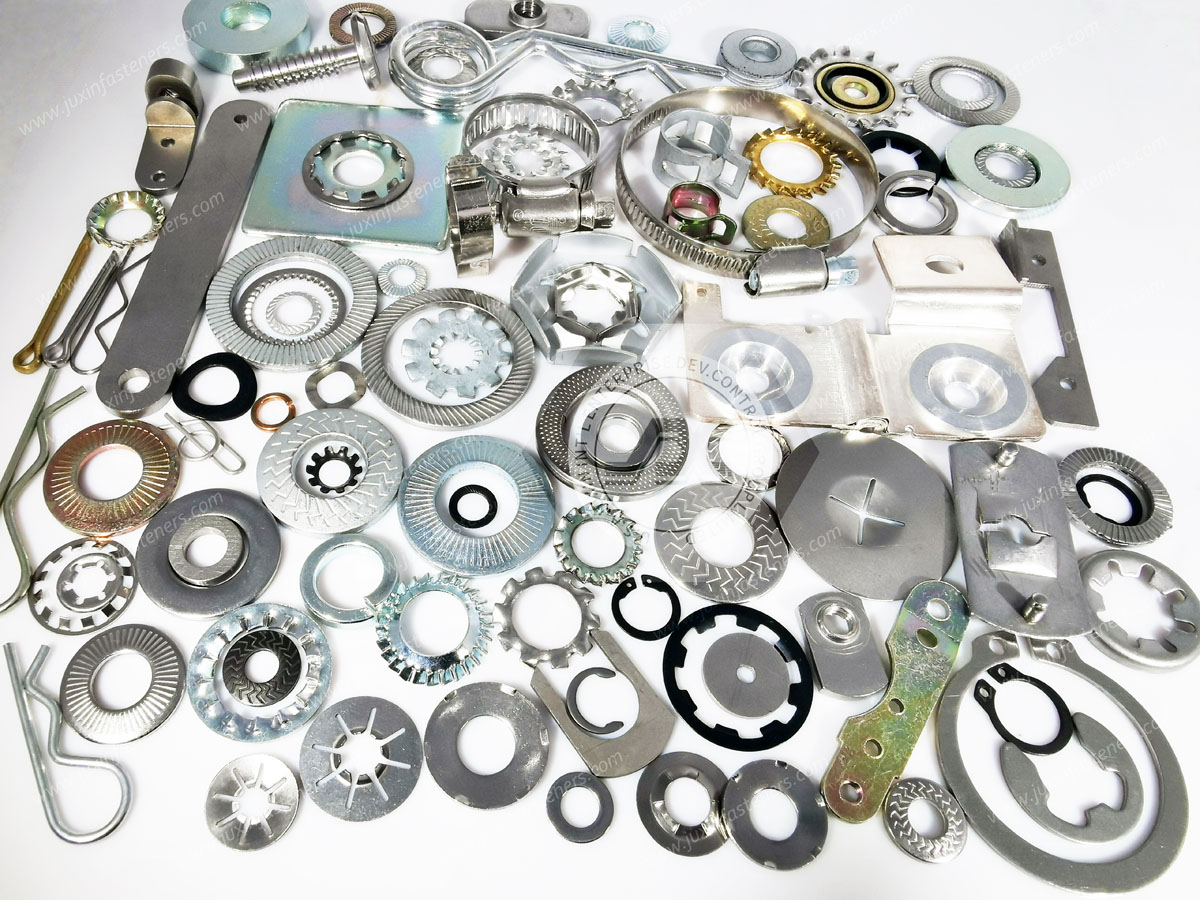

Metric tab lock washers, also known as stop washers, are essential mechanical fasteners designed to prevent nuts and bolts from loosening under vibration, impact, or axial loads. These washers are widely used in mechanical manufacturing, automotive, aerospace, and industrial equipment to maintain assembly integrity and improve equipment reliability.

The main types include:

• Round Nut with Stop Washer: Ideal      for small round nut locking applications.

• Outer Tongue Stop Washer: Used for      general nut locking, prevents axial sliding.

• Double Lug Stop Washer: Offers      strong anti-loosening performance for high-vibration environments.

• Single Lug Stop Washer: Suitable      for standard locking applications. Selection depends on component      geometry, vibration levels, assembly constraints, and operational      requirements.

DIN 432 vs DIN 93 Washers

• DIN 432 Washers: Partial cone shape      provides spring-like flexibility, distributes force evenly, and      grips tighter than split or tooth lock washers. Best for preventing      loosening due to wear or temperature changes.

• DIN 93 Washers: Better vibration      resistance than DIN 432. Used in assemblies requiring high reliability      under dynamic loads.

Material options:

• Steel: Excellent wear resistance,      moderate corrosion resistance.

• 18-8 Stainless Steel:      Corrosion-resistant, mildly magnetic, suitable for wet environments.

• 316 Stainless Steel: Superior      corrosion resistance, suitable for saltwater, chlorine, and chemical      exposure.

Advantages of Metric Tab Lock Washers

1. Simple and Easy to Use: Compact      design allows for quick installation.

2. High Reliability: Outer tongue and      double lug designs prevent axial sliding and maintain fixed      positions.

3. Economical and Practical: Low      manufacturing costs and broad application scope.

4. Wide Applications: Ideal for mechanical      equipment, automotive, and aerospace assemblies.

Key Applications of Metric Tab Lock Washers

1. Mechanical Equipment: Machine      tools, presses, printing equipment—ensure fixed bearings and stable      assemblies.

2. Automotive: Transmission,      suspension, and other components requiring axial stability.

3. Aerospace: Aircraft, rockets, and      satellites, where position stability is critical.

4. Other Industrial Equipment: Electrical      equipment, renewable energy systems, heavy machinery.

Proper washer selection improves performance, reduces wear, and extends equipment lifespan.

How to Select and Install Metric Tab Lock Washers

Selection Guidelines:

• Determine shaft diameter, groove size, washer type,  material, and operating environment.

• Choose outer tongue or double lug washers for high-vibration or impact-sensitive assemblies.

Installation Steps:

1. Clean Installation Surface: Remove      oil, dust, and debris to ensure proper washer function.

2. Correct Placement: Position the      washer flat and align tabs or lugs according to manufacturer specifications.

3. Secure Fastening: Ensure tabs are      bent properly into the nut or shaft groove for mechanical locking.

4. Inspection: Check that the washer      is properly seated and engaged with the nut or bolt.

Correct selection and installation enhance equipment stability, safety, and operational reliability.

Future Development of Metric Tab Lock Washers

The demand for external metric tab lock washers continues to grow. Future trends include:

1. Material Upgrades: High-strength metals or composite materials for improved pressure resistance and wear performance.

2. Automated Production: Higher production efficiency and consistency through automation and precision stamping.

3. Customized Solutions: Growing industrial demand for tailored washers to meet specific engineering requirements.

Metric tab lock washers remain a critical component in industrial fastening solutions, with broad applications and strong future potential.

Conclusion

Metric tab lock washers, including double-lug and outer-tongue designs, are essential for anti-loosening, reliable, and durable mechanical assemblies. Proper selection, installation, and maintenance ensure enhanced safety, vibration resistance, and longevity in mechanical, automotive, and aerospace applications.
