Self-Clinching Nuts for Energy Storage Sheet Metal Structures | Reliable Sheet Metal Fastening Solutions

High-Performance Self-Clinching Fasteners for EV Battery Enclosures, Industrial Equipment and OEM Applications

In modern manufacturing industries, lightweight sheet metal structures are increasingly used in electric vehicles, energy storage systems, industrial equipment, and electronic products. However, creating strong and reliable threaded connections in thin metal sheets remains a major engineering challenge.

Self-clinching nuts, also known as self-clinching fasteners, press-in nuts, or style clinch nuts, provide an efficient permanent fastening solution for sheet metal applications where traditional welding nuts or loose nuts are not suitable.

By using a precision press installation process, the self-clinching nut becomes permanently integrated into the metal panel, providing a strong internal thread without additional welding operations.

Juxin Fasteners specializes in manufacturing OEM self-clinching nuts and sheet metal fastening solutions for global automotive, EV, energy storage, industrial equipment, and electronic manufacturers.

For drawings, samples, or technical consultation:

Email: info@juxinfasteners.com
Website: www.juxinfasteners.com

What Are Self-Clinching Nuts?

A self-clinching nut is a specialized threaded fastener designed to be installed into thin metal sheets through mechanical pressing.

Unlike traditional nuts that require welding or manual positioning, self-clinching nuts use a specially designed shank, knurl, and undercut structure to lock permanently into the sheet metal.

During installation:

1. The self-clinching nut is positioned into a pre-punched hole.

2. A pressing force is applied using a riveting machine or press equipment.

3. The knurled section displaces the surrounding sheet metal material.

4. The displaced material flows into the undercut area of the nut.

5. The nut becomes mechanically locked into the metal panel.

This creates a strong, vibration-resistant threaded connection while maintaining the original surface finish of the sheet metal.

How Do Self-Clinching Nuts Work in Sheet Metal Applications?

The working principle of self-clinching fasteners for sheet metal is based on controlled material displacement and mechanical interlocking.

1. Material Displacement Creates Permanent Locking

The self-clinching nut contains specially designed serrations or knurls around the shank area.

When installed, these features press into the sheet metal and force the surrounding material into the locking groove.

This creates:

• High pull-out resistance

• Strong torque resistance

• Permanent installation

• Reliable threaded connections

2. Undercut Design Improves Retention Performance

A critical feature of self-clinching nuts is the undercut area below the locking ring.

During installation, the sheet metal material flows into this undercut section, creating a mechanical interlock.

This prevents:

• Nut rotation

• Loosening during vibration

• Fastener movement under load

3. Precision Installation Maintains Sheet Metal Integrity

Proper installation requires:

• Correct mounting hole size

• Suitable sheet thickness

• Proper pressing force

• Parallel installation tooling

Unlike welding processes, self-clinching installation does not create:

• Welding spatter

• Heat distortion

• Surface damage

• Additional finishing requirements

This makes self-clinching technology ideal for precision manufacturing environments.

Why Choose Self-Clinching Nuts for Energy Storage Sheet Metal Structures?

The rapid growth of electric vehicles and energy storage systems has increased demand for lightweight but strong sheet metal structures.

Battery cabinets, battery trays, electrical enclosures, and protection frames require reliable fastening solutions that can withstand:

• Vibration

• Mechanical impact

• Thermal cycling

• Long-term service conditions

Self-clinching nuts for energy storage sheet metal applications provide several engineering advantages:

High Strength Thread Connection

They create permanent internal threads in thin sheet metal where tapping is impossible or not economical.

Weight Reduction

Compared with welded nuts or additional brackets, self-clinching fasteners reduce assembly complexity and overall weight.

Improved Production Efficiency

Self-clinching installation is fast and suitable for automated production lines.

Benefits include:

• Shorter assembly time

• Consistent quality

• Reduced labor requirements

• Lower production costs

Excellent Compatibility with Coated Sheet Metal

Self-clinching fasteners can be installed after surface treatment processes, helping maintain corrosion protection.

Common applications include:

• Powder-coated panels

• Zinc-coated steel sheets

• Aluminum sheet structures

Self-Clinching Nut Materials and Surface Treatments

Juxin Fasteners provides customized self-clinching nuts for OEM applications with different materials and finishes.

Common Materials

Carbon Steel Self-Clinching Nuts

Suitable for:

• Industrial machinery

• Electrical cabinets

• General sheet metal fabrication

Stainless Steel Self-Clinching Nuts

Recommended for:

• Outdoor equipment

• Marine applications

• Medical equipment

• Corrosion-resistant environments

Common grades:

• Stainless Steel 304

• Stainless Steel 316

Aluminum Self-Clinching Nuts

Used for lightweight structures requiring:

• Reduced weight

• Good corrosion resistance

• Electrical conductivity

Available Surface Treatments

Depending on application requirements:

• Zinc Plating

• Zinc Nickel Plating

• Nickel Plating

• Black Oxide

• Passivation

• Customized coatings

For EV and energy storage applications, corrosion-resistant coatings are often selected to improve long-term durability.

Self-Clinching Nut Size and Selection Guide

Selecting the correct self-clinching nut requires consideration of several engineering factors.

Thread Size

Common thread specifications include:

Metric:

• M3

• M4

• M5

• M6

• M8

• M10

Imperial:

• #4-40

• #6-32

• #8-32

• 10-32

• 1/4-20

Customized dimensions are available according to customer drawings.

Sheet Thickness

The sheet thickness must match the fastener specification.

Incorrect selection may cause:

• Insufficient locking strength

• Panel deformation

• Installation failure

Juxin Fasteners can recommend suitable fastener designs based on:

• Sheet material

• Thickness

• Load requirements

• Application environment

Self-Clinching Nuts vs Weld Nuts

Many engineers compare self-clinching nuts with traditional weld nuts.

For precision sheet metal assemblies, self-clinching fasteners often provide a cleaner and more efficient solution.

Applications of Self-Clinching Fasteners

Electric Vehicle and Energy Storage Systems

Applications include:

• Battery pack housings

• Battery trays

• Sheet metal covers

• Electrical protection cabinets

• Structural brackets

Automotive Manufacturing

Self-clinching nuts are widely used in:

• Vehicle body components

• Interior structures

• Seat systems

• Electronic modules

Industrial Equipment

Used for:

• Automation machinery

• Control cabinets

• CNC equipment

• Mechanical enclosures

Electronics and Precision Equipment

Applications include:

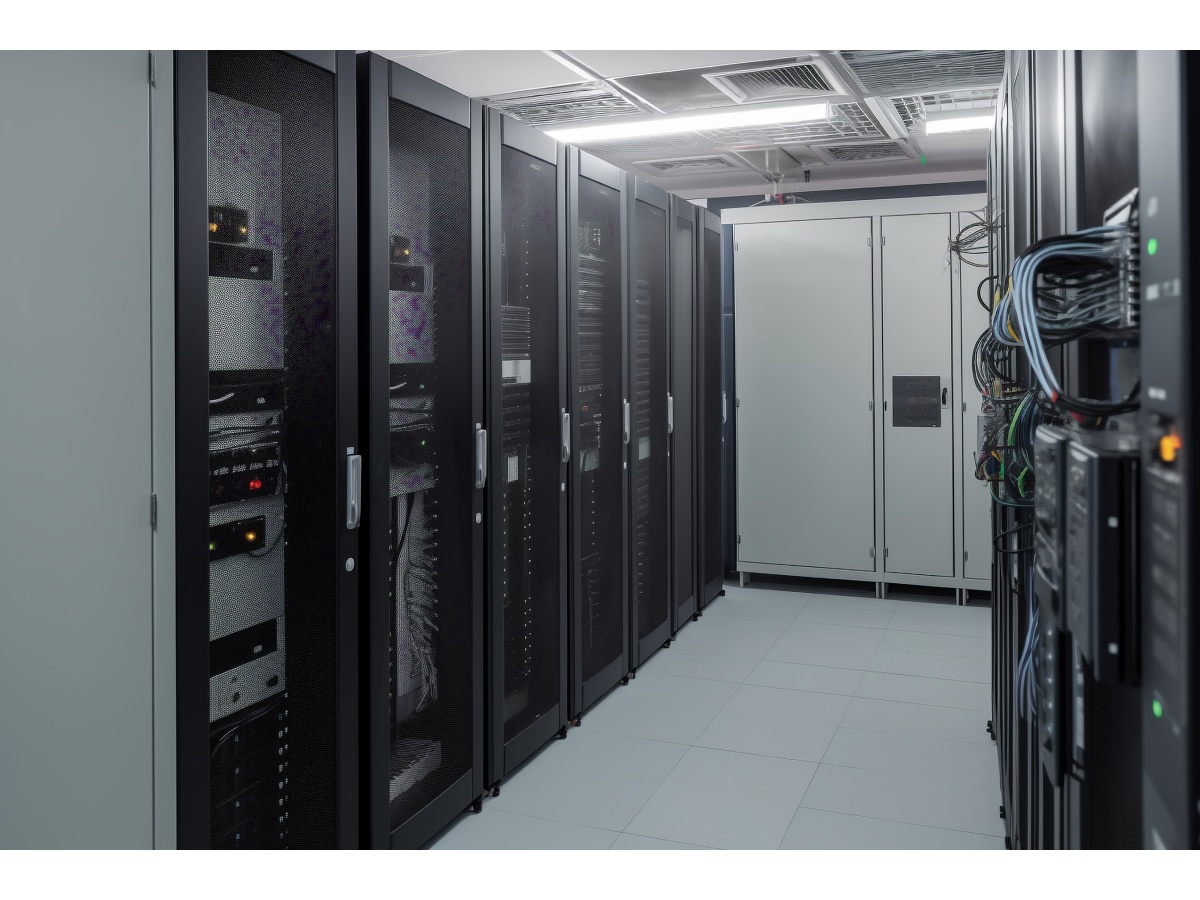

• Server cabinets

• Communication equipment

• Consumer electronics

• Medical devices

Aerospace and Railway Equipment

Self-clinching fasteners provide lightweight and reliable fastening solutions for:

• Aircraft panels

• Railway equipment structures

• High-strength sheet assemblies

Why Choose Juxin Fasteners as Your Self-Clinching Nut Manufacturer?

Juxin Fasteners provides professional OEM self-clinching fastening solutions for international manufacturers.

Our capabilities include:

✔ More than 20 years fastening manufacturing experience
✔ Automotive and EV industry supply chain experience
✔ Custom production according to drawings
✔ Support for prototype and mass production
✔ Various materials and surface treatments
✔ Strict quality control system
✔ Engineering support for fastener selection

We help customers develop reliable fastening solutions from design stage to final production.

Custom Self-Clinching Nuts Manufacturer for Global OEM Customers

If you are looking for a reliable self-clinching nuts manufacturer or sheet metal fastening supplier, Juxin Fasteners can provide customized solutions for your application.

Our products include:

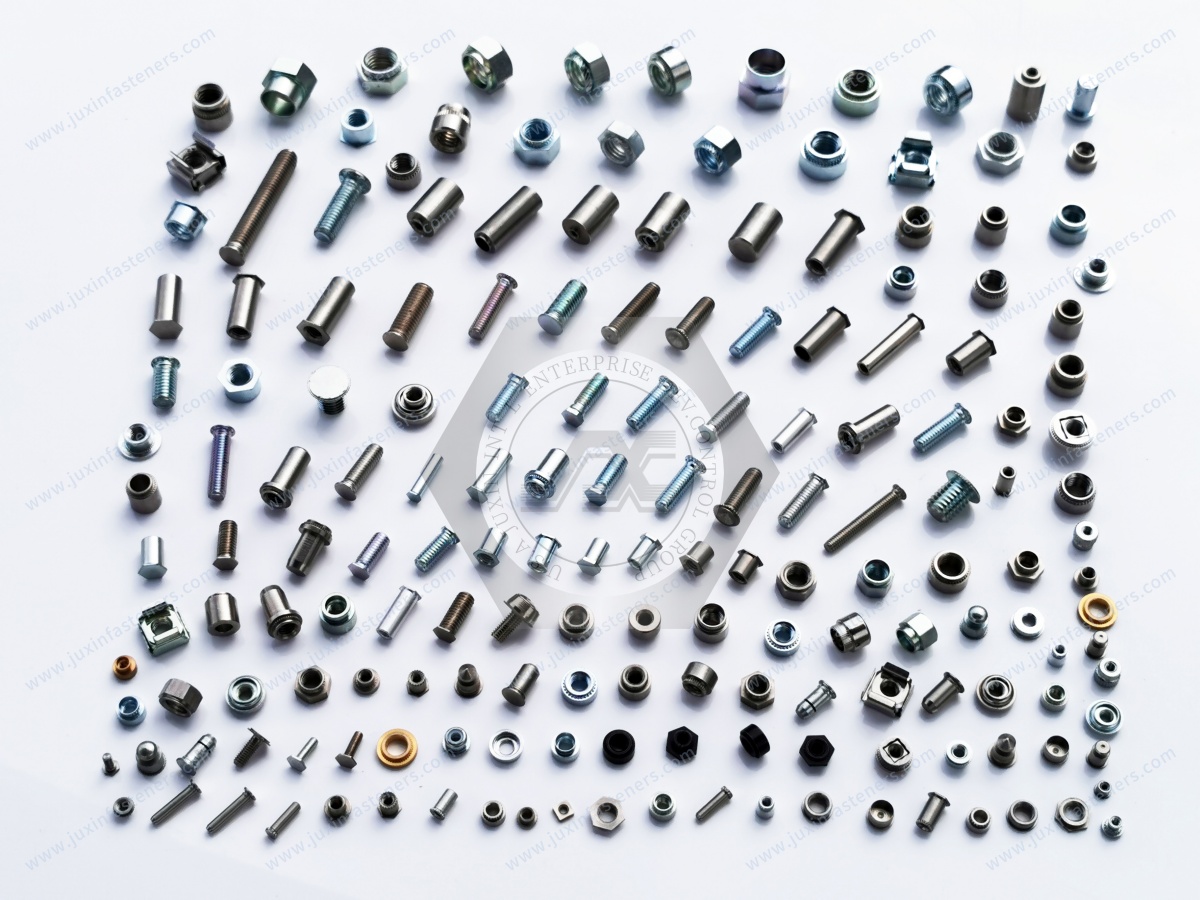

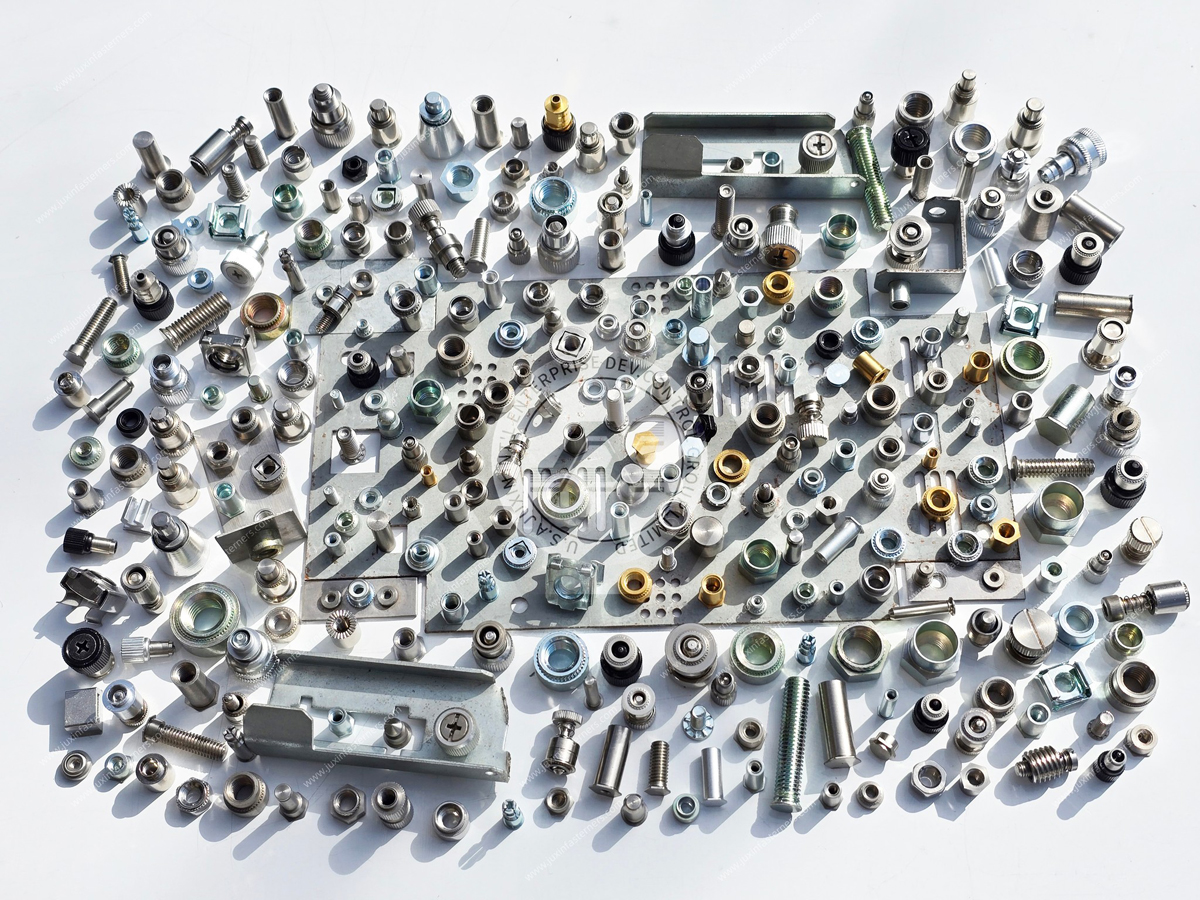

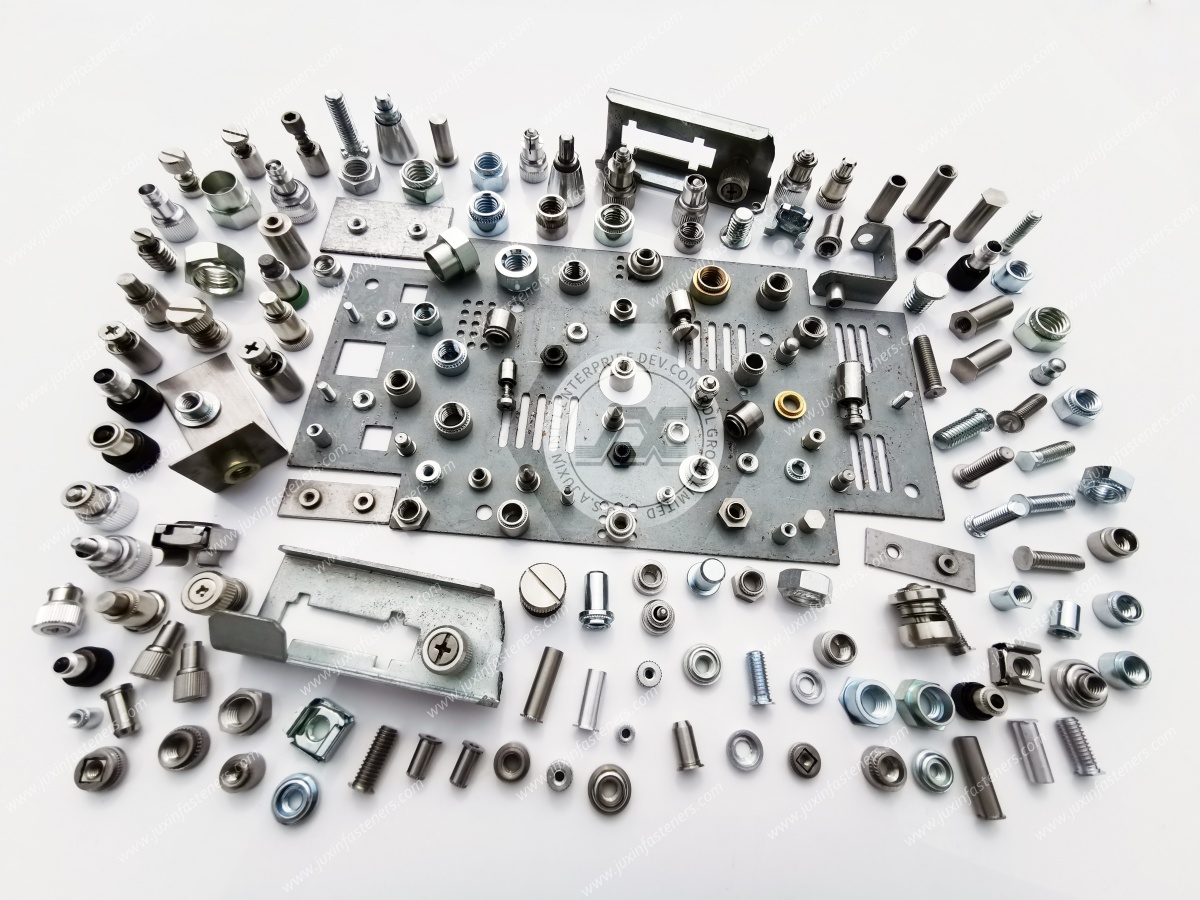

• Self-Clinching Nuts

• Self-Clinching Studs

• Self-Clinching Standoffs

• Sheet Metal Fasteners

• OEM Custom Fasteners

• EV Battery Enclosure Fasteners

Contact our engineering team for product drawings, samples, and quotations.

Juxin Fasteners
Email: info@juxinfasteners.com
Website: www.juxinfasteners.com
