Urban Rail Converter Cabinet Riveting Solutions

Lightweight Aluminum Riveting Technology for Rail Transit Equipment Manufacturing

With the rapid development of urban rail transportation, railway equipment manufacturers are facing increasing demands for:

• Lightweight design

• High structural reliability

• Improved appearance quality

• Reduced manufacturing costs

• Environmentally friendly production processes

Traditional stainless steel welded structures have been widely used in railway converter cabinets. However, welding processes often create challenges such as:

• Welding deformation

• Surface grinding marks

• Heat stress

• Uneven appearance

• Difficult assembly accuracy control

To overcome these challenges, advanced aluminum riveting technology has become an important solution for modern rail transit equipment manufacturing.

Juxin Fasteners provides professional rail transit riveting solutions, including:

• Blind rivets

• Aluminum solid rivets

• Ring groove rivets

• Rivet nuts

• Pressure rivet nuts

• Custom industrial riveting fasteners

Our fastening solutions support lightweight aluminum cabinets and electrical equipment used in:

• Urban rail vehicles

• Metro systems

• Railway converters

• Electrical cabinets

• Power control equipment

Why Riveting Technology Is Used in Urban Rail Converter Cabinets

Traditional converter cabinets are mainly manufactured using stainless steel sheet metal welding.

Although welding provides strong connections, it also creates several manufacturing limitations:

Welding Challenges in Railway Cabinets

1. Welding Deformation

During welding, uneven heat distribution causes:

• Material deformation

• Residual stress

• Dimensional accuracy problems

These issues can affect:

• Cabinet assembly precision

• Door sealing performance

• Component installation accuracy

2. Surface Quality Problems

Welding processes require:

• Grinding

• Welding slag removal

• Surface finishing

This can result in:

• Uneven surfaces

• Visible grinding marks

• Reduced appearance quality

3. Difficult Connection of Different Materials

Modern rail equipment increasingly uses lightweight materials such as:

• Aluminum alloy

• Stainless steel

• Composite materials

Traditional welding methods are limited when joining different materials.

Aluminum Riveting Solutions for Lightweight Rail Cabinets

Aluminum alloy has become an ideal alternative material for railway converter cabinets due to its:

• Low density

• High strength-to-weight ratio

• Excellent corrosion resistance

• Good impact resistance

However, aluminum welding can cause:

• Porosity

• Cracks

• Thermal deformation

• Reduced fatigue strength

Therefore, aluminum riveting solutions provide an effective alternative.

Compared with welding, riveting offers:

✔ Minimal deformation
✔ No welding heat influence
✔ No grinding process
✔ Stable mechanical strength
✔ Suitable for different materials
✔ Improved production efficiency

Types of Riveting Technology for Rail Transit Applications

Juxin Fasteners provides multiple riveting technologies according to different cabinet structures and application requirements.

1. Blind Rivets for Railway Equipment

One-Side Installation Fastening Solution

Blind rivets are widely used in railway converter cabinets because they allow installation when only one side of the structure is accessible.

During installation:

1. The rivet is inserted into the prepared hole.

2. A rivet tool pulls the mandrel.

3. The rivet body expands.

4. A permanent mechanical connection is created.

Advantages:

• Single-side operation

• Fast installation

• Reliable fastening

• No welding deformation

Applications:

• Cabinet panels

• Top covers

• Door frames

• Aluminum enclosure structures

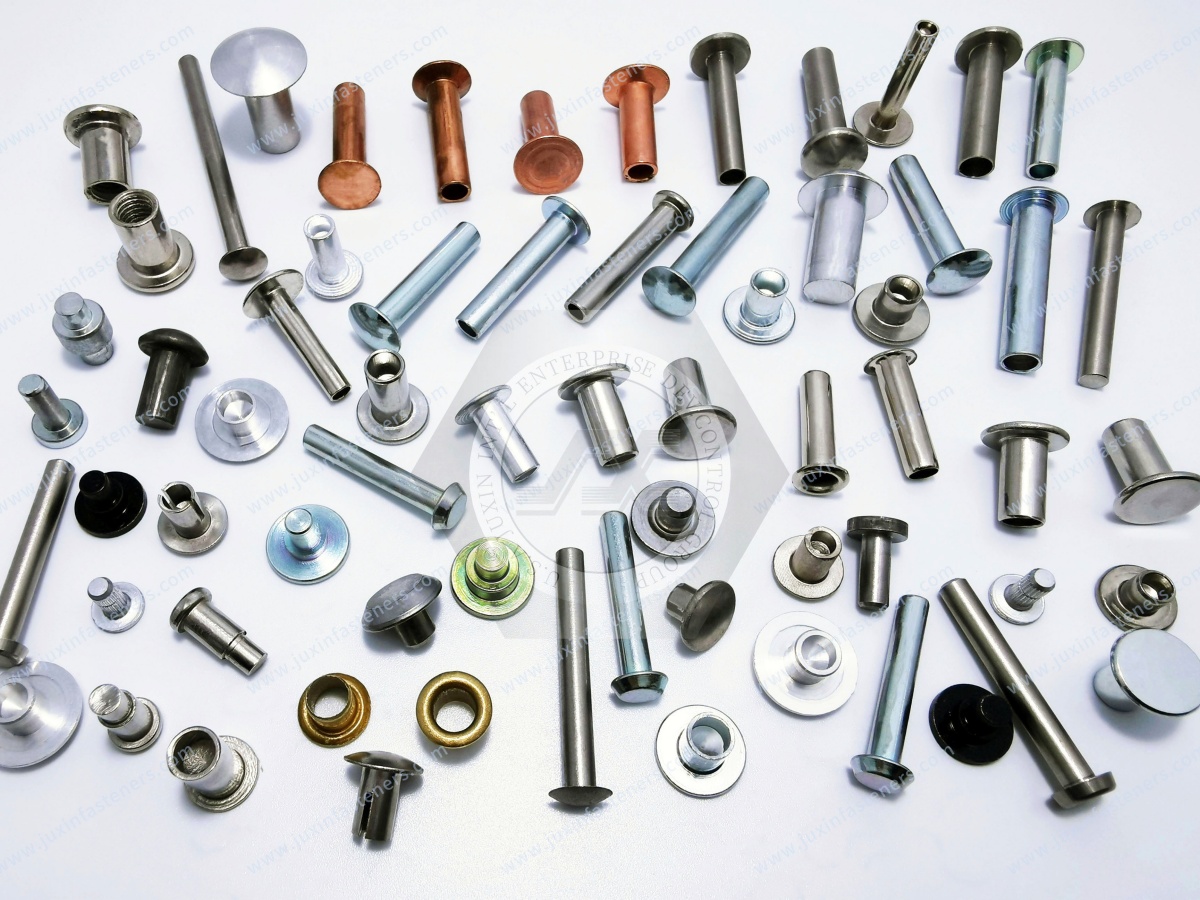

Aluminum Wide-Thickness-Range Blind Rivets

Lightweight aluminum blind rivets are ideal for rail transit applications where weight reduction is important.

Features:

• Lightweight construction

• Non-magnetic properties

• Good corrosion resistance

• Wide material thickness range

The low-profile domed head provides:

• Better appearance

• Reduced surface interference

• Improved cabinet aesthetics

Applications:

• Aluminum converter cabinets

• Electrical equipment enclosures

• Rail vehicle components

2. Ring Groove Rivets for Structural Connections

High-Strength Permanent Riveting Solution

Ring groove rivets are designed for applications requiring high structural strength.

During installation:

• The rivet body is inserted through connected components.

• A locking ring is installed.

• A special rivet tool compresses the ring into the rivet grooves.

• A permanent high-strength connection is created.

Advantages:

• Excellent vibration resistance

• High structural strength

• Permanent locking performance

Applications:

• Cabinet frames

• Reinforcement beams

• Mounting brackets

• Structural aluminum assemblies

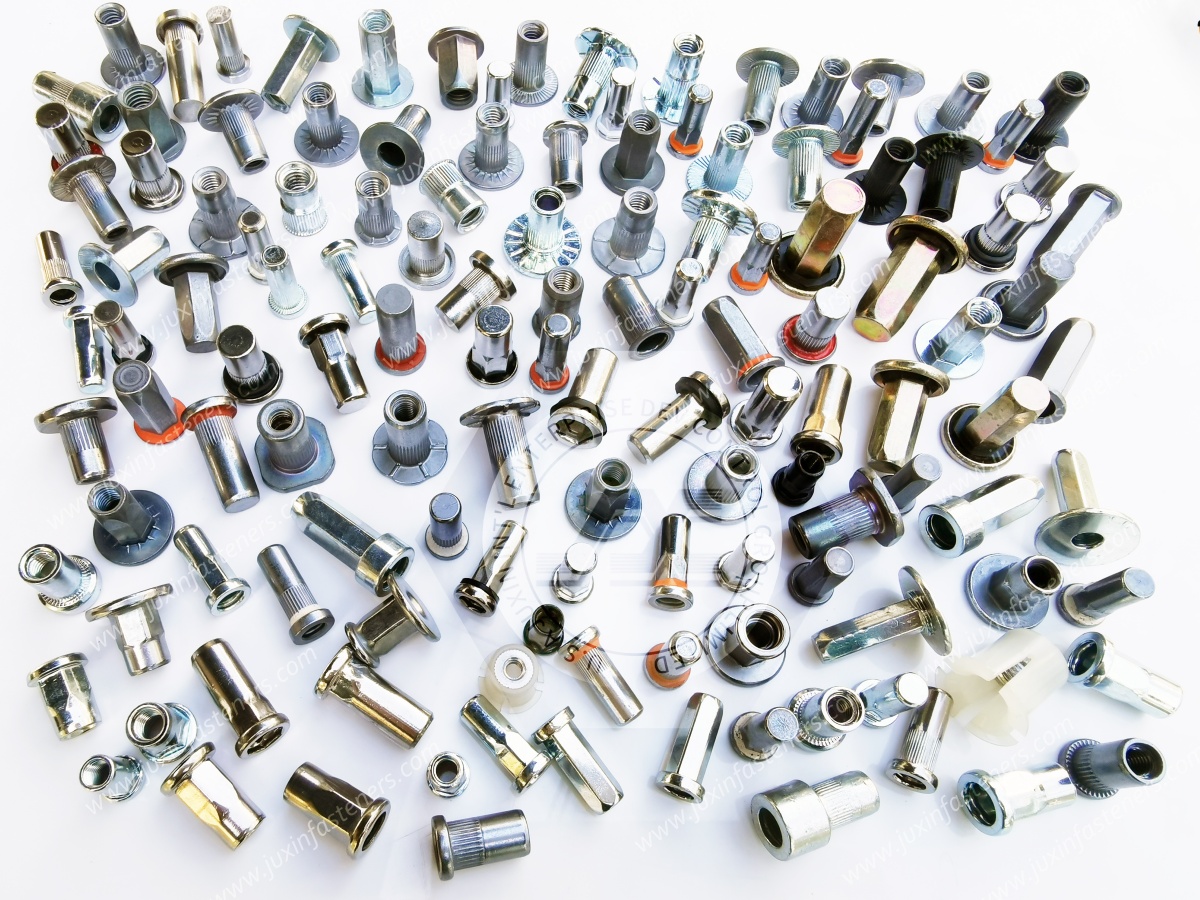

3. Rivet Nuts for Aluminum Electrical Cabinets

Threaded Connection Solution Without Welding

Rivet nuts provide both:

• Riveting function

• Internal threaded fastening

They are especially suitable for thin sheet structures where welding nuts are difficult to apply.

Advantages:

• Single-side installation

• No welding deformation

• Replaceable threaded connection

• Suitable for thin aluminum plates

Common types:

• Flat head rivet nuts

• Countersunk rivet nuts

• Hexagonal rivet nuts

• Waterproof rivet nuts

Hexagonal Rivet Nuts for Anti-Rotation Applications

Hexagonal rivet nuts are widely used in railway cabinets because the hexagonal body design provides excellent anti-rotation performance.

Benefits:

• Higher torque resistance

• Stable threaded connection

• Suitable for vibration environments

Applications:

• Transformer cabinets

• Converter systems

• Electrical equipment mounting points

4. Pressure Rivet Nuts for Internal Cabinet Components

Pressure rivet nuts create a mechanical locking connection by deforming the base material into the anti-rotation grooves.

Applications:

• Cable supports

• Device mounting plates

• Internal brackets

• Electrical component installation

Advantages:

• Fast installation

• No welding requirement

• Clean appearance

• Improved production efficiency

Riveting vs Welding: Cabinet Manufacturing Comparison

For modern railway equipment manufacturers, riveting provides a more efficient and environmentally friendly manufacturing solution.

Lightweight Improvement Through Aluminum Riveting Technology

The application of aluminum riveting technology can significantly reduce railway cabinet weight.

For example:

Traditional stainless steel welded auxiliary converter cabinet:

Weight: Approximately 265 kg

Aluminum alloy riveted converter cabinet:

Weight: Approximately 200 kg

Weight reduction:

Approximately 24.5%

Additional benefits:

• Improved cabinet flatness

• Better assembly precision

• Reduced welding defects

• Improved product appearance

Riveting Applications in Urban Rail Transit Equipment

Juxin Fasteners' riveting solutions are suitable for:

Railway Converter Cabinets

Products:

• Blind rivets

• Ring groove rivets

• Rivet nuts

Electrical Control Cabinets

Products:

• Aluminum rivet nuts

• Pressure rivet nuts

• Blind rivets

Aluminum Rail Structures

Products:

• Aluminum solid rivets

• Flush mount rivets

• Structural rivets

Juxin Fasteners: Professional Industrial Riveting Solutions Provider

Juxin Fasteners specializes in providing customized fastening solutions for global OEM manufacturers.

Our capabilities include:

• Rivet design optimization

• Material selection

• Aluminum fastening solutions

• Custom rivet manufacturing

• Application engineering support

Products include:

• Blind rivets

• Stainless steel rivets

• Aluminum rivets

• Solid rivets

• Ring groove rivets

• Rivet nuts

• Pressure rivet nuts

We support industries including:

• Rail transit

• Automotive

• New energy vehicles

• Electrical equipment

• Industrial machinery

Contact Juxin Fasteners

Looking for reliable rail transit riveting solutions, aluminum cabinet fasteners, blind rivets, or rivet nuts for industrial applications?

Our engineering team can provide customized fastening solutions based on your drawings and application requirements.
