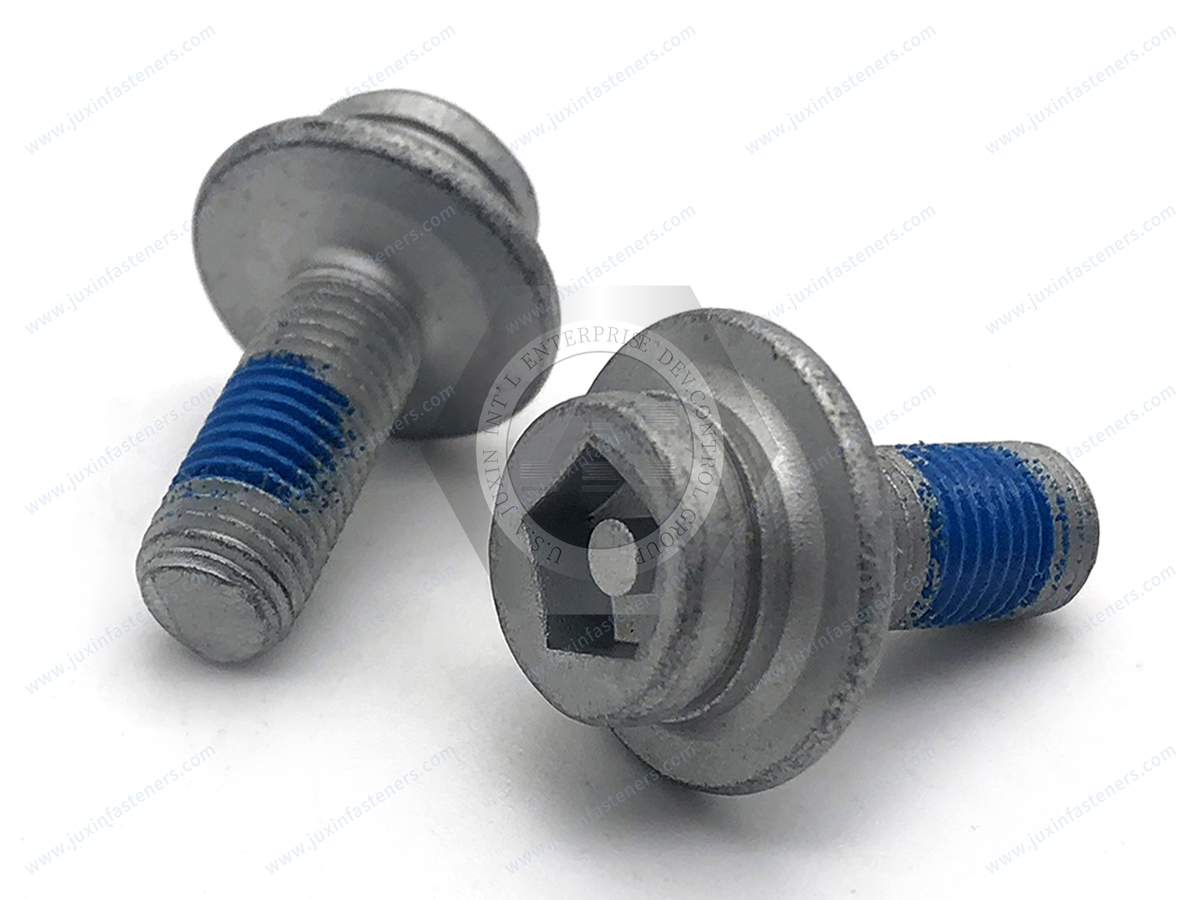

High-Strength Grade 10.9 Fasteners for Automotive Shock Absorber Top Mount Applications – Engineering Solution Guide

High-Strength Grade 10.9 Fasteners for Automotive Shock Absorber Top Mount Applications – Engineering Solution Guide

In modern automotive suspension systems, high-strength Grade 10.9 fasteners for shock absorber top mounts play a critical role in ensuring safety, vibration resistance, and long-term structural stability. These components are subjected to cyclic loading, impact stress, and environmental corrosion, making material selection, heat treatment, and anti-loosening design essential for reliable performance.

This engineering solution outlines a complete manufacturing and application strategy for automotive shock absorber top-mount fasteners, designed in accordance with international automotive standards and aligned with OEM and Tier 1 supplier requirements.

1. Material Selection for Grade 10.9 Automotive Fasteners

To achieve stable mechanical performance, the foundation of Grade 10.9 bolts and nuts for automotive applications is the selection of high-quality alloy steel.

Recommended Materials:

• 40Cr alloy steel

• 35CrMo alloy steel

These materials provide:

• Excellent hardenability

• High tensile strength

• Superior fatigue resistance

• Stable toughness under dynamic load conditions

Mechanical Property Requirements (Grade 10.9 Fasteners):

• Tensile Strength: ≥ 1040 MPa

• Yield Strength: ≥ 940 MPa

For assembly compatibility, Grade 10 nuts and Grade 10.9 bolts should be matched to ensure consistent load distribution in automotive shock absorber top mount systems.

 2. Manufacturing Process and Heat Treatment Engineering

The performance of high-strength automotive fasteners is heavily dependent on controlled manufacturing processes and precise heat treatment.

Quenching and Tempering Process

A mandatory quenching + tempering heat treatment is applied to achieve a tempered sorbite microstructure, ensuring:

• High strength-to-toughness balance

• Stable fatigue performance

• Resistance to deformation under cyclic loading

Surface Treatment Options

To improve corrosion resistance and prevent hydrogen-related failures, the following treatments are recommended:

• Chromium-free zinc-aluminum coating

• Electroplated yellow zinc coating with hydrogen embrittlement      relief

Hydrogen Embrittlement Relief

• Baking treatment at 200°C for 4 hours

• Critical for preventing delayed fracture in Grade 10.9      high-strength bolts

Thread Manufacturing Process

• Thread rolling is strongly recommended

• Benefits include:

• Improved surface finish

• Increased fatigue strength

• Reduced stress concentration compared to cutting threads

 3. Anti-Loosening Design and Installation Requirements

In automotive shock absorber top-mount assemblies, vibration and dynamic loads make preventing fastener loosening a key engineering challenge.

Recommended Anti-Loosening Solutions:

• Spring washers or lock nuts

• Medium-strength threadlocker (e.g., Loctite 243) applied to      threads

These solutions significantly improve the reliability of automotive anti-loosening fasteners under vibration conditions.

 4. Installation Torque and Assembly Specifications

Proper installation is essential to ensure the performance of Grade 10.9 automotive fasteners.

Standard Installation Requirements:

• Use a calibrated torque wrench

• Typical torque range: 80 ± 10 N·m (axle-related applications)

• Tighten in a step-by-step cross sequence (center outward)

• Ensure uniform load distribution across the assembly

Installation Warnings:

• Pneumatic impact tools are strictly prohibited

• Risk of over-torque, thread stripping, or hidden micro-cracks

• If necessary, use manual tightening with extended socket tools for controlled assembly

 5. Common Failure Risks and Engineering Countermeasures

1. Thread Stripping or Bolt Fracture

Root Causes:

• Substandard materials (e.g., mislabeled Grade 8.8 instead of      Grade 10.9)

• Incorrect torque application during installation

Engineering Recommendations:

• Require suppliers to provide IATF 16949 certification

• Request full material test reports (MTRs)

• Perform incoming inspection:

• Hardness testing: HRC 32–39

• Torque verification testing

 2. Corrosion and Seized Fasteners

Severe corrosion may cause difficulty in removal or thread seizure.

Emergency Removal Method:

• Welding an iron rod to assist in disassembly

However, this is strictly a last-resort solution. Preventive measures such as proper surface coating and maintenance are strongly recommended.

 6. Engineering Value of High-Strength Automotive Fastener Systems

A properly designed automotive shock absorber top mount fastening system delivers:

• Improved vehicle safety and stability

• Reduced maintenance and warranty risk

• Higher fatigue life under road vibration conditions

• Enhanced corrosion resistance in harsh environments

 7. JUXIN FASTENERS Automotive Fastening Solutions

As a professional manufacturer of high-strength automotive fasteners, JUXIN FASTENERS provides engineered solutions, including:

• Grade 10.9 bolts and nuts

• Automotive shock absorber top mount fasteners

• High-strength alloy steel fastening systems

• Customized OEM fastening components

With over 20 years of manufacturing experience and strict quality control systems, we support global automotive customers with reliable fastening solutions that meet international engineering and procurement standards.

Conclusion

The production and application of Grade 10.9 fasteners for automotive shock absorber top mounts require precise control over material selection, heat treatment, surface protection, and installation methods. By following engineering best practices and strict quality standards such as IATF 16949, manufacturers and suppliers can ensure long-term reliability and safety in automotive suspension systems.
