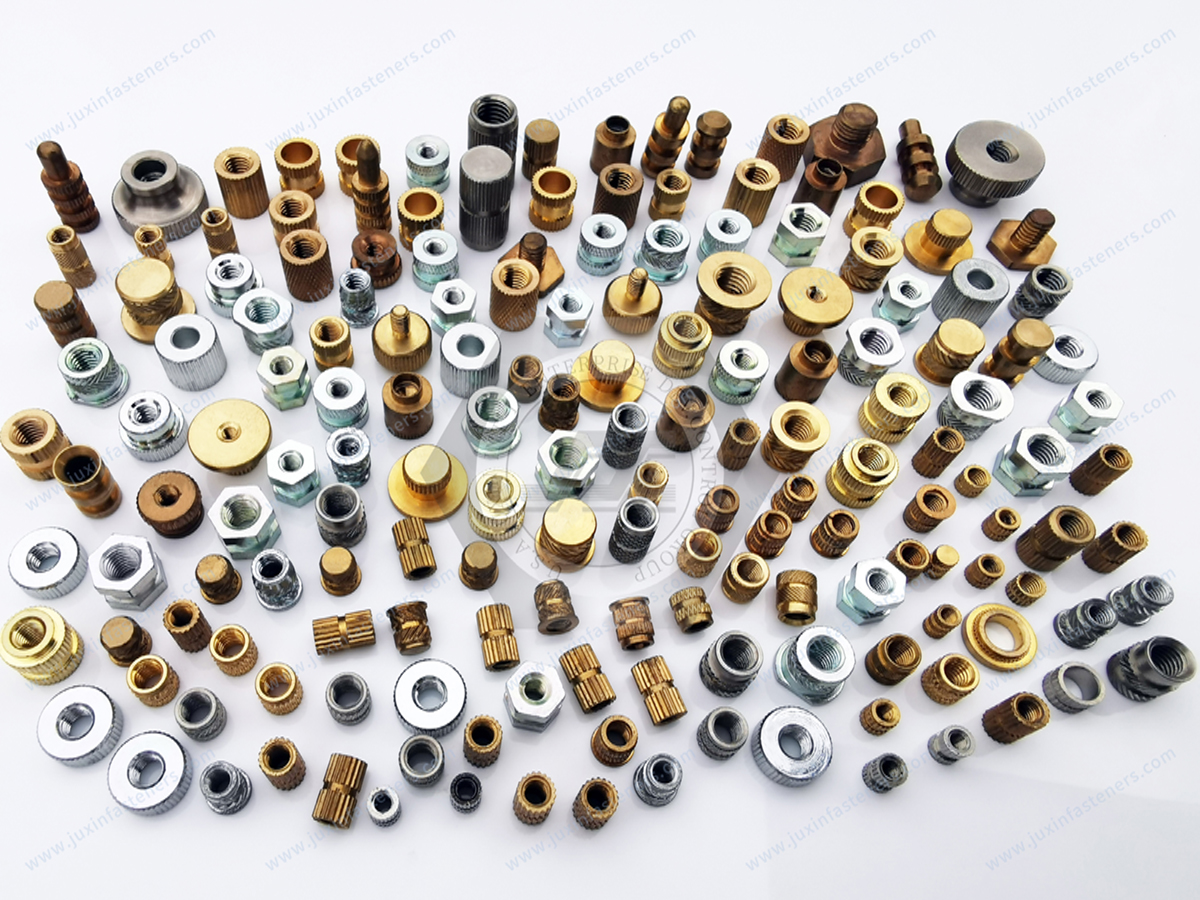

Thread Knurled Insert Nuts for Electrical Equipment Manufacturing

Thread Knurled Insert Nuts for Electrical Equipment Manufacturing – Reliable Threaded Connections for Plastic Enclosures

Modern electrical equipment—including control cabinets, power modules, industrial controllers, and consumer electronic devices—requires fastening solutions that provide both mechanical reliability and electrical compatibility. Many electrical products use engineering-plastic housings to achieve insulation, lightweight construction, and cost efficiency.

However, plastic materials alone cannot withstand repeated assembly or provide durable internal threads for mechanical fastening. Thread knurled insert nuts provide an effective solution by forming high-strength metal internal threads embedded within plastic components.

Through precision knurled structures and compatible embedding processes, these inserts significantly improve thread durability, electrical grounding performance, and long-term connection stability in electrical equipment manufacturing.

Core Applications in Electrical Equipment Manufacturing

Threaded knurled insert nuts are widely used in electrical equipment where reliable threaded connections must be integrated into plastic housings or composite components.

Internal Thread Embedding in Plastic Housings

Electrical equipment enclosures commonly use engineering plastics such as:

• ABS

• PC (polycarbonate)

• PA (nylon)

These materials provide excellent insulation and lightweight structural performance, but cannot maintain durable threads under repeated assembly.

Knurled insert nuts are embedded into plastic housings using installation methods such as:

• hot-melt insertion

• ultrasonic embedding

• injection molding pre-embedding

Once installed, the insert forms a strong metal threaded interface used for mounting:

• printed circuit boards (PCB)

• electrical terminals

• equipment panels

• internal structural brackets

This greatly improves the reliability of fastening points in electrical devices.

 Electrical Conductivity and Grounding Applications

In many electrical systems, certain fastening points must also provide electrical grounding or shielding connections.

Brass threaded inserts—commonly manufactured from materials such as C3604 or H59—offer excellent electrical conductivity. This makes them suitable for applications including:

• chassis grounding points

• electromagnetic shielding connections

• power module installation

• electrical cabinet grounding structures

The combination of mechanical fastening and electrical conductivity helps improve both structural integrity and electrical safety in electrical equipment.

 Reliable Performance in Frequent Maintenance Applications

Electrical equipment such as test instruments, communication cabinets, and industrial control systems often requires frequent maintenance or component replacement.

Plastic threads can easily wear out after multiple disassembly cycles. Threaded knurled insert nuts prevent this issue by providing durable metal threads that maintain their integrity even after repeated installation and removal of screws.

This significantly improves the service life and maintainability of electrical equipment.

Key Design and Structural Advantages

Knurled Surface Structure for Strong Bonding

Thread knurled insert nuts feature precision external knurling designed to improve bonding with plastic materials.

Common knurling patterns include:

• straight knurling

• diamond knurling

• mesh knurling

• herringbone knurling

During installation, these structures create a mechanical interlock between the insert and the plastic housing, providing high resistance to:

• rotational torque

• pull-out forces

• vibration-induced loosening

This ensures long-term fastening reliability.

Material Options for Electrical Equipment

Threaded knurled insert nuts used in electrical equipment are typically manufactured using materials selected for their mechanical and electrical performance.

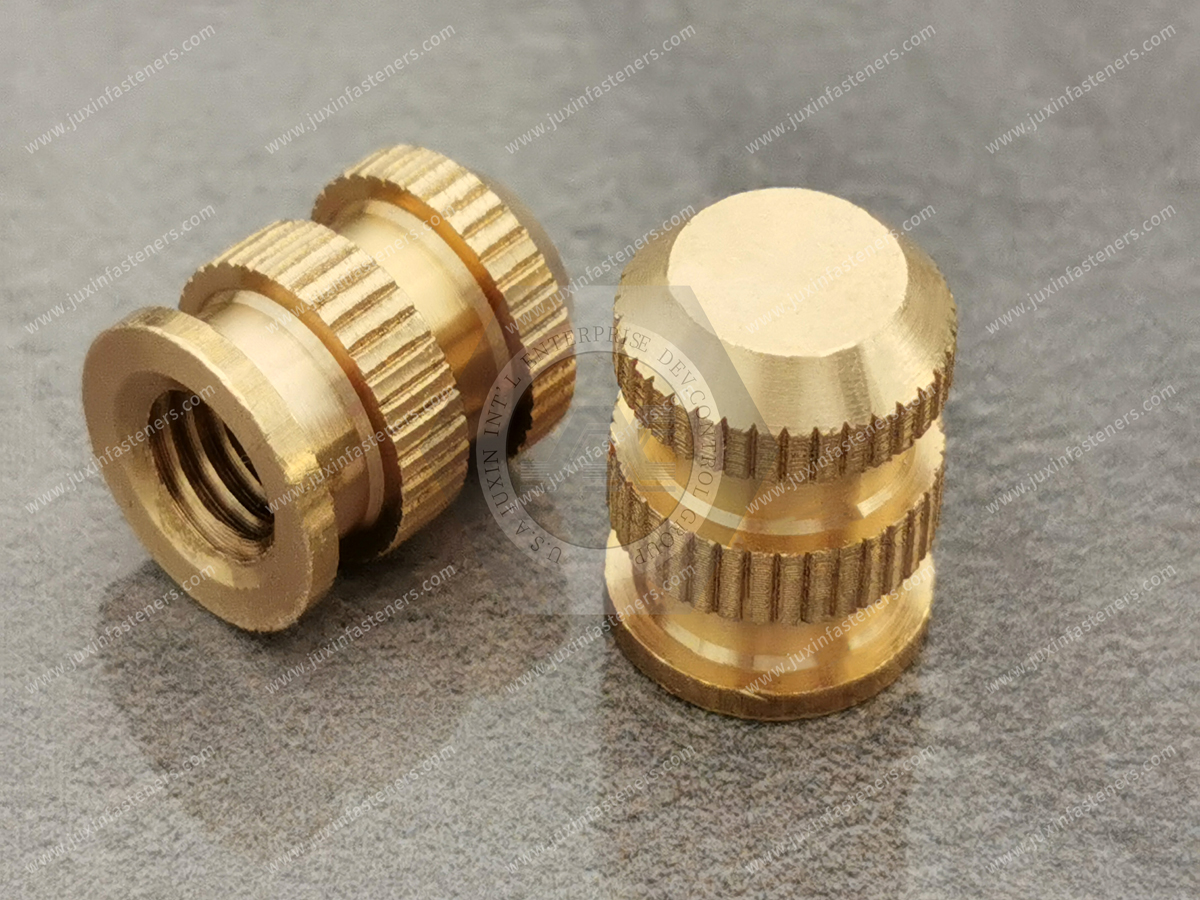

Brass Inserts

Brass is the most widely used material due to its balanced properties.

Common brass grades include:

• C3604 free-cutting brass

• H59 brass

Key benefits include:

• excellent electrical conductivity

• strong corrosion resistance

• good machinability

• compliance with RoHS environmental standards

Stainless Steel Inserts

For environments requiring enhanced corrosion resistance or non-magnetic properties, stainless steel materials such as SUS303 or SUS304 are commonly used.

These materials are particularly suitable for industrial control equipment or medical electronics.

Manufacturing Process Compatibility

Thread knurled insert nuts are compatible with several installation processes used in modern electrical equipment production.

Hot-Melt Insertion

A heated installation tool softens the plastic around the hole and presses the insert into place.

Ultrasonic Embedding

High-frequency vibration generates localized heat, allowing rapid insertion with minimal thermal impact on surrounding components.

Injection Molding Pre-Embedding

Inserts are placed in the mold before plastic injection, allowing molten plastic to flow around the knurled structure and create the strongest bonding.

These processes support high-volume automated production lines used to manufacture electrical equipment.

Typical Application Examples

Thread knurled insert nuts are used across a wide range of electrical and electronic equipment.

Consumer Electronics

• mobile phone housings

• laptop internal structures

• router enclosures

These devices require compact and precise threaded connections for internal components.

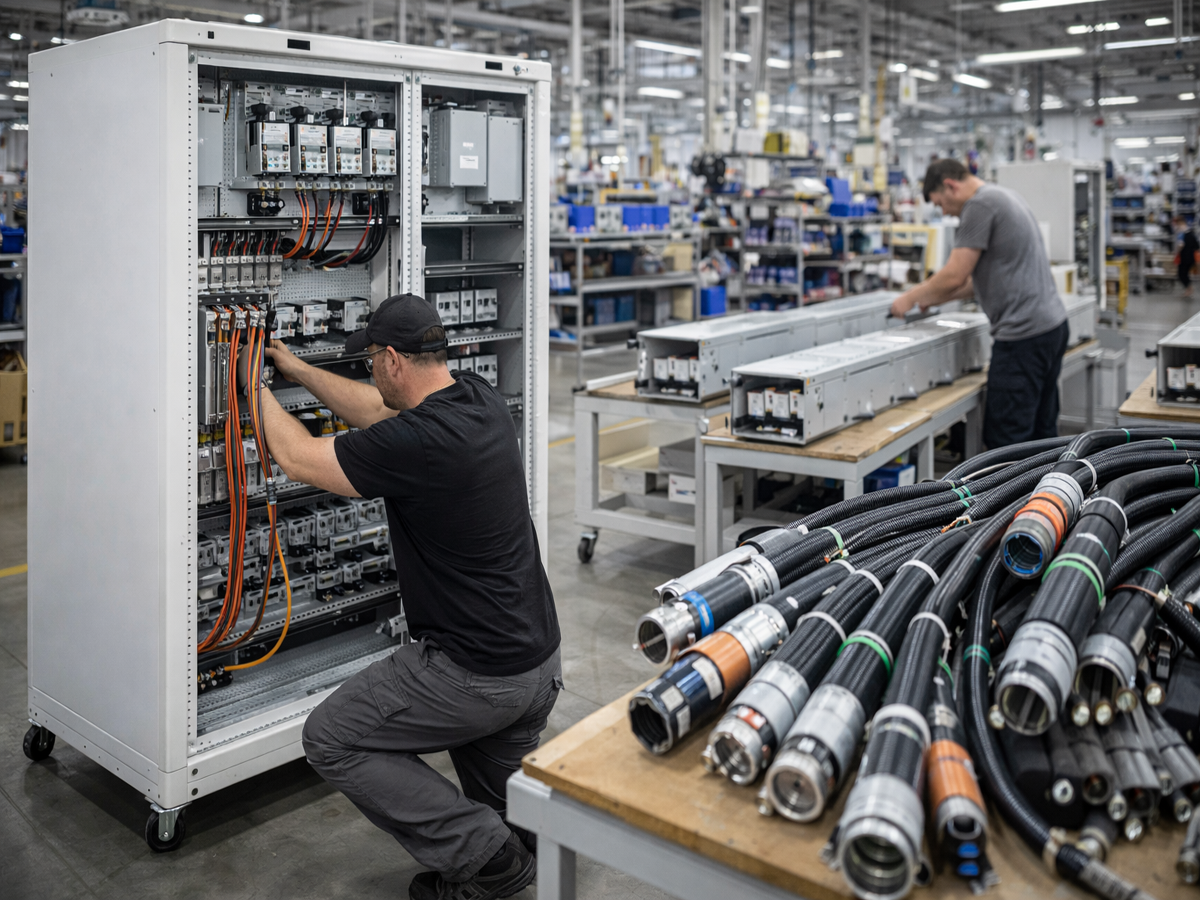

Industrial Control Systems

• PLC control cabinets

• inverter housings

• industrial automation equipment

Threaded inserts provide reliable fastening for PCB modules and internal brackets.

Medical Electrical Equipment

Medical devices such as monitoring equipment and diagnostic systems often require high-reliability fastening combined with insulation and non-magnetic properties.

Stainless steel threaded inserts are commonly used in these applications.

Conclusion

Thread knurled insert nuts provide an essential fastening solution for modern electrical equipment manufacturing. By combining precision knurled structures with high-performance materials, these inserts enable engineers to integrate durable metal threads into lightweight plastic components.

Their advantages include:

• strong mechanical bonding with plastic housings

• reliable electrical grounding capability

• resistance to repeated assembly cycles

• compatibility with automated manufacturing processes

As electrical equipment continues to evolve toward higher integration, modular design, and lightweight construction, threaded insert technology will remain a key component in ensuring reliable mechanical and electrical connections.

Manufacturers seeking customized threaded insert solutions for electrical equipment can explore precision fastening technologies from Juxin Fasteners, which support a full range of metric and custom specifications for modern electrical system designs.
