1. Introduction: Engineering Requirements Behind Mercedes Engine Bay Design

Modern Mercedes-Benz engine platforms, such as the M177 V8 engine system, are designed with extremely high integration of:

• Lightweight sheet metal structures

• Modular cooling systems

• High-temperature engine bay environments

• Automated robotic assembly lines

In these systems, fastening components are not just connectors — they are structural integration points.

One of the most widely used solutions is the flange-projection-weld nut system.

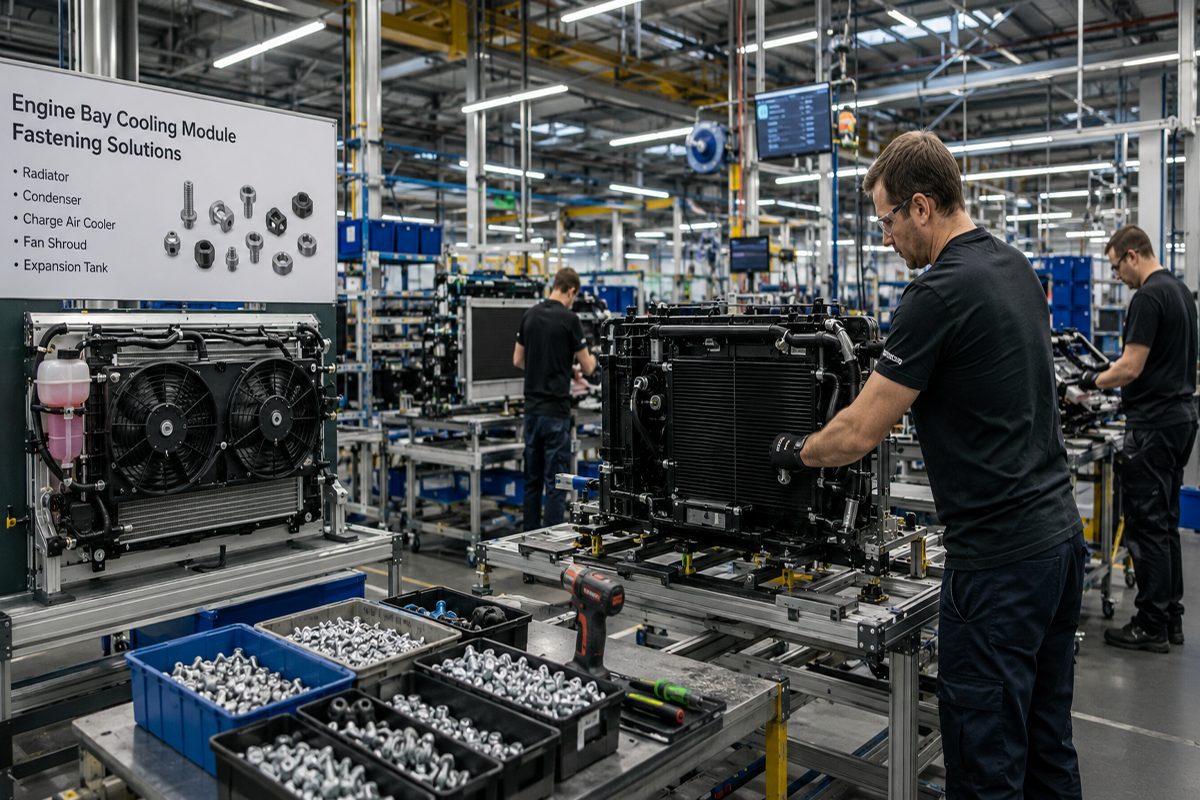

2. Cooling Module & Engine Bay Structure Overview

In the M177 engine system, the cooling and auxiliary modules typically include:

• Radiator support brackets

• Intercooler mounting frames

• Engine accessory support structures

• Front-end carrier subframes

• Sheet metal reinforcement brackets

These parts are usually thin-gauge stamped steel or aluminum structures, requiring:

• High precision positioning

• No secondary tapping operations

• Reliable robotic welding integration

 3. Why Flange Projection Weld Nuts Are Used

Mercedes engine bay assemblies commonly use hex flange projection weld nuts because they provide:

✔ Stable robotic welding positioning

Flange design ensures consistent electrode contact in automation lines.

✔ Self-centering pilot structure

The pilot feature improves assembly accuracy during high-speed robotic placement.

✔ Multi-projection welding points (3 or 4 projections)

Ensures:

• Strong weld penetration

• Controlled heat distribution

• Repeatable welding quality

✔ Excellent sheet metal tolerance adaptation

Engine bay sheet-metal parts often exhibit dimensional variation; flange-weld nuts effectively absorb these tolerances.

 4. Engineering Value in M177 Cooling System

In cooling module applications, flange projection weld nuts provide:

• Direct integration into stamped brackets

• Elimination of threading operations

• Reduced assembly cost in high-volume production

• Improved vibration resistance in engine bay environments

 5. Conclusion

For Mercedes-Benz M177 engine bay and cooling system assemblies, flange projection weld nuts represent a standardized, automation-ready fastening solution designed for:

• High-volume production

• Robotic welding systems

• Structural reliability under thermal cycling
