Precision Fastening in Electronics Enclosures: The Role of DIN 928 Weld Nuts in Sheet Metal Chassis Design

Precision Fastening in Electronics Enclosures: The Role of DIN 928 Weld Nuts in Sheet Metal Chassis Design

In the design and manufacturing of high-density electronic enclosures, server racks, and telecommunications cabinets, spatial optimization and structural reliability are paramount. Engineers continually face the challenge of creating robust, repeatable threaded anchor points on thin-gauge sheet-metal chassis. Traditional tapping methods often fail due to insufficient material thickness, resulting in stripped threads under torque or failure from vibrational stress.

The DIN 928 weld nut offers a definitive engineering solution. By utilizing resistance projection welding to fuse a heavy-duty threaded anchor directly to the chassis sheet metal, this component provides a permanent, high-torque thread source. It has become a foundational component in securing internal electronic assemblies, heavy-duty guide rails, and sensitive internal fixtures.

1. Mechanical Advantages of the Square Design in Electronics Manufacturing

The geometric layout of the DIN 928 square weld nut is specifically engineered to overcome the limitations of standard fastening methods in automated electronics assembly lines.

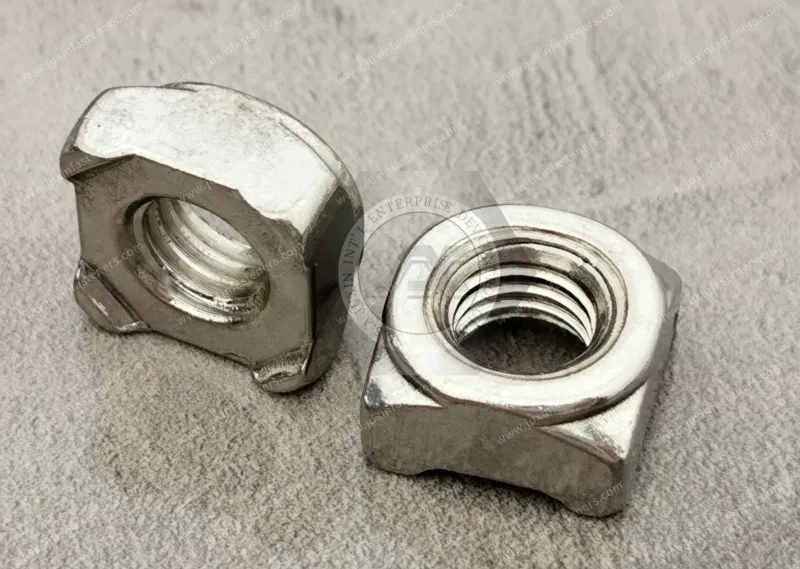

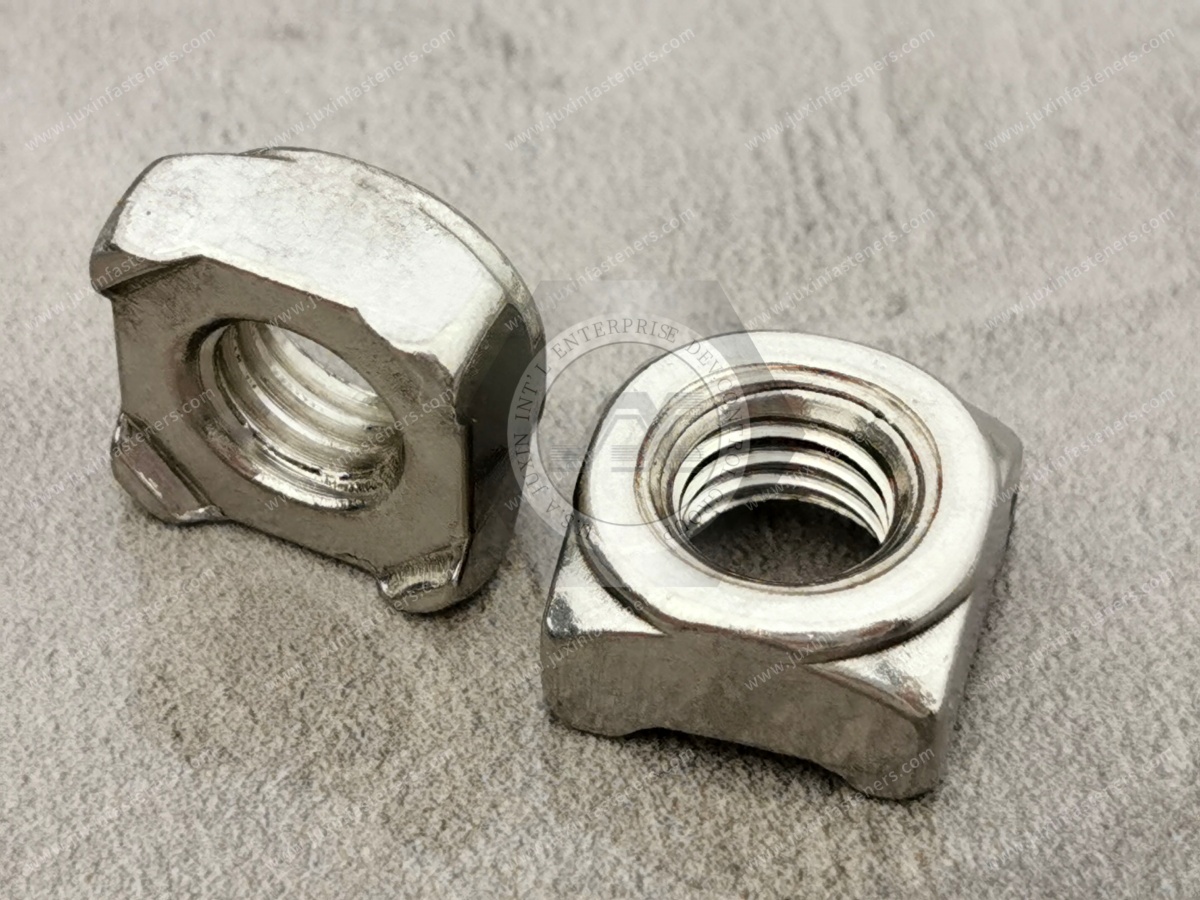

• Flawless Projection Welding: The base of the square nut is equipped with a uniform welding projection on each of its four corners. During the assembly process, the welding current and pressure are precisely concentrated at these four points. This achieves a fast, localized fusion that protects the internal metric threads from thermal distortion or spatter.

• Superior Anti-Twist and Push-Out Resistance: The distinct square profile creates a significantly larger contact area on the sheet metal surface compared to circular weld fasteners. This distribution provides exceptional resistance to torsional twisting (anti-rotation) and high push-out forces when engineers install internal chassis components with high-torque power drivers.

• Precision 6G Thread Compliance: To prevent assembly line bottlenecks caused by cross-threading, these nuts are manufactured to strict 6G thread tolerance classes. This ensures a clean, consistent, and smooth fit with standard metric bolts across high-volume manufacturing runs.

2. Technical Specification Matrix (DIN 928)

For hardware engineers developing CAD models and calculating internal clearance parameters, geometric precision is non-negotiable. Below is the technical breakdown of the DIN 928 standard across common metric sizes used in electronics and electrical cabinet manufacturing:

DIN 928 Dimensions & Specifications Table

3. Core Applications in the Electronics and Telecom Sector

[Thin-Gauge Sheet Metal Chassis]

               │

▼ (Precision Projection Welding via 4 Corner Projections)

[DIN 928 Square Weld Nut] ── Permanent, High-Torque Threaded Anchor Point

               │

▼ (Fast Bolt Installation / Low Risk of Thread Stripping)

[Internal Electronic Components / Guide Rails / Server Modules]

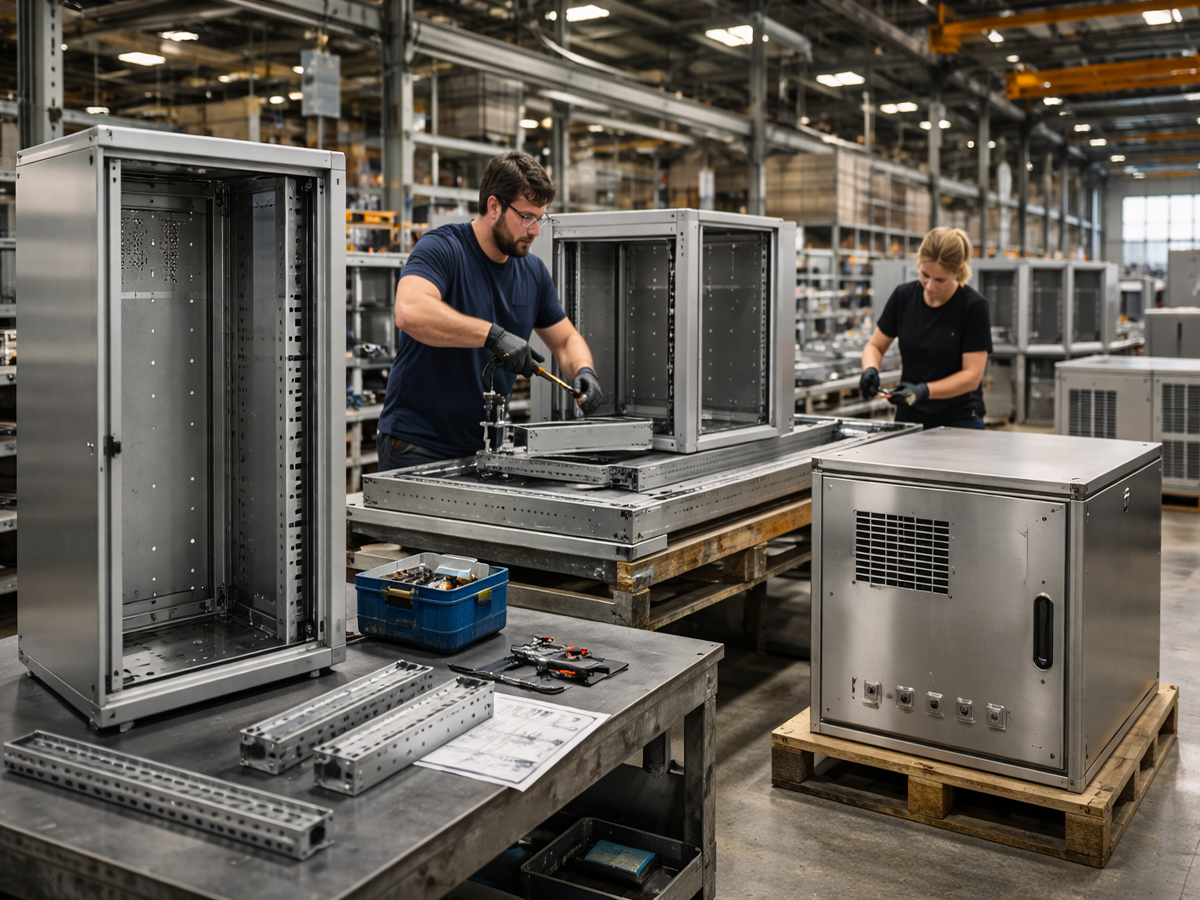

Sheet Metal Chassis & Server Cabinets

In data center server racks and network switches, components must be securely fastened to mitigate vibration from the continuous operation of cooling fans. DIN 928 weld nuts are pre-welded onto closed internal chassis panels or frame channels during the stamping phase. This provides a clean, reliable blind-hole fastening point where rear-side nut access is impossible during final integration.

Mounting Electronic Components and Guide Rails

Heavy server chassis modules rely on telescopic slide rails for maintenance access. By welding square nuts to the inner structural walls of the cabinet, manufacturers ensure that slide rails can be bolted down with maximum shear strength, preventing sagging or structural failure under heavy hardware loads.

Harsh Environment & Outdoor Telecom Enclosures

For outdoor 5G base stations, smart city infrastructure, and industrial control cabinets exposed to weather elements, material selection is critical. For these environments, stainless steel DIN 928 weld nuts are highly specified. They provide superior corrosion resistance and high-temperature durability, ensuring the enclosure remains secure and structurally sound against environmental degradation and thermal cycling.

4. Material Selection for Industrial Procurement

Balancing cost-efficiency with long-term component lifecycle performance depends heavily on choosing the correct material grade:

• Carbon Steel: Ideal for indoor electronics enclosures, computer chassis, and applications where the assembled unit will undergo subsequent powder coating, ecoat, or plating lines for a uniform aesthetic finish and basic rust protection.

• Stainless Steel (A2 / A4 / 300-Series): Essential for medical electronics, marine telecom systems, chemical processing control boxes, and outdoor infrastructure. This material choice prevents galvanic corrosion when paired with stainless steel structural framing or specialty hardware.

Your Strategic B2B Fastener Manufacturing Partner

As an experienced B2B manufacturer specializing in high-precision industrial fasteners, we deliver DIN 928 weld nuts engineered to meet the rigorous quality-control standards required by European and American electronics supply chains. Backed by extensive manufacturing expertise, our cold forging and thread rolling processes guarantee zero-defect production batches, optimized dimensional accuracy, and flawless compliance with 6G thread tolerances.

Packaging Standard

At Juxin Fasteners, we apply standardized export packaging to ensure product protection, traceability, and compliance with international logistics requirements.

1. Standard Export Packaging

Unless otherwise specified, all products will be packed according to our factory standard export packaging, which includes:

Moisture-resistant inner protection

Poly bag or small box packing as required

Reinforced export cartons

Clear labeling with part number, specification, batch number, and quantity

Palletizing for sea or air shipment when necessary

Our standard packaging is designed to ensure safe transportation, efficient warehousing, and long-distance international shipping.

2. Customized Packaging Options

We also provide customized packaging solutions according to customer requirements, including but not limited to:

Private labeling

Customized barcodes

Specific carton dimensions

Retail packaging

Special pallet configuration

Customer-specific marking and identification

So that you know, customized packaging may involve additional costs and extended lead time depending on the complexity of the requirements.

3. Compliance & Quality Assurance

All packaging processes are controlled under our ISO 9001 quality management system to ensure consistency, traceability, and product integrity throughout the supply chain.
