Robot Welding Fastener Design in Automotive Sheet Metal Assembly

Robot Welding Fastener Design in Automotive Sheet Metal Assembly

1. Introduction: The Shift Toward Full Automation

Modern automotive OEM production lines increasingly rely on:

• Robotic resistance welding

• Automated pick-and-place systems

• High-speed stamping integration

Fasteners must now be designed for automation compatibility rather than manual assembly.

2. What Makes a Weld Nut Robot-Friendly?

A robot-compatible weld nut typically requires:

✔ Stable positioning geometry

Flange-and-pilot design ensures accurate placement.

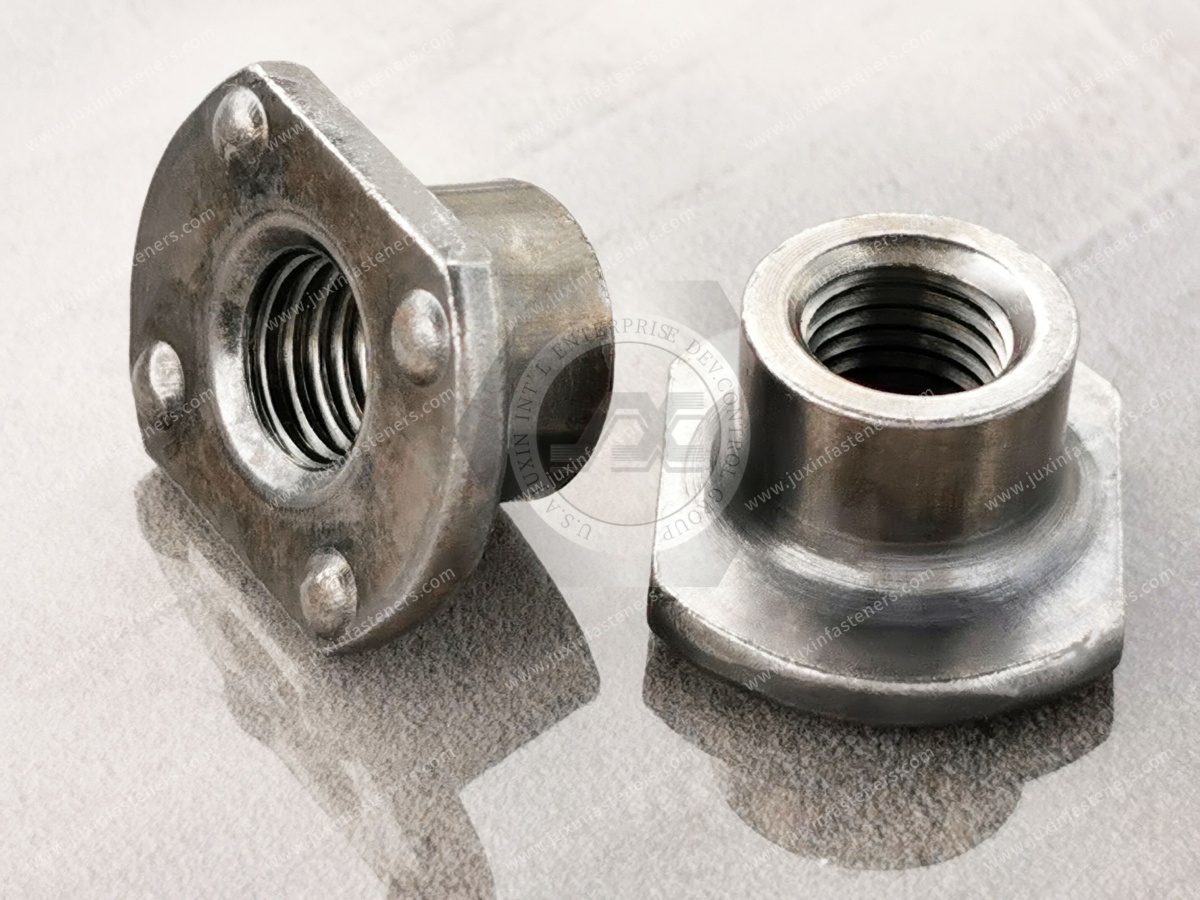

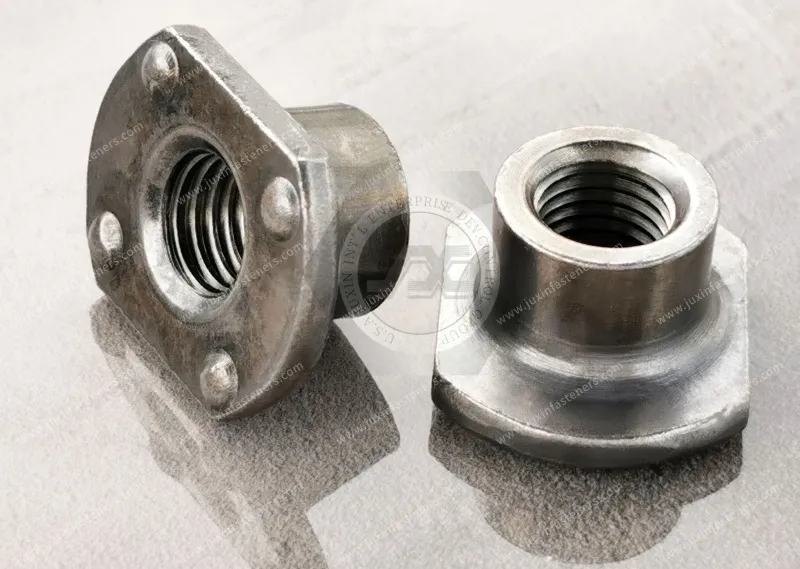

✔ Multi-point projection design

3 or 4 projections ensure stable weld energy distribution.

✔ Anti-misalignment structure

Prevents rotation or offset during robotic handling.

 3. Why Flange Projection Weld Nuts Are Ideal

They are widely used in:

• Engine bay assemblies

• Cooling module brackets

• Structural reinforcement panels

• Subframe mounting points

Because they offer:

• Fast robotic cycle time

• Low misalignment rate

• High weld consistency

• Reduced fixture complexity

 4. Manufacturing Advantage for OEM Suppliers

For tier-1 and tier-2 suppliers, flange projection weld nuts provide:

• Stable mass production quality

• Lower rejection rate

• Simplified automation integration

• Better compatibility with German OEM standards

 5. Conclusion

As automotive manufacturing moves toward Industry 4.0, fastener design is becoming part of the automation system itself rather than just a mechanical component.

Flange-projection weld nuts are now a core enabler of robotic welding efficiency on modern OEM platforms.
