Introduction: Why Square Weld Nuts Are Essential in Automotive Production

In modern automotive manufacturing, structural efficiency, vibration resistance, and automation compatibility are critical requirements across body-in-white (BIW), chassis systems, and electric vehicle platforms. Thin sheet metal structures require fastening solutions that provide reliable threaded points without the need for backside access or complex secondary operations.

Square weld nuts are specifically designed for this purpose.

As a projection-welded fastening component, square weld nuts are permanently attached to sheet metal by resistance welding, forming strong, vibration-resistant threaded anchors for subsequent assembly.

They are widely used in:

• Automotive body panels and BIW structures

• Chassis and suspension systems

• Seat and interior assemblies

• Exhaust and powertrain mounting points

• EV battery pack housings

• Electronic control unit (ECU) mounting systems

For OEM engineers and procurement teams seeking square weld nuts for automotive applications, this solution offers a standardized, high-efficiency fastening method for mass production environments.

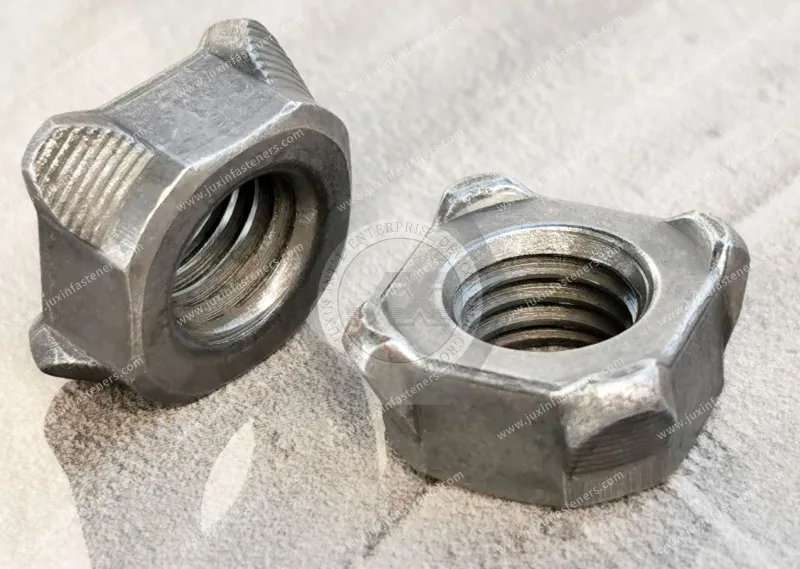

Structural Design and Engineering Principles of Square Weld Nuts

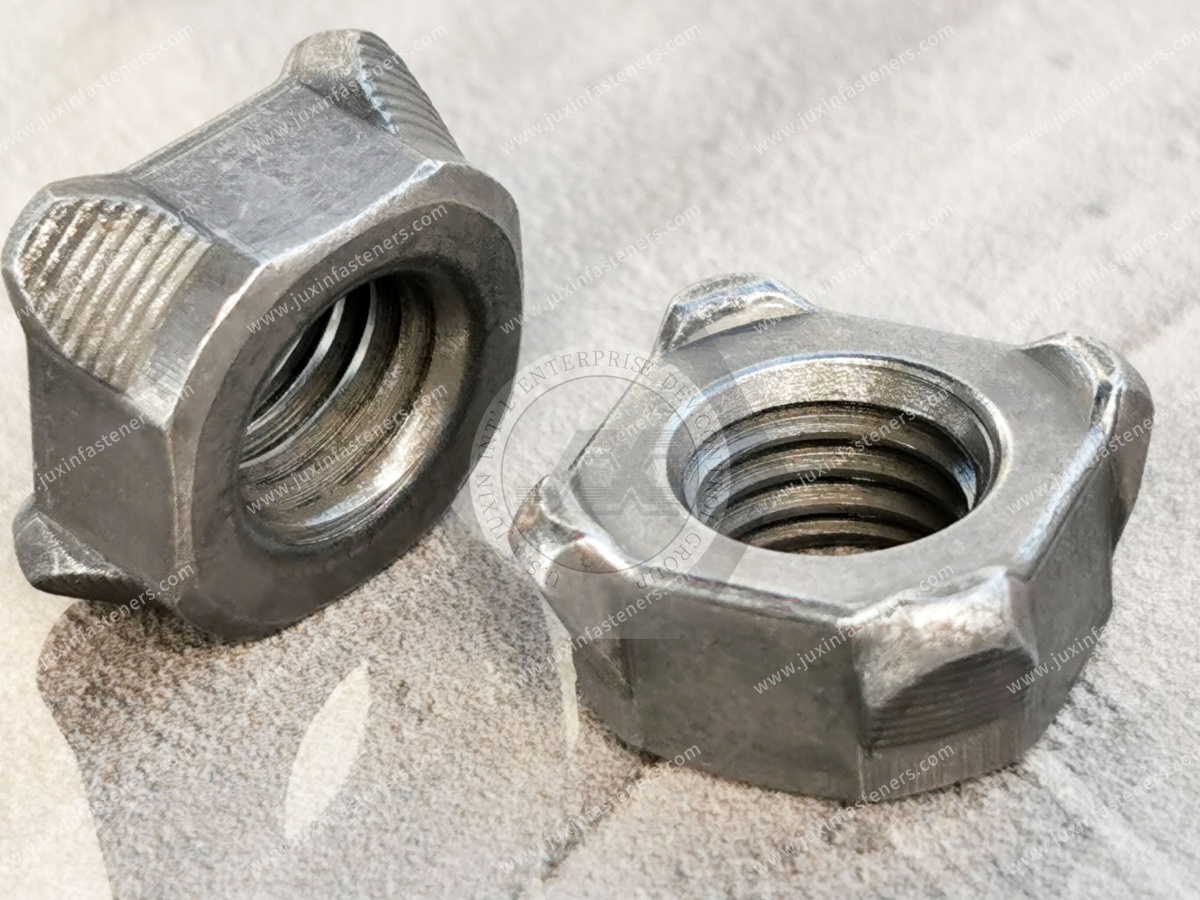

A square-weld-nut design is based on a projection-welded structure optimized for thin-sheet metal integration.

The typical structure includes:

• Square nut body for torque resistance

• Integrated welding base

• Projection points for resistance welding energy concentration

• Positioning features for automated alignment

• Internal metric or unified threads

During production, the nut is pre-positioned on the sheet-metal surface and welded by projection welding. The projections melt under controlled current, forming a permanent metallurgical bond between the nut and base material.

After welding, square weld nuts become non-removable threaded inserts embedded into the structure.

This makes them ideal for applications where:

• Reverse-side access is impossible

• High vibration resistance is required

• Automated assembly is used

• Thin sheet metal (≤6 mm) is involved

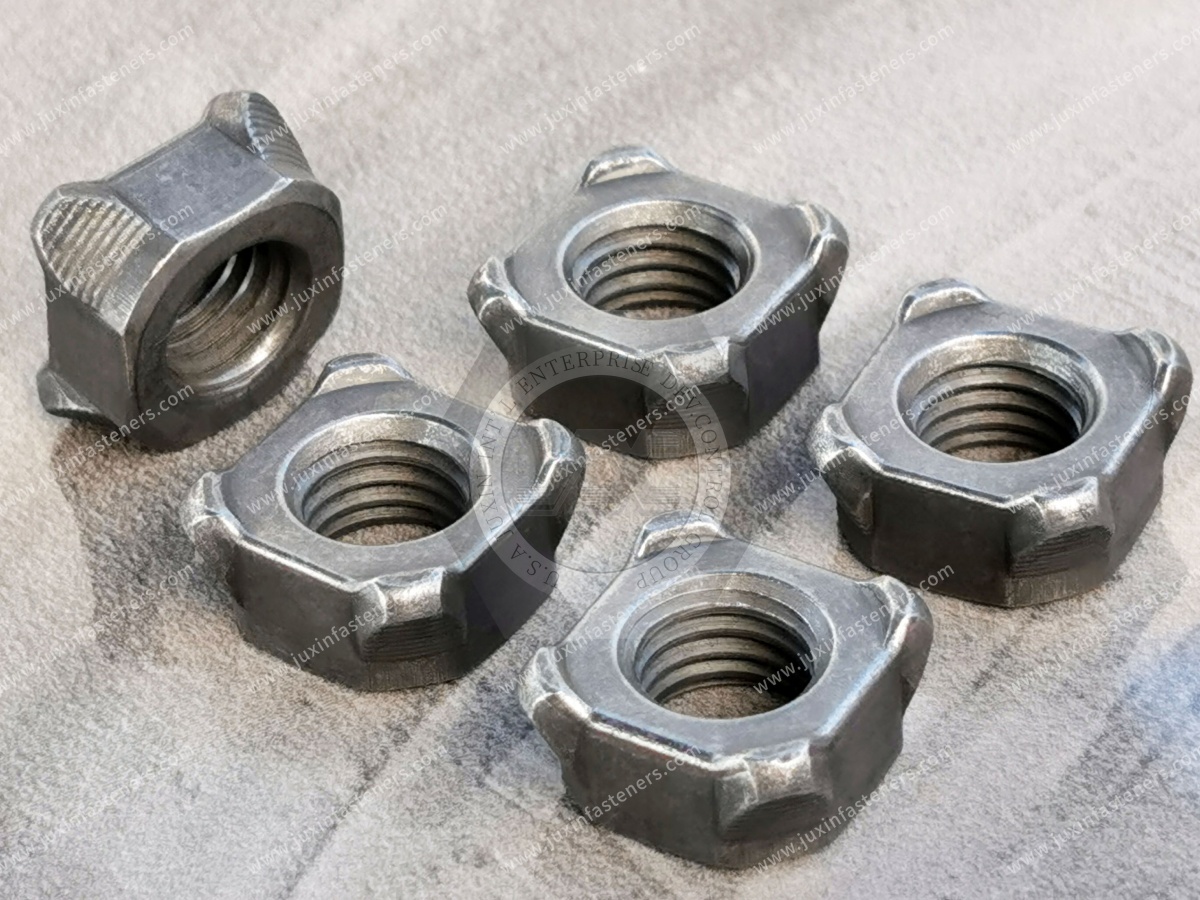

 Square Weld Nuts in Automotive Body-in-White (BIW) Applications

In BIW manufacturing, square weld nuts are widely used to create mounting points on thin sheet-metal panels before final vehicle assembly.

They are commonly pre-welded onto:

• Side body panels

• Floor pans

• Cross members

• Roof reinforcements

• Front and rear body structures

Once installed, square weld nuts in automotive body systems provide threaded interfaces for:

• Seat installation

• Seatbelt anchoring systems

• Interior trim components

• Dashboard assemblies

• Bumper mounting brackets

Key advantages in BIW applications include:

✔ High welding efficiency suitable for automation
✔ Precise and repeatable positioning
✔ No backside access required
✔ Stable threaded performance after welding
✔ Excellent compatibility with robotic production lines

In high-volume automotive factories, a single square-weld nut cycle can be completed in just a few seconds using resistance projection welding equipment.

 Square Weld Nuts in Chassis and Powertrain Systems

In chassis and powertrain assemblies, square weld nuts are exposed to continuous vibration, mechanical stress, and thermal cycling.

They are commonly used in:

• Suspension mounting systems

• Exhaust pipe brackets

• Engine mounting structures

• Frame reinforcement points

These applications require high mechanical strength and excellent anti-loosening performance.

Therefore, high-strength square weld nuts (Grade 8 or Grade 10) are typically selected.

To further enhance reliability, engineers often combine square weld nuts with:

• Thread-locking adhesives

• Mechanical locking systems

• Anti-vibration washers

This ensures long-term stability under dynamic load conditions in vehicle operation.

Square Weld Nuts in New Energy Vehicle (NEV) Applications

With the rapid growth of electric vehicles, square weld nuts are increasingly used in EV structural systems, especially where lightweight design and modular assembly are required.

Typical applications include:

• EV battery pack housings

• Battery tray mounting systems

• Electric control unit (ECU) brackets

• High-voltage enclosure structures

In EV platforms, square weld nuts for automotive battery systems provide:

• Lightweight fastening solutions

• High structural integration efficiency

• Strong vibration resistance

• Compatibility with automated assembly lines

These advantages make them a preferred fastening method in modern EV production architectures.

 Welding Process for Square Weld Nuts (Projection Welding Technology)

The installation of square weld nuts is typically performed using resistance projection welding equipment.

Welding Process Overview:

1. Square weld nut is positioned on pre-punched sheet metal

2. Projection points align with the welding surface

3. Electrode pressure is applied

4. High current passes through projections

5. Projections melt and fuse with base metal

6. A permanent threaded connection is formed

Key Process Advantages:

• Extremely fast cycle time (seconds per weld nut)

• High automation compatibility

• Consistent welding quality in mass production

• Strong metallurgical bonding

• No need for backside access

For automotive OEM production, this process is well-suited to robotic welding systems.

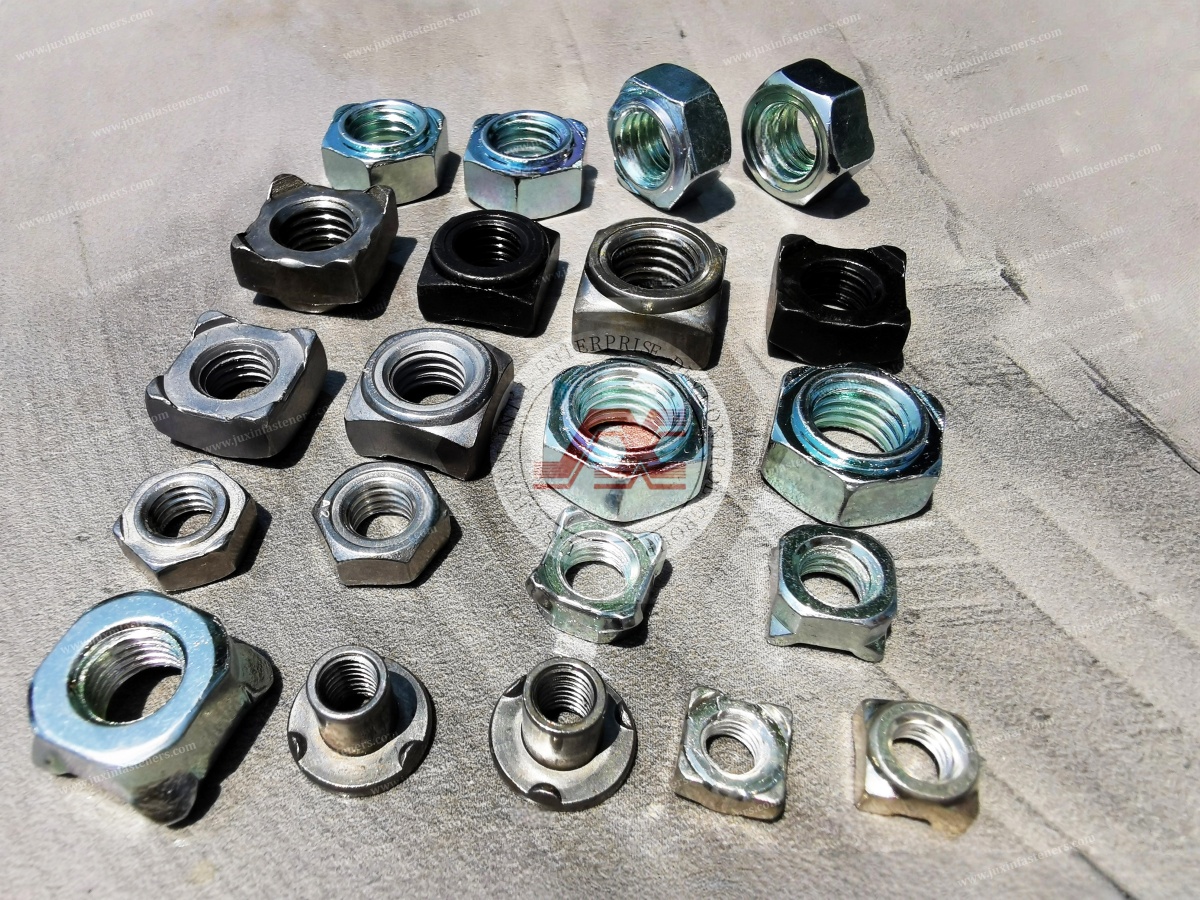

 Corrosion Protection and Surface Treatment for Square Weld Nuts

Automotive environments require strong corrosion resistance, especially in chassis and underbody applications.

To meet these requirements, square weld nuts typically undergo:

• Zinc plating + passivation

• Dacromet coating (high-performance anti-corrosion layer)

• Salt spray resistance treatment (240–720 hours standard)

These coatings ensure long-term durability in:

• Humid environments

• Road salt exposure

• Underbody corrosion zones

• Battery compartment environments

For electric vehicles and premium automotive platforms, Dacromet square weld nuts are commonly specified due to their superior corrosion resistance.

Quality Control and Automotive Standards for Square Weld Nuts

Due to their use in safety-critical automotive systems, square weld nuts must undergo strict quality assurance and traceability control.

Incoming Quality Inspection Includes:

• Dimensional accuracy verification

• Hardness testing

• Coating thickness measurement

• Salt spray resistance testing

• Thread tolerance inspection

Production Traceability:

Automotive-grade square weld nuts typically include:

• Batch identification markings

• Material traceability records

• Production lot tracking

• Quality certification documentation

This ensures compliance with automotive quality systems and OEM requirements.

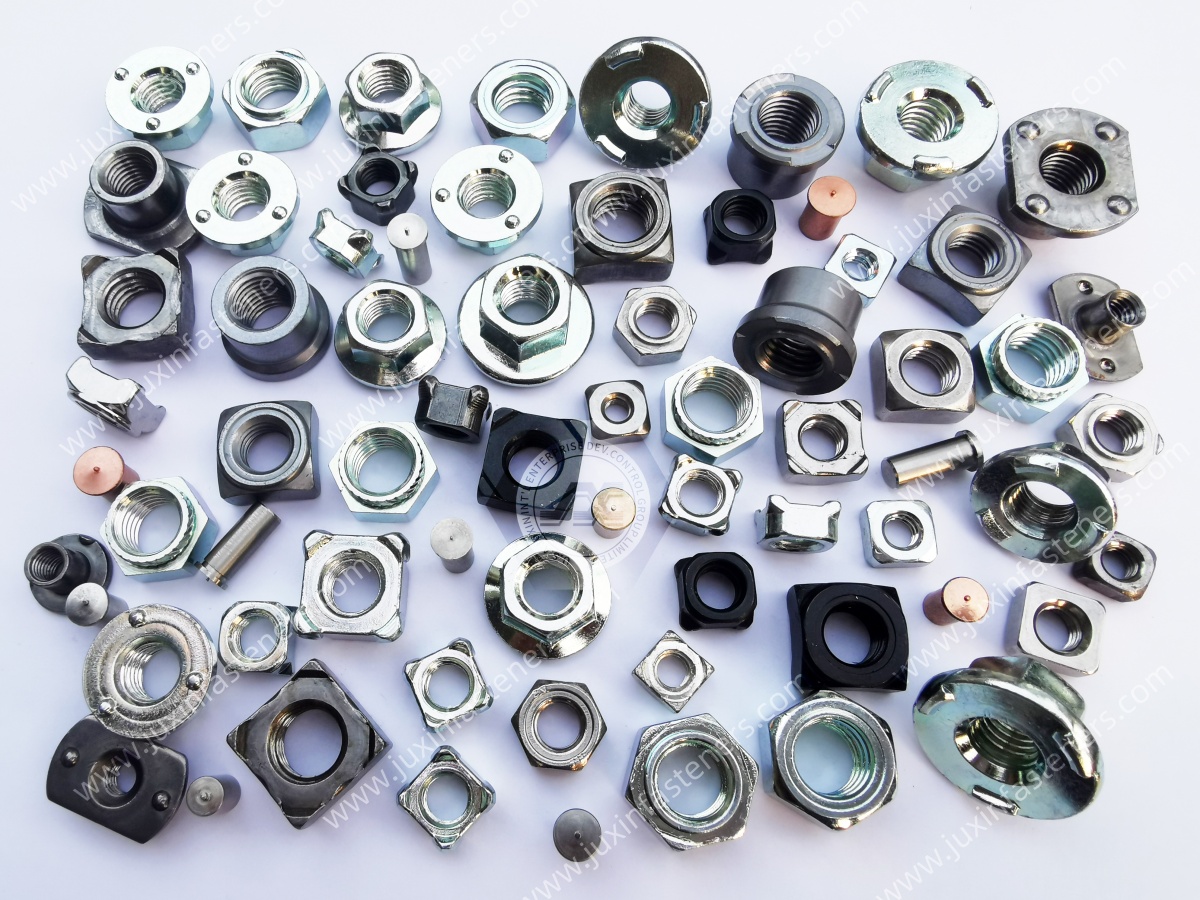

 Advantages of Square Weld Nuts in Automotive Manufacturing

Several key engineering and production benefits drive the widespread use of square weld nuts:

✔ High welding efficiency for automated production lines
✔ Permanent threaded integration into sheet metal
✔ Excellent resistance to vibration loosening
✔ Precise positioning during robotic welding
✔ No need for backside access
✔ Strong compatibility with BIW and chassis structures
✔ Suitable for high-volume OEM manufacturing

These advantages make square weld nuts a core fastening component in modern automotive assembly systems.

 Repair and Replacement Considerations

In automotive repair scenarios, if a welded nut becomes damaged or detached, alternative fastening solutions may be used, including:

• Cage nuts (spring nuts)

• Rivet nuts

• Mechanical insert fasteners

However, these are typically used as non-welded repair alternatives rather than replacements for production-grade square weld nuts.

 Conclusion: Why Square Weld Nuts Are a Standard in Automotive Engineering

Square weld nuts play a critical role in modern automotive manufacturing by enabling fast, reliable, and permanent threaded connections in thin sheet metal structures.

From BIW assemblies to chassis systems and EV battery platforms, square weld nuts provide:

• High-strength fastening performance

• Excellent vibration resistance

• Full automation compatibility

• Corrosion-resistant solutions

• Efficient mass production capability

For engineers, procurement specialists, and OEM manufacturers searching for square weld nuts for automotive applications, this fastening technology remains one of the most reliable and widely adopted solutions in global vehicle production.
