The rapid growth of the new energy vehicle (EV) industry has significantly increased the demand for high-strength, lightweight, and reliable fastening technologies. In modern electric-vehicle manufacturing, Weld Studs with 3 Projections Under the Head are widely used for welding and fixing structural components, such as battery-pack brackets, motor housings, structural supports, and electronic modules.

Using stud welding technology, these projection weld studs can be securely welded to metal substrates, creating durable threaded connection points for subsequent assembly. This method improves connection strength, assembly efficiency, and structural reliability while supporting the lightweight, high-performance design requirements of electric vehicles.

Because of their excellent welding stability and strong mechanical performance, projection weld studs are increasingly used in EV battery pack structures, motor components, and vehicle chassis assemblies.

What Is a Weld Stud with 3 Projections Under the Head?

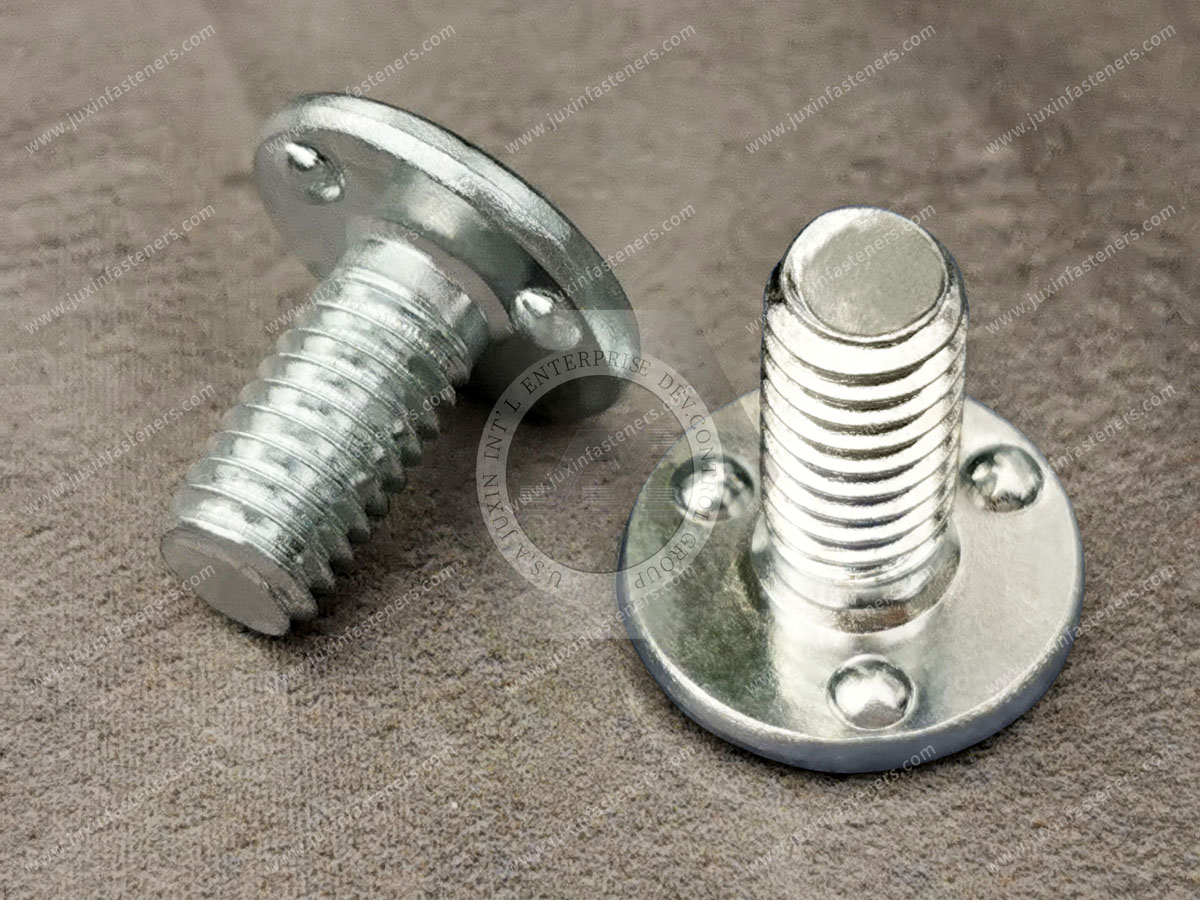

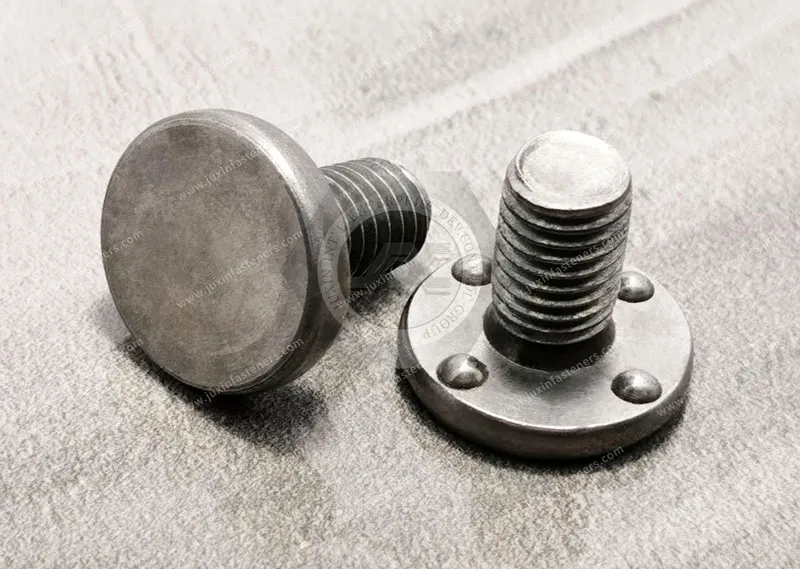

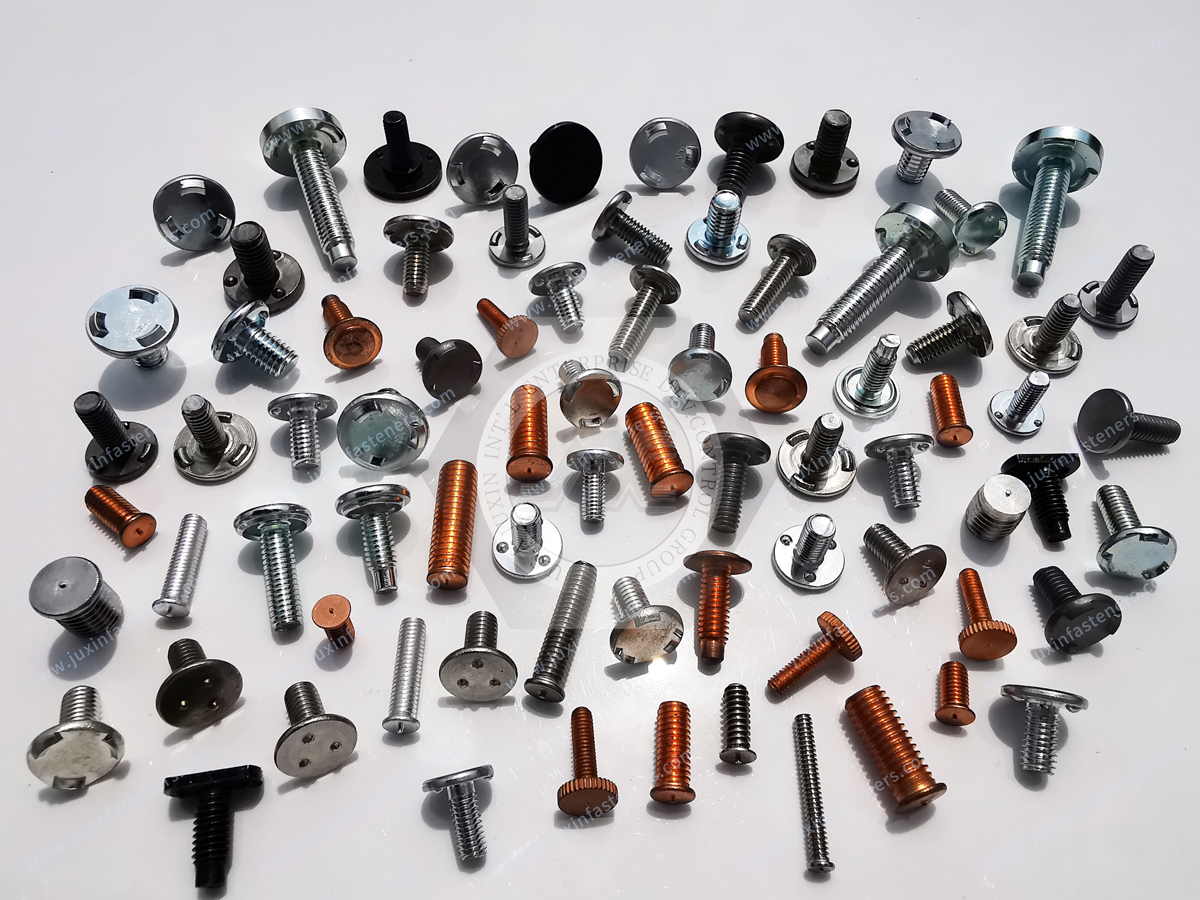

A Weld Stud with 3 Projections Under the Head is a specialized stud-welding fastener with three projection points under the head. During the welding process, these projections concentrate electrical energy and heat, ensuring stable positioning and consistent weld penetration.

This design provides several advantages:

• Stable welding alignment

• Uniform heat distribution

• Strong metallurgical bonding

• Reduced welding distortion

These characteristics make projection weld studs highly suitable for automated EV production lines and high-precision automotive components.

Applications in Electric Vehicle Battery Pack Structures

The battery pack is one of the most critical components in electric vehicles. Its structural installation requires high levels of mechanical strength, safety protection, and sealing performance.

Projection weld studs are often used in:

• Battery pack mounting brackets

• Battery tray support structures

• Cross-beam fixing points

• Vehicle body connection interfaces

By welding studs directly onto the vehicle chassis or battery housing, manufacturers can create strong threaded connection points for bolts and structural assemblies.

This method provides several key benefits:

• High structural rigidity for battery pack installation

• Reliable mechanical fastening under vibration conditions

• Compatibility with sealed battery enclosure designs such as IP67      protection standards

In some battery pack designs, additional reinforcement structures are integrated around the stud connection areas to enhance collision safety and structural durability.

Applications in EV Motor Housings and Drive Components

The electric motor is the core of the EV powertrain system, and its housing assembly requires highly reliable fastening solutions.

Projection weld studs are commonly used in:

• Motor end-cap mounting

• Sensor bracket installation

• Cable harness clip bases

• Auxiliary component supports

For aluminum-alloy motor housings, energy-storage stud welding can provide strong connections while avoiding material weakening from conventional drilling and tapping.

Typical stud sizes used in EV motor assemblies include:

• M5 weld studs

• M6 weld studs

• M8 weld studs

• 6-32 Weld Stud with 3 Projections Under the Head

• 8-32 Weld Stud with 3 Projections Under the Head

• 10-24 Weld Stud with 3 Projections Under the Head

• 10-32 Weld Stud with 3 Projections Under the Head

• 1/4-20 Weld Stud with 3 Projections Under the Head

• 1/4-28 Weld Stud with 3 Projections Under the Head

• 5/16-18 Weld Stud with 3 Projections Under the Head

• 5/16-24 Weld Stud with 3 Projections Under the Head

• 3/8-16 Weld Stud with 3 Projections Under the Head

• 3/8-24 Weld Stud with 3 Projections Under the Head

• 1/2-13 Weld Stud with 3 Projections Under the Head

• M3.5 x 0.60 Weld Stud with 3 Projections Under the Head

• M4 x 0.70 Weld Stud with 3 Projections Under the Head

• M5 x 0.80 Weld Stud with 3 Projections Under the Head

• M6 x 1.00 Weld Stud with 3 Projections Under the Head

• M8 x 1.25 Weld Stud with 3 Projections Under the Head

• M10 x 1.50 Weld Stud with 3 Projections Under the Head

• M12 x 1.75 Weld Stud with 3 Projections Under the Head

These studs are often manufactured from materials such as:

• Stainless steel

• Zinc-plated carbon steel

• High-strength alloy steel

This ensures excellent corrosion resistance, vibration resistance, and long-term durability.

 Advantages of Projection Weld Studs in EV Manufacturing

High Structural Strength

Stud welding creates a permanent metallurgical bond between the stud and the base metal, providing excellent tensile and shear strength.

 Lightweight Vehicle Design

Because studs are welded directly onto structural components, manufacturers can reduce additional brackets and fastening hardware, supporting lightweight vehicle architecture.

Compatibility with Automated Production

Modern EV manufacturing relies heavily on robotic and automated production lines. Projection weld studs are highly compatible with automated welding equipment and multi-gun welding systems.

 Improved Production Efficiency

Energy-storage stud welding processes typically feature extremely short welding cycles, allowing fast installation of fastening points with consistent quality.

 Stud Welding Technology in Electric Vehicle Production

In EV manufacturing, capacitor discharge stud welding (CD stud welding) is widely used due to its high efficiency and precision.

This welding method features:

• Extremely short welding time

• Low heat input to surrounding materials

• High-quality weld joints

• Excellent suitability for high-strength steel and aluminum      alloys

Modern production lines integrate robotic welding systems, PLC control, and multi-welding gun synchronization, enabling large-scale automated installation of weld studs in EV structural components.

 Supporting the Future of Electric Mobility

As the global transition toward electric and renewable-energy transportation accelerates, vehicle manufacturers require fastening solutions that deliver high strength, precision, and manufacturing efficiency.

Weld Studs with 3 Projections Under the Head provide an effective solution for modern EV production, supporting reliable assembly of battery systems, motor housings, and structural components.

Their compatibility with automated manufacturing processes and advanced vehicle structures makes them an important fastening technology in the rapidly evolving electric vehicle industry.
