Push-type retainers are widely used in automotive assemblies where panels, trim components, covers, and other parts need to be attached through a defined mounting interface.
Their simple installation concept can support efficient assembly, while the specific retention performance depends on the fastener geometry, mounting hole, panel thickness, material, and application requirements.
Product Specification
Push-type retainers are widely used in automotive assemblies where panels, trim components, covers, and other parts need to be attached through a defined mounting interface.
Their simple installation concept can support efficient assembly, while the specific retention performance depends on the fastener geometry, mounting hole, panel thickness, material, and application requirements.
For automotive engineers and procurement teams, selecting the correct push-type retainer requires more than matching a product name or visual appearance. The fastener must be evaluated as part of the complete joint.
JUXIN FASTENERS manufactures customer-specific push-type retainers and related automotive fastening components according to approved drawings, material requirements, mating conditions, and application requirements.
Direct Answer: Push-type retainers are automotive plastic fastening components that use an insertion and expansion mechanism to engage a mounting interface.
Depending on the design, a center pin, expandable leg, rib, barb, or other feature can create mechanical retention after installation.
They are commonly considered for applications such as:
Interior trim panels
Door and access panels
Body-related trim components
Bumper and fascia-related assemblies
Protective covers
Mouldings and garnish components
Other automotive panel and trim applications
The exact installation mechanism varies by design.
Some push-type retainers use a separate center pin that expands the retaining body after insertion. Others use integrated flexible features that engage the mounting hole or substrate directly.
Therefore, "push-type retainer" should be treated as a product category rather than a single standardized geometry.
The correct component depends on the mounting interface and the required fastening function.
The basic operating principle is relatively simple:
Align → Insert → Expand or Engage → Retain
The fastener is aligned with the specified mounting interface and inserted into the hole or mating feature.
Depending on the design, a center pin or another expansion mechanism then changes the geometry of the retaining portion.
The expanded or engaged features provide mechanical retention between the fastener and the substrate.
The actual retention behavior depends on several factors:
Fastener geometry
Mounting-hole dimensions
Hole tolerance
Panel thickness
Substrate material
Polymer characteristics
Installation method
Mating component geometry
This is why a push-type retainer should not be selected based only on its outside diameter or head appearance.
Different automotive applications may use different push-type retainer architectures.
A common configuration consists of an outer retaining body and a separate center pin.
The outer body may contain flexible legs, ribs, or other retention features. When the center pin is driven into the body, these features can expand or engage with the mounting interface.
The final retention behavior depends on the geometry of both components and the mating substrate.
Some push-type retainers use an integrated expansion feature rather than a separate removable pin.
The retaining elements may deform during installation and then engage the mounting interface after insertion.
This type of design can provide a compact fastening solution where the installation sequence and available assembly access support the configuration.
The head geometry can be adapted to the surrounding trim or panel design.
Depending on the application, the head may need to provide a defined contact area, clearance relationship, or visual profile.
The appropriate head design should be established from the customer's mating-component geometry rather than assumed from a generic product category.
One of the most important selection factors for a push-type retainer is the relationship between the fastener and the mounting interface.
The mounting hole should be evaluated according to:
Diameter
Shape
Tolerance
Location
Substrate characteristics
Mating component requirements
The fastener's retaining features must be compatible with the actual mounting interface.
A small change in hole geometry can influence insertion, engagement, and retention behavior.
For OEM applications, the mounting-hole requirements should therefore be reviewed together with the fastener drawing rather than treated as an isolated dimension.
Panel thickness is another critical consideration.
Depending on the fastener design, the retaining features may be intended to engage a particular range of substrate thicknesses.
If the panel thickness does not correspond to the intended geometry, the fastener may not achieve the required fit or retention behavior.
For this reason, sourcing information should identify the actual panel thickness and relevant dimensional requirements whenever possible.

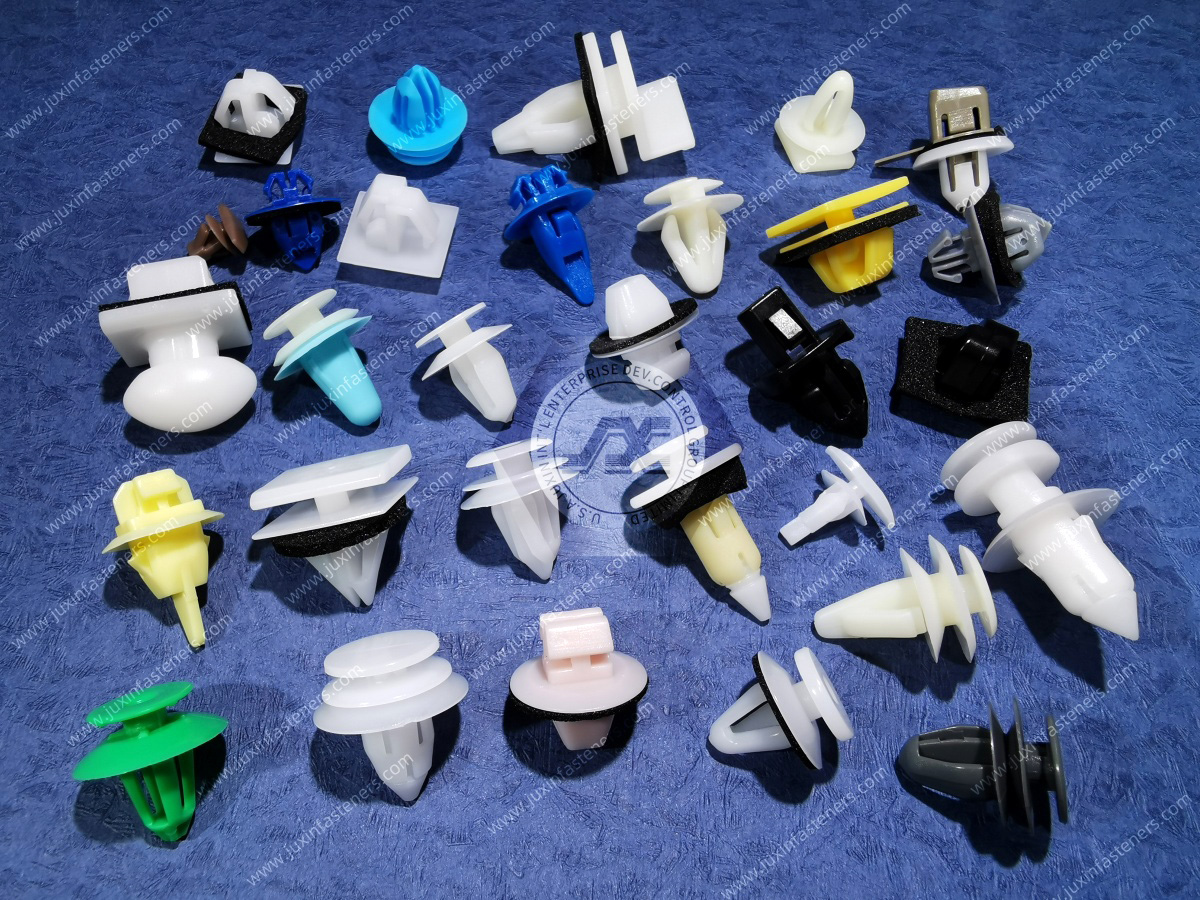

Push-type retainers are only one category within the wider automotive plastic fastener family.
Depending on the mounting interface, engineers may also evaluate:
Fir tree clips
Edge clips
Screw grommets
Trim and moulding clips
Wire harness clips
Snap-fit retainers
Other application-specific automotive plastic clips
The correct choice depends on the joint design.
For example, an edge clip is designed around a panel edge or flange, while a push-type retainer generally engages a defined mounting interface through an insertion and retention mechanism.
A screw grommet provides a receiving interface for a screw, while a push-type retainer can provide direct mechanical retention through its own expansion or engagement features.
These components should not be considered interchangeable simply because they are all described as automotive plastic fasteners.
A practical selection process should evaluate the complete relationship between the fastener and the vehicle assembly.
First identify whether the component is required primarily for:
Panel retention
Trim attachment
Positioning
Alignment
Spacing
Component attachment
Cover retention
Other defined assembly functions
The required function establishes the starting point for selecting the fastener geometry.
Next, identify how the retainer will engage with the assembly.
Relevant information may include:
Mounting-hole geometry
Panel thickness
Edge or flange geometry
Mating bracket
Trim profile
Installation direction
Available assembly access
The expansion or engagement mechanism should correspond to the required application.
Possible mechanisms include:
Center-pin expansion
Flexible-leg expansion
Rib engagement
Barb engagement
Snap-fit engagement
Other application-specific retention geometries
The mechanism should be evaluated together with the substrate and mounting interface.
The installation method can influence the appropriate design.
Consider:
Manual or production-line installation
Required insertion direction
Available assembly access
Installation tooling where applicable
Installation sequence
Service or removal requirements
Insertion force can be an important engineering consideration, but the required value should be established from the specific application rather than assumed as a universal specification.
The polymer should be selected according to the application's mechanical, dimensional, environmental, and assembly requirements.
Common material families considered for automotive plastic retainers include:
Nylon / PA6 / PA66
POM / Acetal
PP
Other specified engineering polymers
Material selection should consider factors such as moisture exposure, temperature conditions, flexibility, dimensional stability, chemical environment, and required assembly behavior.
Nylon is commonly considered for automotive plastic fastening applications where the required combination of mechanical behavior, flexibility, and retention characteristics is compatible with the design.
However, Nylon can absorb moisture, which may influence dimensional and mechanical behavior.
For applications with significant moisture exposure or tight dimensional requirements, the selected Nylon grade should therefore be evaluated against the actual operating environment.
POM / Acetal may be considered where rigidity, dimensional stability, low-friction characteristics, or other application-specific requirements are relevant.
Its suitability depends on the fastener geometry, mating materials, installation method, and operating conditions.
PP may be considered where its flexibility, chemical characteristics, density, or other material properties are appropriate for the application.
The selected grade should be matched to the actual design requirements.
There is no single polymer that should be treated as the universal choice for automotive push-type retainers.
The material should be selected based on the complete application rather than simply the lowest material cost or the most commonly used polymer.
Push-type retainer performance involves several related engineering parameters.
Insertion force describes the effort required to install the component into the specified mounting interface.
The actual value depends on the fastener geometry, material, hole condition, panel thickness, and installation method.
Where insertion force is important to the assembly process, it should be established as part of the application specification.
Extraction or pull-out behavior can be relevant when the component must remain attached under defined service conditions.
The actual retention requirement depends on the complete joint, including the fastener, substrate, hole geometry, panel thickness, and mating component.
A universal extraction-force value should not be assumed across different push-type retainer designs.
If the vehicle assembly may need to be removed during service, engineers should consider whether the selected fastener is intended for one-time installation or repeated removal and installation.
The appropriate service behavior should be established from the application requirements.
Automotive fasteners may operate in very different environments depending on their location.
Interior trim, exterior body components, electrical assemblies, and other vehicle zones can have different environmental requirements.
Important considerations may include:
Temperature exposure
Moisture
Chemical exposure
Cleaning agents
Automotive fluids where applicable
UV or exterior exposure where applicable
Dimensional stability
Long-term material behavior
The relevant requirements should be defined according to the actual vehicle application.
For Nylon components, moisture exposure deserves particular attention because moisture absorption can affect material behavior and dimensions.
For exterior applications, the selected polymer grade and component geometry should be evaluated against the environmental conditions associated with the installation location.
Push-type retainers are commonly considered for:
Door trim
Interior panels
Pillar trim
Dashboard-related components
Console components
Headliner-related assemblies
Access covers
The appropriate design depends on the mounting-hole geometry, panel thickness, trim structure, installation direction, and required retention function.
Push-type automotive retainers may also be considered for bumper and fascia-related components where the specified mounting interface supports this type of fastening.
The exact retainer geometry should be matched to the vehicle component and substrate.
The term "bumper clip" is often used broadly in the market, but different bumper applications can use different fastening geometries.
Buyers should therefore confirm the actual component specification before selecting an alternative.
Exterior trim, garnish, moulding, and protective covers may use plastic retainers where the mounting interface and material requirements are compatible.
Environmental exposure should be considered as part of the material and component selection process.
Some automotive plastic fastening components are used to position or retain wire harnesses and cables.
However, harness clips should be selected according to the cable or harness geometry and the required mounting interface rather than treating every plastic clip as a general-purpose retainer.
Rear spoiler assemblies provide a useful example of how different automotive fastening components can work within the same application.
A rear spoiler system may include both polymer and metal components, with each serving a different function.
A Nylon Rear Spoiler Clip is a plastic fastening or retaining component designed for a specific rear spoiler mounting application and its associated mating structure.
Depending on the actual design, the clip may provide functions such as:
Locating
Retaining
Positioning
Spacing
Assembly alignment
Fastening-interface support
The exact function depends on the approved component geometry and vehicle assembly.
The mounting hole, panel or bracket thickness, mating structure, installation direction, and polymer specification should be considered when selecting a Nylon Rear Spoiler Clip.
A generic automotive clip should not automatically be treated as interchangeable with a customer-specific Nylon Rear Spoiler Clip.

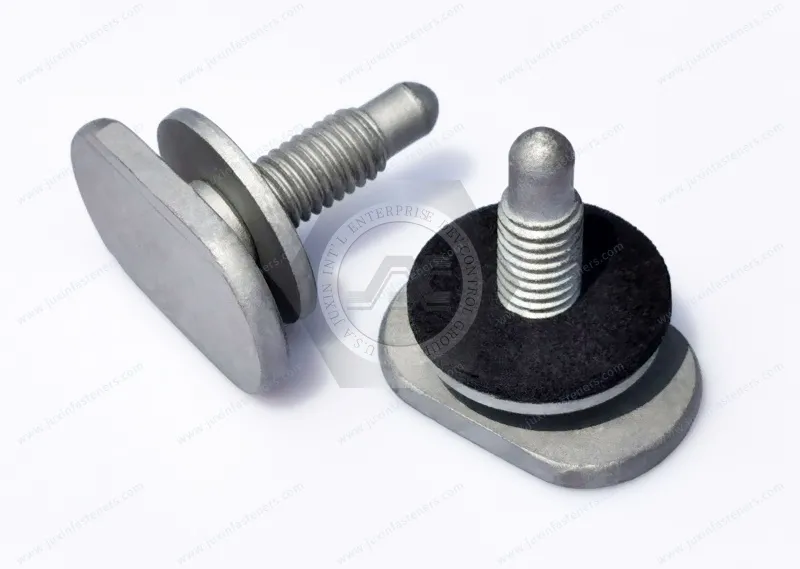

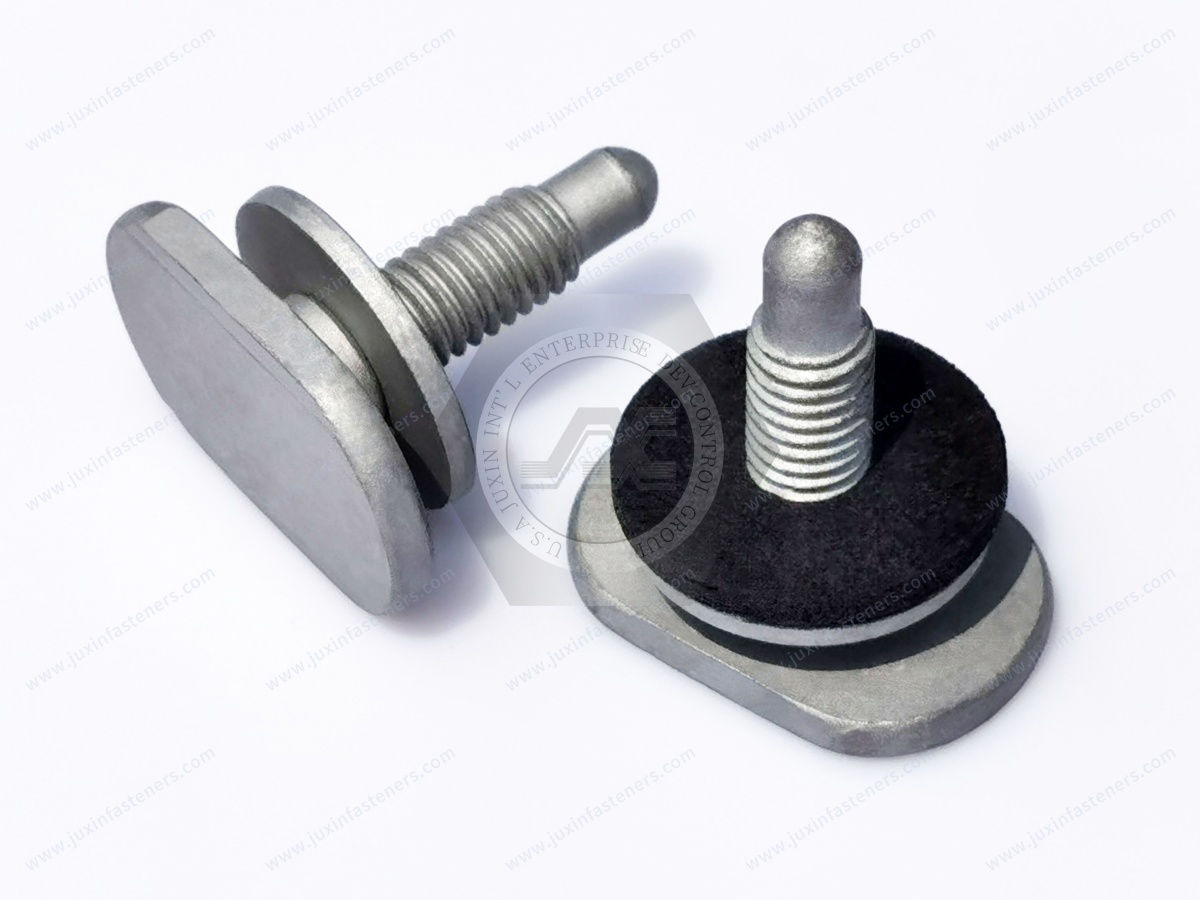

The rear spoiler application may also use a metal Automotive Spoiler Slide Bolt.
Unlike a generic plastic retainer, the Slide Bolt is a threaded metal fastening component. Its special head geometry can be designed to engage a mounting slot, track, or channel.
A typical installation concept is:
Slide → Position → Engage → Tighten
Depending on the mating geometry, the head engagement may help resist rotation during final tightening. The actual behavior depends on the bolt head and the customer's mounting interface.

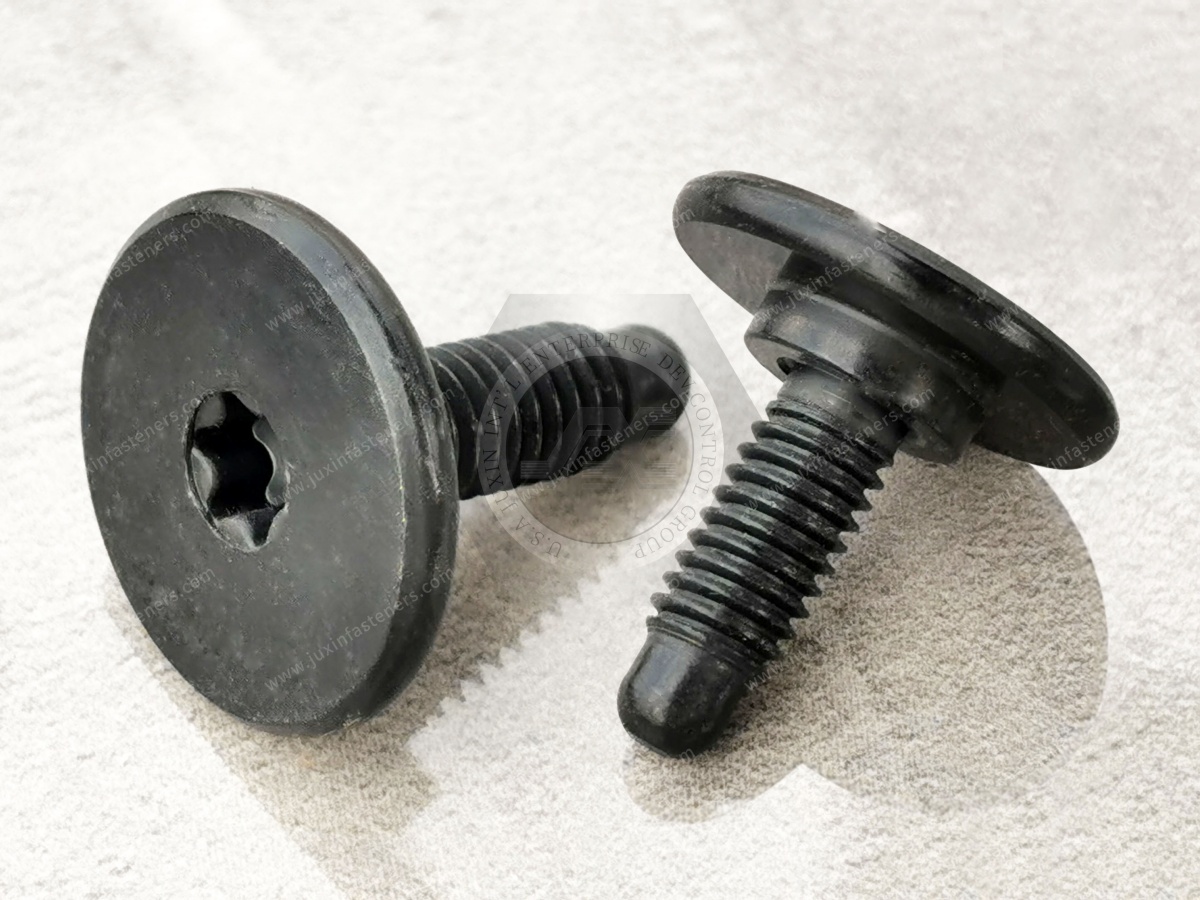

JUXIN FASTENERS supplies customer-specified Spoiler Bolts / Automotive Spoiler Slide Bolts in configurations including M5 and M6, with representative M6 × 14 and M6 × 20 sizes.
Depending on the approved specification, property classes may include:
8.8
10.9
Potential finishes may include:
Color Zinc
Zinc-Nickel Alloy
Black Zinc
Certain configurations may also include a pre-applied thread-locking patch when specified by the customer.
The Nylon Rear Spoiler Clip and Automotive Spoiler Slide Bolt therefore represent two different components within the same rear spoiler fastening system:
Nylon Rear Spoiler Clip → plastic retaining / locating function
Automotive Spoiler Slide Bolt → metal threaded fastening function
This distinction is important when developing or sourcing a complete rear spoiler fastening solution.
Automotive fastener selection involves both technical and commercial decisions.
Design and structural engineers may need to evaluate:
Mounting-hole dimensions
Hole tolerance
Panel thickness
Fastener geometry
Retention mechanism
Insertion requirements
Extraction requirements
Material specification
Environmental conditions
Installation method
Service requirements
The engineering question is:
Does the selected fastener match the required function and mating interface?
Procurement and supply chain teams may need to evaluate:
Approved component specification
Material requirements
Dimensional consistency
Production quantity
Packaging
Documentation
Sampling and approval requirements
Supplier communication
Supply continuity
Commercial conditions
The procurement question is:
Can the supplier consistently provide the approved component according to the required specification and supply conditions?
These two perspectives should be connected rather than treated separately.
A clear sourcing package helps reduce ambiguity between the engineering requirement and the quoted component.
The engineering drawing should define the required geometry and relevant dimensional requirements.
CAD data can help clarify the component geometry and its relationship with surrounding parts.
Provide relevant information about:
Hole diameter
Hole shape
Hole tolerance
Panel thickness
Substrate material
Mating component
Installation direction
If the polymer has already been established by the engineering program, specify the required material family and grade.
Provide relevant environmental and service requirements where they affect material or component selection.
Identify installation method, access, service requirements, and other relevant assembly conditions.
Include:
Estimated annual or project quantity
Packaging
Labeling
Documentation
Sampling requirements
Delivery requirements
For customer-specific automotive plastic fasteners, the more complete the technical information, the easier it is to evaluate whether the proposed component matches the intended application.
Two retainers can have similar head shapes but different retaining structures.
Better approach: Compare the complete geometry and mounting interface.
A retainer may match the mounting-hole diameter but still be unsuitable for the actual substrate thickness.
Better approach: Include the panel thickness and relevant tolerance in the technical specification.
Different push-pin retainers can use different expansion mechanisms and retention geometries.
Better approach: Verify the actual mounting interface and retention requirements.
Different Nylon grades can have different moisture response and mechanical or dimensional characteristics.
Better approach: Specify the required material grade according to the approved application requirements.
The lowest-priced component is not necessarily the technically appropriate component.
Better approach: Confirm technical fit first, then evaluate commercial and supply conditions.
A Nylon Rear Spoiler Clip and an Automotive Spoiler Slide Bolt may be used in the same rear spoiler assembly, but they are different products with different functions.
Better approach: Evaluate the complete fastening system and specify each component according to its own technical requirements.
JUXIN FASTENERS manufactures customer-specific push-type retainers and automotive plastic fastening components according to approved customer drawings,
material requirements, mating conditions, and application requirements.
Relevant product categories may include:
Push-Type Retainers
Push-Pin Retainers
Automotive Plastic Clips
Interior Trim Retainers
Panel Retainers
Fir Tree Clips
Edge Clips
Screw Grommets
Wire Harness Clips
Nylon Rear Spoiler Clips
Automotive Spoiler Slide Bolts
Other customer-specific automotive fastening components
For a custom push-type retainer project, the component geometry and material are established according to the customer's approved technical requirements.
For a rear spoiler fastening project, JUXIN FASTENERS can work with the specified relationship between the Nylon Rear Spoiler Clip and the Automotive Spoiler Slide Bolt,
while treating each component according to its own material, geometry, and application requirements.
For sourcing teams developing a custom push-type retainer, an RFQ package should ideally include:
Part drawing
3D CAD data
Application description
Mounting-hole dimensions
Hole tolerance
Panel thickness
Substrate material
Required polymer grade
Installation method
Environmental conditions
Quantity requirements
Packaging requirements
If the component is replacing an existing part, available reference samples or existing technical information may also help clarify the requirement.
For an Automotive Spoiler Slide Bolt, the sourcing package may additionally specify:
Thread size
Thread length
Property class
Head geometry
Mounting slot or channel geometry
Surface finish
Thread-locking patch requirement where applicable
Final assembly requirements
What is a push-type retainer?
A push-type retainer is an automotive fastening component that uses an insertion and expansion or engagement mechanism to retain a panel, trim component, cover, or other part within a defined mounting interface.
How does a push-type retainer work?
Depending on the design, a center pin, expandable leg, rib, barb, or other feature engages the mounting interface after insertion to create mechanical retention.
What is a push-pin retainer?
A push-pin retainer is a type of push-type automotive retainer commonly using a pin or similar feature to expand or engage the retaining body after insertion.
Are push-type retainers suitable for blind-hole installations?
Some push-type retainers can be used in mounting arrangements where the rear side of the substrate is not directly accessible, depending on the specific fastener geometry and installation method.
The application should be evaluated from the actual mounting interface rather than assuming all push-type retainers are suitable for blind-hole installation.
Why is panel thickness important when selecting a push-type retainer?
Panel thickness affects how the retainer's expansion or engagement features interact with the substrate. The fastener should therefore be matched to the specified panel thickness and mounting geometry.
What materials are used for automotive push-type retainers?
Depending on the application, automotive push-type retainers may use Nylon / PA6 / PA66, POM / Acetal, PP, or other specified engineering polymers.
The appropriate material depends on the application's mechanical, environmental, dimensional, and assembly requirements.
Is Nylon suitable for automotive push-type retainers?
Nylon can be suitable for many automotive fastening applications, but the selected grade should be evaluated for moisture exposure, temperature,
dimensional requirements, mechanical behavior, and other application conditions.
Are automotive push-type retainers interchangeable?
Not necessarily. Similar-looking retainers can have different hole requirements, panel thickness ranges, expansion mechanisms, materials, and retention geometries.
What is a Nylon Rear Spoiler Clip?
A Nylon Rear Spoiler Clip is a plastic fastening or retaining component designed for a specific rear spoiler mounting application.
Depending on its geometry, it may provide locating, retaining, positioning, spacing, or fastening-interface support.
What is an Automotive Spoiler Slide Bolt?
An Automotive Spoiler Slide Bolt is a metal fastening component used in certain rear spoiler mounting systems. Its head geometry can be designed to engage a mounting slot, track, or channel before final tightening.
What sizes are available for JUXIN Automotive Spoiler Slide Bolts?
JUXIN FASTENERS works with customer-specified M5 and M6 configurations, including representative M6 × 14 and M6 × 20 configurations. Final dimensions should be confirmed from the approved customer drawing.
What property classes can be specified for Spoiler Slide Bolts?
Depending on the application specification, JUXIN FASTENERS supplies Spoiler Bolts in property classes including 8.8 and 10.9.
What finishes can be specified for Automotive Spoiler Slide Bolts?
Depending on the approved specification, finishes may include Color Zinc, Zinc-Nickel Alloy, and Black Zinc.
Can JUXIN FASTENERS manufacture custom push-type retainers?
Yes. JUXIN FASTENERS manufactures customer-specific push-type retainers according to approved drawings, material requirements, mating conditions, and application requirements.
Selecting a push-type retainer should begin with the application and mounting interface rather than the product name alone.
For engineers, the key considerations include fastening function, mounting-hole geometry, panel thickness, retention mechanism, polymer selection, installation method, environmental conditions, and service requirements.
For procurement and supply chain teams, the approved engineering requirement must then be translated into a clear sourcing specification covering production quantity, packaging, documentation, sampling, and supply requirements.
The same application-based approach applies when plastic and metal fastening components are used together.
A Nylon Rear Spoiler Clip and an Automotive Spoiler Slide Bolt can form part of the same rear spoiler fastening system while serving different technical functions.
JUXIN FASTENERS manufactures customer-specific automotive plastic retainers, clips, and related fastening components according to approved customer requirements.
For push-type retainers, automotive push retainers, push-pin retainers, Nylon Rear Spoiler Clips, Automotive Spoiler Slide Bolts,
or other customer-specific automotive fastening components, contact info@juxinfasteners.com with your drawing, CAD data, material requirements, mounting-interface information, quantity, and application requirements.
Visit www.juxinfasteners.com to discuss your OEM automotive fastening requirements with JUXIN FASTENERS.
Product Packaging
Packaging Standard
At Juxin Fasteners, we apply standardized export packaging to ensure product protection, traceability, and compliance with international logistics requirements.
1. Standard Export Packaging
Unless otherwise specified, all products will be packed according to our factory standard export packaging, which includes:
Moisture-resistant inner protection
Poly bag or small box packing as required
Reinforced export cartons
Clear labeling with part number, specification, batch number, and quantity
Palletizing for sea or air shipment when necessary
Our standard packaging is designed to ensure safe transportation, efficient warehousing, and long-distance international shipping.
2. Customized Packaging Options
We also provide customized packaging solutions according to customer requirements, including but not limited to:
Private labeling
Customized barcodes
Specific carton dimensions
Retail packaging
Special pallet configuration
Customer-specific marking and identification
So that you know, customized packaging may involve additional costs and extended lead time depending on the complexity of the requirements.
3. Compliance & Quality Assurance
All packaging processes are controlled under our ISO 9001 quality management system to ensure consistency, traceability, and product integrity throughout the supply chain.
Product Pictures
Hot Products
Automotive Spoiler Slide Bolts: Engineering, Mounting Design & OEM Sourcing Guide
Automotive Fasteners Made to Drawing: Engineering to Production
Automotive Shift Systems: Fastening Engineering, Precision Shafts & OEM Sourcing Guide
Custom Automotive Nuts and Washers: Design, Selection & OEM Sourcing
Contact Us
Tel.:
+86 020 8621 0320
+86 020 3121 6067
E-mail:
Technical Support:
Navigation
SEND INQUIREY
