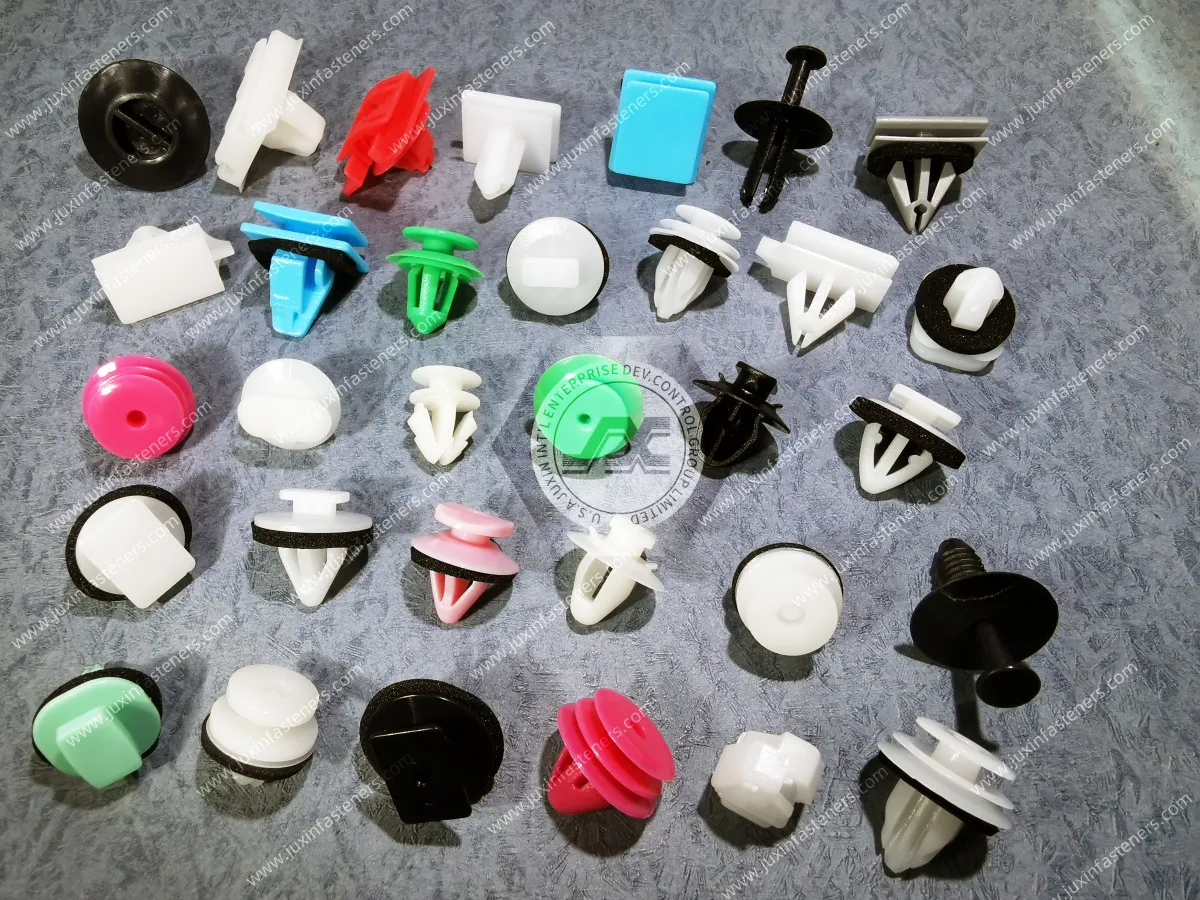

Automotive interior trim, exterior mouldings, garnish panels, door trim, protective strips, and related components often require fastening methods that combine controlled retention with efficient assembly.
Product Specification
Automotive interior trim, exterior mouldings, garnish panels, door trim, protective strips, and related components often require fastening methods that combine controlled retention with efficient assembly.
Automotive trim clips and automotive moulding clips are commonly used for these applications because their polymer construction and retention geometry can be adapted to specific panel interfaces,
component thicknesses, installation directions, and assembly requirements.
Unlike structural bolts or high-strength metal fasteners, trim and moulding clips are generally selected around the retention and positioning requirements of the attached component.
Their suitability depends on the complete interface between the clip, mounting hole or slot, panel, moulding, and installation method.
JUXIN FASTENERS manufactures customer-specific automotive trim clips, moulding retainers, plastic fastening components, non-standard screws, bolts, nuts,
and other automotive fastening components according to approved drawings, material requirements, specifications, and application conditions.
Question: What are automotive trim and moulding clips?
Direct Answer: Automotive trim and moulding clips are fastening or retention components used to position and retain interior or exterior trim,
mouldings, garnish components, protective strips, and related vehicle parts through a defined mounting interface.
Depending on the design, a clip may engage a mounting hole, slot, flange, bracket, panel edge, or corresponding feature on the attached component.
Many trim clips use flexible retention features such as snap-fit arms, hooks, barbs, ribs, or other engagement structures.
During installation, these features can deflect and then return toward their original position to engage the mating structure.
The exact retention mechanism varies by product.
A trim clip should therefore be considered part of an interface system, rather than simply a plastic replacement for a screw or rivet.
The key relationship is:
Trim/Moulding → Clip Geometry → Mounting Interface → Panel → Retention Function
This relationship is especially important for OEM applications because vehicle body panels and trim components can have application-specific geometry that does not correspond to a universal catalog clip.
Automotive trim and moulding clips can be used in a wide range of vehicle assemblies.
Potential applications include:
Interior trim panels
Door trim cards
Garnish mouldings
Instrument-panel-related trim
Pillar trim
Exterior body mouldings
Body-side protective strips
Decorative exterior components
Wheel-area trim and liners
Protective covers
Other customer-specific trim assemblies
The appropriate clip depends on the function and mounting interface of the particular component.
A clip suitable for an interior door trim application should not automatically be assumed to fit an exterior body moulding simply because the nominal mounting-hole diameter appears similar.
The geometry of an automotive trim clip determines how it interacts with the mating panel and attached component.
Several structural approaches may be used depending on the application.

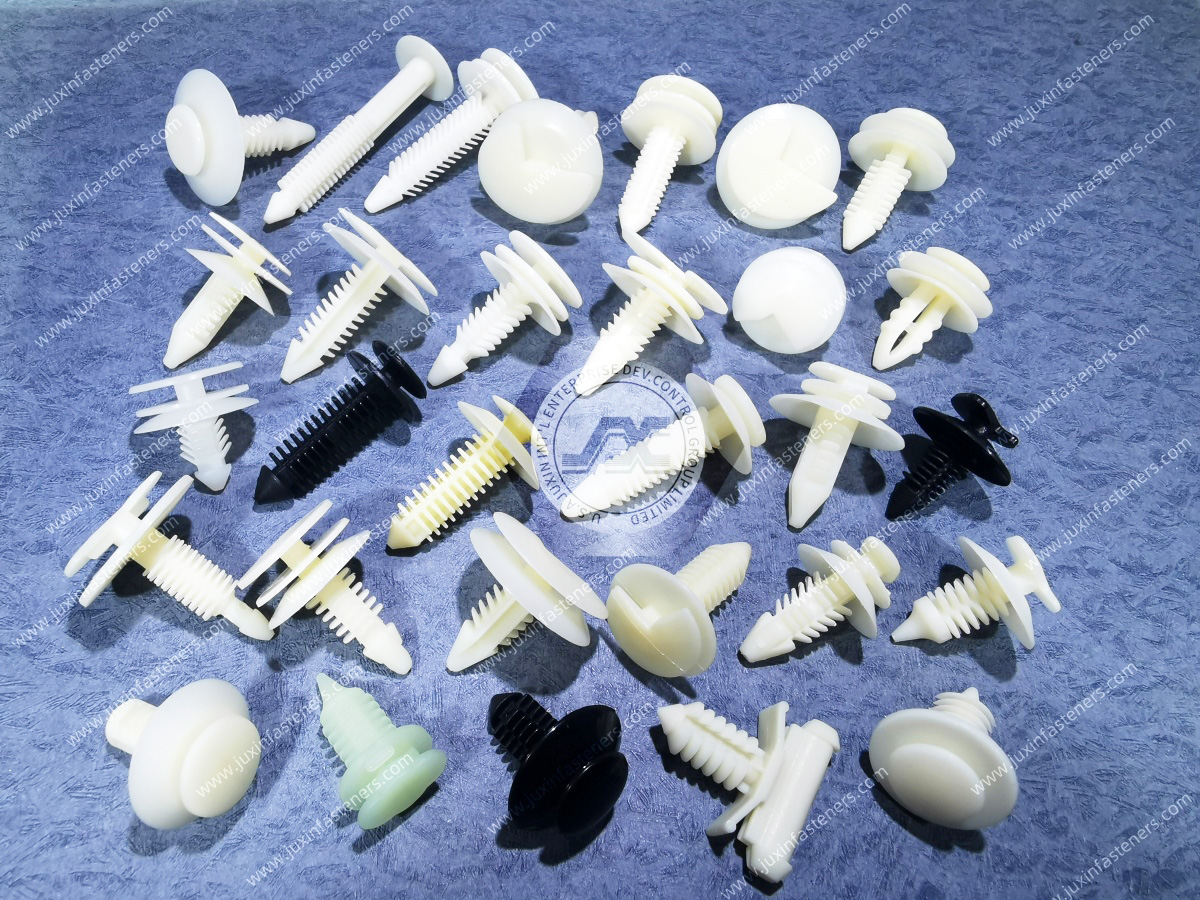

Some clips use flexible arms or hooks that deflect during installation and engage behind a panel feature after insertion.
The arm geometry, material flexibility, installation direction, and mating interface determine how the snap-fit behaves.
A clip may incorporate ribs, barbs, or other retention features along its shaft.
These structures can engage the mounting hole and provide resistance to extraction.
Their effectiveness depends on the relationship between the retention geometry and the actual hole dimensions, panel thickness, substrate material, and fastener material.
The clip head can provide a defined seating surface against the attached trim or moulding.
Head geometry may influence:
Seating position
Clearance
Surface contact
Component alignment
Adjacent-component interference
Visible appearance
For exterior applications, the head geometry may also need to match the contour and assembly requirements of the surrounding component.
Certain application-specific clips may use sliding engagement with a slot, channel, or track rather than a simple push-in installation.
This type of design requires the clip geometry and mating channel to be evaluated together.
Some clips may combine more than one engagement feature, such as a positioning element together with a retention element.
The purpose is not necessarily to increase retention in every case. It may instead provide controlled positioning, assembly alignment, or a defined seating relationship.
One of the most important aspects of trim-clip engineering is the mounting interface.
A clip does not function independently of the panel.
The relevant interface may include:
Mounting-hole diameter
Hole shape
Hole tolerance
Mounting-slot dimensions
Panel thickness
Panel material
Flange geometry
Mating component geometry
Clip orientation
Installation direction
Required grip range
For hole-mounted clips, the hole dimensions need to correspond to the clip's retention geometry.
A hole that is too small may increase installation difficulty or interfere with the intended engagement mechanism.
A hole that is too large may reduce the intended retention or positioning behavior.
The actual acceptable range should therefore come from the approved component specification rather than from a generic clip chart.
Some moulding applications use slots rather than round holes.
The slot length, width, orientation, and relationship with the clip can influence installation and retention.
A clip designed for a slot should not automatically be treated as interchangeable with a clip designed for a circular mounting hole.
Panel thickness affects how the retention feature engages with the substrate.
Where a clip uses a hook, barb, flange, or expandable structure, the available panel thickness or grip range can determine whether the component seats correctly.
For multi-layer assemblies, the total material stack-up may also need to be considered.
Snap-fit geometry is often central to automotive trim clip design.
During installation, the retention feature may deflect to pass through the mounting interface and then return toward its original position.
The engineering objective is not simply maximum retention.
The designer may need to balance:
Insertion → Engagement → Retention → Serviceability
The installation force should be compatible with the assembly method and surrounding component.
If the required force is too high, it may create assembly difficulties or affect the surrounding trim.
The clip must reach the intended position before the retention feature engages.
Incorrect alignment can result in incomplete seating or inconsistent retention.
The retention level should correspond to the function of the attached component and the complete joint design.
A trim clip intended for a lightweight garnish component should not automatically be evaluated using requirements intended for a structural fastening joint.
Some automotive trim components need to be removed during service.
Where repeated removal is expected, the clip geometry and material should be evaluated for the required installation and removal behavior.
A one-time assembly requirement and a serviceable trim connection may therefore lead to different clip designs.
For automotive trim applications, grip range is often more useful than nominal clip diameter alone.
The grip range describes the thickness or assembly stack that the retention feature is designed to accommodate.
Depending on the application, the stack may include:
Trim panel
Body panel
Bracket
Spacer
Additional intermediate layer
Moulding carrier
Clip flange or head interface
If the actual stack-up falls outside the intended range, the clip may not seat or retain the component as expected.
For OEM development, the complete stack-up should therefore be reviewed together with the clip drawing.
Polymer selection can influence flexibility, dimensional stability, mechanical behavior, installation characteristics, and environmental suitability.
Potential material families for automotive plastic fastening components include:
Nylon or PA materials may be considered where a combination of mechanical performance, flexibility, and retention behavior is required.
Common polyamide families include PA6 and PA66.
However, nylon can absorb moisture, and moisture exposure can influence dimensional and mechanical behavior.
The specific polymer grade should therefore be selected according to the application requirements rather than assuming that all Nylon materials behave identically.
POM, also known as Acetal, may be considered where dimensional stability, rigidity, low-friction behavior, or other specified characteristics are relevant to the clip design.
Its suitability depends on the actual geometry and operating environment.
PP may be considered for applications where flexibility, chemical compatibility, or other specified material characteristics are appropriate.
The selected grade should be matched to the customer's requirements.
Some projects may specify another engineering polymer or a customer-specific material grade.
The material should be confirmed from the approved drawing, material specification, or customer data package.
JUXIN FASTENERS manufactures customer-specific components according to the specified or approved material requirements for the relevant project.
Interior trim represents one of the most common areas where automotive plastic clips may be considered.
Potential applications include:
Door trim panels
Pillar trim
Dashboard-related trim
Console components
Garnish panels
Cabin lining
Access covers
Decorative trim components
Interior trim clips may need to balance retention with installation and service requirements.
Engineers may also consider panel movement, fit, dimensional stability, installation force, extraction behavior, and interaction with adjacent components.
Clip design can influence how an attached trim component is positioned and retained, but unwanted noise or movement is affected by many parts of the assembly.
These may include:
Panel geometry
Material combinations
Contact surfaces
Fastener retention
Tolerance stack-up
Installation condition
Local movement between components
For this reason, a trim clip should not be described as universally "preventing rattles" or providing a complete NVH solution.
Instead, the clip should be evaluated as one element of the overall trim assembly.
Exterior mouldings and protective strips can require fastening components that maintain the intended position of the attached part while matching the vehicle body interface.
Potential applications include:
Body-side mouldings
Exterior garnish
Protective strips
Door exterior trim
Wheel-area trim
Other customer-specific exterior mouldings
For these applications, engineers may consider:
Mounting-hole or slot geometry
Panel thickness
Moulding geometry
Clip engagement
Installation direction
Surface positioning
Environmental exposure
Material compatibility
The appropriate polymer and clip structure should be selected based on the actual application conditions.
Automotive doors can contain multiple fastening interfaces.
Door trim may use plastic clips for panel retention, while the same door assembly can contain metal screws, bolts, nuts, brackets, and other application-specific components.
This is an important distinction when developing a complete automotive fastening strategy.
A plastic door-trim clip does not replace the metal fasteners used elsewhere in the door mechanism.
Instead, each component is selected according to its specific function.
Modern vehicle assemblies frequently combine different fastening technologies.
A door system, for example, may contain plastic trim clips together with customer-specific screws, bolts, nuts, and metal components.
The same principle applies to other vehicle systems.
Automotive fastening requirements can extend across:
Sunroof systems
Wiper systems
Chassis and undercarriage assemblies
Shift mechanisms
Rollover protection structures
Rear spoiler systems
Door systems
Seat systems
Interior and exterior trim
The fastening requirements can be very different from one system to another.
Plastic trim clips are therefore one category within a broader automotive fastening portfolio.
The rear spoiler provides a useful example of how polymer and metal fastening components can work within the same vehicle application.
A rear spoiler assembly may use a Nylon Rear Spoiler Clip for a specific locating, retaining, positioning, spacing, or fastening-interface function, depending on the assembly design.
The same application may also use a metal Automotive Spoiler Slide Bolt.
JUXIN FASTENERS' Automotive Spoiler Slide Bolt includes M5 and M6 configurations.
Representative M6 configurations include M6 × 14 and M6 × 20, with property classes 8.8 and 10.9 available for the specified product configuration.
Depending on the customer's requirements, finish options can include Color Zinc, Zinc-Nickel Alloy, and Black Zinc.
Certain configurations may also include a pre-applied thread-locking patch where specified.
The special head geometry of the Automotive Spoiler Slide Bolt is designed to engage with a compatible mounting slot, track, or channel.
The basic assembly concept can be described as:
Slide → Position → Engage → Tighten
The ability of the head geometry to provide anti-rotation engagement depends on the actual relationship between the bolt head and mating slot or channel.
This example demonstrates why automotive fastening should be evaluated as a complete application rather than by looking at plastic and metal components separately.
JUXIN FASTENERS is not limited to standard plastic trim clips.
Customer-specific automotive fastening requirements may include:
Non-standard screws
Custom bolts
Custom nuts
High-strength fasteners
Application-specific metal components
Plastic retainers
Nylon clips
Plastic push rivets
Automotive Spoiler Slide Bolts
Other customer-specific fastening components
These components can be used across different vehicle systems according to customer drawings and application requirements.
For example, chassis and rollover-protection applications may require metal fasteners with specified mechanical properties,
while interior trim may use polymer clips designed around a particular panel interface.
The material, strength class, geometry, and surface finish should always be established from the relevant customer specification.
Some automotive applications require fastening components with specified mechanical properties rather than polymer retention components.
JUXIN FASTENERS supplies customer-specific high-strength screws, bolts, nuts, and other metal fastening components where specified by the project.
The applicable strength or property class should be defined for the individual component.
Confirmed property classes for the Automotive Spoiler Slide Bolt include 8.8 and 10.9. These values should not be generalized to every automotive fastener supplied by JUXIN FASTENERS.
Surface finish is another application-specific requirement.
Zinc-Nickel Alloy can be specified for selected automotive metal fasteners where the customer's coating and environmental requirements call for this finish.
The suitability of the coating depends on factors such as substrate, coating specification, dimensional requirements, application environment, and customer validation requirements.
Therefore, a Zinc-Nickel Alloy finish should be treated as part of the complete component specification rather than as a universal coating requirement.
Engineers evaluating automotive trim and moulding clips may review the following factors:
What type of interface is being used?
Round hole
Slot
Flange
Edge
Bracket
Moulding carrier
Customer-specific interface
What material thickness or stack-up must the clip accommodate?
How does the clip engage the mating structure?
Snap-fit
Hook
Barb
Rib
Expansion
Sliding engagement
Other customer-specific geometry
How will the component be installed?
Manual insertion
Tool-assisted insertion
Sliding installation
Customer-specific assembly process
The appropriate installation behavior should be evaluated against the production process.
Does the component need to be removed during maintenance or repair?
If so, installation and extraction behavior may require additional consideration.
Depending on the location, the engineer may need to consider:
Temperature
Moisture
Chemical exposure
UV exposure
Road environment
Material compatibility
Dimensional stability
The actual requirements should be established from the vehicle application.
Procurement teams evaluate the same component from a different perspective.
Important sourcing considerations can include:
Approved drawing
Material specification
Dimensional consistency
Production quantity
Packaging
Labeling
Documentation
Surface finish requirements
Supply continuity
Quality requirements
Change-control requirements where applicable
Commercial competitiveness
For customer-specific trim clips, procurement should also confirm that the supplier understands the complete component specification rather than quoting only from a generic product name.
A practical sourcing workflow for automotive trim and moulding clips can follow:
Application → Interface → Geometry → Material → Installation → Validation → Production → Supply
Identify whether the clip will be used for interior trim, door moulding, exterior body moulding, garnish, protective components, or another application.
Provide the mounting-hole, slot, flange, panel, and mating-component information.
Provide the required head, retention structure, grip range, orientation, and other dimensional requirements.
Specify the polymer family or grade where already established.
Identify the installation direction, process, and any specified insertion or extraction requirements.
Provide the applicable temperature, moisture, chemical, UV, or other environmental requirements.
Provide projected volumes, packaging, labeling, documentation, and delivery requirements.
Where required by the project, samples can be evaluated against the approved drawing and application requirements before production release.
For a custom automotive trim clip or moulding retainer, the following information can be useful:
Engineering drawing
3D CAD model
Mounting-hole dimensions
Mounting-slot dimensions
Panel thickness
Material stack-up
Mating-component geometry
Required grip range
Polymer grade
Installation method
Insertion requirements
Extraction requirements
Environmental conditions
Projected quantity
Packaging requirements
Labeling requirements
Documentation requirements
For metal components in the same automotive program, buyers should additionally provide:
Material
Required strength or property class
Thread specification
Head geometry
Surface finish
Coating requirements
Applicable assembly requirements
This allows plastic and metal components to be evaluated according to their individual engineering requirements.
Matching the nominal hole diameter does not guarantee correct retention.
Grip range, panel thickness, head geometry, and retention structure must also be considered.
The clip must match both the mounting structure and the trim or moulding component.
Different snap-fit geometries can have different installation and extraction behavior.
The polymer family alone does not define complete application performance.
The specific material grade and environmental conditions should be evaluated together.
A standard catalog component may look similar to an existing clip but still have different geometry, material, grip range, or retention behavior.
Plastic trim clips and metal high-strength fasteners serve different application requirements.
The appropriate solution depends on the load path and function of the joint.
JUXIN FASTENERS manufactures customer-specific automotive trim clips and moulding fastening components according to approved drawings, material requirements, application conditions, and project specifications.
The automotive fastening scope can include:
Automotive trim clips
Automotive moulding clips
Plastic retainers
Plastic push rivets
Nylon clips
Nylon Rear Spoiler Clips
Automotive Spoiler Slide Bolts
Custom screws
Custom bolts
Custom nuts
High-strength fasteners
Zinc-Nickel Alloy finished fasteners
Other non-standard automotive fastening components
These components can support vehicle applications ranging from interior and exterior trim to sunroof systems, wiper systems,
chassis, shift systems, rollover protection structures, rear spoiler assemblies, doors, seats, and other customer-specific automotive systems.
The final component configuration should be established from the customer's approved drawings, material specifications, mating-interface requirements, application conditions, and production requirements.
Automotive trim and moulding clips are fastening or retention components used to position and retain interior or exterior trim, mouldings, garnish components, protective strips, and related vehicle parts.
Depending on the design, a trim clip may use snap-fit arms, hooks, barbs, ribs, flanges, sliding features, or other retention structures to engage a mounting hole, slot, flange, or corresponding mating interface.
The terminology can overlap in the automotive market. Trim clip generally refers to a fastening component used for trim-related applications,
while moulding clip often refers to a clip used to attach a moulding or exterior/interior strip. The actual geometry and application should be used to determine the appropriate component.
Common polymer families considered for automotive plastic clips include Nylon/PA, POM/Acetal, and PP. The appropriate material grade depends on the mechanical, dimensional, environmental, and assembly requirements of the application.
They can be used for certain exterior moulding applications when the clip geometry, material, mounting interface, panel thickness, and environmental requirements are compatible with the application.
A trim clip can influence panel retention and component movement, but unwanted noise can result from multiple aspects of the assembly.
Clip selection should therefore be evaluated as part of the complete trim system rather than as a universal NVH solution.
Yes. Customer-specific trim clips can be developed according to approved drawings, mounting-interface requirements, material specifications, application conditions, and production requirements.
No. JUXIN FASTENERS supplies both plastic and metal customer-specific automotive fastening components, including plastic retainers,
Nylon clips, custom screws, bolts, nuts, high-strength fasteners, Automotive Spoiler Slide Bolts, and specified surface-finish options such as Zinc-Nickel Alloy.
Useful information includes the engineering drawing or CAD model, mounting-hole or slot dimensions, panel thickness, mating-component geometry,
grip range, material requirements, installation method, environmental conditions, quantity, packaging, and documentation requirements.
Yes. JUXIN FASTENERS manufactures customer-specific and non-standard automotive fastening components according to approved drawings, material requirements, application conditions, and project specifications.
Automotive trim and moulding clips are small components, but their engineering requirements are closely connected to the surrounding panel, moulding, mounting interface, material, and assembly process.
For OEM applications, the appropriate solution may be a plastic trim clip, moulding retainer, push rivet, Nylon clip, custom screw, non-standard nut,
high-strength bolt, or a combination of plastic and metal components within the same vehicle system.
JUXIN FASTENERS supplies customer-specific automotive fastening components for interior and exterior trim as well as broader vehicle applications including sunroof systems,
wiper systems, chassis, shift systems, rollover protection structures, rear spoilers, doors, and seats.
For automotive trim clips, moulding clips, or other non-standard fastening components, send the relevant drawing, CAD data
, material requirements, mounting-interface information, quantity, and application requirements to info@juxinfasteners.com or visit www.juxinfasteners.com.
Product Packaging
Packaging Standard
At Juxin Fasteners, we apply standardized export packaging to ensure product protection, traceability, and compliance with international logistics requirements.
1. Standard Export Packaging
Unless otherwise specified, all products will be packed according to our factory standard export packaging, which includes:
Moisture-resistant inner protection
Poly bag or small box packing as required
Reinforced export cartons
Clear labeling with part number, specification, batch number, and quantity
Palletizing for sea or air shipment when necessary
Our standard packaging is designed to ensure safe transportation, efficient warehousing, and long-distance international shipping.
2. Customized Packaging Options
We also provide customized packaging solutions according to customer requirements, including but not limited to:
Private labeling
Customized barcodes
Specific carton dimensions
Retail packaging
Special pallet configuration
Customer-specific marking and identification
So that you know, customized packaging may involve additional costs and extended lead time depending on the complexity of the requirements.
3. Compliance & Quality Assurance
All packaging processes are controlled under our ISO 9001 quality management system to ensure consistency, traceability, and product integrity throughout the supply chain.
Product Pictures
Hot Products
Automotive Plastic Fastener Design: Hole Size, Retention & Mating Geometry
Plastic Push Rivets for Automotive Body Panels: Engineering & Sourcing Guide
Automotive Plastic Retainers and Clips: Types, Functions & Applications
Nylon vs Other Plastics for Automotive Retainers: Engineering Performance Guide
Contact Us
Tel.:
+86 020 8621 0320
+86 020 3121 6067
E-mail:
Technical Support:
Navigation
SEND INQUIREY
