Agricultural tractors, combine harvesters, excavators, wheel loaders, earthmoving equipment and heavy-duty implements operate under demanding mechanical and environmental conditions.

Their fastening systems must accommodate dynamic loads, repeated vibration, impact, contamination, moisture and frequent maintenance.

For equipment manufacturers, selecting the correct fastener involves more than specifying a high tensile strength. Joint preload, bolt geometry, nut compatibility,

 fatigue loading, surface treatment and assembly procedures all influence connection reliability.

JUXIN FASTENERS supplies industrial fastening components, including high-strength bolts, all-metal prevailing-torque lock nuts, flange lock nuts,

washers and drawing-based custom metal fasteners for suitable OEM machinery applications.

This engineering guide examines fastening solutions for agricultural and construction machinery, including structural joint design,

 vibration resistance, corrosion protection, production assembly and alternative supplier qualification.

Fastening Applications in Agricultural and Construction Machinery

Off-highway machinery contains many types of mechanical connections, from equipment enclosures and mounting brackets to heavily loaded structural assemblies.

Fastener selection must be based on the actual load path and component design.

A fastener suitable for a protective cover should not automatically be used in an excavator boom connection or another safety-critical structural assembly.

High-Strength Bolts for Heavy Machinery Assemblies

Carbon steel and alloy steel bolts are commonly used in agricultural and construction equipment.

For applicable metric bolts, ISO 898-1 defines mechanical property classes, including 8.8, 10.9 and 12.9.

The correct class depends on the joint requirements rather than the assumption that a higher class is always better.

Property Class 8.8

Class 8.8 bolts are widely used in industrial machinery and general equipment assemblies.

They may be suitable for many brackets, frames and mechanical joints where the calculated loads and applicable specifications support their use.

Property Class 10.9

Class 10.9 bolts offer higher specified mechanical strength than class 8.8 bolts.

They may be selected where higher preload capacity or strength is required within the available geometry.

However, the mating nut, washer, clamped materials and installation method must be compatible.

Property Class 12.9

Class 12.9 bolts provide higher specified mechanical strength but require careful consideration of application suitability, fatigue loading, surface treatment and susceptibility to certain failure mechanisms.

They are not automatically the preferred choice for every heavy-duty connection.

Engineering insight: Increasing bolt strength does not necessarily increase the fatigue resistance of a machinery joint.

If the connection suffers from joint separation, bending loads, inadequate grip length or uneven load distribution, replacing a class 8.8 bolt with a class 12.9 bolt may not correct the underlying problem.

The complete joint should be evaluated before changing the property class.

Dynamic Shock Loading and Fatigue in Off-Highway Equipment

Agricultural and construction machinery frequently operates on uneven terrain.

Ground-engaging tools, moving implements and equipment attachments can transmit repeated loads through the structure.

Potential fastener-related failure mechanisms include:

• Fatigue cracking

• Loss of joint preload

• Bolt bending

• Joint separation

• Fretting damage

• Thread stripping

• Local bearing deformation

• Wear in articulated connections

Fatigue behavior depends on the relationship between applied loading and the mechanical characteristics of the complete joint.

Important variables include:

• Bolt preload

• Joint stiffness

• Load direction

• Bolt grip length

• Thread position

• Clamped material properties

• Stress concentration

• Surface condition

• Installation consistency

Bolt Grip Length and Thread Position

For certain shear-loaded joints, locating the unthreaded shank across the shear plane may be beneficial.

However, the correct configuration depends on the joint design and applicable engineering requirements.

A partially threaded bolt and a fully threaded bolt with the same nominal diameter are not necessarily functionally equivalent.

The drawing should identify the required grip length and thread engagement.

Engineering insight: A fastener can meet its specified tensile strength while still being unsuitable for the actual joint geometry.

This is particularly relevant when qualifying alternative suppliers for custom heavy equipment bolts.

All-Metal Prevailing-Torque Lock Nuts for Vibration Resistance

Tractors, harvesters, excavators and other off-highway machines experience vibration from engines, transmissions, hydraulic systems and ground contact.

Under unfavorable joint conditions, transverse movement can contribute to rotational loosening.

All-metal prevailing-torque lock nuts use a mechanical locking feature to resist rotation.

Depending on the product design, applicable specifications may include ISO 7042 and related standards.

Potential applications include:

• Engine mounting brackets

• Equipment support frames

• Transmission mounting hardware

• Agricultural implement assemblies

• Selected vibration-sensitive threaded joints

Locking Resistance and Joint Preload

Prevailing torque provides resistance during thread engagement.

It should not be confused with the clamp load required to secure the joint.

A lock nut may resist rotation while the joint loses preload through settlement, deformation or thermal cycling.

For this reason, locking fasteners should be selected together with the appropriate bolt, washer and tightening method.

Engineering insight: A vibration-resistant nut is not a substitute for an adequately designed preloaded joint.

For critical equipment, the complete connection should be validated under representative operating conditions.

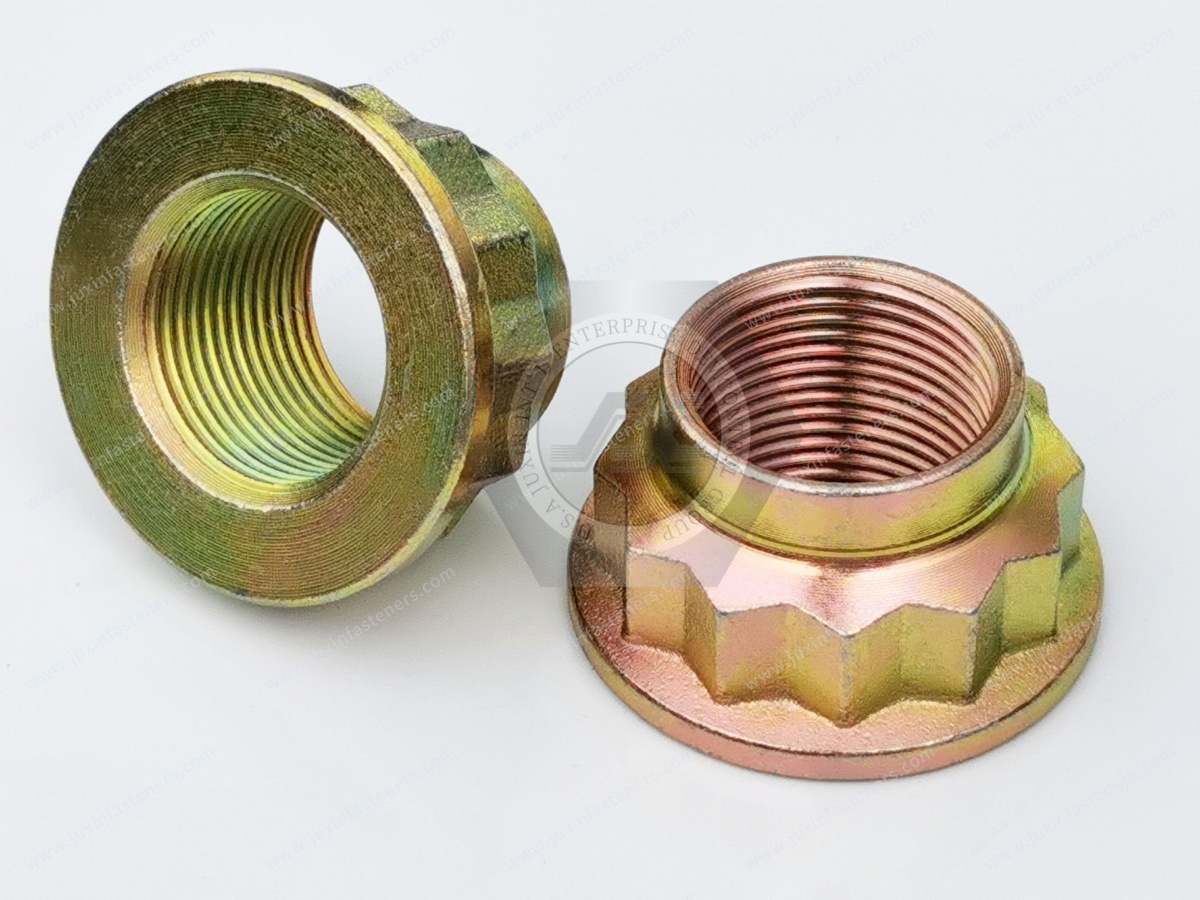

Flange Lock Nuts for Agricultural Implements

Flange lock nuts combine a nut body with an integral flange.

Depending on the design, the flange can provide a larger bearing surface than a comparable standard hex nut.

This can be useful in certain machinery assemblies where bearing pressure and installation efficiency are important.

Potential applications include:

• Agricultural equipment brackets

• Machinery mounting plates

• Equipment guards

• Selected implement connections

• Vibration-sensitive assemblies

Flange lock nuts are available with different locking mechanisms and flange geometries.

A serrated flange design is not equivalent to a smooth-flange prevailing-torque design.

Serrations may affect the mating surface and may be unsuitable for some coatings or joint materials.

The appropriate configuration should be selected according to the equipment drawing and assembly requirements.

Heavy-Duty Nuts and Washer Compatibility

High-strength bolts require compatible mating nuts.

Nut selection should consider:

• Mechanical property class

• Proof-load requirements

• Thread dimensions

• Nut geometry

• Installation access

• Surface treatment

• Joint loading

For metric carbon steel nuts, ISO 898-2 provides relevant mechanical property requirements.

ISO 4032 covers regular hexagon nuts within its defined scope.

It should not automatically be treated as the specification for all heavy-pattern structural nuts.

For certain inch-series applications, heavy hex nuts may follow different ASME or ASTM specifications.

Washer Selection

Washers may help distribute bearing pressure and protect clamped surfaces.

For highly preloaded joints, washer hardness and dimensional compatibility may be important.

A washer that deforms excessively during tightening can contribute to preload loss.

The correct washer should be selected according to the fastener specification and joint design.

Torque-Tension Relationships in Machinery Assembly

Heavy equipment assembly commonly uses pneumatic, electric or hydraulic tightening tools.

The relationship between applied torque and achieved bolt preload is influenced by friction.

Important factors include:

• Thread surface condition

• Coating type

• Lubrication

• Bearing surface friction

• Bolt geometry

• Nut design

• Installation equipment

Two bolts with the same diameter and property class may produce different preload values when tightened to the same torque if their surface conditions differ.

Engineering insight: A supplier change can affect assembly preload even when the replacement fastener is dimensionally interchangeable.

For preload-sensitive joints, OEM manufacturers should evaluate coating and friction characteristics before approving an alternative fastener.

Production Tightening Control

Manufacturing engineers should establish appropriate tightening procedures for the specific joint.

Depending on the application, these may involve:

• Torque-controlled tightening

• Torque-angle tightening

• Direct tension measurement

• Application-specific tightening procedures

The method should be selected according to the joint requirements.

Impact wrench use alone does not establish that the required preload has been achieved.

Corrosion Protection for Agricultural and Construction Equipment

Agricultural and construction machinery operates in environments containing moisture, soil, mud, fertilizer residue and other contaminants.

Corrosion can affect fastener serviceability, appearance and mechanical performance.

Potential protection options include:

• Zinc-plated carbon steel

• Zinc-nickel coatings where specified

• Zinc-flake coating systems

• Stainless steel for suitable applications

• Customer-specified protective finishes

The correct finish depends on the environmental conditions, fastener strength and joint requirements.

Agricultural Fertilizer and Chemical Exposure

Agricultural equipment may be exposed to fertilizer residues and cleaning chemicals.

The corrosion behavior of a coating depends on the specific chemicals, exposure duration and service conditions.

A coating suitable for ordinary atmospheric exposure may not be appropriate for prolonged chemical contact.

The equipment manufacturer should define the required corrosion resistance.

Abrasive Soil and Mud

Construction equipment may experience abrasive contamination around exposed fasteners.

Corrosion resistance and abrasion resistance are different performance characteristics.

A coating that performs well in a laboratory salt spray test is not necessarily resistant to mechanical abrasion.

Fastener location, protective design and maintenance access should be considered.

Salt Spray Testing

ASTM B117 defines a laboratory salt spray test method.

The test can support evaluation of specified coating systems.

However, salt spray hours do not directly predict outdoor service life.

Specific performance requirements should be agreed during product quotation.

Hydrogen Embrittlement in High-Strength Fasteners

Certain high-strength steel fasteners can be susceptible to hydrogen embrittlement.

Hydrogen may enter susceptible materials during manufacturing, cleaning, pickling, electroplating or other processes.

Under unfavorable conditions, hydrogen-assisted cracking may result in delayed brittle failure.

The risk depends on material strength, processing history, applied stress and service environment.

For susceptible components, surface treatment selection should consider appropriate process controls and testing requirements.

Certain non-electrolytic coating systems may reduce hydrogen introduction associated with electrolytic deposition, but they do not eliminate every possible source of hydrogen.

Post-plating baking also does not provide an unconditional guarantee against hydrogen embrittlement.

Custom Cold-Headed and Machined Fasteners for Machinery OEMs

Standard fasteners may not satisfy every agricultural or construction equipment design.

Drawing-based custom components may be considered where manufacturers require:

• Special bolt lengths

• Nonstandard shoulders

• Modified head geometry

• Custom studs

• Precision machined nuts

• Special washers

• Drawing-specific metal connectors

• Controlled dimensions for automated assembly

Cold Forming

Cold forming may be suitable for certain high-volume fastener geometries.

Potential advantages include efficient material utilization and consistent production of suitable shapes.

However, manufacturing feasibility depends on material, component geometry, tooling and production volume.

CNC Machining

CNC machining may be appropriate for components requiring complex profiles, precise shoulders or controlled dimensional features.

Some custom components may require multiple manufacturing processes.

Pivot Pins and Articulated Connections

Excavator and loader linkages may require specially designed pins and retaining hardware.

These components must be evaluated for shear, bending, bearing stress, wear and fatigue.

A conventional threaded bolt should not automatically replace a purpose-designed pivot pin.

Safety-critical linkage components require engineering approval and appropriate validation.

Manufacturing Efficiency and Production Consistency

Production managers and manufacturing engineers should evaluate fastening components as part of the overall assembly process.

Important considerations include:

Installation Accessibility

Heavy equipment frames may contain recessed or obstructed mounting locations.

Head geometry, wrench clearance and assembly sequence should be considered during design.

Fastener Feeding

For automated or semi-automated assembly, dimensional consistency and head geometry can influence feeding and installation performance.

Thread Engagement

The required thread engagement depends on the fastener and mating material.

Thread stripping may occur if the joint is not properly designed.

Coating Consistency

Coating thickness can affect thread fit and assembly behavior.

The specified finish should be compatible with the thread tolerance and installation process.

Maintenance and Replacement

Agricultural and construction equipment often requires field maintenance.

The OEM should define when fasteners may be reused and when replacement is required.

Prevailing-torque lock nuts and highly preloaded fasteners may have application-specific reuse restrictions.

Total Assembly Cost

The lowest fastener unit price does not necessarily produce the lowest manufacturing cost.

Assembly time, tooling, rework, maintenance and supply continuity should be considered when comparing fastener options.

International Standards for Heavy Machinery Fasteners

Applicable standards depend on the specific component.

Metric and inch-series threads must be treated as separate systems.

M10 metric threads, for example, are not directly interchangeable with superficially similar UNC or UNF threads.

Thread compatibility must be verified according to the actual specification.

OEM Supplier Qualification and Alternative Sourcing

Agricultural and construction machinery manufacturers may seek alternative suppliers for bolts, nuts, washers and custom fasteners.

A reliable supplier qualification process should evaluate both technical conformity and commercial supply capability.

For critical structural applications, the responsible equipment manufacturer must establish the required qualification and approval procedures.

Material inspection documents such as EN 10204 certificates should be specified during quotation when required.

No particular certification or test report should be assumed without confirmation.

Request Agricultural and Construction Machinery Fasteners

JUXIN FASTENERS supports OEM sourcing and drawing-based technical review for industrial fasteners used in suitable agricultural and construction machinery applications.

For tractors, harvesters, excavators, loaders and heavy-duty implements, please provide:

• 2D drawings and available 3D models

• Fastener type and thread specification

• Material and mechanical property requirements

• Joint loading and installation conditions

• Required surface treatment

• Applicable inspection and testing requirements

• Prototype quantity and annual forecast

• Packaging and delivery requirements

Our team can review the supplied information to discuss suitable standard and custom fastening options and quotation feasibility.

Website: www.juxinfasteners.com

OEM Technical Review & RFQ: info@juxinfasteners.com

Send your drawings and purchasing requirements to discuss fastening solutions for your next agricultural or construction equipment project.

Related JUXIN FASTENERS Engineering Solutions

• Lock Nuts & Flange Lock Nuts for Food and Agricultural Machinery — locking fasteners for agricultural equipment applications.

• All-Metal Prevailing-Torque Lock Nuts for High-Vibration Industrial Assemblies — vibration-resistant threaded fastening.

• Custom Cold-Headed Fasteners & Special Formed Parts for Industrial OEMs — drawing-based custom component sourcing.

• Aerospace Ground Support Equipment Fasteners & Heavy-Duty Structural Hardware — structural fastening considerations for heavy equipment.

These related topics provide additional guidance on machinery joint design, vibration resistance, custom fastener manufacturing and OEM procurement requirements.
