Aluminum CNC Machining for Automotive Components

Aluminum CNC Machining for Automotive Components, Lightweight Assemblies and Custom OEM Parts

Automotive manufacturers increasingly use aluminum components to balance vehicle weight, mechanical performance, corrosion resistance and manufacturing cost.

Precision CNC machining supports the production of selected aluminum components requiring controlled dimensions, complex geometry, threaded interfaces and reliable assembly.

Depending on the vehicle system, these components may include mounting blocks, sensor housings, threaded adapters, spacers, bushings, locating features and custom mechanical connectors.

Aluminum offers significant weight advantages compared with steel, but material selection requires more than comparing density.

Automotive engineers must also consider strength, stiffness, thermal expansion, fatigue, thread durability, corrosion exposure, assembly loads and production consistency.

A component that performs well during prototype evaluation may require additional process controls before it is suitable for repeat OEM production.

JUXIN FASTENERS supports drawing-based inquiries for custom aluminum CNC machined components and industrial fastening hardware used in automotive and related OEM mechanical assemblies.

Depending on component geometry and project requirements, suitable manufacturing processes may include CNC milling, CNC turning, drilling, tapping, pocketing, profiling and combined turning-milling operations.

Swiss-type machining may also be considered for suitable small components, subject to process availability and project review.

Material selection, achievable tolerances, surface treatments, inspection requirements, purchasing quantities and delivery arrangements are evaluated according to the specific inquiry.

Where Aluminum CNC Machined Components Are Used in Automotive Applications

Automotive systems contain different mechanical interfaces with different performance requirements.

The appropriate component design depends on the vehicle architecture, loading conditions, environmental exposure and intended function.

Automotive Sensor Mounting Components

Sensors used in vehicle systems may require controlled mounting geometry and reliable mechanical attachment.

Custom aluminum mounting blocks, housings and adapters may provide positioning and support functions.

The design should consider mounting-hole position, vibration, thermal exposure and electrical or environmental requirements.

Vehicle Electronics Housings

Selected electronic modules may use aluminum housings or mounting interfaces.

Aluminum can provide mechanical protection and thermal conduction, depending on the design.

However, the complete housing design must account for sealing, electrical requirements and environmental exposure.

Automotive Brackets and Mounting Interfaces

Some vehicle assemblies require custom machined brackets or mounting blocks where standard fabricated components cannot provide the necessary geometry.

CNC machining may be appropriate for low-volume development, complex interfaces or selected production applications.

Precision Spacers and Standoffs

Aluminum spacers and standoffs may establish controlled distances between components.

The design should consider compressive loading, thread engagement and assembly alignment.

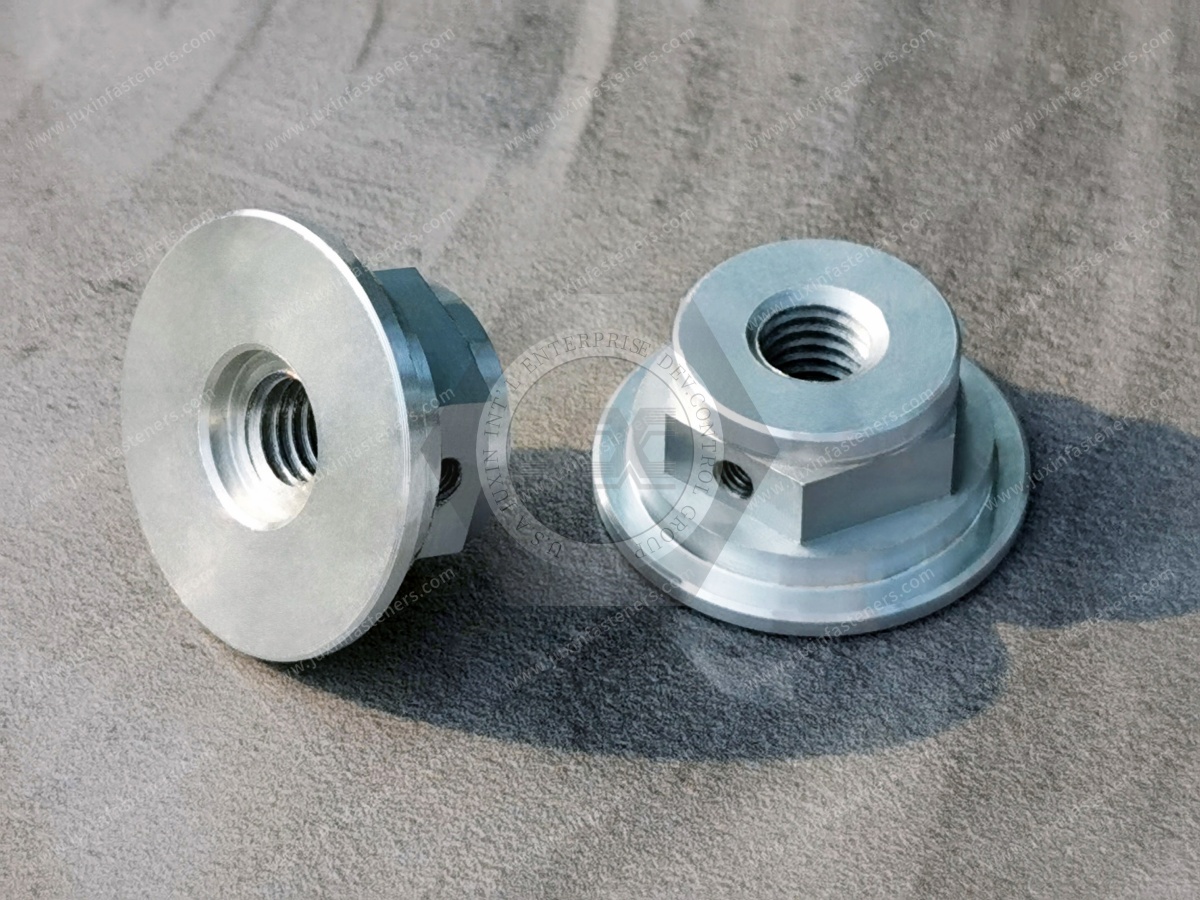

Threaded Adapters and Mechanical Connectors

Custom threaded adapters may connect components with non-standard mounting arrangements.

The drawing should specify thread size, pitch, tolerance class and engagement length.

Automotive Test and Assembly Fixtures

Automotive manufacturing equipment may require precision aluminum locating blocks, adapters and fixture components.

For these applications, dimensional stability, repeatability and wear resistance may be important.

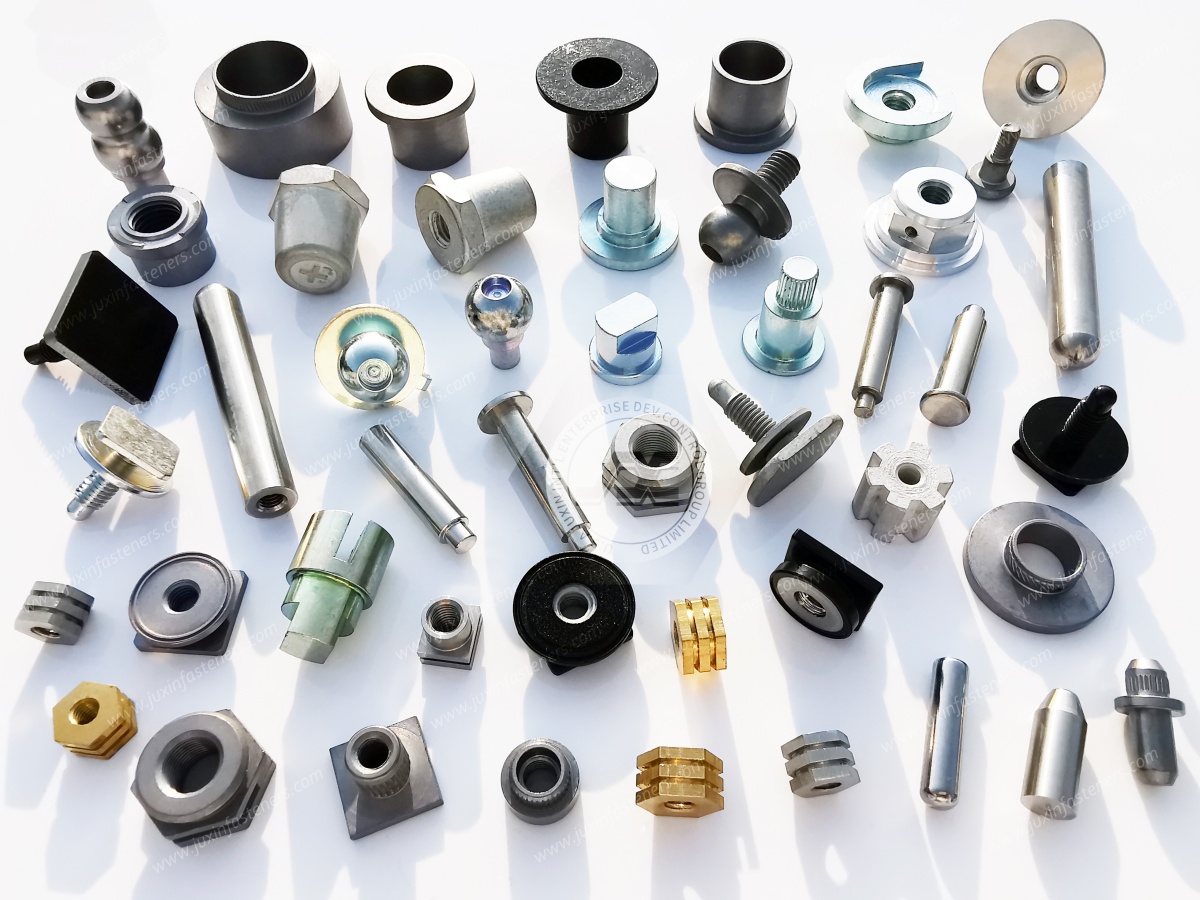

Typical Aluminum CNC Machined Components for Automotive OEMs

Different component types require different engineering and manufacturing considerations.

CNC Machined Mounting Blocks

Mounting blocks may provide controlled mounting faces, threaded holes and accurately positioned interfaces.

They may be used where a vehicle assembly requires a compact, precision-machined mounting feature.

Sensor Housings and Adapters

Sensor-related components may require controlled bores, mounting holes, sealing interfaces or connector clearances.

The appropriate material and surface treatment depend on the application.

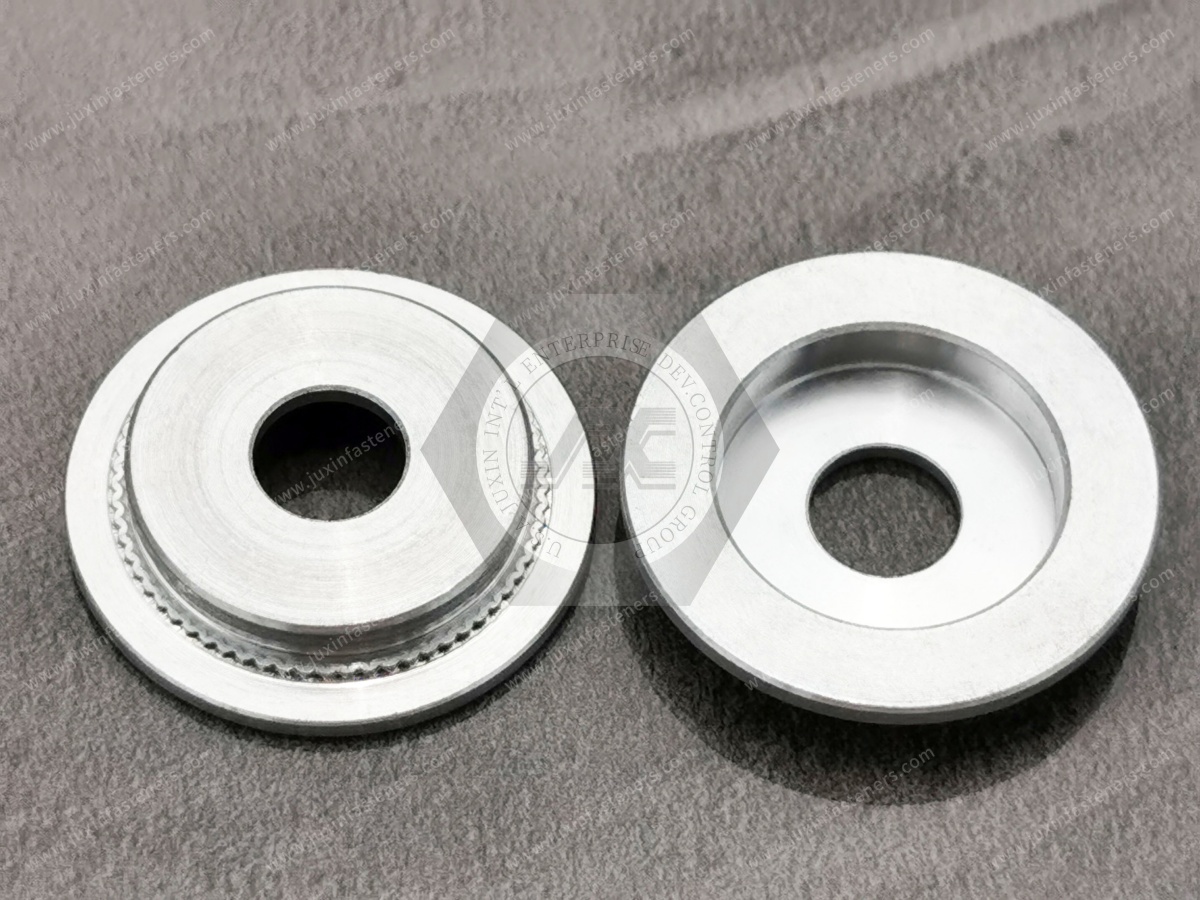

Aluminum Spacers

Machined spacers may establish controlled distances between components.

Important characteristics can include length, parallelism, perpendicularity and surface finish.

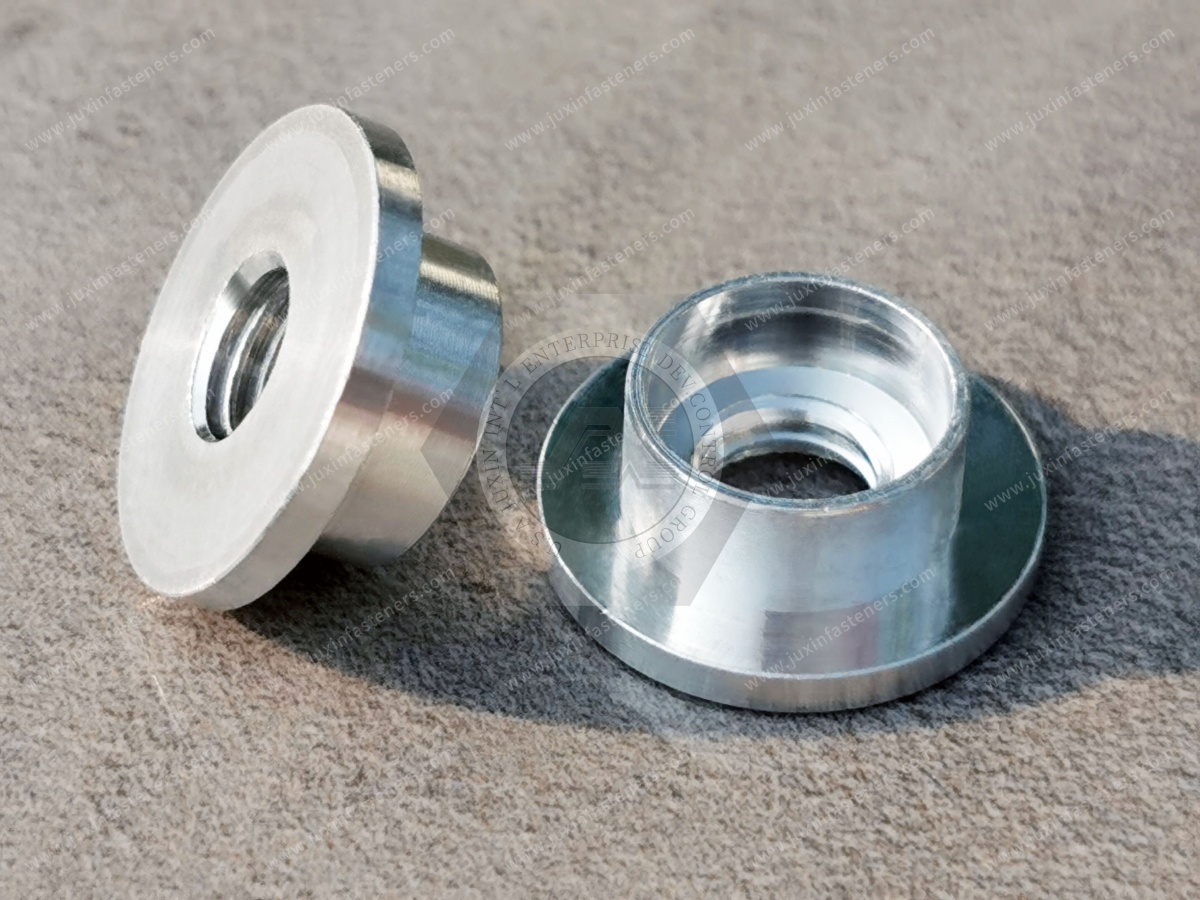

Threaded Standoffs

Threaded standoffs may support components at a defined distance from a mounting surface.

The design should consider thread durability and installation requirements.

Precision Bushings

Aluminum bushings may be appropriate for selected low-load or non-wearing interfaces.

However, aluminum is not automatically suitable for high-wear sliding applications.

The complete material and lubrication system must be evaluated.

Custom Mechanical Connectors

Non-standard mechanical connectors may combine shoulders, grooves, flats, threads or multiple mounting features.

CNC machining may be appropriate where these geometries cannot be obtained economically using standard hardware.

Why Aluminum Is Used for Automotive CNC Components

Aluminum may offer advantages in weight, machinability and thermal performance.

However, these advantages depend on the selected alloy and component design.

Low Density

Aluminum has substantially lower density than steel.

This can help reduce component mass where the design permits.

However, the final weight benefit depends on the geometry required to meet strength and stiffness targets.

Strength-to-Weight Performance

Some aluminum alloys provide useful strength-to-weight characteristics.

The appropriate alloy and temper depend on the required mechanical properties.

Machinability

Many aluminum alloys can be machined efficiently using CNC processes.

Machinability influences cutting forces, tool wear, surface finish, chip formation and cycle time.

Thermal Conductivity

Aluminum generally offers higher thermal conductivity than many steels.

This may be useful for selected automotive electronics housings or thermal interfaces.

However, thermal performance depends on the complete assembly.

Corrosion Resistance

Aluminum forms a natural oxide layer that provides some corrosion protection.

However, corrosion performance depends on alloy composition, environment, surface treatment and contact with dissimilar metals.

Automotive Aluminum Alloy Selection: 6061, 6063, 6082 and 7075

The correct aluminum alloy should be selected according to the approved drawing and functional requirements.

6061 Aluminum

6061 is widely used for machined components requiring a balance of strength, machinability and corrosion resistance.

6061-T6 may be considered for selected mounting blocks, adapters and mechanical components.

The T6 temper is a defined heat-treatment condition and should not be assumed unless specified.

6063 Aluminum

6063 is commonly associated with extruded profiles and applications requiring good surface finish and corrosion resistance.

It may be appropriate for selected machined components produced from suitable stock forms.

However, it should not be treated as a direct substitute for 6061 or 6082.

6082 Aluminum

6082 is a structural aluminum alloy used in various engineering applications.

6082-T6 may be considered where its specified mechanical properties and availability are appropriate.

Material selection should follow the approved drawing.

7075 Aluminum

7075 is a high-strength aluminum alloy used in applications requiring different mechanical performance from common 6xxx-series alloys.

7075-T6 may be considered for selected precision components.

However, corrosion behavior, stress-corrosion susceptibility, fatigue requirements and environmental exposure must be evaluated.

7075 is not automatically the best choice for every automotive application.

Material Substitution

Aluminum alloys should not be substituted solely because they have similar nominal tensile strength.

Differences in corrosion resistance, machinability, fatigue behavior, thermal expansion and surface treatment compatibility must be considered.

Any proposed substitution should receive customer engineering approval.

Lightweight Design: Strength, Stiffness and Component Geometry

Lightweight design is an important automotive engineering objective.

However, replacing steel with aluminum does not automatically produce an equivalent component.

Strength

The required material strength depends on loading, geometry and operating conditions.

A direct material substitution may require changes to the component design.

Stiffness

Aluminum has a lower elastic modulus than steel.

For components where deflection is critical, additional section thickness or geometry changes may be required.

Weight Reduction

The actual weight reduction depends on the final component geometry.

Increasing section thickness to meet stiffness requirements may reduce the expected weight advantage.

Fatigue

Repeated loading may cause fatigue damage.

The fatigue behavior of aluminum components depends on alloy, geometry, surface condition and loading history.

Design Optimization

Engineers should evaluate strength, stiffness, weight, manufacturing cost and assembly requirements together.

Thermal Expansion and Automotive Assembly Compatibility

Automotive components may experience significant temperature changes.

Aluminum and steel expand at different rates.

This can influence dimensional relationships and joint behavior.

Thermal Expansion

Aluminum generally has a higher coefficient of thermal expansion than steel.

Where aluminum components are assembled with steel fasteners or mating structures, temperature changes may affect fit and clamping conditions.

Bearing and Shaft Interfaces

Where aluminum housings contain steel shafts or bearings, the operating temperature range may influence the fit.

The final fit should follow the approved assembly design.

Threaded Connections

Differential thermal expansion may affect joint preload under certain conditions.

The complete joint design should be evaluated.

Thermal Cycling

Repeated heating and cooling may influence mechanical interfaces and surface treatments.

The appropriate validation depends on the application.

Thread Design in Aluminum CNC Components

Threaded connections require special attention when the internal thread is machined directly into aluminum.

Thread Engagement

Aluminum generally has lower thread-stripping resistance than many steels.

The required thread engagement depends on the aluminum alloy, temper, thread geometry, fastener strength and applied loads.

Internal Thread Design

The drawing should specify thread size, pitch, tolerance class and usable thread depth.

For blind holes, drilled depth and full-thread depth should be distinguished.

Thread Stripping

Insufficient engagement or excessive tightening loads may damage internal aluminum threads.

The design should consider thread strength and installation conditions.

Repeated Assembly

Where components require repeated servicing, thread wear or damage may become important.

Threaded inserts may be considered for suitable applications.

Steel Threaded Inserts

Steel threaded inserts may improve thread durability in selected aluminum components.

However, insert type, installation method, load requirements and corrosion compatibility must be evaluated.

Threaded Inserts vs. Direct Tapping

Direct tapping may be economical for suitable applications.

Threaded inserts may be preferable where repeated assembly, higher loads or other functional requirements justify their use.

The appropriate choice depends on total installed cost and mechanical performance.

Steel Fasteners in Aluminum Components: Galvanic Corrosion

Automotive assemblies frequently combine aluminum components with steel fastening hardware.

This creates potential galvanic corrosion concerns in certain environments.

Dissimilar Metal Contact

When dissimilar metals are electrically connected in the presence of an electrolyte, galvanic corrosion may occur.

The severity depends on the materials, environmental exposure and joint design.

Moisture and Road-Salt Exposure

Automotive components may be exposed to water, humidity and road salts.

These conditions can increase corrosion risks.

Protective Coatings

Suitable coatings or isolation methods may reduce corrosion risks.

However, coating compatibility and durability must be evaluated.

Electrical Isolation

Non-conductive washers, sleeves or other isolation features may be considered where appropriate.

The complete joint design must maintain the required mechanical performance.

Fastener Selection

The appropriate fastener material and coating should be selected according to the operating environment and OEM requirements.

Anodizing and Surface Finishing for Automotive Aluminum Parts

Surface treatment may be required for corrosion protection, wear resistance, appearance or other functional reasons.

Anodizing

Anodizing may improve surface properties for suitable aluminum alloys.

The required anodizing type, thickness and sealing conditions should be specified by the customer.

Hard Anodizing

Hard anodizing may be considered for selected wear-related applications.

However, it can affect dimensions and may not be suitable for every geometry or fatigue-sensitive application.

Conversion Coatings

Conversion coatings may be considered where specific corrosion-protection or electrical requirements are established.

The appropriate treatment depends on the customer specification.

Surface Finish

Machined surfaces may require controlled roughness or other surface characteristics.

The required finish should reflect the component function.

Coating and Fit Compatibility

Surface treatments can change component dimensions.

Where close fits are required, the drawing should define whether dimensions apply before or after treatment.

CNC Machining Processes for Automotive Aluminum Components

The appropriate machining process depends on component geometry, material, tolerance requirements and production quantity.

CNC Milling

CNC milling may be suitable for mounting blocks, housings, adapters and components requiring pockets, slots, profiles or multiple mounting features.

CNC Turning

CNC turning is suitable for rotationally symmetric components such as spacers, sleeves, bushings and threaded adapters.

Drilling and Tapping

Machined components may require accurately positioned holes and internal threads.

Tool selection and process control should account for the aluminum alloy and required thread quality.

Pocketing and Profiling

Pocketing and profiling may be used to produce complex geometries or reduce component mass.

The design should consider wall thickness, tool accessibility and machining stability.

Combined Turning and Milling

Turn-mill machining can combine rotational and non-rotational operations.

For suitable components, reducing the number of setups may improve relationships between critical features.

Swiss-Type Machining

Swiss-type machining may be considered for suitable small, slender components.

Its feasibility depends on geometry, quantity and available manufacturing arrangements.

Design for Manufacturability in Automotive Aluminum CNC Parts

Design for Manufacturability (DFM) helps align engineering requirements with practical machining processes.

Early DFM evaluation can reduce unnecessary complexity, improve production repeatability and lower total component cost.

Tolerance Allocation

Not every dimension requires the same tolerance.

Critical-to-function features should receive appropriate dimensional and geometric controls.

Non-critical dimensions may permit more economical tolerances.

Thin Walls

Thin-walled aluminum components may deform during machining due to cutting forces, clamping pressure or residual stress.

Special workholding or controlled machining sequences may be required.

Deep Pockets

Deep pockets may require long tools and additional machining time.

Engineers should consider tool reach, chip evacuation and surface finish.

Small Features

Small holes, narrow slots and other features may require specialized tooling.

Simplifying these features where possible can reduce machining time and cost.

Burr Control

Burrs may affect assembly, electrical interfaces and component cleanliness.

The drawing should identify critical edge conditions and deburring requirements.

GD&T for Automotive Aluminum Mechanical Interfaces

Geometric Dimensioning and Tolerancing (GD&T) helps define relationships between critical features.

Depending on the drawing system, ASME Y14.5 or ISO 1101 may be applicable.

Relevant controls may include position, flatness, perpendicularity, parallelism, runout and profile.

Datum selection should reflect how the component is located and assembled.

For example, a sensor mounting housing may require controlled relationships between mounting holes and locating surfaces.

A threaded adapter may require accurate positional relationships between threaded and non-threaded features.

GD&T should support functional assembly and inspection rather than introduce unnecessary manufacturing complexity.

Metric and Inch Thread Standards

Automotive components may use metric or inch thread systems depending on the OEM design.

ISO 261 and ISO 965 may be relevant to ISO metric screw threads.

ASME B1.1 covers Unified inch screw threads, including UNC and UNF series.

Metric and Unified inch threads are not directly interchangeable.

Thread size, pitch, tolerance class and mating component compatibility must be confirmed before production.

Assembly Efficiency and Automotive Production-Line Considerations

For automotive manufacturers, component design directly affects assembly efficiency.

Production managers should consider installation time, tool access, handling, part orientation and inspection requirements.

Installation Access

A component may be dimensionally correct but difficult to install because of limited tool clearance.

The design should account for the required installation tools.

Part Orientation

Components with asymmetric geometry may require additional handling or orientation during assembly.

Where possible, designs that reduce orientation errors may improve production efficiency.

Fastener Standardization

Using common thread sizes and installation tools across a vehicle platform may simplify assembly and inventory management.

However, standardization should not compromise the required mechanical function.

Assembly Error Prevention

The design should reduce the risk of incorrect part selection, reversed installation or cross-threading.

Clear identification, suitable lead-in features and controlled assembly procedures may help.

Production Repeatability

A successful CNC machining process must provide repeatable dimensions across the required production quantity.

Program-controlled machining, suitable workholding, tool-life management and inspection planning can support process stability.

Quality Control for Custom Automotive Aluminum CNC Parts

Inspection planning should follow the approved drawing and the component's functional requirements.

Depending on the project, inspection may include dimensional measurement, thread inspection, material verification, hardness testing, surface-finish measurement and functional checks.

Dimensional Inspection

Critical dimensions may be verified using suitable micrometers, calipers, bore gauges, height gauges or coordinate measuring equipment.

The measurement method should provide sufficient capability for the specified tolerance.

Thread Inspection

Threaded components may require appropriate thread gauges or other verification methods.

The inspection method should follow the specified thread standard and customer requirements.

Material Verification

Customers may require material documentation or additional verification of the specified aluminum alloy and temper.

The required documentation should be agreed upon during quotation.

Hardness and Heat-Treatment Verification

Where hardness or temper condition is functionally important, the drawing should define the applicable requirements.

Any required testing or documentation should be confirmed before production.

Coating Inspection

Where surface treatment is required, inspection may include coating thickness verification or other customer-defined checks.

The treatment system and acceptance criteria should be established before production.

Functional Inspection

For selected components, functional inspection may include assembly-fit checks or verification using a representative mating component.

However, functional inspection should not replace required dimensional verification.

Automotive Quality Requirements: APQP, PPAP and IATF 16949

Automotive OEM and Tier 1 supply chains may require additional quality planning and production approval processes.

APQP

Advanced Product Quality Planning (APQP) supports structured product and process planning.

Its application depends on the customer's requirements.

PPAP

Production Part Approval Process (PPAP) requirements may apply to certain automotive production parts.

The required submission level and documentation should be established with the customer.

IATF 16949

IATF 16949 is a quality-management-system standard used within the automotive supply chain.

Referencing this standard does not establish that JUXIN FASTENERS is certified to it.

Where a project requires specific certification, APQP, PPAP, process capability studies or additional quality documentation, these requirements must be identified and confirmed before quotation or order acceptance.

From Prototype Development to Repeat Automotive OEM Production

CNC machining can support automotive component development because geometry and machining programs can be revised as the design evolves.

However, transitioning from prototypes to repeated production requires additional process planning.

Engineering Drawing and CAD Review

The initial review should identify material, geometry, critical tolerances, functional interfaces and inspection requirements.

Potential manufacturing risks should be clarified before machining begins.

Material and Process Selection

The material and machining process should be selected according to functional requirements, part geometry, quantity and cost.

Alternative manufacturing approaches may be considered where technically appropriate.

Prototype and First-Article Machining

Initial parts can be evaluated for dimensional accuracy, assembly fit, surface condition and manufacturing feasibility.

Any design or process changes should be documented.

Process Optimization

After design approval, machining operations may be optimized for cycle time, tooling, repeatability and inspection efficiency.

The appropriate optimization depends on the required production quantity.

Repeat Production and Final Inspection

Repeat production should follow the approved drawing revision and agreed quality requirements.

Inspection, packaging and delivery arrangements should be established according to the customer's purchasing specification.

CNC Machining vs. Standard Automotive Fasteners

Custom CNC machining provides flexibility for non-standard geometry and precision mechanical interfaces.

However, not every automotive component requires CNC machining.

Standard bolts, nuts, washers, studs, spacers, threaded inserts and other fastening components may offer more economical solutions for suitable applications.

When CNC Machining May Be Appropriate

CNC machining may be justified where the design requires:

• Non-standard geometry

• Precision mounting interfaces

• Special threaded adapters

• Controlled locating features

• Custom mounting blocks

• Multiple machined features

• Drawing-based dimensional relationships

When Standard Fasteners May Be More Economical

Standard fastening components may be preferable where the required function can be achieved without custom machining.

For example, a standard threaded insert may provide a durable thread in a compatible aluminum component.

A standard bolt, nut or spacer may be sufficient for other assemblies.

However, the selected fastener must match the material, loading, geometry and installation requirements.

The appropriate solution should be selected according to engineering compatibility and total installed cost.

Automotive OEM Supplier Development and Procurement Considerations

For automotive manufacturers, sourcing custom machined components requires both technical qualification and commercial evaluation.

Supplier selection should consider drawing conformity, material compatibility, machining feasibility, process consistency, quality expectations and supply planning.

Drawing-Based Supplier Evaluation

A technically complete RFQ should include the approved drawing, CAD model, material specification, tolerances, surface finish and required quantity.

Where an existing component is being transferred from another supplier, the latest drawing revision and critical functional characteristics should be identified.

Alternative Material and Process Evaluation

A proposed alternative material or machining process should be reviewed against the original engineering requirements.

Material substitution should not be approved solely because two alloys have similar nominal properties.

Strength, stiffness, fatigue behavior, corrosion resistance, thermal expansion and application requirements must be considered.

Any proposed change should be approved by the customer's engineering team.

MOQ, Lead Time and Volume Purchasing

Purchasing teams should provide estimated order quantities, annual demand, target delivery schedules and packaging requirements.

For custom CNC components, setup complexity, material availability, tooling, surface treatment, inspection requirements and production volume can influence MOQ and lead time.

Commercial feasibility should be confirmed for each project.

Total Cost Optimization

The total cost of a machined automotive aluminum component depends on several factors:

• Aluminum alloy and temper

• Material stock form

• Part geometry

• Machining cycle time

• Number of setups

• Tooling and tool wear

• Dimensional tolerances

• Surface finish

• Anodizing or secondary operations

• Threaded inserts

• Inspection requirements

• Scrap and rework

• Order quantity

• Assembly installation time

• Delivery schedule

Early collaboration between engineering, production and procurement teams can help identify cost-saving opportunities without compromising functional requirements.

Practical RFQ Checklist for Automotive Aluminum CNC Components

A complete RFQ helps reduce technical clarification and supports accurate quotation.

Useful information includes:

• 2D engineering drawing

• 3D CAD model, if available

• Component application and function

• Aluminum alloy and temper

• Material specification

• Critical dimensional tolerances

• GD&T requirements

• Thread specifications

• Surface finish requirements

• Anodizing or other surface-treatment requirements

• Mechanical loading and fatigue requirements

• Thermal expansion considerations

• Steel-to-aluminum fastening requirements

• Corrosion and environmental exposure

• Inspection and documentation requirements

• APQP or PPAP requirements, if applicable

• Prototype or sample quantity

• Estimated production order quantity

• Annual demand forecast

• Packaging requirements

• Delivery destination and target schedule

Where the component is intended for a safety-critical or otherwise high-risk function, the applicable design, qualification and verification requirements should be explicitly identified.

Why Work with JUXIN FASTENERS for Automotive Aluminum CNC Machining Projects?

JUXIN FASTENERS supports drawing-based inquiries for precision machined components and industrial fastening hardware used in automotive manufacturing.

Relevant machining inquiries include:

• Aluminum CNC machined mounting blocks

• Custom automotive sensor housings

• Precision aluminum spacers

• Threaded adapters

• CNC machined bushings and sleeves

• Custom mechanical connectors

• Aluminum threaded components

• Drawing-based automotive mechanical parts

• OEM repeat purchasing requirements

Our approach emphasizes clear technical communication and evaluation of the customer's drawings, materials, tolerances, manufacturing requirements and purchasing quantities.

For design and mechanical engineers, the priority is functional geometry, material suitability, weight, stiffness and dimensional accuracy.

For manufacturing engineers and production managers, the priority includes installation efficiency, process repeatability, inspection stability and consistent production quality.

For procurement and supply chain teams, the priority includes technical conformity, commercial feasibility, cost control, delivery planning and supplier evaluation.

Manufacturing feasibility, achievable tolerances, MOQ, lead time, testing and documentation requirements are confirmed according to the specific inquiry.

Request a Quote for Automotive Aluminum CNC Machining and Custom OEM Components

Are you developing a new automotive aluminum component, sourcing custom CNC machined parts, or evaluating an alternative supplier for repeat OEM production?

JUXIN FASTENERS welcomes technical and commercial inquiries from automotive manufacturers, Tier 1 suppliers, engineering teams, production departments and procurement organizations.

Send us your 2D drawings, 3D CAD models, aluminum alloy specifications, critical tolerances, surface-treatment requirements, inspection criteria and estimated purchasing quantities.

Where applicable, please also identify mechanical loading, thermal exposure, threaded insert requirements, corrosion conditions and automotive quality documentation expectations.

We can review your project requirements and discuss suitable machining approaches, technical clarification and RFQ arrangements.

JUXIN FASTENERS

Website: https://www.juxinfasteners.com

Email: info@juxinfasteners.com

RFQ: Automotive Aluminum CNC Machining | Lightweight Precision Components | Custom OEM Parts
