Carbon Steel CNC Machining for Sheet Metal Fabrication

Carbon Steel CNC Machining for Sheet Metal Fabrication and Custom OEM Fastening Assemblies

Sheet metal fabrication is widely used to manufacture electrical enclosures, industrial cabinets, machinery housings, equipment frames, control panels and structural assemblies.

These products often combine formed sheet metal with precision-machined components and industrial fastening hardware.

Although laser cutting, punching, stamping, bending and welding can produce many sheet metal features, some assemblies require additional components with controlled dimensions,

 threaded interfaces or specialized mounting geometry.

Carbon steel CNC machining can provide a practical manufacturing option for selected mounting blocks, spacers, threaded adapters, bushings, locating pins and custom mechanical connectors.

These components may be integrated with fabricated sheet metal structures to support equipment installation, alignment, fastening and mechanical assembly.

However, not every sheet metal fastening requirement needs a custom CNC machined part.

Standard self-clinching nuts, self-clinching studs, rivet nuts, weld nuts, threaded standoffs and other fastening hardware may offer more economical solutions when their installation requirements are compatible with the sheet metal design.

The correct solution depends on panel material, sheet thickness, hole geometry, mechanical loading, installation access, corrosion protection and production volume.

JUXIN FASTENERS supports drawing-based inquiries for custom carbon steel CNC machined components and industrial fastening hardware used in sheet metal fabrication and OEM assemblies.

Depending on component geometry and project requirements, suitable manufacturing processes may include CNC turning, CNC milling, drilling, tapping, threading, grooving and combined turning-milling operations.

Material selection, achievable tolerances, surface treatments, inspection requirements, purchasing quantities and delivery arrangements are evaluated according to the specific project.

How CNC Machining Complements Sheet Metal Fabrication

Sheet metal fabrication and CNC machining serve different manufacturing functions.

Sheet metal processes are generally used to produce panels, brackets, covers, frames and enclosures from sheet stock.

CNC machining is often used where components require non-standard geometry, precision bores, controlled mounting surfaces or accurately positioned threaded interfaces.

Combining these approaches can provide a practical solution for complex mechanical assemblies.

Precision Mounting Interfaces

A fabricated panel may require a mounting surface with tighter dimensional control than the formed sheet metal alone can provide.

A machined mounting block or adapter may establish a controlled mechanical interface.

Threaded Connections

Thin sheet metal may not provide sufficient material thickness for direct tapping.

Depending on the design, self-clinching fasteners, rivet nuts, weld nuts or machined threaded components may provide alternative fastening methods.

Equipment Spacing

Machined spacers and standoffs may establish controlled distances between panels, electronic assemblies and mechanical components.

Mechanical Alignment

Locating pins, bushings and machined adapters may help position components within a fabricated assembly.

Custom Geometry

CNC machining may be appropriate where the required mechanical connector combines threads, shoulders, flats, grooves or other features that are not available in standard hardware.

Typical Applications in Sheet Metal Fabrication

Sheet metal assemblies are used across many industrial sectors.

The appropriate fastening solution depends on the function and operating conditions.

Electrical Cabinets and Control Panels

Electrical cabinets may require threaded mounting points, spacers, standoffs and mechanical connectors.

Fastener selection should consider panel thickness, installation access, electrical bonding requirements and corrosion protection.

Industrial Machinery Enclosures

Machinery enclosures may use custom mounting blocks, threaded adapters and fastening hardware.

The design should account for vibration, service access and repeated maintenance.

HVAC Equipment Housings

HVAC housings may require threaded inserts, mounting spacers and mechanical connectors.

Where condensation or moisture exposure is expected, corrosion protection should be evaluated.

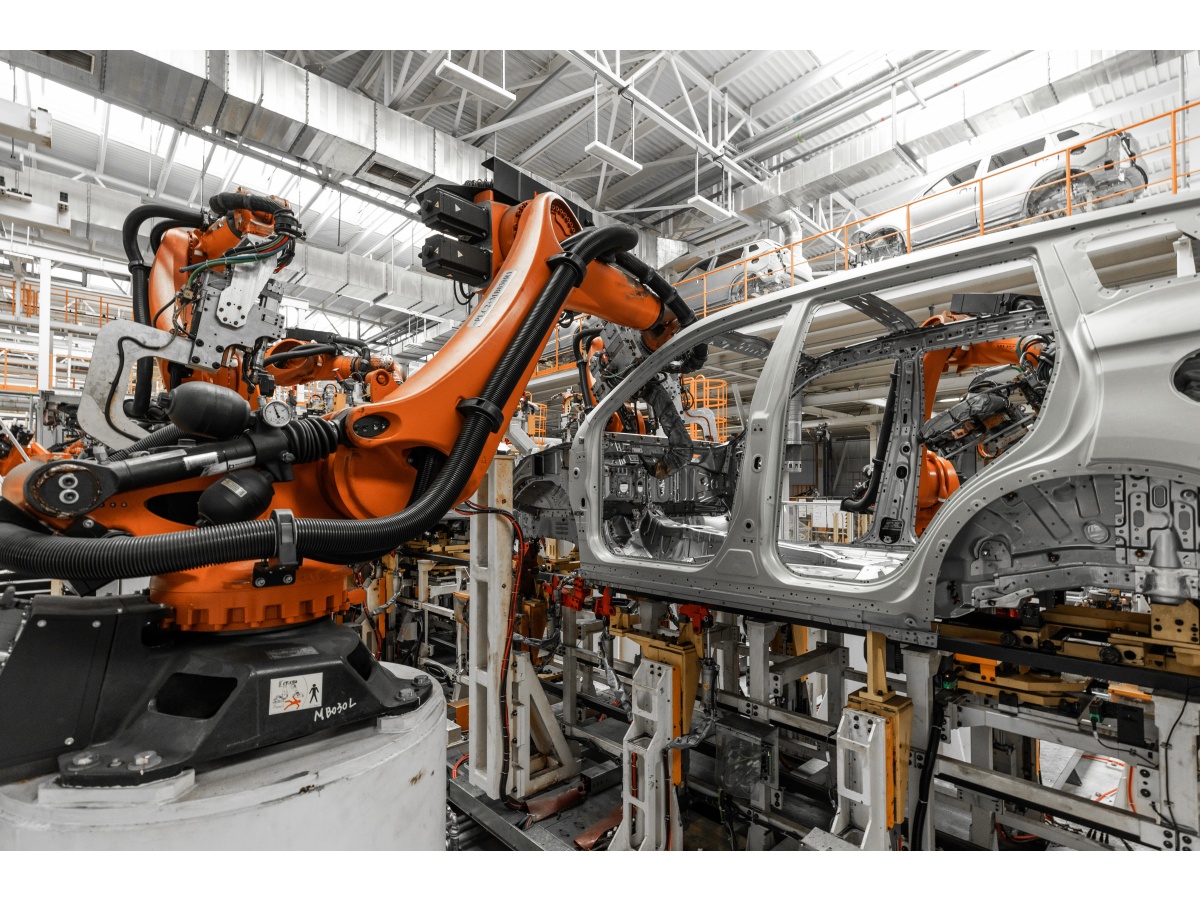

Automotive Sheet Metal Assemblies

Automotive sheet metal assemblies may require specialized fastening components and controlled installation methods.

Material, coating, vibration and production requirements should follow the approved OEM specifications.

Industrial Equipment Frames

Fabricated frames may require machined mounting interfaces, locating features and custom threaded connections.

The design should consider structural loading, alignment and assembly sequence.

Equipment Covers and Access Panels

Removable panels may require fastening methods that support repeated opening and closing.

The appropriate solution depends on service frequency, access conditions and thread durability.

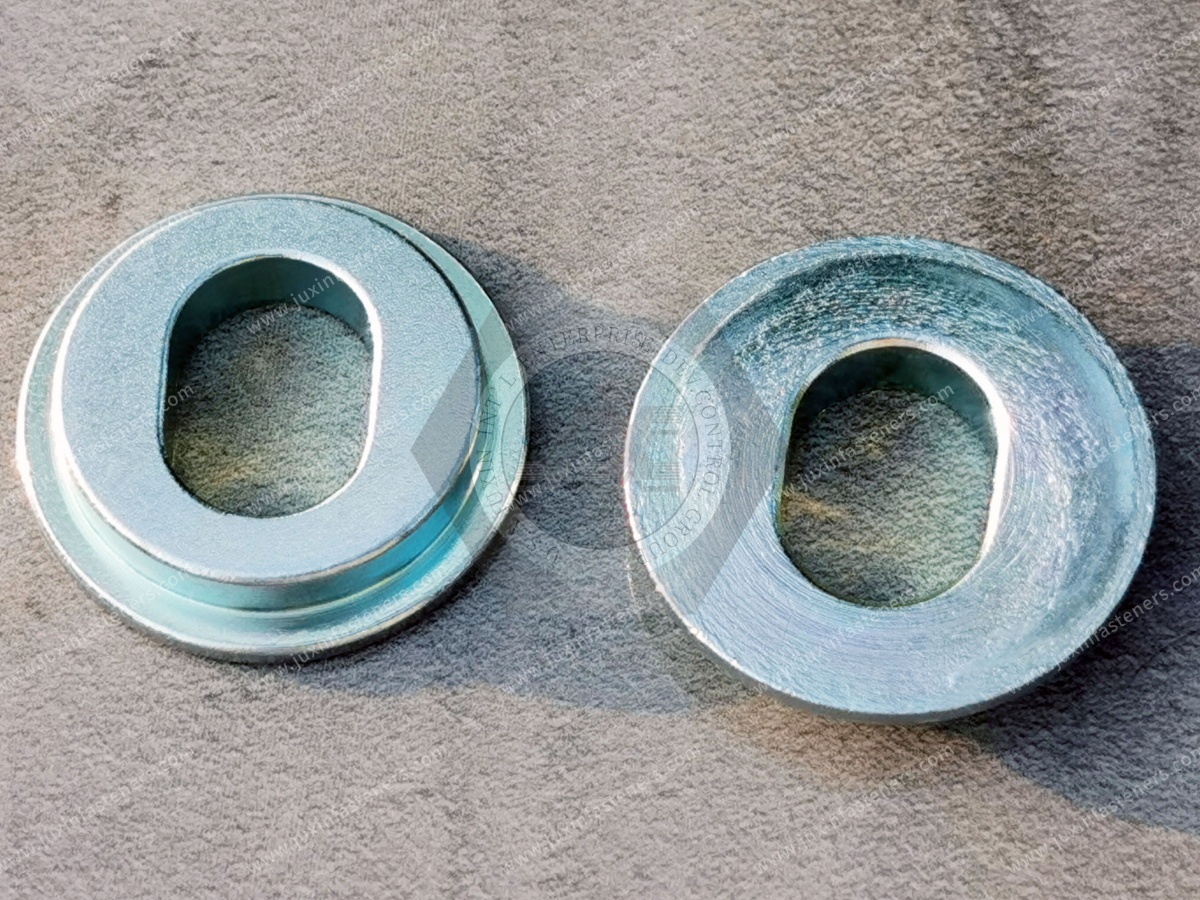

Typical Carbon Steel CNC Machined Components for Sheet Metal Assemblies

Different component types provide different mechanical functions.

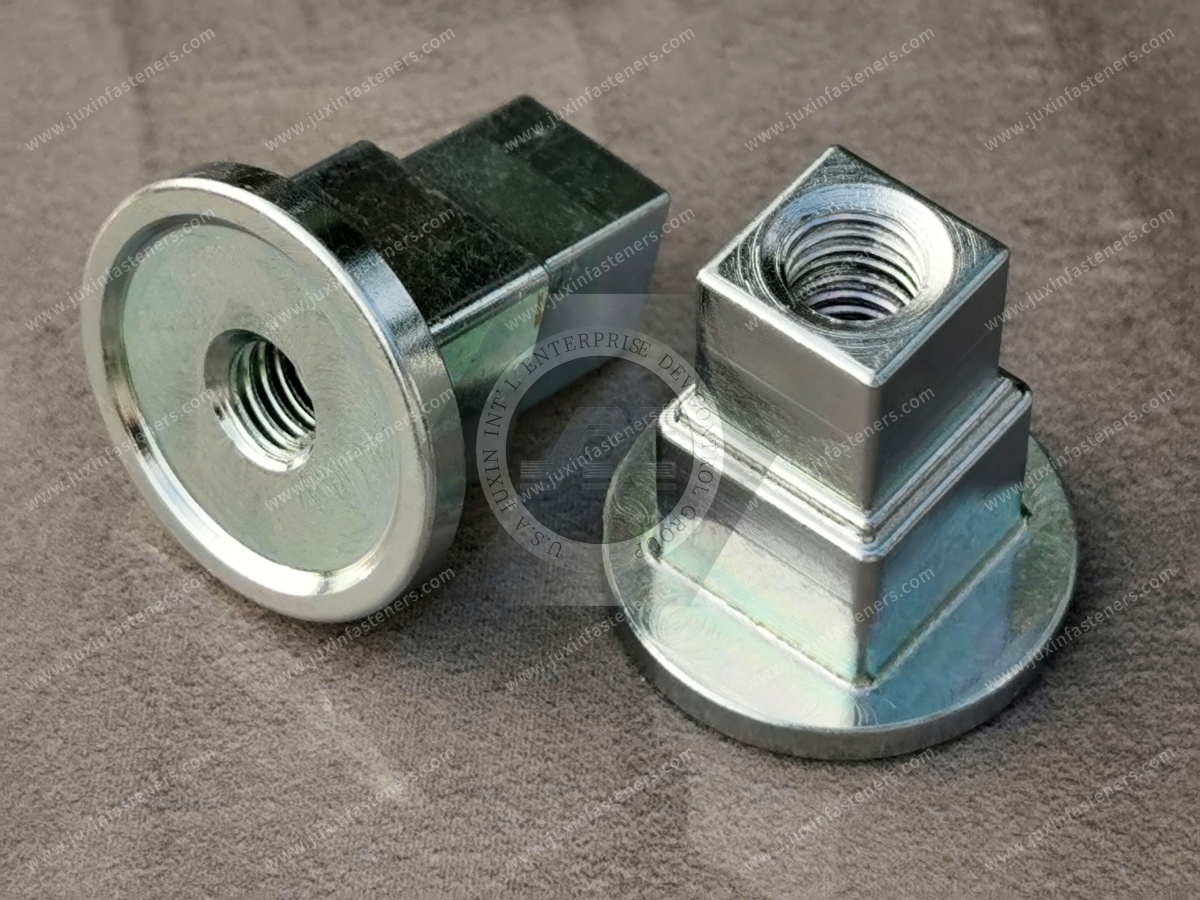

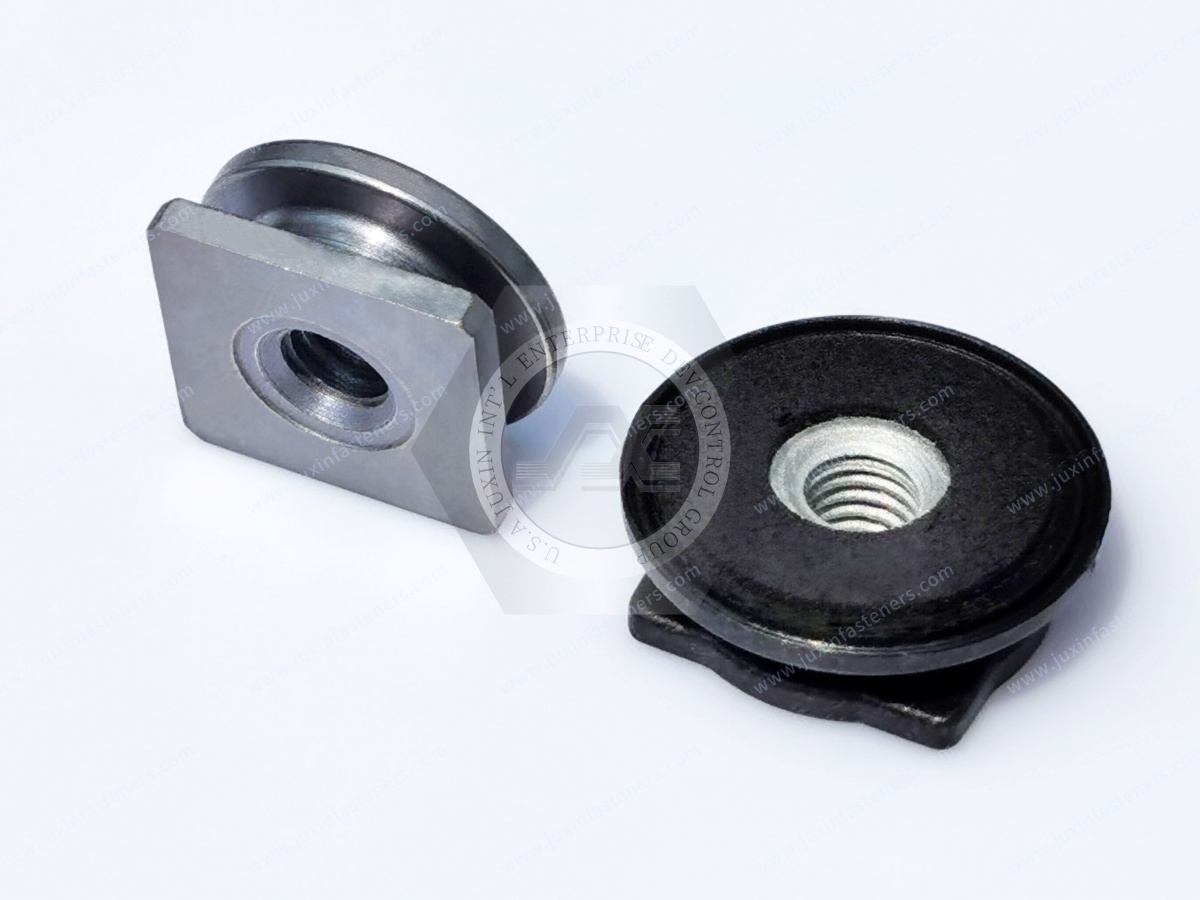

CNC Machined Mounting Blocks

Mounting blocks may provide controlled mounting faces, threaded holes and accurately positioned interfaces.

They may be used where a fabricated panel or frame requires a more substantial mechanical mounting feature.

Threaded Spacers

Threaded spacers may establish a controlled distance between components while providing threaded attachment points.

The design should consider spacer length, compressive loading and thread engagement.

Custom Threaded Standoffs

Threaded standoffs may support equipment or electronic assemblies at a defined distance from a panel.

Depending on the design, a standard standoff may be sufficient.

Custom machining may be considered where non-standard geometry or special mounting features are required.

CNC Machined Bushings

Bushings may provide controlled mechanical interfaces for shafts, pins or mounting arrangements.

Critical dimensions may include inner diameter, outer diameter, length and concentricity.

Threaded Adapters

Custom threaded adapters may connect mechanical interfaces that cannot be assembled using standard fasteners alone.

The drawing should specify thread size, pitch, tolerance class, engagement length and mating component requirements.

Locating Pins

Precision locating pins may help position panels, brackets or mechanical components during assembly.

The required fit depends on the intended assembly method and whether the pin must be removable.

Custom Mechanical Connectors

Non-standard mechanical connectors may combine shoulders, grooves, flats, threads or multiple mounting features.

CNC machining may be appropriate where these geometries cannot be obtained economically using standard hardware.

Choosing the Right Fastening Method for Sheet Metal

One of the most important engineering decisions is selecting the appropriate fastening method for the panel material and thickness.

Different fastening methods have different installation requirements and mechanical limitations.

Self-Clinching Nuts

Self-clinching nuts are designed to provide threaded attachment points in compatible sheet metal.

They are installed by applying force that causes the surrounding sheet material to flow into the fastener's retention features.

The correct fastener must be selected according to the manufacturer's specifications for sheet material, hardness, thickness and hole geometry.

Self-clinching nuts are not suitable for every sheet metal material or thickness.

Self-Clinching Studs

Self-clinching studs provide externally threaded mounting points in compatible sheet metal.

They may be useful where a panel requires a fixed stud for assembly.

The installation method and mechanical performance depend on the fastener design and panel properties.

Self-Clinching Standoffs

Self-clinching standoffs can provide threaded spacing functions in compatible sheet metal.

They may reduce the need for separate spacers and loose fasteners in suitable assemblies.

However, installation requirements must be verified.

Rivet Nuts

Rivet nuts provide threaded attachment points in suitable panels or hollow structures.

They may be useful where access is available from only one side.

The correct rivet nut must be selected according to grip range, hole size, panel material and mechanical loading.

Weld Nuts

Weld nuts may provide threaded attachment points in welded sheet metal assemblies.

The welding process must be compatible with the panel material and the required joint design.

Welding may introduce heat distortion and coating-related considerations.

Machined Threaded Components

Custom machined threaded components may be appropriate where standard fastening hardware cannot provide the required geometry or mechanical interface.

However, they may require additional installation or attachment operations.

Direct Tapping of Sheet Metal

Direct tapping may be possible where the material thickness and thread engagement are sufficient for the intended load.

However, thin sheet metal often provides limited thread engagement.

The suitability of direct tapping must be established by engineering evaluation.

Panel Thickness and Fastener Compatibility

Panel thickness is a critical factor in sheet metal fastening design.

A fastener suitable for one sheet thickness may not be suitable for another.

Minimum Sheet Thickness

Self-clinching fasteners typically have minimum sheet-thickness requirements.

These requirements depend on the fastener design and panel material.

The manufacturer's installation specifications should be followed.

Rivet Nut Grip Range

Rivet nuts are selected according to a specified grip range.

The panel thickness must fall within the approved range for the selected fastener.

Thread Engagement

Thread strength depends on engagement length, material properties and loading.

Where sheet thickness is insufficient, a suitable threaded insert or other fastening method may be required.

Panel Deformation

Thin panels may deform during fastening or under service loads.

The design should consider local reinforcement, load distribution and installation forces.

Sheet Material Hardness

The hardness of the sheet material can affect self-clinching fastener installation.

The selected fastener must be compatible with the panel material.

Hole Size, Hole Position and Edge Distance

Fastener performance depends on correct hole preparation.

Hole Diameter

Self-clinching fasteners and rivet nuts require appropriate installation hole dimensions.

Oversized or undersized holes may affect retention and installation quality.

Hole Position

The position of the installation hole affects assembly alignment.

Where multiple fasteners are used, hole-position tolerances should reflect the complete assembly.

Edge Distance

Insufficient edge distance may contribute to panel distortion or reduced fastener retention.

The required edge distance depends on the fastener design and sheet material.

Hole Quality

Burrs, excessive distortion or damaged hole edges may affect installation.

Hole preparation should follow the fastener manufacturer's recommendations.

Coating and Hole Dimensions

Powder coating, plating or other surface treatments may change hole dimensions.

The manufacturing sequence should account for coating thickness and installation requirements.

Installation Access and Assembly Sequence

Fastener selection should consider how the component will be installed.

Two-Sided Access

Some fastening methods require access to both sides of the panel.

The assembly design should provide sufficient tool clearance.

Blind-Side Installation

Rivet nuts may be useful where only one side of the panel is accessible.

However, installation tooling and grip-range requirements must be considered.

Welding Access

Weld nuts require suitable welding access and process control.

The installation sequence should account for distortion and surface treatment.

Press Installation

Self-clinching fasteners require suitable press installation conditions.

Impact installation should not be assumed equivalent to the manufacturer's recommended pressing method.

Assembly Sequence

The installation sequence can affect accessibility and final assembly quality.

For example, installing a fastener before bending or coating may be appropriate in some designs but unsuitable in others.

The sequence should be established according to the component geometry and process requirements.

Mechanical Performance and Joint Reliability

Sheet metal fastening systems must be evaluated according to the actual mechanical loads.

Pull-Out Resistance

Pull-out resistance describes resistance to axial extraction under specified conditions.

It depends on fastener design, panel material, thickness and installation quality.

Push-Out Resistance

Push-out resistance may be relevant for certain installed fasteners.

The appropriate requirement depends on the fastening method.

Torque-Out Resistance

Torque-out resistance is important for threaded inserts installed in sheet metal.

It depends on the fastener design, panel material and installation conditions.

Thread Stripping

Insufficient thread engagement or unsuitable material properties can cause thread stripping.

The required engagement length depends on the thread geometry and applied loads.

Joint Preload

Correct joint preload can help maintain clamping force.

However, the appropriate tightening method depends on fastener properties, joint geometry and friction conditions.

Vibration Loosening

Vibration and transverse movement may contribute to loosening in certain threaded joints.

Suitable locking methods should be selected according to the actual application.

Repeated Maintenance

Removable panels and serviceable assemblies may require repeated fastening cycles.

The design should consider thread durability and maintenance procedures.

Carbon Steel Material Selection for Machined Sheet Metal Components

The correct steel grade should be selected according to the approved drawing and functional requirements.

SAE/AISI 1018 Steel

SAE/AISI 1018 is a low-carbon steel that may be considered for selected spacers, mounting blocks, adapters and general mechanical components.

Its suitability depends on the required strength, material condition and corrosion protection.

SAE/AISI 1045 Steel

SAE/AISI 1045 is a medium-carbon steel that may be considered for selected shafts, pins and mechanical components requiring different strength or hardness characteristics.

Its properties depend on material condition and heat treatment.

Free-Machining Carbon Steel

Free-machining carbon steels may be suitable for certain turned components.

However, the material's mechanical properties, composition and customer requirements should be considered.

Carbon Steel vs. Stainless Steel

Stainless steel may be preferable where corrosion resistance is a major requirement.

Carbon steel may be more economical where a suitable coating can provide the required protection.

The correct choice depends on the operating environment and design requirements.

Carbon Steel vs. Aluminum

Aluminum may be suitable for weight-sensitive components.

However, differences in strength, wear resistance, thread durability and thermal expansion must be evaluated.

Surface Treatment and Corrosion Protection

Carbon steel components may require protective surface treatment depending on the operating environment.

Zinc Electroplating

Zinc electroplating may be considered for selected carbon steel components.

Coating thickness can affect threads, precision bores and close-fitting interfaces.

Zinc-Nickel Coatings

Zinc-nickel coatings may be considered where specific corrosion-protection requirements are established.

The suitability of the coating system depends on the environment and customer acceptance criteria.

Phosphate Treatments

Phosphate treatments and associated protective systems may be appropriate for selected components.

Their corrosion performance depends on the complete treatment system.

Black Oxide

Black oxide may be suitable for selected indoor tooling or mechanical components.

However, black oxide alone should not be assumed to provide sufficient protection for demanding moisture exposure.

Hydrogen Embrittlement

Electroplating and certain chemical processing operations can introduce hydrogen into susceptible steel components.

For higher-strength or hardened steel parts, hydrogen embrittlement may create delayed fracture risks.

The need for process controls and post-treatment requirements depends on the material and customer specification.

Coating and Fit Compatibility

Coatings can change the dimensions of threads, bores and mating surfaces.

Where close fits are required, the drawing should define whether dimensions apply before or after coating.

CNC Machining Processes for Sheet Metal Assembly Components

The appropriate machining process depends on component geometry, material, tolerance requirements and production quantity.

CNC Turning

CNC turning is suitable for rotationally symmetric components such as bushings, sleeves, spacers and threaded adapters.

Typical operations include facing, external turning, boring, drilling, grooving and threading.

CNC Milling

CNC milling may be suitable for mounting blocks, adapters and components requiring flats, slots, pockets or multiple mounting features.

Datum selection and fixture stability are important where positional relationships between features affect assembly.

Drilling, Tapping and Threading

Machined components may require internal threads, external threads, precision holes and mounting features.

Thread quality depends on material properties, tooling, cutting conditions and inspection methods.

Combined Turning and Milling

Turn-mill machining can combine rotational and non-rotational operations.

For suitable components, reducing the number of setups may improve relationships between critical features and reduce handling.

Design for Manufacturability in Sheet Metal CNC Components

Design for Manufacturability (DFM) helps align engineering requirements with practical machining processes.

Early DFM evaluation can reduce unnecessary complexity, improve production repeatability and lower total component cost.

Tolerance Allocation

Not every dimension requires the same tolerance.

Critical-to-function features should receive appropriate dimensional and geometric controls.

Non-critical dimensions may permit more economical tolerances.

Thin Walls and Machining Stability

Thin-walled machined components may deform during machining due to cutting forces, clamping pressure or residual stress.

Special workholding or controlled machining sequences may be required.

Small Features and Tool Accessibility

Small holes, narrow slots and deep internal features may require specialized tooling.

Simplifying these features where possible can reduce machining time and cost.

Surface Finish

Surface finish should be specified according to component function.

A locating surface, threaded interface and general mounting face may require different surface conditions.

GD&T for Sheet Metal Assembly Interfaces

Geometric Dimensioning and Tolerancing (GD&T) helps define relationships between critical features.

Depending on the drawing system, ASME Y14.5 or ISO 1101 may be applicable.

Relevant controls may include position, flatness, perpendicularity, parallelism, runout and profile.

Datum selection should reflect how the component is located and assembled.

For example, a mounting block may require accurate positional relationships between mounting holes and locating surfaces.

GD&T should support functional assembly and inspection rather than introduce unnecessary manufacturing complexity.

Metric and Inch Thread Standards

Sheet metal assemblies may use metric or inch thread systems depending on the OEM design.

ISO 261 and ISO 965 may be relevant to ISO metric screw threads.

ASME B1.1 covers Unified inch screw threads, including UNC and UNF series.

Metric and Unified inch threads are not directly interchangeable.

Thread size, pitch, tolerance class and mating component compatibility must be confirmed before production.

Assembly Efficiency and Sheet Metal Production-Line Considerations

For sheet metal manufacturers, component design directly affects assembly efficiency.

Production managers should consider installation time, tool access, handling, part orientation and inspection requirements.

Installation Access

A component may be dimensionally correct but difficult to install because of limited tool clearance.

The design should account for the required installation tools.

Part Orientation

Components with asymmetric geometry may require additional handling or orientation during assembly.

Where possible, designs that reduce orientation errors may improve production efficiency.

Fastener Standardization

Using common thread sizes and installation tools across a fabricated assembly platform may simplify assembly and inventory management.

However, standardization should not compromise the required mechanical function.

Assembly Error Prevention

The design should reduce the risk of incorrect part selection, reversed installation or cross-threading.

Clear identification, suitable lead-in features and controlled assembly procedures may help.

Production Repeatability

A successful CNC machining process must provide repeatable dimensions across the required production quantity.

Program-controlled machining, suitable workholding, tool-life management and inspection planning can support process stability.

Quality Control for Custom Sheet Metal CNC Parts

Inspection planning should follow the approved drawing and the component's functional requirements.

Depending on the project, inspection may include dimensional measurement, thread inspection, material verification, hardness testing, surface-finish measurement and functional checks.

Dimensional Inspection

Critical dimensions may be verified using suitable micrometers, calipers, bore gauges, height gauges or coordinate measuring equipment.

The measurement method should provide sufficient capability for the specified tolerance.

Thread Inspection

Threaded components may require appropriate thread gauges or other verification methods.

The inspection method should follow the specified thread standard and customer requirements.

Material Verification

Customers may require material documentation or additional verification of the specified carbon steel grade.

The required documentation should be agreed upon during quotation.

Hardness and Heat-Treatment Verification

Where hardness or heat-treatment condition is functionally important, the drawing should define the applicable requirements.

Any required testing or documentation should be confirmed before production.

Coating Inspection

Where corrosion protection is required, inspection may include coating thickness verification or other customer-defined checks.

The coating system and acceptance criteria should be established before production.

Functional Inspection

For selected components, functional inspection may include assembly-fit checks or verification using a representative mating component.

However, functional inspection should not replace required dimensional verification.

From Prototype Development to Repeat OEM Production

CNC machining can support sheet metal assembly development because geometry and machining programs can be revised as the design evolves.

However, transitioning from prototypes to repeated production requires additional process planning.

Engineering Drawing and CAD Review

The initial review should identify material, geometry, critical tolerances, functional interfaces and inspection requirements.

Potential manufacturing risks should be clarified before machining begins.

Material and Process Selection

The material and machining process should be selected according to functional requirements, part geometry, quantity and cost.

Alternative manufacturing approaches may be considered where technically appropriate.

Prototype and First-Article Machining

Initial parts can be evaluated for dimensional accuracy, assembly fit, surface condition and manufacturing feasibility.

Any design or process changes should be documented.

Process Optimization

After design approval, machining operations may be optimized for cycle time, tooling, repeatability and inspection efficiency.

The appropriate optimization depends on the required production quantity.

Repeat Production and Final Inspection

Repeat production should follow the approved drawing revision and agreed quality requirements.

Inspection, packaging and delivery arrangements should be established according to the customer's purchasing specification.

CNC Machining vs. Standard Sheet Metal Fasteners

Custom CNC machining provides flexibility for non-standard geometry and precision mechanical interfaces.

However, not every sheet metal fastening requirement needs CNC machining.

Standard self-clinching nuts, studs, standoffs, rivet nuts, weld nuts, bolts, washers and other fastening components may offer more economical solutions for suitable applications.

When CNC Machining May Be Appropriate

CNC machining may be justified where the design requires:

• Non-standard geometry

• Precision mounting interfaces

• Special threaded adapters

• Controlled locating features

• Custom mounting blocks

• Multiple machined features

• Drawing-based dimensional relationships

When Standard Fasteners May Be More Economical

Standard fastening components may be preferable where the required function can be achieved without custom machining.

For example, a self-clinching nut may provide an efficient threaded attachment point in compatible sheet metal.

A rivet nut may be appropriate where only one side of the panel is accessible.

A weld nut may be suitable for certain welded assemblies.

However, each fastener must match the panel material, thickness, hole geometry and installation requirements.

The appropriate solution should be selected according to engineering compatibility and total installed cost.

Sheet Metal OEM Supplier Development and Procurement Considerations

For sheet metal manufacturers, sourcing custom machined components and fastening hardware requires both technical qualification and commercial evaluation.

Supplier selection should consider drawing conformity, material compatibility, installation requirements, process consistency, quality expectations and supply planning.

Drawing-Based Supplier Evaluation

A technically complete RFQ should include the approved drawing, CAD model, material specification, tolerances, surface finish and required quantity.

For installed sheet metal fasteners, the panel material, thickness, hole geometry and installation method should also be provided.

Alternative Fastening Solutions

A proposed alternative fastener should be reviewed against the original engineering requirements.

Dimensional similarity alone does not establish interchangeability.

Installation method, mechanical retention, thread compatibility, corrosion protection and assembly access must be considered.

Any proposed change should be approved by the customer's engineering team.

MOQ, Lead Time and Volume Purchasing

Purchasing teams should provide estimated order quantities, annual demand, target delivery schedules and packaging requirements.

For custom CNC components, setup complexity, material availability, tooling, coating, inspection requirements and production volume can influence MOQ and lead time.

For standard fastening hardware, product availability, specification and order quantity may affect commercial terms.

Commercial feasibility should be confirmed for each project.

Total Cost Optimization

The total cost of a sheet metal fastening solution depends on several factors:

• Fastener or machined component cost

• Panel preparation

• Hole-making operations

• Installation tooling

• Assembly cycle time

• Welding or secondary operations

• Coating and corrosion protection

• Inspection requirements

• Scrap and rework

• Order quantity

• Packaging

• Delivery schedule

• Maintenance and replacement requirements

Early collaboration between engineering, production and procurement teams can help identify cost-saving opportunities without compromising functional requirements.

Practical RFQ Checklist for Sheet Metal CNC Components and Fasteners

A complete RFQ helps reduce technical clarification and supports accurate quotation.

Useful information includes:

• 2D engineering drawing

• 3D CAD model, if available

• Component application and function

• Sheet metal material

• Sheet thickness

• Hole diameter and position

• Edge distance

• Fastener type

• Thread size and pitch

• Carbon steel grade and material specification, where applicable

• Critical dimensional tolerances

• GD&T requirements

• Surface finish requirements

• Coating or secondary processing requirements

• Installation method

• Required installation access

• Mechanical loading requirements

• Vibration and maintenance considerations

• Inspection and documentation requirements

• Prototype or sample quantity

• Estimated production order quantity

• Annual demand forecast

• Packaging requirements

• Delivery destination and target schedule

Where the component is intended for a safety-critical or otherwise high-risk function, the applicable design, qualification and verification requirements should be explicitly identified.

Why Work with JUXIN FASTENERS for Sheet Metal CNC Machining and Fastening Projects?

JUXIN FASTENERS supports drawing-based inquiries for precision machined components and industrial fastening hardware used in sheet metal fabrication.

Relevant product inquiries include:

• Carbon steel CNC machined mounting blocks

• Custom threaded spacers

• Precision bushings and sleeves

• Threaded adapters

• Custom mechanical connectors

• Self-clinching nuts

• Self-clinching studs

• Self-clinching standoffs

• Rivet nuts

• Weld nuts

• Drawing-based OEM fastening components

Our approach emphasizes clear technical communication and evaluation of the customer's drawings, materials, tolerances, installation requirements and purchasing quantities.

For design and structural engineers, the priority is functional geometry, panel compatibility, mechanical retention and fastening reliability.

For manufacturing engineers and production managers, the priority includes installation efficiency, process repeatability, tooling compatibility and consistent assembly quality.

For procurement and supply chain teams, the priority includes technical conformity, commercial feasibility, cost control, delivery planning and supplier evaluation.

Manufacturing feasibility, achievable tolerances, MOQ, lead time, testing and documentation requirements are confirmed according to the specific inquiry.

Request a Quote for Carbon Steel CNC Machining and Sheet Metal Fastening Components

Are you developing a new sheet metal assembly, sourcing custom carbon steel CNC machined parts, or evaluating an alternative supplier for industrial fastening hardware?

JUXIN FASTENERS welcomes technical and commercial inquiries from sheet metal fabricators, enclosure manufacturers, industrial equipment OEMs, engineering teams, production departments and procurement organizations.

Send us your 2D drawings, 3D CAD models, material specifications, sheet thickness, hole dimensions, thread requirements, surface treatments, inspection criteria and estimated purchasing quantities.

Where applicable, please also identify installation access, assembly method, mechanical loading and corrosion-protection requirements.

We can review your project requirements and discuss suitable machining approaches, fastening options, technical clarification and RFQ arrangements.

JUXIN FASTENERS

Website: https://www.juxinfasteners.com

Email: info@juxinfasteners.com

RFQ: Sheet Metal CNC Machining | Custom Mounting Components | Self-Clinching and Rivet Nut Fasteners
