Aluminum CNC Machining for Construction Equipment Components

Precision CNC Machining for Construction Machinery and Heavy Equipment OEM Applications

Aluminum CNC machining provides a flexible manufacturing solution for construction machinery manufacturers, heavy equipment OEMs,

and engineering teams requiring lightweight, dimensionally accurate, and application-specific mechanical components.

Construction equipment operates under demanding conditions involving vibration, shock loading, outdoor exposure, contamination, repeated operation, and variable mechanical loads.

These conditions can influence the performance of mounting brackets, equipment housings, spacers, mechanical adapters, and fastening interfaces.

For suitable applications, precision CNC machined aluminum components can support equipment mounting, controlled positioning, enclosure construction, auxiliary mechanical assemblies, and lightweight structural interfaces.

However, aluminum should not be considered a universal replacement for steel or other high-strength, wear-resistant materials.

 Heavily loaded pivot pins, high-wear bushings, and safety-critical structural components require material selection based on their actual loads, duty cycles, and service conditions.

JUXIN FASTENERS supplies custom CNC machined components and industrial fastening hardware for drawing-based OEM applications.

Depending on part geometry, tolerance requirements, and production quantities, suitable manufacturing processes may include CNC milling, CNC turning,

 Swiss-type machining, drilling, tapping, pocketing, profiling, and turn-mill machining.

Customers can submit 2D engineering drawings, 3D CAD models, physical samples, material specifications, surface treatment requirements, and inspection criteria for technical and commercial evaluation.

Why Aluminum Is Used in Construction Equipment CNC Components

Aluminum alloys are often considered for construction equipment components where low weight, corrosion resistance, machinability, and dimensional accuracy provide practical advantages.

Reducing the weight of selected auxiliary components can simplify handling, installation, and equipment packaging.

 CNC machining also allows complex mounting and interface features to be manufactured according to customer-specific drawings.

However, the appropriate material depends on the component's mechanical function.

For example, a machined aluminum bracket supporting an electronic control module has different requirements from a heavily loaded excavator linkage component.

Likewise, a precision aluminum spacer used to position an enclosure assembly should not automatically be substituted for a steel spacer carrying high compressive or impact loads.

Material selection should therefore consider strength, stiffness, fatigue behavior, wear resistance, corrosion exposure, and the intended service life.

Common Aluminum Alloys for Construction Equipment Machining

Commonly specified aluminum alloys for precision CNC machining include 6061, 6063, 6082, and 7075.

These alloys offer different mechanical properties, machining characteristics, corrosion behavior, and material availability.

6061 Aluminum: Often selected for general-purpose machined brackets, mounting blocks, spacers, housings, and equipment interfaces requiring a balance of strength, machinability, and corrosion resistance.

6063 Aluminum: Frequently associated with extruded profiles and components where surface finish, corrosion resistance, and moderate mechanical requirements are important.

6082 Aluminum: Considered for structural and machined components, particularly where European material specifications are used.

7075 Aluminum: Provides higher strength in suitable tempers but requires additional evaluation of corrosion behavior, environmental exposure, material condition, and surface treatment.

A higher nominal strength does not automatically make an alloy more suitable for construction equipment.

For components exposed to repeated impact, cyclic loading, or abrasive conditions, the complete mechanical and environmental requirements must be evaluated.

Material specifications should identify the required alloy, temper, product form, and applicable standard.

Substitutions between aluminum grades should not be made without engineering approval.

Typical CNC Machined Components for Construction Equipment

Custom CNC machined aluminum parts can support a range of equipment mounting, positioning, and auxiliary mechanical functions.

Precision Aluminum Mounting Brackets

CNC machined brackets can support control units, sensors, lighting assemblies, protective housings, and other suitable auxiliary equipment.

Important design considerations include mounting-hole position, bracket stiffness, load direction, fastener access, and the strength of the supporting structure.

Where brackets experience vibration or cyclic loading, engineers should evaluate fatigue behavior and local stress concentrations around holes, corners, and geometric transitions.

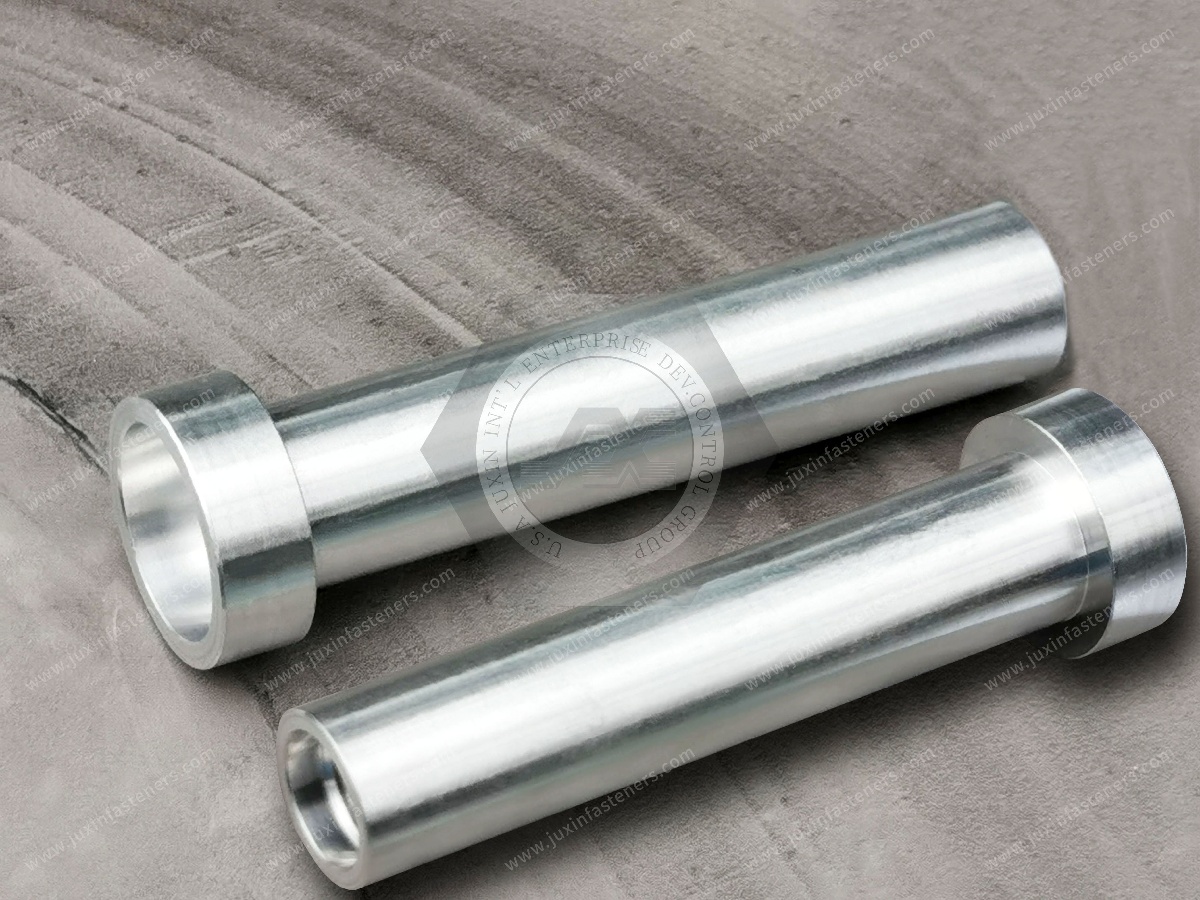

Aluminum Spacers and Standoffs

Precision aluminum spacers establish controlled distances between components and help maintain consistent assembly positioning.

Critical dimensions may include overall length, internal diameter, external diameter, parallelism, and contact-face quality.

For bolted assemblies, spacer geometry should be evaluated for compressive loading, joint stiffness, and possible deformation under installation loads.

Where the spacer is subjected to high compression, repeated impact, or significant wear, steel or another suitable material may be preferable.

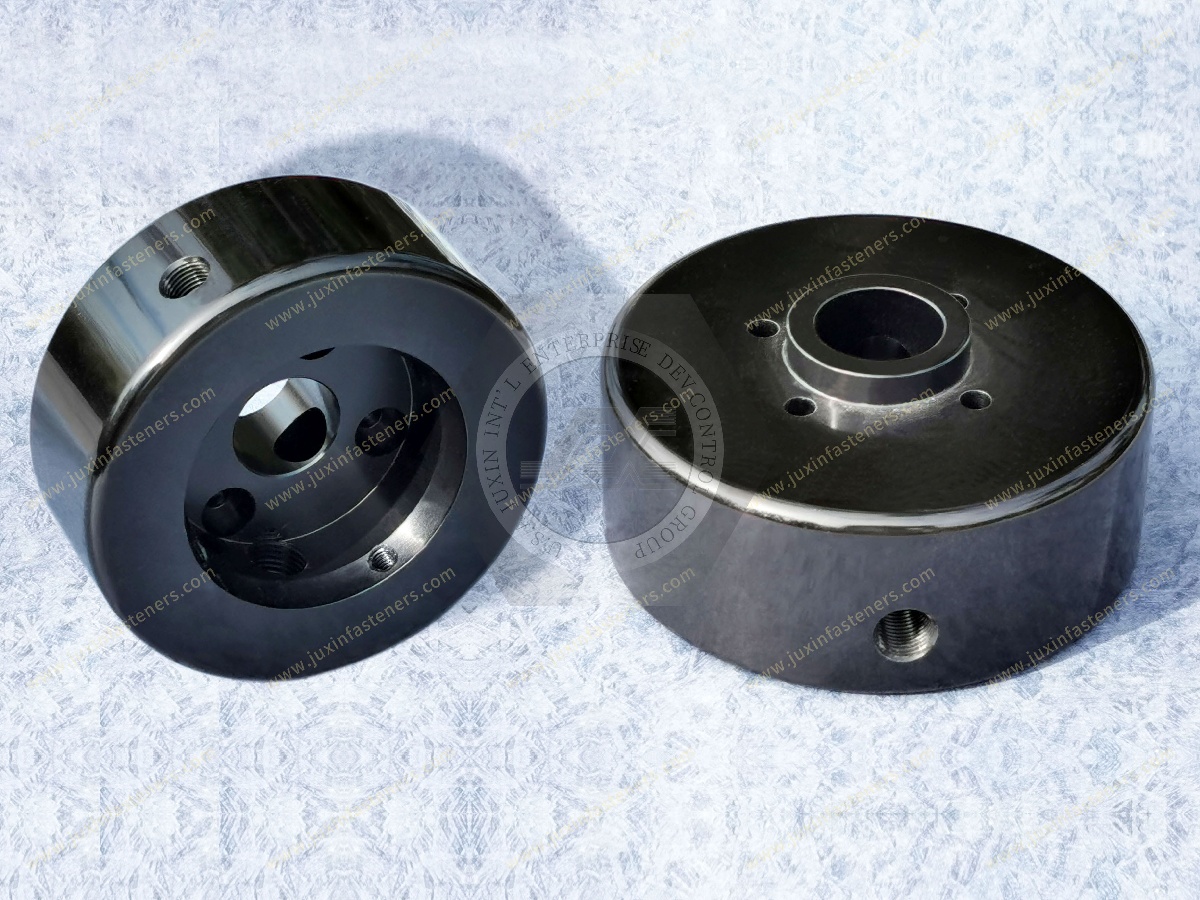

CNC Machined Equipment Housings

Custom aluminum housings can provide mechanical protection and mounting interfaces for sensors, control devices, instrumentation, and auxiliary equipment.

Critical features may include mounting faces, sealing grooves, connector openings, threaded holes, and internal pockets.

For outdoor construction equipment, housing design should account for moisture, dust, vibration, and the intended environmental protection requirements.

The ingress protection performance of an enclosure must be established for the complete assembly rather than assumed from the machined housing alone.

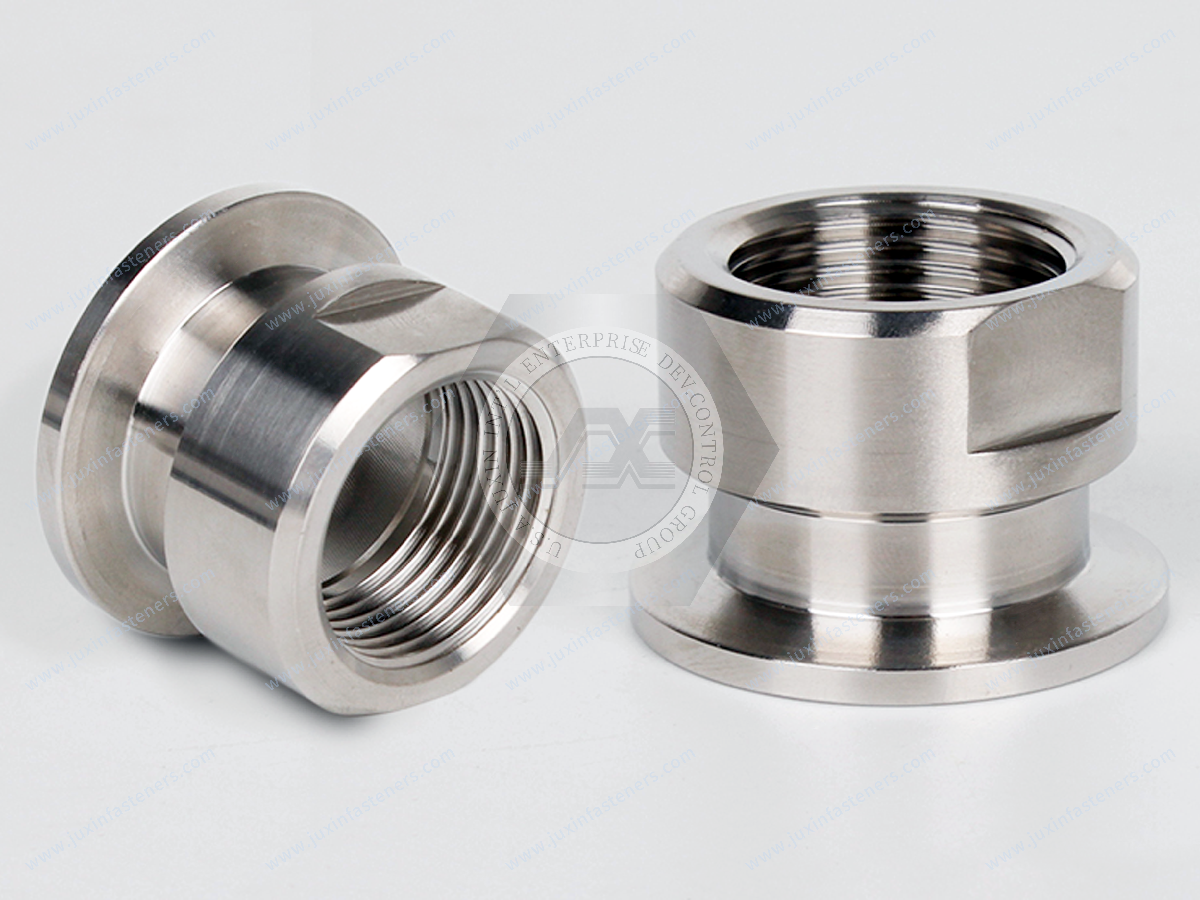

Custom Mechanical Adapters and Connectors

CNC machined adapters can provide interfaces between equipment housings, mounting plates, brackets, and other mechanical structures.

Their design may require controlled hole patterns, alignment features, threaded interfaces, and accurately machined contact surfaces.

Mechanical adapters should be evaluated according to their actual loading conditions and installation environment.

Precision Pins, Shafts, and Bushings

Custom pins, shafts, sleeves, and bushings may support selected locating, alignment, and low-load mechanical functions.

However, aluminum is not automatically suitable for heavily loaded pivot joints, rotating shafts, or abrasive wear applications.

Excavator bucket pins, loader linkage pins, and other high-load articulation components commonly require materials selected for strength, toughness, wear resistance, and fatigue performance.

Where sliding contact, high bearing pressure, or repeated impact is present, engineers should evaluate steel, hardened materials, engineered bearing alloys, or other appropriate alternatives.

The material must be selected according to the actual function of the component rather than the machining process alone.

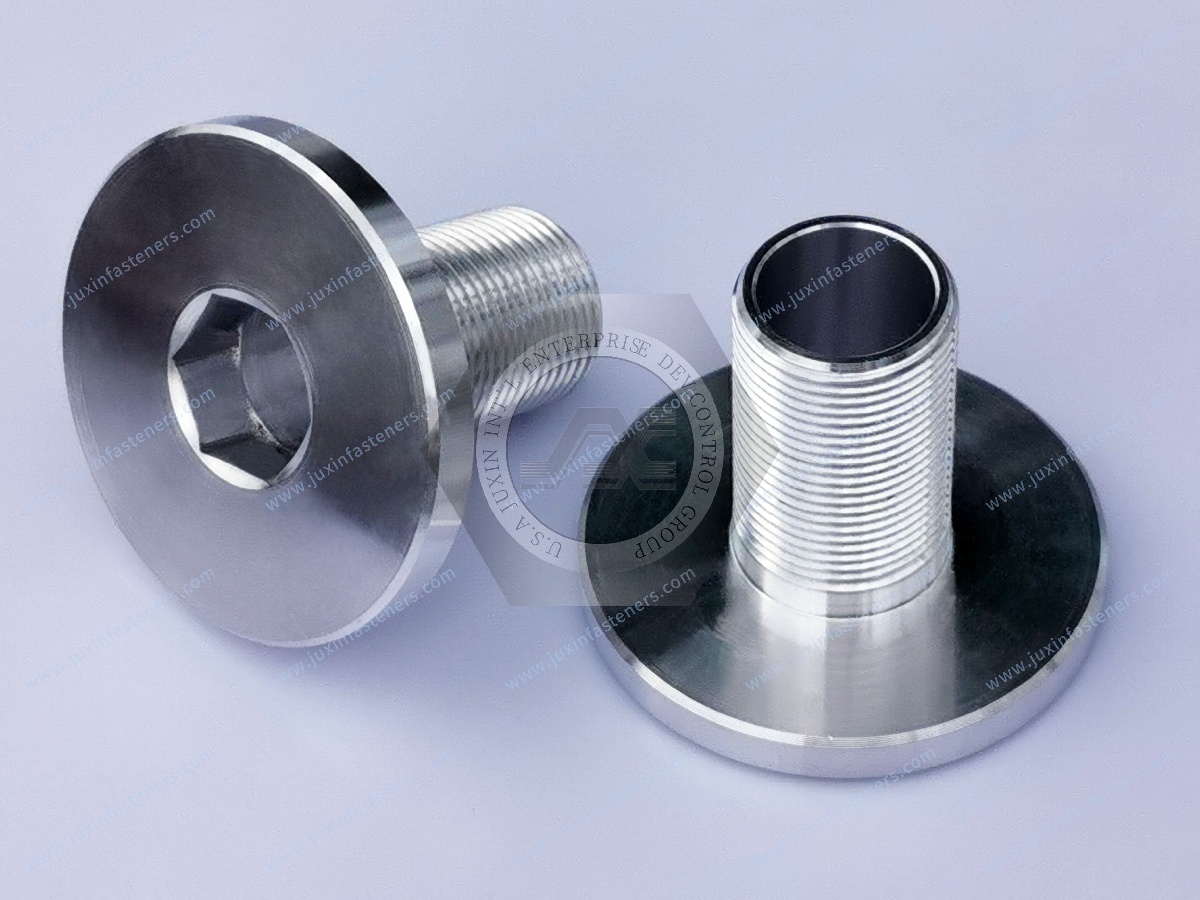

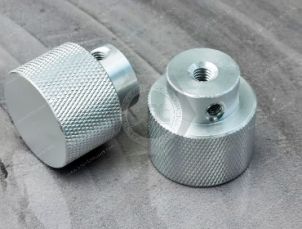

Threaded Aluminum Mounting Components

Custom threaded blocks and mounting interfaces may provide fastening points for equipment housings, brackets, and auxiliary assemblies.

Thread design should consider aluminum alloy properties, engagement length, fastener strength, installation torque, and maintenance requirements.

For repeated assembly or higher mechanical loads, threaded inserts or alternative fastening arrangements may be considered.

CNC Machining Processes for Construction Equipment Components

Selecting the appropriate machining process affects dimensional accuracy, manufacturing efficiency, material utilization, and total OEM production cost.

JUXIN FASTENERS can evaluate suitable machining methods according to customer drawings, material requirements, component geometry, and production quantities.

CNC Milling for Brackets, Housings, and Mounting Blocks

CNC milling is suitable for components requiring multiple mounting faces, pockets, slots, bolt-hole patterns, and complex external profiles.

Typical applications include equipment brackets, sensor housings, mounting blocks, and mechanical adapters.

For parts requiring multiple machining setups, datum selection and fixture design are important for maintaining the positional relationship between critical features.

CNC Turning for Spacers and Cylindrical Components

CNC turning is suitable for cylindrical spacers, sleeves, bushings, pins, and threaded components.

The process can provide controlled diameters, lengths, concentricity, and surface finishes according to the approved drawing.

Swiss-type machining may be considered for certain small-diameter or slender components, depending on geometry and production requirements.

Turn-Mill Machining for Complex Mechanical Interfaces

Components combining cylindrical geometry with milled flats, cross-holes, slots, or other secondary features may benefit from turn-mill machining.

Combining operations can reduce handling and improve positional consistency when the process is appropriately designed.

However, the economic suitability depends on component complexity, setup requirements, cycle time, and production volume.

Drilling, Tapping, and Secondary Machining

Construction equipment mounting hardware frequently requires drilled holes, internal threads, countersinks, counterbores, and finished contact surfaces.

Hole geometry and thread specifications should be selected according to the mating fastener and the intended assembly method.

Burr removal and edge finishing are important because sharp edges or loose machining debris can interfere with installation, sealing interfaces, or adjacent equipment.

Engineering Design Considerations for Construction Equipment CNC Parts

Construction machinery components must be evaluated within the complete equipment assembly rather than solely against individual drawing dimensions.

Mechanical loading, impact exposure, vibration, environmental conditions, and installation methods can all influence component selection.

Shock Loading, Vibration, and Fatigue

Construction equipment may experience repeated vibration, sudden impact, and variable mechanical loads during operation.

These conditions can influence mounting brackets, threaded connections, spacers, and mechanical interfaces.

Engineers should consider load direction, cyclic stress, joint stiffness, and local stress concentrations.

Sharp internal corners, abrupt cross-section changes, and poorly positioned mounting holes can increase local stress and potentially reduce fatigue performance.

For components exposed to demanding service conditions, the complete assembly should be evaluated using the applicable customer design and validation requirements.

Thread Engagement and Fastening Reliability

Threaded connections in aluminum require careful evaluation because internal thread strength may limit the performance of the joint.

The required engagement length depends on aluminum alloy properties, thread geometry, fastener strength, and applied loads.

For repeated assembly or higher installation loads, threaded inserts or alternative fastening designs may be appropriate.

Metric ISO threads and Unified UNC/UNF threads must be specified according to their respective thread systems.

Metric, UNC/UNF, and British Whitworth threads are not directly interchangeable.

Installation torque should be established from the complete joint design, including fastener material, surface condition, lubrication, and required preload.

Fastener Loosening Under Vibration

Construction equipment fastening systems may experience vibration, shock, and repeated loading.

These conditions can increase the risk of joint loosening if the fastening system is not appropriately designed.

Depending on the application, suitable retention methods may include prevailing-torque locknuts, thread-locking compounds, mechanical locking devices, or other engineered solutions.

No single locking method should be assumed suitable for every operating environment.

Fastener selection should account for installation torque, preload retention, service temperature, corrosion exposure, and maintenance requirements.

Dimensional Tolerances and Assembly Fit

Not every machined feature requires the same dimensional tolerance.

Critical mounting holes, locating diameters, threaded interfaces, and mating surfaces may require tighter control than nonfunctional exterior surfaces.

A practical tolerance strategy identifies critical-to-function dimensions and applies suitable manufacturing and inspection requirements.

ISO 1101 or ASME Y14.5 may be relevant where geometric tolerances are specified by the customer.

Unnecessarily restrictive tolerances can increase machining time, inspection costs, and production complexity without improving actual component performance.

Wear Resistance and Material Selection

Construction equipment often operates in environments involving abrasive dust, mud, debris, and repeated mechanical contact.

Aluminum may not provide sufficient wear resistance for components subjected to high bearing pressure or abrasive sliding contact.

Where wear is a primary design concern, engineers should evaluate contact geometry, hardness, lubrication, surface treatment, and alternative materials.

For heavily loaded pivot joints or sliding interfaces, suitable steel or engineered bearing materials may offer better performance than aluminum.

Material selection should be based on the actual operating conditions and expected service life.

Outdoor Corrosion and Environmental Exposure

Construction equipment may operate in environments involving rain, mud, humidity, cleaning chemicals, road salts, and outdoor atmospheric exposure.

Although aluminum offers useful corrosion resistance, its performance depends on alloy selection, surface treatment, and the actual environment.

Galvanic corrosion should be considered when aluminum contacts steel, stainless steel, or other dissimilar metals in the presence of moisture.

Suitable design measures may include protective coatings, isolation materials, drainage provisions, and appropriate material pairing.

Components exposed to aggressive environments may require additional corrosion protection or alternative materials.

Thermal Expansion and Mixed-Material Assemblies

Construction machinery may experience temperature changes during operation and outdoor storage.

Aluminum generally has a higher coefficient of thermal expansion than steel, meaning the two materials may expand or contract by different amounts under the same temperature change.

Where aluminum components are mechanically constrained by steel fasteners or supporting structures, differential thermal expansion can influence joint loading and dimensional relationships.

This consideration may be relevant for precision mounting interfaces, equipment housings, and assemblies exposed to significant temperature variation.

Surface Treatments for Aluminum Construction Equipment Components

Surface finishing should be selected according to the operating environment, mechanical function, appearance requirements, and assembly interfaces.

Potential finishing options for suitable aluminum alloys may include conventional anodizing, hard anodizing, conversion coatings, and other customer-specified treatments.

Anodizing may improve selected surface characteristics, but coating thickness can affect final dimensions and mating fits.

For precision components, the drawing should clarify whether critical dimensions apply before or after finishing.

Surface treatment selection should also consider galvanic corrosion and contact conditions in mixed-material assemblies.

For applicable anodic oxidation treatments, ISO 7599 may provide relevant specification guidance.

The actual finishing requirement should be selected according to the intended process and customer-approved specifications.

Precision, Repeatability, and Production Stability

For construction equipment OEM manufacturing, successful CNC machining requires more than producing a single accurate prototype.

The manufacturing process should consistently reproduce acceptable dimensions and functional characteristics across production batches.

Dimensional stability depends on machining programs, fixture repeatability, tooling condition, raw material variation, cutting parameters, and inspection methods.

For example, an aluminum equipment mounting block may require simultaneous control of mounting-face flatness, threaded-hole position, and overall height.

Inspecting only the external dimensions may not adequately verify its compatibility with the intended equipment assembly.

Manufacturing engineers should establish suitable machining datums, workholding arrangements, and inspection access for critical features.

Production managers should also consider cycle time, tool replacement intervals, setup changes, rework risk, and the impact of dimensional variation on downstream assembly operations.

Quality Control for Custom CNC Machined Construction Equipment Parts

Inspection planning should begin with the approved engineering drawing and the intended function of the component.

Depending on customer requirements, quality verification may include:

• Dimensional and geometric measurement

• Thread size and functional gauge inspection

• Hole diameter and positional verification

• Surface roughness and flatness measurement

• Material identification and documentation review

• Hardness verification when specified

• Visual inspection for burrs, damage, and surface defects

• Functional fit or assembly verification where applicable

Critical characteristics should be identified before production so that suitable inspection methods can be established.

For repeat OEM orders, drawing revision control and inspection records can help maintain consistency between production batches.

Construction equipment manufacturers may also specify project-specific documentation, material traceability, surface treatment records, or additional verification requirements.

Any structural, fatigue, or safety-critical qualification requirements must be established according to the actual component function and customer specifications.

From Prototype Development to Repeat OEM Production

CNC machining supports engineering development because component geometry and machining programs can often be revised without dedicated forming dies.

A typical drawing-based manufacturing workflow includes:

• Engineering drawing and CAD review

• Material and manufacturing process selection

• CNC programming and process preparation

• Prototype or first-article machining

• Dimensional and functional inspection

• Process optimization and production planning

• Repeat production and final inspection

During prototype development, engineering teams may identify opportunities to simplify geometry, improve tool access, adjust noncritical tolerances, or standardize fastening interfaces.

These changes should be evaluated against the approved functional requirements before being incorporated into production drawings.

For higher-volume requirements, machining cost should be assessed alongside material utilization, fixture requirements, cycle time, finishing operations, inspection effort, and production scheduling.

Alternative manufacturing methods, including extrusion followed by CNC machining, may be economical for certain component geometries and production volumes.

However, any process substitution must be reviewed for dimensional capability, material properties, tooling investment, and customer approval requirements.

Reducing CNC Machining Costs for Construction Equipment OEM Programs

OEM purchasing teams often evaluate custom CNC machined components using unit price, but total procurement cost also depends on production consistency, assembly efficiency, inspection requirements, and supply continuity.

A lower quoted price may not represent the most economical solution if component variation causes installation difficulties, additional inspection, or assembly rework.

Several engineering and procurement decisions can influence total manufacturing cost.

Functional Tolerance Allocation: Applying tighter tolerances only where required can reduce unnecessary machining and inspection effort.

Material Selection: Choosing the appropriate aluminum alloy and temper helps balance mechanical requirements, machinability, availability, and cost.

Component Geometry: Simplifying deep pockets, complex internal features, and difficult machining access can reduce cycle time and tooling requirements.

Standardized Fastening Interfaces: Where permitted by the design, common thread sizes, mounting-hole arrangements, and compatible fastening hardware can simplify assembly and maintenance.

Production Quantity Planning: Realistic order quantities and forecast information help determine appropriate manufacturing and purchasing arrangements.

Drawing Revision Control: Maintaining clear drawing revisions reduces the risk of producing obsolete components and supports repeat-order consistency.

These considerations are particularly valuable when multiple mounting brackets, spacers, adapters, threaded components, and fastening parts are sourced for the same construction equipment platform.

OEM Supplier Evaluation and RFQ Requirements

For construction equipment manufacturers, procurement specialists, supplier development teams, and supply chain managers, selecting a CNC machining supplier requires consideration of technical suitability, manufacturing consistency, and commercial requirements.

A complete RFQ package should include the information needed to evaluate both the component and its production requirements.

Recommended information includes:

• 2D engineering drawings and 3D CAD models

• Aluminum alloy, temper, and applicable material specification

• Critical dimensions and geometric tolerances

• Surface treatment and corrosion protection requirements

• Thread specifications and mating assembly information

• Mechanical loading and environmental conditions

• Prototype quantity and expected production volume

• Inspection, documentation, and traceability requirements

• Packaging, delivery destination, and project schedule

For repeat OEM programs, anticipated annual demand and purchasing schedules can support production planning and commercial evaluation.

MOQ, manufacturing lead time, and production arrangements depend on component geometry, material availability, machining complexity, finishing requirements, and order quantity.

Supplier qualification and any construction equipment compliance requirements should be established according to the customer's project specifications.

Custom CNC Machining and Fastening Solutions for Global Construction Equipment OEMs

JUXIN FASTENERS supplies custom CNC machined components and industrial fastening hardware for international OEM applications.

In construction equipment manufacturing, precision-machined aluminum components frequently operate together with bolts, screws, nuts, threaded inserts,

washers, spacers, bushings, and other mechanical connection hardware.

Evaluating these components as part of a complete assembly can help identify dimensional and fastening compatibility concerns before production.

For example, a custom aluminum mounting bracket should be evaluated together with its mating fastener, installation method, expected joint loading, and supporting structure.

This assembly-oriented approach can help engineering and manufacturing teams address practical installation requirements while supporting more consistent component sourcing.

Related applications may include construction machinery, agricultural equipment, industrial machinery, hydraulic equipment mounting, automation systems,

and other engineered assemblies requiring precision mechanical components.

Safety-critical structural or load-bearing components require separate engineering validation and applicable customer approval.

Request an OEM Aluminum CNC Machining Quote

If your company is sourcing custom aluminum CNC machined components, construction equipment mounting brackets, precision spacers,

equipment housings, mechanical adapters, or drawing-based fastening hardware, contact JUXIN FASTENERS for technical evaluation and quotation.

Please send your 2D engineering drawings, 3D CAD files, sample information, material specifications, critical tolerances, surface treatment requirements, expected order quantities, and inspection criteria.

Where applicable, please also identify mechanical loading, vibration exposure, operating environment, and any project-specific quality or documentation requirements.

Our team can review the manufacturing requirements and discuss suitable CNC machining processes, component specifications, and commercial quotation details.

JUXIN FASTENERS

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Custom Aluminum CNC Machining | Construction Equipment Components | Precision Fastening Hardware | Drawing-Based OEM RFQ Support
