Aluminum CNC Machining for Electrical Cabinet Components

Precision CNC Machining for Electrical Enclosures and OEM Control Cabinet Applications

Aluminum CNC machining provides a flexible manufacturing solution for electrical cabinet manufacturers, industrial control panel builders, automation equipment OEMs,

and engineering teams requiring accurate, repeatable, and application-specific mechanical components.

In electrical enclosure applications, precision-machined aluminum parts can support equipment mounting, controlled spacing, enclosure assembly, mechanical connections, and component positioning.

However, the suitability of a machined component depends on more than dimensional accuracy.

 Material selection, thread strength, surface condition, electrical conductivity, grounding requirements, corrosion exposure, and production consistency can all influence assembly performance and long-term reliability.

JUXIN FASTENERS supplies custom CNC machined components and industrial fastening hardware for drawing-based OEM applications.

Depending on component geometry, tolerance requirements, and production quantities, suitable manufacturing processes may include CNC milling,

 CNC turning, Swiss-type machining, drilling, tapping, pocketing, profiling, and turn-mill machining.

Customers can submit 2D engineering drawings, 3D CAD models, physical samples, material specifications, surface treatment requirements, and inspection criteria for technical review and quotation.

Why Aluminum Is Used in Electrical Cabinet CNC Components

Aluminum alloys are frequently selected for electrical enclosure components because they offer a useful combination of low density, machinability, corrosion resistance, and thermal conductivity.

Lightweight aluminum mounting hardware can simplify handling and installation in suitable cabinet assemblies,

while precision machining allows mounting interfaces to be produced according to customer-specific dimensional requirements.

Aluminum is also electrically conductive.

This characteristic may be useful in certain electrical applications but can introduce additional design requirements where electrical isolation is necessary.

For example, an aluminum mounting spacer used between two mechanical components may provide accurate positioning but should not automatically be considered electrically insulating.

Similarly, a machined aluminum mounting block installed inside a control cabinet must be evaluated according to the surrounding electrical equipment, grounding arrangement, installation loads, and environmental conditions.

Material and surface treatment selection should therefore reflect the actual function of each component.

Common Aluminum Alloys for Electrical Cabinet CNC Machining

Commonly specified aluminum alloys for precision CNC machining include 6061, 6063, 6082, and 7075.

These alloys offer different mechanical properties, machining characteristics, corrosion behavior, and material availability.

6061 Aluminum: Often selected for general-purpose machined mounting blocks, brackets, spacers, and enclosure hardware requiring a balance of strength, corrosion resistance, and machinability.

6063 Aluminum: Frequently associated with extruded profiles and components where surface finish, corrosion resistance, and moderate mechanical properties are important.

6082 Aluminum: Considered for structural and machined components, particularly where European material specifications are used.

7075 Aluminum: Provides higher strength in suitable tempers but requires additional consideration of corrosion exposure, material condition, and surface treatment.

Its higher strength is not automatically necessary for typical electrical cabinet hardware.

The appropriate alloy should be selected according to the component's mechanical function, installation environment, machining requirements, and applicable customer specifications.

For example, a standard mounting spacer may not require the same material strength as a heavily loaded equipment support bracket.

Material substitutions should not be made solely on the basis of similar alloy families or nominal strength values.

Typical CNC Machined Components for Electrical Cabinets

Custom CNC machined aluminum components can support a range of mechanical mounting, positioning, and assembly functions within electrical cabinets and industrial control systems.

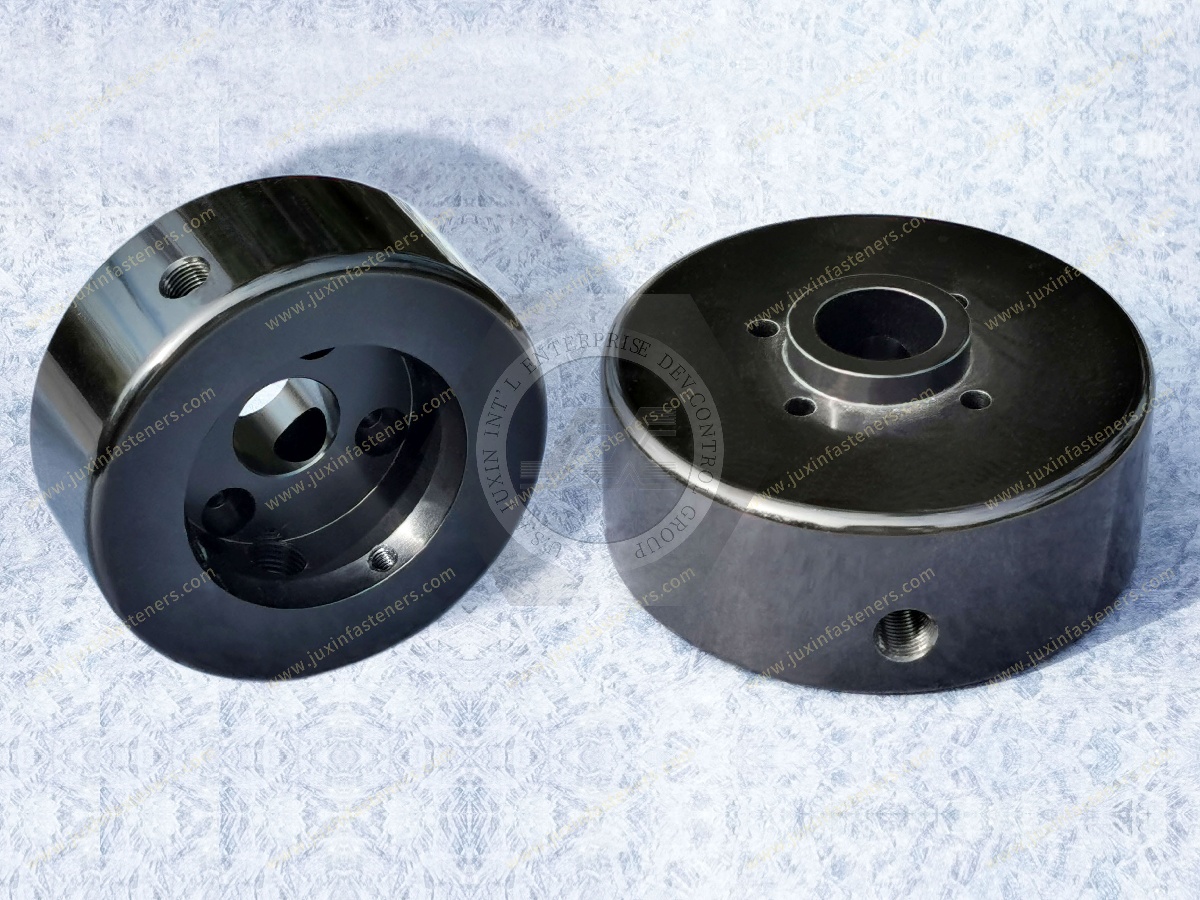

Precision Aluminum Mounting Blocks

CNC machined mounting blocks provide defined fastening positions for electrical equipment, control modules, enclosure assemblies, and supporting structures.

Important design considerations include mounting-hole location, threaded hole depth, contact-face flatness, and the relationship between the mounting block and the cabinet structure.

Where equipment is installed using multiple mounting points, dimensional consistency can help reduce alignment problems during assembly.

Aluminum Spacers and Standoffs

Precision aluminum spacers and standoffs establish controlled distances between components and support consistent equipment positioning.

Critical dimensions may include overall length, internal diameter, external diameter, parallelism, and contact-face quality.

For bolted assemblies, spacer geometry should also be evaluated for compressive loading and the required joint stiffness.

Where electrical insulation is required, conductive aluminum spacers may be unsuitable unless the complete assembly incorporates an appropriately validated insulating arrangement.

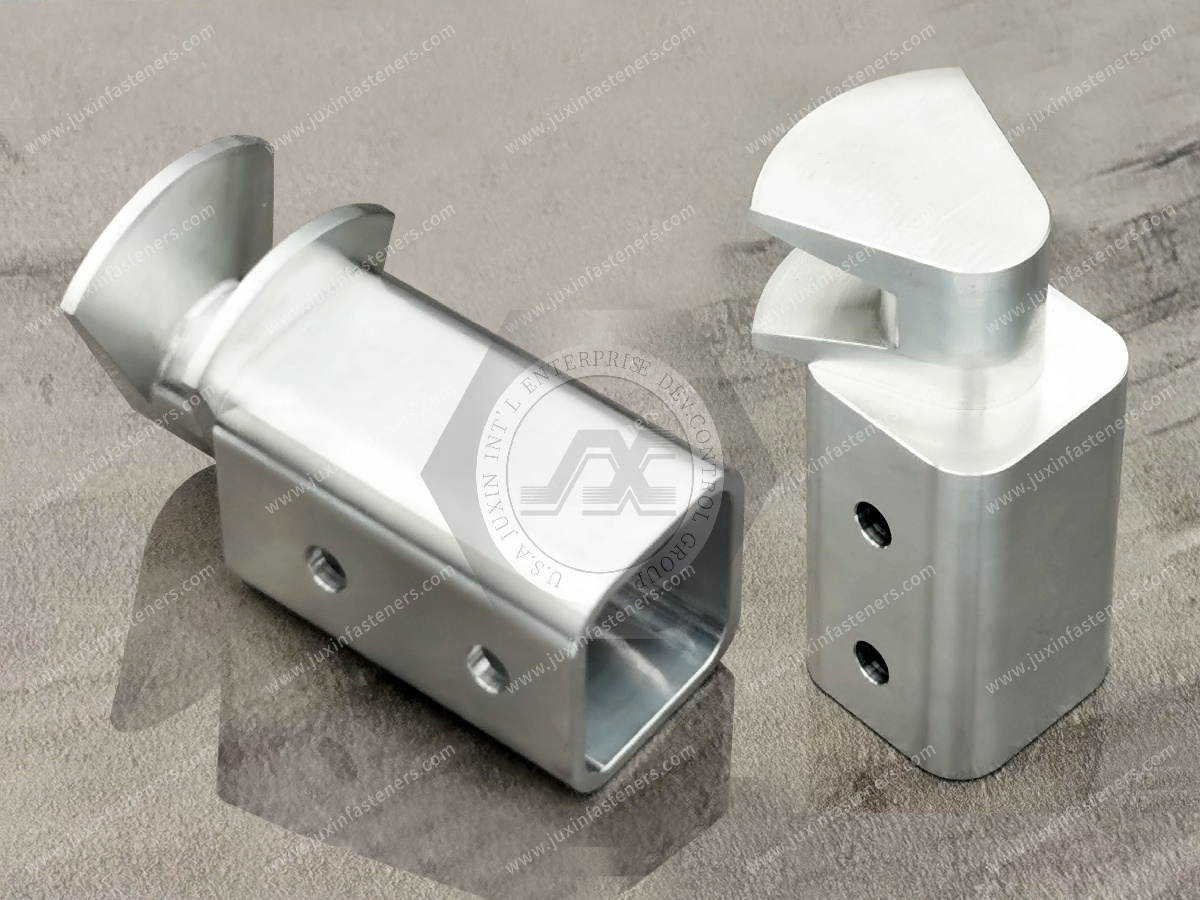

CNC Machined Aluminum Brackets

Custom aluminum brackets can support control units, electrical equipment, cable-management hardware, and auxiliary enclosure components.

Bracket design should consider mechanical loading, available installation space, fastener access, mounting-hole positioning, and the stiffness of the supporting panel.

Thin or flexible cabinet panels may require additional reinforcement or a different fastening arrangement to prevent local deformation.

Threaded Aluminum Mounting Components

Custom threaded blocks and adapters may provide fastening interfaces for enclosure covers, internal mounting structures, and equipment supports.

Thread design should account for the aluminum alloy, thread engagement length, fastener strength, installation torque, and expected maintenance requirements.

For repeated assembly or demanding mechanical applications, threaded inserts or alternative fastening arrangements may be considered.

Custom Connectors and Mechanical Adapters

CNC machined adapters and mechanical connection components can provide interfaces between equipment housings, mounting plates, brackets, and other cabinet structures.

Their design may require controlled hole patterns, alignment features, threaded interfaces, and accurately machined contact surfaces.

Mechanical adapters should not automatically be treated as qualified electrical connectors. Components intended to carry electrical current require separate electrical design and verification.

Precision Pins, Bushings, and Positioning Components

Custom pins, sleeves, bushings, and locating components may support assembly positioning and alignment.

The appropriate material and machining process depend on dimensional requirements, contact loads, wear conditions, and the intended mechanical function.

CNC Machining Processes for Electrical Cabinet Components

Selecting the appropriate CNC machining process affects dimensional accuracy, production efficiency, material utilization, and total OEM component cost.

JUXIN FASTENERS can evaluate suitable machining methods based on customer drawings, material requirements, component geometry, and production quantities.

CNC Milling for Mounting Blocks and Brackets

CNC milling is suitable for components requiring multiple mounting faces, pockets, slots, bolt-hole patterns, and complex external profiles.

Typical applications include mounting blocks, equipment brackets, mechanical adapters, and enclosure interface components.

For components requiring multiple machining setups, datum selection and fixture design are important for maintaining the positional relationship between critical features.

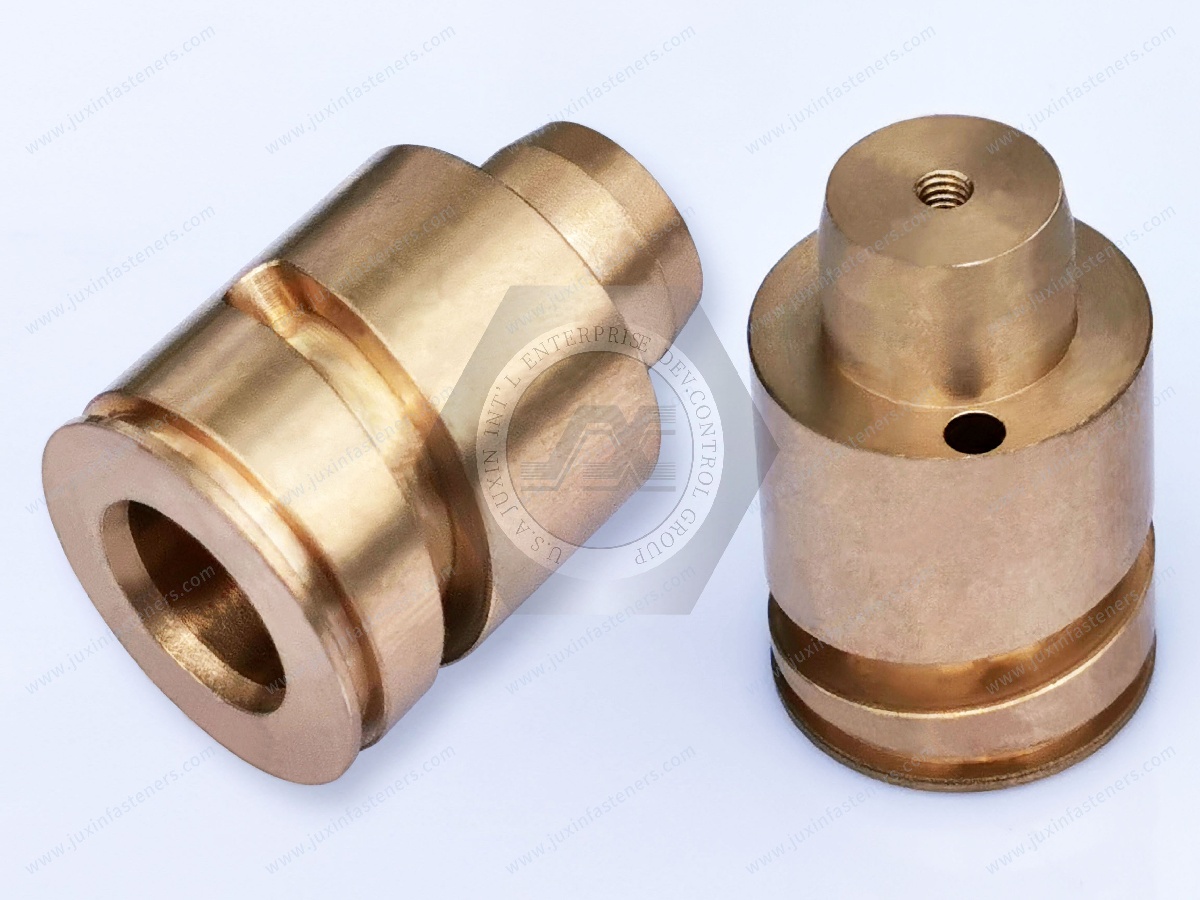

CNC Turning for Spacers, Sleeves, and Cylindrical Parts

CNC turning is suitable for cylindrical spacers, standoffs, sleeves, bushings, pins, and threaded components.

The process can provide controlled diameters, lengths, concentricity, and surface finishes according to the approved drawing.

Swiss-type machining may be considered for certain small-diameter or slender components, depending on geometry and production requirements.

Turn-Mill Machining for Multi-Feature Components

Components combining cylindrical geometry with milled flats, cross-holes, slots, or other secondary features may benefit from turn-mill machining.

Combining operations can reduce handling and improve positional consistency when the process is appropriately designed.

However, the economic suitability depends on setup requirements, cycle time, component complexity, and production quantity.

Drilling, Tapping, and Secondary Operations

Electrical cabinet mounting hardware frequently requires drilled holes, internal threads, countersinks, counterbores, and finished contact surfaces.

Hole geometry and thread specifications should be selected according to the mating fastener and the intended assembly method.

Burr removal and edge finishing are important because sharp edges or loose machining debris can interfere with installation and may create unacceptable risks near electrical equipment.

Engineering Design Considerations for Electrical Cabinet CNC Parts

Electrical cabinet components must be evaluated within the complete enclosure assembly rather than solely against their individual drawing dimensions.

Mechanical loading, installation methods, electrical safety requirements, environmental exposure, and production processes can all influence component selection.

Electrical Grounding and Bonding Requirements

Aluminum is electrically conductive, but electrical conductivity alone does not establish a reliable protective bonding connection.

Where a machined aluminum component forms part of a protective bonding path, engineers must evaluate contact resistance, surface treatment, fastening method, corrosion behavior, and long-term connection stability.

Anodized surfaces can affect electrical contact performance and should not automatically be assumed suitable for grounding interfaces.

The complete protective bonding arrangement must be designed and verified according to the applicable equipment requirements.

For relevant low-voltage switchgear and controlgear assemblies, IEC 61439 may provide applicable system-level requirements.

However, a CNC machined component does not automatically comply with IEC 61439 merely because it is installed in an electrical cabinet.

Electrical Isolation and Clearance Requirements

Where aluminum spacers, brackets, or mounting blocks are installed near energized conductors, the assembly must maintain the required electrical insulation, clearances, and creepage distances.

These requirements depend on the electrical system, voltage conditions, pollution degree, insulation materials, and applicable equipment standard.

IEC 60664-1 may be relevant to insulation coordination for equipment within its scope.

Machined aluminum components should not be described as electrically insulating unless a separately qualified insulation system provides the required function.

Anodizing alone should not be assumed to provide a certified electrical insulation barrier without appropriate verification.

Mounting Panel Thickness and Fastening Design

Electrical cabinet mounting components may be attached to sheet-metal panels, mounting plates, extruded profiles, or other supporting structures.

The appropriate fastening method depends on panel thickness, material strength, available access, required clamp load, and anticipated maintenance.

For thin sheet-metal panels, direct tapping may not provide sufficient thread engagement for the intended load.

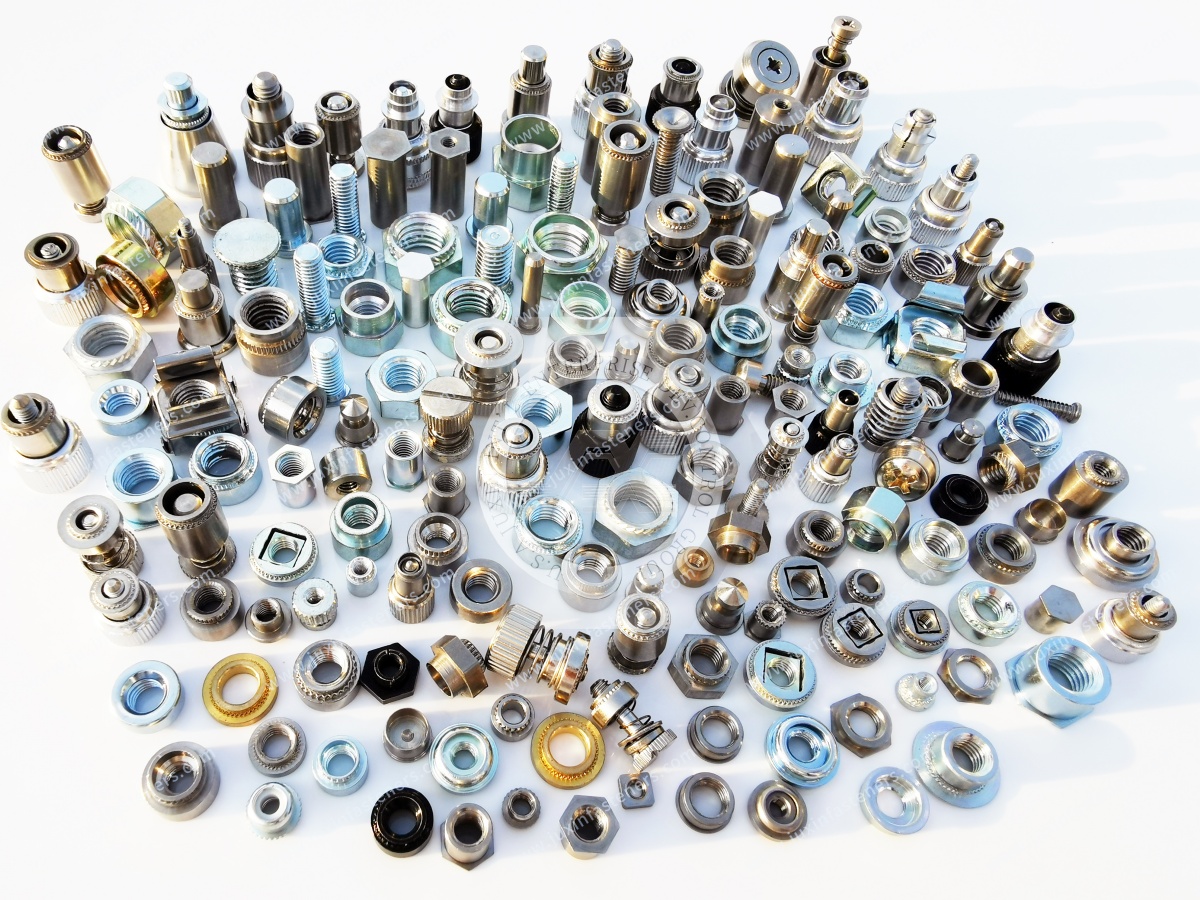

Alternative solutions may include suitable clinch nuts, rivet nuts, threaded inserts, weld nuts, or through-bolted connections, depending on the design.

Where JUXIN FASTENERS supplies the relevant fastening hardware, the fastener and machined component can be evaluated together for dimensional and assembly compatibility.

Panel thickness should be specified using the actual drawing dimension rather than assuming that nominal sheet-metal gauge designations are interchangeable across markets.

Thread Engagement and Mechanical Reliability

Threaded connections in aluminum require careful evaluation because internal thread strength may limit the performance of the joint.

The required thread engagement length depends on aluminum alloy properties, thread geometry, fastener strength, and applied loading.

For repeated assembly or higher installation loads, threaded inserts or alternative fastening designs may be appropriate.

Metric ISO threads and Unified UNC/UNF threads must be specified according to their respective thread systems.

Metric, UNC/UNF, and British Whitworth threads are not directly interchangeable.

Installation torque should be established from the complete joint design, including fastener material, surface condition, lubrication, and required preload.

Dimensional Tolerances and Assembly Fit

Not every machined feature requires the same dimensional tolerance.

Critical mounting holes, locating diameters, threaded interfaces, and mating surfaces may require tighter control than nonfunctional exterior surfaces.

A practical tolerance strategy identifies critical-to-function dimensions and applies suitable manufacturing and inspection requirements.

ISO 1101 or ASME Y14.5 may be relevant where geometric tolerances are specified by the customer.

Unnecessarily restrictive tolerances can increase machining time, inspection costs, and production complexity without improving the actual function of the component.

Thermal Management and Material Compatibility

Electrical cabinets may contain power electronics, drives, transformers, switching devices, and other equipment that generates heat.

Aluminum offers useful thermal conductivity, but the thermal performance of a machined component depends on its geometry, surface contact, interface materials, and installation conditions.

A machined aluminum mounting block should not automatically be considered an effective heat sink without thermal analysis.

Where components are intended to transfer heat, engineers should evaluate contact area, flatness, thermal interface resistance, and operating temperature.

Mixed-material assemblies should also account for differential thermal expansion where temperature changes could influence joint loading or dimensional relationships.

Surface Treatments and Corrosion Protection

Surface finishing should be selected according to the intended environment, mechanical function, appearance requirements, and electrical contact conditions.

Potential finishing options for suitable aluminum alloys may include conventional anodizing, hard anodizing, conversion coatings, and other customer-specified treatments.

Anodizing may improve selected surface characteristics, but it can also affect dimensional fit and electrical conductivity at contact interfaces.

Where protective bonding or electrical continuity is required, the treatment and connection design must be evaluated together.

Galvanic corrosion should also be considered when aluminum contacts steel, stainless steel, copper, or other dissimilar metals in the presence of moisture.

Suitable measures may include protective coatings, isolation materials, drainage provisions, and appropriate material pairing.

For applicable anodic oxidation treatments, ISO 7599 may provide relevant specification guidance.

The actual surface treatment must be selected according to the required performance and customer-approved specifications.

Precision, Repeatability, and Production Stability

For electrical cabinet OEM manufacturing, successful CNC machining requires more than producing a single accurate prototype.

The manufacturing process should consistently reproduce acceptable dimensions and functional characteristics across production batches.

Dimensional stability depends on machining programs, fixture repeatability, tooling condition, raw material variation, cutting parameters, and inspection methods.

For example, an aluminum mounting block may require simultaneous control of mounting-face flatness, threaded-hole position, and overall height.

Inspecting only the external dimensions may not adequately verify its compatibility with the intended enclosure assembly.

Manufacturing engineers should establish suitable machining datums, workholding arrangements, and inspection access for critical features.

Production managers should also consider cycle time, tool replacement intervals, setup changes, rework risk, and the impact of dimensional variation on downstream assembly operations.

Quality Control for Custom CNC Machined Electrical Cabinet Parts

Inspection planning should begin with the approved engineering drawing and the intended function of the component.

Depending on customer requirements, quality verification may include:

• Dimensional and geometric measurement

• Thread size and functional gauge inspection

• Hole diameter and positional verification

• Surface roughness and flatness measurement

• Material identification and documentation review

• Hardness verification when specified

• Visual inspection for burrs, damage, and surface defects

• Functional fit or assembly verification where applicable

Critical characteristics should be identified before production so that suitable inspection methods can be established.

For repeat OEM orders, drawing revision control and inspection records can help maintain consistency between production batches.

Electrical equipment manufacturers may also specify project-specific documentation, material traceability, surface treatment records, or additional verification requirements.

Any electrical safety testing or certification requirements must be established according to the complete equipment design and applicable customer specifications.

From Prototype Development to Repeat OEM Production

CNC machining supports engineering development because component geometry and machining programs can often be revised without dedicated forming dies.

A typical drawing-based manufacturing workflow includes:

• Engineering drawing and CAD review

• Material and manufacturing process selection

• CNC programming and process preparation

• Prototype or first-article machining

• Dimensional and functional inspection

• Process optimization and production planning

• Repeat production and final inspection

During prototype development, engineering teams may identify opportunities to simplify geometry, improve tool access, adjust noncritical tolerances, or standardize fastening interfaces.

These changes should be evaluated against the approved functional requirements before being incorporated into production drawings.

For higher-volume requirements, machining cost should be assessed alongside material utilization, fixture requirements, cycle time, finishing operations, inspection effort, and production scheduling.

Alternative manufacturing methods, including extrusion followed by CNC machining, may be economical for certain component geometries and production volumes.

However, any process substitution must be reviewed for dimensional capability, material properties, tooling investment, and customer approval requirements.

Reducing CNC Machining Costs for Electrical Cabinet OEM Programs

OEM purchasing teams often evaluate custom CNC machined components using unit price, but total procurement cost also depends on production consistency,

assembly efficiency, inspection requirements, and supply continuity.

A lower quoted price may not represent the most economical solution if component variation causes installation difficulties, additional inspection, or assembly rework.

Several engineering and procurement decisions can influence total manufacturing cost.

Functional Tolerance Allocation: Applying tighter tolerances only where required can reduce unnecessary machining and inspection effort.

Material Selection: Choosing the appropriate aluminum alloy and temper helps balance mechanical requirements, machinability, availability, and cost.

Component Geometry: Simplifying deep pockets, complex internal features, and difficult machining access can reduce cycle time and tooling requirements.

Standardized Fastening Interfaces: Where permitted by the design, common thread sizes, mounting-hole arrangements, and compatible fastening hardware can simplify assembly and maintenance.

Production Quantity Planning: Realistic order quantities and forecast information help determine appropriate manufacturing and purchasing arrangements.

Drawing Revision Control: Maintaining clear drawing revisions reduces the risk of producing obsolete components and supports repeat-order consistency.

These considerations are particularly valuable when multiple mounting blocks, spacers, brackets, threaded components, and fastening parts are sourced for the same electrical cabinet platform.

OEM Supplier Evaluation and RFQ Requirements

For electrical cabinet manufacturers, procurement specialists, supplier development teams,

and supply chain managers, selecting a CNC machining supplier requires consideration of technical suitability, manufacturing consistency, and commercial requirements.

A complete RFQ package should include the information needed to evaluate both the component and its production requirements.

Recommended information includes:

• 2D engineering drawings and 3D CAD models

• Aluminum alloy, temper, and applicable material specification

• Critical dimensions and geometric tolerances

• Surface treatment and corrosion protection requirements

• Thread specifications and mating assembly information

• Mounting panel thickness and installation requirements

• Prototype quantity and expected production volume

• Inspection, documentation, and traceability requirements

• Packaging, delivery destination, and project schedule

For repeat OEM programs, anticipated annual demand and purchasing schedules can support production planning and commercial evaluation.

MOQ, manufacturing lead time, and production arrangements depend on component geometry, material availability, machining complexity, finishing requirements, and order quantity.

Supplier qualification and any electrical equipment compliance requirements should be established according to the customer's project specifications.

Custom CNC Machining and Fastening Solutions for Global Electrical Cabinet OEMs

JUXIN FASTENERS supplies custom CNC machined components and industrial fastening hardware for international OEM applications.

In electrical cabinet manufacturing, precision-machined aluminum components frequently operate together with bolts, screws, nuts, threaded inserts,

 washers, spacers, bushings, and other mechanical connection hardware.

Evaluating these components as part of a complete assembly can help identify dimensional and fastening compatibility concerns before production.

For example, a custom aluminum mounting block should be evaluated together with its mating fastener, installation method, expected joint loading, and supporting panel thickness.

This assembly-oriented approach can help engineering and manufacturing teams address practical installation requirements while supporting more consistent component sourcing.

Related applications may include industrial control cabinets, electrical enclosures, automation equipment, power distribution equipment, machinery, robotics,

HVAC control systems, and other engineered assemblies requiring precision mechanical components.

Electrical safety, protective bonding, and equipment certification requirements must be verified at the appropriate assembly or system level.

Request an OEM Aluminum CNC Machining Quote

If your company is sourcing custom aluminum CNC machined components, electrical cabinet mounting blocks, precision spacers, brackets, threaded adapters, or drawing-based enclosure hardware,

contact JUXIN FASTENERS for technical evaluation and quotation.

Please send your 2D engineering drawings, 3D CAD files, sample information, material specifications, critical tolerances, surface treatment requirements, expected order quantities, and inspection criteria.

Where applicable, please also identify mounting panel thickness, grounding requirements, electrical isolation requirements, and any project-specific documentation needs.

Our team can review the manufacturing requirements and discuss suitable CNC machining processes, component specifications, and commercial quotation details.

JUXIN FASTENERS

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Custom Aluminum CNC Machining | Electrical Cabinet Components | Precision Fastening Hardware | Drawing-Based OEM RFQ Support
