Aluminum CNC Machining for HVAC Equipment Components

Precision CNC Machining for HVAC OEM and Thermal Management Applications

Aluminum CNC machining provides a flexible manufacturing solution for HVAC equipment manufacturers, refrigeration system OEMs, thermal management equipment suppliers,

and engineering teams requiring accurate, repeatable, and application-specific mechanical components.

In heating, ventilation, air conditioning, and refrigeration equipment, precision-machined aluminum parts can support fan assemblies, equipment mounting,

 mechanical positioning, enclosure construction, valve-related interfaces, and auxiliary thermal management systems.

However, the performance of a CNC machined component depends on more than dimensional accuracy.

Material selection, mechanical loading, vibration exposure, thermal expansion, corrosion resistance, fastening compatibility, and manufacturing consistency can all influence equipment reliability and assembly efficiency.

JUXIN FASTENERS supplies custom CNC machined components and industrial fastening hardware for drawing-based OEM applications.

Depending on component geometry, tolerance requirements, and production quantities, suitable manufacturing processes may include CNC milling,

CNC turning, Swiss-type machining, drilling, tapping, pocketing, profiling, and turn-mill machining.

Customers can submit 2D engineering drawings, 3D CAD models, physical samples, material specifications, surface treatment requirements, and inspection criteria for technical review and quotation.

Why Aluminum Is Used in HVAC CNC Components

Aluminum alloys are widely considered for HVAC mechanical components because they offer a useful combination of low density, machinability, corrosion resistance, and thermal conductivity.

Lightweight aluminum components can simplify handling and installation in suitable HVAC assemblies, while CNC machining provides the flexibility to manufacture application-specific mounting and interface features.

Aluminum's thermal conductivity can be useful in certain thermal management applications,

but a machined aluminum component should not automatically be considered an effective heat sink or heat-transfer component without appropriate engineering evaluation.

Similarly, corrosion resistance depends on the specific alloy, surface treatment, environmental exposure, and contact with other materials.

For example, an aluminum mounting spacer installed inside a protected HVAC control enclosure has different environmental requirements from a component exposed to condensation,

cleaning chemicals, or outdoor atmospheric conditions.

Material selection should therefore reflect the component's actual operating environment and mechanical function.

Common Aluminum Alloys for HVAC CNC Machining

Commonly specified aluminum alloys for precision CNC machining include 6061, 6063, 6082, and 7075.

These materials offer different mechanical properties, machining characteristics, corrosion behavior, and cost considerations.

6061 Aluminum: Often selected for general-purpose machined brackets, mounting blocks, spacers, and equipment interfaces requiring a balance of strength, machinability, and corrosion resistance.

6063 Aluminum: Frequently associated with extruded profiles and components where surface finish, corrosion resistance, and moderate mechanical requirements are important.

6082 Aluminum: Considered for structural and machined components, particularly where European material specifications are used.

7075 Aluminum: Provides higher strength in suitable tempers but requires additional evaluation of corrosion behavior, material condition, and surface treatment.

Its higher strength is not automatically necessary for typical HVAC mounting hardware.

The appropriate alloy should be selected according to the component's mechanical loading, operating temperature, corrosion exposure, machining requirements, and applicable customer specifications.

For example, a lightweight equipment spacer may not require the same material strength as a heavily loaded compressor mounting component.

Material substitutions should not be made solely because two alloys belong to the same general aluminum family.

Typical CNC Machined Components for HVAC Equipment

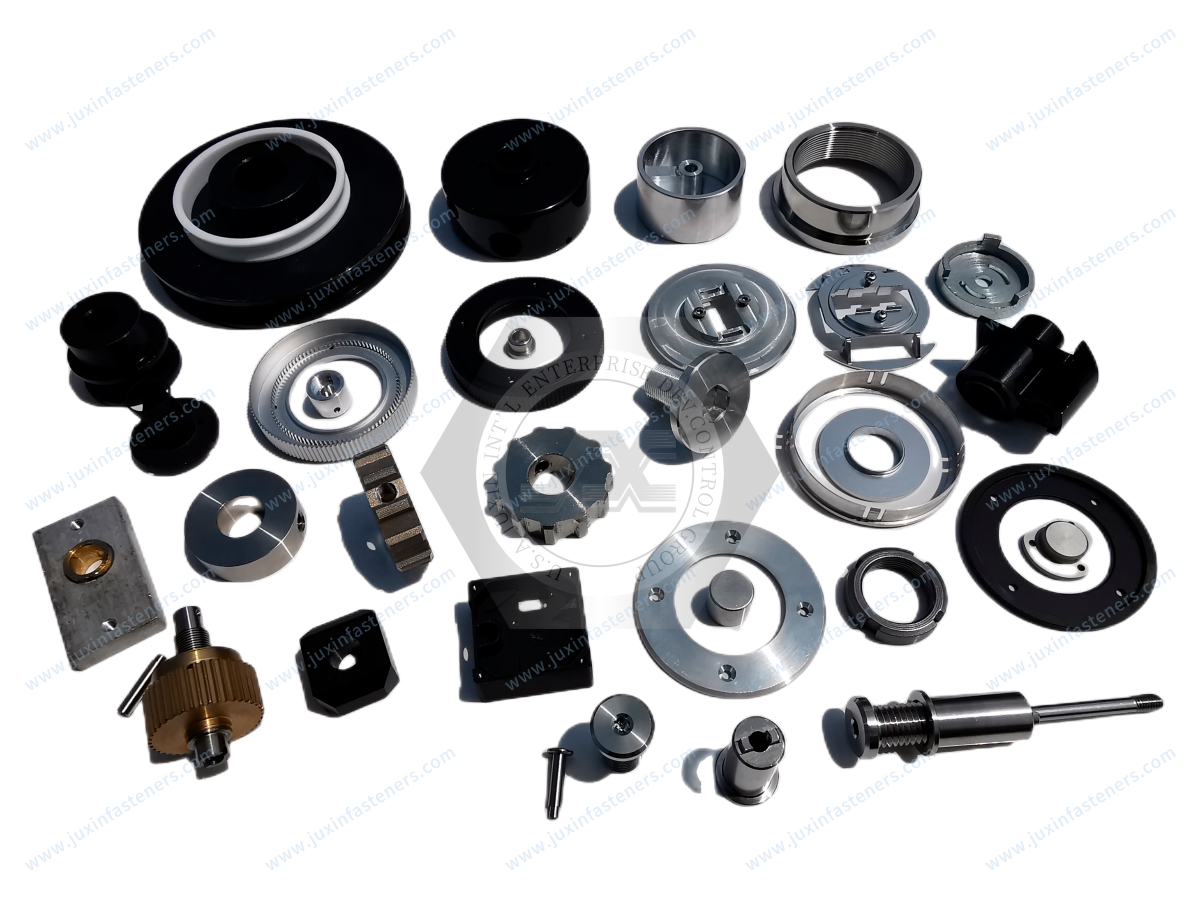

Custom CNC machined aluminum parts can support a range of mechanical, mounting, positioning, and equipment interface functions.

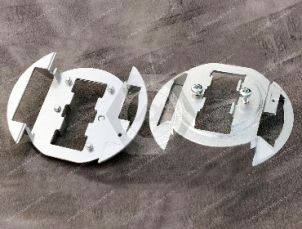

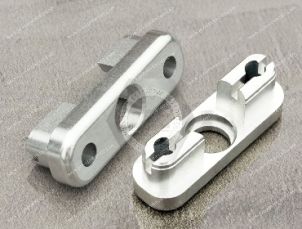

Precision Aluminum Mounting Brackets

CNC machined brackets can support fan assemblies, control modules, auxiliary equipment, enclosure components, and mechanical mounting systems.

Important design considerations include mounting-hole position, bracket stiffness, load direction, installation access, and the relationship between the bracket and its supporting structure.

Where brackets are exposed to vibration or cyclic loading, engineers should evaluate fatigue behavior and local stress concentrations around mounting holes and geometric transitions.

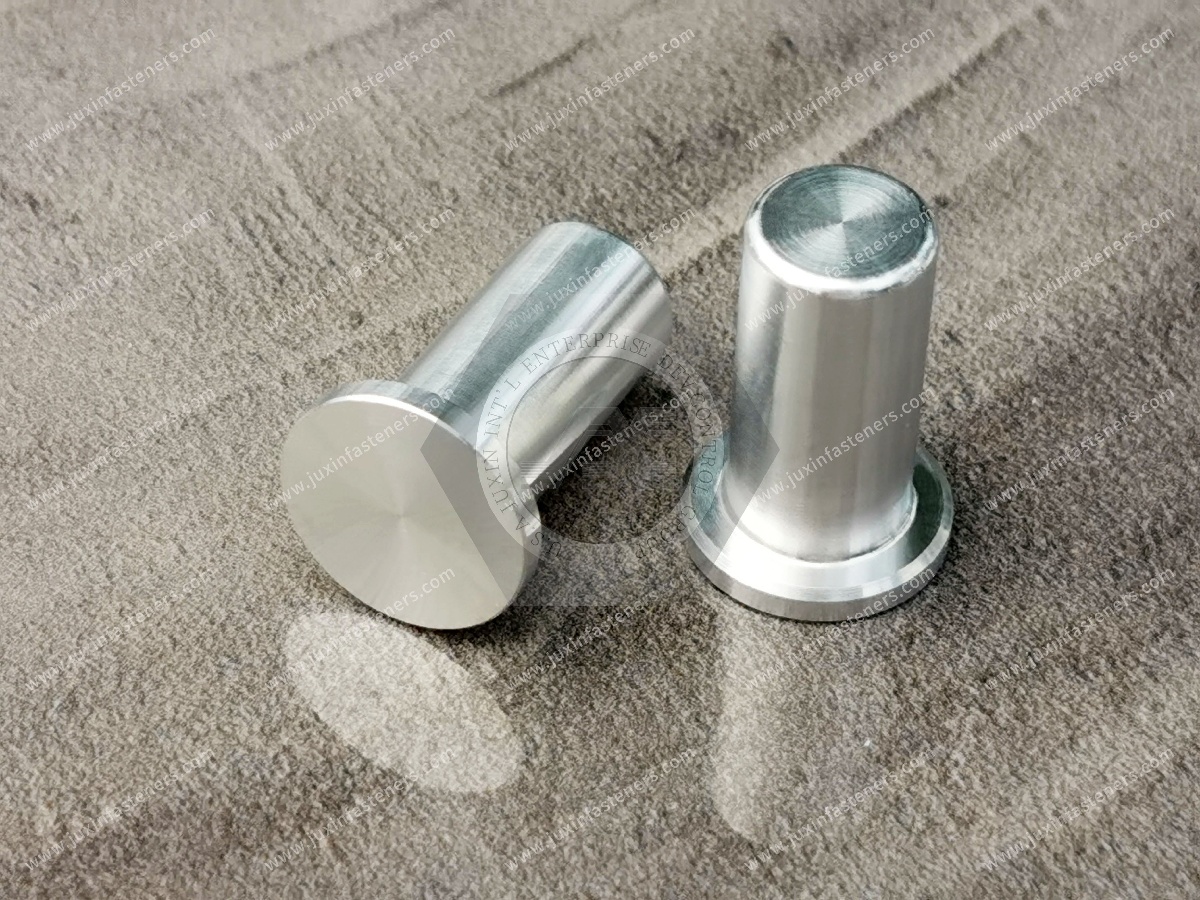

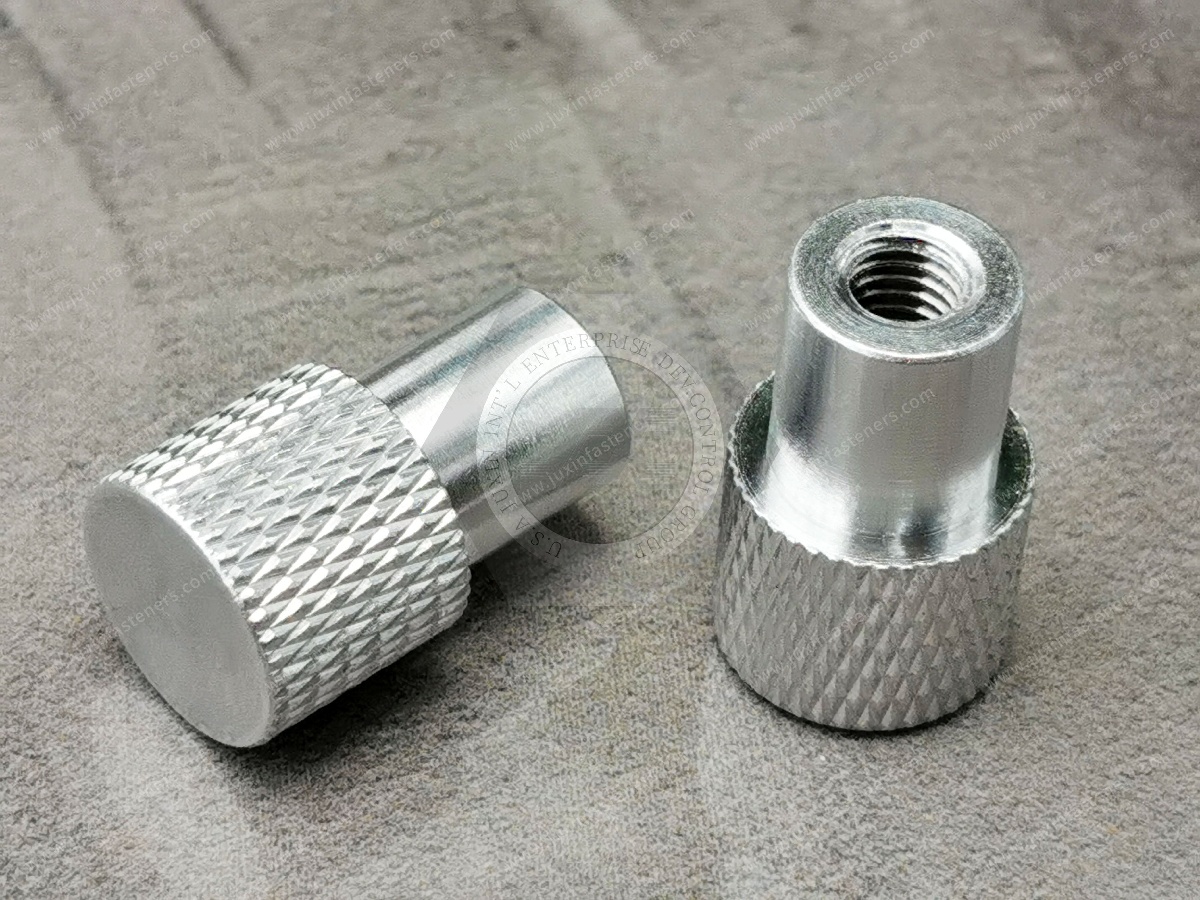

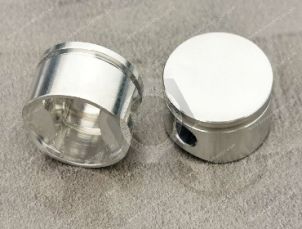

Aluminum Spacers and Standoffs

Precision aluminum spacers establish controlled distances between components and help maintain consistent equipment positioning.

Critical dimensions may include overall length, internal diameter, external diameter, parallelism, and contact-face quality.

For bolted assemblies, spacer geometry should be evaluated for compressive loading, joint stiffness, and the possibility of local deformation.

Where electrical isolation is required, conductive aluminum spacers may not be suitable without an appropriately validated insulating arrangement.

CNC Machined Shafts and Bushings

Custom shafts, sleeves, and bushings may support selected positioning, alignment, and mechanical interface functions.

However, aluminum is not automatically suitable for every rotating or wear-bearing HVAC application.

Where components experience sliding contact, repeated rotation, high bearing pressure, or significant wear, engineers should evaluate hardness, lubrication, contact loads, and alternative materials.

For example, a heavily loaded rotating fan shaft may require steel or another suitable material rather than aluminum.

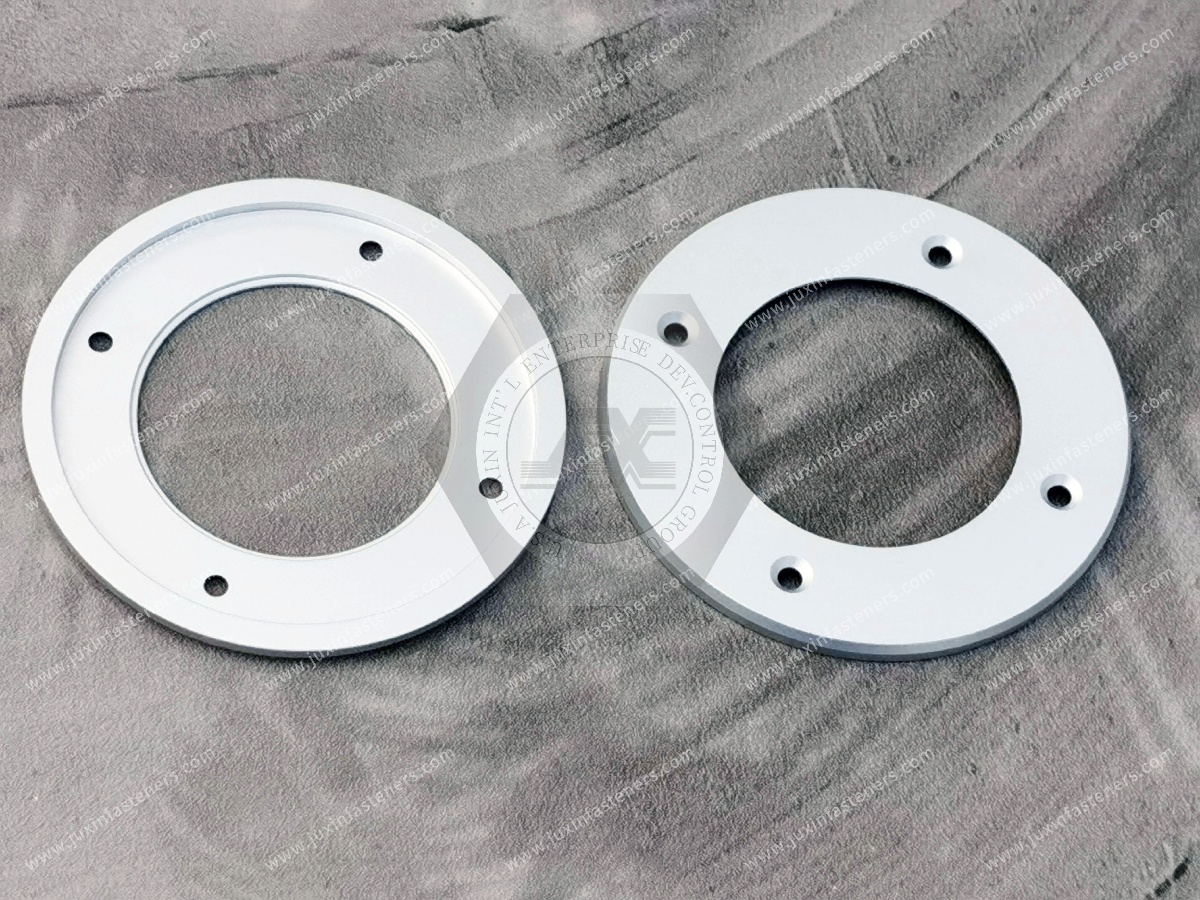

Custom Mechanical Adapters and Connectors

CNC machined adapters can provide interfaces between HVAC equipment housings, mounting plates, brackets, and other mechanical structures.

Their design may require controlled hole patterns, alignment features, threaded interfaces, and accurately machined contact surfaces.

Mechanical adapters should not automatically be treated as qualified refrigerant connectors or pressure-containing fittings.

Components intended for refrigerant or pressurized fluid service require separate material, sealing, pressure, and regulatory evaluation.

Valve-Related Mechanical Components

Custom machined components may be used in suitable valve mounting, positioning, actuation, or auxiliary mechanical assemblies.

The required material and manufacturing process depend on the component's actual function.

A valve mounting bracket has different requirements from a pressure-containing valve body or fluid-sealing component.

Where a machined component forms part of a refrigerant pressure boundary, the customer must define the applicable pressure, temperature, material compatibility, leakage, and qualification requirements.

Custom Aluminum Equipment Housings

CNC machined aluminum housings can provide mechanical protection, mounting interfaces, and positioning features for suitable HVAC controls, sensors, and auxiliary equipment.

Critical design considerations may include mounting-face flatness, sealing grooves, threaded holes, connector openings, and dimensional compatibility.

Environmental protection requirements should be established for the complete enclosure assembly rather than assumed from the machined housing alone.

CNC Machining Processes for Custom HVAC Components

Selecting the appropriate CNC machining process affects dimensional accuracy, manufacturing efficiency, material utilization, and total OEM component cost.

JUXIN FASTENERS can evaluate suitable machining methods according to customer drawings, material requirements, component geometry, and production quantities.

CNC Milling for Mounting Brackets and Housings

CNC milling is suitable for components requiring multiple mounting faces, pockets, slots, bolt-hole patterns, and complex external profiles.

Typical applications include HVAC equipment brackets, mounting blocks, housings, and mechanical adapters.

For parts requiring several machining setups, datum selection and fixture design are important for maintaining the positional relationship between critical features.

CNC Turning for Cylindrical HVAC Components

CNC turning is suitable for spacers, sleeves, bushings, pins, shafts, and threaded cylindrical components.

The process can provide controlled diameters, lengths, concentricity, and surface finishes according to the approved drawing.

Swiss-type machining may be considered for certain small-diameter or slender components, depending on geometry and production requirements.

Turn-Mill Machining for Complex Mechanical Interfaces

Components combining cylindrical geometry with milled flats, cross-holes, slots, or other secondary features may benefit from turn-mill machining.

Combining operations can reduce part handling and improve positional consistency when the process is appropriately designed.

However, the economic suitability depends on component complexity, setup requirements, cycle time, and production volume.

Drilling, Tapping, and Secondary Machining

HVAC mounting hardware frequently requires drilled holes, internal threads, countersinks, counterbores, and finished contact surfaces.

Hole geometry and thread specifications should be selected according to the mating fastener and the intended assembly method.

Burr removal and edge finishing are important because sharp edges or loose machining debris can interfere with installation, sealing interfaces, or adjacent equipment.

Engineering Design Considerations for HVAC CNC Parts

HVAC components should be evaluated within the complete equipment assembly rather than solely against individual drawing dimensions.

Operating temperature, vibration, moisture exposure, mechanical loading, and installation methods can all influence component selection.

Vibration and Fastening Reliability

HVAC equipment may experience vibration from fans, compressors, pumps, and other rotating machinery.

These operating conditions can influence mounting brackets, threaded connections, spacers, and mechanical interfaces.

Engineers should consider vibration direction, cyclic loading, joint stiffness, and the possibility of fastener loosening.

Appropriate fastening solutions may include suitable prevailing-torque locknuts, lock washers, thread-locking methods, or other engineered retention systems, depending on the joint design.

No single locking method should be assumed suitable for every vibration environment.

The complete joint should be evaluated for required preload, installation method, service temperature, and maintenance conditions.

Thread Engagement and Joint Strength

Threaded connections in aluminum components require careful evaluation because internal thread strength may limit the performance of the joint.

The required engagement length depends on aluminum alloy properties, thread geometry, fastener strength, and applied loads.

For repeated assembly or higher installation loads, threaded inserts or alternative fastening designs may be appropriate.

Metric ISO threads and Unified UNC/UNF threads must be specified according to their respective thread systems.

Metric, UNC/UNF, and British Whitworth threads are not directly interchangeable.

Installation torque should be established from the complete joint design, including fastener material, surface condition, lubrication, and required preload.

Dimensional Tolerances and Assembly Fit

Not every machined feature requires the same dimensional tolerance.

Critical mounting holes, locating diameters, threaded interfaces, and mating surfaces may require tighter control than nonfunctional exterior surfaces.

A practical tolerance strategy identifies critical-to-function dimensions and applies suitable manufacturing and inspection requirements.

ISO 1101 or ASME Y14.5 may be relevant where geometric tolerances are specified by the customer.

Unnecessarily restrictive tolerances can increase machining time, inspection costs, and production complexity without improving actual component performance.

Thermal Expansion and Temperature Variation

HVAC equipment may experience temperature changes during startup, shutdown, defrost cycles, and normal operation.

Aluminum generally has a higher coefficient of thermal expansion than steel, meaning the two materials may expand or contract by different amounts under the same temperature change.

Where aluminum components are mechanically constrained by steel fasteners or supporting structures, differential thermal expansion can influence joint loading and dimensional relationships.

This consideration is particularly relevant for long mounting interfaces, precision positioning components, and assemblies exposed to significant temperature variation.

Condensation, Corrosion, and Environmental Exposure

HVAC equipment may operate in environments involving condensation, humidity, outdoor atmospheric exposure, or cleaning chemicals.

Although aluminum offers useful corrosion resistance, its performance depends on alloy selection, surface treatment, and the actual environment.

Galvanic corrosion should be considered when aluminum contacts steel, stainless steel, copper, or other dissimilar metals in the presence of moisture.

Suitable design measures may include protective coatings, isolation materials, drainage provisions, and appropriate material pairing.

Components exposed to aggressive environments may require additional corrosion protection or alternative materials.

Sealing Interfaces and Refrigerant Compatibility

Certain HVAC components require sealing surfaces, gasket interfaces, or fluid connection features.

For these applications, dimensional accuracy alone is not sufficient.

Engineers should evaluate surface finish, flatness, gasket compression, material compatibility, pressure conditions, and temperature exposure.

A machined aluminum adapter intended only for mechanical mounting should not be assumed suitable for refrigerant service.

Where components are intended for pressure-containing refrigeration systems, the applicable pressure equipment requirements, refrigerant compatibility,

leakage acceptance criteria, and customer qualification procedures must be defined.

Relevant requirements may arise from standards such as EN 378 or ASHRAE 15 at the system level, depending on the application and market.

Compliance with these standards cannot be inferred from CNC machining capability alone.

Surface Treatments for Aluminum HVAC Components

Surface finishing should be selected according to the operating environment, mechanical function, appearance requirements, and assembly interfaces.

Potential finishing options for suitable aluminum alloys may include conventional anodizing, hard anodizing, conversion coatings, and other customer-specified treatments.

Anodizing may improve selected surface characteristics, but coating thickness can affect final dimensions and mating fits.

For precision components, the drawing should clarify whether critical dimensions apply before or after finishing.

Surface treatment selection should also consider electrical contact requirements and the possibility of galvanic corrosion in mixed-material assemblies.

For applicable anodic oxidation treatments, ISO 7599 may provide relevant specification guidance.

The actual finishing requirement should be selected according to the intended process and customer-approved specifications.

Precision, Repeatability, and Production Stability

For HVAC OEM manufacturing, successful CNC machining requires more than producing a single accurate prototype.

The manufacturing process should consistently reproduce acceptable dimensions and functional characteristics across production batches.

Dimensional stability depends on machining programs, fixture repeatability, tooling condition, raw material variation, cutting parameters, and inspection methods.

For example, an aluminum mounting block may require simultaneous control of mounting-face flatness, threaded-hole position, and overall height.

Inspecting only the external dimensions may not adequately verify its compatibility with the intended equipment assembly.

Manufacturing engineers should establish suitable machining datums, workholding arrangements, and inspection access for critical features.

Production managers should also consider cycle time, tool replacement intervals, setup changes, rework risk, and the impact of dimensional variation on downstream assembly operations.

Quality Control for Custom CNC Machined HVAC Parts

Inspection planning should begin with the approved engineering drawing and the intended function of the component.

Depending on customer requirements, quality verification may include:

• Dimensional and geometric measurement

• Thread size and functional gauge inspection

• Hole diameter and positional verification

• Surface roughness and flatness measurement

• Material identification and documentation review

• Hardness verification when specified

• Visual inspection for burrs, damage, and surface defects

• Functional fit or assembly verification where applicable

Critical characteristics should be identified before production so that suitable inspection methods can be established.

For repeat OEM orders, drawing revision control and inspection records can help maintain consistency between production batches.

HVAC equipment manufacturers may also specify project-specific documentation, material traceability, surface treatment records, or additional verification requirements.

Any pressure, leakage, or refrigerant compatibility testing requirements must be established according to the actual component function and customer specifications.

From Prototype Development to Repeat OEM Production

CNC machining supports engineering development because component geometry and machining programs can often be revised without dedicated forming dies.

A typical drawing-based manufacturing workflow includes:

• Engineering drawing and CAD review

• Material and manufacturing process selection

• CNC programming and process preparation

• Prototype or first-article machining

• Dimensional and functional inspection

• Process optimization and production planning

• Repeat production and final inspection

During prototype development, engineering teams may identify opportunities to simplify geometry, improve tool access, adjust noncritical tolerances, or standardize fastening interfaces.

These changes should be evaluated against the approved functional requirements before being incorporated into production drawings.

For higher-volume requirements, machining cost should be assessed alongside material utilization, fixture requirements, cycle time, finishing operations, inspection effort, and production scheduling.

Alternative manufacturing methods, including extrusion followed by CNC machining, may be economical for certain component geometries and production volumes.

However, any process substitution must be reviewed for dimensional capability, material properties, tooling investment, and customer approval requirements.

Reducing CNC Machining Costs for HVAC OEM Programs

OEM purchasing teams often evaluate custom CNC machined components using unit price, but total procurement cost also depends on production consistency,

assembly efficiency, inspection requirements, and supply continuity.

A lower quoted price may not represent the most economical solution if component variation causes installation difficulties, additional inspection, or assembly rework.

Several engineering and procurement decisions can influence total manufacturing cost.

Functional Tolerance Allocation: Applying tighter tolerances only where required can reduce unnecessary machining and inspection effort.

Material Selection: Choosing the appropriate aluminum alloy and temper helps balance mechanical requirements, machinability, availability, and cost.

Component Geometry: Simplifying deep pockets, complex internal features, and difficult machining access can reduce cycle time and tooling requirements.

Standardized Fastening Interfaces: Where permitted by the design, common thread sizes, mounting-hole arrangements, and compatible fastening hardware can simplify assembly and maintenance.

Production Quantity Planning: Realistic order quantities and forecast information help determine appropriate manufacturing and purchasing arrangements.

Drawing Revision Control: Maintaining clear drawing revisions reduces the risk of producing obsolete components and supports repeat-order consistency.

These considerations are particularly valuable when multiple mounting brackets, spacers, adapters, threaded components, and fastening parts are sourced for the same HVAC equipment platform.

OEM Supplier Evaluation and RFQ Requirements

For HVAC equipment manufacturers, procurement specialists, supplier development teams, and supply chain managers,

selecting a CNC machining supplier requires consideration of technical suitability, manufacturing consistency, and commercial requirements.

A complete RFQ package should include the information needed to evaluate both the component and its production requirements.

Recommended information includes:

• 2D engineering drawings and 3D CAD models

• Aluminum alloy, temper, and applicable material specification

• Critical dimensions and geometric tolerances

• Surface treatment and corrosion protection requirements

• Thread specifications and mating assembly information

• Operating temperature and environmental conditions

• Prototype quantity and expected production volume

• Inspection, documentation, and traceability requirements

• Packaging, delivery destination, and project schedule

For repeat OEM programs, anticipated annual demand and purchasing schedules can support production planning and commercial evaluation.

MOQ, manufacturing lead time, and production arrangements depend on component geometry, material availability, machining complexity, finishing requirements, and order quantity.

Supplier qualification and any HVAC-specific compliance requirements should be established according to the customer's project specifications.

Custom CNC Machining and Fastening Solutions for Global HVAC OEMs

JUXIN FASTENERS supplies custom CNC machined components and industrial fastening hardware for international OEM applications.

In HVAC equipment manufacturing, precision-machined aluminum components frequently operate together with bolts, screws, nuts, threaded inserts, washers, spacers, bushings, and other mechanical connection hardware.

Evaluating these components as part of a complete assembly can help identify dimensional and fastening compatibility concerns before production.

For example, a custom aluminum mounting bracket should be evaluated together with its mating fastener, installation method, expected joint loading, and supporting structure.

This assembly-oriented approach can help engineering and manufacturing teams address practical installation requirements while supporting more consistent component sourcing.

Related applications may include commercial HVAC equipment, industrial ventilation systems, refrigeration equipment, air handling units, heat management systems, machinery, robotics, and other engineered assemblies requiring precision mechanical components.

Pressure-containing, refrigerant-contacting, or other regulated components require separate engineering validation and applicable customer approval.

Request an OEM Aluminum CNC Machining Quote

If your company is sourcing custom aluminum CNC machined components, HVAC mounting brackets, precision spacers, bushings, mechanical adapters, housings,

 or drawing-based fastening hardware, contact JUXIN FASTENERS for technical evaluation and quotation.

Please send your 2D engineering drawings, 3D CAD files, sample information, material specifications, critical tolerances, surface treatment requirements, expected order quantities, and inspection criteria.

Where applicable, please also identify operating temperature, vibration exposure, environmental conditions, and any pressure or sealing requirements.

Our team can review the manufacturing requirements and discuss suitable CNC machining processes, component specifications, and commercial quotation details.

JUXIN FASTENERS

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Custom Aluminum CNC Machining | HVAC Equipment Components | Precision Fastening Hardware | Drawing-Based OEM RFQ Support
