Carbon Steel CNC Machining for Construction Equipment

Carbon Steel CNC Machining for Construction Equipment, Heavy Machinery and Custom OEM Mechanical Components

Construction equipment operates under demanding mechanical and environmental conditions.

Excavators, wheel loaders, compact construction machines, material-handling equipment, lifting systems and related machinery may experience repeated loading, vibration, impact, contamination and outdoor exposure.

These conditions place significant demands on mechanical components and fastening interfaces.

Custom CNC machined components may be required where standard fasteners or off-the-shelf mechanical parts cannot provide the necessary geometry, fit or installation arrangement.

Depending on the equipment design, these components may include precision shafts, pins, bushings, spacers, threaded adapters, mounting blocks, locating components and custom mechanical connectors.

Carbon steel CNC machining can provide a practical manufacturing option for selected construction equipment components where the specified material properties meet the intended requirements.

However, carbon steel is not automatically suitable for every heavy-duty or safety-critical application.

Highly loaded pivot pins, hydraulic cylinder components, lifting connections and other critical mechanical parts may require alloy steels, specialized heat treatment, fatigue verification or additional engineering controls.

Material selection must follow the approved drawing and the actual operating conditions.

JUXIN FASTENERS supports drawing-based inquiries for custom carbon steel CNC machined components and industrial fastening hardware used in construction equipment and related OEM mechanical assemblies.

Depending on component geometry and project requirements, suitable manufacturing processes may include CNC turning, CNC milling, drilling, tapping, threading, grooving and combined turning-milling operations.

Material selection, achievable tolerances, heat treatment, surface finishing, inspection requirements, production quantities and delivery arrangements are evaluated according to the specific inquiry.

Where Carbon Steel CNC Machined Components Are Used in Construction Equipment

Construction machinery contains many mechanical interfaces that require accurate positioning, secure attachment and controlled movement.

The appropriate component design depends on the equipment function and loading conditions.

Excavator Equipment and Attachments

Excavator assemblies and attachments contain numerous mechanical connections.

Selected CNC machined components may be used for mounting, spacing, locating and mechanical interfaces.

Potential applications include custom spacers, threaded adapters, mounting blocks and selected pins or bushings.

However, heavily loaded bucket and linkage pins require application-specific strength, wear, fatigue and heat-treatment evaluation.

Wheel Loader Assemblies

Wheel loaders use mechanical mounting and positioning components throughout their equipment structures.

Custom machined adapters, mounting interfaces, spacers and selected locating components may be required where standard hardware is unsuitable.

The design should account for mechanical loading, vibration and environmental exposure.

Compact Construction Equipment

Compact loaders, mini excavators and similar machines may require specialized mechanical components because of limited installation space.

Custom CNC machining can provide non-standard geometries, controlled interfaces and threaded features.

Material-Handling Equipment

Material-handling machinery may require precision shafts, bushings, pins, mounting blocks and mechanical connectors.

The appropriate material and dimensional requirements depend on loading, movement and duty cycle.

Construction Equipment Enclosures and Support Systems

Equipment enclosures, access panels and support assemblies may require custom threaded spacers, mounting blocks and fastening interfaces.

These applications may be suitable for carbon steel where corrosion protection and mechanical properties meet the design requirements.

Maintenance and Replacement Components

Some construction machinery projects require drawing-based replacement parts or alternative sources for existing components.

The replacement part must be evaluated against the original material, geometry, heat treatment, surface finish and functional requirements.

Dimensional similarity alone does not establish interchangeability.

Typical Carbon Steel CNC Machined Components for Construction Machinery

Different component types require different engineering and inspection considerations.

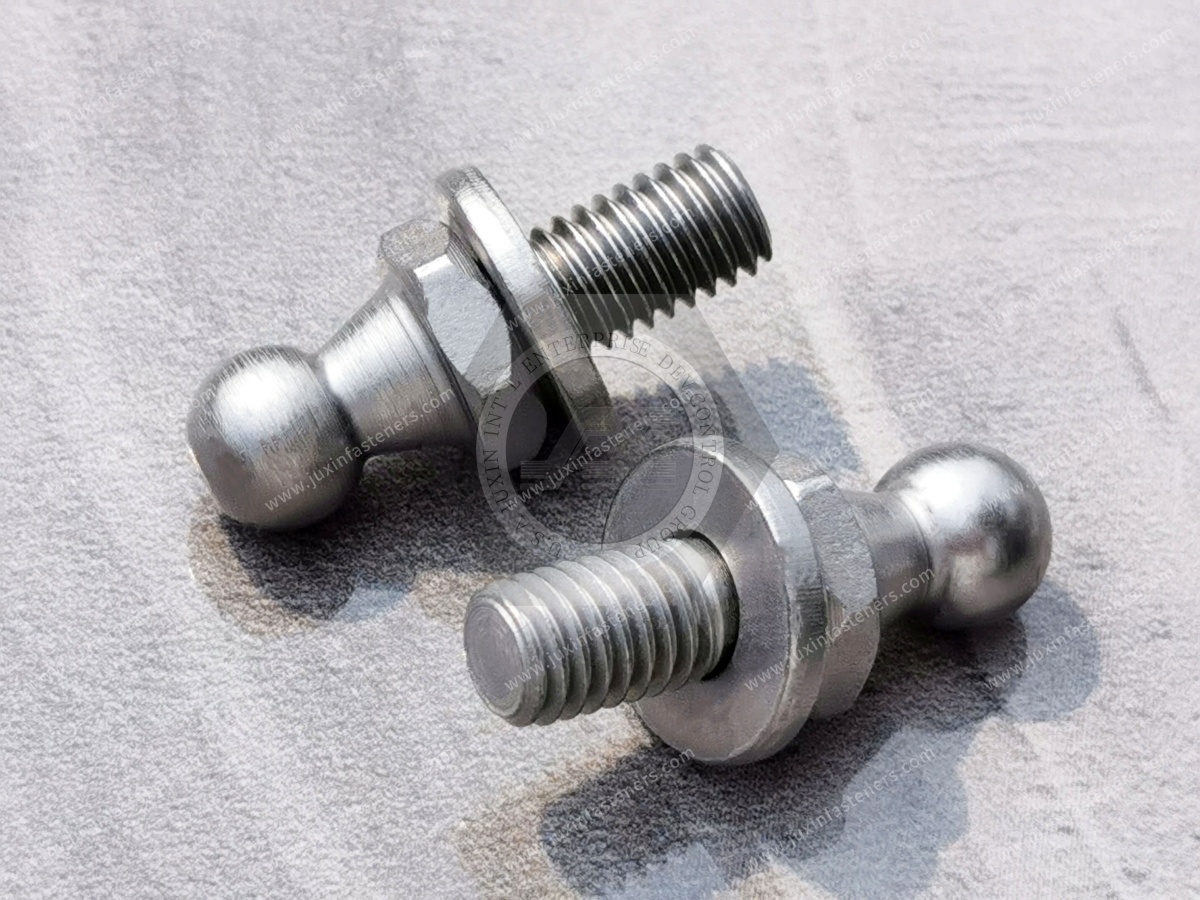

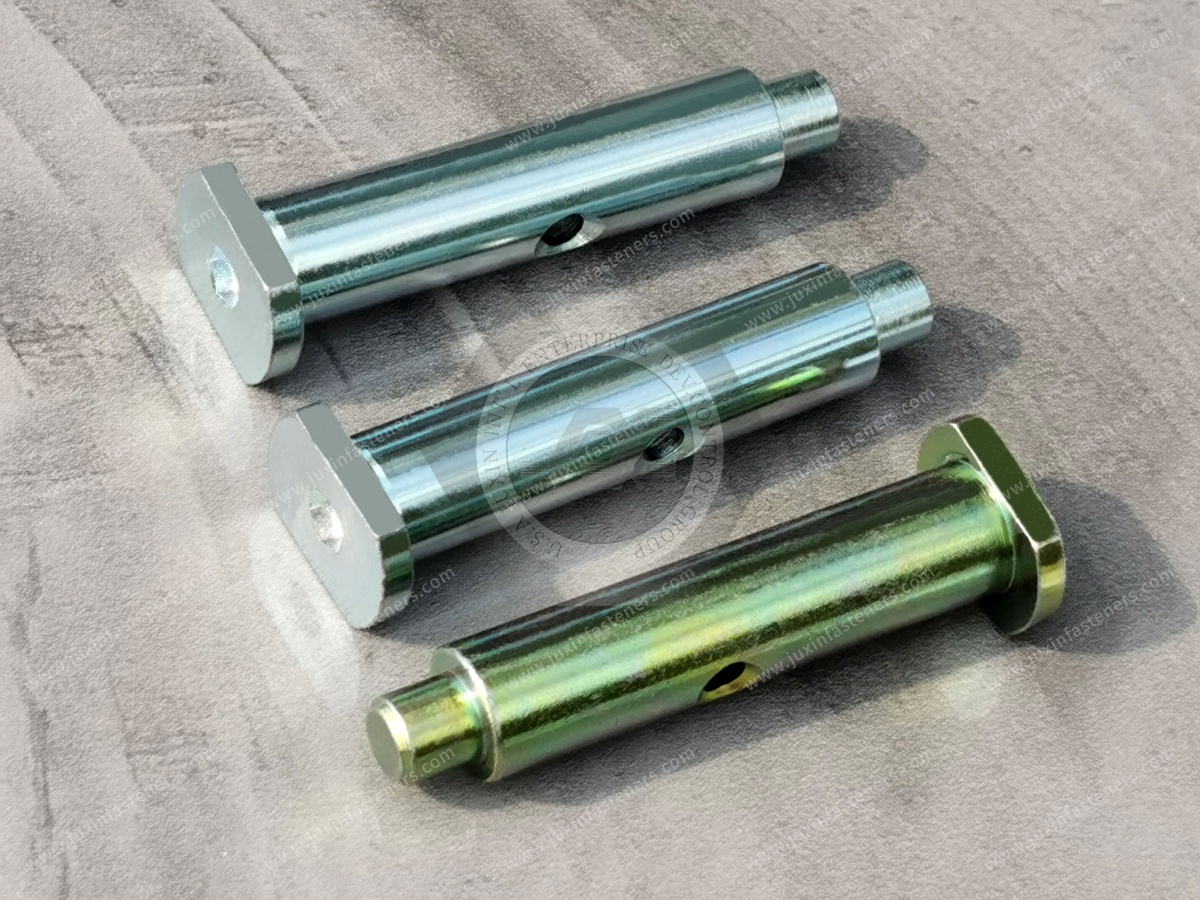

CNC Machined Steel Pins

Machined pins may be used for positioning, locating or selected mechanical connections.

Important characteristics can include diameter, length, shoulder geometry, straightness, surface finish and retention features.

Where the pin carries significant loads or experiences movement, strength, wear and fatigue requirements become important.

Precision Bushings

Bushings may provide controlled interfaces between pins, shafts and mating structures.

Important dimensions include inner diameter, outer diameter, length and geometric relationships.

Where sliding contact occurs, wear performance depends on the complete material, lubrication and loading system.

CNC Turned Shafts

Custom shafts may be used in selected mechanical assemblies.

Important characteristics can include bearing-seat dimensions, shoulder geometry, runout, straightness and surface finish.

Threaded Adapters

Custom threaded adapters may connect mechanical interfaces that cannot be assembled using standard fasteners alone.

The drawing should specify thread size, pitch, tolerance class, engagement length and mating component requirements.

Mounting Blocks

CNC milled mounting blocks may provide controlled mounting faces, threaded holes and accurately positioned interfaces.

They may be useful for selected equipment structures and mechanical support assemblies.

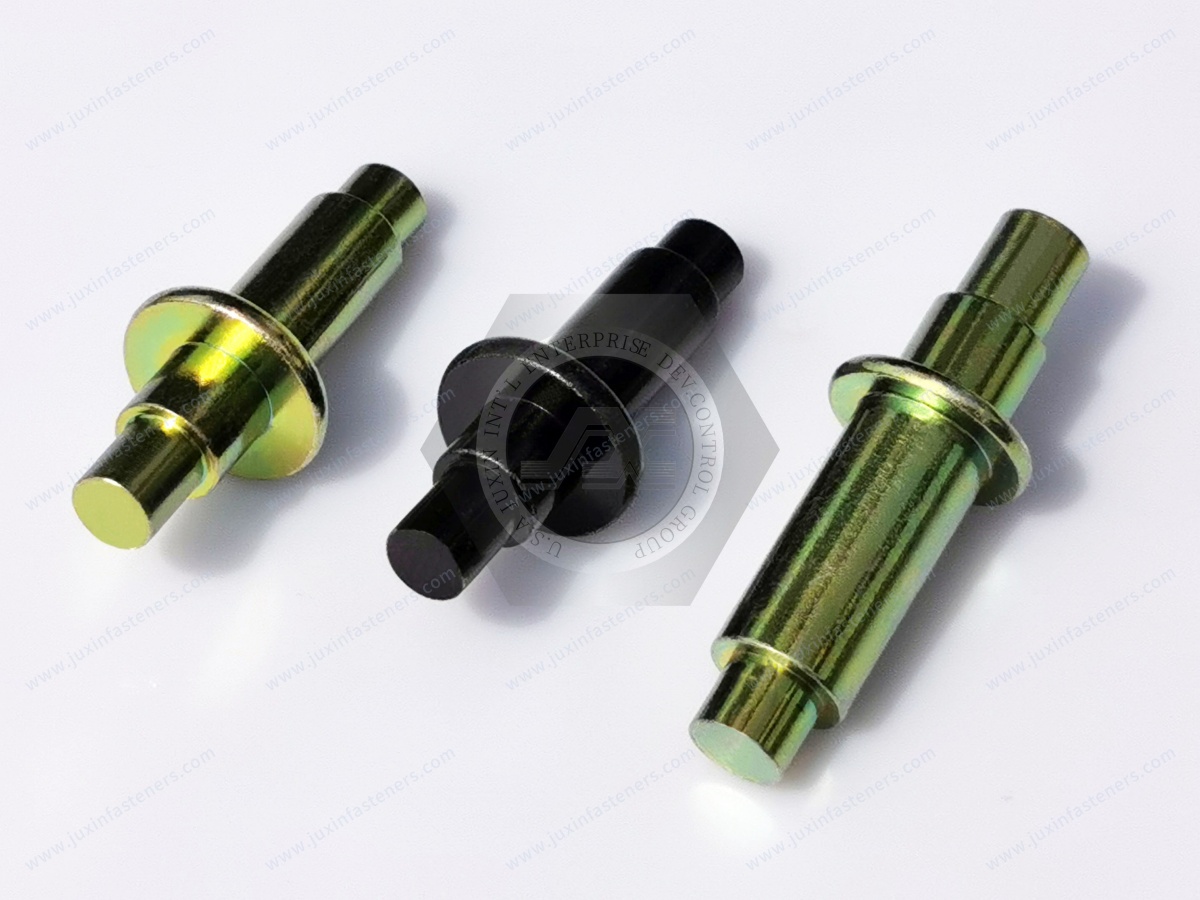

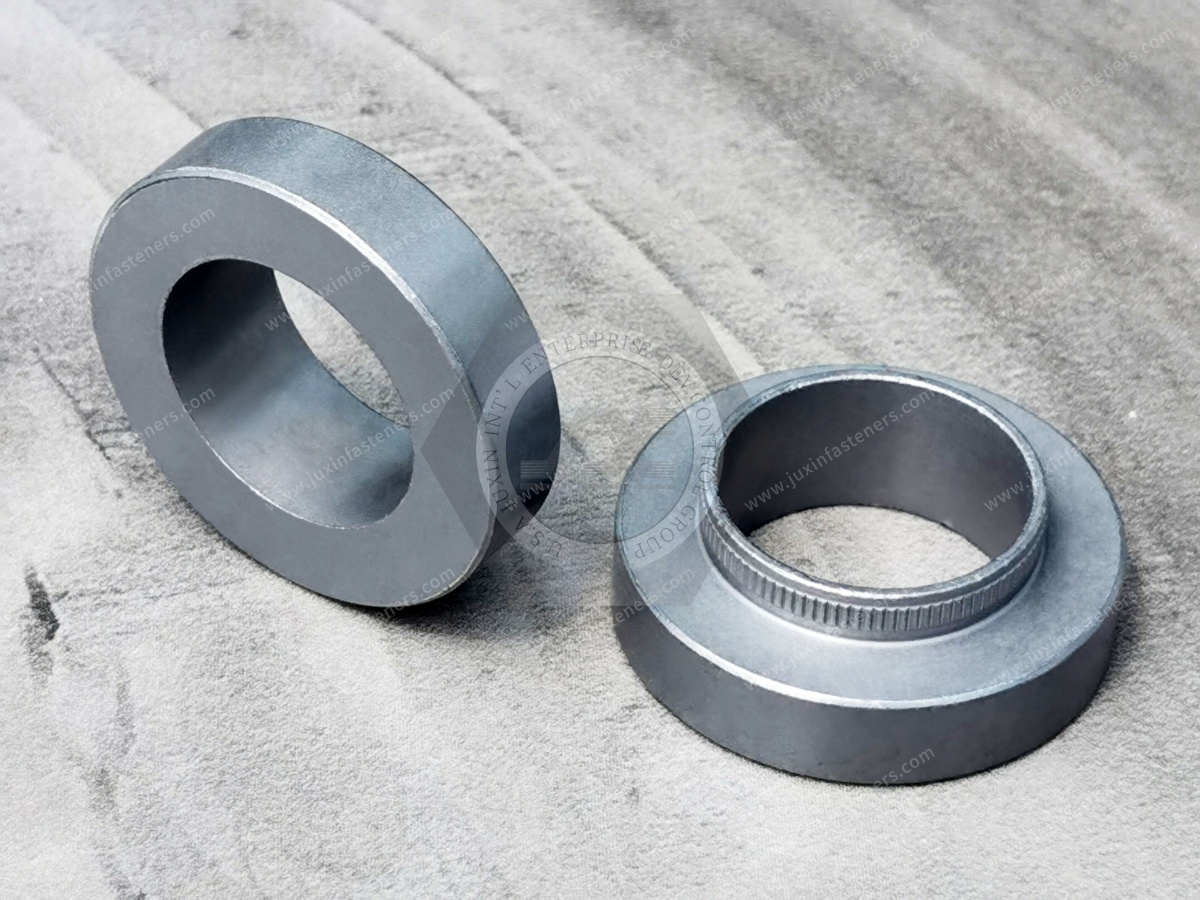

Spacers and Sleeves

Machined spacers and sleeves may establish controlled distances between components.

Their design should consider compressive loading, alignment and assembly conditions.

Locating Pins and Mechanical Connectors

Custom locating pins and connectors may provide positioning and attachment functions.

The appropriate geometry depends on the required assembly method and operating conditions.

Why Carbon Steel Is Used for Selected Construction Equipment CNC Parts

Carbon steel may offer a useful combination of strength, machinability and cost efficiency.

However, its suitability depends on the specific grade and application.

Mechanical Strength

Different carbon steel grades offer different strength and hardness characteristics.

For selected mounting and mechanical support applications, carbon steel may provide suitable performance.

The required properties should be defined by the approved drawing.

Machinability

Some carbon steel grades can be machined efficiently using CNC turning and milling.

Machinability influences cutting forces, tool wear, surface finish, chip formation and cycle time.

Cost Efficiency

Carbon steel may provide cost advantages for selected components compared with more expensive engineering materials.

However, the total cost should include heat treatment, coating, inspection and service requirements.

Wear Limitations

Carbon steel may not provide sufficient wear resistance for every sliding or pivoting interface.

Surface hardness, material pairing, lubrication and contamination conditions must be considered.

Corrosion Limitations

Carbon steel generally requires appropriate protection where outdoor moisture and corrosive exposure are expected.

Carbon Steel Grades for Construction Equipment CNC Machining

The correct steel grade should be selected according to the approved drawing and functional requirements.

SAE/AISI 1018 Steel

SAE/AISI 1018 is a low-carbon steel that may be considered for selected spacers, mounting blocks, adapters and general mechanical components.

Its suitability depends on the required strength, material condition and corrosion protection.

SAE/AISI 1045 Steel

SAE/AISI 1045 is a medium-carbon steel that may be considered for selected shafts, pins and mechanical components requiring different strength or hardness characteristics.

Its properties depend on material condition and heat treatment.

Free-Machining Carbon Steel

Free-machining carbon steels may be suitable for certain turned components.

However, the material's mechanical properties, composition and customer requirements should be considered.

Carbon Steel vs. Alloy Steel

Carbon steel and alloy steel are not interchangeable.

For example, SAE/AISI 4140 is a chromium-molybdenum alloy steel rather than a plain carbon steel.

Where higher strength, hardenability or fatigue performance is required, an alloy steel may be more appropriate.

Any material substitution should be reviewed and approved by the customer's engineering team.

Carbon Steel vs. Stainless Steel

Stainless steel may be preferable where corrosion resistance is a major requirement.

Carbon steel may be more economical where a suitable coating can provide the required protection.

The correct choice depends on the operating environment and design requirements.

Carbon Steel vs. Aluminum

Aluminum may be suitable for weight-sensitive components.

However, differences in strength, wear resistance, thread durability and thermal expansion must be evaluated.

Pin and Bushing Design for Heavy Equipment

Pin-and-bushing interfaces are common in construction machinery.

However, their design requires more than selecting a nominal pin diameter.

Bearing Pressure

The contact pressure between a pin and bushing influences wear and mechanical performance.

The allowable pressure depends on material properties, geometry, lubrication and operating conditions.

Clearance and Fit

The fit between a pin and bushing affects assembly, movement and wear.

Excessive clearance may contribute to impact loading, misalignment and accelerated wear.

Insufficient clearance may increase friction or create assembly difficulties.

ISO 286 may be relevant to dimensional tolerance systems for shafts and holes.

However, the final fit must follow the approved assembly design.

Surface Finish

Sliding surfaces may require controlled surface finish.

The required finish depends on the mating material, lubrication and operating conditions.

Hardness and Wear Resistance

For some applications, surface hardness may influence wear performance.

However, higher hardness is not automatically better.

The complete material system, toughness, contact conditions and failure risks must be evaluated.

Lubrication

Lubrication can influence friction, wear and service life.

Where lubrication is required, the design should consider lubricant access, retention and maintenance.

Contamination

Construction equipment may operate in environments containing dust, sand, mud and abrasive particles.

Contamination can accelerate wear in moving interfaces.

Sealing, lubrication and maintenance provisions should be evaluated.

Impact Loading and Fatigue Resistance

Construction equipment may experience impact loads and repeated mechanical cycling.

These conditions can affect pins, shafts, threaded connections and other components.

Impact Loading

Sudden loads can create stresses that exceed normal operating conditions.

The design should consider the expected loading spectrum and potential overload events.

Fatigue Loading

Repeated loading may cause fatigue damage even when the nominal stress is below the material's static strength.

Geometry, surface finish, heat treatment and operating loads influence fatigue performance.

Stress Concentrations

Sharp transitions, grooves, threads and small fillets may increase local stress.

The design should consider appropriate radii and feature placement.

Material Toughness

For impact-loaded components, toughness may be as important as hardness or tensile strength.

The correct material condition should be selected according to the application.

Safety-Critical Components

Components used in lifting, load retention or other safety-critical functions may require additional design verification, material controls and testing.

General CNC machining capability does not establish suitability for these applications.

Vibration and Threaded Joint Reliability

Construction equipment may experience vibration from engines, hydraulic systems and repeated mechanical operation.

These conditions can influence threaded connections and mechanical interfaces.

Joint Preload

Correct joint preload can help maintain clamping force and reduce unwanted movement.

The appropriate preload depends on fastener properties, joint geometry, friction conditions and installation method.

Vibration Loosening

Vibration and transverse movement may contribute to loosening in certain threaded joints.

Suitable locking methods should be selected according to the actual application.

Locking Fasteners

Depending on the design, prevailing-torque nuts, lock washers, thread-locking compounds or other locking arrangements may be considered.

However, no single locking method is suitable for every heavy-equipment assembly.

Repeated Maintenance

Construction equipment often requires periodic maintenance and component replacement.

The design should consider service access, repeated assembly and thread durability.

Outdoor Corrosion Protection for Carbon Steel CNC Parts

Construction machinery may operate in rain, mud, humidity and other outdoor conditions.

For carbon steel, corrosion protection is an important design consideration.

Zinc Electroplating

Zinc electroplating may be considered for selected carbon steel components.

Coating thickness can affect threads, precision bores and close-fitting interfaces.

Zinc-Nickel Coatings

Zinc-nickel coatings may be considered where specific corrosion-protection requirements are established.

The suitability of the coating system depends on the environment and customer acceptance criteria.

Phosphate Treatments

Phosphate treatments and associated protective systems may be appropriate for selected components.

Their corrosion performance depends on the complete treatment system.

Black Oxide

Black oxide may be suitable for selected indoor tooling or mechanical components.

However, black oxide alone should not be assumed to provide sufficient protection for demanding outdoor construction equipment conditions.

Hydrogen Embrittlement

Electroplating and certain chemical processing operations can introduce hydrogen into susceptible steel components.

For higher-strength or hardened steel parts, hydrogen embrittlement may create delayed fracture risks.

The need for process controls and post-treatment requirements depends on the material and customer specification.

Coating and Fit Compatibility

Coatings can change the dimensions of threads, bores and mating surfaces.

Where close fits are required, the drawing should define whether dimensions apply before or after coating.

CNC Machining Processes for Construction Equipment Components

The appropriate machining process depends on component geometry, material, tolerance requirements and production quantity.

CNC Turning

CNC turning is suitable for rotationally symmetric components such as shafts, pins, bushings, sleeves, spacers and threaded adapters.

Typical operations include facing, external turning, boring, drilling, grooving and threading.

CNC Milling

CNC milling may be suitable for mounting blocks, adapters and components requiring flats, slots, pockets or multiple mounting features.

Datum selection and fixture stability are important where positional relationships between features affect assembly.

Drilling, Tapping and Threading

Machined components may require internal threads, external threads, precision holes and mounting features.

Thread quality depends on material properties, tooling, cutting conditions and inspection methods.

Combined Turning and Milling

Turn-mill machining can combine rotational and non-rotational operations.

For suitable components, reducing the number of setups may improve relationships between critical features and reduce handling.

Design for Manufacturability in Construction Equipment CNC Parts

Design for Manufacturability (DFM) helps align engineering requirements with practical machining processes.

Early DFM evaluation can reduce unnecessary complexity, improve production repeatability and lower total component cost.

Tolerance Allocation

Not every dimension requires the same tolerance.

Critical-to-function features should receive appropriate dimensional and geometric controls.

Non-critical dimensions may permit more economical tolerances.

Large Components and Workholding

Larger or heavier components may require additional attention to workholding, handling and machining stability.

The process plan should consider clamping forces and potential deformation.

Deep Holes and Tool Accessibility

Deep or narrow holes may require specialized tooling and additional machining time.

Engineers should consider tool reach, chip evacuation and measurement requirements.

Surface Finish

Surface finish should be specified according to component function.

A sliding interface, locating feature and general mounting face may require different surface conditions.

GD&T for Heavy Equipment Mechanical Components

Geometric Dimensioning and Tolerancing (GD&T) helps define relationships between critical features.

Depending on the drawing system, ASME Y14.5 or ISO 1101 may be applicable.

Relevant controls may include position, flatness, perpendicularity, parallelism, runout and profile.

Datum selection should reflect how the component is located and assembled.

For example, a pin may require controlled relationships between its bearing surfaces and retention features.

A mounting block may require accurate positional relationships between mounting holes and locating surfaces.

GD&T should support functional assembly and inspection rather than introduce unnecessary manufacturing complexity.

Metric and Inch Thread Standards

Construction equipment may use metric or inch thread systems depending on the OEM design.

ISO 261 and ISO 965 may be relevant to ISO metric screw threads.

ASME B1.1 covers Unified inch screw threads, including UNC and UNF series.

Metric and Unified inch threads are not directly interchangeable.

Thread size, pitch, tolerance class and mating component compatibility must be confirmed before production.

Assembly Efficiency and Construction Equipment Production-Line Considerations

For construction machinery manufacturers, component design directly affects assembly efficiency.

Production managers should consider installation time, tool access, handling, part orientation and inspection requirements.

Installation Access

A component may be dimensionally correct but difficult to install because of limited tool clearance.

The design should account for the required installation tools.

Part Orientation

Components with asymmetric geometry may require additional handling or orientation during assembly.

Where possible, designs that reduce orientation errors may improve production efficiency.

Fastener Standardization

Using common thread sizes and installation tools across an equipment platform may simplify assembly and inventory management.

However, standardization should not compromise the required mechanical function.

Assembly Error Prevention

The design should reduce the risk of incorrect part selection, reversed installation or cross-threading.

Clear identification, suitable lead-in features and controlled assembly procedures may help.

Production Repeatability

A successful CNC machining process must provide repeatable dimensions across the required production quantity.

Program-controlled machining, suitable workholding, tool-life management and inspection planning can support process stability.

Quality Control for Custom Construction Equipment CNC Parts

Inspection planning should follow the approved drawing and the component's functional requirements.

Depending on the project, inspection may include dimensional measurement, thread inspection, material verification, hardness testing, surface-finish measurement and functional checks.

Dimensional Inspection

Critical dimensions may be verified using suitable micrometers, calipers, bore gauges, height gauges or coordinate measuring equipment.

The measurement method should provide sufficient capability for the specified tolerance.

Thread Inspection

Threaded components may require appropriate thread gauges or other verification methods.

The inspection method should follow the specified thread standard and customer requirements.

Material Verification

Customers may require material documentation or additional verification of the specified carbon steel grade.

The required documentation should be agreed upon during quotation.

Hardness and Heat-Treatment Verification

Where hardness or heat-treatment condition is functionally important, the drawing should define the applicable requirements.

Any required testing or documentation should be confirmed before production.

Coating Inspection

Where corrosion protection is required, inspection may include coating thickness verification or other customer-defined checks.

The coating system and acceptance criteria should be established before production.

Functional Inspection

For selected components, functional inspection may include assembly-fit checks or verification using a representative mating component.

However, functional inspection should not replace required dimensional verification.

From Prototype Development to Repeat OEM Production

CNC machining can support construction equipment development because geometry and machining programs can be revised as the design evolves.

However, transitioning from prototypes to repeated production requires additional process planning.

Engineering Drawing and CAD Review

The initial review should identify material, geometry, critical tolerances, functional interfaces and inspection requirements.

Potential manufacturing risks should be clarified before machining begins.

Material and Process Selection

The material and machining process should be selected according to functional requirements, part geometry, quantity and cost.

Alternative manufacturing approaches may be considered where technically appropriate.

Prototype and First-Article Machining

Initial parts can be evaluated for dimensional accuracy, assembly fit, surface condition and manufacturing feasibility.

Any design or process changes should be documented.

Process Optimization

After design approval, machining operations may be optimized for cycle time, tooling, repeatability and inspection efficiency.

The appropriate optimization depends on the required production quantity.

Repeat Production and Final Inspection

Repeat production should follow the approved drawing revision and agreed quality requirements.

Inspection, packaging and delivery arrangements should be established according to the customer's purchasing specification.

CNC Machining vs. Standard Construction Equipment Fasteners

Custom CNC machining provides flexibility for non-standard geometry and precision mechanical interfaces.

However, not every construction equipment component requires CNC machining.

Standard bolts, nuts, washers, studs, spacers, pins and other fastening components may offer more economical solutions for suitable applications.

When CNC Machining May Be Appropriate

CNC machining may be justified where the design requires:

• Non-standard geometry

• Precision concentric features

• Special threaded interfaces

• Controlled locating features

• Custom mounting blocks

• Multiple machined features

• Drawing-based dimensional relationships

When Standard Fasteners May Be More Economical

Standard fastening components may be preferable where the required function can be achieved without custom machining.

For example, a standard bolt, nut, washer or locating pin may provide an efficient solution for a compatible construction equipment assembly.

However, the selected fastener must match the material, loading, geometry and installation requirements.

The appropriate solution should be selected according to engineering compatibility and total installed cost.

Construction Equipment OEM Supplier Development and Procurement Considerations

For construction machinery manufacturers, sourcing custom machined components requires both technical qualification and commercial evaluation.

Supplier selection should consider drawing conformity, material compatibility, machining feasibility, process consistency, quality expectations and supply planning.

Drawing-Based Supplier Evaluation

A technically complete RFQ should include the approved drawing, CAD model, material specification, tolerances, surface finish and required quantity.

Where an existing component is being transferred from another supplier, the latest drawing revision and critical functional characteristics should be identified.

Alternative Material and Process Evaluation

A proposed alternative material or machining process should be reviewed against the original engineering requirements.

Material substitution should not be approved solely because two grades have similar nominal properties.

Strength, fatigue behavior, wear resistance, corrosion protection and application requirements must be considered.

Any proposed change should be approved by the customer's engineering team.

MOQ, Lead Time and Volume Purchasing

Purchasing teams should provide estimated order quantities, annual demand, target delivery schedules and packaging requirements.

For custom CNC components, setup complexity, material availability, tooling, heat treatment, coating, inspection requirements and production volume can influence MOQ and lead time.

Commercial feasibility should be confirmed for each project.

Total Cost Optimization

The total cost of a machined construction equipment component depends on several factors:

• Material grade and stock form

• Part geometry

• Machining cycle time

• Number of setups

• Tooling and tool wear

• Heat-treatment requirements

• Dimensional tolerances

• Surface finish

• Coating and secondary operations

• Inspection requirements

• Scrap and rework

• Order quantity

• Assembly installation time

• Delivery schedule

Early collaboration between engineering, production and procurement teams can help identify cost-saving opportunities without compromising functional requirements.

Practical RFQ Checklist for Construction Equipment Carbon Steel CNC Components

A complete RFQ helps reduce technical clarification and supports accurate quotation.

Useful information includes:

• 2D engineering drawing

• 3D CAD model, if available

• Component application and function

• Carbon steel grade and material specification

• Material condition and heat-treatment requirements

• Critical dimensional tolerances

• GD&T requirements

• Thread specifications

• Surface finish requirements

• Coating or secondary processing requirements

• Mechanical loading and impact requirements

• Fatigue and wear considerations

• Lubrication and contamination exposure

• Operating temperature range

• Corrosion and outdoor exposure

• Pin-and-bushing fit requirements, if applicable

• Inspection and documentation requirements

• Prototype or sample quantity

• Estimated production order quantity

• Annual demand forecast

• Packaging requirements

• Delivery destination and target schedule

Where the component is intended for a safety-critical lifting, load-retention or other high-risk function, the applicable design, qualification and verification requirements should be explicitly identified.

Why Work with JUXIN FASTENERS for Construction Equipment CNC Machining Projects?

JUXIN FASTENERS supports drawing-based inquiries for precision machined components and industrial fastening hardware used in construction equipment manufacturing.

Relevant machining inquiries include:

• Carbon steel CNC turned parts

• Construction equipment pins and shafts

• CNC machined bushings and sleeves

• Custom threaded adapters

• Heavy equipment mounting blocks

• Precision mechanical connectors

• Drawing-based construction machinery components

• OEM repeat purchasing requirements

Our approach emphasizes clear technical communication and evaluation of the customer's drawings, materials, tolerances, manufacturing requirements and purchasing quantities.

For design and mechanical engineers, the priority is functional geometry, material suitability, loading considerations and dimensional accuracy.

For manufacturing engineers and production managers, the priority includes installation efficiency, process repeatability, inspection stability and consistent production quality.

For procurement and supply chain teams, the priority includes technical conformity, commercial feasibility, cost control, delivery planning and supplier evaluation.

Manufacturing feasibility, achievable tolerances, MOQ, lead time, testing and documentation requirements are confirmed according to the specific inquiry.

Request a Quote for Carbon Steel CNC Machining and Construction Equipment Components

Are you developing a new construction equipment mechanical component, sourcing custom carbon steel CNC machined parts, or evaluating an alternative supplier for repeat OEM production?

JUXIN FASTENERS welcomes technical and commercial inquiries from construction equipment manufacturers, heavy machinery OEMs, engineering teams, production departments and procurement organizations.

Send us your 2D drawings, 3D CAD models, material specifications, critical tolerances, heat-treatment requirements, surface finish, coating requirements, inspection criteria and estimated purchasing quantities.

Where applicable, please also identify operating loads, impact conditions, fatigue requirements, wear conditions, lubrication arrangements and installation requirements.

We can review your project requirements and discuss suitable machining approaches, technical clarification and RFQ arrangements.

JUXIN FASTENERS

Website: https://www.juxinfasteners.com

Email: info@juxinfasteners.com

RFQ: Construction Equipment Carbon Steel CNC Machining | Custom Pins and Bushings | OEM Mechanical Parts
