Carbon Steel CNC Machining for Industrial Machinery

Carbon Steel CNC Machining for Industrial Machinery, Custom Machine Parts and OEM Mechanical Assemblies

Industrial machinery relies on mechanical components that must maintain accurate positioning, controlled movement and reliable connections throughout repeated operating cycles.

Machine builders often require components with non-standard dimensions, specific material properties or precisely controlled interfaces.

These requirements may arise in production machinery, packaging equipment, material-handling systems, conveyors, assembly machines and other industrial equipment.

Carbon steel CNC machining provides a manufacturing option for selected shafts, rollers, bushings, sleeves, threaded adapters, mounting blocks, locating pins and custom mechanical connectors.

Compared with standard off-the-shelf hardware, CNC machining allows engineers to specify component geometry according to the functional requirements of a particular machine.

However, dimensional accuracy alone does not guarantee reliable machine operation.

Engineers must also consider mechanical loading, bearing fits, wear, lubrication, vibration, surface treatment, installation conditions and maintenance requirements.

For rotating components, shaft alignment, runout and surface finish may influence operating performance.

For static mounting components, thread engagement, flatness, hole position and assembly accessibility may be more important.

JUXIN FASTENERS supports drawing-based inquiries for custom carbon steel CNC machined components and industrial fastening hardware used in machinery manufacturing and OEM mechanical assemblies.

Depending on component geometry and project requirements, suitable manufacturing processes may include CNC turning, CNC milling, drilling, tapping, threading, grooving and combined turning-milling operations.

Material selection, achievable tolerances, secondary treatments, inspection requirements, purchasing quantities and delivery arrangements are evaluated according to the specific project.

Where Carbon Steel CNC Machined Components Are Used in Industrial Machinery

Industrial machinery contains many different mechanical systems.

The appropriate component design depends on the equipment function, loading conditions and required service life.

Packaging Machinery

Packaging machines may require shafts, rollers, spacers, bushings, locating pins and mounting components.

Precision machining can help maintain alignment between moving assemblies.

Where components operate near packaged food or other controlled products, material and cleanliness requirements must be evaluated separately.

Conveyor and Material-Handling Equipment

Conveyor systems may use machined shafts, rollers, spacers, sleeves and mechanical adapters.

The design should consider bearing arrangements, loading, alignment and wear.

For rotating assemblies, the relationship between the shaft, bearing and roller is important.

Industrial Assembly Equipment

Assembly machines may require custom locating pins, fixture bushings, mounting blocks and threaded interfaces.

These components help position workpieces and equipment during repeated manufacturing cycles.

Dimensional repeatability and wear resistance can influence fixture performance.

Automated Production Machinery

Automated machinery may require precision mechanical interfaces for sensors, actuators, positioning mechanisms and support structures.

Custom CNC machined parts may be useful where standard components cannot provide the required geometry.

Processing Equipment

Industrial processing equipment may incorporate shafts, bushings, adapters and mounting components.

Material selection should consider mechanical loading, temperature, corrosion exposure and the surrounding process environment.

Maintenance and Replacement Parts

Industrial machinery may remain in service for many years.

Replacement components may be required when original parts are worn, damaged or no longer readily available.

Drawing-based CNC machining can provide a potential manufacturing route for suitable replacement parts.

However, dimensional similarity alone does not establish functional interchangeability.

Material, heat treatment, surface finish, fits and operating requirements must also be verified.

Typical Carbon Steel CNC Machined Components for Industrial Machinery

Different component types require different engineering and manufacturing considerations.

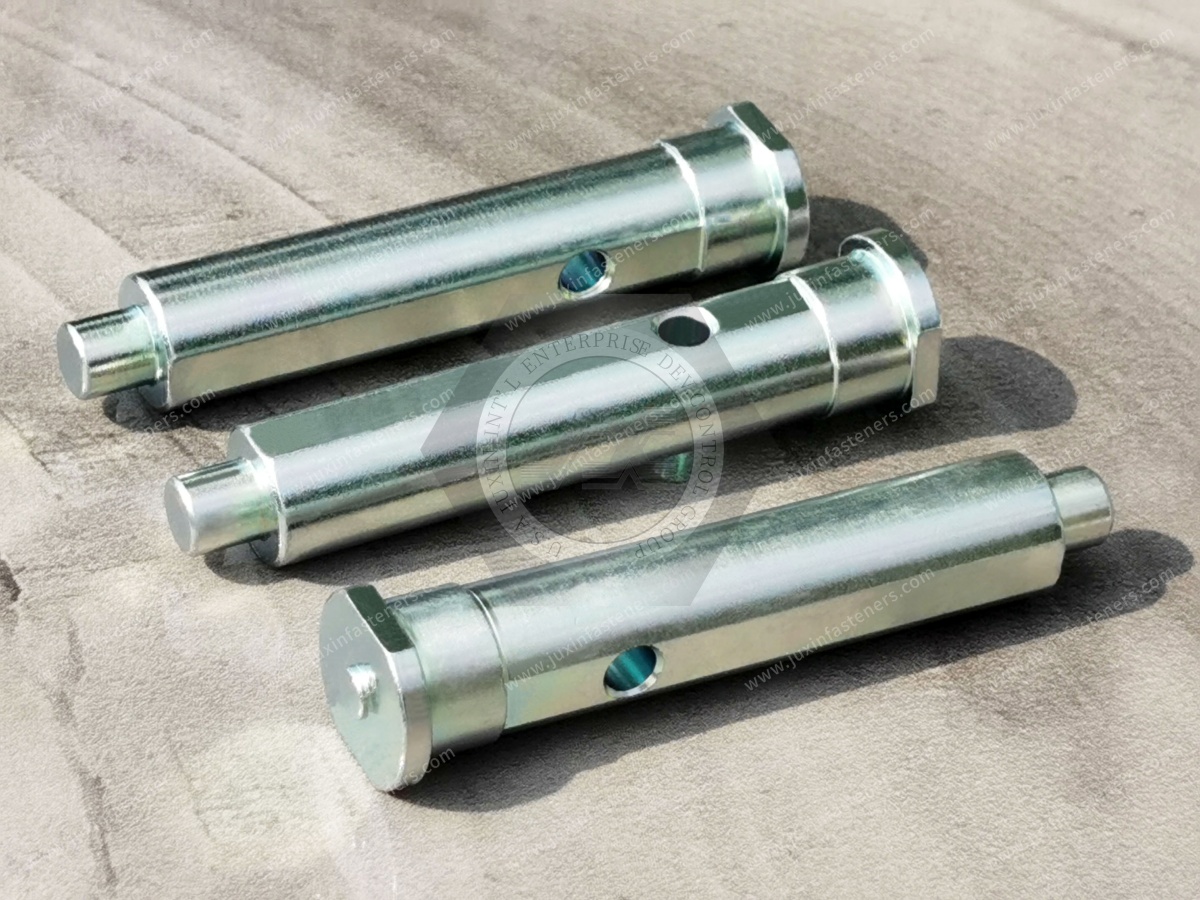

CNC Turned Shafts

Shafts may transmit motion, support rotating components or provide mechanical positioning.

Important characteristics can include shaft diameter, bearing-seat dimensions, shoulder geometry, straightness, runout and surface finish.

Where shafts experience cyclic loading, fatigue considerations may be important.

Precision Machined Rollers

Rollers may be used in conveyors, feeding systems and other machinery.

Important characteristics can include outside diameter, roundness, runout, bearing interfaces and surface finish.

The appropriate roller material and surface condition depend on loading, contact conditions and operating speed.

CNC Machined Bushings

Bushings may provide controlled interfaces between shafts and mating structures.

Critical dimensions can include inner diameter, outer diameter, length, concentricity and perpendicularity.

Where sliding contact occurs, wear performance depends on the complete material and lubrication system.

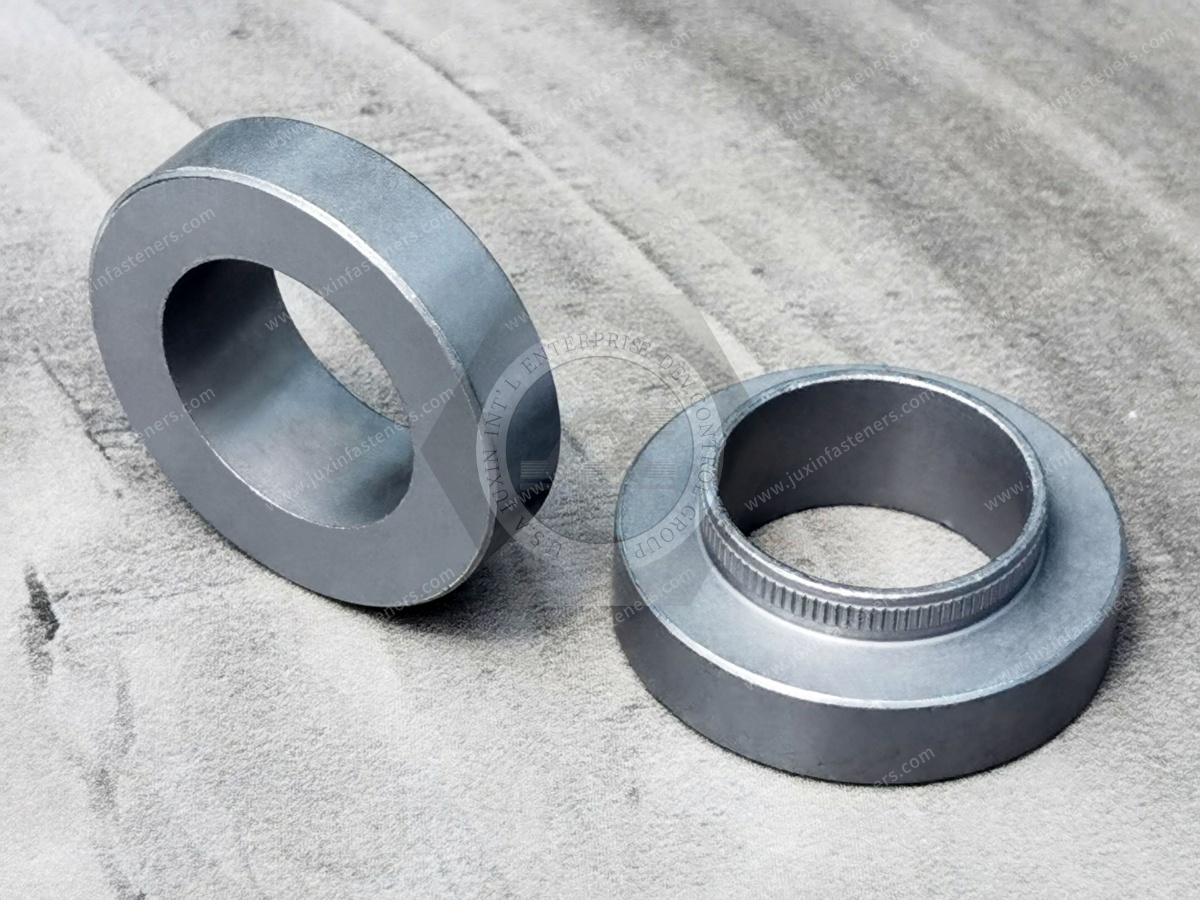

Sleeves and Spacers

Machined sleeves and spacers may establish controlled distances between components.

Their design should consider compressive loading, alignment and assembly conditions.

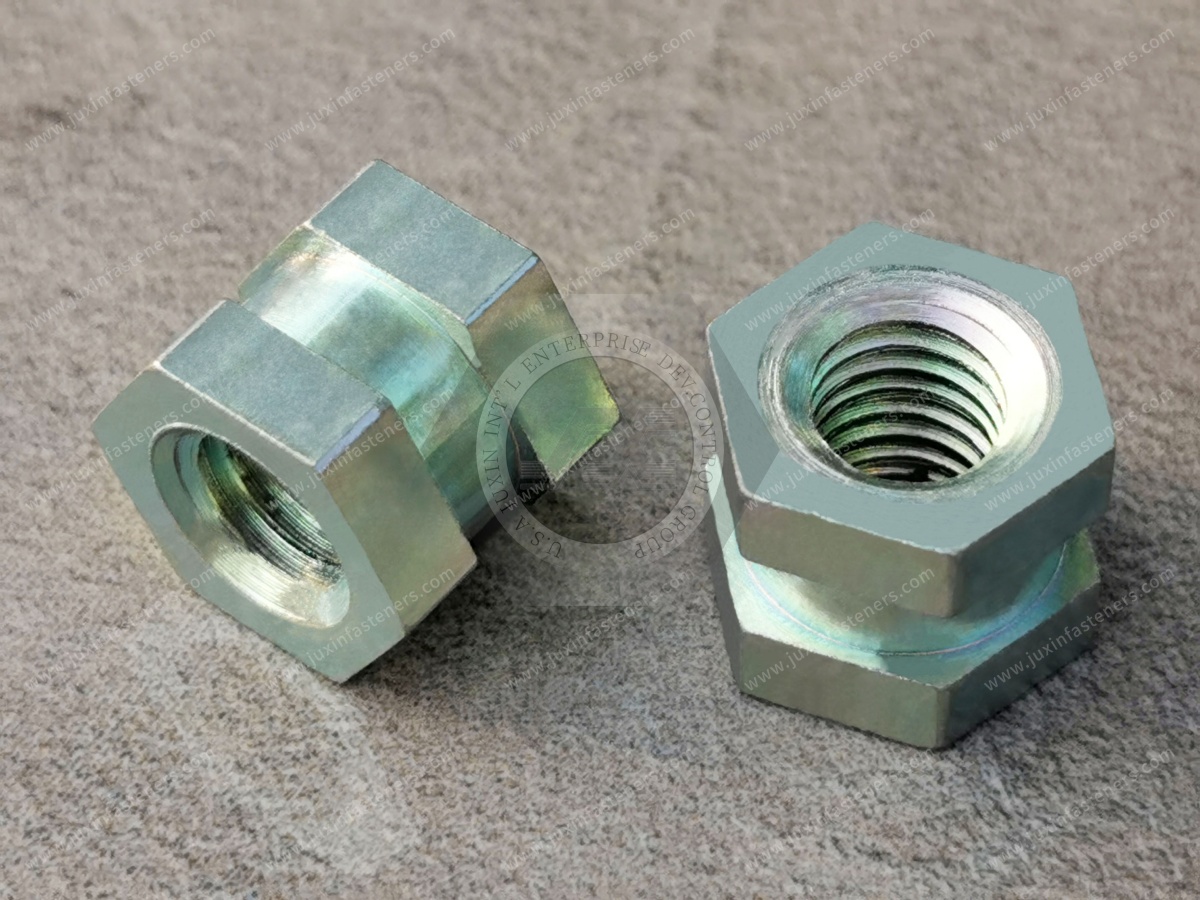

Threaded Adapters

Custom threaded adapters may connect mechanical interfaces that cannot be assembled using standard fasteners alone.

The drawing should specify thread size, pitch, tolerance class, engagement length and mating component requirements.

Mounting Blocks

CNC milled mounting blocks may provide controlled mounting faces, threaded holes and accurately positioned interfaces.

They may be useful for machine frames, equipment supports and tooling assemblies.

Locating Pins

Precision locating pins may help position components during assembly or fixture operation.

The required fit depends on the intended assembly method and whether the pin must be removable.

Custom Mechanical Connectors

Non-standard mechanical connectors may combine shoulders, grooves, flats, threads or multiple mounting features.

CNC machining may be appropriate where these geometries cannot be obtained economically using standard hardware.

Why Carbon Steel Is Used for Selected Industrial Machinery CNC Parts

Carbon steel may offer a useful combination of mechanical strength, machinability and cost efficiency.

However, its suitability depends on the specific grade and application.

Mechanical Strength

Different carbon steel grades offer different strength and hardness characteristics.

For selected mounting and mechanical support applications, carbon steel may provide suitable performance.

The required properties should be defined by the approved drawing.

Machinability

Some carbon steel grades can be machined efficiently using CNC turning and milling.

Machinability influences cutting forces, tool wear, surface finish, chip formation and cycle time.

Cost Efficiency

Carbon steel may provide cost advantages for selected components compared with more expensive engineering materials.

However, the total cost should include heat treatment, coating, inspection and service requirements.

Wear Limitations

Carbon steel may not provide sufficient wear resistance for every sliding or rolling interface.

Surface hardness, material pairing, lubrication and contamination conditions must be considered.

Corrosion Limitations

Carbon steel generally requires appropriate protection where moisture or corrosive exposure is expected.

Carbon Steel Grades for Industrial Machinery CNC Machining

The correct steel grade should be selected according to the approved drawing and functional requirements.

SAE/AISI 1018 Steel

SAE/AISI 1018 is a low-carbon steel that may be considered for selected spacers, mounting blocks, adapters and general mechanical components.

Its suitability depends on the required strength, material condition and corrosion protection.

SAE/AISI 1045 Steel

SAE/AISI 1045 is a medium-carbon steel that may be considered for selected shafts, pins, rollers and mechanical components requiring different strength or hardness characteristics.

Its properties depend on material condition and heat treatment.

Free-Machining Carbon Steel

Free-machining carbon steels may be suitable for certain turned components.

However, the material's mechanical properties, composition and customer requirements should be considered.

Carbon Steel vs. Alloy Steel

Carbon steel and alloy steel are not interchangeable.

For example, SAE/AISI 4140 is a chromium-molybdenum alloy steel rather than a plain carbon steel.

Where higher strength, hardenability or fatigue performance is required, an alloy steel may be more appropriate.

Any material substitution should be reviewed and approved by the customer's engineering team.

Carbon Steel vs. Stainless Steel

Stainless steel may be preferable where corrosion resistance is a major requirement.

Carbon steel may be more economical where a suitable coating can provide the required protection.

The correct choice depends on the operating environment and design requirements.

Carbon Steel vs. Aluminum

Aluminum may be suitable for weight-sensitive components.

However, differences in strength, wear resistance, thread durability and thermal expansion must be evaluated.

Shaft and Bearing Fits in Industrial Machinery

Shaft and bearing interfaces are critical to many rotating machinery assemblies.

The correct fit influences alignment, load distribution and operating performance.

Bearing Seat Dimensions

Bearing-seat diameters should follow the approved assembly design and bearing manufacturer's recommendations.

The appropriate fit depends on bearing type, loading, rotation conditions and temperature.

Interference and Clearance Fits

Different applications may require interference, transition or clearance fits.

The correct choice depends on the function and assembly requirements.

ISO 286 may be relevant to dimensional tolerance systems for shafts and holes.

However, the final fit should follow the approved equipment design.

Shaft Runout

Excessive runout can contribute to vibration and uneven loading.

Where required, the drawing should define appropriate geometric controls and inspection methods.

Surface Finish

Bearing seats and other functional surfaces may require controlled surface finish.

The required finish depends on the mating component and operating conditions.

Shaft Shoulders and Fillets

Shoulders and fillets can influence stress concentration and bearing seating.

The design should consider both mechanical strength and compatibility with the mating bearing geometry.

Roller Geometry, Alignment and Operating Performance

Rollers are common in conveyors and material-handling machinery.

Their geometry can influence contact behavior, tracking and operating stability.

Roller Diameter

The outside diameter affects contact geometry and may influence operating speed and load distribution.

The required tolerance depends on the application.

Roundness and Runout

Roundness and runout can influence vibration and contact consistency.

The appropriate controls should be established according to the complete roller assembly.

Surface Finish

Roller surface finish may affect friction, wear and contact with transported materials.

The required finish depends on the operating conditions.

Bearing Interfaces

Rollers may incorporate bearings, bushings or other support arrangements.

The fit between the roller and its supporting components should follow the approved design.

Material and Surface Treatment

The appropriate roller material and surface treatment depend on loading, wear and environmental conditions.

Wear, Lubrication and Service Life

Industrial machinery components may experience repeated sliding, rolling or contact loading.

Wear performance depends on the complete mechanical system.

Sliding Wear

Sliding contact may occur between shafts, bushings and other components.

The wear rate depends on material properties, contact pressure, surface finish and lubrication.

Rolling Contact

Rollers and bearing-related components may experience repeated contact stresses.

The appropriate material and surface condition depend on the loading and operating conditions.

Lubrication

Lubrication can influence friction, wear and service life.

Where lubrication is required, the design should consider lubricant access, retention and maintenance.

Contamination

Dust, particles and other contaminants may accelerate wear.

Sealing, lubrication and maintenance provisions should be evaluated.

Surface Hardness

For some applications, surface hardness may influence wear performance.

However, higher hardness is not automatically better.

The complete material system, toughness and failure risks must be evaluated.

Heat Treatment and Dimensional Stability

Heat treatment may be used to modify the mechanical properties of selected carbon steel components.

The appropriate treatment depends on steel grade, geometry and intended function.

Through-Hardening

Some medium-carbon steels may be suitable for through-hardening where the material and section size permit.

The achievable hardness depends on composition, geometry and process conditions.

Case Hardening

Case-hardening processes may be considered where a harder surface and different core properties are required.

The specified case depth, hardness and acceptance criteria must be established by the engineering drawing.

Heat-Treatment Distortion

Heat treatment may introduce dimensional changes or distortion.

For shafts, rollers and precision interfaces, the manufacturing sequence should account for this risk.

Depending on the project, finishing operations after heat treatment may be necessary.

Wear and Contact Surfaces

Where components experience sliding or repeated contact, wear performance depends on material hardness, surface finish, lubrication, contact pressure and mating materials.

Vibration, Fatigue and Threaded Joint Reliability

Industrial machinery may experience vibration and repeated mechanical loading.

These conditions can influence shafts, threaded connections and mechanical interfaces.

Fatigue Loading

Repeated loading may cause fatigue damage even when nominal stress is below the material's static strength.

Geometry, surface condition, heat treatment and operating loads influence fatigue performance.

Stress Concentrations

Sharp transitions, grooves, threads and small fillets may increase local stress.

The design should consider appropriate radii and feature placement.

Joint Preload

Correct joint preload can help maintain clamping force and reduce unwanted movement.

The appropriate preload depends on fastener properties, joint geometry, friction conditions and installation method.

Vibration Loosening

Vibration and transverse movement may contribute to loosening in certain threaded joints.

Suitable locking methods should be selected according to the actual application.

Repeated Maintenance

Industrial machinery often requires periodic maintenance and component replacement.

The design should consider service access, repeated assembly and thread durability.

Surface Treatment and Corrosion Protection

Carbon steel components may require protective surface treatment depending on the operating environment.

Zinc Electroplating

Zinc electroplating may be considered for selected carbon steel components.

Coating thickness can affect threads, precision bores and close-fitting interfaces.

Zinc-Nickel Coatings

Zinc-nickel coatings may be considered where specific corrosion-protection requirements are established.

The suitability of the coating system depends on the environment and customer acceptance criteria.

Phosphate Treatments

Phosphate treatments and associated protective systems may be appropriate for selected components.

Their corrosion performance depends on the complete treatment system.

Black Oxide

Black oxide may be suitable for selected indoor tooling or mechanical components.

However, black oxide alone should not be assumed to provide sufficient protection for demanding moisture exposure.

Hydrogen Embrittlement

Electroplating and certain chemical processing operations can introduce hydrogen into susceptible steel components.

For higher-strength or hardened steel parts, hydrogen embrittlement may create delayed fracture risks.

The need for process controls and post-treatment requirements depends on the material and customer specification.

Coating and Fit Compatibility

Coatings can change the dimensions of threads, bores and mating surfaces.

Where close fits are required, the drawing should define whether dimensions apply before or after coating.

CNC Machining Processes for Industrial Machinery Components

The appropriate machining process depends on component geometry, material, tolerance requirements and production quantity.

CNC Turning

CNC turning is suitable for rotationally symmetric components such as shafts, rollers, bushings, sleeves, spacers and threaded adapters.

Typical operations include facing, external turning, boring, drilling, grooving and threading.

CNC Milling

CNC milling may be suitable for mounting blocks, adapters and components requiring flats, slots, pockets or multiple mounting features.

Datum selection and fixture stability are important where positional relationships between features affect assembly.

Drilling, Tapping and Threading

Machined components may require internal threads, external threads, precision holes and mounting features.

Thread quality depends on material properties, tooling, cutting conditions and inspection methods.

Combined Turning and Milling

Turn-mill machining can combine rotational and non-rotational operations.

For suitable components, reducing the number of setups may improve relationships between critical features and reduce handling.

Design for Manufacturability in Industrial Machinery CNC Parts

Design for Manufacturability (DFM) helps align engineering requirements with practical machining processes.

Early DFM evaluation can reduce unnecessary complexity, improve production repeatability and lower total component cost.

Tolerance Allocation

Not every dimension requires the same tolerance.

Critical-to-function features should receive appropriate dimensional and geometric controls.

Non-critical dimensions may permit more economical tolerances.

Long Shafts and Machining Stability

Long or slender shafts may deform during machining due to cutting forces or workholding conditions.

Special workholding or controlled machining sequences may be required.

Deep Holes and Tool Accessibility

Deep or narrow holes may require specialized tooling and additional machining time.

Engineers should consider tool reach, chip evacuation and measurement requirements.

Surface Finish

Surface finish should be specified according to component function.

A bearing interface, sliding surface and general mounting face may require different surface conditions.

GD&T for Industrial Machinery Mechanical Components

Geometric Dimensioning and Tolerancing (GD&T) helps define relationships between critical features.

Depending on the drawing system, ASME Y14.5 or ISO 1101 may be applicable.

Relevant controls may include position, flatness, perpendicularity, parallelism, runout and profile.

Datum selection should reflect how the component is located and assembled.

For example, a shaft may require controlled relationships between bearing seats, shoulders and threaded features.

A mounting block may require accurate positional relationships between mounting holes and locating surfaces.

GD&T should support functional assembly and inspection rather than introduce unnecessary manufacturing complexity.

Metric and Inch Thread Standards

Industrial machinery may use metric or inch thread systems depending on the OEM design.

ISO 261 and ISO 965 may be relevant to ISO metric screw threads.

ASME B1.1 covers Unified inch screw threads, including UNC and UNF series.

Metric and Unified inch threads are not directly interchangeable.

Thread size, pitch, tolerance class and mating component compatibility must be confirmed before production.

Assembly Efficiency and Industrial Machinery Production-Line Considerations

For industrial machinery manufacturers, component design directly affects assembly efficiency.

Production managers should consider installation time, tool access, handling, part orientation and inspection requirements.

Installation Access

A component may be dimensionally correct but difficult to install because of limited tool clearance.

The design should account for the required installation tools.

Part Orientation

Components with asymmetric geometry may require additional handling or orientation during assembly.

Where possible, designs that reduce orientation errors may improve production efficiency.

Fastener Standardization

Using common thread sizes and installation tools across an equipment platform may simplify assembly and inventory management.

However, standardization should not compromise the required mechanical function.

Assembly Error Prevention

The design should reduce the risk of incorrect part selection, reversed installation or cross-threading.

Clear identification, suitable lead-in features and controlled assembly procedures may help.

Production Repeatability

A successful CNC machining process must provide repeatable dimensions across the required production quantity.

Program-controlled machining, suitable workholding, tool-life management and inspection planning can support process stability.

Quality Control for Custom Industrial Machinery CNC Parts

Inspection planning should follow the approved drawing and the component's functional requirements.

Depending on the project, inspection may include dimensional measurement, thread inspection, material verification, hardness testing, surface-finish measurement and functional checks.

Dimensional Inspection

Critical dimensions may be verified using suitable micrometers, calipers, bore gauges, height gauges or coordinate measuring equipment.

The measurement method should provide sufficient capability for the specified tolerance.

Thread Inspection

Threaded components may require appropriate thread gauges or other verification methods.

The inspection method should follow the specified thread standard and customer requirements.

Material Verification

Customers may require material documentation or additional verification of the specified carbon steel grade.

The required documentation should be agreed upon during quotation.

Hardness and Heat-Treatment Verification

Where hardness or heat-treatment condition is functionally important, the drawing should define the applicable requirements.

Any required testing or documentation should be confirmed before production.

Coating Inspection

Where corrosion protection is required, inspection may include coating thickness verification or other customer-defined checks.

The coating system and acceptance criteria should be established before production.

Functional Inspection

For selected components, functional inspection may include assembly-fit checks or verification using a representative mating component.

However, functional inspection should not replace required dimensional verification.

From Prototype Development to Repeat OEM Production

CNC machining can support industrial machinery development because geometry and machining programs can be revised as the design evolves.

However, transitioning from prototypes to repeated production requires additional process planning.

Engineering Drawing and CAD Review

The initial review should identify material, geometry, critical tolerances, functional interfaces and inspection requirements.

Potential manufacturing risks should be clarified before machining begins.

Material and Process Selection

The material and machining process should be selected according to functional requirements, part geometry, quantity and cost.

Alternative manufacturing approaches may be considered where technically appropriate.

Prototype and First-Article Machining

Initial parts can be evaluated for dimensional accuracy, assembly fit, surface condition and manufacturing feasibility.

Any design or process changes should be documented.

Process Optimization

After design approval, machining operations may be optimized for cycle time, tooling, repeatability and inspection efficiency.

The appropriate optimization depends on the required production quantity.

Repeat Production and Final Inspection

Repeat production should follow the approved drawing revision and agreed quality requirements.

Inspection, packaging and delivery arrangements should be established according to the customer's purchasing specification.

CNC Machining vs. Standard Industrial Machinery Fasteners

Custom CNC machining provides flexibility for non-standard geometry and precision mechanical interfaces.

However, not every industrial machinery component requires CNC machining.

Standard bolts, nuts, washers, studs, spacers, pins and other fastening components may offer more economical solutions for suitable applications.

When CNC Machining May Be Appropriate

CNC machining may be justified where the design requires:

• Non-standard geometry

• Precision concentric features

• Special threaded interfaces

• Controlled locating features

• Custom mounting blocks

• Multiple machined features

• Drawing-based dimensional relationships

When Standard Fasteners May Be More Economical

Standard fastening components may be preferable where the required function can be achieved without custom machining.

For example, a standard bolt, nut, washer or locating pin may provide an efficient solution for a compatible machinery assembly.

However, the selected fastener must match the material, loading, geometry and installation requirements.

The appropriate solution should be selected according to engineering compatibility and total installed cost.

Industrial Machinery OEM Supplier Development and Procurement Considerations

For machinery manufacturers, sourcing custom machined components requires both technical qualification and commercial evaluation.

Supplier selection should consider drawing conformity, material compatibility, machining feasibility, process consistency, quality expectations and supply planning.

Drawing-Based Supplier Evaluation

A technically complete RFQ should include the approved drawing, CAD model, material specification, tolerances, surface finish and required quantity.

Where an existing component is being transferred from another supplier, the latest drawing revision and critical functional characteristics should be identified.

Alternative Material and Process Evaluation

A proposed alternative material or machining process should be reviewed against the original engineering requirements.

Material substitution should not be approved solely because two grades have similar nominal properties.

Strength, fatigue behavior, wear resistance, corrosion protection and application requirements must be considered.

Any proposed change should be approved by the customer's engineering team.

MOQ, Lead Time and Volume Purchasing

Purchasing teams should provide estimated order quantities, annual demand, target delivery schedules and packaging requirements.

For custom CNC components, setup complexity, material availability, tooling, heat treatment, coating, inspection requirements and production volume can influence MOQ and lead time.

Commercial feasibility should be confirmed for each project.

Total Cost Optimization

The total cost of a machined industrial machinery component depends on several factors:

• Material grade and stock form

• Part geometry

• Machining cycle time

• Number of setups

• Tooling and tool wear

• Heat-treatment requirements

• Dimensional tolerances

• Surface finish

• Coating and secondary operations

• Inspection requirements

• Scrap and rework

• Order quantity

• Assembly installation time

• Delivery schedule

Early collaboration between engineering, production and procurement teams can help identify cost-saving opportunities without compromising functional requirements.

Practical RFQ Checklist for Industrial Machinery Carbon Steel CNC Components

A complete RFQ helps reduce technical clarification and supports accurate quotation.

Useful information includes:

• 2D engineering drawing

• 3D CAD model, if available

• Component application and function

• Carbon steel grade and material specification

• Material condition and heat-treatment requirements

• Critical dimensional tolerances

• GD&T requirements

• Thread specifications

• Surface finish requirements

• Coating or secondary processing requirements

• Mechanical loading and fatigue requirements

• Wear and lubrication considerations

• Operating temperature range

• Corrosion and environmental exposure

• Shaft-and-bearing fit requirements, if applicable

• Inspection and documentation requirements

• Prototype or sample quantity

• Estimated production order quantity

• Annual demand forecast

• Packaging requirements

• Delivery destination and target schedule

Where the component is intended for a safety-critical or otherwise high-risk function, the applicable design, qualification and verification requirements should be explicitly identified.

Why Work with JUXIN FASTENERS for Industrial Machinery CNC Machining Projects?

JUXIN FASTENERS supports drawing-based inquiries for precision machined components and industrial fastening hardware used in industrial machinery manufacturing.

Relevant machining inquiries include:

• Carbon steel CNC turned parts

• Industrial machinery shafts and rollers

• CNC machined bushings and sleeves

• Custom threaded adapters

• Industrial equipment mounting blocks

• Precision mechanical connectors

• Drawing-based machine components

• OEM repeat purchasing requirements

Our approach emphasizes clear technical communication and evaluation of the customer's drawings, materials, tolerances, manufacturing requirements and purchasing quantities.

For design and mechanical engineers, the priority is functional geometry, material suitability, loading considerations and dimensional accuracy.

For manufacturing engineers and production managers, the priority includes installation efficiency, process repeatability, inspection stability and consistent production quality.

For procurement and supply chain teams, the priority includes technical conformity, commercial feasibility, cost control, delivery planning and supplier evaluation.

Manufacturing feasibility, achievable tolerances, MOQ, lead time, testing and documentation requirements are confirmed according to the specific inquiry.

Request a Quote for Carbon Steel CNC Machining and Industrial Machinery Components

Are you developing a new industrial machinery component, sourcing custom carbon steel CNC machined parts, or evaluating an alternative supplier for repeat OEM production?

JUXIN FASTENERS welcomes technical and commercial inquiries from industrial machinery manufacturers, equipment builders, engineering teams, production departments and procurement organizations.

Send us your 2D drawings, 3D CAD models, material specifications, critical tolerances, heat-treatment requirements, surface finish, coating requirements, inspection criteria and estimated purchasing quantities.

Where applicable, please also identify operating loads, fatigue requirements, wear conditions, lubrication arrangements and installation requirements.

We can review your project requirements and discuss suitable machining approaches, technical clarification and RFQ arrangements.

JUXIN FASTENERS

Website: https://www.juxinfasteners.com

Email: info@juxinfasteners.com

RFQ: Industrial Machinery Carbon Steel CNC Machining | Custom Shafts and Rollers | OEM Mechanical Parts
