Carbon Steel CNC Machining for Electrical Cabinets

Carbon Steel CNC Machining for Electrical Cabinets, Switchgear and Custom OEM Enclosure Components

Electrical cabinets, industrial control panels, switchgear enclosures and automation equipment require reliable mechanical connections between sheet metal structures,

mounting rails, electrical devices and internal support assemblies.

Although many enclosure components are manufactured through sheet metal cutting, punching, bending and welding,

certain interfaces require additional dimensional accuracy, custom geometry or controlled threaded features.

Carbon steel CNC machining provides a practical manufacturing option for selected mounting blocks, threaded spacers, standoffs, bushings, sleeves, adapters and precision mechanical connectors.

These parts may support equipment positioning, mechanical attachment, controlled spacing and repeatable assembly.

However, dimensional accuracy alone does not determine whether a component is suitable for an electrical cabinet.

Engineers must also consider sheet metal thickness, thread engagement, mounting loads, coating thickness, corrosion exposure, electrical bonding requirements, installation access and production consistency.

JUXIN FASTENERS supports drawing-based inquiries for custom carbon steel CNC machined parts and industrial fastening components used in electrical cabinet manufacturing and related OEM assemblies.

Depending on the component geometry and production requirements, suitable manufacturing processes may include CNC turning,

CNC milling, drilling, tapping, threading, grooving and combined turning-milling operations.

Material specifications, achievable tolerances, secondary treatments, inspection requirements, purchasing quantities and delivery arrangements are evaluated according to the specific project.

Applications of Carbon Steel CNC Machined Parts in Electrical Cabinets

Electrical enclosures contain a variety of mechanical interfaces, each with different functional requirements.

A mounting component supporting a lightweight control device may require a different design from a threaded adapter used in a heavily loaded equipment assembly.

Industrial Control Cabinets

Industrial control cabinets may incorporate programmable controllers, relays, power supplies, terminal blocks and other equipment mounted to internal structures.

Custom machined spacers, mounting blocks and threaded interfaces may be used where standard components cannot provide the required positioning or geometry.

Important design considerations include equipment weight, vibration, access for installation and maintenance, and compatibility with the enclosure structure.

Switchgear and Power Distribution Enclosures

Switchgear and power distribution equipment may require accurately positioned mechanical supports and mounting interfaces.

Carbon steel CNC components may be considered for selected non-current-carrying structural applications.

However, mechanical suitability does not establish electrical suitability.

Components involved in protective bonding, current-carrying connections or insulation systems require separate evaluation against the applicable equipment design and safety requirements.

Electrical Enclosure Doors and Access Panels

Doors and removable panels may incorporate custom spacers, pivot-related components, threaded adapters and mechanical mounting interfaces.

The design should account for repeated operation, wear, vibration, corrosion and service access.

Where a component affects a door's protective bonding path, the electrical continuity requirements must be separately established and verified.

Industrial Automation Equipment

Automation cabinets and machine-control enclosures may require custom mounting interfaces for sensors, actuators, cable-management hardware and control equipment.

Precision machined components can help maintain consistent spacing and alignment.

However, the design should avoid introducing unnecessary complexity where a standard fastener or sheet metal feature would provide the same function.

Outdoor Electrical Enclosures

Outdoor enclosures may be exposed to moisture, temperature variation, pollutants and corrosive environments.

For carbon steel components, protective coatings and galvanic compatibility become important considerations.

The selected component and coating system must be compatible with the intended environmental conditions and enclosure performance requirements.

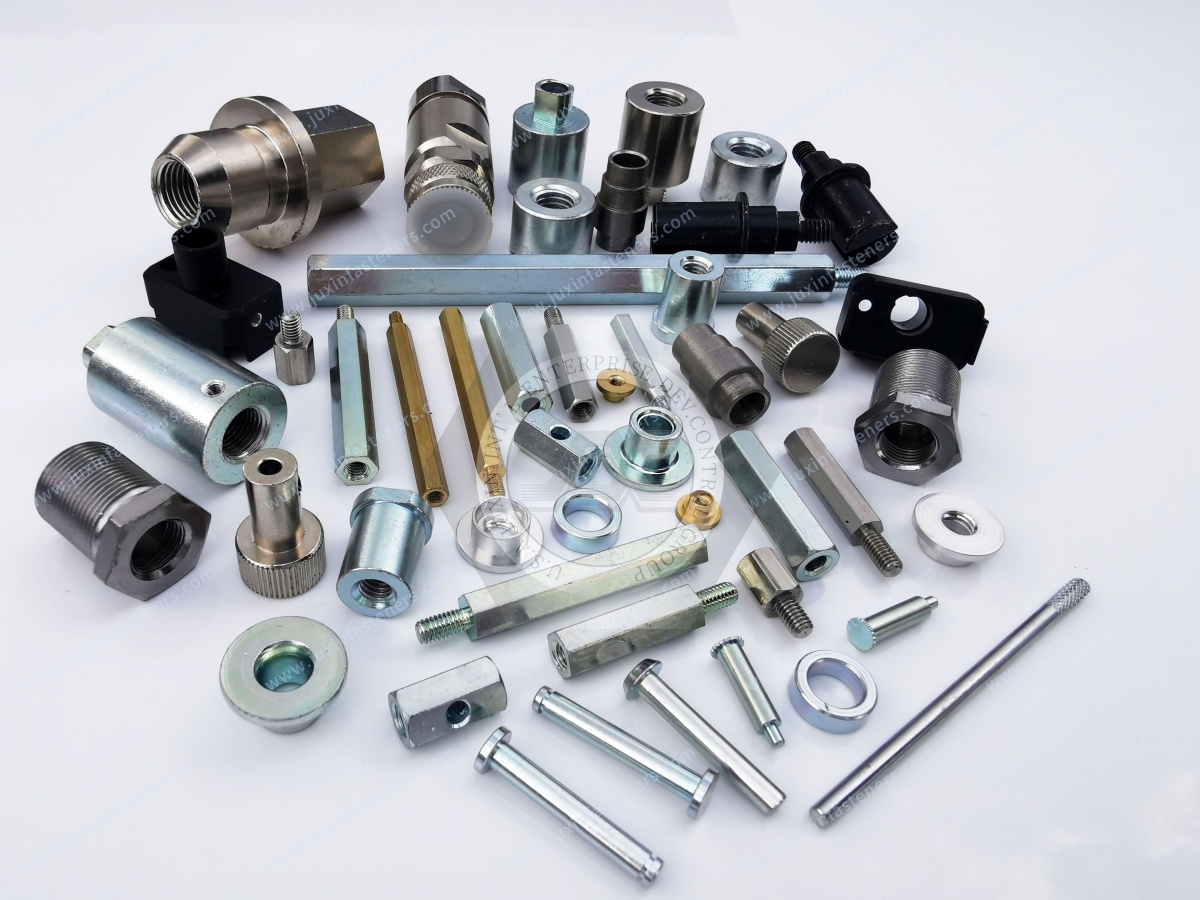

Typical Carbon Steel CNC Machined Components

The following component types are relevant to selected electrical cabinet and industrial enclosure applications.

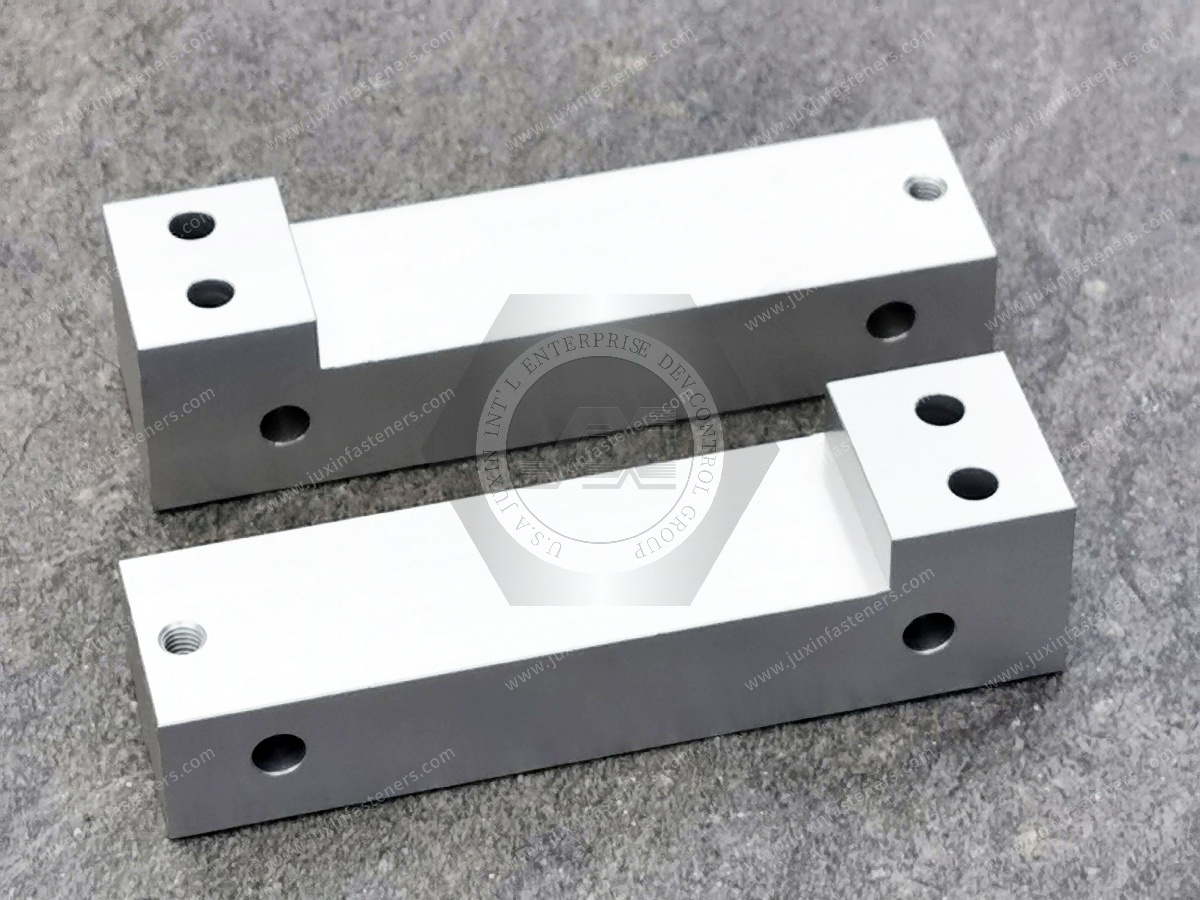

CNC Machined Mounting Blocks

Mounting blocks can provide controlled mounting surfaces, threaded holes and accurately positioned interfaces.

They may be useful where the enclosure requires a custom offset, a reinforced connection or a mounting arrangement that cannot be achieved efficiently using a standard bracket.

Critical characteristics may include block thickness, hole position, thread depth, flatness and perpendicularity.

Threaded Spacers and Standoffs

Machined spacers and standoffs may establish a defined distance between a mounted component and the enclosure surface.

They can also provide threaded attachment points.

Design considerations include spacer length, outer diameter, thread engagement, compressive loading and resistance to loosening.

Where the spacer is conductive, its electrical role must be defined rather than assumed.

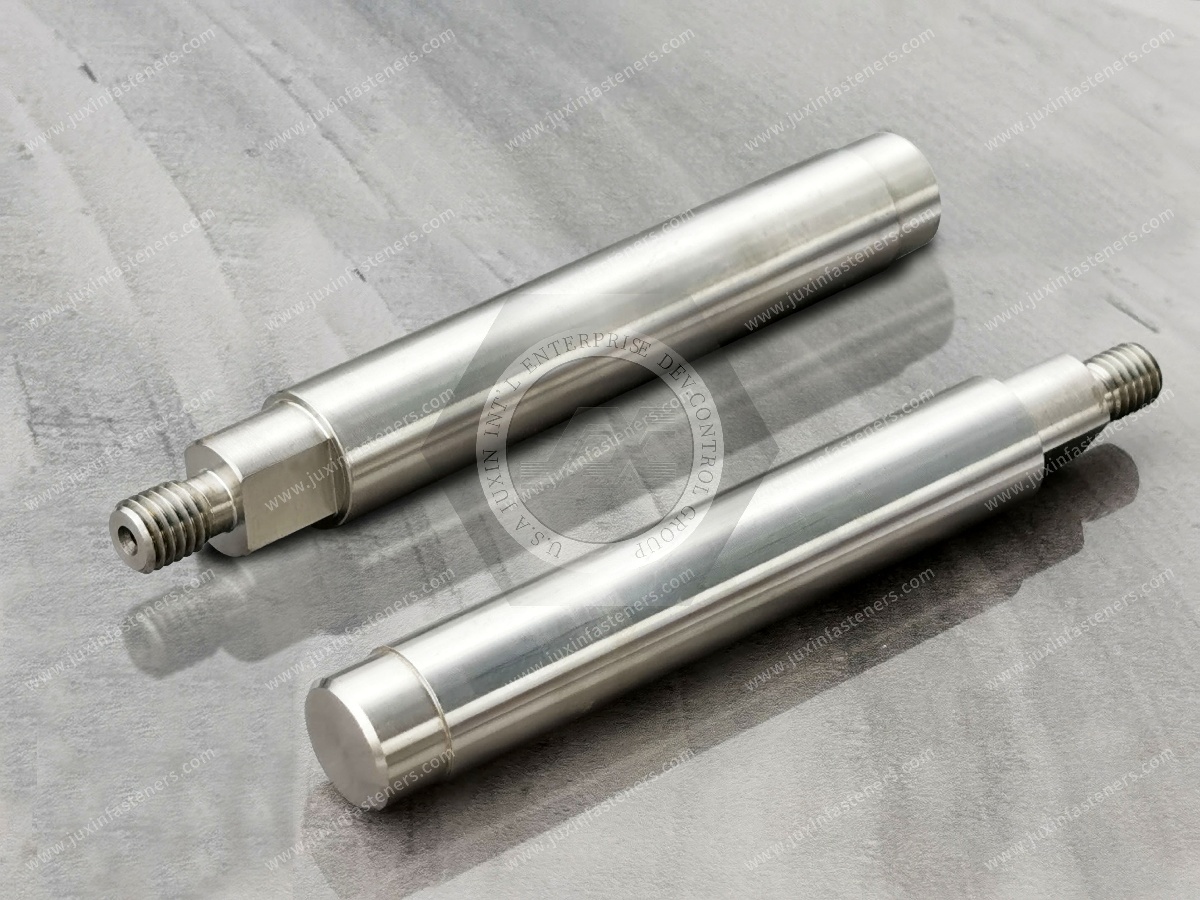

Custom Threaded Adapters

Threaded adapters may connect different mechanical interfaces or provide special mounting geometry.

The drawing should specify thread size, pitch, tolerance class, engagement length and mating component requirements.

Thread compatibility must be verified before production.

Bushings and Sleeves

Machined bushings and sleeves may provide controlled spacing, alignment or mechanical support.

Important characteristics include inner diameter, outer diameter, length, concentricity and perpendicularity.

Where the component experiences movement or wear, material hardness and mating-surface conditions may become important.

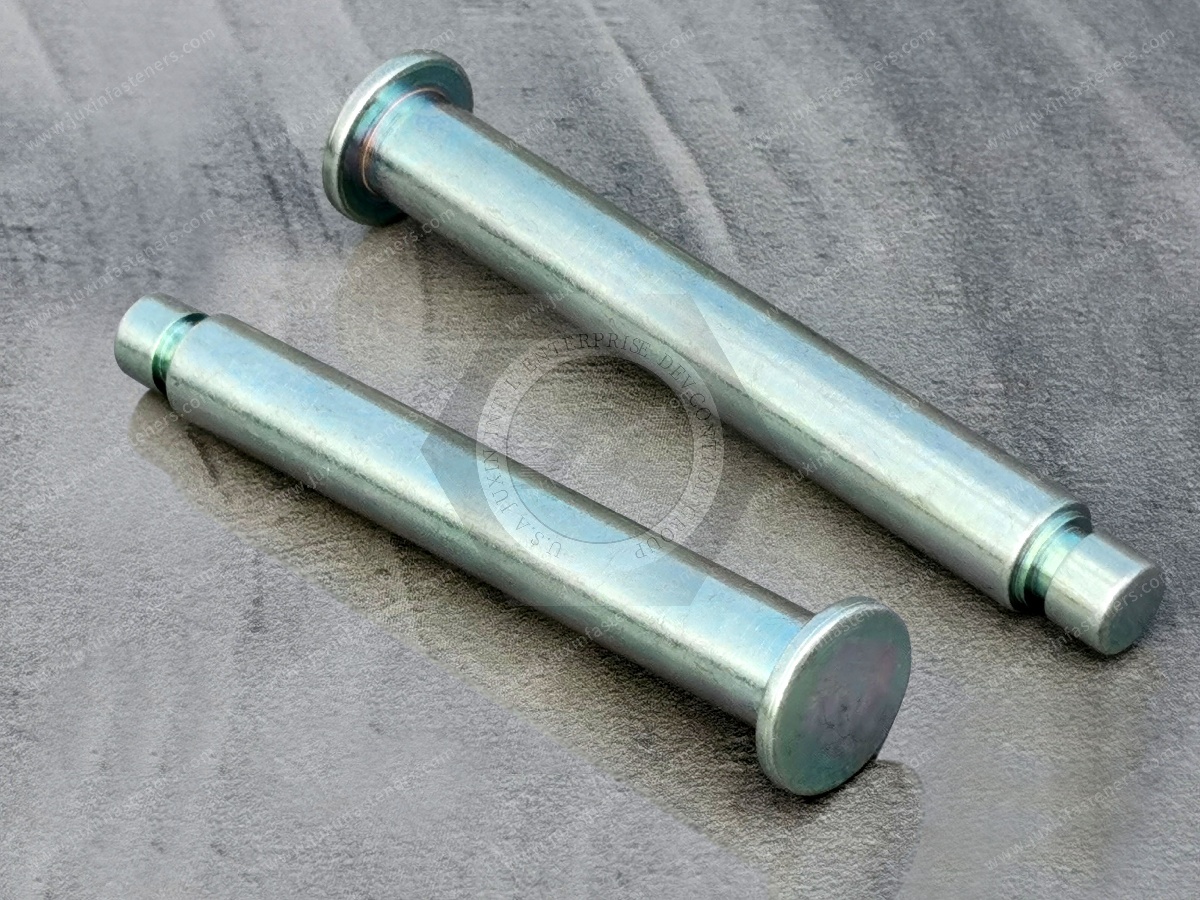

Precision Locating Pins

Locating pins may be used to position enclosure subassemblies or manufacturing fixtures.

The required fit depends on the assembly method, tolerances and whether the pin must be removable.

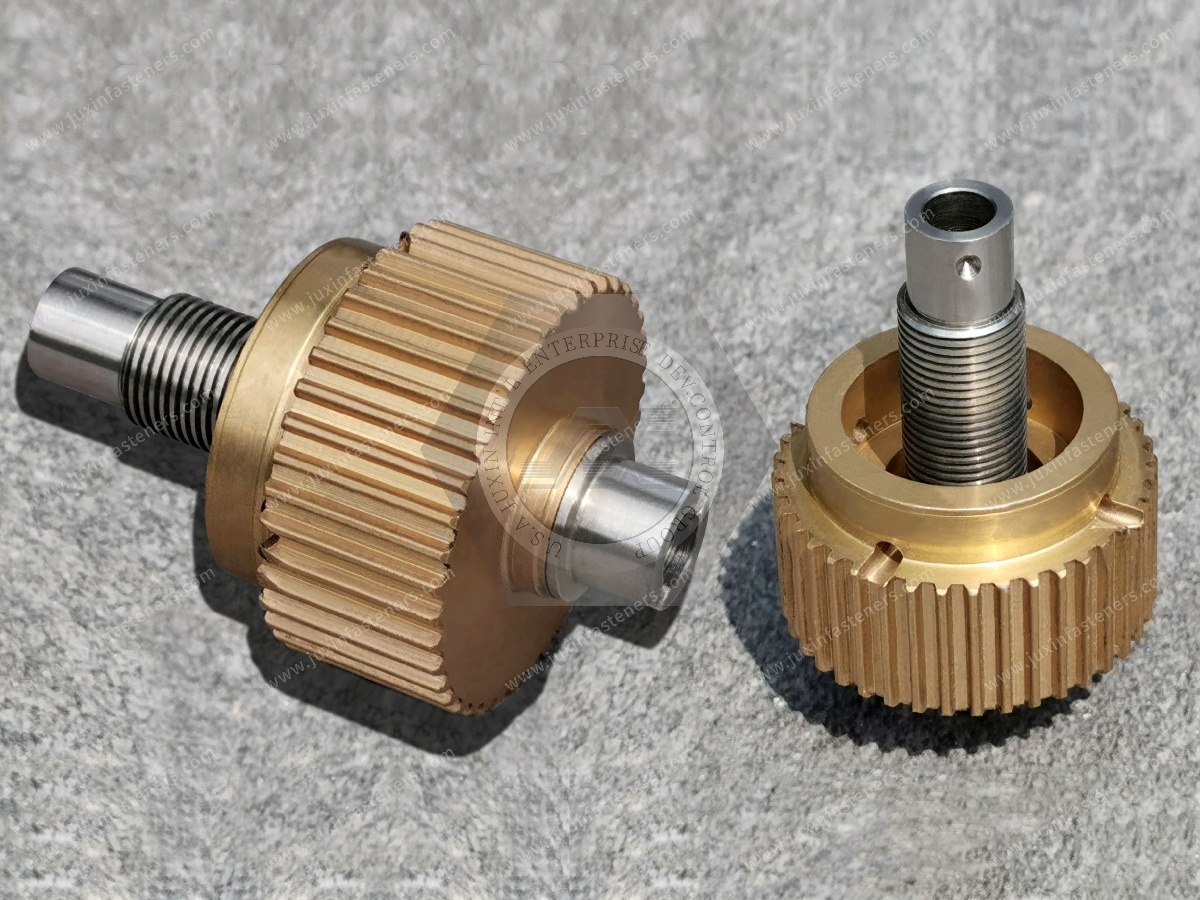

Custom Mechanical Connectors

Non-standard mechanical connectors may combine threaded features, shoulders, grooves, flats or multiple mounting surfaces.

CNC machining may be appropriate where the required geometry cannot be obtained economically from standard hardware.

Carbon Steel Material Selection for Electrical Cabinet Components

Carbon steel is commonly considered for mechanical components where strength, machinability and cost efficiency are important.

However, the correct grade should be selected according to the approved drawing and functional requirements.

SAE/AISI 1018 Steel

SAE/AISI 1018 is a low-carbon steel that may be considered for selected mounting blocks, spacers, adapters and general mechanical components.

Its suitability depends on the required mechanical properties, material condition and corrosion protection.

SAE/AISI 1045 Steel

SAE/AISI 1045 is a medium-carbon steel that may be considered where selected components require different strength, hardness or heat-treatment characteristics.

It should not automatically be selected for ordinary electrical cabinet mounting hardware when a lower-carbon grade is sufficient.

Free-Machining Carbon Steel

Free-machining grades may offer advantages for certain turned spacers, sleeves and adapters.

However, their mechanical properties, corrosion protection, composition and customer substance restrictions must be considered.

Carbon Steel vs. Stainless Steel

Stainless steel may be preferable for some corrosive environments.

Carbon steel may be more economical where a suitable protective coating can provide the required performance.

Material substitution should consider the complete environment, installation conditions and customer specification.

Carbon Steel vs. Aluminum

Aluminum may be appropriate where lower weight or other material characteristics are important.

However, differences in strength, thread durability, galvanic compatibility and surface treatment must be evaluated.

Material Condition and Documentation

The drawing should identify the required material grade, condition and relevant mechanical properties.

Where required, material certificates or other verification documents should be agreed upon during quotation.

Sheet Metal Thickness and Mounting Design

One of the most important engineering considerations in electrical cabinet manufacturing is the relationship between the fastening component and the sheet metal structure.

The appropriate mounting solution depends on sheet thickness, loading, access and production method.

Thin Sheet Metal Panels

Thin sheet metal may not provide sufficient thread engagement for a directly tapped hole.

Depending on the design, alternative solutions may include self-clinching fasteners, rivet nuts, weld nuts, threaded inserts or separate machined mounting components.

The suitability of each option depends on the panel material, sheet thickness, hole geometry, required installation force and load direction.

Thicker Structural Panels

Thicker material may permit directly tapped holes where sufficient thread engagement and mechanical strength are available.

However, the required thread engagement must be evaluated according to the joint design and loading.

Blind-Side Installation

Some enclosure assemblies do not permit access to the rear side of the panel during installation.

In these cases, a blind-installed threaded insert or another suitable fastening solution may be more practical than a separate machined block.

Custom Mounting Blocks

A machined mounting block may be appropriate where the design requires multiple threaded holes, a controlled offset or a precise mounting interface.

However, the block must be attached to the sheet metal structure through an appropriate joining method.

Sheet Metal Deformation

Thin panels can deform under concentrated clamping loads.

The design should consider load distribution, washers, support surfaces and local reinforcement.

Tolerance Stack-Up

The final position of mounted equipment depends on the combined tolerances of the sheet metal panel, mounting holes, machined components and mating hardware.

A tightly controlled machined spacer cannot compensate for an uncontrolled enclosure assembly.

The complete dimensional chain should be evaluated.

Thread Engagement and Mechanical Joint Reliability

Threaded interfaces are common in electrical cabinet assemblies.

Their reliability depends on thread geometry, material strength, engagement length, tightening conditions and service loads.

Internal Thread Design

The drawing should specify thread size, pitch, tolerance class and minimum required thread depth.

For blind holes, engineers should distinguish between drilled depth and usable full-thread depth.

External Thread Design

Custom threaded adapters and studs may require controlled thread length, runout and shoulder geometry.

The relationship between the threaded portion and locating surfaces may be critical to assembly.

Thread Stripping

Insufficient thread engagement or unsuitable material properties can cause thread stripping.

The appropriate engagement length depends on the fastener material, internal-thread material, thread geometry and applied loads.

Joint Loosening

Vibration and transverse movement may contribute to loosening in certain bolted joints.

Locking features should be selected according to the actual loading and installation conditions.

Repeated Assembly

Electrical cabinet components may be removed during maintenance.

Repeated tightening can affect threads, coatings and mating surfaces.

Where repeated service is expected, the design should consider thread durability and replacement procedures.

Metric and Inch Thread Compatibility

Electrical cabinet components may use metric or inch thread systems.

ISO 261 and ISO 965 are relevant to ISO metric screw threads.

ASME B1.1 covers Unified inch screw threads, including UNC and UNF series.

Metric and Unified inch threads are not directly interchangeable.

The thread specification must match the mating component and approved drawing.

Protective Bonding, Grounding and Electrical Safety

Electrical cabinets may require protective bonding between exposed conductive parts and the protective conductor system.

This is a critical distinction between mechanical fastening and electrical safety.

A carbon steel machined component may provide a mechanical connection, but it should not automatically be treated as an approved protective bonding component.

Mechanical Contact Does Not Guarantee Electrical Continuity

Paint, powder coating, oxidation, surface contamination and insufficient contact pressure may increase electrical resistance between connected metal parts.

A mechanically secure joint may therefore fail to provide the intended electrical continuity.

Coated Contact Surfaces

Where a joint forms part of an approved protective bonding path, the design may require defined conductive contact areas or other approved bonding provisions.

Coating removal or modification should follow the equipment manufacturer's design and applicable safety requirements.

Bonding Hardware

Dedicated bonding fasteners, washers or conductors may be required depending on the equipment design.

Their suitability must be established through the applicable design and verification process.

Relevant Equipment Standards

IEC 61439 is relevant to low-voltage switchgear and controlgear assemblies.

IEC 60204-1 may be relevant to electrical equipment of machinery.

UL 508A may be relevant to industrial control panels within its scope.

These standards apply to specified equipment and assemblies; referencing them does not establish that an individual CNC machined component or JUXIN FASTENERS holds certification under those standards.

Electrical Insulation

Carbon steel is electrically conductive.

It should not be used as an insulating spacer where electrical isolation is required unless the complete approved design incorporates suitable insulating elements.

Corrosion Protection and Surface Finishing

Carbon steel components used in electrical cabinets may require protective surface treatment.

The appropriate coating depends on environmental exposure, assembly requirements and the approved drawing.

Zinc Electroplating

Zinc electroplating may be suitable for selected carbon steel mechanical components.

Coating thickness should be considered where threads, precision bores or close-fitting interfaces are involved.

Zinc-Nickel Coatings

Zinc-nickel coatings may be considered where specific corrosion-protection requirements are established.

The suitability of the coating system depends on environmental conditions and customer acceptance criteria.

Phosphate Treatments

Phosphate treatments and associated protective systems may be used for selected components.

Their performance depends on the complete treatment system.

Black Oxide

Black oxide may be considered for selected indoor tooling or equipment components.

However, it should not be assumed to provide sufficient corrosion protection for demanding outdoor conditions.

Powder Coating and Painted Assemblies

Where machined components are integrated into painted or powder-coated enclosures, engineers should consider whether the coating affects mounting surfaces, thread engagement or electrical contact.

Critical dimensions should specify whether they apply before or after coating.

Galvanic Corrosion

Where carbon steel contacts aluminum, stainless steel or other metals, galvanic corrosion may occur under suitable environmental conditions.

The risk depends on the material combination, moisture, protective coatings and exposed surface areas.

Hydrogen Embrittlement

Electroplating and certain chemical processing operations may introduce hydrogen into susceptible steel components.

For higher-strength or hardened steel parts, the required process controls should be established according to the material condition and customer specification.

CNC Machining Processes for Electrical Cabinet Components

Different machining processes provide advantages depending on component geometry and production volume.

CNC Turning

CNC turning is suitable for rotationally symmetric components such as spacers, standoffs, sleeves, bushings, pins and threaded adapters.

Typical operations include facing, external turning, boring, drilling, grooving and threading.

CNC Milling

CNC milling may be suitable for mounting blocks, adapters and components requiring flats, slots, pockets or multiple mounting features.

Datum selection and fixture stability are important where positional relationships between features affect assembly.

Drilling and Tapping

Machined components may require accurately positioned holes and internal threads.

The process plan should account for material characteristics, hole depth, tool access and thread inspection.

Combined Turning and Milling

Turn-mill machining can combine rotational and non-rotational operations.

For suitable parts, reducing the number of setups may improve relationships between critical features and reduce handling.

Design for Manufacturability in Electrical Cabinet CNC Parts

Design for Manufacturability (DFM) helps align engineering requirements with practical machining processes.

Early DFM evaluation can improve repeatability and reduce unnecessary manufacturing cost.

Tolerance Allocation

Not every dimension requires the same tolerance.

Critical-to-function features should receive appropriate dimensional and geometric controls.

Non-critical dimensions may permit more economical tolerances.

Hole Position and Alignment

Mounting-hole position may be important where machined components must align with punched or laser-cut sheet metal features.

The complete assembly tolerance should be evaluated.

Tool Accessibility

Deep holes, narrow slots and complex internal features may require specialized tooling.

Simplifying these features where possible can reduce machining time and cost.

Surface Finish

Surface finish should be specified according to component function.

A locating surface may require different control from a general mounting face.

Unnecessarily fine surface finish can increase cost without improving performance.

GD&T for Electrical Cabinet Assembly Interfaces

Geometric Dimensioning and Tolerancing (GD&T) helps define relationships between critical features.

Depending on the drawing system, ASME Y14.5 or ISO 1101 may be applicable.

Relevant controls may include position, flatness, perpendicularity, parallelism and runout.

Datum selection should reflect how the component is located and assembled.

For example, a mounting block may require controlled relationships between its mounting face, threaded holes and locating features.

A spacer may require perpendicular end faces to maintain the intended assembly alignment.

GD&T should support functional assembly and inspection rather than introduce unnecessary manufacturing complexity.

Assembly Efficiency and Production-Line Considerations

For electrical cabinet manufacturers, component design directly affects assembly efficiency.

Production managers should consider installation time, tool access, handling, part orientation and inspection requirements.

Installation Access

A component may be dimensionally correct but difficult to install because of limited tool clearance.

The design should account for screwdriver, socket, wrench or other installation-tool access.

Part Orientation

Components with asymmetric geometry may require additional handling or orientation during assembly.

Where possible, designs that reduce orientation errors may improve production efficiency.

Fastener Standardization

Using common thread sizes and installation tools across an enclosure platform may simplify assembly and inventory management.

However, standardization should not compromise the required mechanical or electrical function.

Assembly Error Prevention

The design should reduce the risk of incorrect part selection, reversed installation or cross-threading.

Clear identification, suitable lead-in features and controlled assembly procedures may help.

Production Repeatability

A successful CNC machining process must provide repeatable dimensions across the required production quantity.

Program-controlled machining, suitable workholding, tool-life management and inspection planning can support process stability.

Quality Control for Custom Electrical Cabinet CNC Parts

Inspection planning should follow the approved drawing and the component's functional requirements.

Depending on the project, inspection may include dimensional measurement, thread inspection, material verification, hardness testing, surface-finish measurement and functional checks.

Dimensional Inspection

Critical dimensions may be verified using suitable micrometers, calipers, bore gauges, height gauges or coordinate measuring equipment.

The measurement method should provide sufficient capability for the specified tolerance.

Thread Inspection

Threaded components may require appropriate thread gauges or other verification methods.

The inspection method should follow the specified thread standard and customer requirements.

Material Verification

Customers may require material documentation or additional verification of the specified carbon steel grade.

The required documentation should be agreed upon during quotation.

Coating Inspection

Where corrosion protection is required, inspection may include coating thickness verification or other customer-defined checks.

The coating system and acceptance criteria should be established before production.

Functional Inspection

For selected components, functional inspection may include assembly-fit checks or verification using a representative mating component.

However, functional inspection should not replace required dimensional or electrical verification.

From Prototype Development to Repeat OEM Production

CNC machining can support electrical cabinet development because geometry and machining programs can be revised as the design evolves.

However, transitioning from prototypes to repeated production requires additional process planning.

Engineering Drawing and CAD Review

The initial review should identify material, geometry, critical tolerances, functional interfaces and inspection requirements.

Potential manufacturing risks should be clarified before machining begins.

Material and Process Selection

The material and machining process should be selected according to functional requirements, part geometry, quantity and cost.

Alternative manufacturing approaches may be considered where technically appropriate.

Prototype and First-Article Machining

Initial parts can be evaluated for dimensional accuracy, assembly fit, surface condition and manufacturing feasibility.

Any design or process changes should be documented.

Process Optimization

After design approval, machining operations may be optimized for cycle time, tooling, repeatability and inspection efficiency.

The appropriate optimization depends on the required production quantity.

Repeat Production and Final Inspection

Repeat production should follow the approved drawing revision and agreed quality requirements.

Inspection, packaging and delivery arrangements should be established according to the customer's purchasing specification.

CNC Machining vs. Standard Electrical Cabinet Fasteners

Custom CNC machining provides flexibility for non-standard geometry and precision mechanical interfaces.

However, not every electrical cabinet component requires CNC machining.

Standard bolts, nuts, washers, studs, spacers, standoffs, self-clinching fasteners and rivet nuts may offer more economical solutions for suitable applications.

When CNC Machining May Be Appropriate

CNC machining may be justified where the design requires:

• Non-standard geometry

• Precision concentric features

• Special threaded interfaces

• Controlled locating features

• Custom mounting blocks

• Multiple machined features

• Drawing-based dimensional relationships

When Standard Fasteners May Be More Economical

Standard fastening components may be preferable where the required function can be achieved without custom machining.

For example, a standard self-clinching stud or threaded standoff may provide an efficient solution for a compatible sheet metal panel.

However, the selected fastener must match the panel material, sheet thickness, hole geometry and installation requirements.

The appropriate solution should be selected according to engineering compatibility and total installed cost.

Electrical Cabinet OEM Supplier Development and Procurement Considerations

For electrical cabinet manufacturers, sourcing custom machined components requires both technical qualification and commercial evaluation.

Supplier selection should consider drawing conformity, material compatibility, machining feasibility, process consistency, quality expectations and supply planning.

Drawing-Based Supplier Evaluation

A technically complete RFQ should include the approved drawing, CAD model, material specification, tolerances, surface finish and required quantity.

Where an existing component is being transferred from another supplier, the latest drawing revision and critical functional characteristics should be identified.

Alternative Material and Process Evaluation

A proposed alternative material or machining process should be reviewed against the original engineering requirements.

Material substitution should not be approved solely because two grades have similar nominal properties.

Strength, corrosion resistance, electrical characteristics, installation requirements and application conditions must be considered.

Any proposed change should be approved by the customer's engineering team.

MOQ, Lead Time and Volume Purchasing

Purchasing teams should provide estimated order quantities, annual demand, target delivery schedules and packaging requirements.

For custom CNC components, setup complexity, material availability, tooling, coating, inspection requirements and production volume can influence MOQ and lead time.

Commercial feasibility should be confirmed for each project.

Total Cost Optimization

The total cost of a machined electrical cabinet component depends on several factors:

• Material grade and stock form

• Part geometry

• Machining cycle time

• Number of setups

• Tooling and tool wear

• Dimensional tolerances

• Surface finish

• Coating and secondary operations

• Inspection requirements

• Scrap and rework

• Order quantity

• Assembly installation time

• Delivery schedule

Early collaboration between engineering, production and procurement teams can help identify cost-saving opportunities without compromising functional requirements.

Practical RFQ Checklist for Electrical Cabinet CNC Components

A complete RFQ helps reduce technical clarification and supports accurate quotation.

Useful information includes:

• 2D engineering drawing

• 3D CAD model, if available

• Component application and function

• Carbon steel grade and material specification

• Sheet metal material and thickness

• Mounting-hole dimensions

• Critical dimensional tolerances

• GD&T requirements

• Thread specifications

• Required thread engagement

• Surface finish requirements

• Coating or secondary processing requirements

• Mechanical loading and vibration requirements

• Electrical bonding or insulation requirements, if applicable

• Corrosion and operating environment

• Inspection and documentation requirements

• Prototype or sample quantity

• Estimated production order quantity

• Annual demand forecast

• Packaging requirements

• Delivery destination and target schedule

Where the component affects protective bonding, electrical insulation or other safety-related functions, the applicable equipment requirements should be explicitly identified.

Why Work with JUXIN FASTENERS for Electrical Cabinet CNC Machining Projects?

JUXIN FASTENERS supports drawing-based inquiries for precision machined components and industrial fastening hardware used in electrical cabinet and enclosure manufacturing.

Relevant machining inquiries include:

• Carbon steel CNC turned spacers

• Custom electrical cabinet standoffs

• CNC machined mounting blocks

• Custom threaded adapters

• Precision bushings and sleeves

• Mechanical connectors

• Drawing-based enclosure components

• OEM repeat purchasing requirements

Our approach emphasizes clear technical communication and evaluation of the customer's drawings, materials, tolerances, manufacturing requirements and purchasing quantities.

For design and mechanical engineers, the priority is functional geometry, material suitability, thread engagement and dimensional accuracy.

For manufacturing engineers and production managers, the priority includes installation efficiency, process repeatability, inspection stability and consistent production quality.

For procurement and supply chain teams, the priority includes technical conformity, commercial feasibility, cost control, delivery planning and supplier evaluation.

Manufacturing feasibility, achievable tolerances, MOQ, lead time, testing and documentation requirements are confirmed according to the specific inquiry.

Request a Quote for Carbon Steel CNC Machining and Electrical Cabinet Components

Are you developing a new electrical cabinet mounting component, sourcing custom carbon steel CNC machined parts, or evaluating an alternative supplier for repeat OEM production?

JUXIN FASTENERS welcomes technical and commercial inquiries from electrical cabinet manufacturers, switchgear OEMs,

industrial control panel builders, automation equipment manufacturers, engineering teams, production departments and procurement organizations.

Send us your 2D drawings, 3D CAD models, material specifications, critical tolerances, coating requirements, inspection criteria and estimated purchasing quantities.

Where applicable, please also identify sheet metal thickness, installation access, mechanical loading and electrical bonding requirements.

We can review your project requirements and discuss suitable machining approaches, technical clarification and RFQ arrangements.

JUXIN FASTENERS

Website: https://www.juxinfasteners.com

Email: info@juxinfasteners.com

RFQ: Electrical Cabinet Carbon Steel CNC Machining | Custom Mounting Hardware | OEM Precision Components
