Carbon Steel CNC Machining for HVAC

Carbon Steel CNC Machining for HVAC Equipment, Fan Assemblies and Custom OEM Mechanical Components

Heating, ventilation and air conditioning (HVAC) equipment relies on accurately manufactured mechanical components to support fans, motors, air-handling systems, mounting structures and equipment enclosures.

While many HVAC assemblies use standard bolts, nuts, washers, brackets and sheet metal fasteners, certain applications require custom geometry, controlled fits or precision-machined interfaces.

Carbon steel CNC machining provides a manufacturing option for selected shafts, bushings, spacers, threaded adapters, locating pins, mounting blocks and other mechanical components.

These parts may be used in air handling units, ventilation equipment, fan assemblies, heating equipment and selected refrigeration-related support structures.

However, component reliability depends on more than machining accuracy.

Engineers must consider operating loads, vibration, thermal expansion, moisture exposure, corrosion protection, mating materials, installation conditions and production repeatability.

For rotating components, bearing fits, shaft alignment, surface finish and fatigue performance may be particularly important.

For enclosure and mounting components, sheet metal compatibility, thread engagement, coating thickness and assembly access can influence long-term reliability.

JUXIN FASTENERS supports drawing-based inquiries for custom carbon steel CNC machined parts and industrial fastening hardware used in HVAC equipment and related OEM mechanical assemblies.

Depending on component geometry and project requirements, suitable manufacturing processes may include CNC turning, CNC milling, drilling, tapping, threading, grooving and combined turning-milling operations.

Material selection, achievable tolerances, secondary treatments, inspection requirements, order quantities and delivery arrangements are evaluated according to the specific project.

Where Carbon Steel CNC Machined Components Are Used in HVAC Equipment

HVAC systems contain a wide variety of mechanical interfaces.

The appropriate component design depends on whether the part supports rotating equipment, static mounting loads, vibration isolation or general equipment assembly.

Air Handling Units (AHUs)

Air handling units combine fans, motors, filters, coils, dampers and structural supports.

Selected CNC machined components may be used for mechanical mounting, spacing, positioning and equipment interfaces.

Potential applications include custom mounting blocks, threaded spacers, locating pins and precision adapters.

Where components are exposed to condensation or washdown conditions, corrosion protection should be evaluated.

Ventilation Fan Assemblies

Ventilation fans may require precision shafts, bushings, sleeves, spacers and mechanical adapters.

For rotating assemblies, the relationship between shaft geometry, bearing fits, alignment and balance is important.

A dimensionally accurate shaft is not necessarily suitable for every fan assembly.

The complete rotating system must be evaluated according to its operating speed, loads and mechanical design.

Commercial HVAC Equipment

Commercial heating and cooling equipment may incorporate custom mounting interfaces, brackets, threaded connectors and equipment support components.

Carbon steel may be appropriate where its mechanical properties and protective coating meet the intended requirements.

Industrial Ventilation Systems

Industrial ventilation equipment may experience continuous operation, vibration, temperature variation and exposure to dust or moisture.

Custom CNC machined parts may support selected mechanical interfaces.

Material and surface treatment should be selected according to the operating environment.

Heating Equipment and Mechanical Support Assemblies

Heating equipment may require custom spacers, mounting blocks, adapters and mechanical connectors.

Thermal expansion and operating temperature should be considered where components are exposed to significant temperature changes.

Refrigeration Equipment Support Structures

Selected mechanical support components used around refrigeration equipment may be manufactured from carbon steel.

However, parts that contain refrigerant pressure or form part of a sealed refrigerant circuit require separate engineering assessment.

A general-purpose CNC machined carbon steel adapter should not be treated as an approved refrigerant pressure component without the necessary material, design, manufacturing and verification requirements.

Typical Carbon Steel CNC Machined Parts for HVAC Applications

Different HVAC component types require different manufacturing and inspection considerations.

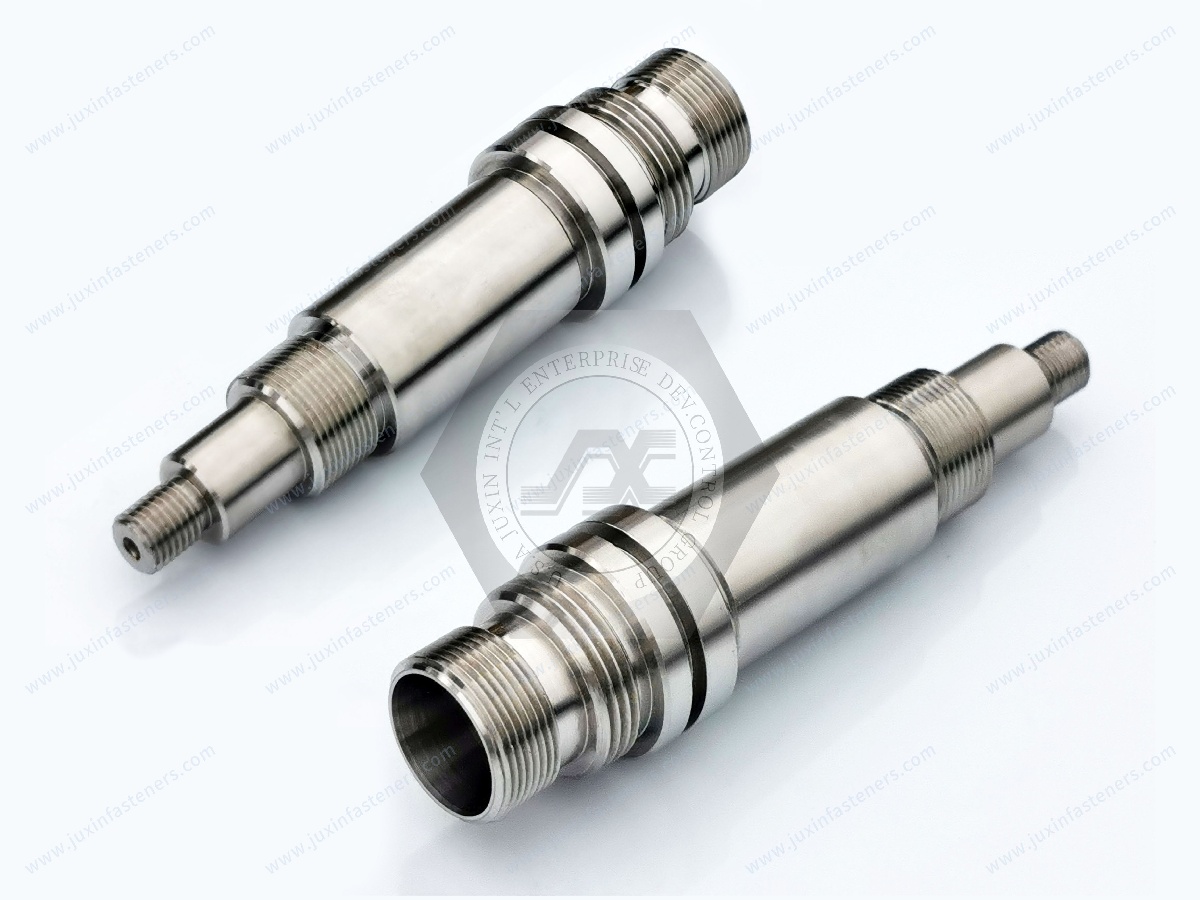

Precision Fan Shafts

CNC turned shafts may be used in selected fan and mechanical drive assemblies.

Important characteristics can include shaft diameter, bearing-seat dimensions, shoulder geometry, straightness, runout and surface finish.

The appropriate material and heat-treatment condition depend on the design.

For rotating shafts, engineers should evaluate bending loads, fatigue, critical speed, bearing arrangement and assembly balance.

CNC Machined Bushings

Bushings may provide controlled mechanical interfaces between shafts, supports and mating components.

Important dimensions include inner diameter, outer diameter, length, concentricity and perpendicularity.

Where sliding contact or rotation occurs, wear performance depends on the complete material and lubrication system.

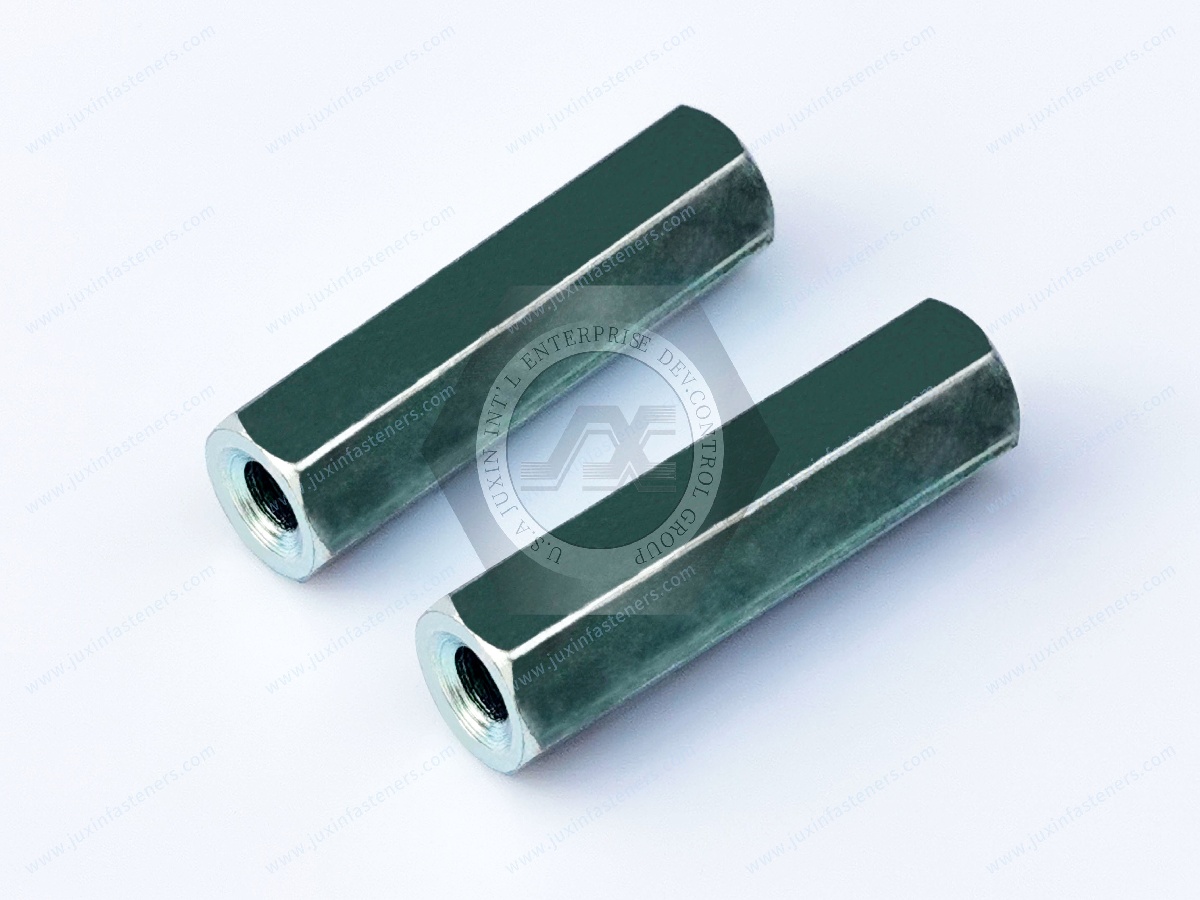

Spacers and Sleeves

Machined spacers and sleeves may establish controlled distances between mechanical components.

Their design should consider compressive loading, dimensional stability, surface finish and assembly alignment.

Threaded Adapters

Custom threaded adapters may connect mechanical interfaces that cannot be assembled using standard fasteners alone.

The drawing should specify thread size, pitch, tolerance class, engagement length and mating component requirements.

Mounting Blocks

CNC milled mounting blocks may provide controlled mounting faces, threaded holes and accurately positioned interfaces.

They may be useful for selected motor supports, fan assemblies or equipment mounting structures.

Locating Pins

Precision locating pins may help position equipment components or manufacturing fixtures.

The required fit depends on the assembly design and whether the pin must be removable.

Custom Mechanical Connectors

Non-standard mechanical connectors may combine shoulders, grooves, threads, flats or other functional features.

CNC machining may be appropriate where these geometries cannot be produced economically using standard fastening components.

Why Carbon Steel Is Used for Selected HVAC CNC Components

Carbon steel may offer a useful combination of mechanical strength, machinability and cost efficiency.

However, its suitability depends on the application and material specification.

Mechanical Strength

Different carbon steel grades offer different strength and hardness characteristics.

For selected mounting and mechanical support applications, carbon steel may provide the required performance.

The correct grade should be selected according to the engineering drawing.

Machinability

Some carbon steel grades can be machined efficiently using CNC turning and milling.

Machinability influences cutting forces, tool wear, surface finish, chip formation and cycle time.

Cost Efficiency

Carbon steel may provide cost advantages for selected components compared with more expensive engineering materials.

However, the total cost should include coating, heat treatment, inspection and maintenance requirements.

Corrosion Limitations

Carbon steel generally has lower inherent corrosion resistance than many stainless steels.

For HVAC equipment exposed to condensation, moisture or corrosive environments, suitable protection is important.

Weight Considerations

Carbon steel is denser than aluminum.

Where component weight affects equipment efficiency or installation requirements, alternative materials may be preferable.

Carbon Steel Grades for HVAC CNC Machining

The correct steel grade should be selected according to the approved drawing and functional requirements.

SAE/AISI 1018 Steel

SAE/AISI 1018 is a low-carbon steel that may be considered for selected spacers, mounting blocks, adapters and general mechanical components.

Its suitability depends on the required strength, material condition and corrosion protection.

SAE/AISI 1045 Steel

SAE/AISI 1045 is a medium-carbon steel that may be considered for selected shafts, pins and mechanical components requiring different strength or hardness characteristics.

Its properties depend on material condition and heat treatment.

Free-Machining Carbon Steel

Free-machining carbon steels may be suitable for certain turned components.

However, the material's mechanical properties, composition, corrosion protection and customer substance restrictions should be considered.

Carbon Steel vs. Alloy Steel

Carbon steel and alloy steel are not interchangeable.

For example, SAE/AISI 4140 is a chromium-molybdenum alloy steel rather than a plain carbon steel.

Where higher strength, hardenability or fatigue performance is required, an alloy steel may be more appropriate.

Any material substitution should be reviewed and approved by the customer's engineering team.

Carbon Steel vs. Stainless Steel

Stainless steel may be preferable where corrosion resistance is a major requirement.

Carbon steel may be more economical where a suitable coating can provide the required protection.

The correct choice depends on the operating environment and design requirements.

Carbon Steel vs. Aluminum

Aluminum may be suitable for weight-sensitive components.

However, differences in strength, wear resistance, thread durability and thermal expansion must be evaluated.

Precision Shaft Design for HVAC Fans and Rotating Equipment

Rotating components require more detailed engineering consideration than ordinary static mounting hardware.

Bearing Fits

The fit between a shaft and bearing affects assembly, alignment and operating performance.

The appropriate fit depends on the bearing type, loading, temperature and installation conditions.

ISO 286 may be relevant to dimensional tolerance systems for shafts and holes.

However, the final fit should follow the bearing manufacturer's recommendations and the approved assembly design.

Shaft Runout

Excessive runout can contribute to vibration and uneven loading.

Where required, the drawing should define appropriate geometric controls and inspection methods.

Surface Finish

Bearing seats and other functional surfaces may require controlled surface finish.

The required finish depends on the mating component and operating conditions.

Shaft Shoulders and Fillets

Shoulders and fillets can influence stress concentration and bearing seating.

The design should consider both mechanical strength and compatibility with the mating bearing geometry.

Fatigue Loading

Rotating shafts may experience repeated bending or torsional loads.

Material strength alone does not establish fatigue performance.

Geometry, surface condition, heat treatment and operating loads must be considered.

Dynamic Balance

Fan assemblies may require dynamic balancing according to the equipment design.

Machining a shaft to dimensional tolerance does not automatically establish acceptable balance of the complete rotating assembly.

Vibration and Joint Reliability in HVAC Equipment

HVAC equipment may experience vibration from fans, motors, compressors and airflow-related forces.

These conditions can influence threaded connections and mechanical interfaces.

Joint Preload

Correct joint preload can help maintain clamping force and reduce unwanted movement.

The appropriate preload depends on fastener properties, joint geometry, friction conditions and installation method.

Vibration Loosening

Vibration and transverse movement may contribute to loosening in certain threaded joints.

Suitable locking methods should be selected according to the actual application.

Locking Fasteners

Depending on the design, prevailing-torque nuts, lock washers, thread-locking compounds or other locking arrangements may be considered.

However, no single locking method is suitable for every HVAC assembly.

Thermal Cycling

Repeated heating and cooling can cause dimensional changes and variation in joint clamping conditions.

Where components have different coefficients of thermal expansion, engineers should evaluate the effect on assembly preload and alignment.

Vibration Isolation

Rubber mounts and other vibration-isolation components may be used in HVAC equipment.

Custom machined spacers or adapters may support these assemblies.

However, the machined component must be compatible with the complete vibration-isolation design.

Condensation, Corrosion and Environmental Exposure

HVAC equipment can operate in environments where condensation, moisture and temperature variation affect mechanical components.

For carbon steel, corrosion protection is an important design consideration.

Condensation Exposure

Condensation may occur near cooling coils, cold surfaces and other temperature-sensitive areas.

Moisture accumulation can increase corrosion risk.

Outdoor Equipment

Outdoor HVAC equipment may experience rain, humidity, airborne contaminants and temperature variation.

The selected coating system should be appropriate for the intended environment.

Galvanic Corrosion

Where carbon steel contacts aluminum, stainless steel or other metals, galvanic corrosion may occur under suitable environmental conditions.

The risk depends on the material combination, moisture, protective coatings and exposed surface areas.

Zinc Electroplating

Zinc electroplating may be considered for selected carbon steel components.

Coating thickness can affect threads, precision bores and close-fitting interfaces.

Zinc-Nickel Coatings

Zinc-nickel coatings may be considered where specific corrosion-protection requirements are established.

The suitability of the coating system depends on the environment and customer acceptance criteria.

Phosphate Treatments

Phosphate treatments and associated protective systems may be appropriate for selected components.

Their corrosion performance depends on the complete treatment system.

Black Oxide

Black oxide may be suitable for selected indoor tooling or mechanical components.

However, black oxide alone should not be assumed to provide sufficient protection for demanding outdoor HVAC conditions.

Hydrogen Embrittlement

Electroplating and certain chemical processing operations can introduce hydrogen into susceptible steel components.

For higher-strength or hardened steel parts, hydrogen embrittlement may create delayed fracture risks.

The need for process controls and post-treatment requirements depends on the material and customer specification.

Thermal Expansion and Dimensional Stability

HVAC components may experience temperature variation during operation.

Thermal expansion can influence clearances, fits and assembly alignment.

Different Material Combinations

Carbon steel, aluminum and stainless steel have different thermal expansion characteristics.

Where components are assembled together, differential expansion may affect clearances or clamping conditions.

Precision Fits

For shafts, bushings and locating features, operating temperature may affect the intended fit.

The drawing should reflect the required functional conditions.

Threaded Connections

Temperature variation may influence joint preload, especially where components have different material properties.

Design Evaluation

Thermal effects should be evaluated according to the actual operating temperature range and complete assembly design.

A nominal room-temperature dimensional inspection does not establish performance under all operating conditions.

CNC Machining Processes for HVAC Carbon Steel Components

The appropriate machining process depends on component geometry, material, tolerance requirements and production quantity.

CNC Turning

CNC turning is suitable for rotationally symmetric components such as shafts, pins, bushings, sleeves, spacers and threaded adapters.

Typical operations include facing, external turning, boring, drilling, grooving and threading.

CNC Milling

CNC milling may be suitable for mounting blocks, adapters and components requiring flats, slots, pockets or multiple mounting features.

Datum selection and fixture stability are important where positional relationships between features affect assembly.

Drilling, Tapping and Threading

Machined components may require internal threads, external threads, precision holes and mounting features.

Thread quality depends on material properties, tooling, cutting conditions and inspection methods.

Combined Turning and Milling

Turn-mill machining can combine rotational and non-rotational operations.

For suitable components, reducing the number of setups may improve relationships between critical features and reduce handling.

Design for Manufacturability in HVAC CNC Components

Design for Manufacturability (DFM) helps align engineering requirements with practical machining processes.

Early DFM evaluation can reduce unnecessary complexity, improve production repeatability and lower total component cost.

Tolerance Allocation

Not every dimension requires the same tolerance.

Critical-to-function features should receive appropriate dimensional and geometric controls.

Non-critical dimensions may permit more economical tolerances.

Thin Walls and Machining Stability

Thin-walled components may deform during machining due to cutting forces, clamping pressure or residual stress.

Special workholding or controlled machining sequences may be required.

Deep Holes and Tool Accessibility

Deep or narrow holes may require specialized tooling and additional machining time.

Engineers should consider tool reach, chip evacuation and measurement requirements.

Surface Finish

Surface finish should be specified according to component function.

A bearing interface, locating feature and general mounting face may require different surface conditions.

GD&T for HVAC Mechanical Components

Geometric Dimensioning and Tolerancing (GD&T) helps define relationships between critical features.

Depending on the drawing system, ASME Y14.5 or ISO 1101 may be applicable.

Relevant controls may include position, flatness, perpendicularity, parallelism, runout and profile.

Datum selection should reflect how the component is located and assembled.

For example, a fan shaft may require controlled relationships between bearing seats, shoulders and threaded features.

A mounting block may require accurate positional relationships between mounting holes and locating surfaces.

GD&T should support functional assembly and inspection rather than introduce unnecessary manufacturing complexity.

Metric and Inch Thread Standards

HVAC equipment may use metric or inch thread systems depending on the OEM design.

ISO 261 and ISO 965 may be relevant to ISO metric screw threads.

ASME B1.1 covers Unified inch screw threads, including UNC and UNF series.

Metric and Unified inch threads are not directly interchangeable.

Thread size, pitch, tolerance class and mating component compatibility must be confirmed before production.

Assembly Efficiency and HVAC Production-Line Considerations

For HVAC manufacturers, component design directly affects assembly efficiency.

Production managers should consider installation time, tool access, handling, part orientation and inspection requirements.

Installation Access

A component may be dimensionally correct but difficult to install because of limited tool clearance.

The design should account for the required installation tools.

Part Orientation

Components with asymmetric geometry may require additional handling or orientation during assembly.

Where possible, designs that reduce orientation errors may improve production efficiency.

Fastener Standardization

Using common thread sizes and installation tools across an HVAC equipment platform may simplify assembly and inventory management.

However, standardization should not compromise the required mechanical function.

Assembly Error Prevention

The design should reduce the risk of incorrect part selection, reversed installation or cross-threading.

Clear identification, suitable lead-in features and controlled assembly procedures may help.

Production Repeatability

A successful CNC machining process must provide repeatable dimensions across the required production quantity.

Program-controlled machining, suitable workholding, tool-life management and inspection planning can support process stability.

Quality Control for Custom HVAC CNC Parts

Inspection planning should follow the approved drawing and the component's functional requirements.

Depending on the project, inspection may include dimensional measurement, thread inspection, material verification, hardness testing, surface-finish measurement and functional checks.

Dimensional Inspection

Critical dimensions may be verified using suitable micrometers, calipers, bore gauges, height gauges or coordinate measuring equipment.

The measurement method should provide sufficient capability for the specified tolerance.

Thread Inspection

Threaded components may require appropriate thread gauges or other verification methods.

The inspection method should follow the specified thread standard and customer requirements.

Material Verification

Customers may require material documentation or additional verification of the specified carbon steel grade.

The required documentation should be agreed upon during quotation.

Hardness and Heat-Treatment Verification

Where hardness or heat-treatment condition is functionally important, the drawing should define the applicable requirements.

Any required testing or documentation should be confirmed before production.

Coating Inspection

Where corrosion protection is required, inspection may include coating thickness verification or other customer-defined checks.

The coating system and acceptance criteria should be established before production.

Functional Inspection

For selected components, functional inspection may include assembly-fit checks or verification using a representative mating component.

However, functional inspection should not replace required dimensional verification.

From Prototype Development to Repeat HVAC OEM Production

CNC machining can support HVAC equipment development because geometry and machining programs can be revised as the design evolves.

However, transitioning from prototypes to repeated production requires additional process planning.

Engineering Drawing and CAD Review

The initial review should identify material, geometry, critical tolerances, functional interfaces and inspection requirements.

Potential manufacturing risks should be clarified before machining begins.

Material and Process Selection

The material and machining process should be selected according to functional requirements, part geometry, quantity and cost.

Alternative manufacturing approaches may be considered where technically appropriate.

Prototype and First-Article Machining

Initial parts can be evaluated for dimensional accuracy, assembly fit, surface condition and manufacturing feasibility.

Any design or process changes should be documented.

Process Optimization

After design approval, machining operations may be optimized for cycle time, tooling, repeatability and inspection efficiency.

The appropriate optimization depends on the required production quantity.

Repeat Production and Final Inspection

Repeat production should follow the approved drawing revision and agreed quality requirements.

Inspection, packaging and delivery arrangements should be established according to the customer's purchasing specification.

CNC Machining vs. Standard HVAC Fasteners

Custom CNC machining provides flexibility for non-standard geometry and precision mechanical interfaces.

However, not every HVAC component requires CNC machining.

Standard bolts, nuts, washers, studs, spacers, standoffs, self-clinching fasteners and rivet nuts may offer more economical solutions for suitable applications.

When CNC Machining May Be Appropriate

CNC machining may be justified where the design requires:

• Non-standard geometry

• Precision concentric features

• Special threaded interfaces

• Controlled locating features

• Custom mounting blocks

• Multiple machined features

• Drawing-based dimensional relationships

When Standard Fasteners May Be More Economical

Standard fastening components may be preferable where the required function can be achieved without custom machining.

For example, a standard threaded standoff or self-clinching stud may provide an efficient solution for a compatible HVAC sheet metal enclosure.

However, the selected fastener must match the panel material, sheet thickness, hole geometry and installation requirements.

The appropriate solution should be selected according to engineering compatibility and total installed cost.

HVAC OEM Supplier Development and Procurement Considerations

For HVAC manufacturers, sourcing custom machined components requires both technical qualification and commercial evaluation.

Supplier selection should consider drawing conformity, material compatibility, machining feasibility, process consistency, quality expectations and supply planning.

Drawing-Based Supplier Evaluation

A technically complete RFQ should include the approved drawing, CAD model, material specification, tolerances, surface finish and required quantity.

Where an existing component is being transferred from another supplier, the latest drawing revision and critical functional characteristics should be identified.

Alternative Material and Process Evaluation

A proposed alternative material or machining process should be reviewed against the original engineering requirements.

Material substitution should not be approved solely because two grades have similar nominal properties.

Strength, fatigue behavior, corrosion resistance, temperature capability and application requirements must be considered.

Any proposed change should be approved by the customer's engineering team.

MOQ, Lead Time and Volume Purchasing

Purchasing teams should provide estimated order quantities, annual demand, target delivery schedules and packaging requirements.

For custom CNC components, setup complexity, material availability, tooling, heat treatment, coating, inspection requirements and production volume can influence MOQ and lead time.

Commercial feasibility should be confirmed for each project.

Total Cost Optimization

The total cost of a machined HVAC component depends on several factors:

• Material grade and stock form

• Part geometry

• Machining cycle time

• Number of setups

• Tooling and tool wear

• Heat-treatment requirements

• Dimensional tolerances

• Surface finish

• Coating and secondary operations

• Inspection requirements

• Scrap and rework

• Order quantity

• Assembly installation time

• Delivery schedule

Early collaboration between engineering, production and procurement teams can help identify cost-saving opportunities without compromising functional requirements.

Practical RFQ Checklist for HVAC Carbon Steel CNC Components

A complete RFQ helps reduce technical clarification and supports accurate quotation.

Useful information includes:

• 2D engineering drawing

• 3D CAD model, if available

• Component application and function

• Carbon steel grade and material specification

• Material condition and heat-treatment requirements

• Critical dimensional tolerances

• GD&T requirements

• Thread specifications

• Surface finish requirements

• Coating or secondary processing requirements

• Mechanical loading and vibration requirements

• Operating temperature range

• Corrosion and condensation exposure

• Bearing-fit requirements, if applicable

• Inspection and documentation requirements

• Prototype or sample quantity

• Estimated production order quantity

• Annual demand forecast

• Packaging requirements

• Delivery destination and target schedule

Where the component is intended for a refrigerant pressure boundary or another safety-critical function, the applicable design, qualification and verification requirements should be explicitly identified.

Why Work with JUXIN FASTENERS for HVAC CNC Machining Projects?

JUXIN FASTENERS supports drawing-based inquiries for precision machined components and industrial fastening hardware used in HVAC equipment manufacturing.

Relevant machining inquiries include:

• Carbon steel CNC turned parts

• HVAC fan shafts and pins

• CNC machined bushings and sleeves

• Custom threaded adapters

• HVAC mounting blocks

• Precision mechanical connectors

• Drawing-based HVAC equipment components

• OEM repeat purchasing requirements

Our approach emphasizes clear technical communication and evaluation of the customer's drawings, materials, tolerances, manufacturing requirements and purchasing quantities.

For design and mechanical engineers, the priority is functional geometry, material suitability, vibration considerations and dimensional accuracy.

For manufacturing engineers and production managers, the priority includes installation efficiency, process repeatability, inspection stability and consistent production quality.

For procurement and supply chain teams, the priority includes technical conformity, commercial feasibility, cost control, delivery planning and supplier evaluation.

Manufacturing feasibility, achievable tolerances, MOQ, lead time, testing and documentation requirements are confirmed according to the specific inquiry.

Request a Quote for Carbon Steel CNC Machining and HVAC Equipment Components

Are you developing a new HVAC mechanical component, sourcing custom carbon steel CNC machined parts, or evaluating an alternative supplier for repeat OEM production?

JUXIN FASTENERS welcomes technical and commercial inquiries from HVAC equipment manufacturers, ventilation system suppliers,

fan manufacturers, air handling unit OEMs, engineering teams, production departments and procurement organizations.

Send us your 2D drawings, 3D CAD models, material specifications, critical tolerances, coating requirements, inspection criteria and estimated purchasing quantities.

Where applicable, please also identify operating temperature, vibration conditions, condensation exposure, bearing fits and installation requirements.

We can review your project requirements and discuss suitable machining approaches, technical clarification and RFQ arrangements.

JUXIN FASTENERS

Website: https://www.juxinfasteners.com

Email: info@juxinfasteners.com

RFQ: HVAC Carbon Steel CNC Machining | Custom Fan Components | OEM Precision Parts
