Petrochemical Equipment Fasteners & Alloy Stud Bolts: Materials, Joint Design and OEM Sourcing

Petrochemical plants, oil and gas processing facilities, refineries and industrial energy systems depend on threaded fasteners to connect mechanical equipment,

supporting structures, piping components and maintenance assemblies.

Operating conditions vary significantly across these applications. Some fasteners secure auxiliary equipment at ambient temperature,

while others form part of pressure-containing flange joints exposed to elevated temperatures, demanding mechanical loads or corrosive process environments.

These differences make material selection, bolt preload, thread compatibility and procurement specifications particularly important.

For design and mechanical engineers, the key considerations include joint loading, temperature-dependent material properties, corrosion mechanisms,

gasket compression and installation procedures. Manufacturing engineers and production managers must also consider assembly accessibility,

 tightening consistency, inspection requirements and maintenance efficiency.

Procurement and supplier development teams need to verify material grades, applicable ASTM and ASME specifications, documentation requirements,

 manufacturing feasibility, minimum order quantities and long-term supply arrangements.

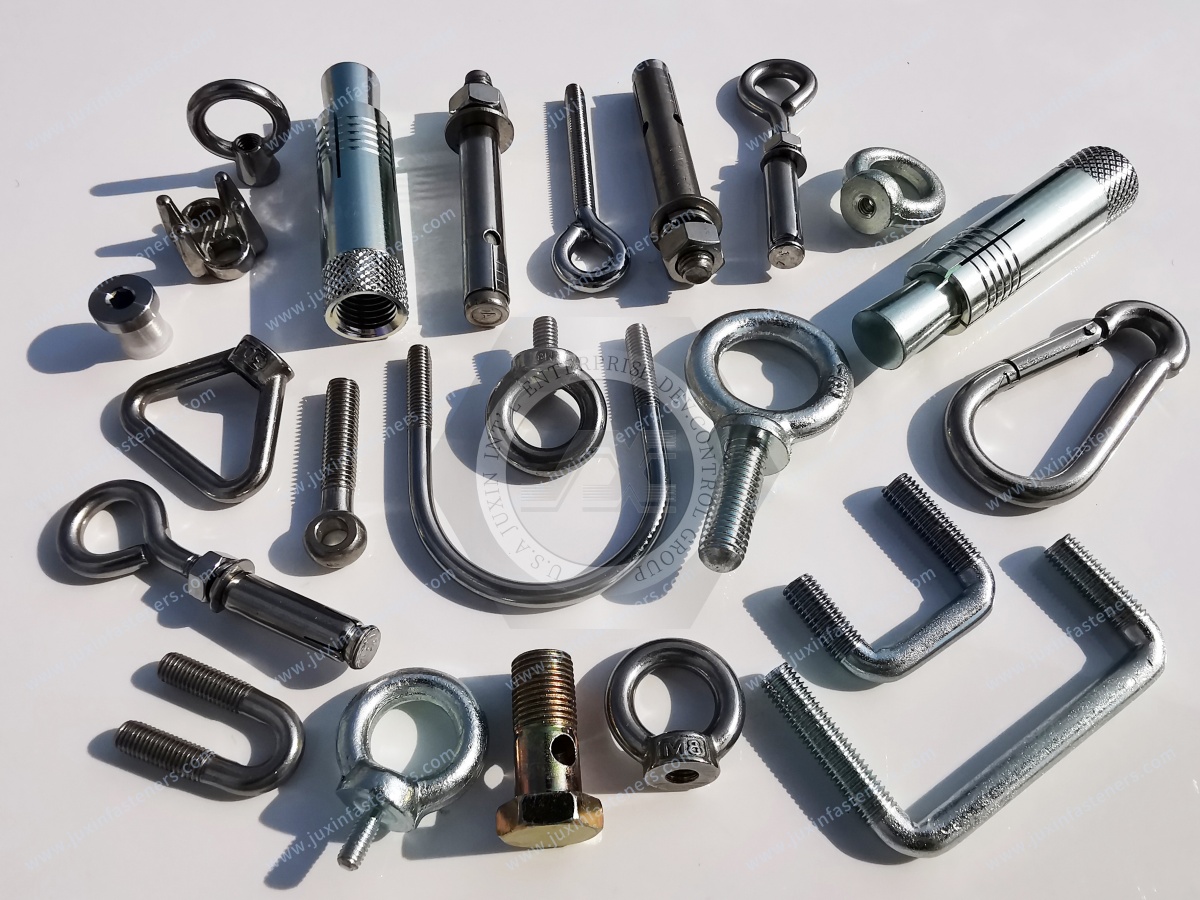

JUXIN FASTENERS supplies industrial bolts, nuts, threaded studs, washers and drawing-based custom metal fasteners for suitable petrochemical and oil and gas equipment applications.

Specialized pressure-boundary, high-temperature and sour-service fasteners require additional technical review and confirmation of manufacturing and qualification requirements before any supply commitment.

This guide explains practical fastener selection for petrochemical equipment, including alloy steel stud bolts, heavy hex nuts, corrosion protection, elevated-temperature joint behavior and OEM sourcing.

Fastening Applications in Petrochemical and Oil & Gas Equipment

Petrochemical facilities contain different categories of mechanical connections.

A fastener used on an equipment support bracket should not automatically be treated as suitable for a pressure-containing flange connection.

ASTM A193 Alloy Steel Stud Bolts for Petrochemical Equipment

ASTM A193/A193M specifies alloy steel and stainless steel bolting materials for high-temperature or high-pressure service and other special-purpose applications.

Different grades have different chemical composition, heat treatment and mechanical property requirements.

ASTM A193 Grade B7

Grade B7 is a chromium-molybdenum alloy steel bolting grade commonly specified for industrial pressure equipment and piping applications.

It is frequently associated with stud bolts used in flanged connections.

However, its suitability depends on the design temperature, applicable code, joint loading and environmental conditions.

ASTM A193 Grade B7M

Grade B7M has different specified mechanical and hardness requirements from Grade B7.

It should not be treated as an interchangeable designation.

B7M may be specified for certain applications where its particular material requirements are relevant.

However, the B7M designation alone does not establish suitability for every hydrogen sulfide-containing environment.

Engineering insight: B7 and B7M may have similar nominal dimensions but different material and mechanical requirements.

Replacing one with the other requires review of the complete equipment specification and joint design.

ASTM A193 Stainless Steel Bolting Grades

ASTM A193 also includes stainless steel bolting grades, such as B8 and B8M.

Their suitability depends on the specified class, material condition, operating temperature and environmental requirements.

These grades should not be confused with ISO 3506 stainless steel fastener designations.

ASTM A194 Heavy Hex Nuts for Alloy Stud Bolts

ASTM A194/A194M covers carbon steel, alloy steel and stainless steel nuts for high-pressure or high-temperature service, or both.

Heavy hex nuts are commonly used with specified stud bolting assemblies.

ASTM A194 Grade 2H

Grade 2H heavy hex nuts are commonly associated with certain alloy steel stud bolt applications.

However, the correct nut grade must be selected according to the governing specification and joint requirements.

ASTM A194 Grade 2HM

Grade 2HM has distinct mechanical and hardness requirements.

It should not be substituted for Grade 2H without technical approval.

Nut Compatibility

Important selection factors include:

• Nut material grade

• Mechanical property requirements

• Thread dimensions

• Thread tolerance

• Coating condition

• Installation method

• Operating temperature

• Applicable equipment specification

Engineering insight: A stud bolt and heavy hex nut should be specified as a compatible assembly rather than purchased independently based only on thread diameter.

The complete bolting arrangement must meet the requirements of the equipment design.

Stud Bolt Geometry and Thread Engagement

Stud bolts are widely used in flanged mechanical connections.

Their geometry may differ from conventional hexagon head bolts.

Important dimensions include:

• Nominal diameter

• Thread pitch

• Overall length

• Threaded length

• End configuration

• Nut engagement

• Required projection

• Coating allowance

Stud Length Selection

Stud length must account for the complete joint stack-up.

For a flanged connection, this may include flange thickness, gasket arrangement, washers where specified, nut height and required thread projection.

Engineering insight: A stud bolt with the correct diameter and material grade may still be unsuitable if its overall length or thread engagement differs from the approved design.

For replacement sourcing, the OEM drawing or approved bill of materials should govern the required dimensions.

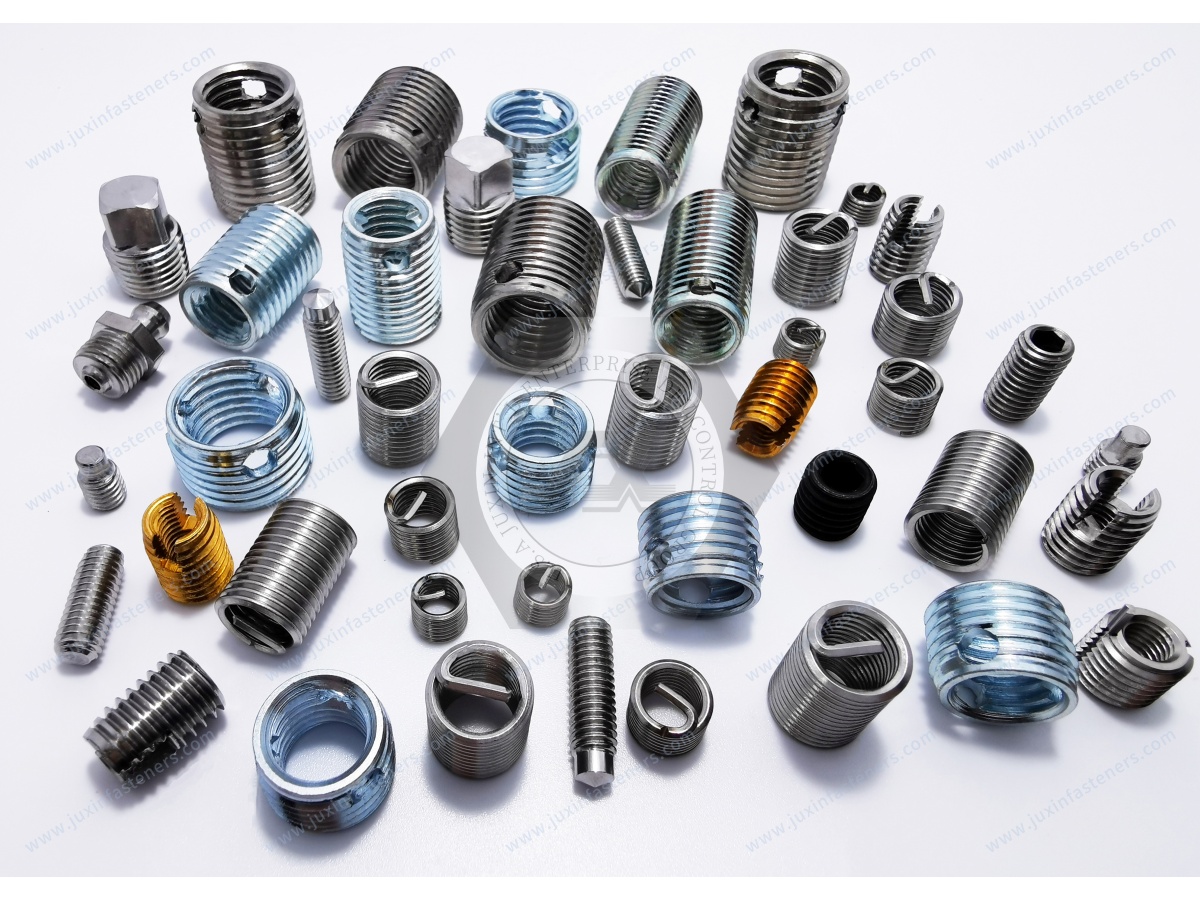

Thread Systems for Petrochemical Bolting

Petrochemical equipment may use metric or inch-series fasteners.

Common thread systems include:

• ISO metric threads

• Unified inch-series threads such as UNC and UNF

• Other project-specified thread forms

Metric and inch-series threads are not directly interchangeable.

A nominally similar diameter does not establish thread compatibility.

For ASTM/ASME stud bolting, the governing product and dimensional specifications should be identified before quotation.

Elevated-Temperature Performance of Alloy Fasteners

Some petrochemical equipment operates at elevated temperatures.

Temperature can influence:

• Tensile strength

• Yield strength

• Stress relaxation

• Creep behavior

• Oxidation resistance

• Thermal expansion

• Joint preload

Stress Relaxation

Stress relaxation is the reduction in stress over time under conditions of constrained deformation.

At elevated temperatures, this can contribute to a reduction in bolt preload.

Creep

Creep is time-dependent deformation under sustained stress.

It becomes important for certain materials and operating conditions at elevated temperatures.

Thermal Expansion

Different components within a bolted joint may expand at different rates as temperature changes.

This can influence the load distribution within the connection.

Engineering insight: A fastener's room-temperature strength is not sufficient to establish its suitability for elevated-temperature service.

The design must consider the applicable material properties at the intended operating temperature.

Temperature Limits Must Be Application-Specific

No single temperature rating should be assigned to all alloy steel or stainless steel fasteners.

Allowable service conditions depend on material grade, governing design code, loading and environmental exposure.

Specialized high-temperature applications require project-specific engineering assessment.

Flange Joint Integrity and Bolt Preload

Pressure-containing flange connections rely on the interaction of bolts, nuts, flanges and gaskets.

The bolting system must provide appropriate clamping force for the intended operating conditions.

Insufficient Preload

Insufficient preload may contribute to inadequate gasket compression or joint separation.

Excessive Preload

Excessive preload may damage bolts, nuts, flanges or gaskets.

Friction and Tightening Torque

The relationship between tightening torque and bolt preload depends on friction.

Important factors include:

• Thread condition

• Surface treatment

• Lubrication

• Nut bearing surface

• Washer configuration

• Installation equipment

Engineering insight: Two stud bolt assemblies with the same nominal dimensions may achieve different preload values under the same applied torque if their friction characteristics differ.

For pressure-boundary joints, the tightening procedure must be established according to the applicable engineering requirements.

ASME PCC-1 and Bolted Flange Joint Assembly

ASME PCC-1 provides guidelines for pressure boundary bolted flange joint assembly.

Its relevance depends on the equipment and project requirements.

The document addresses important aspects of flange joint assembly practices.

However, referencing ASME PCC-1 does not mean that a fastener supplier has independently qualified a complete pressure-boundary joint.

The equipment owner, designer and responsible assembly personnel must establish the applicable procedures and acceptance criteria.

Sour Service and Sulfide Stress Cracking

Some oil and gas environments contain hydrogen sulfide.

Under certain conditions, susceptible materials may experience sulfide stress cracking.

Risk depends on multiple factors, including:

• Material composition

• Hardness

• Heat treatment

• Applied stress

• Temperature

• Environmental chemistry

• Hydrogen sulfide exposure

• Other operating conditions

NACE MR0175 / ISO 15156

NACE MR0175 / ISO 15156 addresses materials for use in hydrogen sulfide-containing environments in oil and gas production and related applications within its defined scope.

Its requirements depend on material type and service conditions.

A single hardness limit should not be applied indiscriminately to all alloys and bolting grades.

NACE MR0103 / ISO 17945

NACE MR0103 / ISO 17945 addresses metallic materials resistant to sulfide stress cracking in specified petroleum refining environments.

The applicable standard depends on the actual equipment service and project specification.

Engineering insight: Sour-service suitability cannot be established by hardness alone.

Material condition, environment, stress and the applicable standard must be evaluated together.

Application Boundary

General-purpose high-strength bolts should not be represented as suitable for sour-service pressure equipment without the required qualification.

For these applications, the customer must provide the relevant service conditions and material requirements.

Corrosion Protection for Petrochemical Fasteners

Petrochemical equipment may be exposed to atmospheric moisture, industrial contaminants, chemicals or process fluids.

The correct corrosion protection strategy depends on whether the fastener is exposed externally or directly to process conditions.

Potential options include:

• Suitable carbon steel fasteners with specified coatings

• Alloy steel fasteners with application-compatible protection

• Stainless steel fasteners for suitable environments

• Customer-specified corrosion-resistant materials

Atmospheric Corrosion vs. Process Corrosion

External atmospheric corrosion and corrosion caused by process media are different engineering problems.

A coating suitable for outdoor atmospheric exposure may not be suitable for direct contact with aggressive process chemicals.

Stainless Steel Selection

Stainless steel may offer improved corrosion resistance in certain applications.

However, stainless steel is not universally resistant to chlorides, acids or other aggressive media.

Material selection must be based on the actual environment.

Engineering insight: A corrosion-resistant coating cannot compensate for an unsuitable base material in a demanding process environment.

For critical applications, material selection and environmental compatibility must be established before choosing a coating.

Hydrogen Embrittlement in High-Strength Alloy Fasteners

Certain high-strength steel fasteners can be susceptible to hydrogen embrittlement.

Hydrogen may enter susceptible materials during manufacturing, surface treatment or service exposure.

Under unfavorable conditions, hydrogen-assisted cracking may cause delayed failure.

Risk depends on material strength, processing history, applied stress and environment.

Coating and manufacturing processes should be selected according to the material and application requirements.

Non-electrolytic coating systems may reduce hydrogen introduction associated with electrolytic deposition, but they do not eliminate every possible source of hydrogen.

Post-plating baking does not provide an unconditional guarantee against hydrogen embrittlement.

Thread Galling and Installation Reliability

Thread galling can occur when contacting metal surfaces experience adhesive wear during tightening.

It is particularly relevant for certain stainless steel and alloy combinations.

Potential contributing factors include:

• Material pairing

• Thread fit

• Surface condition

• Installation speed

• Lubrication

• Applied load

Reducing Galling Risk

Depending on the application, potential measures include:

• Controlled tightening procedures

• Appropriate thread fit

• Suitable material combinations

• Application-compatible lubrication

• Specified surface treatments

Engineering insight: Lubricant selection must consider both galling resistance and the effect on bolt preload.

Changing the lubricant may alter the relationship between tightening torque and clamping force.

For pressure-boundary applications, lubricant substitutions should not be made without appropriate engineering review.

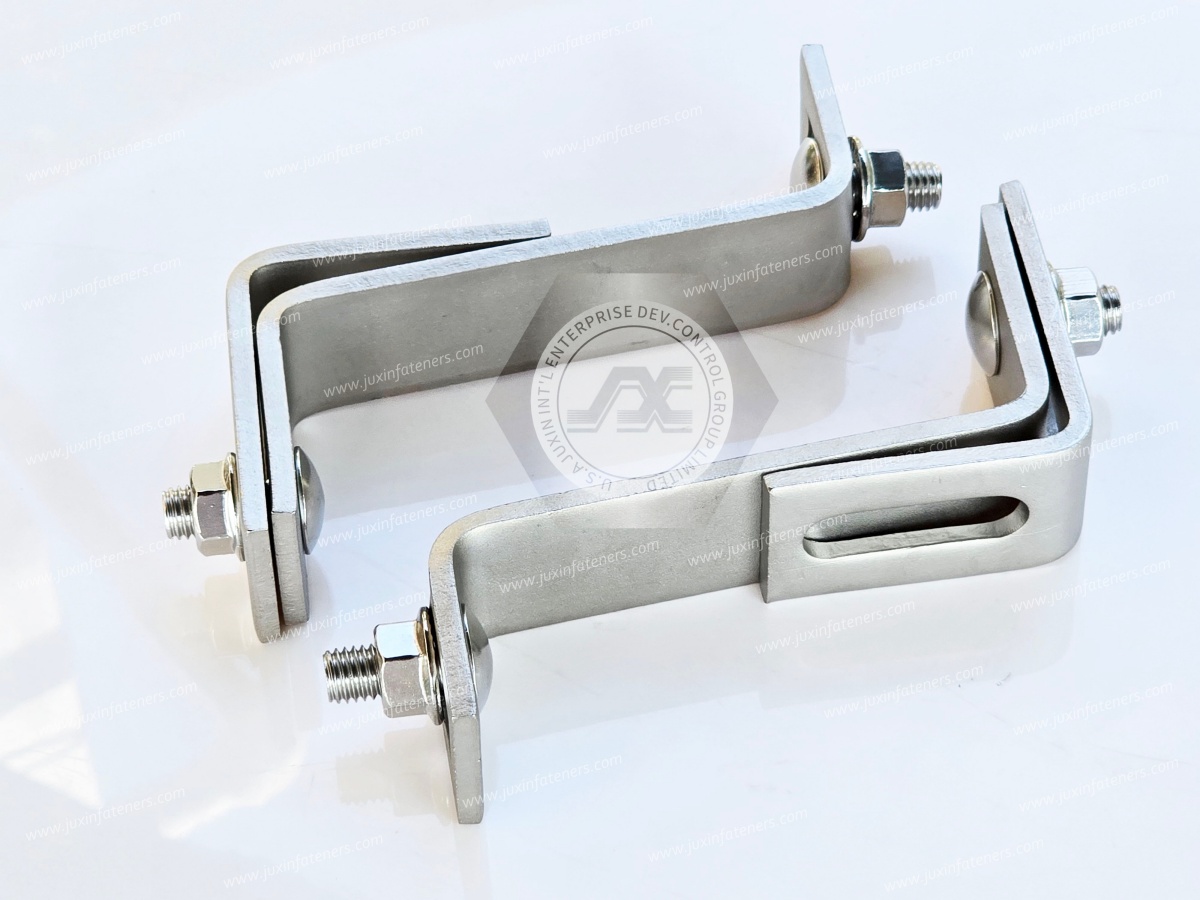

Custom Alloy Fasteners for Petrochemical Equipment OEMs

Standard catalog fasteners may not satisfy every petrochemical equipment design.

Drawing-based custom hardware may be required for:

• Special stud lengths

• Nonstandard threaded sections

• Custom nuts

• Precision shoulders

• Special mounting bolts

• Drawing-specific washers

• Custom spacers

• Specialized equipment connectors

JUXIN FASTENERS supports drawing-based inquiry review for industrial fastening components.

Manufacturing feasibility depends on material, geometry, tolerances and production quantity.

Cold Forming

Cold forming may be appropriate for selected fastener geometries and production volumes.

CNC Machining

CNC machining may be appropriate for complex geometries, controlled shoulders and drawing-specific features.

Some components may require a combination of forming and secondary machining.

Engineering insight: Customization should focus on functional requirements rather than unnecessarily restrictive dimensions.

The drawing should clearly identify critical characteristics affecting joint performance, installation and interchangeability.

Manufacturing Efficiency and Maintenance Planning

Production managers and manufacturing engineers must consider the complete assembly process.

Installation Accessibility

Petrochemical equipment may contain restricted mounting locations.

Fastener geometry and tool clearance should be considered during design.

Assembly Repeatability

Fastener dimensions, thread quality and surface condition can influence installation consistency.

Maintenance and Turnaround Operations

Refinery maintenance may involve disassembly and replacement of threaded connections.

Fastener selection should consider serviceability, thread damage and replacement requirements.

Inspection Requirements

Critical characteristics should be defined in the procurement specification.

Total Assembly Cost

Fastener unit price is only one part of total cost.

Installation labor, inspection, maintenance, rework and supply continuity should also be considered.

International Standards and Technical Requirements

Applicable standards depend on the specific product and service conditions.

These standards address different aspects of fastener selection and equipment performance.

Compliance with one standard does not automatically establish compliance with all others.

Pressure-Boundary and Safety-Critical Applications

Pressure vessel closures, pressure-containing piping flanges and other critical petrochemical connections may require specialized design, inspection and qualification.

Requirements may include:

• Approved material grades

• Controlled heat treatment

• Mechanical property verification

• Positive material identification

• Hardness testing

• Material traceability

• Project-specific inspection documentation

• Defined installation procedures

• Applicable code compliance

The actual requirements depend on the governing equipment code and procurement specification.

General industrial fasteners should not be represented as qualified pressure-boundary components without the necessary evidence.

For specialized inquiries, JUXIN FASTENERS should confirm manufacturing feasibility, documentation availability and qualification requirements before accepting the order.

OEM Supplier Qualification and Alternative Sourcing

Petrochemical equipment manufacturers may seek alternative suppliers for stud bolts, nuts, washers and custom fasteners.

Supplier qualification should consider both technical conformity and commercial supply requirements.

Material Traceability and Inspection Documents

Some petrochemical projects require inspection documentation under EN 10204.

The specific document type should be identified during procurement.

An EN 10204 3.1 inspection certificate should not be assumed for every standard industrial fastener.

Where required, documentation availability and traceability requirements must be confirmed before order acceptance.

Alternative Sourcing: Functional Equivalence Matters

Two stud bolts with the same nominal dimensions may differ in:

• Material grade

• Heat treatment

• Mechanical properties

• Hardness

• Thread geometry

• Surface condition

• Temperature suitability

• Documentation requirements

For pressure-boundary and sour-service applications, dimensional similarity alone does not establish functional equivalence.

The equipment owner or responsible engineering authority must define the required approval procedure.

Request Petrochemical Equipment Fasteners and Alloy Stud Bolts

JUXIN FASTENERS supports OEM sourcing and drawing-based technical review for industrial fasteners used in suitable petrochemical and oil and gas equipment applications.

For equipment frames, mechanical support structures, auxiliary assemblies and other industrial applications, please provide:

• 2D drawings and available 3D models

• Fastener type and thread specification

• Required material grade

• Mechanical property and hardness requirements

• Operating temperature and environment

• Required surface treatment

• Inspection and documentation requirements

• Prototype quantity and annual forecast

• Packaging and delivery requirements

For pressure-boundary, elevated-temperature or sour-service applications, please also identify the governing design code, applicable material standard, service conditions and qualification requirements.

Our team can review the supplied information to discuss suitable standard and custom fastening options and quotation feasibility.

Website: www.juxinfasteners.com

OEM Technical Review & RFQ: info@juxinfasteners.com

Send your drawings, material specifications and purchasing requirements to discuss fastening solutions for your next petrochemical equipment project.

Related JUXIN FASTENERS Engineering Solutions

• Marine-Grade Stainless Steel Fasteners & Corrosion-Resistant Hardware for Offshore Equipment — material selection for demanding marine environments.

• Aerospace Ground Support Equipment Fasteners & Heavy-Duty Structural Hardware — high-strength mechanical connections for industrial equipment.

• All-Metal Prevailing-Torque Lock Nuts for High-Vibration Industrial Assemblies — locking hardware for vibration-sensitive machinery.

• Custom Cold-Headed Fasteners & Special Formed Parts for Industrial OEMs — drawing-based custom fastener sourcing.

These related topics provide additional guidance on corrosion resistance, high-strength bolting, custom manufacturing and OEM supplier qualification.
