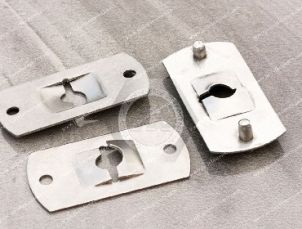

Spring Nut Retention Force vs Clamp Load & Joint Strength

In sheet-metal enclosures, industrial machinery, automotive auxiliary assemblies, electrical cabinets and fabricated equipment,

one of the most common spring-fastener engineering mistakes is treating several completely different mechanical quantities as though they describe the same thing.

They do not.

For a typical edge-mounted clip-on nut assembly, engineers should distinguish at least three different mechanical functions:

1. Clip-to-Panel Retention

2. Screw-Generated Preload / Joint Clamp Load

3. Complete Assembly Load Capacity

A fourth concept must also remain separate:

4. Resistance to Screw Loosening

These quantities interact, but they are not interchangeable.

A clip-on nut with very high panel retention can still be part of a weak final joint.

A joint capable of substantial clamp load can use a clip with relatively modest pre-assembly retention.

And a spring clip that grips the panel tightly does not automatically provide prevailing torque or prevent the screw from rotating loose.

Understanding these boundaries is essential when specifying U-nuts, J-nuts, barrel clip nuts, enclosed-thread clip nuts and other spring fasteners for OEM sheet-metal assemblies.

The Four Functions Engineers Must Keep Separate

A useful engineering model is:

Panel Retention → Assembly Positioning

Screw Preload → Joint Clamping

Joint Architecture → External Load Capacity

Locking Strategy → Resistance to Unwanted Screw Rotation

Confusing any two of these can produce an incorrect fastener specification.

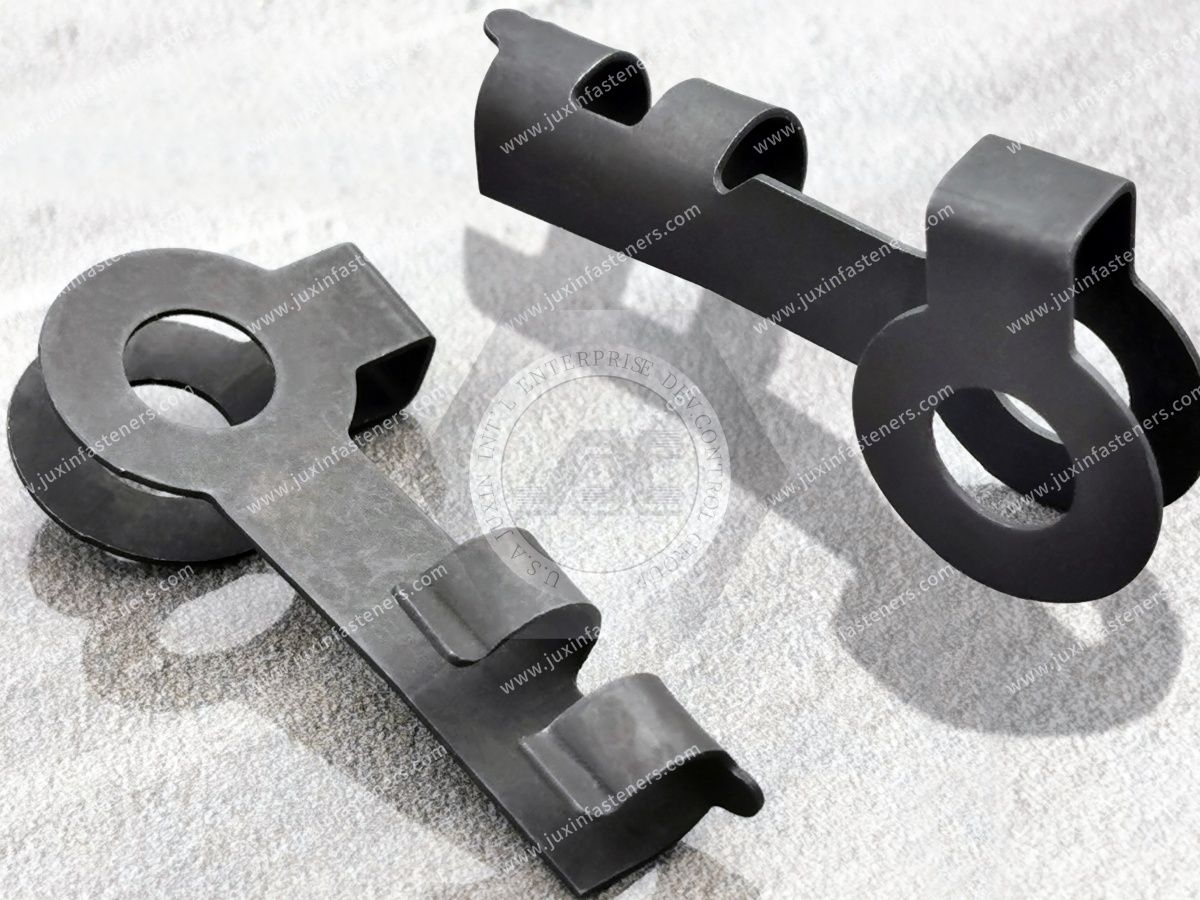

What Is Spring Nut Panel Retention Force?

Panel retention describes how securely the spring fastener remains attached to the sheet-metal edge before and during final assembly.

When a U-nut, J-nut or similar clip-on nut is pushed over a panel edge, its spring members deflect.

The resulting contact forces and friction help retain the clip on the panel.

This function is especially important during:

• component handling;

• panel transportation;

• line-side kitting;

• manual assembly;

• screw insertion;

• enclosure positioning;

• subassembly movement.

The basic question is:

Will the clip remain correctly positioned on the panel before the joint is tightened?

That is a retention question.

It is not yet a complete joint-strength question.

What Creates Clip Retention?

Clip retention can depend on multiple interacting variables.

These include:

• clip free-state geometry;

• spring-arm geometry;

• material condition;

• material thickness;

• heat-treatment condition where applicable;

• panel thickness;

• panel finish;

• contact geometry;

• friction;

• installation depth;

• hole location;

• flange geometry.

Therefore:

Retention Force Is a Clip + Panel Interface Property

It should not be treated as an intrinsic number belonging only to the clip.

Elastic Spring Deflection

During installation, the clip opens to accommodate the panel.

Within its intended operating range, elastic deformation helps generate contact pressure against the panel surfaces.

However, the simplistic idea that:

More Spring Deflection = Better Clip

is incorrect.

Excessive deflection can cause:

• difficult installation;

• coating damage;

• local panel deformation;

• permanent set;

• reduced reuse capability;

• spring overstress.

The correct design needs controlled spring behavior rather than maximum possible grip.

Panel Thickness Has a Direct Effect

Panel thickness is one of the most important variables affecting clip retention.

If the panel is too thin for the selected geometry, potential problems include:

• inadequate retention;

• clip migration;

• rattling before final assembly;

• alignment movement.

If the panel is too thick, potential problems include:

• excessive insertion force;

• spring overstress;

• permanent clip deformation;

• coating damage;

• panel-edge damage.

For this reason, the complete panel thickness range should be specified rather than only the nominal gauge.

For related selection guidance, see Panel Thickness Selection Guide.

Finished Panel Thickness Matters

A coated panel is not mechanically identical to the uncoated base sheet.

Paint, powder coating and other surface systems can affect:

• effective thickness;

• surface friction;

• insertion force;

• clip contact;

• local coating damage.

Therefore:

Bare Sheet Thickness ≠ Automatically Finished Grip Condition

This is particularly important when the clip is installed after surface finishing.

Panel Material Also Matters

Two panels of identical thickness can behave differently if their materials differ.

The interface can be influenced by:

• panel stiffness;

• local yield behavior;

• surface hardness;

• coating;

• friction.

Retention data should therefore identify the panel condition used for testing whenever the result is intended for engineering comparison.

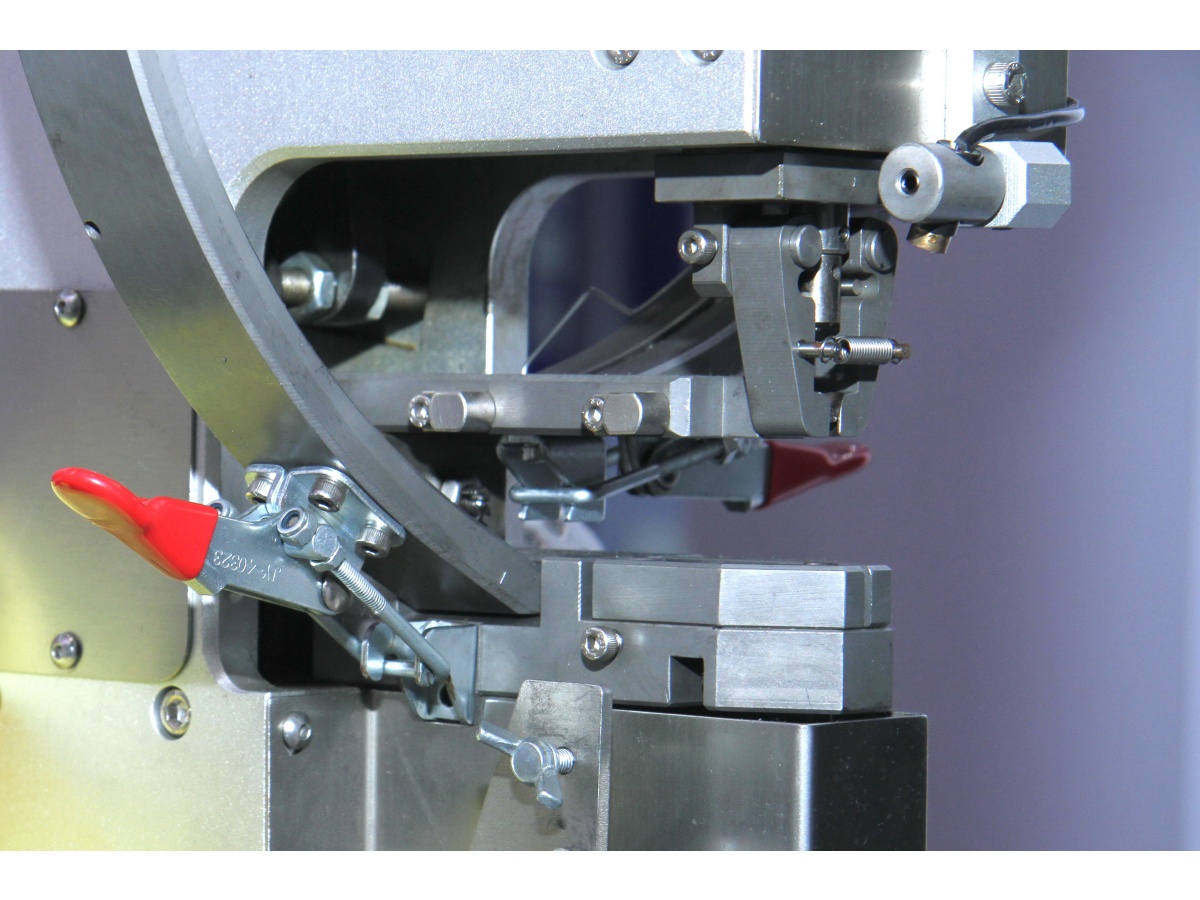

What Is Pull-Off Force?

In some clip-on nut evaluations, engineers may measure the force required to remove or displace the clip from the panel.

This may be described as:

• pull-off force;

• push-off force;

• removal force;

• retention force.

These terms should not be assumed to mean exactly the same test.

A useful test specification should define:

• panel material;

• panel thickness;

• panel finish;

• clip installation position;

• force direction;

• loading rate;

• fixture geometry;

• pass/fail criterion.

Without this information, a retention-force number can be misleading.

Pull-Off Direction Matters

Consider two tests.

In Test A, the clip is pulled directly off the panel edge.

In Test B, the clip is loaded laterally across the panel surface.

Even if the same fastener is used, the results may be very different.

Therefore:

Retention Force Without Load Direction Is an Incomplete Engineering Value

Pre-Assembly Retention Is Mainly an Assembly Requirement

For many applications, the primary purpose of clip retention is to ensure that the fastener:

• stays on the panel;

• remains aligned;

• survives handling;

• remains in position during screw installation.

This can be critical to production reliability.

But after the screw is tightened, the mechanical system changes.

The final joint is no longer merely:

Clip + Panel

It becomes:

Screw + Clip Thread + Panel + Clamped Component + Bearing Interfaces

What Is Screw Preload?

When a screw is tightened into a compatible clip-on nut, tightening torque creates tension in the screw.

That tension generates compression across the clamped components.

This internal force state is commonly discussed as:

• bolt/screw preload;

• clamp force;

• clamping force.

Although related, engineering terminology should remain precise according to the actual joint and measurement method.

The key point is:

Screw Preload Is Created Primarily by the Tightening Process and Threaded Joint—not by the Clip's Panel-Gripping Spring Force.

Strong Clip Grip Does Not Create High Screw Preload

This is a critical distinction.

A clip can grip the sheet metal extremely firmly before the screw is installed.

That does not mean it will generate a high screw preload.

Conversely, a clip with moderate panel retention may still support an appropriate screw-generated clamp load if the thread, screw and complete assembly are correctly designed.

Therefore:

Clip Retention Force ≠ Screw Preload

Torque Is Not the Same as Clamp Load

Another common misconception is:

Specified Torque = Known Clamp Load

In reality, tightening torque is influenced strongly by friction.

Torque is consumed through interactions including:

• thread friction;

• under-head/bearing friction;

• thread geometry;

• surface condition;

• coating;

• lubrication.

As a result, identical applied torque does not always produce identical preload.

Where torque/clamp-force behavior is critical, the actual fastener combination and specified test conditions should be evaluated.

ISO 16047 provides a standardized framework for torque/clamp-force testing for fasteners within its defined scope.

It should not be interpreted as a universal performance specification for every clip-on nut assembly.

Why Coating Can Influence Tightening Behavior

Fastener coatings are usually discussed in relation to corrosion.

But surface condition can also affect friction.

Changes in friction can influence the relationship between:

Applied Torque → Achieved Preload

Therefore, changing:

• coating;

• lubricant;

• screw finish;

• nut finish

can change tightening behavior even when the nominal geometry remains unchanged.

This is another reason supplier substitution requires engineering review.

What Is Complete Joint Strength?

Complete joint strength cannot be described by one universal clip-nut number.

The assembly can have multiple potential failure modes.

These can include:

• screw tensile failure;

• screw shear failure;

• internal thread stripping;

• clip deformation;

• clip pull-through;

• panel bearing deformation;

• panel-edge tearing;

• hole deformation;

• flange deformation;

• attached-component deformation;

• loss of clamp;

• fatigue-related failure.

The controlling failure mode depends on the complete joint architecture.

Therefore:

The Weakest Relevant Load Path Can Control the Assembly

not necessarily the component with the lowest catalogue strength value.

Fastener Strength Is Not Joint Strength

Suppose a high-strength screw is installed into a thin sheet-metal clip assembly.

The screw itself may have substantial tensile capacity.

But the joint can still fail through:

• thread stripping;

• panel deformation;

• clip deformation;

• edge tear-out.

Therefore:

Higher Screw Property Class ≠ Automatically Higher Joint Capacity

This is especially important in thin-sheet assemblies.

ISO 898-1 and the Boundary of Screw Property Classes

For applicable carbon- and alloy-steel bolts, screws and studs, ISO 898-1 defines mechanical and physical properties associated with specified property classes.

However, those properties do not by themselves define:

• complete joint shear capacity;

• fatigue performance;

• corrosion resistance;

• torque/clamp-force behavior;

• clip-on nut assembly capacity.

A screw property class should therefore not be used as a substitute for complete joint analysis.

Clamp Load and External Tensile Loading

A preloaded joint behaves differently from a loose connection.

When an external separating load is applied, the load distribution depends on the relative stiffness of:

• the screw;

• the clamped components.

The external load does not necessarily transfer one-for-one into additional screw tension from the first moment of loading.

This is why bolted-joint behavior cannot be reduced to:

External Tensile Load = Screw Tensile Load

Clamp Loss and Joint Separation

As external separating load increases, clamp between the joint members can decrease.

If the joint separates, load behavior changes substantially.

Therefore, engineers should distinguish:

• preload;

• residual clamp;

• external load;

• joint separation.

This becomes particularly important in dynamically loaded assemblies.

Transverse Loading and Friction

When a properly clamped joint experiences transverse loading, friction between the clamped interfaces may initially resist relative movement.

If the external transverse force exceeds the frictional resistance and slip occurs, the load path changes.

The screw and surrounding interfaces can then experience greater direct shear, bending or bearing effects depending on the geometry.

Therefore:

External Shear Load ≠ Automatically Screw Shear Load from the Beginning

Why This Matters for Clip-On Nuts

A clip-on nut may be used in a panel assembly where the designer assumes:

“The screw will take the shear.”

That may be an incomplete description.

The actual behavior depends on:

• preload;

• interface friction;

• joint stiffness;

• hole clearance;

• panel geometry;

• whether slip occurs.

This distinction can materially change how the joint should be validated.

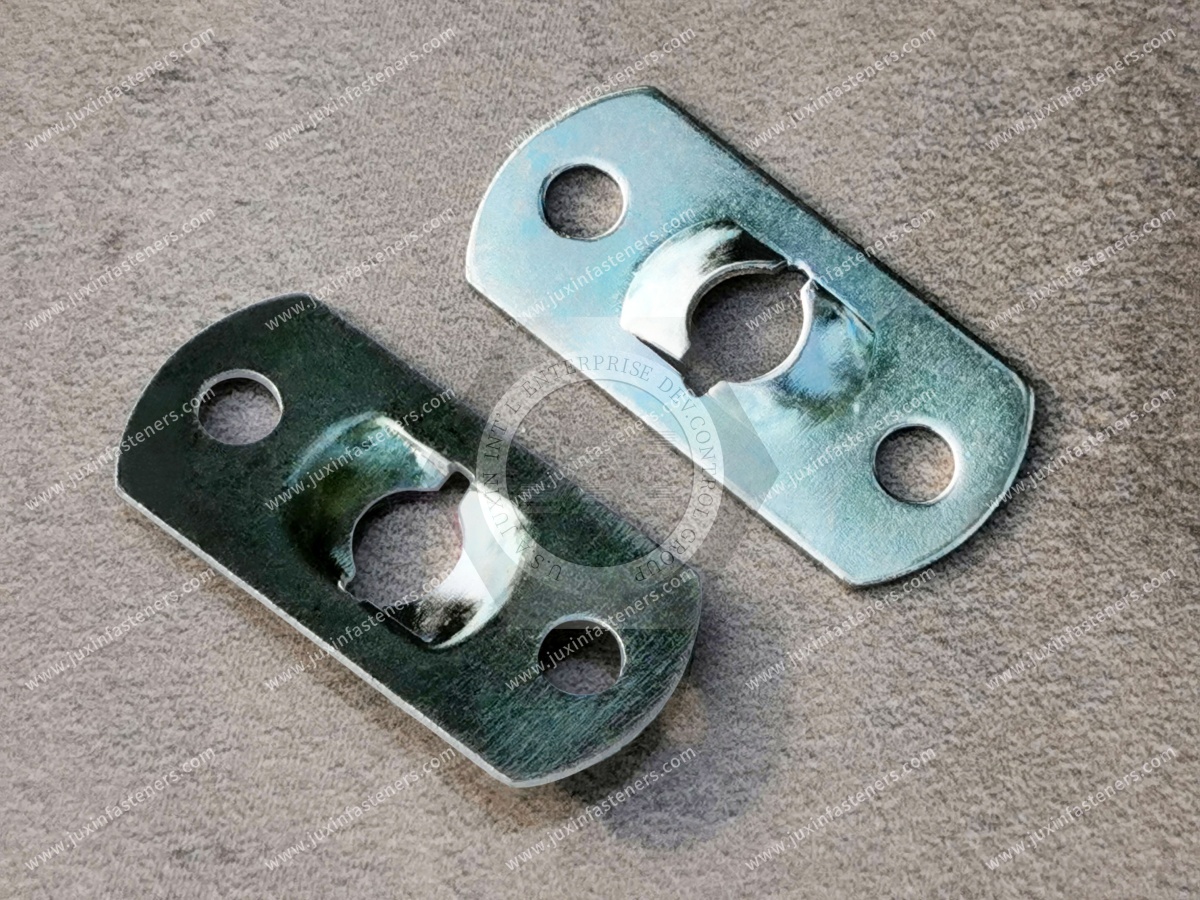

Thread Engagement Is Critical

The internal threaded feature of a clip-on nut must support the intended screw engagement.

Thread performance can depend on:

• thread geometry;

• engagement length;

• material;

• material thickness;

• formed-thread construction;

• screw properties;

• installation torque.

High panel retention cannot compensate for inadequate thread engagement.

Thread Stripping

Thread stripping can occur before the screw itself reaches its tensile capacity.

Potential causes include:

• insufficient engagement;

• incompatible screw/nut materials;

• excessive tightening torque;

• damaged threads;

• cross-threading;

• repeated service cycles.

Therefore:

Strong-Grip Clip ≠ Strip-Proof Thread

Installation Torque vs Strip Torque

These are different quantities.

Installation Torque

The torque used during normal production assembly.

Strip Torque

The torque at which the thread system loses functional integrity under the specified test condition.

A robust production process requires adequate margin between intended installation conditions and relevant failure conditions.

The appropriate margin should come from the application and validation plan rather than a universal percentage.

High Rundown Torque Does Not Mean High Clamp Load

A screw that feels difficult to tighten may be experiencing:

• thread interference;

• misalignment;

• damaged threads;

• high friction;

• coating effects.

The operator may see high torque while actual clamp load remains inadequate.

Therefore:

High Torque ≠ High Preload

This is particularly important when diagnosing clip-on nut assembly problems.

Clip Misalignment Can Distort Torque Readings

If the clip thread is not aligned with the screw axis, screw installation can produce:

• increased friction;

• cross-threading;

• abnormal torque;

• thread damage.

This may falsely appear to be a high-strength joint.

In reality, energy is being consumed by assembly interference.

Hole Setback Affects Thread Alignment

The relationship between:

• panel edge;

• panel hole;

• clip throat;

• thread center

must be correct.

An incorrect hole setback can force the screw into the thread at an angle.

For detailed troubleshooting, see Clip-On Nut Failure Analysis.

Throat Depth Is a Functional Dimension

Two clip-on nuts with the same thread can position the thread at different distances from the panel edge.

Therefore:

Same Thread + Same Panel Thickness ≠ Same Clip Geometry

Throat depth must match the panel hole location.

Spring Grip Does Not Automatically Lock the Screw

Gemini's original draft stated that spring steel maintains constant preload and prevents fastener back-out.

That combines two different functions.

The spring arms primarily grip the panel.

They do not automatically create a controlled prevailing-torque feature in the screw thread.

Therefore:

Spring Grip ≠ Thread Locking

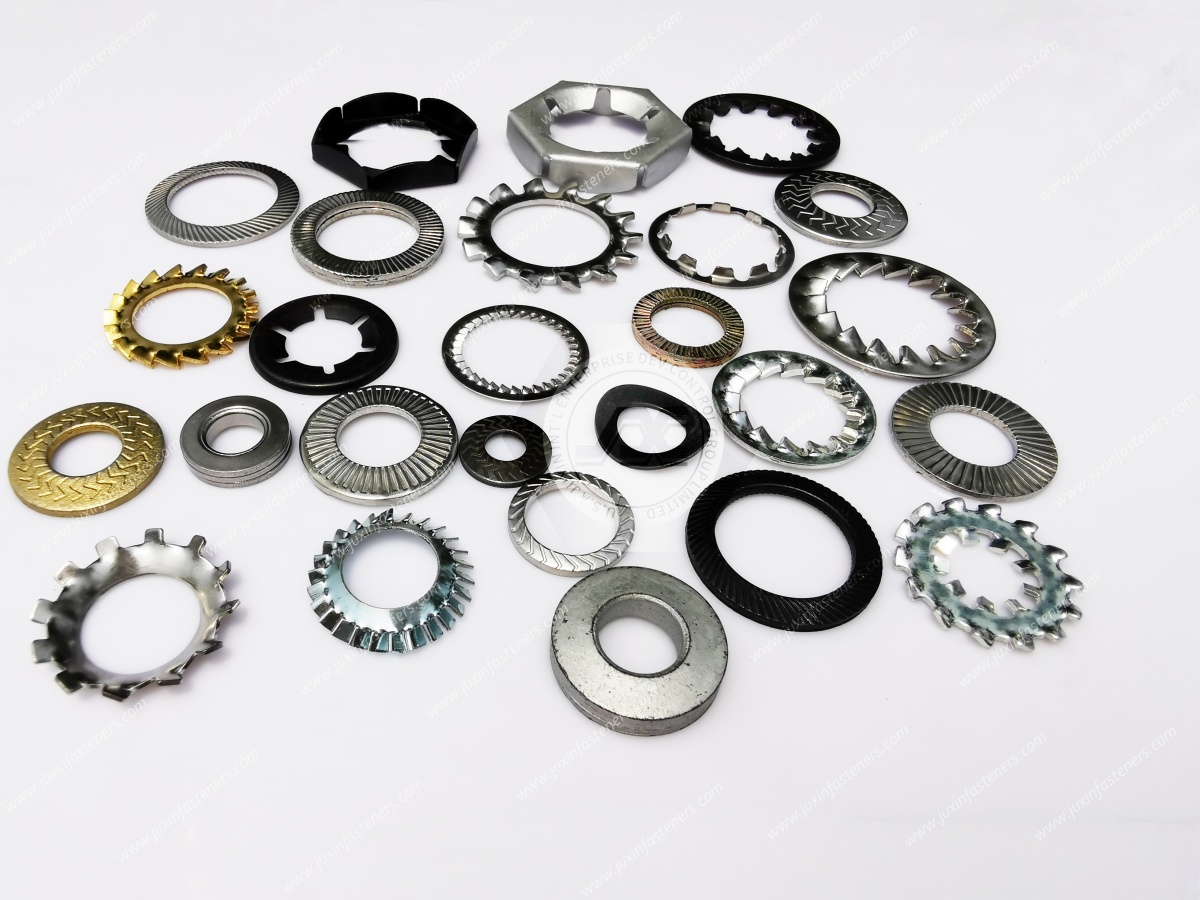

Prevailing Torque Is a Separate Fastener Concept

Prevailing-torque nuts intentionally create rotational resistance independent of clamp generated by bearing contact.

ISO 2320 defines functional properties for specified prevailing-torque steel nuts within its scope.

A conventional clip-on nut should not be described as an ISO 2320 prevailing-torque nut unless the actual threaded component is specifically designed and qualified for that function.

Vibration Does Not Automatically Loosen Every Screw

Vibration can contribute to joint problems, but the mechanism matters.

Potential influences include:

• transverse movement;

• insufficient preload;

• interface slip;

• resonance;

• joint relaxation;

• thermal cycling;

• repeated impact.

The solution should address the actual mechanism.

Stronger Clip Grip Is Not a Universal Vibration Solution

Increasing clip-to-panel grip can improve pre-assembly retention.

It does not automatically increase:

• screw preload;

• thread-locking torque;

• friction between the final clamped components;

• fatigue resistance.

For related application guidance, see Strong-Grip Clip-On Nuts for Vibration-Resistant Assemblies.

Clamp Load Can Change Without Screw Rotation

A joint can lose clamp force even when the screw has not visibly rotated.

Potential mechanisms can include:

• embedding;

• settlement;

• material creep;

• stress relaxation;

• thermal effects;

• local panel deformation.

Therefore:

No Visible Loosening ≠ No Clamp-Loss Mechanism

This distinction is important in sheet-metal assemblies.

Thin Sheet Can Be the Weakest Component

A clip-on nut may have sufficient thread capacity while the panel beneath it deforms.

Possible panel-related failure modes include:

• edge distortion;

• bearing deformation;

• hole elongation;

• local yielding;

• tear-out.

The complete assembly must therefore be evaluated rather than the clip alone.

Panel Edge Distance Matters

If the hole is too close to the edge, the available sheet-metal load path can be reduced.

But moving the hole farther inward can conflict with the clip's throat geometry.

The correct design must satisfy both:

Clip Geometry + Panel Structural Requirement

Panel Stiffness Affects Joint Behavior

A flexible panel can deform under screw tightening.

This can influence:

• achieved clamp;

• local contact pressure;

• relaxation;

• alignment.

A stronger screw does not solve an insufficiently stiff panel.

Bearing Area Matters

The screw head, washer where applicable, clip geometry and attached component determine how load is distributed.

Small bearing areas can produce high local pressure.

This can contribute to:

• indentation;

• coating damage;

• panel deformation.

Thermal Expansion Can Change Clamp

Assemblies made from different materials can experience differential thermal expansion.

Potential combinations include:

• steel fastener + aluminum panel;

• steel clip + polymer cover;

• stainless clip + coated steel housing.

Temperature cycling can alter the joint's internal force state.

A spring clip should not automatically be assumed to compensate for all thermal movement.

Thermal Relaxation Is a Joint-Level Problem

The final behavior depends on:

• material combination;

• temperature range;

• dwell time;

• joint stiffness;

• preload;

• interface behavior.

Therefore:

Spring Material ≠ Automatic Constant Clamp Force Across All Temperatures

Repeated Service Cycles

Access panels can be removed repeatedly.

Over time, this can affect:

• threads;

• clip position;

• panel edge;

• coating;

• screw condition.

A clip-on nut can be replaceable, but:

Replaceable ≠ Unlimited Reuse

If service frequency is high, removal/reinstallation cycles should be part of the validation plan.

Retention Before Assembly vs Retention During Service

A new clip may have excellent initial retention.

After repeated removal or panel servicing, the interface can change.

For serviceable equipment, engineers may need to evaluate:

Initial Retention → After Assembly → After Defined Service Cycles

rather than only measuring a new component.

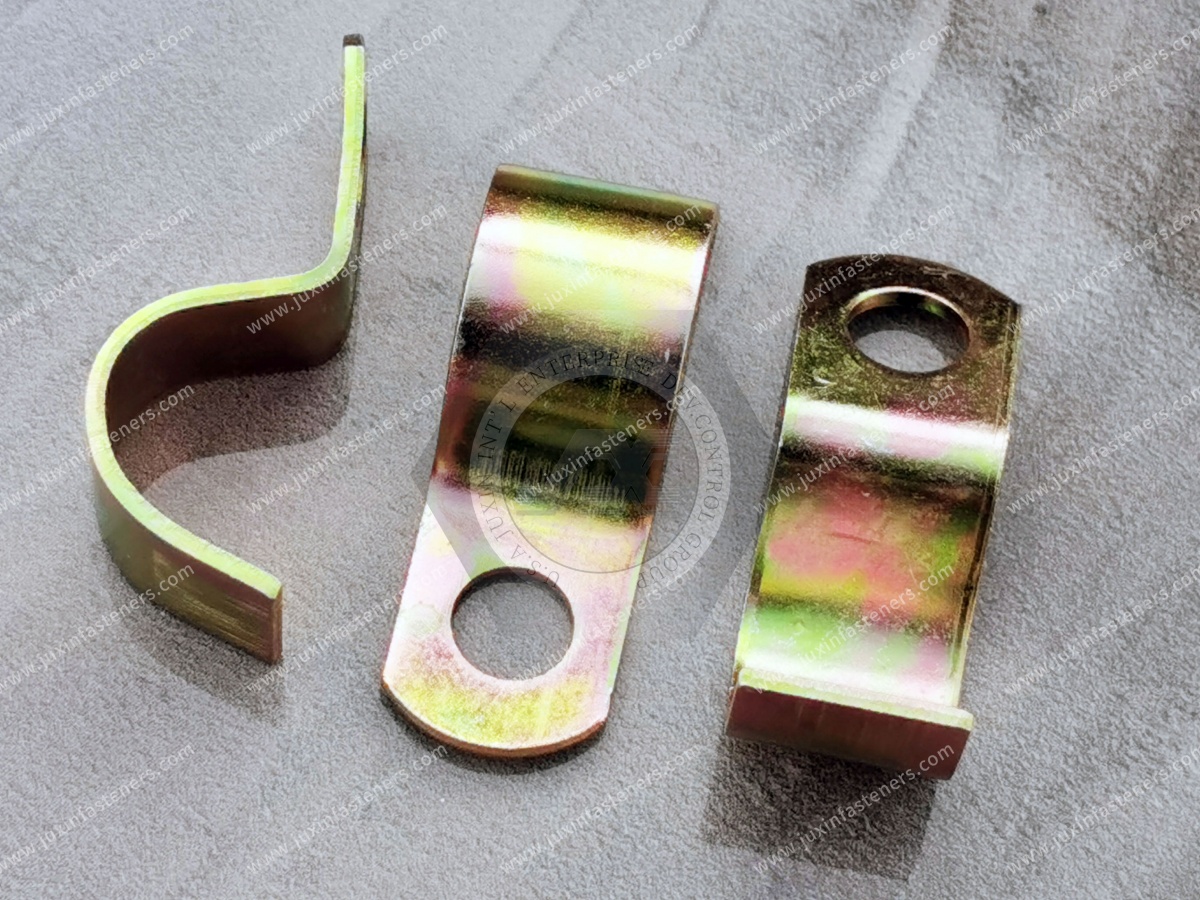

Material Selection and Retention

Spring behavior depends on the complete material condition.

For international OEM specifications, it is generally more useful to define controlled material and functional requirements than to rely on a regional material shorthand.

Relevant factors can include:

• elastic behavior;

• hardness/mechanical condition;

• forming capability;

• corrosion requirement;

• geometry.

Carbon Spring Steel

Specification-controlled carbon spring steel can provide the elastic behavior required for many clip-on nut designs.

However, performance depends on:

• material condition;

• thickness;

• forming;

• heat treatment where applicable;

• geometry.

Material name alone does not define retention performance.

Stainless Spring Materials

Stainless spring materials can be considered where corrosion requirements justify them.

But changing from carbon spring steel to stainless can affect:

• spring behavior;

• forming;

• dimensions;

• friction;

• cost.

Therefore:

Material Substitution Requires Validation

Coating Can Affect More Than Corrosion

Electroplated coatings can influence:

• dimensions;

• friction;

• installation behavior;

• thread behavior.

ISO 4042 applies to electroplated fasteners within its scope, including clips, and includes requirements and recommendations relating to hydrogen-embrittlement risk.

The standard does not define the final structural capacity of a clip-on nut assembly.

Why Supplier Data Sheets Need Careful Interpretation

A supplier may list:

Retention Force: 150 N

That number is useful only if the test condition is understood.

Questions should include:

• Which panel thickness?

• Which panel material?

• Which finish?

• Which direction?

• What installation position?

• What test speed?

• Is it minimum, nominal or average?

• What sample size?

Without test context, comparing two supplier numbers can produce a false conclusion.

Compare Like with Like

If Supplier A reports 150 N and Supplier B reports 120 N, Supplier A is not automatically the better fastener.

The parts may have been tested using:

• different panels;

• different directions;

• different fixtures;

• different acceptance definitions.

Engineering comparison requires equivalent test conditions.

Retention Force Is Not a Universal Quality Score

Higher retention can sometimes create disadvantages such as:

• excessive insertion force;

• coating damage;

• panel deformation;

• difficult service replacement.

The best value is not necessarily the maximum value.

It is the value appropriate to the assembly.

A Better Spring Nut Performance Map

Instead of asking for one “strength” number, engineering teams should separate performance into categories.

This matrix provides more useful engineering information than a single generic “strong-grip” claim.

A Practical Three-Stage Test Strategy

OEM teams can organize validation into three different stages.

Stage 1 — Clip-to-Panel Evaluation

Evaluate:

• installation force;

• retention/pull-off behavior;

• position;

• panel damage.

This stage answers:

Does the clip work correctly on the panel before screw installation?

Stage 2 — Threaded Assembly Evaluation

Install the specified production-intent screw and evaluate:

• screw starting;

• alignment;

• rundown behavior;

• tightening behavior;

• thread integrity;

• strip margin where required.

This stage answers:

Does the screw-and-clip interface assemble correctly?

Stage 3 — Complete Joint Evaluation

Evaluate the production-intent assembly under applicable:

• tensile/separating load;

• transverse load;

• vibration;

• thermal cycling;

• service cycles;

• environmental exposure.

This stage answers:

Does the actual joint satisfy the application?

Why One Test Cannot Replace the Others

A clip can pass retention testing and fail thread testing.

It can pass thread testing and fail complete assembly testing.

It can pass static testing and fail under service cycling.

Therefore:

Retention Test ≠ Thread Test ≠ Joint Test ≠ Durability Test

Design Engineers and Procurement Teams Need Different Data

Design Engineer Search Intent

Engineers may search:

• spring nut retention force;

• U-nut pull-off force;

• clip nut joint strength;

• spring nut clamp load;

• clip nut thread stripping;

• clip nut torque;

• spring fastener vibration performance.

They need to understand mechanisms and limits.

Procurement Search Intent

Purchasing and supplier-development teams may search:

• strong-grip clip nut supplier;

• spring nut technical data;

• clip nut load testing;

• U-nut manufacturer;

• clip-on nut sample testing;

• custom spring fastener supplier.

They need comparable specifications and supplier evidence.

A strong RFQ must connect both requirements.

Do Not Put “Maximum Strength” on the RFQ

A request such as:

“Please quote your strongest M6 clip nut.”

is technically ambiguous.

Stronger in what sense?

• highest panel retention?

• highest strip resistance?

• highest tensile assembly load?

• highest shear capacity?

• highest insertion force?

• highest hardness?

The requirement should identify the actual performance objective.

Define the Failure Mode You Need to Prevent

A much better RFQ asks:

“We need the clip to remain on a 1.2 mm finished steel flange during handling and screw installation.”

or:

“We need the M6 threaded assembly evaluated against a specified installation torque and defined axial load.”

or:

“The service panel must survive the customer's specified vibration profile without loss of function.”

These are measurable engineering requirements.

Prototype Fit Is Not Structural Validation

Installing one sample clip on one prototype panel can confirm initial fit.

It does not establish:

• retention tolerance;

• production insertion force;

• strip resistance;

• vibration durability;

• complete joint capacity.

Production variation must be considered.

Supplier Change Requires Revalidation

Two visually similar clip-on nuts can differ in:

• material thickness;

• spring geometry;

• free-state position;

• hardness;

• throat depth;

• thread geometry;

• coating;

• friction.

Those differences can affect both retention and final assembly behavior.

Therefore:

Same Catalogue Description ≠ Same Mechanical Performance

Strong-Grip Is a Product Description, Not a Complete Engineering Specification

The term “strong-grip” can communicate that a clip is designed for substantial panel retention.

It should not be interpreted as a quantified claim for:

• structural strength;

• screw locking;

• vibration resistance;

• fatigue life.

Engineering requirements should use measurable criteria.

Industry Application: Sheet-Metal Enclosures

For modular enclosures, retention may primarily be required to keep the clip positioned during:

• panel handling;

• final assembly;

• servicing.

Final joint performance depends on the screw and enclosure structure.

Industry Application: Industrial Machinery

Machinery access panels may experience:

• vibration;

• repeated maintenance;

• oil/coolant exposure.

Engineers should evaluate retention, joint stability and service-cycle durability separately.

Industry Application: Automotive & EV

Clip-on nuts may be used in appropriate:

• body panels;

• brackets;

• service covers;

• auxiliary enclosures.

Dynamic vehicle loads should not be represented by a generic clip retention number.

Crash-critical and primary structural applications require dedicated engineering and qualification.

Industry Application: Electrical Cabinets

A clip can retain the threaded point on a folded cabinet flange.

That does not automatically provide:

• grounding;

• bonding;

• EMI continuity;

• ingress protection.

These are separate system functions.

Industry Application: HVAC

A clip can provide mechanical attachment on an access panel.

It does not automatically create an airtight or watertight joint.

Where sealing is required, gasket compression and complete enclosure design must be evaluated separately.

Industry Application: Robotics & Automation

Low-profile clip-on nuts can support compact covers and controller housings.

The clip's panel grip should not be confused with dynamic structural capacity of a robotic axis or moving structural member.

Spring Nut Engineering Selection Workflow

Step 1 — Define the Panel

Specify:

• material;

• nominal thickness;

• tolerance;

• finish.

Step 2 — Define Clip Geometry

Specify:

• U/J/barrel/enclosed configuration;

• grip range;

• throat depth;

• hole setback;

• overall envelope.

Step 3 — Define the Retention Requirement

Ask:

What must the clip survive before screw tightening?

Step 4 — Define the Screw

Specify:

• metric/inch;

• diameter;

• pitch/TPI;

• screw material/property requirement;

• finish;

• length;

• head/bearing configuration.

Step 5 — Define the Tightening Process

Specify where relevant:

• target torque;

• driver method;

• lubrication/surface condition;

• process limits.

Step 6 — Define External Loads

Consider:

• separating/tensile load;

• transverse load;

• vibration;

• shock;

• thermal cycling.

Step 7 — Identify Possible Failure Modes

Evaluate:

• clip removal;

• thread stripping;

• panel deformation;

• screw failure;

• joint slip;

• loss of clamp.

Step 8 — Define Testing

Separate:

• retention testing;

• threaded assembly testing;

• complete joint testing.

Step 9 — Validate Production-Intent Parts

Use actual:

• panel;

• finish;

• screw;

• clip;

• assembly process.

Step 10 — Freeze the Specification

Convert validated performance into a controlled drawing and RFQ requirement.

OEM RFQ Checklist for Retention and Joint Performance

When requesting an engineering review or production quotation from JUXIN FASTENERS, provide where applicable:

• application/industry;

• assembly function;

• 2D drawing;

• 3D model where available;

• assembly drawing;

• current fastener sample;

• current supplier part number where appropriate;

• clip geometry;

• panel material;

• panel thickness;

• panel-thickness tolerance;

• panel finish;

• finished thickness where relevant;

• flange geometry;

• hole diameter;

• hole setback;

• throat depth;

• thread size;

• metric or inch;

• pitch/TPI;

• mating screw specification;

• screw material/property requirement;

• screw finish;

• screw length;

• screw-head/bearing configuration;

• target installation torque where defined;

• assembly-tool information where relevant;

• clip retention requirement;

• retention-load direction;

• retention-test method if customer-defined;

• axial/separating load requirement;

• transverse-load requirement;

• vibration profile where applicable;

• shock requirement where applicable;

• operating temperature;

• thermal-cycle requirement;

• environmental exposure;

• corrosion requirement;

• expected service cycles;

• thread strip requirement where applicable;

• complete joint test requirement;

• acceptance criteria;

• sample quantity;

• prototype quantity;

• production quantity;

• estimated annual demand;

• packaging requirement;

• inspection/documentation requirement;

• customer-specific specification.

Frequently Asked Questions

What is spring nut retention force?

It describes the clip-to-panel retention behavior that helps keep the fastener positioned on the sheet-metal edge before and during assembly.

Is clip retention force the same as clamp load?

No. Clip retention comes primarily from the spring clip-to-panel interface. Clamp load is generated through tightening the threaded joint.

Is clamp load the same as joint strength?

No. Clamp load is one important part of joint behavior, while complete joint capacity depends on the screw, thread, clip, panel, clamped components and load path.

Does a stronger-grip clip create more screw preload?

Not automatically. Screw preload depends mainly on the tightening process, threaded interface, friction and complete joint configuration.

Does spring pressure stop the screw from loosening?

Not automatically. Panel grip and screw-locking behavior are separate functions.

Are clip-on nuts prevailing-torque nuts?

Not inherently. A prevailing-torque function requires a specifically designed thread-locking mechanism and applicable validation.

Does higher tightening torque always create higher clamp load?

Not reliably. Friction, thread condition, coating, lubrication and alignment influence torque-to-preload behavior.

Can the screw property class define the joint strength?

No. Screw properties are only one part of the complete assembly.

Does a high pull-off force mean the final joint is strong?

No. Pull-off/retention testing evaluates a different mechanical function from final joint capacity.

Can one retention-force number be compared across suppliers?

Only when the test conditions are equivalent and clearly defined.

How should spring nut load capacity be tested?

Separate clip retention, threaded assembly behavior and complete joint performance. Testing should represent the actual panel, screw, geometry, load direction and service condition.

Can JUXIN FASTENERS review an existing clip-on nut joint?

JUXIN FASTENERS can review available drawings, samples, panel geometry, mating screw requirements, retention requirements,

assembly conditions and production demand to identify candidate clip-on nut configurations for customer evaluation.

From “Strong-Grip Clip Nut” to a Controlled Engineering Specification

A sourcing request may begin:

“We need a strong-grip M6 clip nut.”

That description still leaves the most important engineering questions unanswered.

Strong Grip Against What?

On What Panel Thickness?

In Which Removal Direction?

What Screw Is Used?

What Installation Torque Applies?

What External Load Acts on the Joint?

Is the Concern Clip Movement, Thread Stripping, Screw Loosening, Panel Failure or Complete Joint Failure?

The correct engineering pathway is:

Panel → Clip Retention → Geometry → Thread / Screw → Tightening Process → Clamp → External Load Path → Failure Modes → Testing → Validation → Controlled Specification → RFQ

This converts a vague “strong clip” requirement into a measurable OEM fastening specification.

Spring Nut Engineering Support from JUXIN FASTENERS

JUXIN FASTENERS supports OEM sourcing and engineering evaluation for appropriate clip-on nut applications including:

• U-nuts;

• J-nuts;

• strong-grip clip-on nuts;

• barrel clip-on nuts;

• enclosed-thread clip-on nuts;

• low-profile clip-on nuts;

• tapping-screw spring clips;

• metric clip-on nuts;

• inch clip-on nuts;

• carbon spring-steel clips;

• stainless spring clips where appropriate;

• drawing-based spring fasteners.

For related engineering guidance, see:

Clip-On Nut Failure Analysis

Panel Thickness Selection Guide

Sheet-Metal Fastener Selection Guide

Strong-Grip Clip-On Nuts for Vibration-Resistant Assemblies

Strong-Grip Clip-On Enclosed Hex Nuts

Strong-Grip Clip-On Barrel Nuts & U-Nuts

U-Nuts vs J-Nuts Geometry

Carbon Steel Clip-On Nuts: Material & Coating Guide

For an OEM spring nut engineering review, sample evaluation or production RFQ, send your drawing, panel material and thickness, hole setback,

 clip geometry, mating screw specification, tightening conditions, retention requirement, external load information, environmental conditions, sample quantity and projected annual demand to:

info@juxinfasteners.com

The most important engineering question is not:

“How strong is this clip nut?”

It is:

“Which mechanical function are we measuring—panel retention, screw preload, thread capacity, resistance to loosening, or complete joint performance?”

Once that question is answered correctly, spring nut selection becomes a controlled engineering decision rather than a catalogue-strength assumption.
