Stainless Steel CNC Machining for Electrical Cabinets | OEM Parts

Stainless Steel CNC Machining for Electrical Cabinets and OEM Precision Components

Electrical cabinet manufacturers, industrial automation suppliers, and control panel builders require precision mechanical components that support accurate equipment positioning, secure assembly,

corrosion resistance, and consistent manufacturing quality.

These components may be used in industrial control cabinets, electrical distribution enclosures, automation panels, instrumentation housings, machine control systems, and other electrical equipment assemblies.

Stainless steel CNC machining provides a flexible manufacturing solution for selected custom components requiring controlled dimensions, accurate geometry, and application-specific mechanical interfaces.

Typical CNC machined electrical cabinet components include threaded standoffs, precision spacers, bushings, mounting blocks, adapters, threaded sleeves, locating pins, and special fastening hardware.

However, stainless steel is not automatically the most suitable material for every electrical enclosure component.

Material selection must consider electrical conductivity, grounding requirements, corrosion exposure, mechanical loading, thermal behavior, weight, and cost.

JUXIN FASTENERS supports drawing-based inquiries for custom stainless steel CNC machined parts, precision fastening components, and industrial electrical enclosure hardware.

Depending on the component geometry and production requirements, suitable manufacturing processes may include CNC turning,

 Swiss-type machining, CNC milling, drilling, tapping, threading, grooving, and combined turning-milling operations.

Manufacturing feasibility, material specifications, achievable tolerances, inspection requirements, order quantities, and delivery arrangements should be confirmed for each project.

Electrical Cabinet Applications for CNC Machined Components

Electrical cabinets contain numerous mechanical assemblies that require accurate mounting, positioning, spacing, and connection.

The appropriate component design depends on the electrical equipment layout, enclosure material, environmental conditions, and installation requirements.

Industrial Control Cabinet Mounting Hardware

Industrial control cabinets may incorporate mounting plates, electronic modules, terminal assemblies, protective devices, and internal support structures.

Custom CNC machined mounting blocks, threaded standoffs, spacers, and adapters may be used where standard hardware does not provide the required geometry.

Engineers should consider component positioning, assembly clearance, vibration exposure, and access for installation or maintenance.

Where the cabinet uses thin sheet metal, the complete fastening method must be evaluated against sheet thickness, substrate properties, and joint loading.

Electrical Enclosure Threaded Standoffs

Threaded standoffs provide controlled spacing between components and mounting surfaces.

They may be used for electronic assemblies, instrumentation, mounting plates, and other equipment requiring defined separation distances.

Critical dimensions may include overall length, external diameter, thread size, thread depth, and perpendicularity.

A stainless steel standoff is electrically conductive and must not be treated as an insulating spacer.

Where electrical isolation is required, suitable insulating components or engineered isolation arrangements may be necessary.

Precision Spacers and Distance Sleeves

Precision spacers and distance sleeves may be used to establish accurate assembly distances.

Important characteristics include overall length, internal diameter, external diameter, concentricity, and surface finish.

For electrical cabinet assemblies, spacer dimensions can influence component alignment, clearance, and local clamping conditions.

A spacer should be evaluated as part of the complete joint because incorrect length or insufficient bearing area may affect assembly reliability.

Custom Mounting Blocks and Adapters

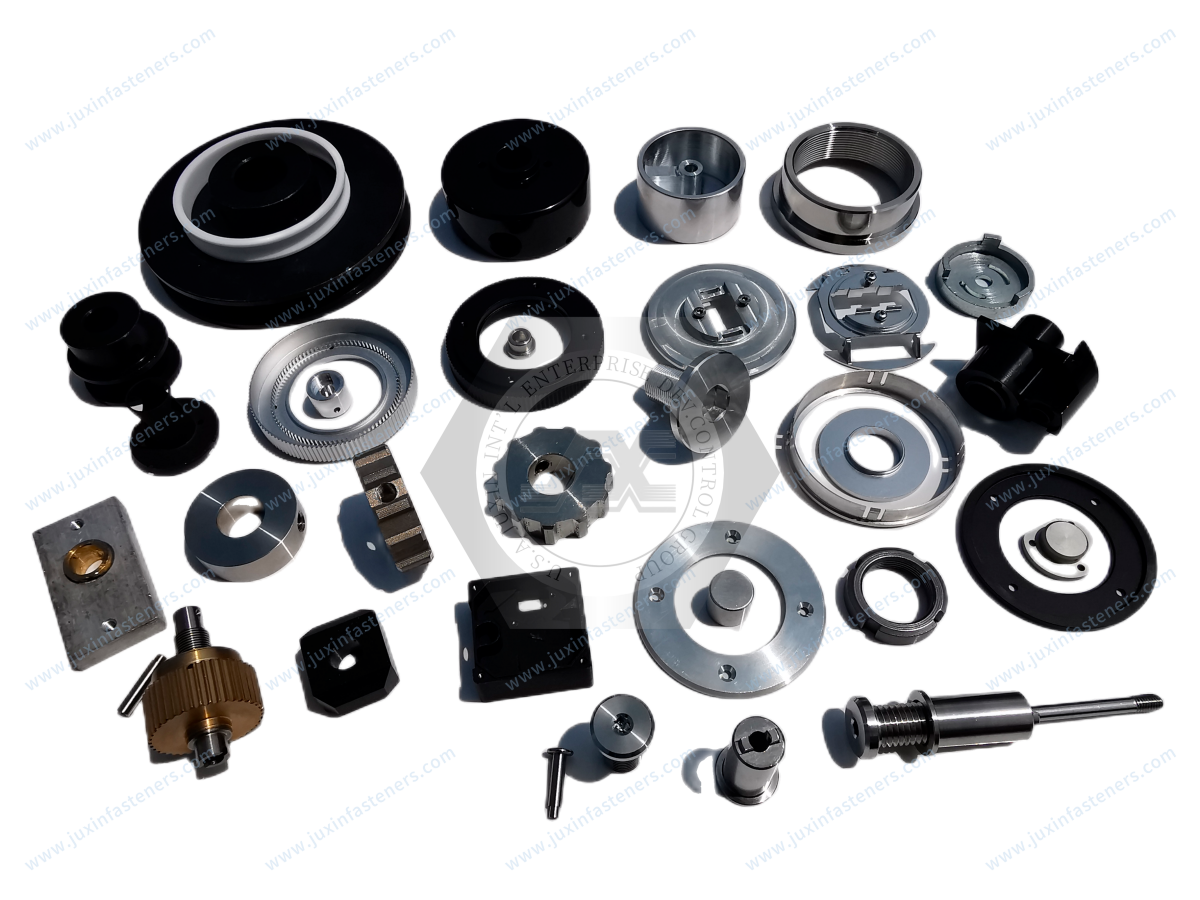

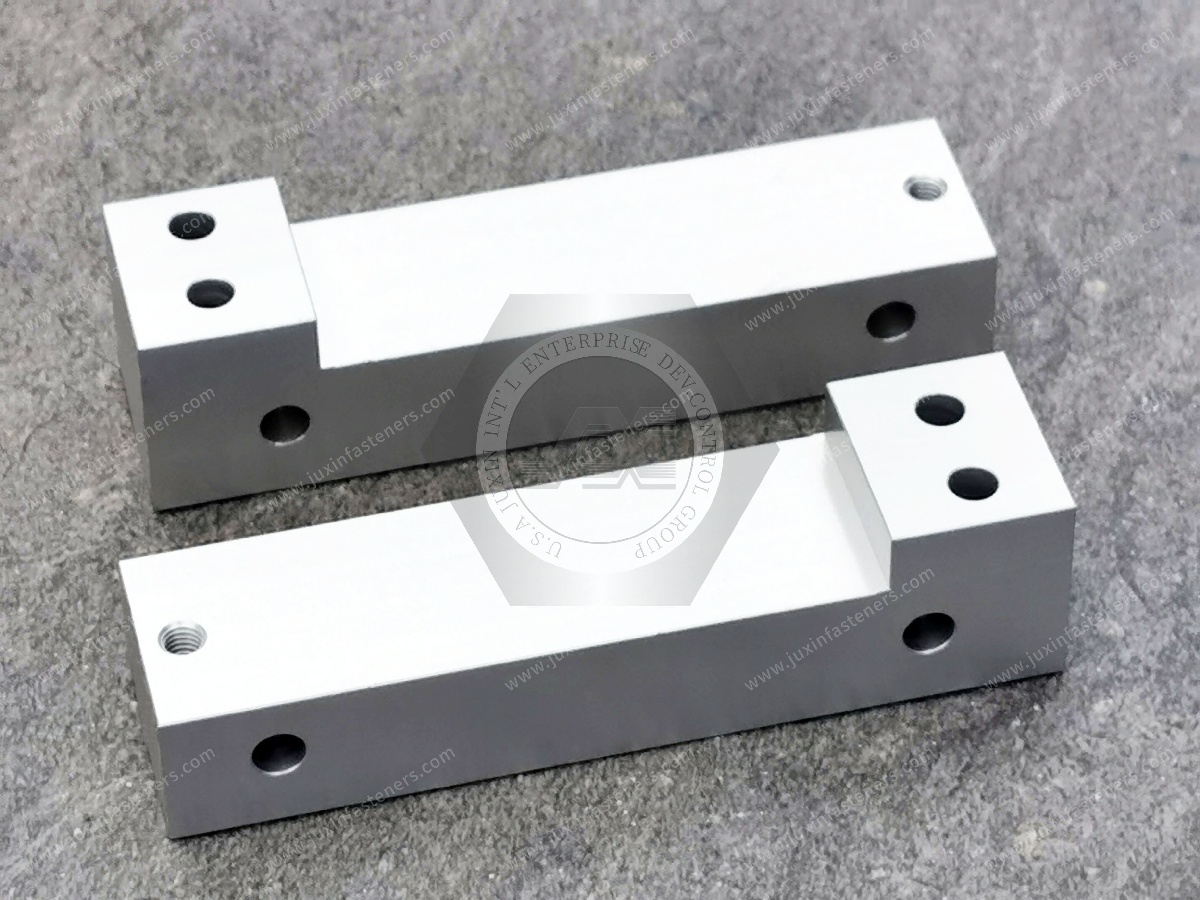

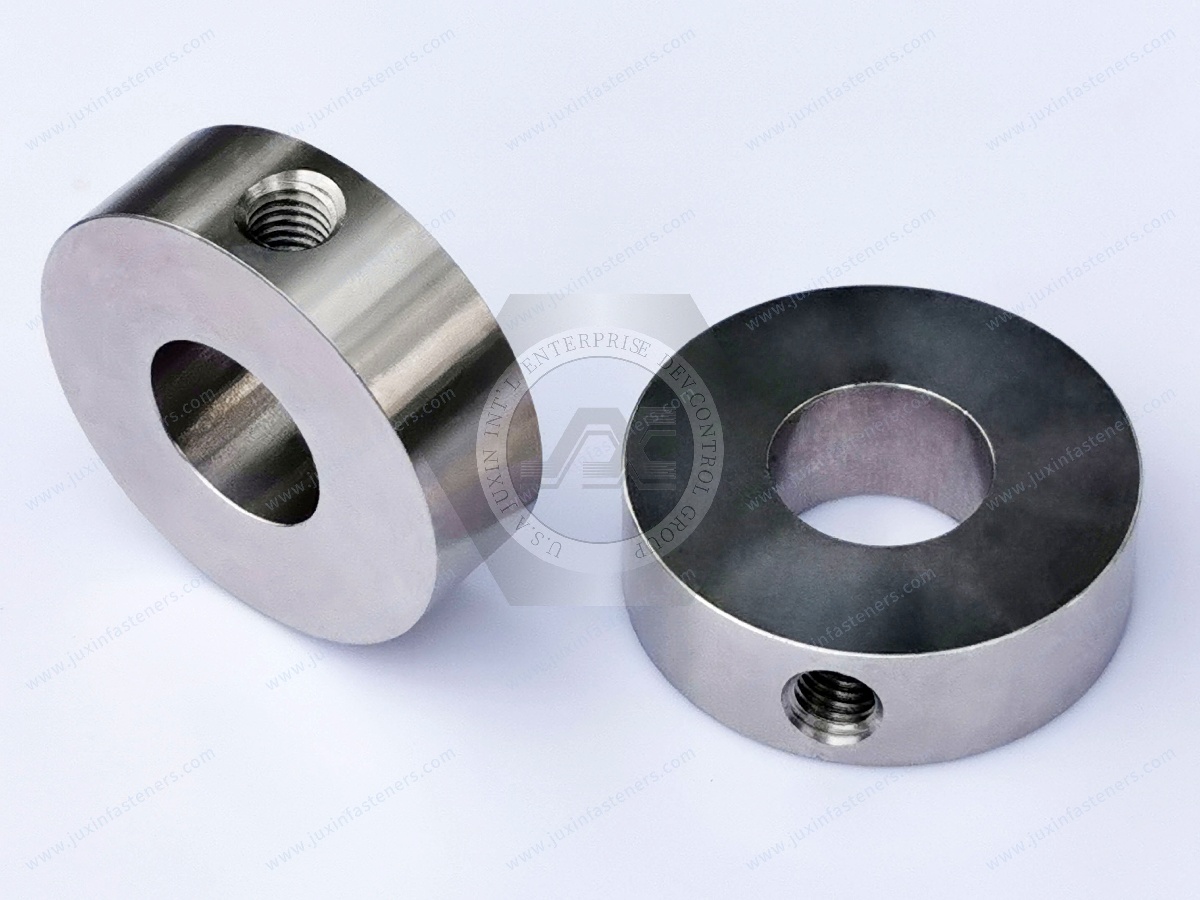

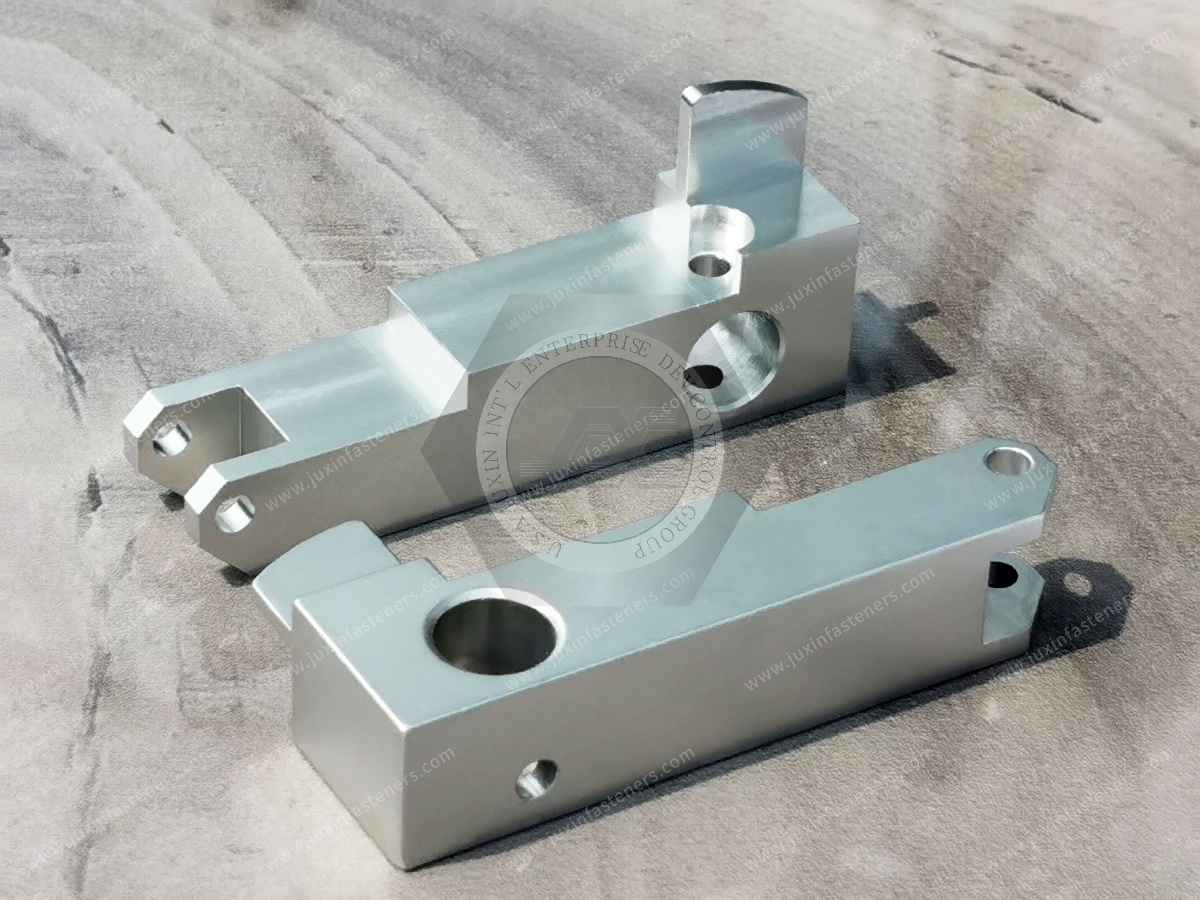

CNC machined mounting blocks may incorporate threaded holes, slots, precision bores, locating features, and mounting surfaces.

These components may be used to support sensors, instruments, cable management hardware, or auxiliary equipment.

Design engineers should consider tool accessibility, minimum wall thickness, thread engagement, datum selection, and inspection requirements.

Where standard brackets or fastening hardware can perform the same function, they may provide a more economical solution.

Locating Pins and Bushings

Precision pins and bushings may be used to establish repeatable component positions or provide mechanical interfaces.

CNC turning and Swiss-type machining may be suitable for selected cylindrical components.

Engineers should evaluate mating-hole tolerances, insertion requirements, material hardness, corrosion exposure, and any wear requirements.

Where a bushing functions as a bearing surface, the complete wear system must be evaluated.

Custom Threaded Connectors and Fastening Components

Electrical enclosure assemblies may require special threaded studs, adapters, sleeves, precision nuts, and other customized fastening hardware.

CNC machining can be suitable where standard components do not meet the required geometry, material, or installation conditions.

Thread dimensions should follow the approved engineering drawing and applicable international thread standard.

Metric, UNC, and UNF thread systems must be specified separately and are not directly interchangeable.

Material Selection for Electrical Cabinet CNC Components

Stainless steel may be selected where corrosion resistance, durability, mechanical strength, or dimensional stability are important.

However, material selection should reflect the actual component function and operating environment.

AISI 303 Stainless Steel

AISI 303 is an austenitic stainless steel developed for improved machinability.

It may be considered for selected turned spacers, sleeves, threaded standoffs, and precision hardware where its corrosion resistance and mechanical properties meet the application requirements.

Compared with AISI 304, AISI 303 generally offers improved machinability but may provide reduced corrosion resistance in certain environments.

Its suitability should be reviewed where welding, demanding corrosion exposure, or specific material restrictions are involved.

AISI 304 Stainless Steel

AISI 304 is widely used for industrial mechanical components requiring corrosion resistance and general-purpose material properties.

It may be suitable for selected electrical cabinet spacers, mounting hardware, threaded sleeves, and machined components.

However, AISI 304 can work-harden during machining, requiring suitable cutting conditions, tooling, and process control.

Its electrical conductivity and magnetic behavior should also be considered where relevant.

AISI 304 should not automatically be treated as electrically insulating or nonmagnetic under all manufacturing conditions.

AISI 316 Stainless Steel

AISI 316 may be considered for selected components exposed to moisture or more demanding corrosive environments.

It generally offers improved resistance to certain corrosive conditions compared with AISI 304.

However, AISI 316 is not universally resistant to every chemical or chloride exposure condition.

The actual environment and customer specification should guide material selection.

AISI 410 and 420 Stainless Steels

AISI 410 and AISI 420 are martensitic stainless steels that may be heat-treated to obtain different hardness and strength characteristics.

They may be considered for selected mechanical components requiring specific hardness or wear-related properties.

Their corrosion resistance and heat-treatment behavior differ from those of austenitic stainless steels.

The engineering drawing should identify the required material condition and mechanical properties.

Precipitation-Hardening Stainless Steel

Precipitation-hardening stainless steels, including 17-4 PH, may be considered for selected high-strength precision components.

Their mechanical properties depend on the specified heat-treatment condition.

Where these materials are required, the applicable material specification, heat-treatment condition, and mechanical requirements should be clearly defined.

Electrical Bonding, Grounding, and Insulation Requirements

Electrical cabinet assemblies must distinguish between mechanical fastening, electrical bonding, grounding, and insulation.

A mechanically secure connection does not automatically provide a verified electrical connection.

Metallic Standoffs and Electrical Conductivity

Stainless steel standoffs, spacers, and mounting components are electrically conductive.

They may provide mechanical support, but they do not independently provide electrical isolation.

Where electrical insulation is required, suitable insulating materials, sleeves, coatings, or other engineered arrangements may be necessary.

The effectiveness of the insulation system must be validated according to the application.

Protective Earth Connections

Some electrical cabinets require protective earth connections between the enclosure, doors, mounting plates, and other conductive parts.

However, a stainless steel fastener should not automatically be treated as a validated protective bonding connection.

Electrical continuity may be influenced by surface coatings, contact pressure, corrosion, joint geometry, and assembly conditions.

The protective bonding design and verification requirements should follow the applicable electrical equipment standard and customer specification.

Painted and Coated Cabinet Surfaces

Powder-coated or painted enclosure surfaces may affect electrical contact between metallic components.

Where electrical bonding is required, the connection design must account for coating thickness and contact conditions.

Any required bonding hardware, contact preparation, or verification should be established by the equipment designer.

Electrical Clearance and Creepage

Electrical cabinet components may be located near energized conductors or electrical devices.

The placement of metallic spacers, mounting blocks, and threaded hardware must account for required electrical clearances and creepage distances.

These requirements depend on voltage, insulation system, pollution degree, and applicable equipment standards.

Mechanical dimensions alone do not establish electrical safety compliance.

Corrosion Protection and Mixed-Material Assemblies

Electrical cabinets may use painted carbon steel, stainless steel, aluminum, or other materials.

When stainless steel components are assembled with dissimilar metals, galvanic corrosion may occur in the presence of an electrolyte.

The risk depends on material combinations, exposed surface areas, moisture, protective coatings, and joint geometry.

For outdoor or washdown environments, engineers should evaluate:

• Moisture and condensation exposure

• Material compatibility

• Protective coatings

• Contact surfaces

• Drainage and enclosure design

• Cleaning chemicals

• Maintenance requirements

ISO 9227 and ASTM B117 may be relevant where salt-spray testing is specified.

However, salt-spray exposure duration alone does not establish actual service life.

IP Protection and Enclosure Sealing Considerations

Electrical enclosures may be designed to achieve specific ingress protection ratings.

IEC 60529 defines the IP Code classification system.

However, a CNC machined component does not independently establish an enclosure's IP rating.

Where a machined part passes through an enclosure wall or interfaces with a gasket, the complete sealing arrangement must be evaluated.

Important considerations may include surface finish, flatness, gasket compression, hole geometry, installation torque, and environmental exposure.

Any required IP verification applies to the relevant enclosure assembly rather than to an isolated metal component.

CNC Machining Processes for Electrical Cabinet Precision Parts

Different CNC machining processes provide advantages depending on component geometry, material, tolerance requirements, and production quantity.

CNC Turning

CNC turning is suitable for rotationally symmetric components such as spacers, standoffs, bushings, sleeves, threaded adapters, and cylindrical mounting hardware.

Typical operations include facing, external turning, boring, drilling, grooving, and threading.

Process planning should consider workholding, tool access, dimensional relationships, and surface finish.

Swiss-Type CNC Machining

Swiss-type machining may be advantageous for small-diameter, slender precision components.

The guide-bushing arrangement can support the workpiece near the cutting area, helping control deflection in suitable applications.

However, Swiss-type machining is not automatically the most economical choice for every small component.

Part geometry, material, setup complexity, cycle time, and production quantity influence process selection.

CNC Milling

CNC milling may be suitable for mounting blocks, adapters, brackets, and components requiring flats, slots, pockets, or multiple mounting features.

Datum selection and fixture stability are important where positional relationships between features affect assembly.

Drilling, Tapping, and Threading

Machined components may require internal threads, external threads, precision holes, and mounting features.

Thread quality depends on material properties, tooling, cutting conditions, and inspection methods.

For stainless steel, machining plans should account for tool wear and work hardening.

Combined Turning and Milling

Turn-mill machining can combine rotational and non-rotational operations.

For suitable components, reducing the number of setups may improve relationships between critical features and reduce handling.

The benefit depends on machine configuration, tooling, part complexity, and production volume.

Design for Manufacturability in Electrical Cabinet CNC Components

Design for Manufacturability (DFM) helps align engineering requirements with practical machining processes.

Early DFM evaluation can reduce unnecessary complexity, improve production repeatability, and lower total component cost.

Tolerance Allocation

Not every dimension requires the same tolerance.

Critical-to-function features should receive appropriate dimensional and geometric controls.

Non-critical dimensions may permit more economical tolerances.

Unnecessarily tight tolerances can increase machining time, inspection effort, scrap risk, and cost.

Thin Walls and Machining Stability

Thin-walled components may deform during machining due to cutting forces, clamping pressure, or residual stress.

Special workholding or controlled machining sequences may be required.

The achievable tolerance depends on material, geometry, tooling, and process stability.

Deep Holes and Tool Accessibility

Deep or narrow holes may require specialized tooling and additional machining time.

Engineers should consider tool reach, chip evacuation, coolant access, and measurement requirements.

Where design flexibility exists, simplifying difficult internal features may reduce cost.

Thread Engagement and Assembly Loads

Thread specifications should identify the required standard, size, pitch, tolerance class, and functional engagement.

For electrical cabinet hardware, engineers should consider joint loads, mating materials, assembly torque, and the risk of thread damage.

Stainless steel threaded components may experience galling under certain assembly conditions.

Suitable mating materials, surface treatments, lubrication, or assembly procedures may be necessary.

Surface Finish and Functional Requirements

Surface finish should be specified according to component function.

A sealing interface, bearing surface, decorative surface, and general mounting feature may require different surface conditions.

Specifying unnecessarily fine surface finish across an entire component can increase machining cost without improving performance.

GD&T and Precision Assembly Requirements

Geometric Dimensioning and Tolerancing (GD&T) helps define relationships between critical features.

Depending on the drawing system, ASME Y14.5 or ISO 1101 may be applicable.

Relevant controls may include position, flatness, perpendicularity, parallelism, runout, and profile.

Datum selection should reflect how the component is located and assembled.

For example, a precision spacer may require controlled relationships between its internal bore, outer diameter, and end faces.

A cabinet mounting block may require accurate positional relationships between mounting holes, locating features, and reference surfaces.

GD&T should support functional assembly and inspection rather than introducing unnecessary manufacturing complexity.

Precision, Repeatability, and Production Stability

For electrical cabinet OEM manufacturing, a successful CNC machining process must produce consistent results across the required production quantity.

A dimensionally accurate prototype does not automatically establish production capability.

Important process controls may include:

• Approved CNC programs

• Controlled workholding

• Tool-life management

• Material consistency

• Cutting parameters

• In-process inspection

• Final dimensional verification

• Documented drawing revisions

• Appropriate handling and packaging

Production managers should evaluate machining cycle time, setup requirements, inspection frequency, scrap risk, and process consistency.

The appropriate manufacturing approach depends on component complexity, required tolerances, and purchasing volume.

Quality Control for Custom CNC Electrical Cabinet Parts

Inspection planning should follow the approved drawing and the component's functional requirements.

Depending on the project, inspection may include dimensional measurement, thread inspection, material verification, hardness testing, surface-finish measurement, and functional checks.

Dimensional Inspection

Critical dimensions may be verified using suitable micrometers, calipers, bore gauges, height gauges, or coordinate measuring equipment.

The measurement method should provide sufficient capability for the specified tolerance.

Thread Inspection

Threaded components may require appropriate thread gauges or other verification methods.

The inspection method should follow the specified thread standard and customer requirements.

Material Verification

Customers may require material documentation or additional verification of the specified stainless steel grade.

The required documentation should be agreed upon during quotation.

Surface Finish Verification

Where surface finish is functionally important, the drawing should define the relevant parameters and inspection requirements.

The measurement method should be suitable for the specified surface and geometry.

First-Article and Production Inspection

OEM projects may require first-article inspection or other customer-defined approval activities before repeat production.

Inspection frequency, reporting, traceability, and approval requirements should be established according to the purchasing specification.

Any required certification, testing, or documentation must be confirmed for the specific project.

International Standards and Electrical Cabinet Requirements

Electrical cabinet projects may involve technical requirements beyond those normally applied to general industrial mechanical components.

The applicable standards depend on the equipment type, electrical system, installation location, and customer specification.

ISO Metric Threads

ISO 261 provides relevant metric screw thread series information.

ISO 965 addresses tolerance requirements for ISO general-purpose metric screw threads.

Metric thread designations and tolerance classes should be defined in the approved drawing.

ASME Unified Inch Threads

ASME B1.1 covers Unified inch screw threads, including UNC and UNF series.

These thread systems may be relevant to North American electrical enclosure designs.

Metric and Unified inch threads are not directly interchangeable.

IEC 60529

IEC 60529 defines the IP Code classification system for enclosure ingress protection.

The required IP rating applies to the enclosure assembly and must be verified according to the applicable requirements.

IEC 61439

IEC 61439 addresses low-voltage switchgear and controlgear assemblies within its scope.

However, it does not establish universal dimensional or manufacturing requirements for every CNC machined cabinet component.

The relevance of specific electrical assembly requirements must be determined by the equipment manufacturer.

UL 508A

UL 508A is relevant to industrial control panels within its scope in the North American market.

It does not automatically apply to every isolated mechanical component.

Any required compliance or component acceptance conditions should be confirmed by the customer.

From Prototype Development to Repeat OEM Production

CNC machining can support electrical cabinet component development because geometry and machining programs can be revised as the design evolves.

However, transitioning from prototypes to repeated production requires additional process planning.

Engineering Drawing and CAD Review

The initial review should identify material, geometry, critical tolerances, functional interfaces, and inspection requirements.

Potential manufacturing risks should be clarified before machining begins.

Material and Process Selection

The material and machining process should be selected according to functional requirements, part geometry, quantity, and cost.

Alternative manufacturing approaches may be considered where technically appropriate.

Prototype and First-Article Machining

Initial parts can be evaluated for dimensional accuracy, assembly fit, surface condition, and manufacturing feasibility.

Any design or process changes should be documented.

Process Optimization

After design approval, machining operations may be optimized for cycle time, tooling, repeatability, and inspection efficiency.

The appropriate optimization depends on the required production quantity.

Repeat Production and Final Inspection

Repeat production should follow the approved drawing revision and agreed quality requirements.

Inspection, packaging, and delivery arrangements should be established according to the customer's purchasing specification.

CNC Machining vs. Standard Electrical Cabinet Fasteners

Custom CNC machining provides flexibility for non-standard geometry and precision mechanical interfaces.

However, not every cabinet component requires CNC machining.

Standard screws, nuts, washers, standoffs, self-clinching fasteners, rivet nuts, and other fastening components may offer a more economical solution for suitable applications.

When CNC Machining May Be Appropriate

CNC machining may be justified where the design requires:

• Non-standard geometry

• Precision concentric features

• Special threaded interfaces

• Controlled locating features

• Custom mounting blocks

• Specific material requirements

• Multiple machined features

• Drawing-based dimensional relationships

When Standard Fasteners May Be More Economical

Standard fastening components may be preferable where the required function can be achieved without custom machining.

For example, a standard threaded standoff or self-clinching nut may provide an efficient mounting solution for compatible sheet metal.

However, self-clinching fasteners require suitable sheet thickness, substrate hardness, hole geometry, and installation conditions.

The appropriate solution should be selected according to engineering compatibility and total installed cost.

OEM Supplier Development and Procurement Considerations

For electrical cabinet manufacturers, sourcing custom machined components requires both technical qualification and commercial evaluation.

Supplier selection should consider drawing conformity, material compatibility, machining feasibility, process consistency, quality expectations, and supply planning.

Drawing-Based Supplier Evaluation

A technically complete RFQ should include the approved drawing, CAD model, material specification, tolerances, surface finish, and required quantity.

Where an existing component is being transferred from another supplier, the latest drawing revision and critical functional characteristics should be identified.

Alternative Material and Process Evaluation

A proposed alternative material or machining process should be reviewed against the original engineering requirements.

Material substitution should not be approved solely because two grades have similar nominal properties.

Corrosion resistance, strength, hardness, electrical characteristics, and application requirements must be considered.

Any proposed change should be approved by the customer's engineering team.

MOQ, Lead Time, and Volume Purchasing

Purchasing teams should provide estimated order quantities, annual demand, target delivery schedules, and packaging requirements.

For custom CNC components, setup complexity, material availability, tooling, inspection requirements, and production volume can influence MOQ and lead time.

Commercial feasibility should be confirmed for each project.

Total Cost Optimization

The total cost of a machined electrical cabinet component depends on several factors:

• Material grade and stock form

• Part geometry

• Machining cycle time

• Number of setups

• Tooling and tool wear

• Dimensional tolerances

• Surface finish

• Secondary operations

• Inspection requirements

• Scrap and rework

• Order quantity

• Delivery schedule

Early collaboration between engineering and procurement teams can help identify cost-saving opportunities without compromising functional requirements.

Practical RFQ Checklist for Electrical Cabinet CNC Components

A complete RFQ helps reduce technical clarification and supports accurate quotation.

Useful information includes:

• 2D engineering drawing

• 3D CAD model, if available

• Component application and function

• Stainless steel grade and material specification

• Heat-treatment condition, if applicable

• Critical dimensional tolerances

• GD&T requirements

• Thread specifications

• Surface finish requirements

• Coating or secondary processing requirements

• Electrical bonding or insulation requirements

• Corrosion and operating environment

• Inspection and documentation requirements

• Prototype or sample quantity

• Estimated production order quantity

• Annual demand forecast

• Packaging requirements

• Delivery destination and target schedule

Where the component is part of an electrical safety function, the required validation and approval procedures should be explicitly identified.

Why Work with JUXIN FASTENERS for Electrical Cabinet CNC Machining Projects?

JUXIN FASTENERS supports drawing-based inquiries for precision machined components and industrial fastening hardware used in OEM manufacturing.

Relevant machining inquiries include:

• Stainless steel CNC turned parts

• Electrical cabinet precision spacers

• CNC machined threaded standoffs

• Custom mounting blocks

• Precision bushings and sleeves

• Locating pins

• Custom threaded adapters

• Industrial control cabinet fastening hardware

• Drawing-based electrical enclosure components

• OEM repeat purchasing requirements

Our approach emphasizes clear technical communication and evaluation of the customer's drawings, materials, tolerances, manufacturing requirements, and purchasing quantities.

For design and mechanical engineers, the priority is functional geometry, material suitability, and dimensional accuracy.

For manufacturing engineers and production managers, the priority includes process repeatability, machining efficiency, inspection stability, and consistent production quality.

For procurement and supply chain teams, the priority includes technical conformity, commercial feasibility, cost control, delivery planning, and long-term supplier evaluation.

Manufacturing feasibility, achievable tolerances, MOQ, lead time, testing, and documentation requirements are confirmed according to the specific inquiry.

Request a Quote for Stainless Steel CNC Machining and Electrical Cabinet Components

Are you developing a new electrical cabinet component, sourcing custom stainless steel CNC machined parts, or evaluating an alternative supplier for repeat OEM production?

JUXIN FASTENERS welcomes technical and commercial inquiries from electrical enclosure manufacturers, industrial automation suppliers, engineering teams, production departments, and procurement organizations.

Send us your 2D drawings, 3D CAD models, material specifications, critical tolerances, surface finish requirements, and estimated purchasing quantities.

We can review your project requirements and discuss suitable machining approaches, technical clarification, and RFQ arrangements.

JUXIN FASTENERS

Website: https://www.juxinfasteners.com

Email: info@juxinfasteners.com

RFQ: Electrical Cabinet CNC Machining | Stainless Steel Precision Parts | OEM Custom Components
