Stainless Steel CNC Machining for HVAC Equipment and OEM Precision Components

HVAC equipment manufacturers require reliable precision-machined components for air handling units, ventilation systems, industrial fans, refrigeration equipment, heat pumps,

thermal management assemblies, and mechanical control systems.

These components must meet application-specific requirements for dimensional accuracy, corrosion resistance, mechanical stability, sealing compatibility, and repeatable production.

Stainless steel CNC machining for HVAC equipment provides a flexible manufacturing solution for selected custom mechanical parts requiring controlled geometry, suitable material properties, and consistent dimensional quality.

Typical applications include precision shafts, pins, bushings, sleeves, threaded adapters, mounting blocks, mechanical connectors, valve-related components, and custom fastening hardware.

However, stainless steel is not automatically the preferred material for every HVAC component.

Material selection should consider corrosion exposure, mechanical loading, operating temperature, thermal conductivity, fluid compatibility, machinability, and cost.

JUXIN FASTENERS supports drawing-based inquiries for custom CNC machined components and industrial fastening hardware used in HVAC and refrigeration equipment.

Depending on part geometry and project requirements, suitable manufacturing processes may include CNC turning, Swiss-type machining, CNC milling, drilling, tapping, threading, grooving, and combined turning-milling operations.

Manufacturing feasibility, material specifications, achievable tolerances, inspection requirements, order quantities, and delivery arrangements should be confirmed for each project.

HVAC Applications for Stainless Steel CNC Machined Components

HVAC equipment contains numerous mechanical assemblies that require accurate mounting, positioning, spacing, and connection.

The appropriate component design depends on the equipment function, operating environment, installation method, and maintenance requirements.

Air Handling Units and Ventilation Equipment

Air handling units and ventilation systems may incorporate precision spacers, threaded sleeves, mounting blocks, adapters, and other mechanical interfaces.

These components may support equipment positioning, assembly clearance, or the installation of auxiliary hardware.

Engineers should consider vibration exposure, moisture, condensation, corrosion protection, and maintenance access.

Where components are installed in sheet metal housings, the fastening method must also be compatible with the sheet thickness, substrate material, and joint loading.

Industrial Fans and Blower Assemblies

Industrial fans and blowers may require precision shafts, bushings, locating pins, spacers, and mechanical mounting components.

CNC turning can produce controlled diameters, shoulders, grooves, and threaded features for selected components.

However, rotating equipment requires careful evaluation of dynamic loading, balance, alignment, bearing interfaces, and fatigue.

A dimensionally accurate machined shaft does not automatically satisfy the requirements of a rotating fan assembly.

Components used in critical rotating systems must be validated according to the equipment design.

Refrigeration and Cooling Equipment

Refrigeration equipment may incorporate machined adapters, sleeves, mounting components, mechanical connectors, and selected valve-related parts.

CNC machining can support customized geometries where standard components do not meet the required dimensions or installation conditions.

For components exposed to refrigerants, lubricants, or other process fluids, material compatibility and sealing requirements must be evaluated.

Pressure-containing or refrigerant-wetted components require appropriate engineering validation and customer-defined testing.

Heat Pumps and Thermal Management Assemblies

Heat pumps and thermal management equipment may use precision mechanical interfaces, mounting blocks, threaded adapters, and auxiliary hardware.

Material selection should account for temperature variation, corrosion exposure, thermal expansion, and mechanical loading.

Stainless steel may be appropriate for selected mechanical components, but it is not automatically the preferred material for heat-transfer surfaces because its thermal conductivity is lower than that of many aluminum and copper alloys.

HVAC Equipment Enclosures and Mounting Hardware

HVAC housings and equipment cabinets may require custom threaded standoffs, spacers, sleeves, mounting blocks, and fastening components.

CNC machining may be justified where standard hardware cannot provide the required geometry, material, or dimensional relationships.

However, standard fasteners, self-clinching hardware, rivet nuts, and other sheet metal fastening solutions may be more economical for suitable applications.

The appropriate solution should be selected according to the complete assembly design and total installed cost.

Material Selection for HVAC CNC Machined Components

Stainless steel may be selected where corrosion resistance, mechanical strength, dimensional stability, or durability are important.

However, different stainless steel grades provide different combinations of machinability, corrosion resistance, hardness, and mechanical properties.

AISI 303 Stainless Steel

AISI 303 is an austenitic stainless steel developed for improved machinability.

It may be considered for selected turned spacers, sleeves, threaded adapters, and precision mechanical components where its corrosion resistance and mechanical properties meet the application requirements.

Compared with AISI 304, AISI 303 generally offers improved machinability but may provide reduced corrosion resistance in certain environments.

Its suitability should be reviewed where welding, demanding corrosion exposure, or specific material restrictions are involved.

AISI 304 Stainless Steel

AISI 304 is widely used for industrial mechanical components requiring corrosion resistance and general-purpose material properties.

It may be suitable for selected HVAC spacers, mounting hardware, sleeves, and precision machined parts.

However, AISI 304 can work-harden during machining, requiring suitable cutting conditions, tooling, and process control.

Its corrosion resistance should be evaluated against the actual operating environment, including cleaning chemicals and condensation.

AISI 316 Stainless Steel

AISI 316 may be considered for selected HVAC components exposed to moisture or more demanding corrosive environments.

It generally offers improved resistance to certain corrosive conditions compared with AISI 304.

However, AISI 316 is not universally resistant to every chemical or chloride exposure condition.

Material selection should be based on the actual environment and customer specification.

AISI 410 and 420 Stainless Steels

AISI 410 and AISI 420 are martensitic stainless steels that may be heat-treated to obtain different hardness and strength characteristics.

They may be considered for selected mechanical components requiring specific hardness or wear-related properties.

Their corrosion resistance and heat-treatment behavior differ from those of austenitic stainless steels.

The engineering drawing should identify the required material condition and mechanical properties.

Precipitation-Hardening Stainless Steel

Precipitation-hardening stainless steels, including 17-4 PH, may be considered for selected high-strength precision components.

Their mechanical properties depend on the specified heat-treatment condition.

Where these materials are required, the applicable material specification, heat-treatment condition, and mechanical requirements should be clearly defined.

Corrosion Resistance in HVAC Operating Environments

HVAC equipment may operate in environments involving moisture, condensation, cleaning chemicals, outdoor weather, and temperature variation.

Corrosion resistance should be evaluated according to the actual exposure conditions.

Condensation and Moisture Exposure

Condensation may occur when equipment surfaces operate below the surrounding air's dew point.

Machined components located in moisture-prone areas may require suitable material selection and corrosion protection.

Joint geometry, drainage, and maintenance access can influence long-term performance.

Outdoor HVAC Equipment

Outdoor units may be exposed to rain, humidity, airborne contaminants, and temperature variation.

Material selection should consider the installation environment rather than assuming that one stainless steel grade is suitable for every location.

Mixed-Material Assemblies

HVAC equipment may combine stainless steel components with aluminum, carbon steel, copper alloys, or other materials.

When dissimilar metals are electrically connected in the presence of an electrolyte, galvanic corrosion may occur.

The risk depends on material combinations, exposed surface areas, moisture, protective coatings, and joint geometry.

Surface Treatment and Corrosion Testing

Surface condition and any required secondary treatment should be specified according to the component's function.

ISO 9227 and ASTM B117 may be relevant where salt-spray testing is required.

However, salt-spray exposure duration alone does not establish actual service life.

Refrigerant Compatibility and Sealing Interfaces

Some HVAC and refrigeration components may contact refrigerants, lubricants, coolants, or other process fluids.

For these applications, material selection must consider the actual fluid, operating pressure, temperature range, and sealing design.

A stainless steel grade that performs well in a general atmospheric environment may not automatically be suitable for every refrigerant or lubricant system.

Fluid-Contact Components

Fluid-contact components require application-specific material compatibility evaluation.

The approved material specification should reflect the intended fluid and operating conditions.

Sealing Surface Geometry

Machined sealing interfaces may require controlled flatness, surface finish, concentricity, or other geometric characteristics.

However, a fine surface finish alone does not guarantee leak-tight performance.

The complete sealing system must be evaluated, including gasket or seal material, compression, surface geometry, and assembly conditions.

Pressure-Containing Components

Pressure-containing components may require specialized design verification, testing, and regulatory compliance.

General CNC machining capability does not establish suitability for pressure service.

Any pressure rating, leak testing, or applicable certification must be confirmed for the specific component and application.

Precision Shafts, Bushings, and Mechanical Interfaces

Different HVAC mechanical components create different manufacturing and inspection challenges.

Precision Shafts

CNC turning may be suitable for shafts requiring controlled diameters, shoulders, grooves, threads, and surface finish.

Important characteristics may include concentricity, runout, straightness, and the relationship between critical features.

For slender shafts, workpiece deflection and vibration during machining can influence dimensional accuracy.

Where shafts are used in rotating equipment, the complete operating conditions must be considered.

Bushings and Sleeves

Machined bushings and sleeves may provide controlled spacing, alignment, or mechanical interfaces.

Important characteristics include inner diameter, outer diameter, length, concentricity, and perpendicularity.

For sliding or rotating interfaces, the complete bearing arrangement must be evaluated.

Stainless steel alone does not guarantee suitable wear performance.

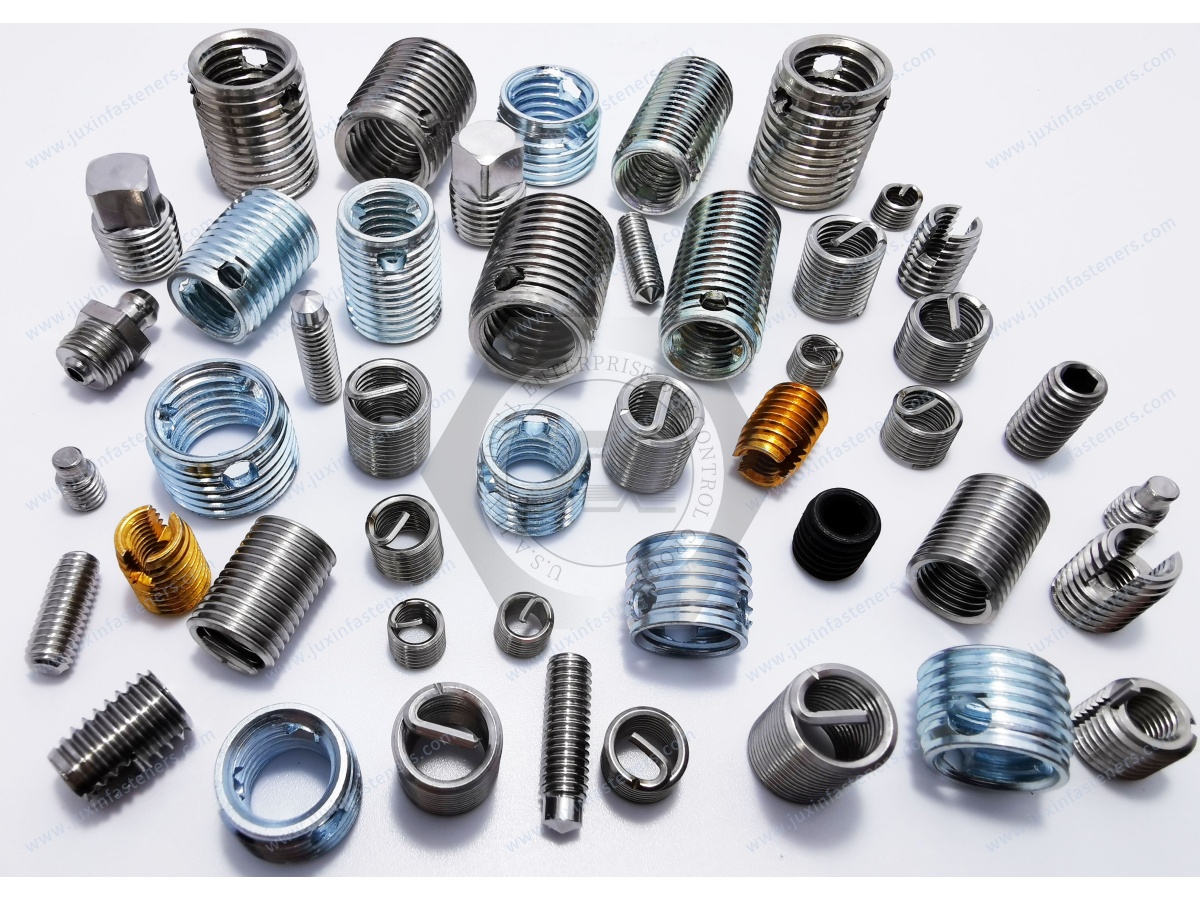

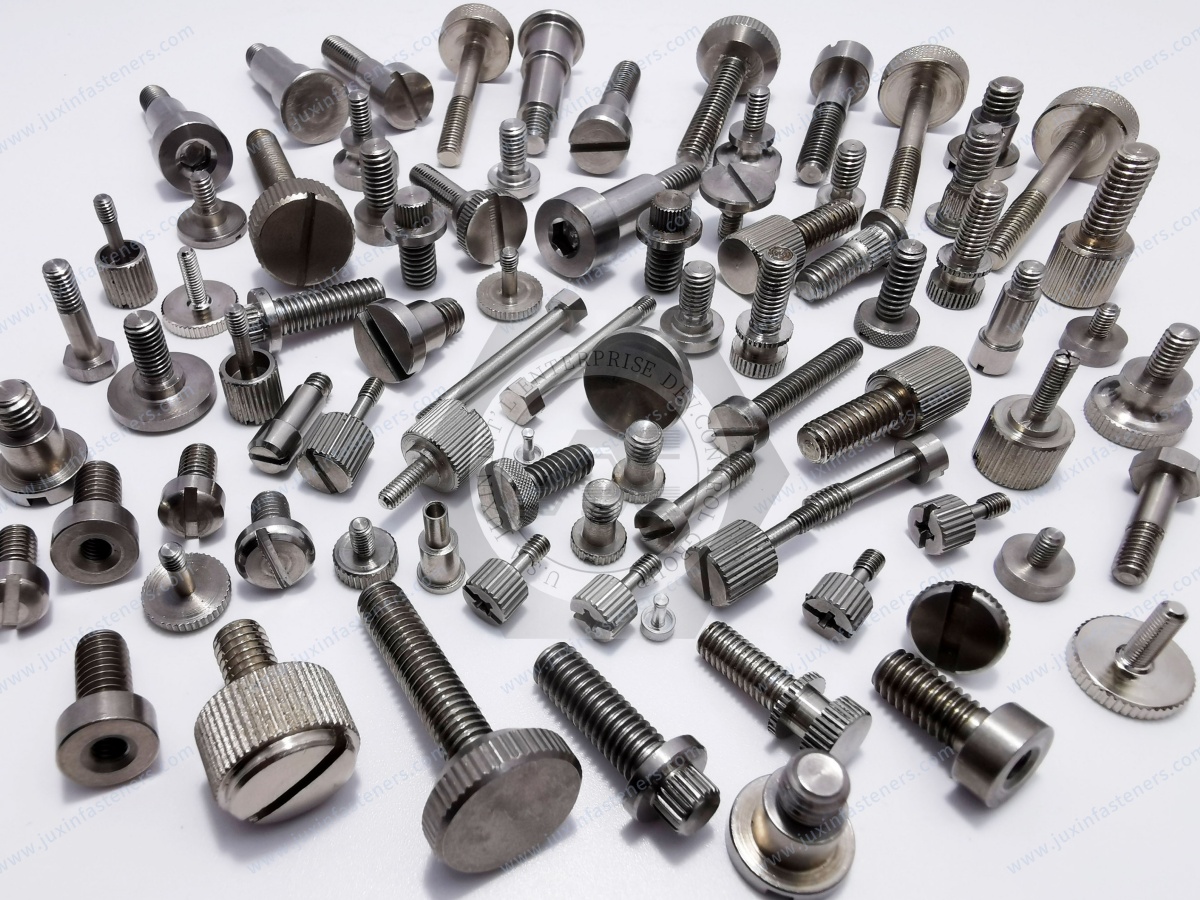

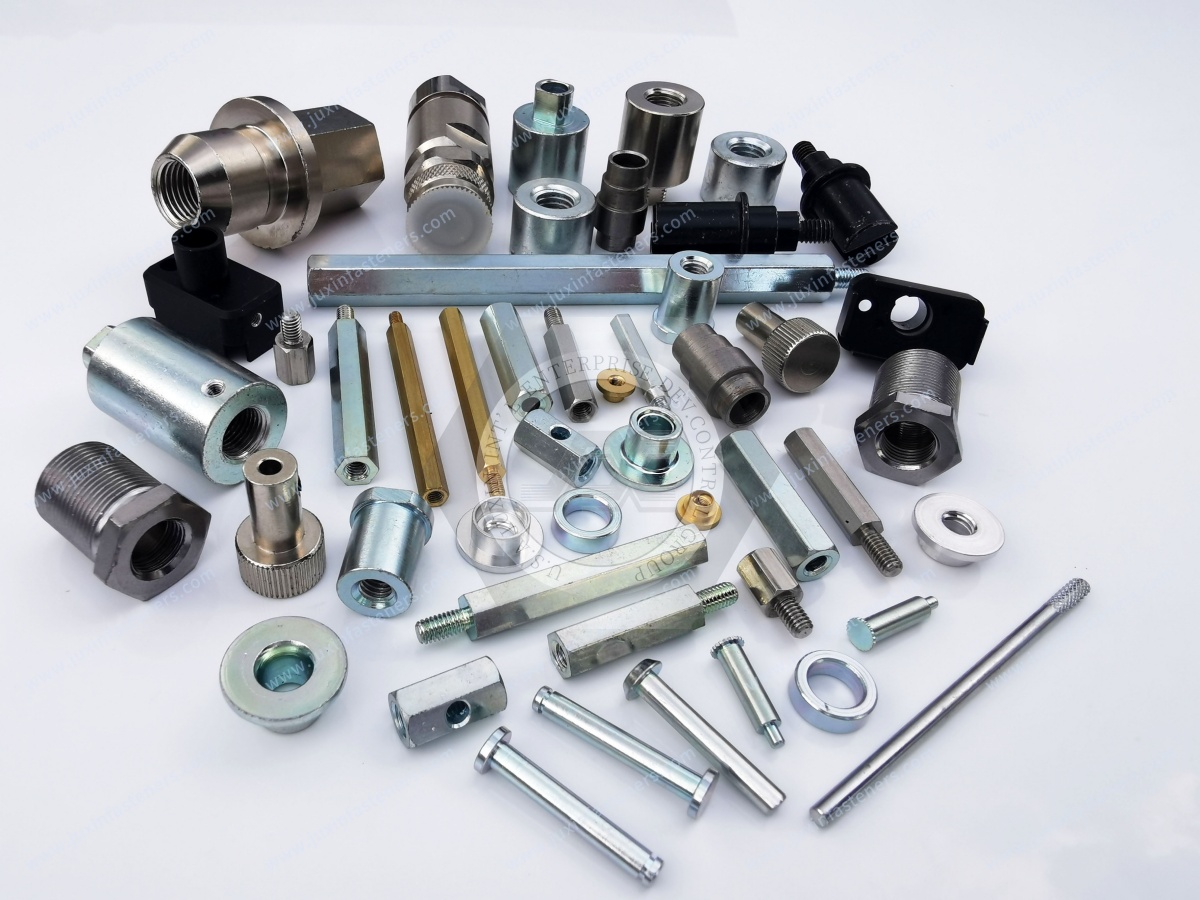

Threaded Adapters and Custom Connectors

Custom threaded components may include adapters, sleeves, studs, spacers, and special fastening hardware.

CNC machining may be suitable where standard components do not meet the required geometry or material specification.

Thread dimensions should follow the approved drawing and applicable international standard.

Metric, UNC, and UNF thread systems must be specified separately and are not directly interchangeable.

Mounting Blocks and Equipment Interfaces

CNC-milled mounting blocks may incorporate threaded holes, slots, precision bores, locating features, and mounting surfaces.

These components may support sensors, actuators, control devices, or auxiliary equipment.

Design engineers should consider tool accessibility, minimum wall thickness, thread engagement, datum selection, and inspection requirements.

Vibration, Thermal Expansion, and Joint Reliability

HVAC equipment may experience vibration, cyclic loading, and temperature variation during operation.

These conditions can affect mechanical joints and precision components over time.

Vibration and Fastener Loosening

Threaded assemblies may experience preload loss under vibration.

The complete joint should be evaluated for tightening requirements, mating hardware, locking features, and maintenance conditions.

A precision-machined threaded component does not automatically prevent loosening.

Thermal Expansion

HVAC components may operate across varying temperatures.

Where stainless steel is assembled with aluminum, carbon steel, or other materials, differential thermal expansion may influence fits and clamping conditions.

The expected operating temperature range should be considered during design.

Mechanical Loading

Mounting components and mechanical interfaces should be evaluated against the actual applied loads.

Where fatigue performance is important, geometry, surface condition, material properties, and load cycles require appropriate engineering analysis.

CNC Machining Processes for HVAC Precision Parts

Different CNC machining processes provide advantages depending on geometry, material, tolerance requirements, and production quantity.

CNC Turning

CNC turning is suitable for rotationally symmetric components such as shafts, bushings, sleeves, threaded adapters, spacers, and cylindrical mounting hardware.

Typical operations include facing, external turning, boring, drilling, grooving, and threading.

Process planning should consider workholding, tool access, dimensional relationships, and surface finish.

Swiss-Type CNC Machining

Swiss-type machining may be advantageous for small-diameter, slender precision components.

The guide-bushing arrangement can support the workpiece near the cutting area, helping control deflection in suitable applications.

However, Swiss-type machining is not automatically the most economical choice for every small component.

Part geometry, material, setup complexity, cycle time, and production quantity influence process selection.

CNC Milling

CNC milling may be suitable for mounting blocks, adapters, brackets, housings, and components requiring flats, slots, pockets, or multiple mounting features.

Datum selection and fixture stability are important where positional relationships between features affect assembly.

Drilling, Tapping, and Threading

Machined components may require internal threads, external threads, precision holes, and mounting features.

Thread quality depends on material properties, tooling, cutting conditions, and inspection methods.

For stainless steel, machining plans should account for tool wear and work hardening.

Combined Turning and Milling

Turn-mill machining can combine rotational and non-rotational operations.

For suitable components, reducing the number of setups may improve relationships between critical features and reduce handling.

The benefit depends on machine configuration, tooling, part complexity, and production volume.

Design for Manufacturability in HVAC CNC Components

Design for Manufacturability (DFM) helps align engineering requirements with practical machining processes.

Early DFM evaluation can reduce unnecessary complexity, improve production repeatability, and lower total component cost.

Tolerance Allocation

Not every dimension requires the same tolerance.

Critical-to-function features should receive appropriate dimensional and geometric controls.

Non-critical dimensions may permit more economical tolerances.

Unnecessarily tight tolerances can increase machining time, inspection effort, scrap risk, and cost.

Thin Walls and Machining Stability

Thin-walled components may deform during machining due to cutting forces, clamping pressure, or residual stress.

Special workholding or controlled machining sequences may be required.

The achievable tolerance depends on material, geometry, tooling, and process stability.

Deep Holes and Tool Accessibility

Deep or narrow holes may require specialized tooling and additional machining time.

Engineers should consider tool reach, chip evacuation, coolant access, and measurement requirements.

Where design flexibility exists, simplifying difficult internal features may reduce cost.

Thread Engagement and Assembly Loads

Thread specifications should identify the required standard, size, pitch, tolerance class, and functional engagement.

For HVAC hardware, engineers should consider joint loads, mating materials, assembly torque, and the risk of thread damage.

Stainless steel threaded components may experience galling under certain assembly conditions.

Suitable mating materials, surface treatments, lubrication, or assembly procedures may be necessary.

Surface Finish and Functional Requirements

Surface finish should be specified according to component function.

A sealing interface, bearing surface, decorative surface, and general mounting feature may require different surface conditions.

Specifying unnecessarily fine surface finish across an entire component can increase machining cost without improving performance.

GD&T and Precision Assembly Requirements

Geometric Dimensioning and Tolerancing (GD&T) helps define relationships between critical features.

Depending on the drawing system, ASME Y14.5 or ISO 1101 may be applicable.

Relevant controls may include position, flatness, perpendicularity, parallelism, runout, and profile.

Datum selection should reflect how the component is located and assembled.

For example, a precision bushing may require controlled relationships between its internal bore, outer diameter, and end faces.

A mounting block may require accurate positional relationships between mounting holes, locating features, and reference surfaces.

GD&T should support functional assembly and inspection rather than introducing unnecessary manufacturing complexity.

Precision, Repeatability, and Production Stability

For HVAC OEM manufacturing, a successful CNC machining process must produce consistent results across the required production quantity.

A dimensionally accurate prototype does not automatically establish production capability.

Important process controls may include:

• Approved CNC programs

• Controlled workholding

• Tool-life management

• Material consistency

• Cutting parameters

• In-process inspection

• Final dimensional verification

• Documented drawing revisions

• Appropriate handling and packaging

Production managers should evaluate machining cycle time, setup requirements, inspection frequency, scrap risk, and process consistency.

The appropriate manufacturing approach depends on component complexity, required tolerances, and purchasing volume.

Quality Control for Custom CNC HVAC Parts

Inspection planning should follow the approved drawing and the component's functional requirements.

Depending on the project, inspection may include dimensional measurement, thread inspection, material verification, hardness testing, surface-finish measurement, and functional checks.

Dimensional Inspection

Critical dimensions may be verified using suitable micrometers, calipers, bore gauges, height gauges, or coordinate measuring equipment.

The measurement method should provide sufficient capability for the specified tolerance.

Thread Inspection

Threaded components may require appropriate thread gauges or other verification methods.

The inspection method should follow the specified thread standard and customer requirements.

Material Verification

Customers may require material documentation or additional verification of the specified stainless steel grade.

The required documentation should be agreed upon during quotation.

Surface Finish Verification

Where surface finish is functionally important, the drawing should define the relevant parameters and inspection requirements.

The measurement method should be suitable for the specified surface and geometry.

First-Article and Production Inspection

OEM projects may require first-article inspection or other customer-defined approval activities before repeat production.

Inspection frequency, reporting, traceability, and approval requirements should be established according to the purchasing specification.

Any required certification, testing, or documentation must be confirmed for the specific project.

International Standards and HVAC Application Requirements

HVAC projects may involve technical requirements beyond those normally applied to general industrial mechanical components.

The applicable standards depend on the equipment type, operating environment, pressure conditions, and customer specification.

ISO Metric Threads

ISO 261 provides relevant metric screw thread series information.

ISO 965 addresses tolerance requirements for ISO general-purpose metric screw threads.

Metric thread designations and tolerance classes should be defined in the approved drawing.

ASME Unified Inch Threads

ASME B1.1 covers Unified inch screw threads, including UNC and UNF series.

These thread systems may be relevant to North American HVAC equipment designs.

Metric and Unified inch threads are not directly interchangeable.

Refrigeration and Pressure Equipment Requirements

Certain refrigeration and pressure-containing equipment may be subject to standards or regulatory requirements such as ASHRAE 15, EN 378, or applicable pressure equipment regulations.

However, these requirements do not automatically apply to every CNC machined HVAC component.

Their relevance depends on the component's function and the complete equipment design.

Corrosion Testing

ISO 9227 and ASTM B117 may be relevant where salt-spray testing is specified.

The required test method and acceptance criteria should be defined by the customer.

From Prototype Development to Repeat OEM Production

CNC machining can support HVAC component development because geometry and machining programs can be revised as the design evolves.

However, transitioning from prototypes to repeated production requires additional process planning.

Engineering Drawing and CAD Review

The initial review should identify material, geometry, critical tolerances, functional interfaces, and inspection requirements.

Potential manufacturing risks should be clarified before machining begins.

Material and Process Selection

The material and machining process should be selected according to functional requirements, part geometry, quantity, and cost.

Alternative manufacturing approaches may be considered where technically appropriate.

Prototype and First-Article Machining

Initial parts can be evaluated for dimensional accuracy, assembly fit, surface condition, and manufacturing feasibility.

Any design or process changes should be documented.

Process Optimization

After design approval, machining operations may be optimized for cycle time, tooling, repeatability, and inspection efficiency.

The appropriate optimization depends on the required production quantity.

Repeat Production and Final Inspection

Repeat production should follow the approved drawing revision and agreed quality requirements.

Inspection, packaging, and delivery arrangements should be established according to the customer's purchasing specification.

CNC Machining vs. Standard HVAC Fasteners

Custom CNC machining provides flexibility for non-standard geometry and precision mechanical interfaces.

However, not every HVAC component requires CNC machining.

Standard screws, nuts, washers, standoffs, self-clinching fasteners, rivet nuts, and other fastening components may offer a more economical solution for suitable applications.

When CNC Machining May Be Appropriate

CNC machining may be justified where the design requires:

• Non-standard geometry

• Precision concentric features

• Special threaded interfaces

• Controlled locating features

• Custom mounting blocks

• Specific material requirements

• Multiple machined features

• Drawing-based dimensional relationships

When Standard Fasteners May Be More Economical

Standard fastening components may be preferable where the required function can be achieved without custom machining.

For example, a standard threaded standoff or self-clinching nut may provide an efficient mounting solution for compatible sheet metal.

However, self-clinching fasteners require suitable sheet thickness, substrate hardness, hole geometry, and installation conditions.

The appropriate solution should be selected according to engineering compatibility and total installed cost.

OEM Supplier Development and Procurement Considerations

For HVAC manufacturers, sourcing custom machined components requires both technical qualification and commercial evaluation.

Supplier selection should consider drawing conformity, material compatibility, machining feasibility, process consistency, quality expectations, and supply planning.

Drawing-Based Supplier Evaluation

A technically complete RFQ should include the approved drawing, CAD model, material specification, tolerances, surface finish, and required quantity.

Where an existing component is being transferred from another supplier, the latest drawing revision and critical functional characteristics should be identified.

Alternative Material and Process Evaluation

A proposed alternative material or machining process should be reviewed against the original engineering requirements.

Material substitution should not be approved solely because two grades have similar nominal properties.

Corrosion resistance, strength, hardness, thermal behavior, and application requirements must be considered.

Any proposed change should be approved by the customer's engineering team.

MOQ, Lead Time, and Volume Purchasing

Purchasing teams should provide estimated order quantities, annual demand, target delivery schedules, and packaging requirements.

For custom CNC components, setup complexity, material availability, tooling, inspection requirements, and production volume can influence MOQ and lead time.

Commercial feasibility should be confirmed for each project.

Total Cost Optimization

The total cost of a machined HVAC component depends on several factors:

• Material grade and stock form

• Part geometry

• Machining cycle time

• Number of setups

• Tooling and tool wear

• Dimensional tolerances

• Surface finish

• Secondary operations

• Inspection requirements

• Scrap and rework

• Order quantity

• Delivery schedule

Early collaboration between engineering and procurement teams can help identify cost-saving opportunities without compromising functional requirements.

Practical RFQ Checklist for HVAC CNC Components

A complete RFQ helps reduce technical clarification and supports accurate quotation.

Useful information includes:

• 2D engineering drawing

• 3D CAD model, if available

• Component application and function

• Stainless steel grade and material specification

• Heat-treatment condition, if applicable

• Critical dimensional tolerances

• GD&T requirements

• Thread specifications

• Surface finish requirements

• Coating or secondary processing requirements

• Refrigerant or fluid compatibility requirements

• Pressure or sealing requirements, if applicable

• Corrosion and operating environment

• Inspection and documentation requirements

• Prototype or sample quantity

• Estimated production order quantity

• Annual demand forecast

• Packaging requirements

• Delivery destination and target schedule

Where the component is intended for pressure-containing or safety-critical HVAC applications, the required qualification, validation, and approval procedures should be explicitly identified.

Why Work with JUXIN FASTENERS for HVAC CNC Machining Projects?

JUXIN FASTENERS supports drawing-based inquiries for precision machined components and industrial fastening hardware used in OEM manufacturing.

Relevant machining inquiries include:

• Stainless steel CNC turned parts

• HVAC precision shafts and pins

• CNC machined bushings and sleeves

• Custom threaded adapters

• Precision mounting components

• Valve-related mechanical parts

• Equipment mounting blocks

• Drawing-based HVAC mechanical components

• OEM repeat purchasing requirements

Our approach emphasizes clear technical communication and evaluation of the customer's drawings, materials, tolerances, manufacturing requirements, and purchasing quantities.

For design and mechanical engineers, the priority is functional geometry, material suitability, and dimensional accuracy.

For manufacturing engineers and production managers, the priority includes process repeatability, machining efficiency, inspection stability, and consistent production quality.

For procurement and supply chain teams, the priority includes technical conformity, commercial feasibility, cost control, delivery planning, and long-term supplier evaluation.

Manufacturing feasibility, achievable tolerances, MOQ, lead time, testing, and documentation requirements are confirmed according to the specific inquiry.

Request a Quote for Stainless Steel CNC Machining and HVAC Components

Are you developing a new HVAC mechanical component, sourcing custom stainless steel CNC machined parts, or evaluating an alternative supplier for repeat OEM production?

JUXIN FASTENERS welcomes technical and commercial inquiries from HVAC equipment manufacturers, refrigeration system suppliers, engineering teams, production departments, and industrial procurement organizations.

Send us your 2D drawings, 3D CAD models, material specifications, critical tolerances, surface finish requirements, and estimated purchasing quantities.

We can review your project requirements and discuss suitable machining approaches, technical clarification, and RFQ arrangements.

JUXIN FASTENERS

Website: https://www.juxinfasteners.com

Email: info@juxinfasteners.com

RFQ: HVAC Stainless Steel CNC Machining | Precision Mechanical Parts | OEM Custom Components
