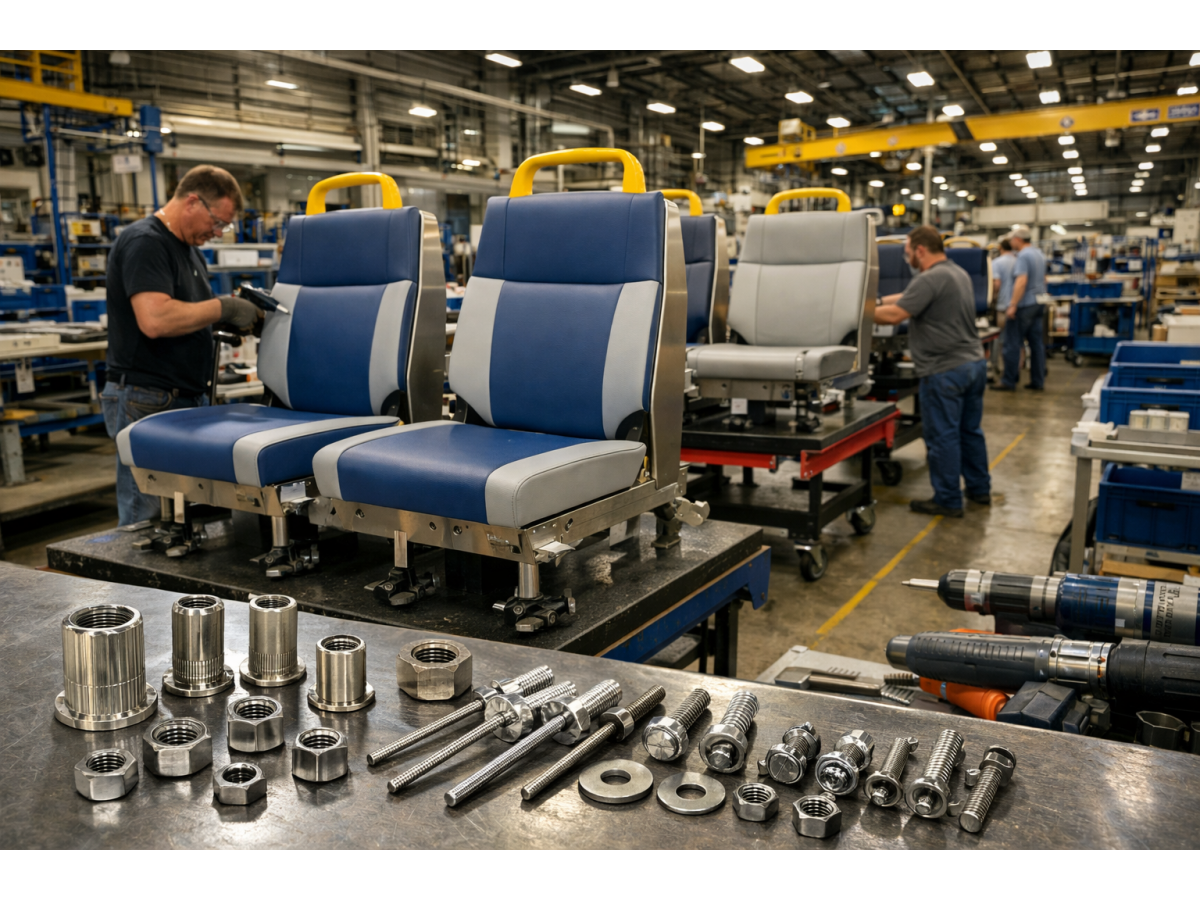

Stainless Steel CNC Machining for Rail Transit and OEM Precision Components

Rail transit manufacturers require reliable precision-machined components for railway vehicles, onboard electrical equipment, passenger systems, mechanical assemblies, and auxiliary equipment.

These components must satisfy demanding requirements for dimensional accuracy, material compatibility, vibration resistance, corrosion protection, maintainability, and consistent manufacturing quality.

Stainless steel CNC machining provides a flexible manufacturing approach for selected rail transit components that require accurate geometry, controlled surface conditions, and repeatable production.

Typical applications may include precision shafts, pins, bushings, sleeves, threaded connectors, mounting components, equipment interfaces, and drawing-based mechanical hardware.

Unlike general industrial equipment, rail transit systems may operate over long service periods with repeated vibration, temperature variation, moisture exposure, and maintenance cycles.

Component selection must therefore consider the complete operating environment and the function of the assembled joint.

JUXIN FASTENERS supports custom CNC machining inquiries for rail transit manufacturers, railway equipment suppliers, engineering teams, and industrial procurement departments.

Depending on part geometry and project requirements, manufacturing processes may include CNC turning, Swiss-type machining, CNC milling, drilling, tapping, threading, grooving, and combined turning-milling operations.

Material selection, achievable tolerances, manufacturing feasibility, inspection requirements, production quantities, and delivery arrangements are reviewed according to the specific project.

Rail Transit Applications for CNC Machined Stainless Steel Components

Railway vehicles and associated equipment incorporate numerous mechanical assemblies that may require customized precision-machined parts.

The suitability of stainless steel depends on the component's mechanical function, environmental exposure, dimensional requirements, and applicable customer specifications.

Rail Vehicle Electrical Enclosures and Control Cabinets

Railway electrical cabinets, control panels, and onboard equipment enclosures may require machined spacers, threaded sleeves, mounting pins, bushings, and precision hardware.

These components can provide controlled positioning and secure mechanical interfaces for internal assemblies.

Engineers should consider dimensional accuracy, vibration exposure, electrical clearance, corrosion resistance, and accessibility for installation or maintenance.

A metallic component should not automatically be treated as an electrically insulating or validated grounding element.

Electrical bonding and insulation requirements must be established by the equipment design.

Passenger Door and Auxiliary Mechanism Components

Rail vehicle door systems and auxiliary mechanical equipment may contain shafts, pins, bushings, spacers, and other precision mechanical components.

CNC machining can support selected components requiring controlled diameters, concentricity, surface finish, and geometric accuracy.

However, components subjected to repeated motion, wear, impact, or fatigue require appropriate material selection and application-specific validation.

A stainless steel part should not automatically be considered suitable for a moving or load-bearing door mechanism based solely on its dimensional accuracy.

Railway Sensor Housings and Instrument Mounting Hardware

Railway monitoring and control systems may require custom sensor housings, threaded adapters, mounting brackets, and precision mechanical interfaces.

CNC machining can produce components with bores, threads, shoulders, grooves, and mounting features.

Design engineers should evaluate sealing requirements, thermal expansion, vibration, electrical compatibility, and installation access.

For sensor-related applications, material magnetic properties may also influence component suitability.

Interior Equipment and Passenger System Assemblies

Passenger information systems, interior equipment cabinets, protective covers, and auxiliary structures may use machined spacers, pins, threaded components, and mounting hardware.

These applications may require corrosion resistance, repeatable positioning, and reliable assembly.

Where components are installed in passenger areas, the complete equipment design may also be subject to specific fire, smoke, toxicity, and safety requirements.

The applicability of such requirements must be determined by the OEM and the component's actual role.

Railway Maintenance and Replacement Components

Rail transit equipment may remain in service for extended periods, creating demand for replacement parts and controlled component sourcing.

Custom CNC machining can be considered for drawing-based replacement components where the original specifications are available.

However, reverse engineering or dimensional similarity alone does not establish functional equivalence.

Material properties, heat treatment, fatigue requirements, surface condition, and applicable approval procedures must be reviewed before a replacement component is accepted.

Why Stainless Steel Is Used in Rail Transit Precision Parts

Stainless steel may be selected for rail transit components where corrosion resistance, mechanical properties, dimensional stability, or surface durability are important.

However, stainless steel is not the best material for every railway application.

Material selection should account for strength, hardness, fatigue behavior, wear resistance, machinability, magnetic properties, weight, and cost.

AISI 303 Stainless Steel

AISI 303 is an austenitic stainless steel developed for improved machinability.

It may be considered for selected turned components, threaded sleeves, spacers, and precision hardware where its corrosion resistance and mechanical properties meet the application requirements.

Compared with AISI 304, AISI 303 generally offers improved machinability but may provide reduced corrosion resistance in certain environments.

Its suitability should be reviewed where welding, demanding corrosion exposure, or specific material restrictions are involved.

AISI 304 Stainless Steel

AISI 304 is widely used for industrial mechanical components requiring corrosion resistance and general-purpose material properties.

It may be suitable for selected rail equipment mounting hardware, sleeves, spacers, and machined components.

However, AISI 304 can work-harden during machining, requiring appropriate cutting conditions, tooling, and process control.

Its magnetic behavior may also be affected by cold working.

For electrical or sensor-related applications, magnetic compatibility should be evaluated where relevant.

AISI 316 Stainless Steel

AISI 316 may be considered for selected rail transit components exposed to moisture or demanding corrosive environments.

It generally offers improved resistance to certain corrosive conditions compared with AISI 304.

However, AISI 316 is not universally resistant to every chemical or chloride exposure condition.

The actual environment, component geometry, and customer specification should guide material selection.

AISI 410 and 420 Stainless Steels

AISI 410 and AISI 420 are martensitic stainless steels that may be heat-treated to obtain different hardness and strength characteristics.

They may be considered for selected mechanical components where specific hardness or wear-related properties are required.

Their corrosion resistance and heat-treatment behavior differ from those of austenitic stainless steels.

The engineering drawing should identify the required material condition and mechanical properties.

Precipitation-Hardening Stainless Steel

Precipitation-hardening stainless steels, including 17-4 PH, may be considered for selected high-strength precision components.

Their properties depend on the specified heat-treatment condition.

Where these materials are required, the applicable material specification, heat-treatment condition, and mechanical requirements should be clearly defined.

Material substitution should not be approved solely because two grades have similar nominal strength values.

Precision Shafts, Pins, Bushings, and Mechanical Interfaces

Different component geometries create different machining and inspection challenges.

Precision Shafts

CNC turning may be suitable for shafts requiring controlled diameters, shoulders, grooves, threads, and surface finish.

Important considerations include concentricity, runout, straightness, material condition, and the relationship between critical features.

For slender shafts, workpiece deflection and vibration during machining may influence dimensional accuracy.

Locating and Mounting Pins

Precision pins may be used to position components or provide mechanical interfaces.

Engineers should evaluate pin diameter, fit, insertion requirements, material hardness, surface finish, and mating-hole geometry.

Where pins are exposed to repeated loading or movement, fatigue and wear requirements may become important.

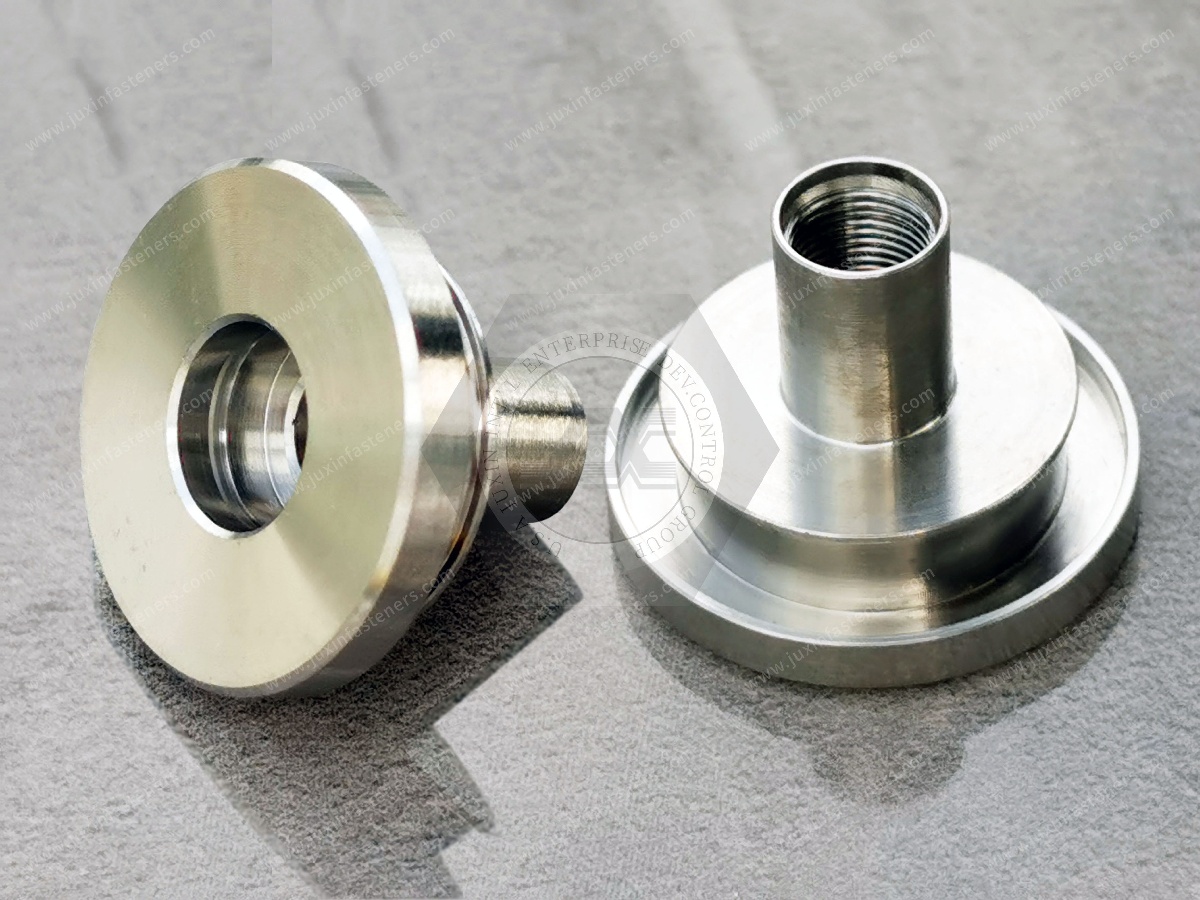

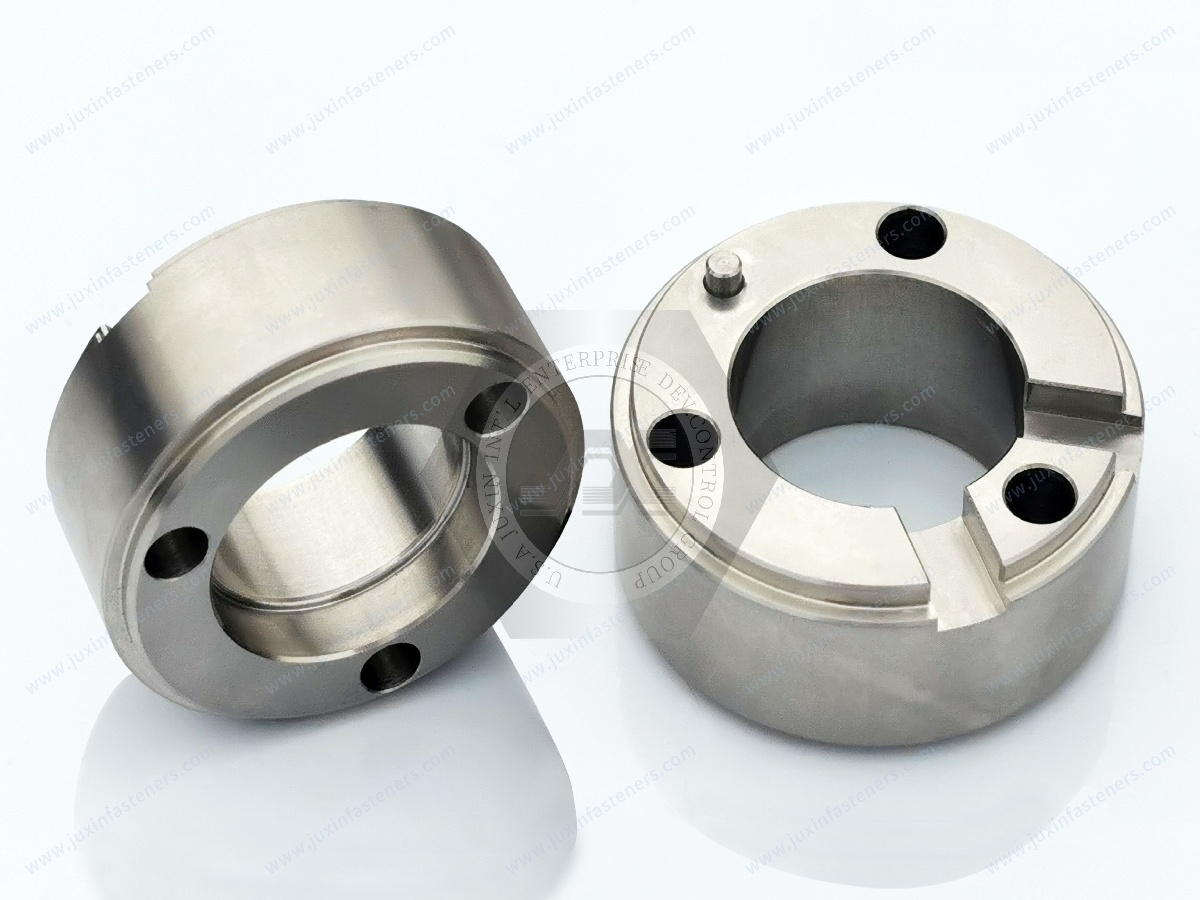

Bushings and Sleeves

Machined bushings and sleeves may provide controlled spacing, alignment, or mechanical interfaces.

Critical dimensions may include inner diameter, outer diameter, length, concentricity, and perpendicularity.

For sliding or rotating interfaces, the complete tribological system must be evaluated.

Stainless steel alone does not guarantee suitable bearing performance.

Threaded Connectors and Custom Hardware

Custom threaded components may include studs, sleeves, adapters, spacers, and special fastening hardware.

CNC machining may be suitable where standard components cannot meet the required geometry or material specification.

Thread dimensions should follow the approved drawing and applicable international thread standard.

Metric, UNC, and UNF thread systems must be specified separately and are not directly interchangeable.

Vibration, Fatigue, and Long-Term Railway Service

Rail transit equipment operates under repeated vibration, dynamic loading, and environmental variation.

These conditions can affect mechanical joints and precision components over time.

However, vibration resistance cannot be established from material grade or dimensional accuracy alone.

Dynamic Loading

Repeated loading may create fatigue risks in components containing shoulders, grooves, threads, sharp transitions, or other stress-concentrating features.

Design engineers should evaluate the actual load spectrum and component geometry.

Where fatigue performance is critical, appropriate engineering analysis and validation are required.

Joint Loosening

Threaded assemblies may experience preload loss under vibration.

The complete joint should be evaluated for tightening requirements, mating hardware, locking features, and maintenance conditions.

A precision-machined threaded component does not automatically prevent loosening.

Surface Condition and Fatigue

Machining marks, sharp edges, surface damage, and geometric transitions may influence fatigue performance.

Where fatigue is important, surface finish and edge conditions should be specified according to the component's functional requirements.

Thermal Expansion

Rail transit components may operate across varying temperatures.

Where stainless steel is assembled with aluminum, carbon steel, or other materials, differential thermal expansion may influence fits and clamping conditions.

The expected temperature range should be considered during design.

Corrosion Resistance and Environmental Exposure

Rail transit equipment may be exposed to moisture, condensation, cleaning chemicals, road contaminants, and outdoor weather conditions.

Material selection should consider the actual exposure environment.

For mixed-metal assemblies, galvanic corrosion may occur when dissimilar metals are electrically connected in the presence of an electrolyte.

Protective coatings, joint geometry, drainage, and material compatibility may influence corrosion performance.

ISO 9227 and ASTM B117 may be relevant where salt-spray testing is specified.

However, salt-spray exposure duration alone does not establish actual railway service life.

CNC Machining Processes for Railway Precision Components

Different CNC machining processes offer advantages depending on geometry, material, tolerance requirements, and production quantity.

CNC Turning

CNC turning is suitable for rotationally symmetric components such as shafts, pins, bushings, sleeves, threaded parts, and cylindrical spacers.

Typical operations include facing, external turning, boring, drilling, grooving, and threading.

Process planning should consider workholding, tool access, dimensional relationships, and surface finish.

Swiss-Type CNC Machining

Swiss-type machining may be advantageous for small-diameter, slender precision components.

The guide-bushing arrangement can support the workpiece near the cutting area, helping control deflection in suitable applications.

However, Swiss-type machining is not automatically the most economical choice for every small component.

Part geometry, material, setup complexity, cycle time, and production quantity influence process selection.

CNC Milling

CNC milling may be suitable for mounting blocks, adapters, brackets, and components requiring flats, slots, pockets, or multiple mounting features.

Datum selection and fixture stability are important where positional relationships between features affect assembly.

Drilling, Tapping, and Threading

Machined railway components may require internal threads, external threads, precision holes, and mounting features.

Thread quality depends on material properties, tooling, cutting conditions, and inspection methods.

For stainless steel, machining plans should account for tool wear and work hardening.

Combined Turning and Milling

Turn-mill machining can combine rotational and non-rotational operations.

For suitable components, reducing the number of setups may improve relationships between critical features and reduce handling.

The benefit depends on machine configuration, tooling, part complexity, and production volume.

Design for Manufacturability in Rail Transit CNC Components

Design for Manufacturability (DFM) helps align engineering requirements with practical machining processes.

Early DFM evaluation can reduce unnecessary complexity, improve production repeatability, and lower total component cost.

Tolerance Allocation

Not every dimension requires the same tolerance.

Critical-to-function features should receive appropriate dimensional and geometric controls.

Non-critical dimensions may permit more economical tolerances.

Unnecessarily tight tolerances can increase machining time, inspection effort, scrap risk, and cost.

Thin Walls and Machining Stability

Thin-walled components may deform during machining due to cutting forces, clamping pressure, or residual stress.

Special workholding or controlled machining sequences may be required.

The achievable tolerance depends on material, geometry, tooling, and process stability.

Deep Holes and Tool Accessibility

Deep or narrow holes may require specialized tooling and additional machining time.

Engineers should consider tool reach, chip evacuation, coolant access, and measurement requirements.

Where design flexibility exists, simplifying difficult internal features may reduce cost.

Thread Engagement and Assembly Loads

Thread specifications should identify the required standard, size, pitch, tolerance class, and functional engagement.

For railway hardware, engineers should consider joint loads, mating materials, assembly torque, and the risk of thread damage.

Stainless steel threaded components may experience galling under certain assembly conditions.

Suitable mating materials, surface treatments, lubrication, or assembly procedures may be necessary.

Surface Finish and Functional Requirements

Surface finish should be specified according to component function.

A bearing interface, sealing surface, decorative surface, and general mounting feature may require different surface conditions.

Specifying unnecessarily fine surface finish across an entire component can increase machining cost without improving performance.

GD&T and Precision Assembly Requirements

Geometric Dimensioning and Tolerancing (GD&T) helps define relationships between critical features.

Depending on the drawing system, ASME Y14.5 or ISO 1101 may be applicable.

Relevant controls may include position, flatness, perpendicularity, parallelism, runout, and profile.

Datum selection should reflect how the component is located and assembled.

For example, a precision bushing may require controlled relationships between its internal bore, outer diameter, and end faces.

A railway mounting block may require accurate positional relationships between mounting holes, locating features, and reference surfaces.

GD&T should support functional assembly and inspection rather than introducing unnecessary manufacturing complexity.

Precision, Repeatability, and Production Stability

For rail transit OEM manufacturing, a successful CNC machining process must produce consistent results across the required production quantity.

A dimensionally accurate prototype does not automatically establish production capability.

Important process controls may include:

• Approved CNC programs

• Controlled workholding

• Tool-life management

• Material consistency

• Cutting parameters

• In-process inspection

• Final dimensional verification

• Documented drawing revisions

• Appropriate handling and packaging

Production managers should evaluate machining cycle time, setup requirements, inspection frequency, scrap risk, and process consistency.

The appropriate manufacturing approach depends on component complexity, required tolerances, and purchasing volume.

Quality Control for Custom CNC Railway Parts

Inspection planning should follow the approved drawing and the component's functional requirements.

Depending on the project, inspection may include dimensional measurement, thread inspection, material verification, hardness testing, surface-finish measurement, and functional checks.

Dimensional Inspection

Critical dimensions may be verified using suitable micrometers, calipers, bore gauges, height gauges, or coordinate measuring equipment.

The measurement method should provide sufficient capability for the specified tolerance.

Thread Inspection

Threaded components may require appropriate thread gauges or other verification methods.

The inspection method should follow the specified thread standard and customer requirements.

Material Verification

Customers may require material documentation or additional verification of the specified stainless steel grade.

The required documentation should be agreed upon during quotation.

Surface Finish Verification

Where surface finish is functionally important, the drawing should define the relevant parameters and inspection requirements.

The measurement method should be suitable for the specified surface and geometry.

First-Article and Production Inspection

Railway OEM programs may require first-article inspection or other customer-defined approval activities before repeat production.

Inspection frequency, reporting, traceability, and approval requirements should be established according to the purchasing specification.

Any required certification, testing, or documentation must be confirmed for the specific project.

Railway Standards and Customer-Specific Requirements

Rail transit projects may involve technical and quality requirements beyond those normally applied to general industrial components.

The applicable requirements depend on the component's function, installation location, safety classification, and customer specification.

ISO Metric Threads

ISO 261 provides relevant metric screw thread series information.

ISO 965 addresses tolerance requirements for ISO general-purpose metric screw threads.

Metric thread designations and tolerance classes should be defined in the approved drawing.

ASME Unified Inch Threads

ASME B1.1 covers Unified inch screw threads, including UNC and UNF series.

These thread systems may be relevant to certain international railway equipment designs.

Metric and Unified inch threads are not directly interchangeable.

Railway Quality Management Requirements

ISO 22163 provides a railway quality management system framework.

However, referencing ISO 22163 does not establish that a supplier is certified to this standard.

Where railway customers require specific quality management certification or supplier approval, the requirement must be confirmed during qualification.

Railway Welding and Fire Requirements

Some railway equipment assemblies may be subject to standards such as EN 15085 for railway vehicle and component welding or EN 45545 for fire protection on railway vehicles.

These standards do not automatically apply to every CNC-machined metal component.

Their relevance depends on the component, manufacturing process, installation location, and customer requirements.

Safety-Critical Railway Components

Components used in braking systems, wheelsets, axles, bogies, or other safety-critical railway assemblies may require specialized engineering validation, material controls, testing, and supplier qualification.

General CNC machining capability does not establish suitability for these applications.

Such projects must be reviewed against the applicable technical and regulatory requirements before acceptance.

From Prototype Development to Repeat OEM Production

CNC machining can support railway component development because geometry and machining programs can be revised as the design evolves.

However, transitioning from prototypes to repeated production requires additional process planning.

Engineering Drawing and CAD Review

The initial review should identify material, geometry, critical tolerances, functional interfaces, and inspection requirements.

Potential manufacturing risks should be clarified before machining begins.

Material and Process Selection

The material and machining process should be selected according to functional requirements, part geometry, quantity, and cost.

Alternative manufacturing approaches may be considered where technically appropriate.

Prototype and First-Article Machining

Initial parts can be evaluated for dimensional accuracy, assembly fit, surface condition, and manufacturing feasibility.

Any design or process changes should be documented.

Process Optimization

After design approval, machining operations may be optimized for cycle time, tooling, repeatability, and inspection efficiency.

The appropriate optimization depends on the required production quantity.

Repeat Production and Final Inspection

Repeat production should follow the approved drawing revision and agreed quality requirements.

Inspection, packaging, and delivery arrangements should be established according to the customer's purchasing specification.

OEM Supplier Development and Procurement Considerations

For rail transit manufacturers, sourcing custom machined components requires both technical qualification and commercial evaluation.

Supplier selection should consider drawing conformity, material compatibility, machining feasibility, process consistency, quality expectations, and supply planning.

Drawing-Based Supplier Evaluation

A technically complete RFQ should include the approved drawing, CAD model, material specification, tolerances, surface finish, and required quantity.

Where an existing component is being transferred from another supplier, the latest drawing revision and critical functional characteristics should be identified.

Alternative Material and Process Evaluation

A proposed alternative material or machining process should be reviewed against the original engineering requirements.

Material substitution should not be approved solely because two grades have similar nominal properties.

Corrosion resistance, strength, hardness, fatigue behavior, wear characteristics, and application requirements must be considered.

Any proposed change should be approved by the customer's engineering team.

MOQ, Lead Time, and Volume Purchasing

Purchasing teams should provide estimated order quantities, annual demand, target delivery schedules, and packaging requirements.

For custom CNC components, setup complexity, material availability, tooling, inspection requirements, and production volume can influence MOQ and lead time.

Commercial feasibility should be confirmed for each project.

Total Cost Optimization

The total cost of a machined railway component depends on several factors:

• Material grade and stock form

• Part geometry

• Machining cycle time

• Number of setups

• Tooling and tool wear

• Dimensional tolerances

• Surface finish

• Secondary operations

• Inspection requirements

• Scrap and rework

• Order quantity

• Delivery schedule

Early collaboration between engineering and procurement teams can help identify cost-saving opportunities without compromising functional requirements.

Practical RFQ Checklist for Rail Transit CNC Components

A complete RFQ helps reduce technical clarification and supports accurate quotation.

Useful information includes:

• 2D engineering drawing

• 3D CAD model, if available

• Component application and function

• Stainless steel grade and material specification

• Heat-treatment condition, if applicable

• Critical dimensional tolerances

• GD&T requirements

• Thread specifications

• Surface finish requirements

• Coating or secondary processing requirements

• Vibration, fatigue, or wear requirements

• Corrosion and operating environment

• Inspection and documentation requirements

• Prototype or sample quantity

• Estimated production order quantity

• Annual demand forecast

• Packaging requirements

• Delivery destination and target schedule

Where the component is intended for a safety-critical railway application, the required qualification, validation, and approval procedures should be explicitly identified.

Why Work with JUXIN FASTENERS for Rail Transit CNC Machining Projects?

JUXIN FASTENERS supports drawing-based inquiries for precision machined components and industrial fastening hardware used in OEM manufacturing.

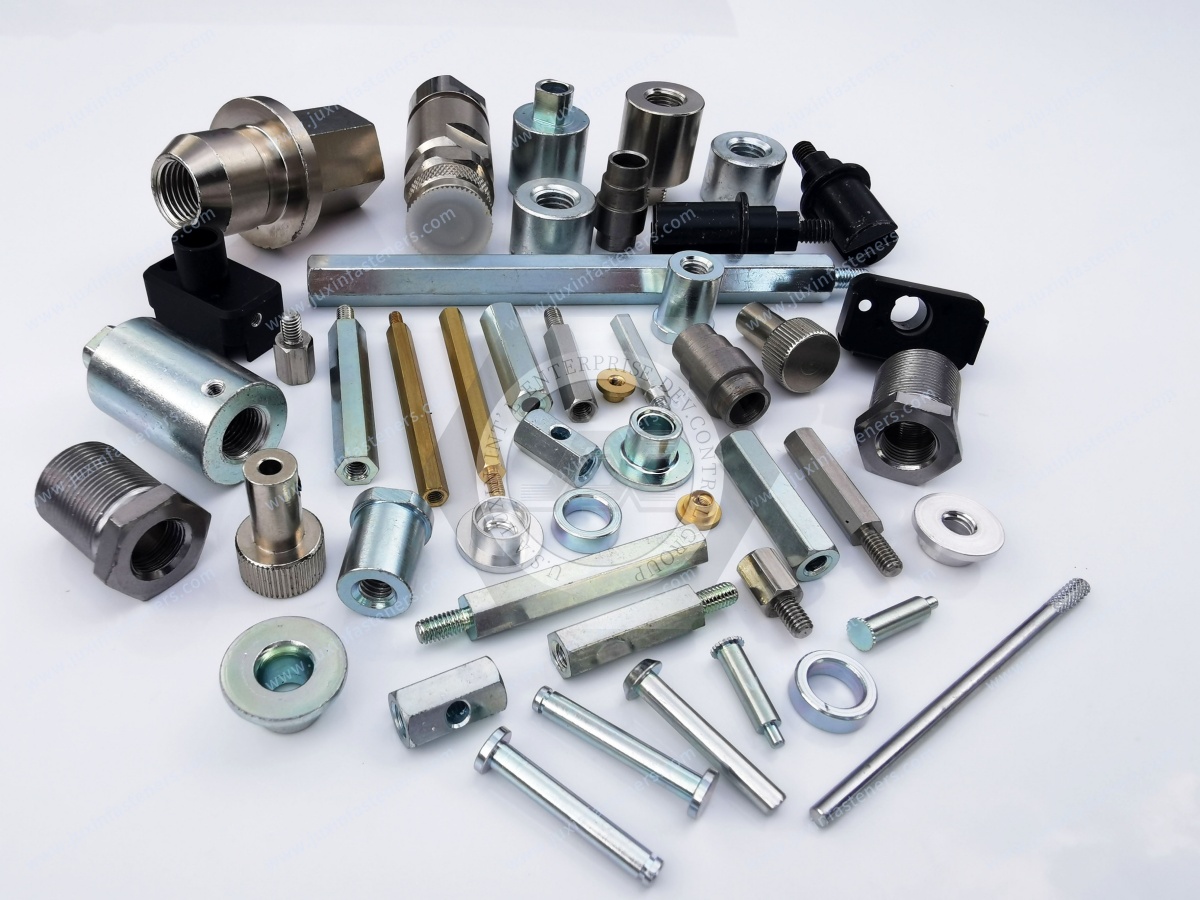

Relevant machining inquiries include:

• Stainless steel CNC turned parts

• Railway precision shafts and pins

• CNC machined bushings and sleeves

• Railway equipment spacers

• Custom threaded connectors

• Precision mounting components

• Sensor mounting hardware

• Drawing-based rail transit mechanical parts

• OEM repeat purchasing requirements

Our approach emphasizes clear technical communication and evaluation of the customer's drawings, materials, tolerances, manufacturing requirements, and purchasing quantities.

For design and mechanical engineers, the priority is functional geometry, material suitability, and dimensional accuracy.

For manufacturing engineers and production managers, the priority includes process repeatability, machining efficiency, inspection stability, and consistent production quality.

For procurement and supply chain teams, the priority includes technical conformity, commercial feasibility, cost control, delivery planning, and long-term supplier evaluation.

Manufacturing feasibility, achievable tolerances, MOQ, lead time, testing, and documentation requirements are confirmed according to the specific inquiry.

Request a Quote for Stainless Steel CNC Machining and Rail Transit Components

Are you developing a new railway equipment component, sourcing custom stainless steel CNC machined parts, or evaluating an alternative supplier for repeat OEM production?

JUXIN FASTENERS welcomes technical and commercial inquiries from rail transit manufacturers, railway equipment suppliers, engineering teams, production departments, and industrial procurement organizations.

Send us your 2D drawings, 3D CAD models, material specifications, critical tolerances, surface finish requirements, and estimated purchasing quantities.

We can review your project requirements and discuss suitable machining approaches, technical clarification, and RFQ arrangements.

JUXIN FASTENERS

Website: https://www.juxinfasteners.com

Email: info@juxinfasteners.com

RFQ: Rail Transit CNC Machining | Stainless Steel Precision Parts | OEM Custom Components
