Stainless Steel CNC Machining for EV Battery Pack Components and OEM Precision Parts

Electric vehicle battery packs integrate mechanical structures, electrical connections, thermal management systems, sealing interfaces, and electronic control components within a highly engineered assembly.

These systems require precision mechanical parts that support dimensional accuracy, reliable installation, controlled material compatibility, and repeatable production.

Stainless steel CNC machining for EV battery pack components provides a manufacturing solution for selected custom mechanical parts requiring corrosion resistance, accurate geometry, controlled surface conditions, and consistent dimensional quality.

Typical applications may include precision spacers, bushings, locating pins, mounting blocks, threaded sleeves, enclosure interfaces, mechanical connectors, and selected thermal management hardware.

However, stainless steel is not automatically the preferred material for every battery pack component.

Weight, electrical conductivity, thermal behavior, galvanic compatibility, and mechanical loading must be evaluated against the actual application.

JUXIN FASTENERS supports drawing-based inquiries for custom CNC machined components and industrial fastening hardware used in EV battery pack assemblies.

Depending on part geometry and project requirements, suitable manufacturing processes may include CNC turning, Swiss-type machining, CNC milling, drilling, tapping, threading, grooving, and combined turning-milling operations.

Material selection, achievable tolerances, inspection requirements, production feasibility, order quantities, and delivery arrangements should be confirmed for each project.

EV Battery Pack Applications for CNC Machined Components

Battery pack assemblies combine structural, electrical, thermal, and mechanical functions.

Precision machined components may be used in selected locations where standard hardware cannot meet the required geometry, assembly clearance, material specification, or dimensional relationship.

Battery Enclosure Mounting Interfaces

Battery pack enclosures may incorporate machined mounting blocks, threaded inserts, spacers, sleeves, and other mechanical interfaces.

These components can help establish accurate mounting positions and connect auxiliary assemblies to the enclosure.

Engineers should evaluate joint loading, material compatibility, corrosion exposure, and the interaction between the machined component and the enclosure material.

Where the enclosure is aluminum and the machined component is stainless steel, galvanic compatibility should be considered.

A machined stainless steel component should not automatically be treated as suitable for primary crash-load or safety-critical structural connections without specific engineering validation.

Precision Spacers and Distance Sleeves

Precision spacers and distance sleeves may be used to maintain controlled distances between mechanical components.

Important characteristics can include overall length, internal diameter, external diameter, perpendicularity, concentricity, and surface finish.

For battery pack assemblies, spacer dimensions may influence stack-up tolerances, mounting alignment, and local clamping conditions.

A spacer should be evaluated as part of the complete joint because excessive compression, inadequate bearing area, or incorrect length can affect assembly performance.

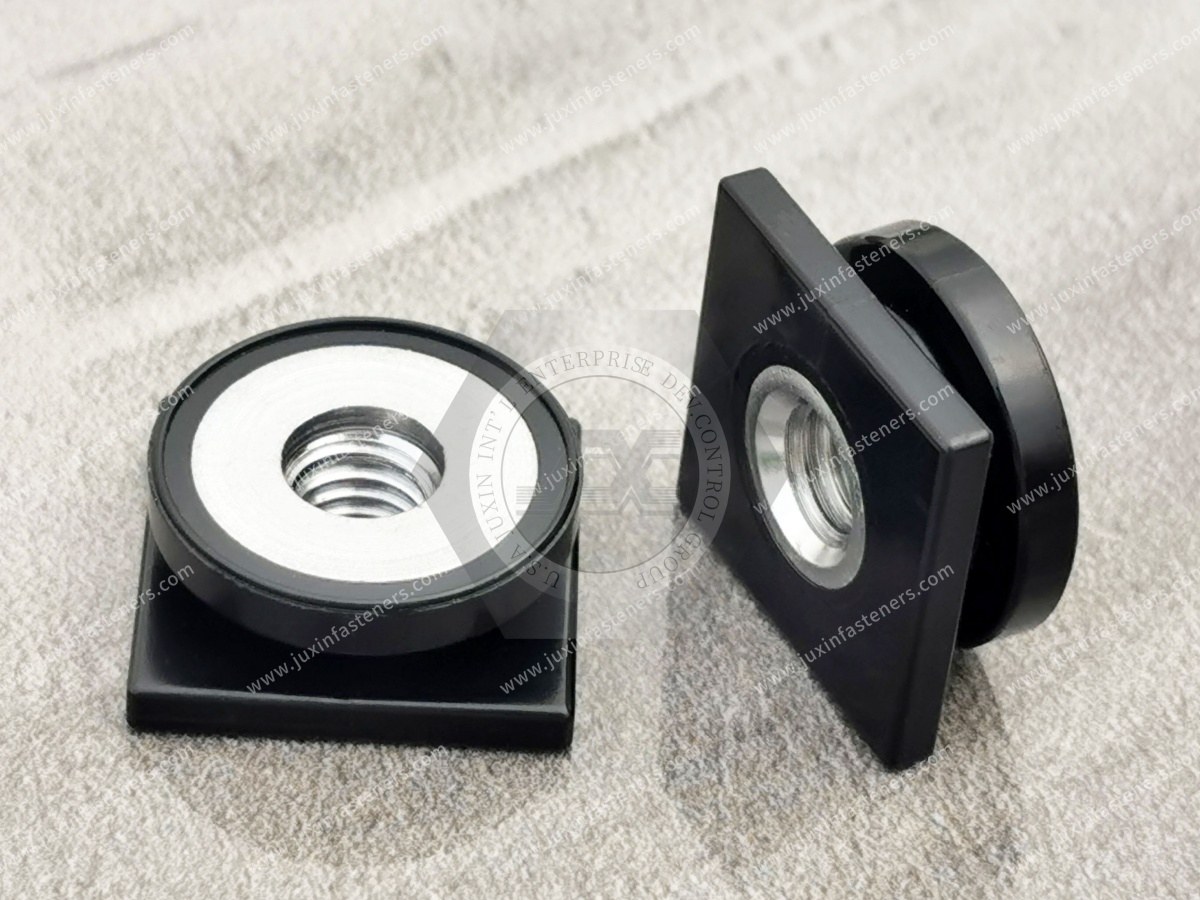

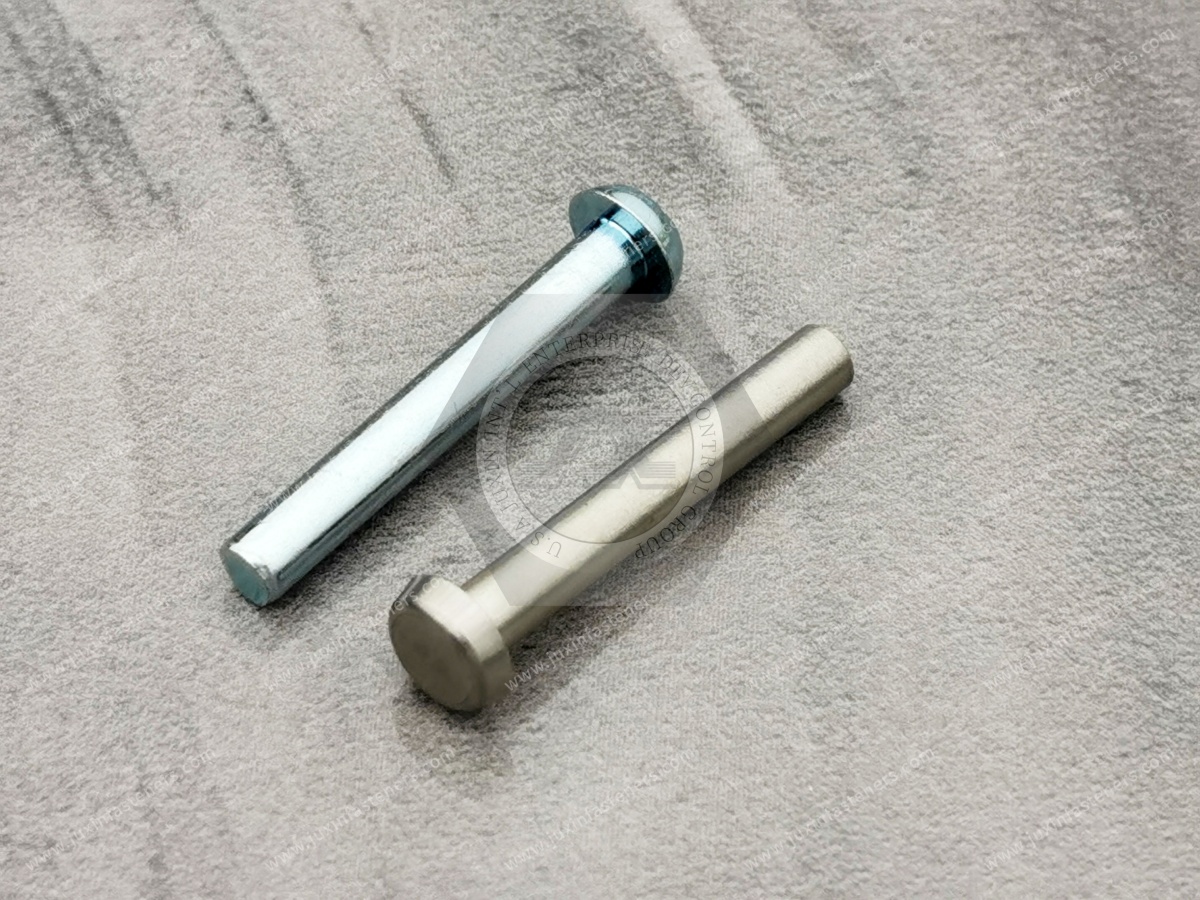

Locating Pins and Alignment Components

Locating pins and precision cylindrical components may be used to establish repeatable positions during assembly.

CNC turning or Swiss-type machining may be suitable for certain pin geometries.

Engineers should consider positional accuracy, mating-hole tolerances, insertion requirements, thermal expansion, and potential wear during repeated assembly.

Where a locating pin is used in an aluminum component, differential thermal expansion may influence fit across the expected operating temperature range.

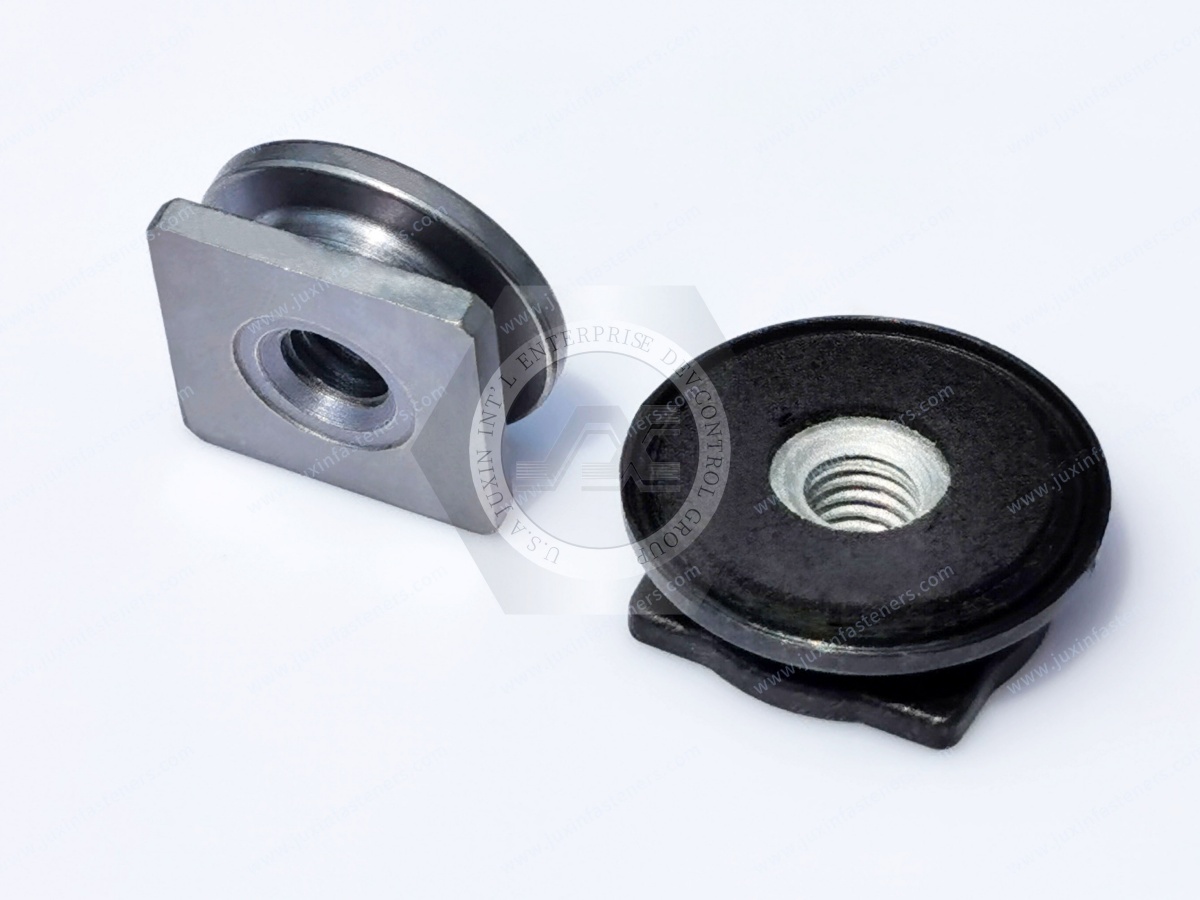

Bushings and Threaded Sleeves

Bushings and threaded sleeves may provide controlled mechanical interfaces for mounting and assembly.

Depending on the design, these parts may require accurate internal and external diameters, thread geometry, shoulder dimensions, and surface finish.

Stainless steel bushings should not automatically be considered suitable as sliding bearing components.

Where relative movement occurs, the mating material, contact pressure, lubrication, wear behavior, and operating environment must be evaluated.

Battery Pack Mounting Blocks and Custom Hardware

CNC-milled mounting blocks may incorporate threaded holes, slots, precision bores, locating features, and mounting surfaces.

These parts may be used for selected auxiliary equipment supports, enclosure interfaces, or mechanical assemblies.

Design engineers should consider tool accessibility, minimum wall thickness, fastener engagement, datum selection, and inspection requirements.

For repeated OEM production, reducing unnecessary machining complexity can improve manufacturing consistency and cost.

Battery Thermal Management Interfaces

Battery thermal management systems may require precision mechanical interfaces, fittings, mounting components, and related hardware.

CNC machining can support components with controlled geometry and sealing features.

However, stainless steel has lower thermal conductivity than many aluminum alloys and may not be the preferred material where efficient heat transfer is the primary requirement.

For fluid-contact components, material selection must consider coolant compatibility, pressure requirements, sealing geometry, cleanliness, and corrosion exposure.

Pressure-containing components require appropriate engineering validation and customer-defined testing.

Material Selection for Stainless Steel Battery Pack Components

Material selection should begin with the component's function rather than a general preference for stainless steel.

Important considerations include corrosion resistance, strength, hardness, machinability, thermal expansion, electrical conductivity, magnetic behavior, weight, and cost.

AISI 303 Stainless Steel

AISI 303 is an austenitic stainless steel developed for improved machinability.

It may be considered for selected turned spacers, sleeves, pins, and threaded components where its mechanical properties and corrosion resistance meet the application requirements.

Compared with AISI 304, it generally provides improved machinability but may offer reduced corrosion resistance in certain environments.

Its suitability should be reviewed where welding, demanding corrosion exposure, or specific material restrictions are involved.

AISI 304 Stainless Steel

AISI 304 is widely used for industrial mechanical components requiring corrosion resistance and general-purpose material properties.

It may be suitable for selected battery pack spacers, mounting sleeves, threaded hardware, and precision mechanical interfaces.

However, AISI 304 can work-harden during machining, requiring suitable cutting conditions and tool selection.

Its electrical conductivity and magnetic behavior must also be considered where these characteristics affect component function.

AISI 304 should not automatically be considered electrically insulating or nonmagnetic under all manufacturing conditions.

AISI 316 Stainless Steel

AISI 316 may be considered for selected components requiring improved resistance to certain corrosive environments.

Potential applications may include mechanical hardware exposed to moisture or specific environmental contaminants.

However, AISI 316 is not universally resistant to every chemical or chloride exposure condition.

The material should be selected according to the actual operating environment and customer specification.

AISI 410 and 420 Stainless Steels

AISI 410 and AISI 420 are martensitic stainless steels that can be heat-treated to obtain different hardness and strength characteristics.

They may be considered for selected components requiring specific mechanical or wear-related properties.

Their corrosion resistance and heat-treatment behavior differ from those of austenitic stainless steels.

The required material condition and final machining sequence should be specified.

Precipitation-Hardening Stainless Steel

Precipitation-hardening stainless steels, including 17-4 PH, may be considered for selected high-strength precision components.

Mechanical properties depend on the specified heat-treatment condition.

Engineering drawings should define the applicable material specification, heat-treatment condition, and required properties.

Material substitution should not be approved solely because two grades have similar nominal strength values.

Electrical Isolation and Battery Pack Safety Considerations

Battery pack assemblies contain electrical systems that may require controlled insulation, bonding, grounding, and clearance.

Stainless steel is electrically conductive and must not be treated as an insulating material.

Where a machined metal spacer, sleeve, or mounting component is located near energized parts, the complete electrical design must be evaluated.

Metallic Spacers and Electrical Isolation

A stainless steel spacer may provide mechanical positioning but cannot independently provide electrical isolation.

Where electrical insulation is required, suitable insulating components, coatings, sleeves, or other engineered arrangements may be necessary.

The effectiveness of the insulation system must be validated according to the application.

Electrical Bonding and Grounding

Some metallic components may form part of an intentional electrical bonding arrangement.

However, the presence of a metal-to-metal connection does not automatically establish reliable electrical continuity.

Surface coatings, contact pressure, corrosion, joint geometry, and assembly conditions can influence electrical performance.

Any grounding or bonding requirement should be defined and verified by the customer's engineering team.

Busbar and Electrical Connection Interfaces

Battery pack busbars and electrical connections may require precise mechanical support and controlled assembly geometry.

Machined hardware near these interfaces must be evaluated for electrical clearance, thermal behavior, mechanical loading, and material compatibility.

Stainless steel should not automatically be selected as a current-carrying component because its electrical conductivity differs substantially from common conductor materials.

Thermal Expansion and Dimensional Compatibility

Battery pack assemblies may combine aluminum enclosures, stainless steel components, polymer insulation, and other materials.

These materials can expand at different rates as temperature changes.

For precision interfaces, differential thermal expansion may affect fits, clamping conditions, sealing surfaces, and component alignment.

Engineers should consider the expected operating temperature range and the geometry of the complete assembly.

Galvanic Corrosion in Mixed-Material Battery Enclosures

Many EV battery pack enclosures use aluminum alloys, while certain auxiliary components may be manufactured from stainless steel.

When dissimilar metals are electrically connected in the presence of an electrolyte, galvanic corrosion may occur.

The risk depends on the materials, exposed surface areas, moisture, protective coatings, and joint geometry.

For stainless steel components installed in aluminum structures, engineers should evaluate:

• Material compatibility

• Moisture and electrolyte exposure

• Protective coatings

• Electrical isolation where appropriate

• Joint geometry and drainage

• Contact surfaces

• Environmental requirements

A material combination that performs adequately in a dry indoor environment may require additional protection in an outdoor automotive environment.

Corrosion testing should reflect the actual customer specification and intended exposure conditions.

CNC Machining Processes for Battery Pack Precision Parts

Different CNC machining processes offer advantages depending on component geometry, material, dimensional requirements, and production volume.

CNC Turning

CNC turning is suitable for rotationally symmetric components such as spacers, bushings, sleeves, pins, threaded parts, and cylindrical mounting hardware.

Typical operations include facing, external turning, boring, drilling, grooving, and threading.

Process planning should consider workholding, tool access, dimensional relationships, and surface finish.

Swiss-Type CNC Machining

Swiss-type machining may be advantageous for small-diameter and slender precision components.

The guide-bushing arrangement can support the workpiece near the cutting area, helping control deflection in suitable applications.

However, Swiss-type machining is not automatically the most economical choice for every small part.

Part geometry, setup complexity, material, cycle time, and production quantity influence process selection.

CNC Milling

CNC milling may be suitable for battery pack mounting blocks, brackets, precision interfaces, and components requiring flats, slots, pockets, or multiple mounting features.

Datum selection and fixture stability are important where positional relationships between features affect assembly.

Drilling, Tapping, and Threading

Machined components may require internal threads, external threads, precision holes, and mounting features.

Thread quality depends on material properties, tooling, cutting conditions, and inspection methods.

For stainless steel, machining plans should account for tool wear and work hardening.

Combined Turning and Milling

Turn-mill machining can combine rotational and non-rotational operations.

For suitable components, reducing the number of setups may improve relationships between critical features and reduce handling.

The benefit depends on machine configuration, tooling, part complexity, and production volume.

Design for Manufacturability in Battery Pack CNC Components

Design for Manufacturability (DFM) helps align engineering requirements with practical machining processes.

Early DFM evaluation can reduce unnecessary complexity, improve production repeatability, and lower total component cost.

Tolerance Allocation and Functional Requirements

Not every dimension requires the same tolerance.

Critical-to-function features should receive appropriate dimensional and geometric controls.

Non-critical dimensions may permit more economical tolerances.

Unnecessarily tight tolerances can increase machining time, inspection effort, scrap risk, and cost.

Tolerance selection should reflect assembly function and customer requirements.

Thin Walls and Machining Stability

Thin-walled components may deform during machining due to cutting forces, clamping pressure, or residual stress.

Special workholding or controlled machining sequences may be required.

The achievable tolerance depends on material, geometry, tooling, and process stability.

Deep Holes and Tool Accessibility

Deep or narrow holes may require specialized tooling and additional machining time.

Engineers should consider tool reach, chip evacuation, coolant access, and measurement requirements.

Where design flexibility exists, simplifying difficult internal features may reduce cost.

Thread Engagement and Assembly Loads

Thread specifications should identify the required standard, size, pitch, tolerance class, and functional engagement.

For battery pack hardware, engineers should consider joint loads, mating materials, assembly torque, and the risk of thread damage.

Stainless steel threaded components may experience galling under certain assembly conditions.

Suitable mating materials, surface treatments, lubrication, or assembly procedures may be necessary.

Surface Finish and Sealing Interfaces

Surface finish requirements should reflect component function.

A sealing interface may require different surface characteristics from a general mounting surface.

For fluid-contact or enclosure sealing applications, the complete sealing design must be evaluated.

A fine surface finish alone does not guarantee leak-tight performance.

GD&T and Precision Assembly Requirements

Geometric Dimensioning and Tolerancing (GD&T) helps define the relationships between critical features.

Depending on the drawing system, ASME Y14.5 or ISO 1101 may be applicable.

Relevant controls may include position, flatness, perpendicularity, parallelism, runout, and profile.

Datum selection should reflect how the component is located and assembled.

For example, a battery pack mounting block may require controlled relationships between mounting surfaces, threaded holes, and locating features.

A precision sleeve may require accurate relationships between its bore, outer diameter, and end faces.

GD&T should support functional assembly and inspection rather than introducing unnecessary manufacturing complexity.

Vibration, Mechanical Loading, and Joint Reliability

Battery pack assemblies experience vibration, road-induced loading, and temperature variation during vehicle operation.

Machined components used in mounting or fastening arrangements should be evaluated as part of the complete joint.

Important considerations may include:

• Applied mechanical loads

• Joint preload

• Fastener strength

• Mating material properties

• Vibration and fatigue

• Thermal expansion

• Contact pressure

• Thread engagement

• Corrosion exposure

• Assembly tightening procedures

A precision-machined component may meet every dimensional requirement yet still be unsuitable if the complete joint is not properly engineered.

Safety-critical connections require application-specific validation.

Precision, Repeatability, and Production Stability

For EV battery pack OEM manufacturing, a successful CNC machining process must produce consistent results across the required production quantity.

A dimensionally accurate prototype does not automatically establish production capability.

Important process controls may include:

• Approved CNC programs

• Controlled workholding

• Tool-life management

• Material consistency

• Cutting parameters

• In-process inspection

• Final dimensional verification

• Documented drawing revisions

• Appropriate handling and packaging

Production managers should evaluate machining cycle time, setup requirements, inspection frequency, scrap risk, and process consistency.

The appropriate manufacturing approach depends on component complexity, required tolerances, and purchasing volume.

Quality Control for Custom CNC Battery Pack Parts

Inspection planning should follow the approved drawing and the component's functional requirements.

Depending on the project, inspection may include dimensional measurement, thread inspection, material verification, hardness testing, surface-finish measurement, and functional checks.

Dimensional Inspection

Critical dimensions may be verified using suitable micrometers, calipers, bore gauges, height gauges, or coordinate measuring equipment.

The measurement method should provide sufficient capability for the specified tolerance.

Thread Inspection

Threaded components may require appropriate thread gauges or other verification methods.

The inspection method should follow the specified thread standard and customer requirements.

Material Verification

Customers may require material documentation or additional verification of the specified stainless steel grade.

The required documentation should be agreed upon during quotation.

Surface Finish Verification

Where surface finish is functionally important, the drawing should define the relevant parameters and inspection requirements.

The measurement method should be suitable for the specified surface and geometry.

First-Article and Production Inspection

OEM programs may require first-article inspection or other customer-defined approval activities before repeat production.

Inspection frequency, reporting, traceability, and approval requirements should be established according to the purchasing specification.

Any required certification, testing, or documentation must be confirmed for the specific project.

From Prototype Development to Repeat OEM Production

CNC machining can support battery pack component development because geometry and machining programs can be revised as the design evolves.

However, transitioning from prototypes to repeated production requires additional process planning.

Engineering Drawing and CAD Review

The initial review should identify material, geometry, critical tolerances, functional interfaces, and inspection requirements.

Potential manufacturing risks should be clarified before machining begins.

Material and Process Selection

The material and machining process should be selected according to functional requirements, part geometry, quantity, and cost.

Alternative manufacturing approaches may be considered where technically appropriate.

Prototype and First-Article Machining

Initial parts can be evaluated for dimensional accuracy, assembly fit, surface condition, and manufacturing feasibility.

Any design or process changes should be documented.

Process Optimization

After design approval, machining operations may be optimized for cycle time, tooling, repeatability, and inspection efficiency.

The appropriate optimization depends on the required production quantity.

Repeat Production and Final Inspection

Repeat production should follow the approved drawing revision and agreed quality requirements.

Inspection, packaging, and delivery arrangements should be established according to the customer's purchasing specification.

OEM Supplier Development and Procurement Considerations

For EV battery pack manufacturers, sourcing custom machined components requires both technical qualification and commercial evaluation.

Supplier selection should consider drawing conformity, material compatibility, machining feasibility, process consistency, quality expectations, and supply planning.

Drawing-Based Supplier Evaluation

A technically complete RFQ should include the approved drawing, CAD model, material specification, tolerances, surface finish, and required quantity.

Where an existing component is being transferred from another supplier, the latest drawing revision and critical functional characteristics should be identified.

Alternative Material and Process Evaluation

A proposed alternative material or machining process should be reviewed against the original engineering requirements.

Material substitution should not be approved solely because two grades have similar nominal properties.

Corrosion resistance, strength, hardness, thermal behavior, electrical characteristics, and application requirements must be considered.

Any proposed change should be approved by the customer's engineering team.

MOQ, Lead Time, and Volume Purchasing

Purchasing teams should provide estimated order quantities, annual demand, target delivery schedules, and packaging requirements.

For custom CNC components, setup complexity, material availability, tooling, inspection requirements, and production volume can influence MOQ and lead time.

Commercial feasibility should be confirmed for each project.

Total Cost Optimization

The total cost of a machined battery pack component depends on several factors:

• Material grade and stock form

• Part geometry

• Machining cycle time

• Number of setups

• Tooling and tool wear

• Dimensional tolerances

• Surface finish

• Secondary operations

• Inspection requirements

• Scrap and rework

• Order quantity

• Delivery schedule

Early collaboration between engineering and procurement teams can help identify cost-saving opportunities without compromising functional requirements.

Practical RFQ Checklist for EV Battery Pack CNC Components

A complete RFQ helps reduce technical clarification and supports accurate quotation.

Useful information includes:

• 2D engineering drawing

• 3D CAD model, if available

• Component application and function

• Stainless steel grade and material specification

• Heat-treatment condition, if applicable

• Critical dimensional tolerances

• GD&T requirements

• Thread specifications

• Surface finish requirements

• Coating or secondary processing requirements

• Electrical or thermal interface requirements

• Corrosion and operating environment

• Inspection and documentation requirements

• Prototype or sample quantity

• Estimated production order quantity

• Annual demand forecast

• Packaging requirements

• Delivery destination and target schedule

Where the component is intended for a safety-critical battery pack application, the required qualification, validation, and approval procedures should be explicitly identified.

Why Work with JUXIN FASTENERS for Battery Pack CNC Machining Projects?

JUXIN FASTENERS supports drawing-based inquiries for precision machined components and industrial fastening hardware used in OEM manufacturing.

Relevant machining inquiries include:

• Stainless steel CNC turned parts

• Battery pack precision spacers

• CNC machined bushings and sleeves

• Locating pins and precision shafts

• Battery enclosure mounting blocks

• Custom threaded hardware

• Precision mechanical connectors

• Thermal management mounting components

• Drawing-based battery pack mechanical parts

• OEM repeat purchasing requirements

Our approach emphasizes clear technical communication and evaluation of the customer's drawings, materials, tolerances, manufacturing requirements, and purchasing quantities.

For design and mechanical engineers, the priority is functional geometry, material suitability, and dimensional accuracy.

For manufacturing engineers and production managers, the priority includes process repeatability, machining efficiency, inspection stability, and consistent production quality.

For procurement and supply chain teams, the priority includes technical conformity, commercial feasibility, cost control, delivery planning, and long-term supplier evaluation.

Manufacturing feasibility, achievable tolerances, MOQ, lead time, testing, and documentation requirements are confirmed according to the specific inquiry.

Request a Quote for Stainless Steel CNC Machining and EV Battery Pack Components

Are you developing a new battery pack mechanical component, sourcing custom stainless steel CNC machined parts, or evaluating an alternative supplier for repeat OEM production?

JUXIN FASTENERS welcomes technical and commercial inquiries from EV battery pack manufacturers, automotive suppliers, engineering teams, production departments, and industrial procurement organizations.

Send us your 2D drawings, 3D CAD models, material specifications, critical tolerances, surface finish requirements, and estimated purchasing quantities.

We can review your project requirements and discuss suitable machining approaches, technical clarification, and RFQ arrangements.

JUXIN FASTENERS

Website: https://www.juxinfasteners.com

Email: info@juxinfasteners.com

RFQ: EV Battery Pack CNC Machining | Stainless Steel Precision Parts | OEM Custom Components
