Modern automotive manufacturing requires fastening systems that provide high strength, precision positioning, vibration resistance, and long-term reliability. With the increasing use of lightweight materials, high-strength steel, aluminum alloys, and complex vehicle body structures, traditional fastening methods alone cannot always satisfy advanced assembly requirements.
Automotive weld bolts, weld studs, weld nuts, flange weld nuts, DIN 929 hex weld nuts, DIN 928 square weld nuts, and projection welding fasteners have become essential components in vehicle body manufacturing, especially for sheet metal joining applications.
These welding fasteners create permanent threaded connection points directly on vehicle body panels, allowing manufacturers to achieve efficient assembly, improved structural performance, and compatibility with automated production lines.
Juxin Fasteners specializes in manufacturing OEM automotive welding fasteners for global automotive suppliers, EV manufacturers, and industrial customers.
Email: info@juxinfasteners.com
A weld bolt is a threaded fastening component designed to be permanently attached to a metal structure through welding. After welding, another component can be installed using a nut or threaded connection.
A weld nut is a specialized nut with a welding base or projection points that allow it to be permanently welded onto sheet metal.
Unlike conventional bolt and nut assemblies, welding fasteners provide:
Permanent positioning
One-side installation capability
Improved assembly efficiency
Reduced loose hardware
High torque resistance
Excellent automation compatibility
These advantages make weld bolts and weld nuts ideal for automotive body structures and precision sheet metal applications.
Automotive vehicles contain thousands of sheet metal connection points.
Common automotive sheet materials include:
High-strength steel
Galvanized steel
Stainless steel
Aluminum alloy
Advanced high-strength steel (AHSS)
Because many automotive panels are relatively thin, manufacturers cannot simply tap internal threads directly into the material.
Weld nuts provide a practical solution by creating strong threaded attachment points without increasing material thickness.
Typical applications include:
Vehicle body panels
Seat belt mounting systems
Door assemblies
Chassis components
Battery pack structures
Interior brackets
Electrical mounting systems
Selecting the correct automotive weld nut is critical for ensuring connection safety and manufacturing reliability.
Engineers should evaluate:
Fastener strength grade
Sheet metal thickness
Welding method
Torque requirements
Corrosion environment
Assembly process
Fatigue performance
Incorrect weld nut selection may result in:
Thread damage
Insufficient clamp force
Welding failure
Material deformation
Premature joint failure
DIN 929 hex weld nuts are widely used in automotive body structures due to their excellent torque performance and reliable welding characteristics.
Features:
Hexagonal shape
Strong anti-rotation capability
High mechanical strength
Suitable for resistance welding
Applications:
Vehicle chassis
Seat structures
Suspension components
Body brackets
Structural reinforcement parts
DIN 928 square weld nuts provide excellent positioning stability during welding.
Advantages:
Large welding contact area
Strong resistance against rotation
Suitable for automated production
Applications:
Automotive frames
Industrial machinery
Electrical cabinets
Sheet metal fabrication

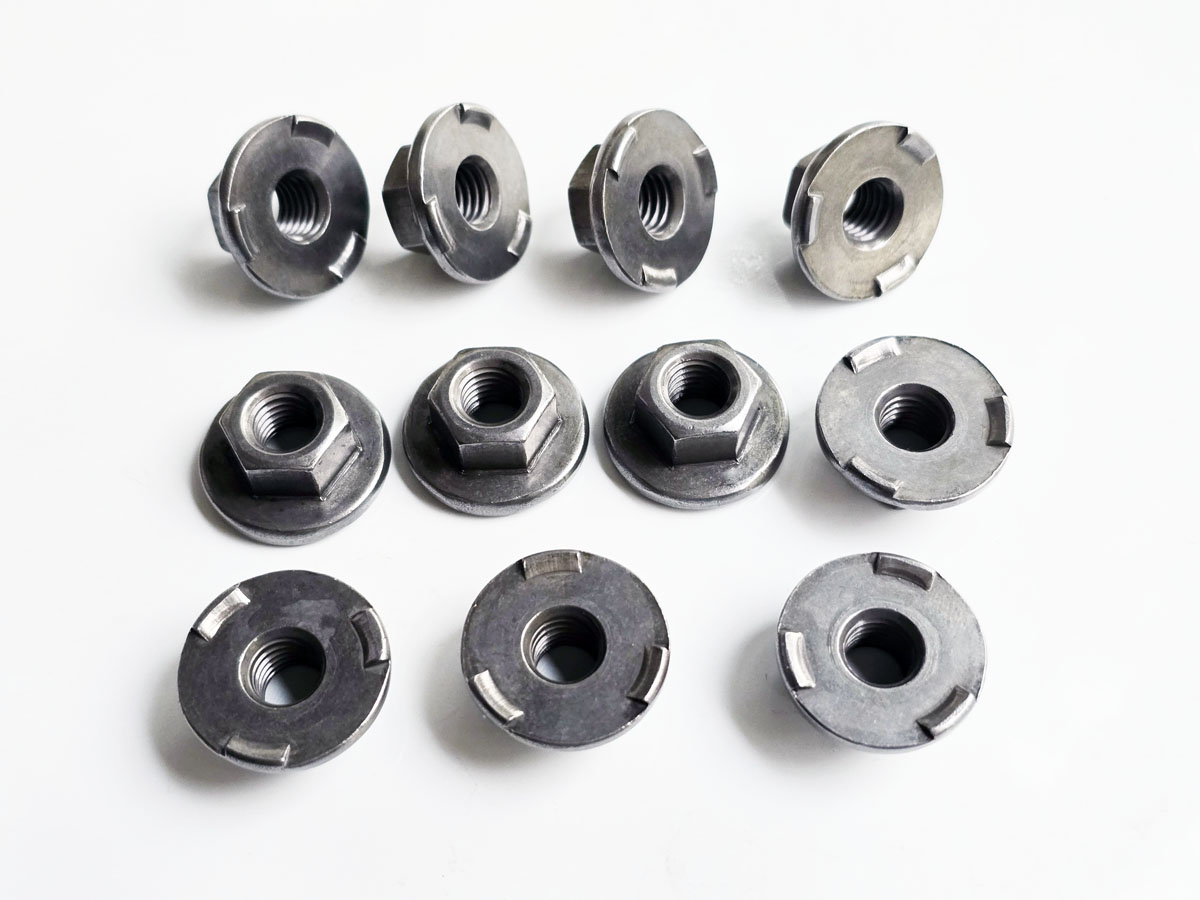

Flange weld nuts are increasingly used in automotive applications requiring higher torque performance.
Compared with standard weld nuts, flange weld nuts provide:
Larger bearing surface
Reduced risk of sheet metal deformation
Better load distribution
Improved torque-angle tightening performance
The flange design helps prevent crushing when:
The connected sheet material has lower strength
Higher tightening torque is applied
Advanced tightening methods are used
Applications:
Automotive structural components
Seat belt systems
Battery pack assemblies
Heavy-duty equipment
Projection weld nuts are specifically designed for resistance welding processes.
Their projection points concentrate welding current, creating a consistent and strong weld joint.
Advantages:
High welding efficiency
Excellent repeatability
Compatible with robotic welding
Reduced assembly time
Stable quality control
Projection weld nuts are commonly used in:

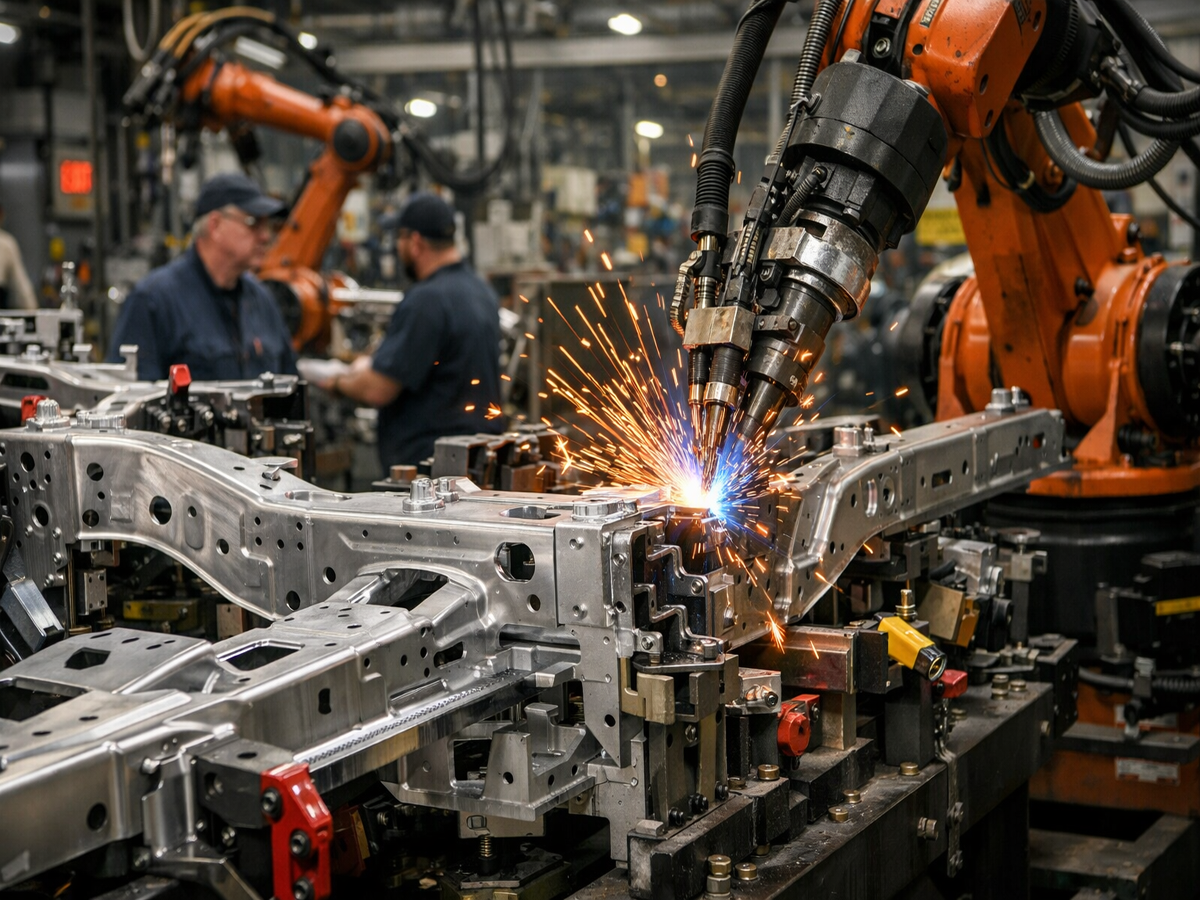

Body-in-White (BIW) manufacturing
Vehicle frame assembly
EV structural components

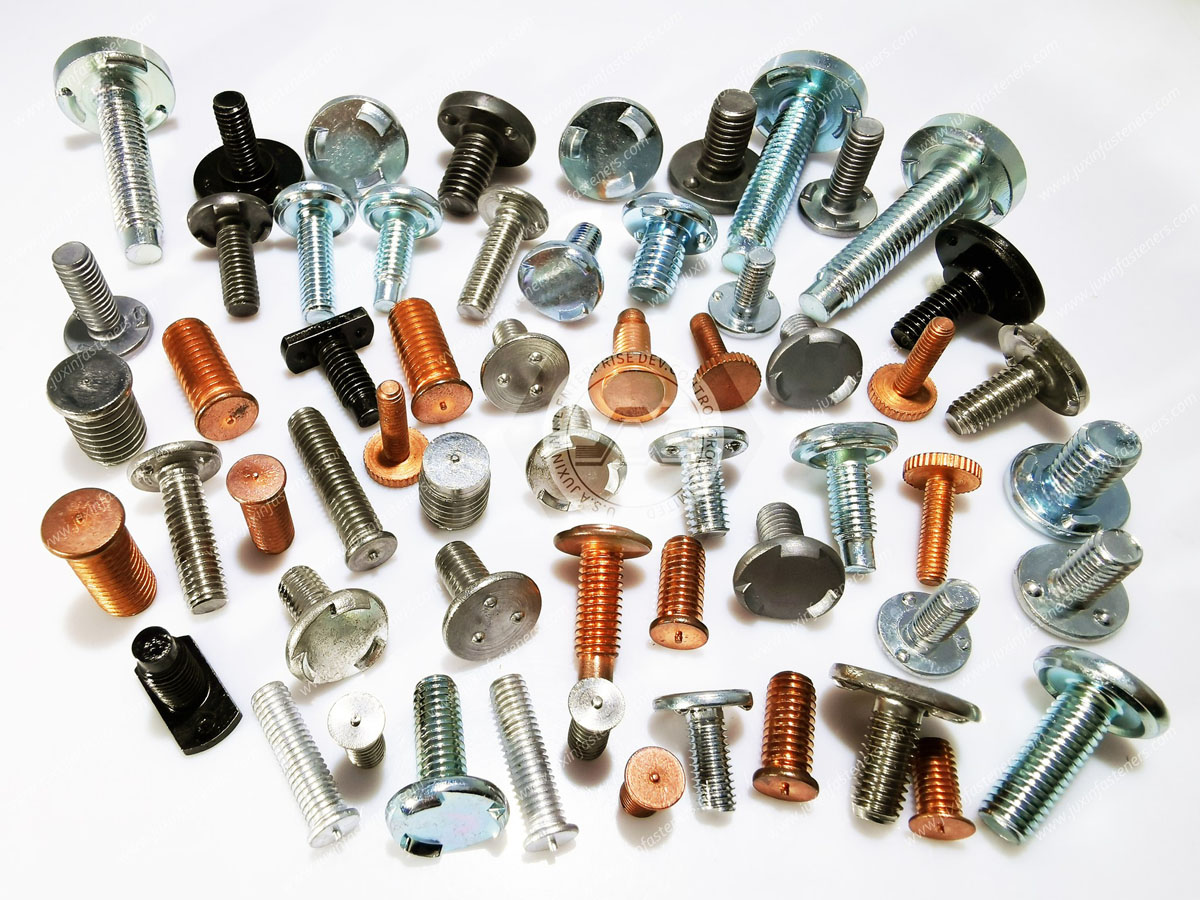

Weld bolts provide permanent threaded mounting points where traditional bolts cannot be easily installed.
Common applications include:
Dashboard mounting
Interior trim
Seat components
Electrical brackets
Door modules
Hood structures
Fender assemblies
Body reinforcement parts
Battery tray components
Cooling system brackets
Electrical protection covers
Battery enclosure structures

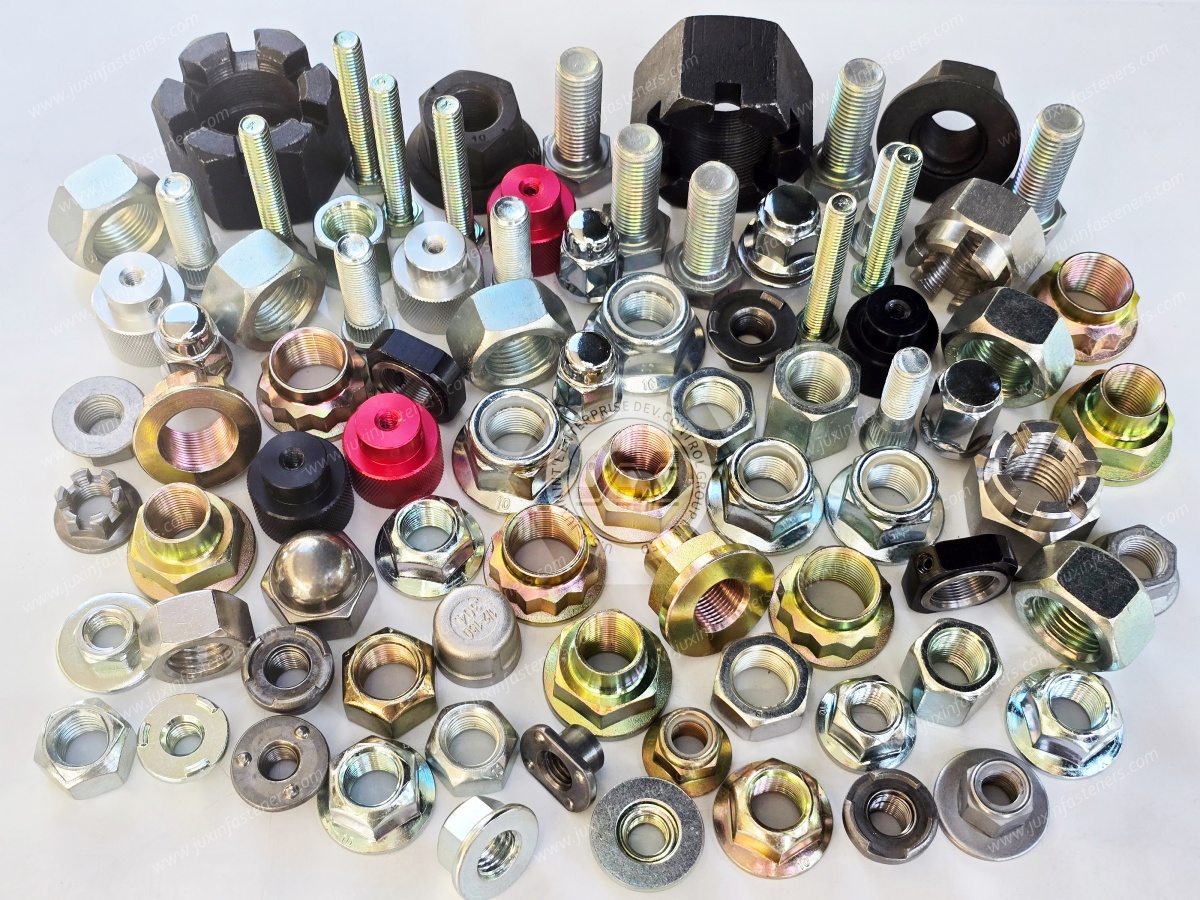

Proper bolt and nut matching is essential for connection reliability.
The basic engineering principle is:
The nut strength should be equal to or higher than the bolt performance grade.
For example:
Grade 8 nut can match up with an 8.8 grade bolt
Higher strength nuts can safely support lower strength bolts
Incorrect matching may cause:
Thread stripping
Reduced preload
Joint failure
For automotive applications requiring vibration resistance, all-metal lock nuts are often selected.
Important considerations:
Lock nut strength should match bolt requirements
Thread deformation must remain within design limits
Torque performance must be controlled
For example:
A 10-grade all-metal lock nut should not normally be paired with an 8.8 grade bolt in applications requiring full performance matching.
During manufacturing, weld nuts are usually cold formed, which improves material strength through work hardening.
However, welding introduces heat that may affect mechanical properties.
Potential effects include:
Reduced hardness
Lower guaranteed load capability
Heat-affected zone changes
Therefore, weld nut design must consider:
Welding current
Welding time
Material selection
Post-welding strength requirements
Understanding failure behavior is essential for automotive safety.
Common failure modes include:
Bolt fracture usually occurs suddenly and is easy to detect.
Thread stripping can happen gradually and may not be immediately visible.
In engineered fastening systems, the preferred failure mode is usually:
Bolt fracture before thread stripping
This ensures that excessive tightening loads result in predictable failure rather than hidden thread damage.
Automotive weld fasteners must withstand harsh environments.
Common surface treatments include:
Zinc plating
Zinc nickel coating
Geomet® coating
Dacromet® coating
Black oxide
Phosphate coating
For EV and automotive applications, zinc nickel coated weld nuts and weld bolts provide excellent corrosion resistance and long service life.
Juxin Fasteners provides welding fastening solutions for multiple industries.
Applications:
Vehicle body structures
Seat systems
Chassis components
Door assemblies
Safety components
Products:

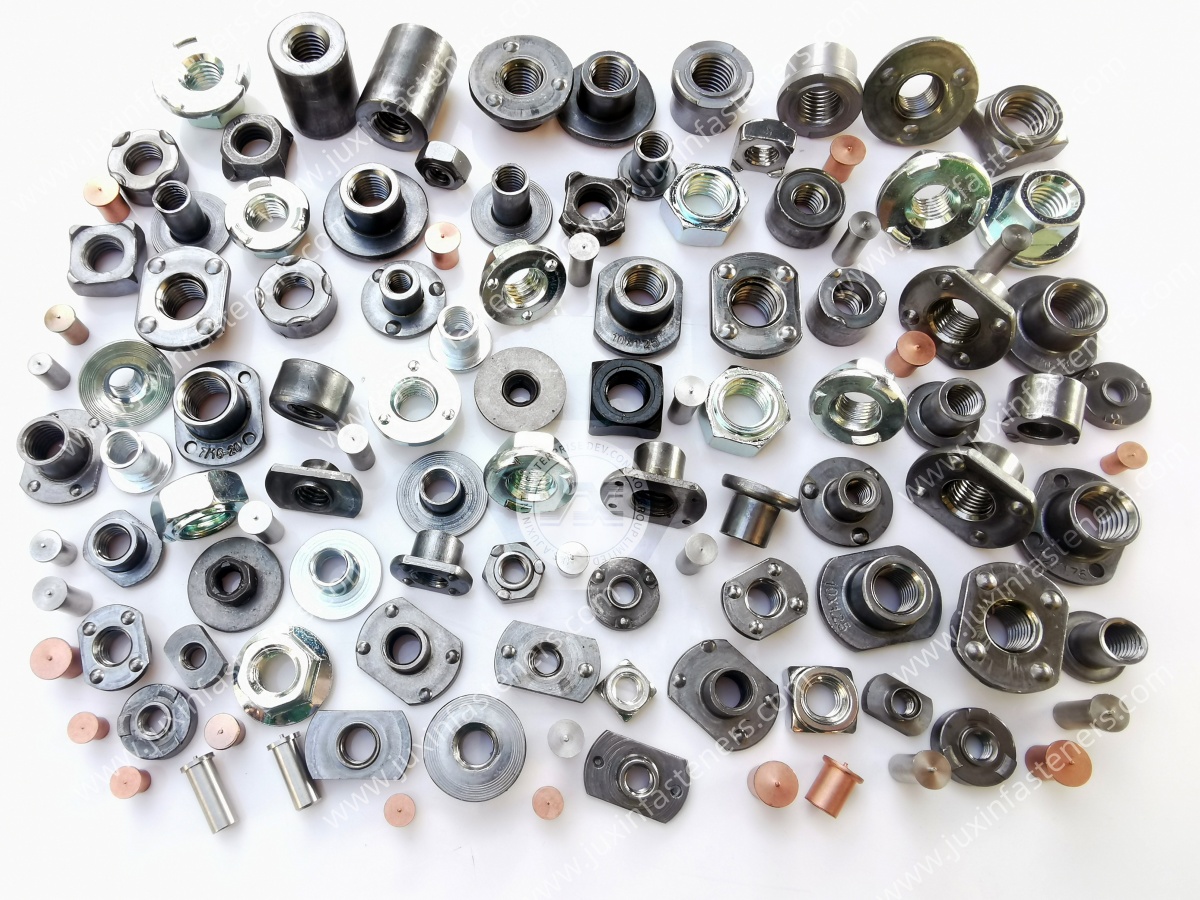

Automotive weld nuts
Weld bolts
Weld studs
Flange weld nuts
Applications:
Battery enclosures
Battery trays
Cooling systems
High-voltage components
Products:
Projection weld nuts
Stainless steel weld nuts
Custom welding fasteners
Applications:
Train body structures
Interior panels
Equipment brackets
Electrical systems
Applications:
Lightweight structural panels
Aircraft interiors
Equipment mounting systems
Applications:
Control panels
Switchgear
Industrial enclosures
Applications:
Air conditioning systems
Ventilation equipment
Sheet metal housings
Applications:
Medical frames
Equipment housings
Precision assemblies
Applications:
Steel structures
Architectural components
Building systems
Applications:
Heavy equipment
Agricultural machinery
Industrial machines
Applications:
Robot frames
Automation equipment
Smart manufacturing systems
Applications:
Metal enclosures
Precision cabinets
Fabricated assemblies
Juxin Fasteners is a professional manufacturer specializing in automotive weld fasteners and industrial connection solutions.
Our products include:
DIN 929 Hex Weld Nuts
DIN 928 Square Weld Nuts
Flange Weld Nuts
Projection Weld Nuts
Automotive Seat Belt Weld Nuts
Weld Bolts
Weld Studs
Custom OEM Welding Fasteners
We provide:
✔ OEM and ODM manufacturing
✔ Custom drawing production
✔ Engineering support
✔ Material optimization
✔ Surface treatment solutions
✔ Automotive quality control
✔ Global export experience
Our fastening solutions support customers in automotive, EV, battery systems, rail transit, aerospace, robotics, machinery, and precision sheet metal industries.
Looking for reliable automotive weld nuts, weld bolts, or custom welding fasteners for your next project?
Our engineering team can provide professional fastening solutions based on your drawings, materials, and application requirements.
