Blind Rivets: Principle, Types, Specifications and Industrial Applications

OEM Blind Rivet Solutions for Sheet Metal Assembly and Industrial Manufacturing

Blind rivets are one of the most widely used mechanical fastening solutions for applications where fastening access is available from only one side of the assembly.

Unlike traditional rivets that require access to both sides of the workpiece, blind rivets can be installed from a single side using a special riveting tool, making them ideal for applications where the back side of the component is inaccessible.

Today, blind rivets are widely used in:

• Automotive manufacturing

• Construction equipment

• Aerospace structures

• Railway systems

• Shipbuilding

• Electrical cabinets

• HVAC equipment

• Furniture manufacturing

• Sheet metal fabrication

At Juxin Fasteners, we provide professional OEM blind rivet solutions, including stainless steel blind rivets, aluminum blind rivets, structural blind rivets, and customized rivet products for global industrial customers.

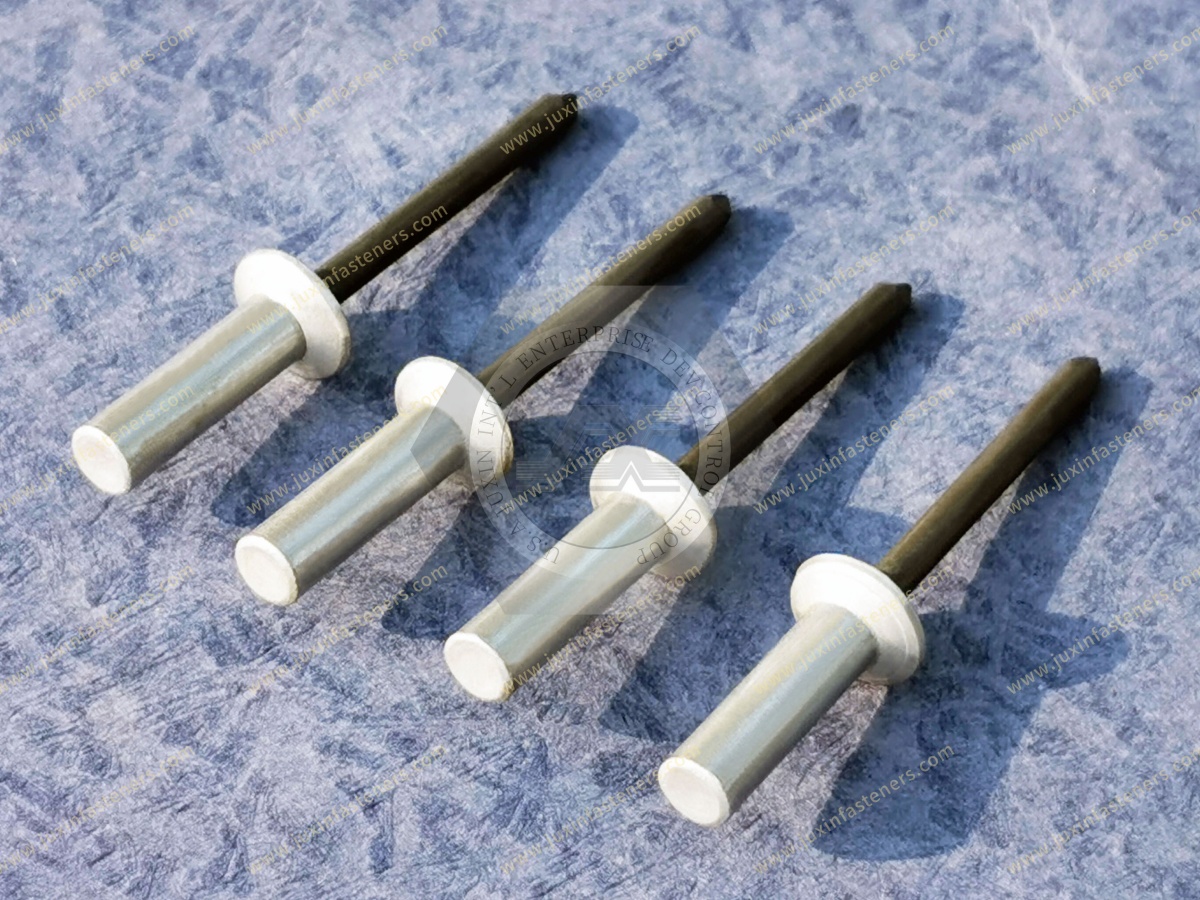

What Is a Blind Rivet?

A blind rivet is a type of single-sided fastening component consisting of:

• Rivet body

• Mandrel (rivet core)

• Rivet head

During installation, a blind rivet tool pulls the mandrel through the rivet body. The rivet body expands and deforms on the hidden side of the assembly, creating a strong mechanical connection.

This unique installation method allows blind rivets to provide reliable fastening without requiring access to the opposite side.

How Do Blind Rivets Work?

The working principle of blind rivets is based on controlled deformation.

The installation process includes:

Step 1: Insert the Blind Rivet

The rivet body is inserted into a pre-drilled hole connecting the materials.

Step 2: Pull the Mandrel

A manual, electric, or pneumatic riveting tool pulls the rivet core.

Step 3: Expand the Rivet Body

The lower part of the rivet expands and forms a locking structure behind the material.

Step 4: Complete the Joint

The mandrel breaks or locks into position, creating a permanent fastening connection.

The result is a strong joint with:

• Reliable clamping force

• Good vibration resistance

• High installation efficiency

• Stable connection performance

Advantages of Blind Rivets

Blind rivets have become a preferred fastening solution in many industries because of their unique benefits.

1. Single-Side Installation

The biggest advantage of blind rivets is that installation only requires access from one side.

This makes them ideal for:

• Closed structures

• Hollow profiles

• Limited access areas

• Complex assemblies

2. Fast Installation Efficiency

Compared with welding and threaded fastening methods, blind riveting provides:

✔ Faster assembly
✔ Reduced labor requirements
✔ Simple installation process
✔ Lower production costs

This makes blind rivets especially suitable for high-volume manufacturing.

3. Strong Mechanical Performance

High-quality blind rivets provide:

• Strong shear resistance

• Stable tensile performance

• Good vibration resistance

• Long service life

They are widely used in applications requiring reliable permanent fastening.

4. Suitable for Thin Sheet Metal Applications

Blind rivets are commonly used where traditional welding or tapping processes may create problems.

They help solve issues such as:

• Thin sheet deformation

• Welding heat damage

• Weak threaded connections

• Difficult internal threading

Common applications include:

• Sheet metal panels

• Electrical enclosures

• Industrial cabinets

• Vehicle components

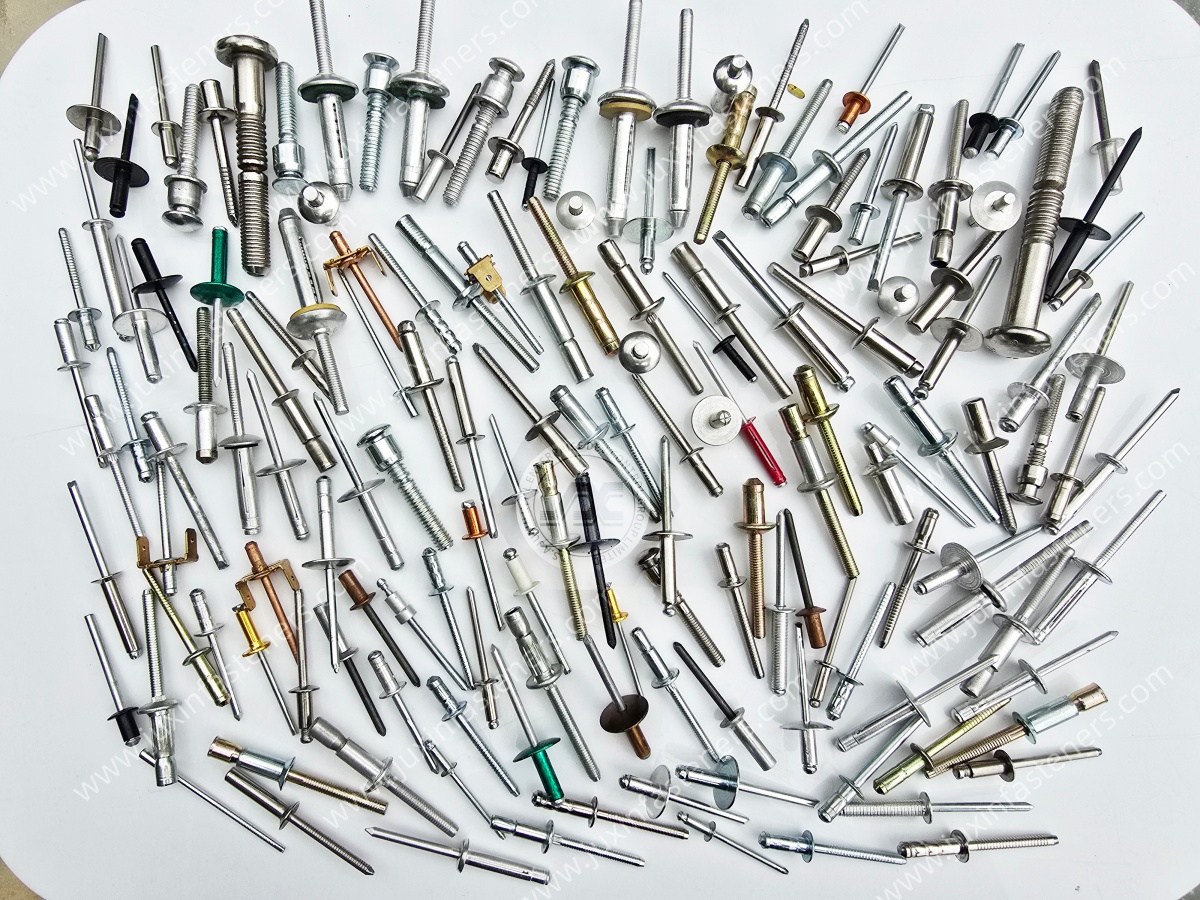

Types of Blind Rivets

Different applications require different blind rivet designs.

1. Open End Blind Rivets

Open end blind rivets are the most common type used in industrial applications.

Features:

• Cost-effective

• Easy installation

• Wide application range

• Reliable fastening performance

Applications:

• General sheet metal assembly

• Electrical equipment

• Automotive components

• Industrial products

2. Closed End Blind Rivets

Closed end blind rivets are designed for applications requiring better sealing performance.

Advantages:

• Prevents moisture penetration

• Provides improved sealing

• Suitable for outdoor environments

Applications:

• Containers

• Marine equipment

• Waterproof structures

• Electronic enclosures

3. Countersunk Blind Rivets

Countersunk blind rivets are used when a smooth surface finish is required.

Advantages:

• Flat surface appearance

• Reduced surface interference

• Suitable for aerodynamic designs

Applications:

• Aerospace components

• Automotive panels

• Precision equipment

Blind Rivet Materials

Juxin Fasteners provides blind rivets in different materials to meet various application requirements.

Aluminum Blind Rivets

Advantages:

• Lightweight

• Good corrosion resistance

• Easy installation

Applications:

• Automotive

• Electronics

• Lightweight structures

Stainless Steel Blind Rivets

Advantages:

• Excellent corrosion resistance

• High durability

• Suitable for harsh environments

Common materials:

• Stainless Steel 304

• Stainless Steel 316

Applications:

• Marine equipment

• Outdoor structures

• Industrial machinery

Carbon Steel Blind Rivets

Advantages:

• High mechanical strength

• Good load capacity

• Cost-effective

Applications:

• Construction equipment

• Industrial assemblies

• Heavy-duty applications

Blind Rivet Specifications

Juxin Fasteners supplies a wide range of blind rivet specifications.

Rivet Diameter:

Available sizes include:

• 2.4 mm

• 3.2 mm

• 4.0 mm

• 4.8 mm

• 6.4 mm

Head Styles:

• Flat round head

• Countersunk head

• Large flange head

Custom Options:

• Custom dimensions

• Special materials

• OEM designs

• Customer drawings

Blind Rivet Applications Across Industries

Blind rivets are widely used in many industrial sectors.

Automotive Industry

Applications:

• Vehicle body panels

• Interior components

• Structural assemblies

Construction Machinery

Applications:

• Equipment covers

• Metal panels

• Protective structures

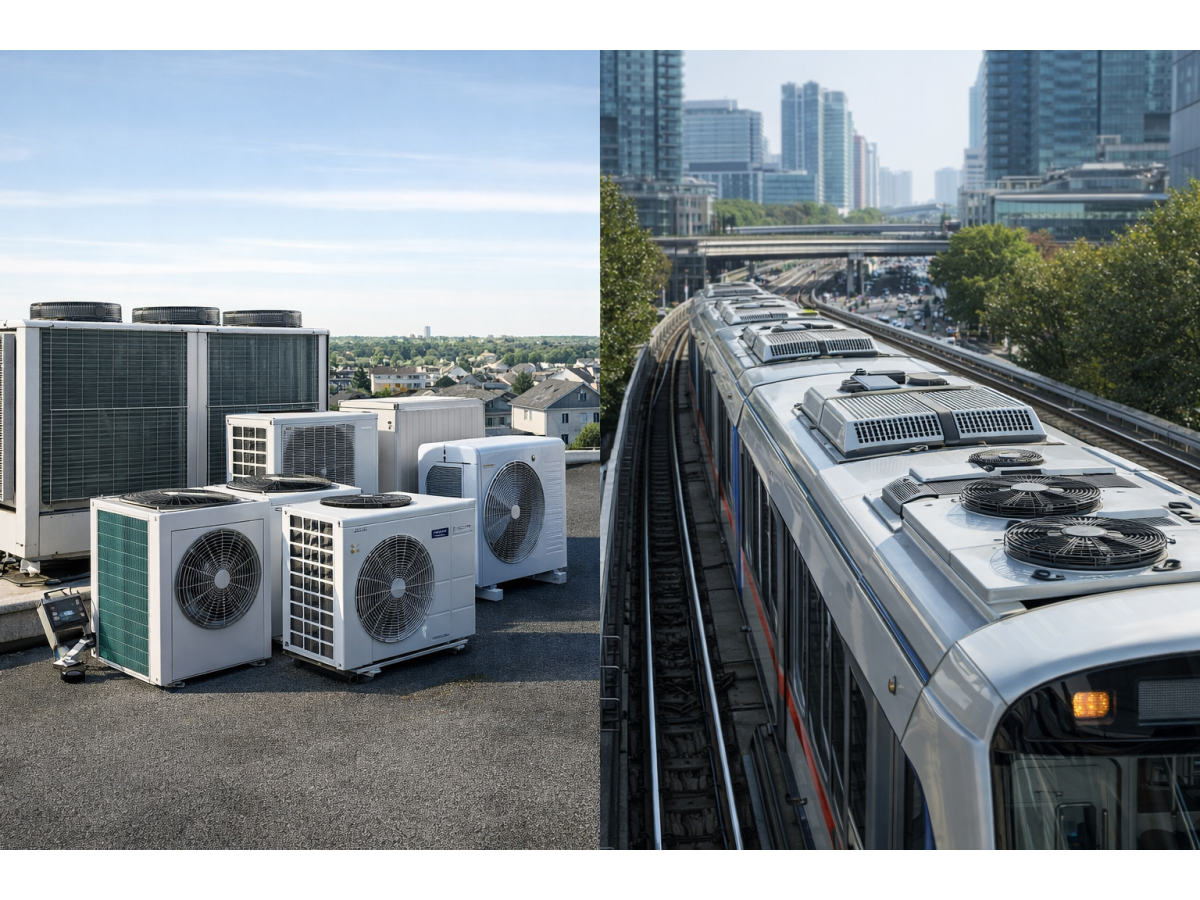

Electrical and HVAC Equipment

Applications:

• Control cabinets

• Enclosures

• Sheet metal housings

Transportation Industry

Applications:

• Railway equipment

• Containers

• Shipbuilding structures

Cold Riveting and Hot Riveting Methods

Cold Riveting

Cold riveting is performed at room temperature.

Advantages:

• Simple process

• Suitable for standard industrial applications

• Lower production cost

Hot Riveting

Hot riveting is used for applications requiring higher connection strength.

The rivet is heated before installation. During cooling, contraction creates additional tightening force.

Applications:

• Steel bridges

• Heavy structural assemblies

• Large metal structures

Why Choose Juxin Fasteners for Blind Rivets?

Juxin Fasteners specializes in providing reliable fastening solutions for global OEM manufacturers.

Our capabilities include:

✔ OEM blind rivet manufacturing
✔ Stainless steel blind rivets production
✔ Custom rivet solutions
✔ Multiple materials and sizes
✔ Engineering support
✔ Quality inspection and reliable supply

We support customers in industries including:

• Automotive

• Construction machinery

• Transportation

• Electronics

• Sheet metal fabrication

• Industrial equipment

Custom Blind Rivet Solutions for Your Application

Selecting the correct blind rivet is essential for improving assembly efficiency, product reliability, and manufacturing performance.

Whether you need stainless steel blind rivets, OEM blind rivets, structural rivets, or customized sheet metal fastening solutions, Juxin Fasteners can provide professional technical support.

Contact our engineering team for your fastening requirements.
