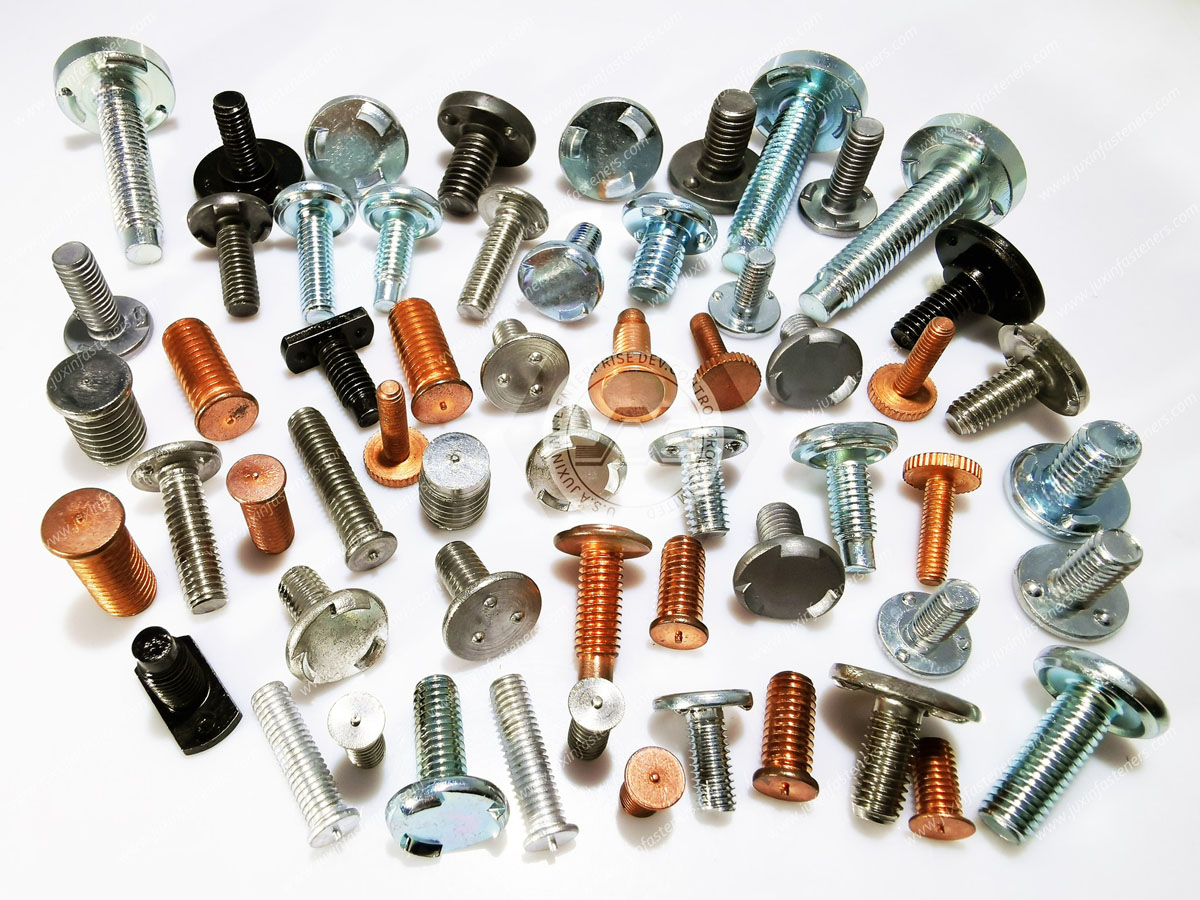

Industrial machinery manufacturers depend on reliable fastening points to maintain equipment performance, production uptime and serviceability.

Threaded weld studs are used in selected machine structures, protective panels, motor enclosures, conveyor systems and industrial equipment assemblies.

They provide threaded attachment points on compatible metal components through a suitable welding process.

However, weld stud reliability depends on the complete welded joint—not only the strength or corrosion resistance of the stud itself.

An industrial weld stud may meet dimensional and material specifications while the installed connection remains unsuitable because of:

• Incomplete weld fusion

• Incorrect welding parameters

• Parent material incompatibility

• Surface contamination

• Insufficient parent metal thickness

• Stud misalignment

• Weld-area corrosion

• Excessive joint loading

• Inadequate production inspection

For design engineers, the priority is establishing a mechanically suitable joint and load path.

For manufacturing engineers and production managers, the priority is achieving repeatable weld quality with controlled process variation,

acceptable scrap rates and efficient inspection.

For procurement managers and supplier development teams, the priority is obtaining drawing-conforming weld studs with suitable material documentation,

dimensional consistency and reliable commercial supply.

This guide explains how industrial OEMs can evaluate weld stud quality from fastener selection through production validation.

Juxin Fasteners welcomes technical and drawing-based inquiries for industrial threaded weld studs and custom fastening components.

Why Weld Stud Quality Control Matters

A threaded weld stud transfers mechanical loading from an attached component into the parent metal.

The load path can be represented as:

Mating Nut → Stud Thread → Stud Body → Weld Interface → Parent Metal → Machine Structure

Each element must be considered during engineering validation.

A high-strength stud does not guarantee a high-strength weld.

Likewise, an acceptable weld does not guarantee that the mating threaded joint will resist vibration loosening.

Potential Consequences of Inadequate Quality Control

• Attachment failure

• Equipment vibration

• Component misalignment

• Thread damage

• Corrosion at the weld interface

• Maintenance difficulties

• Production downtime

• Increased scrap and rework

Engineering Recommendation

Evaluate the stud, welding process, parent material and mating assembly as one fastening system.

Industrial Weld Stud Applications and Quality Priorities

Industrial Motor Enclosures

Potential applications include:

• Motor covers

• Protective housings

• Cable brackets

• Auxiliary electrical components

Quality Priorities

• Stud positioning

• Weld integrity

• Thread condition

• Vibration-related joint behavior

• Corrosion protection

Conveyor System Frames

Potential applications include:

• Protective covers

• Cable supports

• Auxiliary mounting brackets

• Equipment guards

Quality Priorities

• Cyclic loading

• Weld fatigue

• Parent material thickness

• Positioning consistency

• Maintenance accessibility

Production Equipment Structures

Potential applications include:

• Machine covers

• Internal mounting components

• Auxiliary fixtures

• Selected support brackets

Quality Priorities

• Weld geometry

• Load direction

• Stud alignment

• Repeatability

• Inspection accessibility

Industrial Control Panel Assemblies

Potential applications include:

• Control cabinet panels

• Electrical module brackets

• Cable management components

• Protective enclosures

Quality Priorities

• Dimensional accuracy

• Corrosion

• Assembly access

• Mating hardware compatibility

Important Electrical Limitation

A mechanical weld stud should not automatically be treated as a qualified protective-earth or electrical bonding connection.

Electrical continuity and bonding performance must be assessed separately where required.

Weld Stud Material Quality and Weldability

Material selection influences both fastener performance and welding feasibility.

Stainless Steel Weld Studs

Stainless steel may be selected for industrial equipment exposed to moisture,

washdown conditions or other corrosion-sensitive environments.

Potential applications include:

• Food processing machinery

• Outdoor equipment

• Chemical processing equipment

• Marine-related machinery

• Industrial automation systems

Material Quality Considerations

• Specified stainless steel grade

• Material composition

• Mechanical properties

• Weldability

• Surface condition

• Corrosion requirements

Important Limitation

Stainless steel is not universally resistant to all chemicals or marine environments.

The actual grade and exposure must be considered.

Carbon Steel Weld Studs

Carbon steel may be suitable for selected industrial machinery where mechanical requirements,

welding compatibility and corrosion protection are appropriately specified.

Material Quality Considerations

• Steel composition

• Mechanical properties

• Welding process compatibility

• Surface cleanliness

• Coating requirements

• Post-weld corrosion protection

Galvanized Carbon Steel Weld Studs

Zinc coatings may provide corrosion protection, but they can also influence welding behavior.

Important Engineering Limitation

A conventionally galvanized stud should not automatically be considered suitable for welding through the coating.

The welding procedure, coating condition and post-weld protection must be evaluated.

Material Property Class vs Weld Strength

Steel threaded fasteners may be specified using mechanical property classes such as 8.8 or 10.9.

However, these designations must not be automatically applied to every weld stud.

Critical Distinction

• Stud material strength describes specified fastener material behavior.

• Weld strength describes the performance of the welded attachment.

• Parent material strength influences the overall joint failure mode.

Engineering Recommendation

Confirm the product specification and welding compatibility before specifying high-strength stud materials.

A higher nominal property class does not automatically produce a stronger or more fatigue-resistant welded joint.

Weld Stud Manufacturing Quality

Before installation, weld studs should be evaluated against their approved drawings.

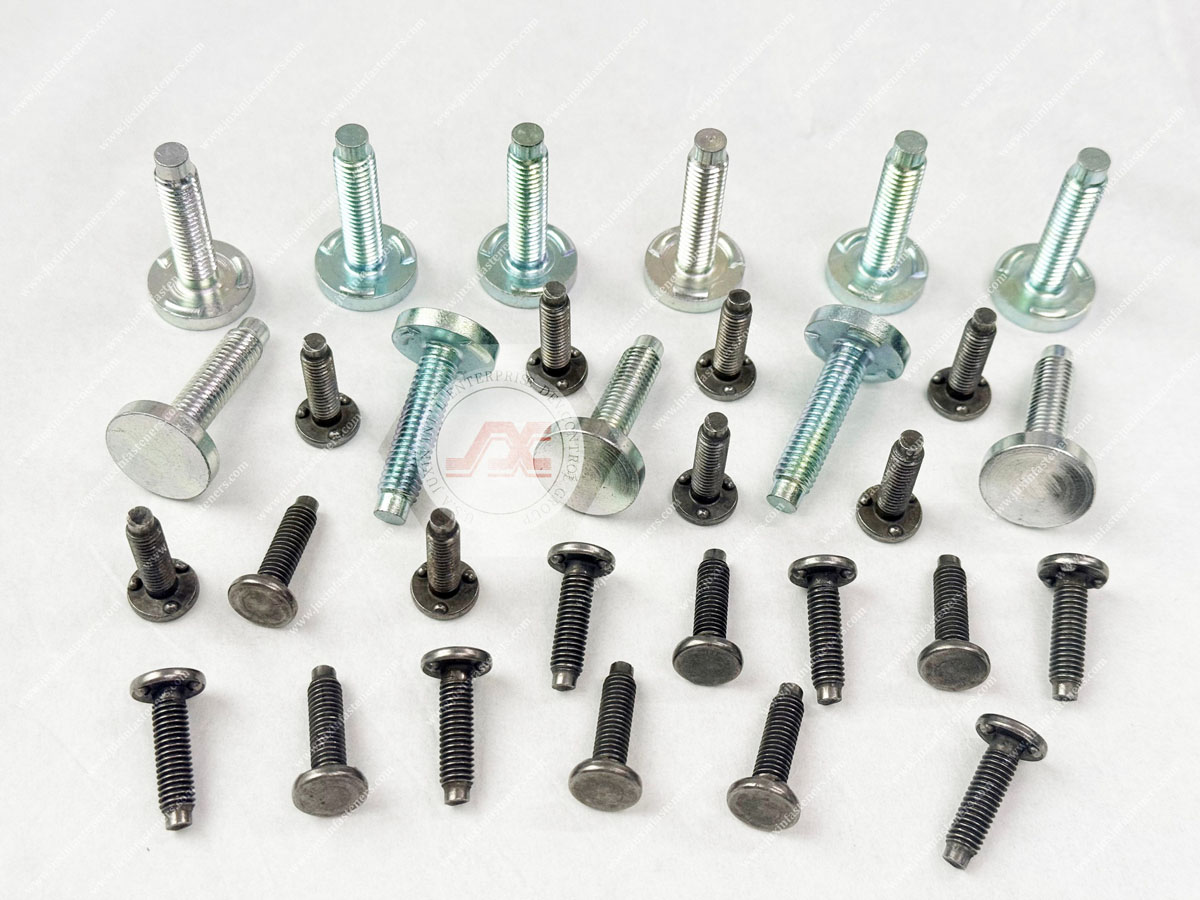

Typical Dimensional Characteristics

• Nominal thread diameter

• Thread pitch

• Thread tolerance

• Overall length

• Stud straightness

• Welding-end geometry

• Welding-end dimensions

• Surface condition

Why Welding-End Geometry Matters

The welding end influences the interaction between the stud and the parent material during installation.

Variations may affect:

• Electrical contact

• Weld formation

• Positioning

• Welding process repeatability

Information Gain: Dimensional Consistency Affects Welding Consistency

Two weld studs may have identical nominal thread sizes but different welding-end geometries.

If those differences are not controlled, the same welding equipment settings may not produce equivalent results.

Engineering Recommendation

Treat the welding-end geometry as a critical product characteristic where required by the qualified welding process.

Stud Welding Process Selection

Industrial manufacturers may use different stud welding methods.

Potential processes include:

• Capacitor discharge stud welding

• Drawn arc stud welding

• Short-cycle stud welding

The appropriate process depends on:

• Stud design

• Stud diameter

• Parent material

• Parent thickness

• Required joint performance

• Production equipment

Important Limitation

These welding methods are not universally interchangeable.

A stud designed for one process may not be suitable for another without engineering evaluation.

Relevant International Standards

ISO 14555

Provides requirements for arc stud welding of metallic materials within its applicable scope.

ISO 13918

Addresses studs and ceramic ferrules for arc stud welding within its applicable scope.

Engineering Recommendation

Use the applicable standard and qualified welding procedure for the actual product and process.

Welding Process Variables

Potential variables include:

• Welding current

• Welding duration

• Stud movement or lift

• Contact force

• Stud positioning

• Parent material thickness

• Surface cleanliness

• Equipment condition

Important Limitation

No single welding parameter set is appropriate for every stud and parent material combination.

Surface Preparation

Before welding, evaluate:

• Oil contamination

• Rust

• Paint

• Zinc coatings

• Oxide layers

• Surface irregularities

Engineering Recommendation

Define acceptable surface conditions as part of the welding procedure.

Common Industrial Weld Stud Defects

Incomplete Fusion

Incomplete fusion occurs when the weld does not achieve the required bonding condition.

Possible contributing factors include:

• Incorrect process settings

• Contamination

• Poor contact

• Material incompatibility

Potential Consequences

• Reduced attachment strength

• Premature separation

• Unstable performance

Stud Misalignment

A stud may be welded at an incorrect angle or position.

Possible causes include:

• Fixture variation

• Welding gun positioning

• Surface geometry

• Equipment movement

Potential Consequences

• Assembly interference

• Uneven loading

• Mating nut installation difficulties

Weld Cracking

Cracking may result from unsuitable material or welding conditions, restraint or other metallurgical and mechanical factors.

Potential Consequences

• Reduced joint integrity

• Fatigue initiation

• Premature failure

Parent Material Damage

The parent material may be damaged by excessive local heating, unsuitable welding parameters or mechanical loading.

Potential Consequences

• Local deformation

• Reduced structural integrity

• Unacceptable appearance

• Joint failure

Thread Damage

Threads may be damaged during:

• Handling

• Welding

• Packaging

• Assembly

Potential Consequences

• Nut installation difficulties

• Cross-threading

• Increased rework

• Inconsistent tightening

Corrosion at the Weld Interface

The weld region may experience corrosion even when the stud body appears acceptable.

Possible causes include:

• Coating damage

• Surface contamination

• Dissimilar-metal interaction

• Inadequate post-weld protection

Engineering Recommendation

Inspect the welded area and surrounding parent metal rather than evaluating only the stud body.

Visual Inspection of Weld Studs

Visual inspection is commonly used to identify visible abnormalities.

Potential inspection characteristics include:

• Stud position

• Stud angle

• Visible weld appearance

• Surface contamination

• Thread damage

• Parent metal deformation

• Visible cracking

• Corrosion

Important Limitation

A visually acceptable weld is not necessarily a mechanically acceptable weld.

Visual inspection cannot establish the absence of all internal or subsurface defects.

Dimensional Inspection

Dimensional inspection helps confirm that the installed stud is compatible with the mating assembly.

Potential measurements include:

• Installed stud height

• Stud perpendicularity

• Stud position

• Thread dimensions

• Weld-related dimensional requirements

Production Recommendation

Select measurement methods according to the critical characteristics identified in the approved drawing and process control plan.

Mechanical Testing of Weld Studs

Mechanical testing may be required to validate the welded attachment.

The appropriate test depends on the application, welding process and customer requirements.

Pull-Off Testing

Pull-off testing applies axial loading to evaluate the welded attachment under defined conditions.

It may help identify:

• Weld separation

• Parent material failure

• Stud failure

Important Distinction

The measured result must be interpreted together with the failure location and test setup.

A test does not establish a universal allowable load for every service condition.

Bend Testing

Bend testing may be used for suitable stud welding applications under defined procedures.

It can provide information about attachment integrity.

Important Limitation

Bend testing is not appropriate for every stud geometry or application.

Torque Testing

Torque testing may be used to evaluate specified torsional behavior or threaded assembly characteristics.

Important Distinction

A torque test on the stud attachment does not automatically demonstrate that the mating nut will remain secure under vibration.

Fatigue Testing

Where cyclic loading is important, fatigue validation may be required.

Relevant factors include:

• Load amplitude

• Load direction

• Number of cycles

• Joint stiffness

• Weld geometry

• Parent material behavior

Engineering Recommendation

Use a test program representative of the actual application.

Information Gain: Failure Location Is as Important as Maximum Test Load

During mechanical testing, failure may occur in:

• The stud body

• The thread

• The weld interface

• The parent metal

Each failure location indicates a different design or process limitation.

Engineering Recommendation

Record both the measured result and the failure mode when evaluating welded stud performance.

Non-Destructive Inspection

Non-destructive testing may be considered for specific weld configurations.

However, method suitability depends on:

• Weld geometry

• Material

• Defect type

• Inspection accessibility

• Required detection capability

Important Limitation

No single non-destructive method can reliably identify every possible defect in every stud weld.

Engineering Recommendation

Define inspection methods and acceptance criteria according to the qualified application.

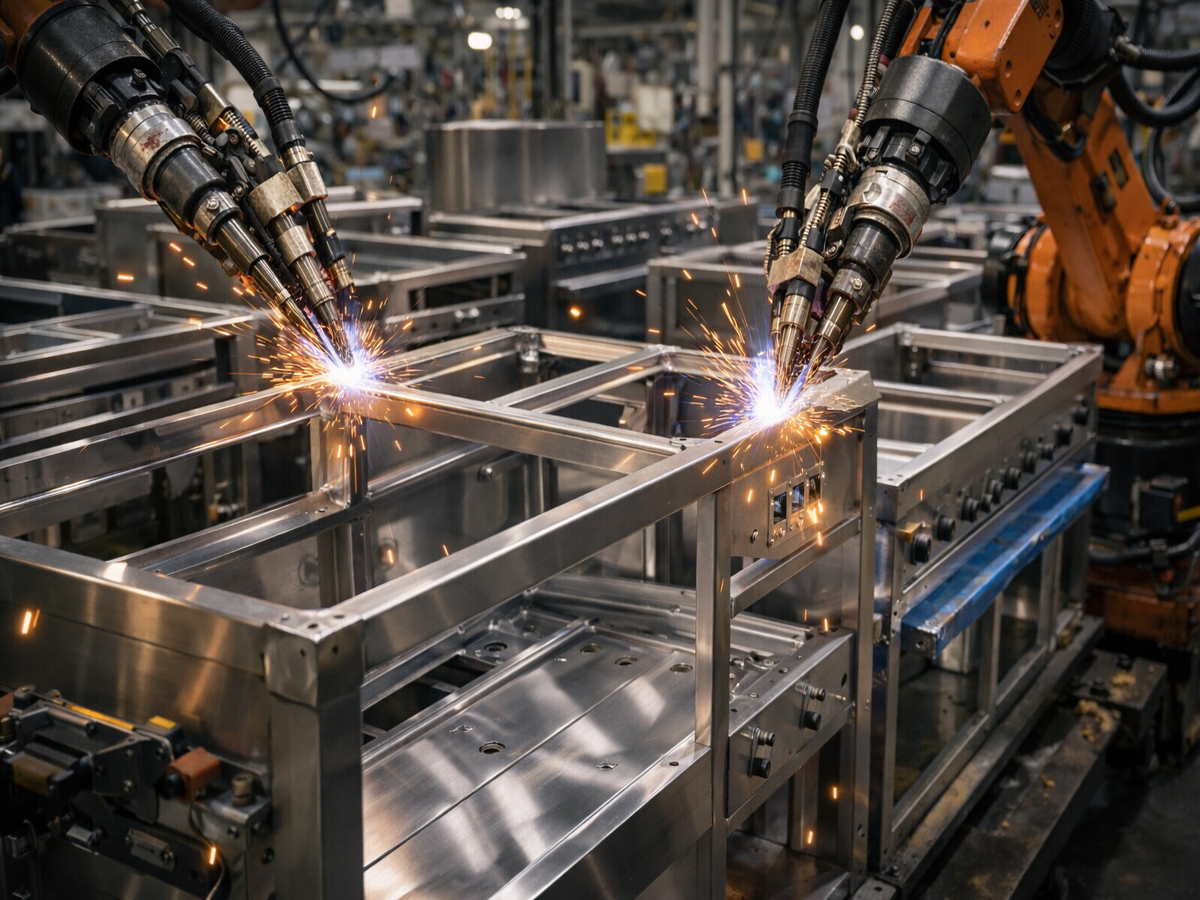

Automated Stud Welding Quality Control

Automated welding systems may support repeatable installation in high-volume industrial manufacturing.

Potential process features include:

• Automated stud feeding

• Controlled positioning

• Welding parameter monitoring

• Process alarms

• In-line inspection

• Production traceability

Production Manager's Priorities

• Welding cycle time

• Feeding reliability

• Positioning consistency

• Weld acceptance rate

• Rework

• Scrap

• Equipment uptime

• Inspection workload

• Tooling maintenance

Information Gain: Process Monitoring Is Not the Same as Weld Verification

A welding controller may record acceptable process parameters while an individual weld still contains an unacceptable defect.

Engineering Recommendation

Use process monitoring together with an appropriate inspection and validation strategy.

Corrosion Testing and Environmental Validation

Corrosion performance is particularly important for outdoor machinery, food processing equipment and industrial environments exposed to moisture or chemicals.

Potential evaluation methods include:

• Salt spray testing

• Cyclic corrosion testing

• Humidity testing

• Application-specific exposure testing

ISO 9227

ISO 9227 describes salt spray test methods.

Important Limitation

Salt spray test duration cannot automatically be converted into real-world service life.

Stainless Steel Corrosion Evaluation

Relevant considerations include:

• Stainless steel grade

• Surface contamination

• Weld heat effects

• Parent material compatibility

• Cleaning chemicals

• Chloride exposure

Coated Carbon Steel Corrosion Evaluation

Relevant considerations include:

• Coating type

• Coating thickness

• Weld-area coverage

• Surface preparation

• Post-weld repair

• Exposure environment

Galvanic Corrosion

Dissimilar-metal assemblies may experience galvanic corrosion in the presence of an electrolyte.

Potential combinations include:

• Stainless steel studs and carbon steel panels

• Stainless steel studs and aluminum components

• Different mating nut materials

• Coated and uncoated metal surfaces

Engineering Recommendation

Evaluate the complete assembly and exposure conditions.

Weld Stud Quality Control Plan for OEM Production

A practical quality plan should define:

Information Gain: Welding Qualification Must Address Changes

A previously validated process may require reassessment when significant changes occur.

Examples include:

• Stud material changes

• Parent material changes

• Welding-end geometry changes

• Coating changes

• Welding equipment changes

• Process parameter changes

• Production location changes

Engineering Recommendation

Establish change-control rules before mass production.

Vibration Resistance and Mating Nut Security

Welded studs are permanently attached to the parent material through welding.

However, the mating nut remains a separate threaded connection.

Potential Loosening Factors

• Inadequate preload

• Joint movement

• Vibration

• Thermal cycling

• Settlement

• Incorrect locking method

Potential Countermeasures

Depending on the application:

• Controlled tightening

• Suitable prevailing-torque nuts

• Compatible thread-locking methods

• Qualified joint design

Important Limitation

A welded stud does not automatically prevent the mating nut from loosening.

Industrial Weld Stud Failure Analysis

Total Cost of Weld Stud Quality

The cost of a weld stud includes more than the purchase price.

Potential cost elements include:

• Stud unit cost

• Welding installation

• Equipment setup

• Inspection

• Testing

• Scrap

• Rework

• Production downtime

• Maintenance

• Replacement

Cost per Accepted Assembly

A practical manufacturing comparison can use:

Cost per Accepted Assembly = Total Relevant Production, Inspection, Scrap and Rework Costs ÷ Number of Accepted Assemblies

This allows production managers and procurement teams to compare alternative fastener designs or welding processes using actual manufacturing data.

Engineering Recommendation

Compare the cost of acceptable installed fastening points, not only the purchase price of loose studs.

Industrial Machinery Quality Requirements by Application

International Standards and Technical References

Applicable standards depend on the actual product, material and welding process.

ISO 14555

Arc stud welding of metallic materials, where applicable.

ISO 13918

Studs and ceramic ferrules for arc stud welding, where applicable.

ISO 261

General-purpose metric screw thread plan.

ISO 965 Series

Metric screw thread tolerances.

ASME B1.1

Unified inch screw threads.

ISO 9227

Salt spray testing where specified.

Important Standards Limitation

Compliance with an individual fastener or welding standard does not automatically qualify a completed industrial machinery assembly.

Customer-specific engineering validation may still be required.

Metric and Inch Thread Selection

Industrial weld studs may use metric or unified inch threads.

For nominal diameter reference only:

• M5 ≈ 0.197 inch

• M6 ≈ 0.236 inch

• M8 ≈ 0.315 inch

• M10 ≈ 0.394 inch

These conversions are dimensional references only.

Metric, UNC, UNF, BSW and BSF threads are not directly interchangeable.

OEM Weld Stud Supplier Qualification

Procurement and supplier development teams should evaluate both technical and commercial requirements.

Product Qualification

• Approved drawing

• Material specification

• Thread dimensions

• Welding-end geometry

• Surface condition

• Mechanical requirements

Quality Qualification

• Dimensional inspection

• Material documentation

• Customer-defined test requirements

• Traceability

• Change control

Manufacturing Compatibility

• Welding method

• Parent material

• Automated feeding compatibility

• Process validation

• Packaging

Commercial Evaluation

• Prototype availability

• Annual forecast

• MOQ

• Lead time

• Pricing

• Long-term supply requirements

Important Procurement Distinction

A supplier's fastener quality approval does not automatically qualify the customer's welding process.

Both must be evaluated within their respective responsibilities.

OEM RFQ Checklist for Industrial Weld Studs

Frequently Asked Questions

What is the most important weld stud quality requirement?

The critical requirement depends on the application. Weld integrity, parent material capacity, dimensional accuracy and threaded joint performance may all be important.

Can visual inspection prove a weld stud is strong enough?

No. Visual inspection alone cannot establish mechanical strength.

Does a high-strength weld stud guarantee a strong weld?

No. Weld performance depends on the complete welding process and parent material.

What is the difference between pull-off and torque testing?

Pull-off testing evaluates axial attachment behavior under defined conditions. Torque testing evaluates specified torsional or assembly characteristics.

Can non-destructive testing detect every stud welding defect?

No. Detection capability depends on the inspection method and weld geometry.

Do welded studs resist vibration loosening?

The welded attachment and mating threaded joint must be evaluated separately.

Can galvanized weld studs be welded directly?

Only when the coating and welding procedure are compatible and qualified.

Why is stud welding-end geometry important?

It can influence electrical contact, weld formation and process repeatability.

What should production managers monitor during automated stud welding?

Relevant indicators include cycle time, feeding reliability, process variation, weld acceptance, scrap, rework and equipment uptime.

What documents should an OEM buyer request from a weld stud supplier?

Requirements may include drawings, material documentation, dimensional reports, specified test results, traceability and change-control information.

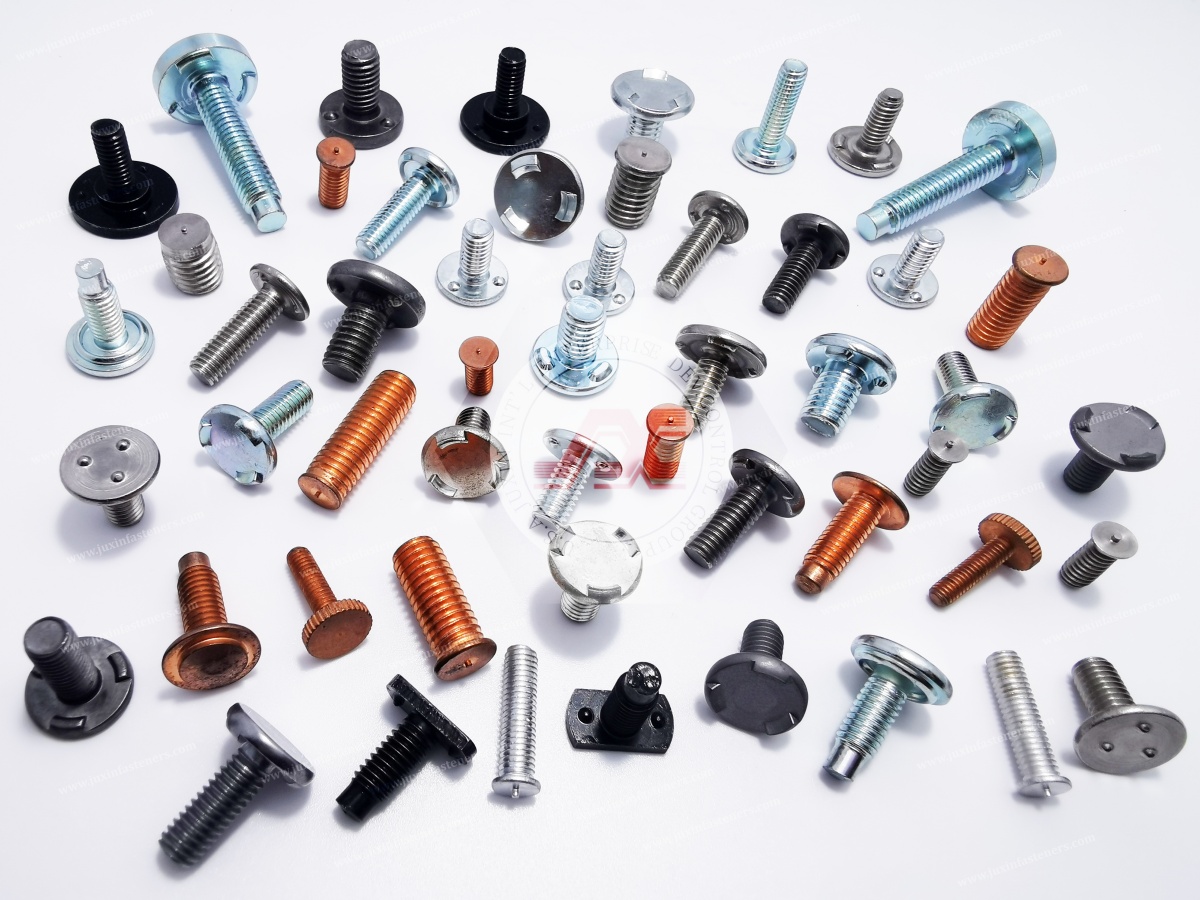

Juxin Fasteners: Industrial Weld Studs and Custom OEM Fastening Components

Juxin Fasteners welcomes inquiries for standard and drawing-specific threaded weld studs used in industrial equipment.

Relevant product categories include:

• Stainless steel threaded weld studs

• Carbon steel threaded weld studs

• Corrosion-protected industrial weld studs

• Custom threaded welding fasteners

• Industrial machinery fastening components

Specific materials, mechanical properties, dimensions, coatings, inspection documentation,

 MOQ and delivery schedules require confirmation against customer drawings and specifications.

Request an OEM Industrial Weld Stud Quotation

Are you developing industrial machinery, qualifying a new threaded weld stud, reviewing welding defects or sourcing fasteners for automated production?

Juxin Fasteners welcomes drawing-based inquiries from:

• Mechanical and structural engineers

• Manufacturing engineers

• Production managers

• Purchasing and procurement specialists

• Procurement managers

• Supplier development teams

• Supply chain managers

Please provide:

Stud drawing + thread designation + material + welding-end geometry + parent material and thickness + welding method

+ surface treatment + corrosion environment + mechanical requirements + inspection requirements + prototype quantity + annual forecast + packaging + delivery schedule.

Our team can review the supplied information and confirm available product options, manufacturing feasibility and quotation conditions.

Company: Juxin Fasteners

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Send your industrial weld stud drawings and OEM RFQ to Juxin Fasteners for technical confirmation and quotation.
