Electrical distribution boxes, control cabinets and industrial electrical enclosures contain multiple fastening locations with different mechanical and assembly requirements.

A screw used to secure a small control module does not necessarily have the same design requirements as a screw used to retain a mounting plate,

attach a structural bracket or secure a removable enclosure cover.

Selecting the correct electrical distribution box screws requires more than matching the nominal thread diameter.

Engineers must evaluate the joint geometry, mating material, thread engagement, installation access, service environment and required mechanical performance.

Manufacturing engineers and production managers must consider assembly repeatability, screw feeding, tightening control and the risk of damaged threads or incorrectly installed components.

Procurement teams must identify suitable standard products, verify drawing requirements and qualify suppliers for consistent OEM production.

JUXIN FASTENERS supplies industrial machine screws, stainless steel fasteners and drawing-based threaded components for electrical equipment manufacturers.

This guide explains practical screw selection for distribution boxes, control panels, electrical cabinets and related industrial enclosures.

Why Electrical Distribution Box Screw Selection Matters

A typical electrical enclosure may contain several fastening interfaces:

• Enclosure cover to housing

• Internal mounting plate to cabinet frame

• Electrical module to mounting bracket

• Terminal support to structural panel

• Hinges and accessory brackets

• Cable-management hardware

• Serviceable access panels

Each interface has different requirements.

Engineering Considerations

• Required clamping force

• Joint stiffness

• Thread engagement

• Mating material

• Sheet thickness

• Installation frequency

• Corrosion exposure

• Electrical function where applicable

Important Engineering Principle

A screw suitable for one fastening location should not automatically be used throughout the cabinet.

M3–M10 Screws for Electrical Distribution Boxes

Metric machine screws are commonly specified for industrial electrical equipment.

Relevant nominal sizes may include:

• M3

• M4

• M5

• M6

• M8

• M10

The correct size depends on the actual design.

Important Distinction

Nominal diameter does not independently determine the permissible load or tightening torque.

Mechanical properties, engagement, joint geometry and mating materials must also be evaluated.

M3 Screws for Compact Electrical Components

M3 screws may be used for selected compact mounting applications.

Potential applications include:

• Small electronic modules

• PCB support hardware

• Lightweight brackets

• Instrumentation components

Engineering Considerations

• Available installation space

• Mating thread strength

• Component sensitivity

• Tool access

• Risk of overtightening

Important Limitation

PCB mounting screws should not automatically be used as current-carrying electrical connection fasteners.

Electrical connection hardware requires its own design and verification.

M4 Screws for Control Panels and Internal Assemblies

M4 screws are frequently considered for moderate-size electrical equipment connections.

Potential applications include:

• Mounting brackets

• Control modules

• Panel hardware

• Equipment support components

Common Design Options

• Cross-recessed pan head screws

• Hexagon socket screws

• Button head screws

• Customer-specific head designs

Engineering Recommendation

Choose the head and drive system according to assembly access and the required installation process.

M5 Screws for Mounting Plates and Brackets

M5 screws may be used for selected mounting plate and structural attachment applications.

Potential applications include:

• Internal mounting plates

• Cabinet support brackets

• Equipment mounting features

• Sheet metal subassemblies

Engineering Considerations

• Panel thickness

• Hole clearance

• Bearing surface

• Thread engagement

• Required tightening control

Wide-Bearing-Head Designs

A wider screw head or suitable washer may help distribute contact pressure.

Important Limitation

A larger bearing surface does not automatically eliminate sheet metal deformation.

The joint must be evaluated under the actual load and tightening conditions.

M6 Screws for Larger Cabinet Assemblies

M6 screws may be used for selected larger enclosure and equipment mounting connections.

Potential applications include:

• Cabinet structural brackets

• Equipment mounting plates

• Enclosure accessories

• Serviceable mechanical connections

Engineering Considerations

• Joint loading

• Material strength

• Installation access

• Thread engagement

• Tightening procedure

Important Recommendation

Do not specify M6 solely because the cabinet is described as heavy-duty.

M8 and M10 Screws for Structural Cabinet Connections

Larger metric screws may be required for certain equipment mounting or structural connections.

Potential applications include:

• Cabinet support structures

• Heavy mounting brackets

• Equipment frames

• Industrial electrical assemblies

Important Distinction

These applications are different from concrete anchoring.

A machine screw used in a steel connection should not be confused with a mechanical expansion anchor used in concrete.

Metric Screw Selection Overview

These examples are not load ratings or universal size recommendations.

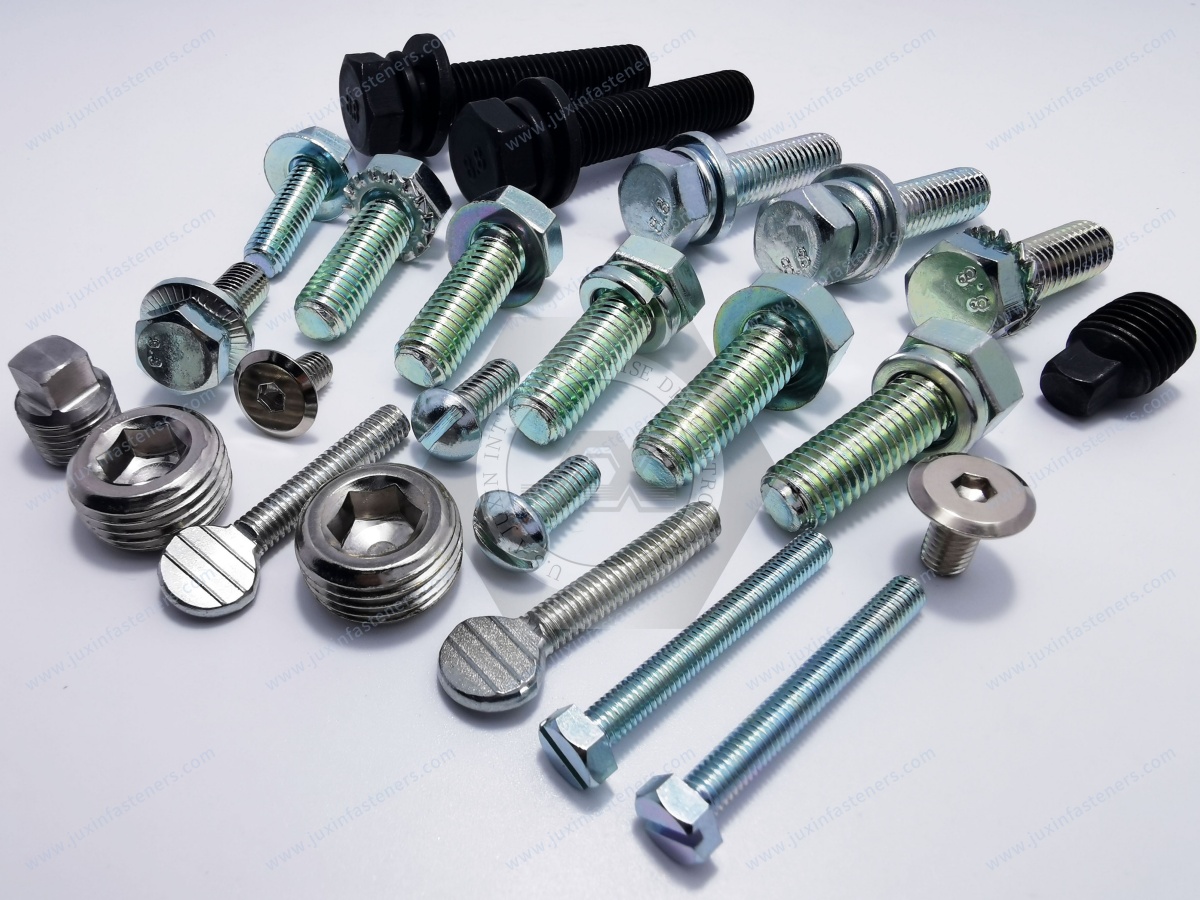

Screw Head Types for Electrical Distribution Boxes

The screw head influences tool access, installation speed, bearing contact and serviceability.

Cross-Recessed Pan Head Screws

Cross-recessed pan head screws are widely used in electrical and industrial equipment.

ISO 7045 is a relevant standard for certain cross-recessed pan head screws.

Potential Advantages

• Familiar assembly tooling

• Compact head geometry

• Suitability for many general equipment connections

Engineering Considerations

• Drive recess type

• Tool compatibility

• Required torque

• Risk of recess damage

Important Distinction

Not every cross-recessed screw is geometrically identical.

The applicable standard and recess type must be confirmed.

JIS-Style Pan Head Screws

Japanese equipment may use screw designs associated with JIS standards.

Some Japanese cross-recessed screw designs and tooling conventions differ from other commonly encountered systems.

Engineering Recommendation

For replacement or second-source supply, verify the original standard, recess geometry and dimensions rather than relying only on the commercial term "JIS screw."

Hexagon Socket Head Cap Screws

ISO 4762 is a relevant dimensional standard for metric hexagon socket head cap screws.

These screws may be considered where suitable tool access and mechanical performance are required.

Engineering Considerations

• Head height

• Counterbore dimensions

• Hexagon socket engagement

• Material property class

• Joint geometry

Button Head Hexagon Socket Screws

ISO 7380-1 covers certain hexagon socket button head screws.

Button head screws may be useful where a lower-profile head is desired.

Important Engineering Limitation

Button head screws should not automatically be assumed to support the same tightening torque or mechanical loading as standard socket head cap screws.

The actual product properties and joint requirements govern selection.

Wide-Bearing-Head and Truss-Head Screws

Wide-bearing-head designs may be used where the assembly benefits from a larger contact area.

Potential applications include:

• Thin sheet metal panels

• Enclosure covers

• Mounting brackets

Engineering Recommendation

Verify head dimensions, bearing surface and the suitability of the mating material.

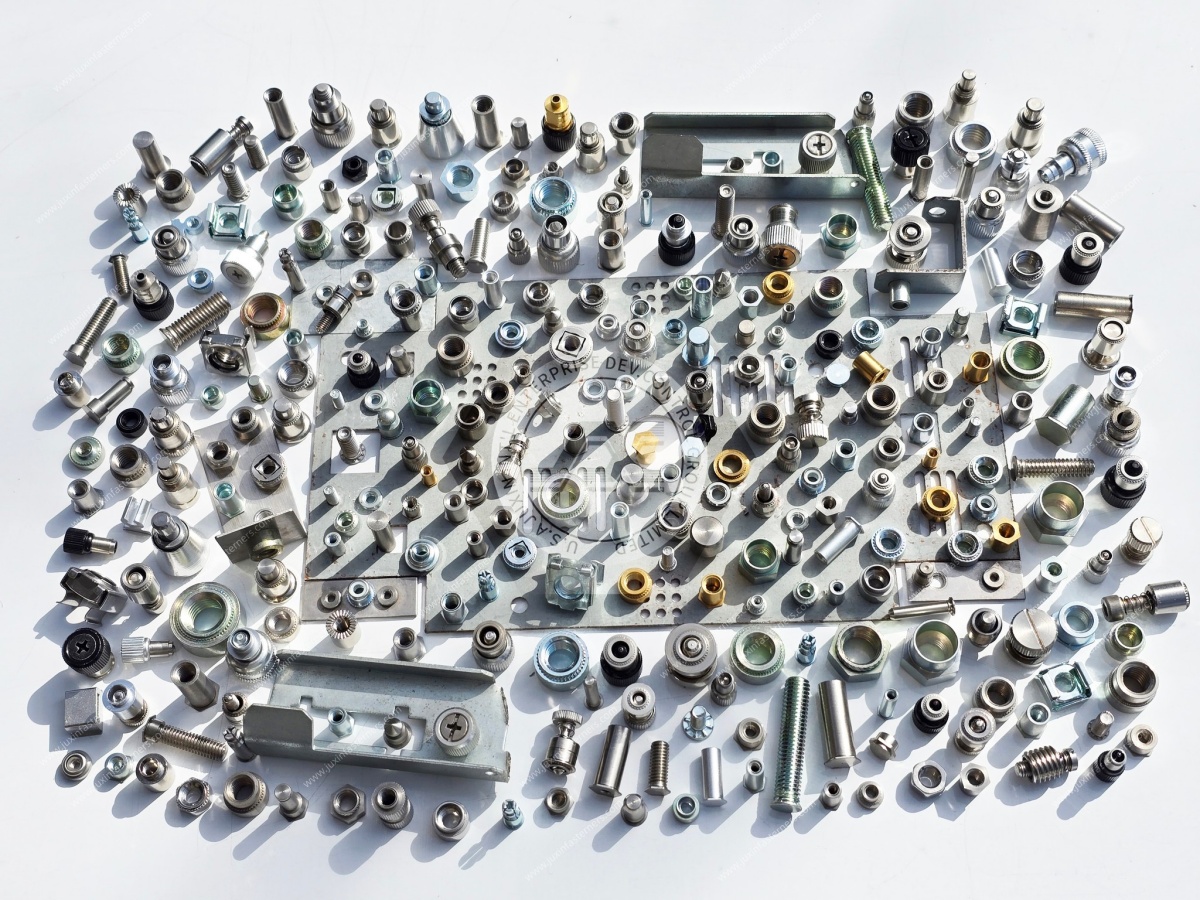

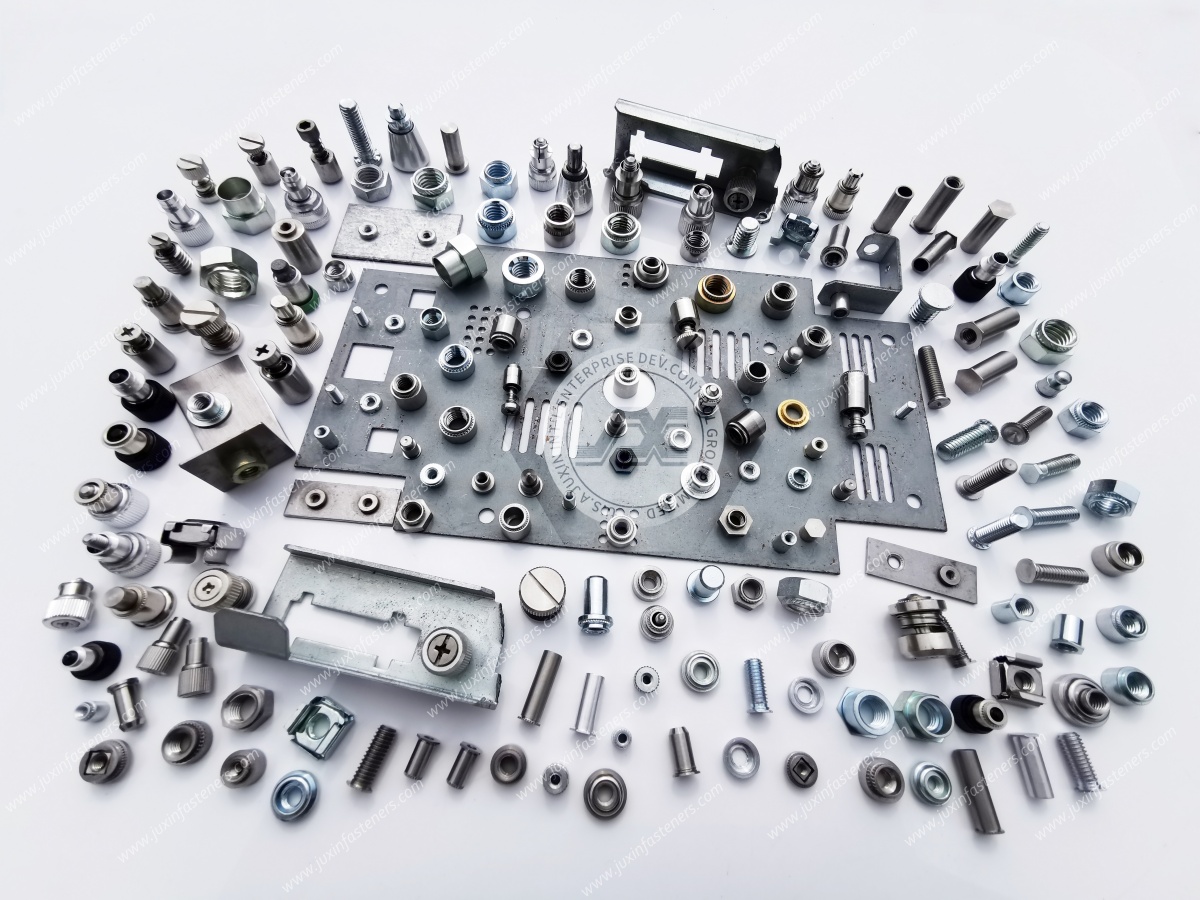

Thin Sheet Metal Connections

Electrical cabinets frequently use formed sheet metal components.

Thin sheet metal creates fastening challenges because the available material thickness may be insufficient for reliable direct thread engagement.

Potential Fastening Methods

• Weld nuts

• Self-clinching nuts

• Blind rivet nuts

• Cage nuts

• Clip-on nuts

• Threaded inserts where appropriate

JUXIN FASTENERS supplies multiple industrial threaded fastening component families for OEM sheet metal applications.

Engineering Selection Logic

Weld Nuts

May be suitable where the workpiece and production process permit welding.

Self-Clinching Nuts

May be suitable for compatible ductile sheet materials and properly prepared mounting holes.

Blind Rivet Nuts

May be considered where installation access is available from only one side.

Cage Nuts

May be suitable for certain equipment rack and panel arrangements.

Clip-On Nuts

May be useful for selected sheet edges or panel mounting arrangements.

Important Engineering Distinction

These products are not automatically interchangeable.

Each requires its own hole geometry, sheet thickness range and installation method.

Thread Engagement in Electrical Cabinet Assemblies

Thread engagement affects the strength and reliability of a threaded connection.

Relevant factors include:

• Screw diameter

• Thread pitch

• Mating material

• Internal thread strength

• Available engagement length

• Applied loading

Thin Sheet Metal

Direct tapping may provide insufficient engagement for some applications.

Thicker Components

Tapped holes may be suitable when adequate thread strength and engagement are available.

Engineering Recommendation

Evaluate the mating internal thread and supporting material rather than considering screw strength alone.

Screw Length Selection

Screw length must accommodate the complete joint.

Relevant dimensions include:

• Component thickness

• Washer thickness where applicable

• Required thread engagement

• Available clearance

• Blind-hole depth

Important Failure Risk

A screw may bottom out in a blind hole before achieving the intended clamping condition.

Engineering Recommendation

Verify screw length against the complete tolerance stack-up.

Stainless Steel Screws for Electrical Enclosures

Stainless steel fasteners may be selected for corrosion-exposed electrical equipment.

Common fastener material groups include A2 and A4.

ISO 3506 provides relevant mechanical property requirements for applicable corrosion-resistant stainless steel fasteners.

A2 Stainless Steel Screws

May be suitable for selected general industrial and moderately corrosive environments.

A4 Stainless Steel Screws

May be considered where greater resistance to certain corrosive environments is required.

Important Material Distinction

A4 stainless steel does not provide universal resistance to all chemicals or chloride environments.

Engineering Recommendation

Specify the required stainless steel fastener grade and mechanical property class.

Carbon Steel and Alloy Steel Screws

Carbon steel and alloy steel fasteners may be selected where appropriate mechanical properties and corrosion protection are required.

Relevant specifications may include ISO 898-1 for applicable carbon steel and alloy steel bolts, screws and studs.

Potential Applications

• Indoor control cabinets

• Machinery enclosures

• Equipment brackets

• Industrial mounting structures

Important Engineering Distinction

Material strength and corrosion resistance are separate selection factors.

Brass Screws

Brass screws may be used in selected electrical equipment applications.

However, electrical conductivity alone does not establish suitability for a current-carrying terminal connection.

Engineering Recommendation

Evaluate the actual electrical and mechanical requirements before specifying brass fastening components.

Surface Treatments for Electrical Cabinet Screws

Zinc-Plated Carbon Steel Screws

May provide economical corrosion protection for suitable environments.

Engineering Considerations

• Coating thickness

• Thread fit

• Corrosion exposure

• Appearance requirements

• Applicable product specification

Passivated Stainless Steel Screws

Passivation may be specified to improve the condition of the stainless steel surface.

ASTM A967/A967M is relevant to certain chemical passivation treatments for stainless steel parts.

Important Limitation

Passivation does not convert an unsuitable stainless steel grade into a universally corrosion-resistant material.

Black Oxide Screws

Black oxide may be selected for appearance or certain controlled-use conditions.

Important Limitation

Black oxide alone generally provides limited corrosion protection compared with more protective coating systems.

PTFE-Coated Screws

PTFE-based coatings may be considered for specific friction or surface-performance requirements.

Engineering Considerations

• Coating thickness

• Thread fit

• Friction characteristics

• Tightening behavior

• Environmental exposure

Important Limitation

A PTFE coating does not automatically provide thread locking or vibration resistance.

Engineering Recommendation

Coated fasteners require application-specific verification.

Stainless Steel Thread Galling

Stainless steel screws can experience thread galling during assembly.

Potential contributing factors include:

• Material pairing

• Thread condition

• Installation speed

• Surface condition

• Lubrication

• Contact pressure

Production Recommendation

Evaluate assembly tooling and approved lubrication or coating requirements where galling is a concern.

Corrosion Between Dissimilar Metals

Electrical enclosures may combine:

• Stainless steel screws

• Aluminum housings

• Carbon steel brackets

• Zinc-coated panels

Dissimilar material combinations can create galvanic corrosion concerns in suitable environmental conditions.

Engineering Recommendation

Evaluate the complete material combination and exposure conditions.

Protective Grounding and Electrical Bonding

Electrical equipment may require protective bonding connections.

Important Technical Distinction

A general-purpose enclosure screw should not automatically be treated as an approved protective earth connection.

Grounding hardware may require specific:

• Contact geometry

• Surface preparation

• Terminal design

• Fastening arrangement

• Electrical continuity verification

Engineering Recommendation

Use the equipment manufacturer's approved protective bonding design.

Vibration and Screw Loosening

Electrical cabinets installed near machinery may experience vibration.

Potential concerns include:

• Preload loss

• Screw loosening

• Fatigue

• Component movement

• Electrical connection damage

Engineering Considerations

• Joint stiffness

• Tightening preload

• Service loading

• Thread engagement

• Approved locking method

Important Distinction

A screw with a higher material strength class does not automatically resist loosening better.

Assembly Torque and Production Control

Tightening torque affects the assembled joint.

Relevant factors include:

• Screw size

• Material

• Thread condition

• Coating

• Friction

• Mating material

• Required preload

Important Engineering Principle

There is no universal tightening torque that applies to every M4 or M6 electrical cabinet screw.

Production Recommendation

Use the equipment manufacturer's approved tightening specification.

Automated Screwdriving

Automated screwdriving may improve production efficiency when the fastening design and equipment are compatible.

Engineering Considerations

• Screw head and recess consistency

• Fastener feeding

• Tool alignment

• Thread-start behavior

• Torque monitoring

• Access clearance

Common Production Risks

• Cross-threading

• Screw misfeeding

• Recess damage

• Incorrect screw length

• Missing fasteners

• Incomplete tightening

Production Manager Recommendation

Evaluate the complete installation cycle rather than only the fastener unit price.

Electrical Cabinet Manufacturing Applications

Potential fastening locations include:

• Cabinet covers

• Mounting plates

• Internal brackets

• Equipment support structures

• Access panels

Engineering Recommendation

Separate mechanical fastening requirements from electrical connection requirements.

Industrial Automation Applications

Potential equipment includes:

• PLC cabinets

• Robotic control panels

• Machine control enclosures

• Automation system housings

Engineering Considerations

• Assembly repeatability

• Service access

• Vibration

• Component replacement

Power Distribution Applications

Potential equipment includes:

• Distribution boards

• Switchgear cabinets

• Electrical control systems

• Power management enclosures

Engineering Considerations

• Mechanical stability

• Approved electrical design

• Maintenance requirements

• Fastener identification

Renewable Energy Applications

Potential equipment includes:

• Solar inverter cabinets

• Energy storage control boxes

• Power conversion equipment

Engineering Considerations

• Corrosion exposure

• Temperature variation

• Service access

• Long-term maintenance

HVAC and Building Equipment

Potential applications include:

• HVAC control boxes

• Building automation panels

• Equipment enclosures

Engineering Considerations

• Sheet metal thickness

• Mounting method

• Assembly efficiency

• Environmental exposure

Marine and Outdoor Electrical Equipment

Potential applications include:

• Coastal electrical enclosures

• Marine control equipment

• Outdoor distribution cabinets

Engineering Considerations

• Chloride exposure

• Material compatibility

• Coating performance

• Maintenance access

Important Limitation

316 stainless steel should not be described as universally suitable for every marine installation.

Common Electrical Enclosure Screw Failures

OEM Drawing Requirements

For accurate quotation and manufacturing review, drawings should identify:

• Thread designation

• Screw diameter

• Screw length

• Head type

• Drive recess

• Material

• Mechanical property class

• Surface treatment

• Dimensional tolerances

• Inspection requirements

Metric and Inch Thread Specifications

Metric screws may reference applicable ISO metric thread standards.

Unified inch threads may reference ASME B1.1.

Important Compatibility Rule

Metric, UNC, UNF, BSW and BSF thread systems must not be treated as directly interchangeable.

Supplier Qualification and Second-Source Development

Procurement teams should evaluate more than nominal screw size.

Technical Review

• Approved drawing

• Applicable standard

• Material specification

• Mechanical properties

• Thread tolerance

• Coating

• Inspection requirements

Commercial Review

• MOQ

• Annual purchasing volume

• Lead time

• Packaging

• Sample requirements

• Delivery schedule

Second-Source Qualification

A replacement screw may differ in:

• Head geometry

• Recess dimensions

• Material grade

• Coating thickness

• Thread tolerance

• Mechanical properties

Important Procurement Principle

A screw that fits the hole is not automatically an approved replacement.

Frequently Asked Questions

What screw sizes are commonly used in electrical distribution boxes?

M3, M4, M5, M6 and larger sizes may be used depending on the equipment design. The correct size must be selected according to the actual joint requirements.

Are M3 screws suitable for electrical terminal connections?

Only where the electrical connection design and applicable component specifications permit their use.

Which screws are suitable for stainless steel electrical cabinets?

Suitable stainless steel or other specified fasteners may be considered after evaluating mechanical properties, corrosion exposure and thread compatibility.

Can M4 screws replace M5 screws?

Not directly. They have different thread dimensions and mechanical characteristics.

Are JIS and ISO cross-recessed screws interchangeable?

Not automatically. The applicable standard, recess geometry and dimensions must be checked.

Are button head screws stronger than socket head cap screws?

Not necessarily. Mechanical performance depends on the actual screw specification and design.

Does PTFE coating prevent screws from loosening?

No. PTFE coating does not automatically provide thread-locking performance.

Can a cabinet screw serve as a grounding screw?

Only when the complete connection has been designed and verified for the required protective bonding function.

What information should be included in an OEM screw RFQ?

The drawing, thread specification, head and drive design, material, coating, required quantity and inspection requirements.

Can a supplier provide custom electrical cabinet screws?

Drawing-based custom screws may be considered after confirming manufacturing feasibility and the project requirements.

JUXIN FASTENERS: Electrical Distribution Box Screws and OEM Fastening Components

JUXIN FASTENERS supplies industrial threaded fasteners and drawing-based fastening components for electrical equipment manufacturers.

Relevant product families include:

• Cross-recessed pan head screws

• Hexagon socket head cap screws

• Button head screws

• Stainless steel machine screws

• Carbon steel and alloy steel screws

• Custom threaded fastening components

• Weld nuts

• Self-clinching nuts

• Blind rivet nuts

• Cage nuts

• Clip-on nuts

These components can support different fastening arrangements within industrial electrical equipment.

Product selection and availability should be confirmed against the customer's drawings and specifications.

Request Electrical Distribution Box Screw Samples and OEM RFQ

Are you sourcing M3–M10 screws, stainless steel enclosure fasteners, pan head screws, socket head screws or custom threaded components for electrical equipment production?

JUXIN FASTENERS welcomes inquiries from electrical equipment OEMs, design engineers, manufacturing engineers, production managers, procurement specialists and supplier-development teams.

For efficient review, provide:

Screw drawing + thread size + head and drive design + material + surface treatment + application details + required quantity + delivery schedule

For sheet metal assemblies, include the panel thickness and mating threaded component requirements.

For recurring production projects, annual purchasing volume and inspection requirements are also helpful.

Company: JUXIN FASTENERS

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Send your electrical distribution box screw drawings and OEM RFQ requirements to JUXIN FASTENERS for technical review and quotation.
