Heavy-Duty Concrete Anchors for Construction, MEP, Infrastructure and Industrial Applications

Wedge Anchors for Concrete

Heavy-Duty Concrete Anchors for Construction, MEP, Infrastructure and Industrial Applications

When engineers, contractors, and purchasing teams need to secure equipment, brackets, safety systems, or steel components to concrete, the anchoring system

must provide reliable mechanical engagement, predictable installation, and appropriate long-term performance.

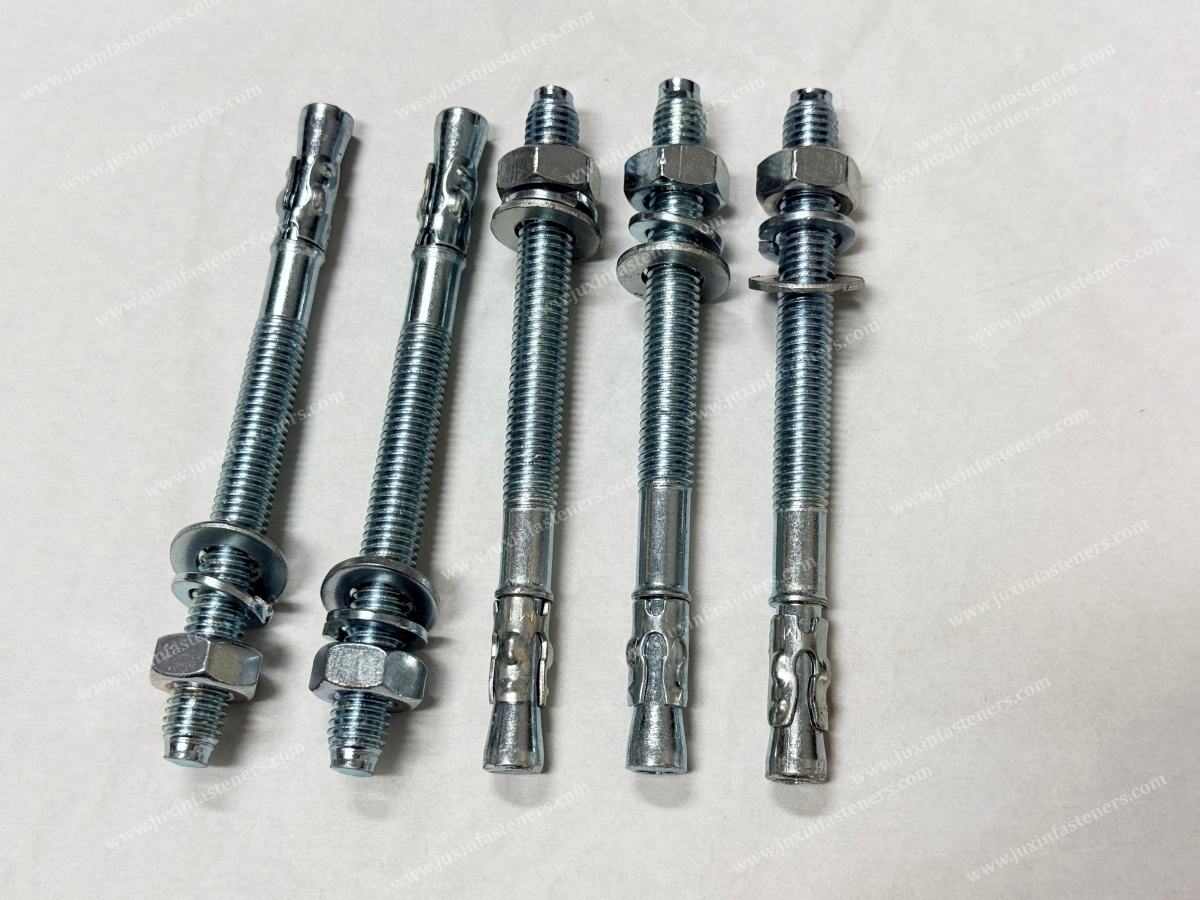

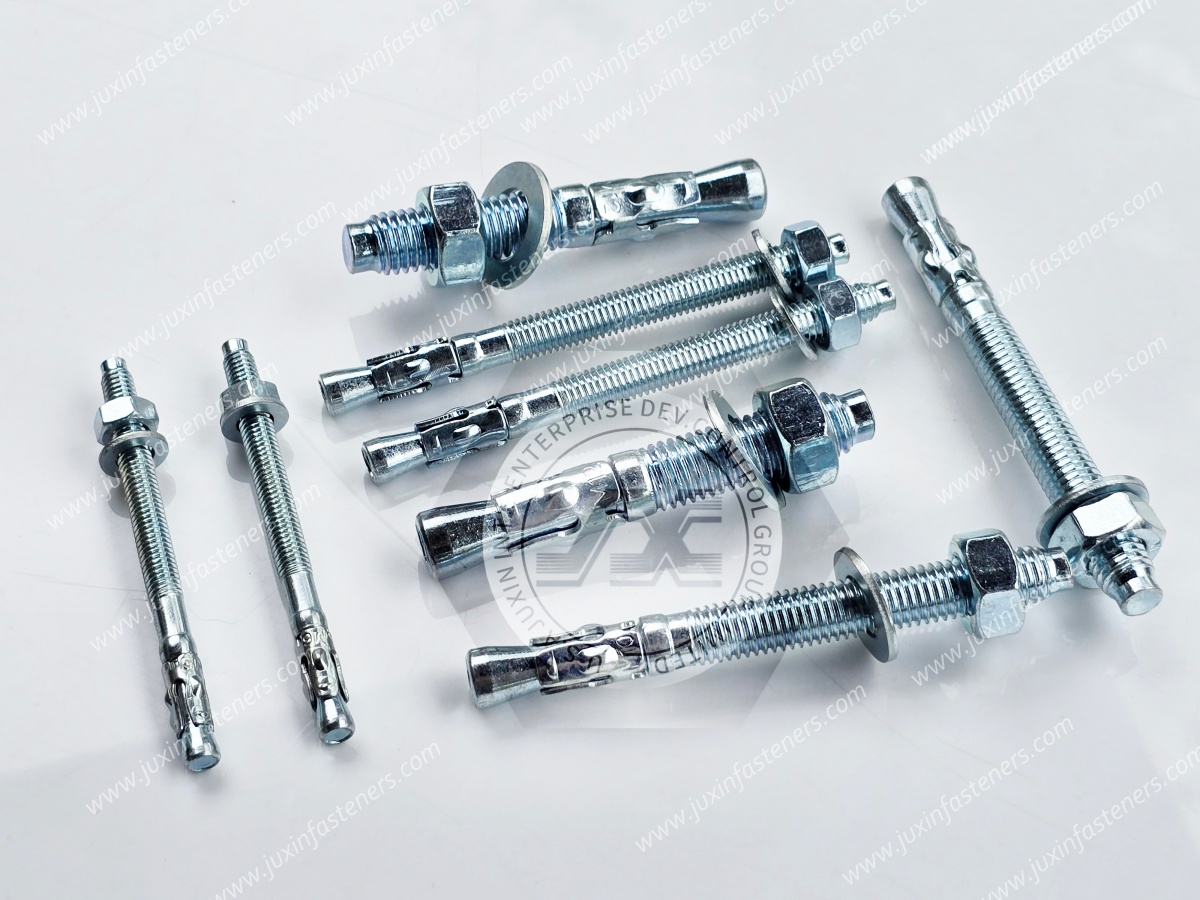

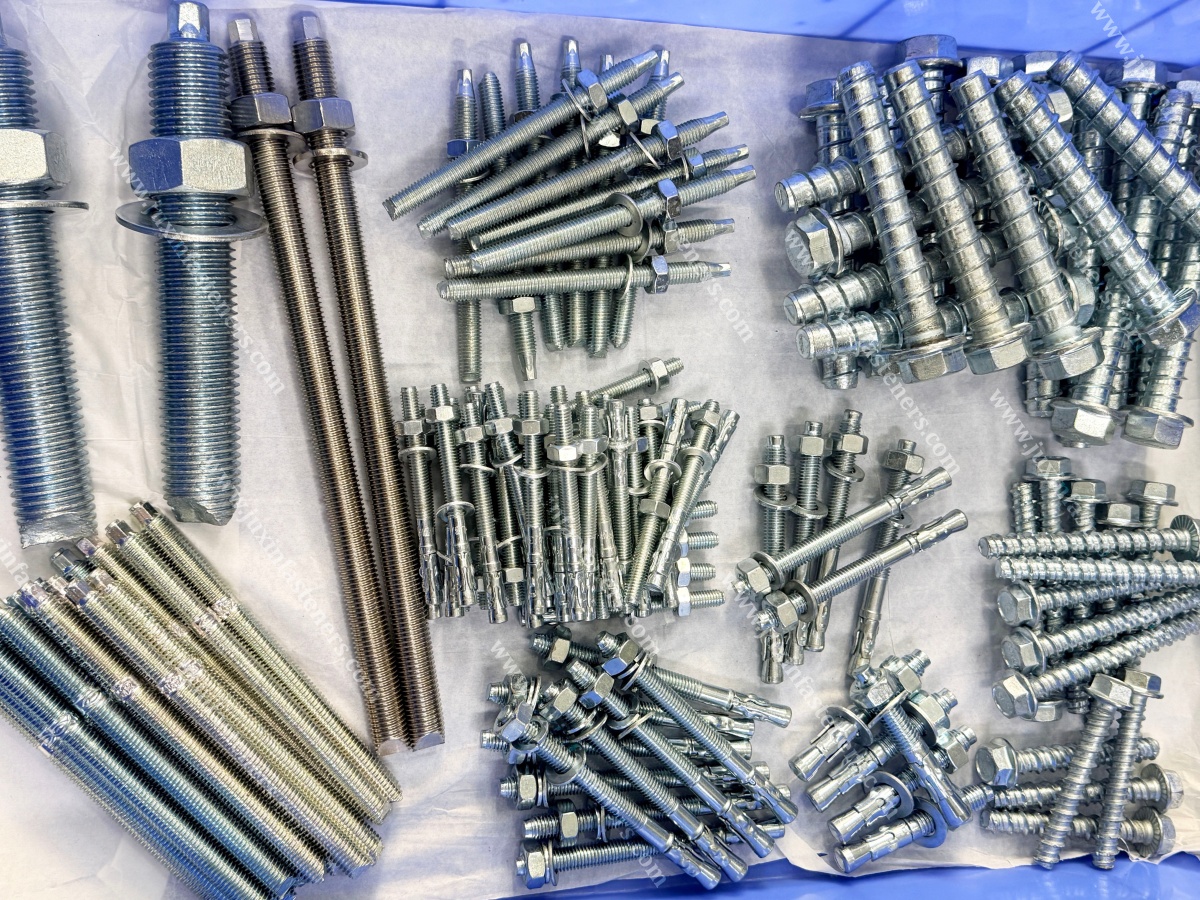

JUXIN FASTENERS Wedge Anchors for Concrete are mechanical expansion anchors designed to fasten fixtures and components to solid concrete.

 The wedge mechanism expands inside the drilled hole as the nut is tightened, creating radial pressure against the concrete and generating mechanical resistance to tensile and shear loading.

Also known as concrete wedge anchors, wedge anchor bolts, concrete expansion anchors, and heavy-duty concrete anchors,

wedge anchors are widely used in construction, industrial facilities, MEP installations, infrastructure, and equipment support applications.

Engineering Note: Anchor capacity is application-specific. Concrete strength, anchor diameter, effective embedment, edge distance, spacing, fixture thickness,

 installation torque, load direction, and environmental conditions all affect performance. For structural or safety-critical applications,

the complete anchoring system should be designed and verified in accordance with applicable project requirements and engineering standards.

What Is a Wedge Anchor?

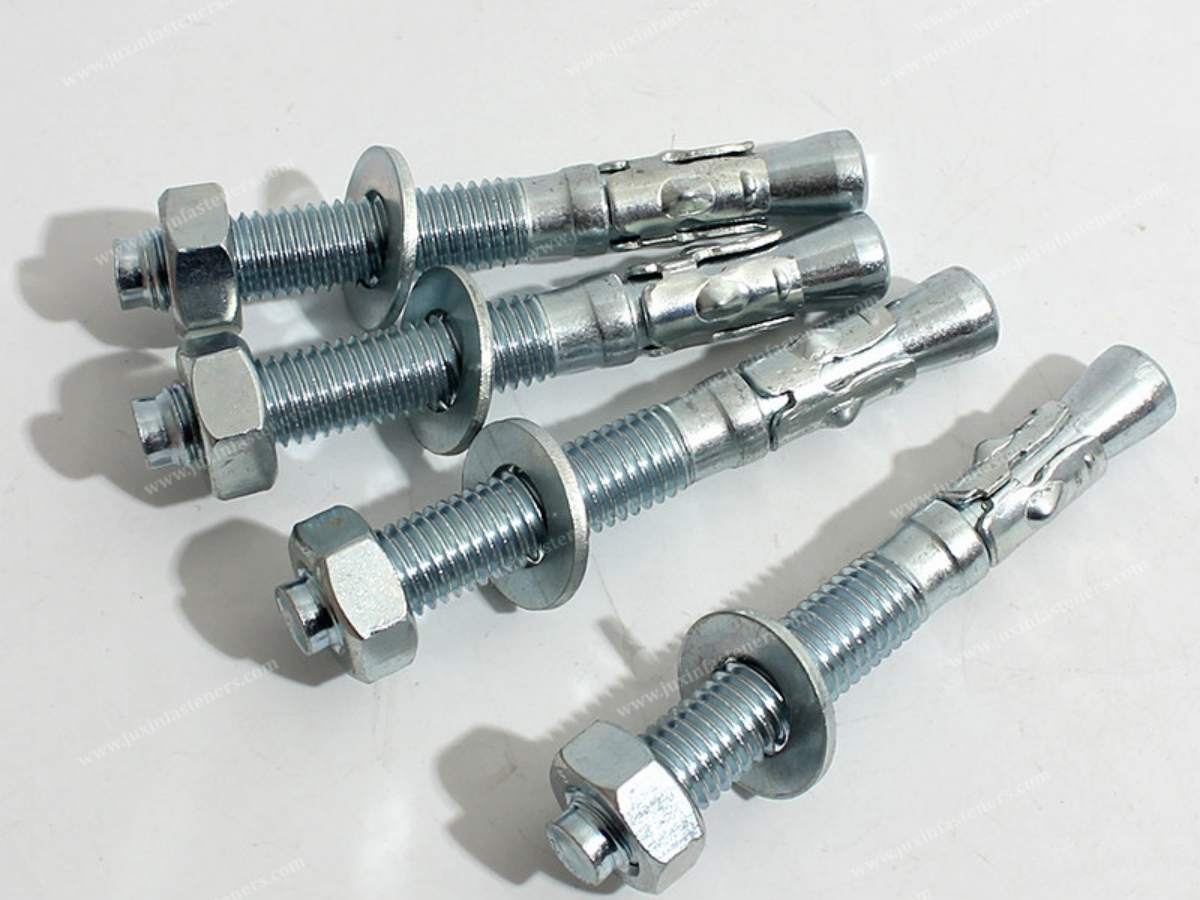

A wedge anchor is a mechanical concrete anchor consisting of a threaded stud, expansion wedge, nut, and washer.

Unlike a concrete tapping screw, which creates mechanical thread engagement directly in the substrate, a wedge anchor develops its primary mechanical

engagement through controlled expansion.

The typical installation sequence is:

Drill → Clean → Insert → Position Fixture → Tighten Nut → Expand Wedge

As the nut is tightened, the threaded stud pulls the expansion wedge into the anchor's expansion section. The wedge expands against the concrete surrounding the drilled hole.

This creates radial contact pressure between the anchor and concrete, allowing the fastening system to resist applied tensile and shear loads when properly designed and installed.

How Wedge Anchors Grip Concrete

The working principle of a concrete wedge anchor is based primarily on mechanical expansion rather than adhesive bonding.

1. Wedge Effect

The anchor incorporates an expansion wedge at the embedded end.

When the nut is tightened, the stud moves relative to the wedge, causing the expansion mechanism to expand.

2. Radial Expansion

The expansion mechanism presses against the concrete surrounding the drilled hole.

This creates mechanical resistance to movement and provides the anchoring action required to secure the fixture.

3. Mechanical Interlock

The expanded anchor develops contact with the internal surface of the concrete hole.

The resulting anchoring performance depends on the concrete condition, anchor geometry, embedment, installation, and loading conditions.

This is fundamentally different from a chemical anchor, which relies on adhesive bonding between the anchor and substrate.

Why Choose Wedge Anchors for Concrete?

Heavy-Duty Mechanical Fastening

Wedge anchors are designed for demanding concrete fastening applications where a mechanical expansion anchor is appropriate.

Depending on the anchor size and engineering conditions, applications can include:

• Safety railings

• Guardrails

• Equipment supports

• Steel brackets

• Base plates

• Mechanical equipment

• Electrical equipment

• Pipe-support systems

• Industrial fixtures

• Infrastructure components

Reliable Installation

Wedge anchors use a straightforward mechanical installation process.

Once the hole is correctly drilled and cleaned, the anchor can be installed through the fixture and tightened using the specified installation torque.

No Chemical Curing

Unlike chemical anchoring systems, standard wedge anchors do not require resin injection or curing time.

This can simplify installation schedules for construction and industrial projects.

Suitable for Permanent Installations

The attached component can normally be removed by loosening the nut.

However, the installed wedge anchor should generally be treated as a permanent anchor rather than a reusable fastener.

Wedge Anchors for Different Concrete Applications

Solid Concrete Floors

Wedge anchors are widely used for fastening components to concrete floors.

Typical applications include:

• Equipment bases

• Steel brackets

• Safety barriers

• Machinery supports

• Storage systems

• Industrial fixtures

For equipment subject to vibration, dynamic loading or impact, the complete connection should be engineered for the actual operating conditions.

Concrete Walls

Wedge anchors can be used for suitable attachments to solid concrete walls, including:

• Electrical cabinets

• Junction boxes

• Mechanical brackets

• Pipe supports

• Cable support systems

• Equipment fixtures

• Building-service components

The anchor size and embedment should be selected based on the required load and substrate conditions.

Safety Railings and Guardrails

Heavy-duty concrete anchors are commonly considered for fastening safety railings, handrails, and protective barriers to concrete.

The complete system should be evaluated, including:

Railing → Base Plate → Anchor → Concrete

The anchor should not be selected solely on its nominal tensile strength. Applied loads, lever arms, concrete breakout, edge distance, spacing,

and installation conditions can all affect the connection.

Steel Brackets and Equipment Supports

Wedge anchors can provide a mechanical connection between suitable steel components and concrete.

Potential applications include:

• Steel support brackets

• Equipment frames

• Machinery supports

• Base plates

• Service platforms

• Industrial guarding

• Construction brackets

Important: A wedge anchor is used to connect an approved component to concrete. It is not a substitute for high-strength structural steel bolts used

in primary steel-to-steel beam and column connections.

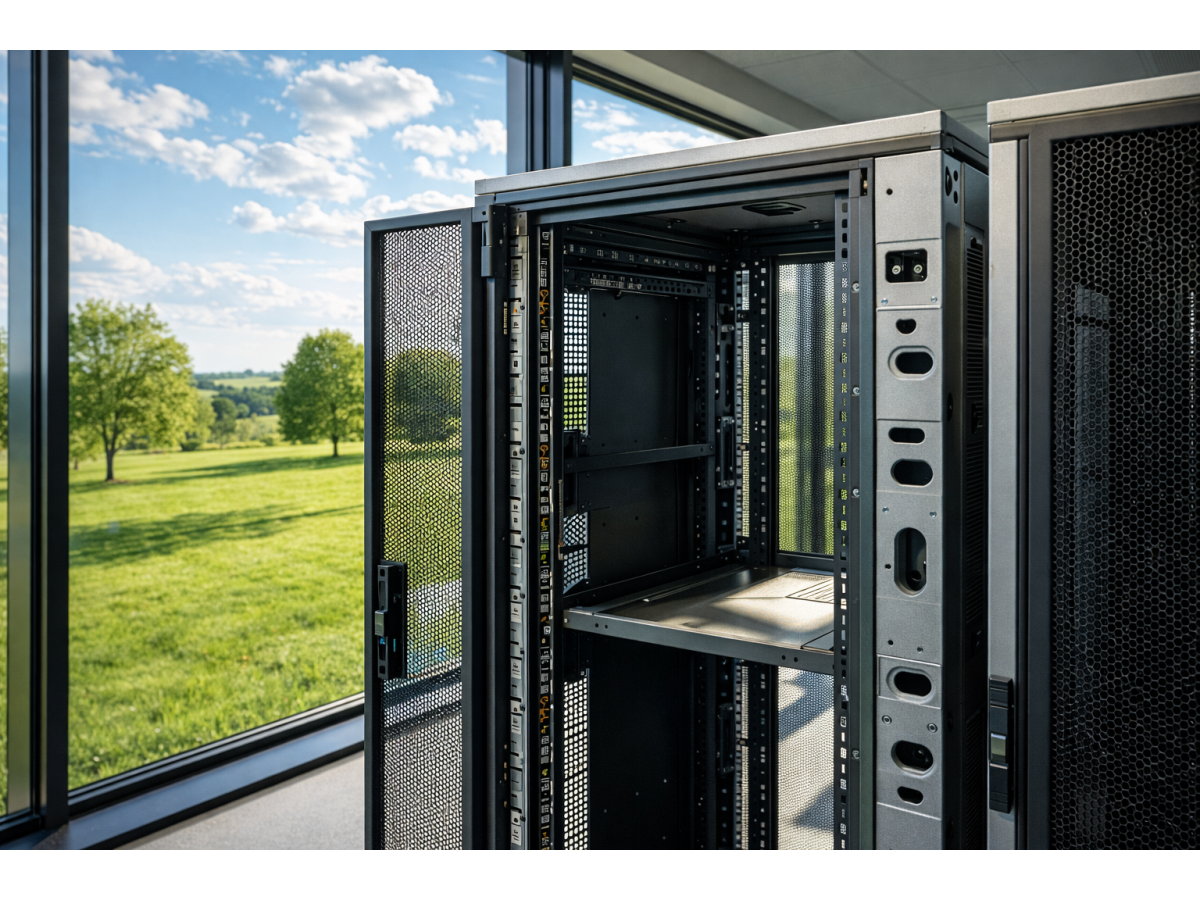

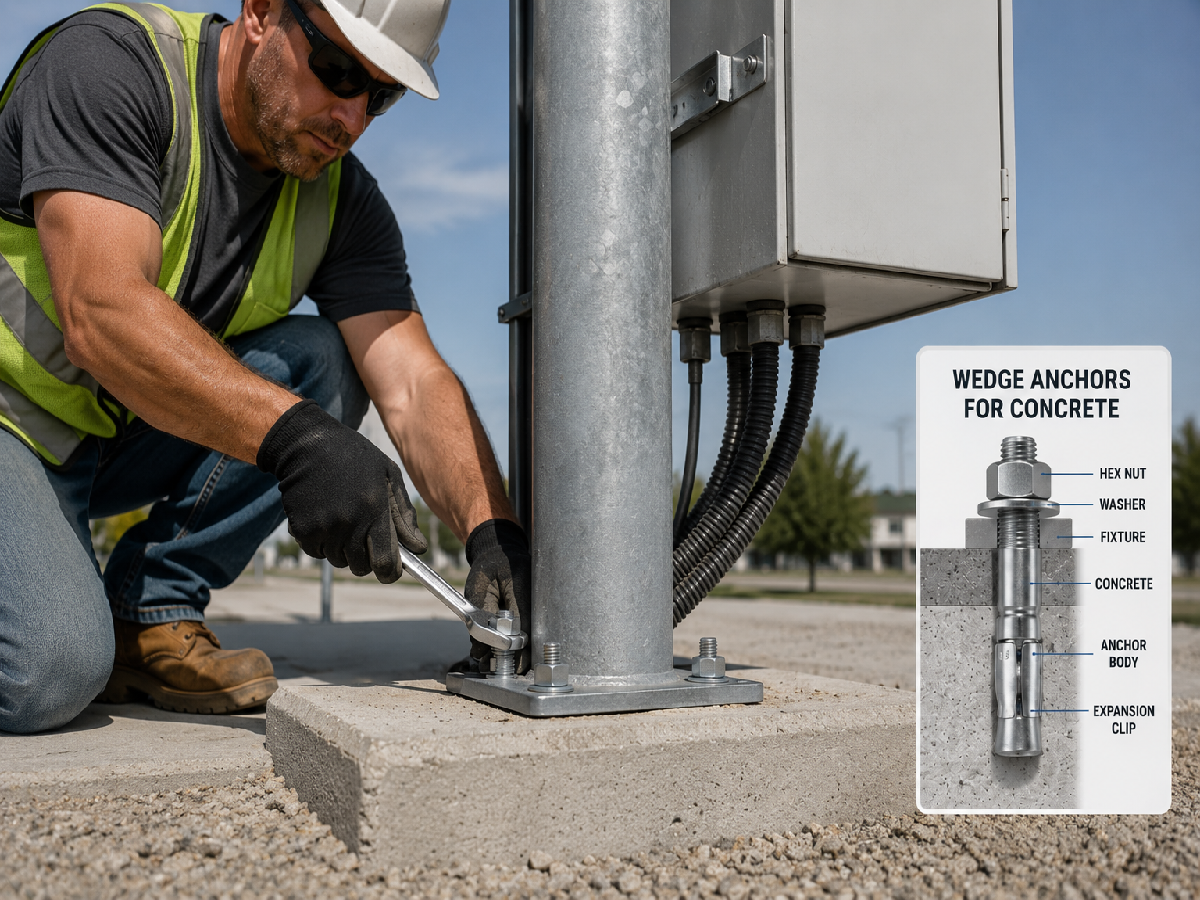

Junction Boxes and Electrical Systems

Concrete wedge anchors can be used for suitable electrical installation applications, including:

• Junction boxes

• Electrical cabinets

• Cable supports

• Conduit brackets

• Electrical equipment

• Service fixtures

For overhead electrical installations, the complete load path and installation conditions should be reviewed before specification.

HVAC, Plumbing and MEP Applications

MEP contractors frequently require mechanical fastening systems for concrete floors, walls and ceilings.

HVAC

Potential applications include:

• HVAC equipment supports

• Mechanical brackets

• Service platforms

• Equipment frames

Plumbing

Potential applications include:

• Pipe supports

• Utility brackets

• Mechanical service systems

• Equipment fixtures

Electrical

Potential applications include:

• Cable tray supports

• Electrical cabinets

• Conduit systems

• Junction boxes

Where equipment creates vibration or dynamic loading, the anchor system should be specifically evaluated.

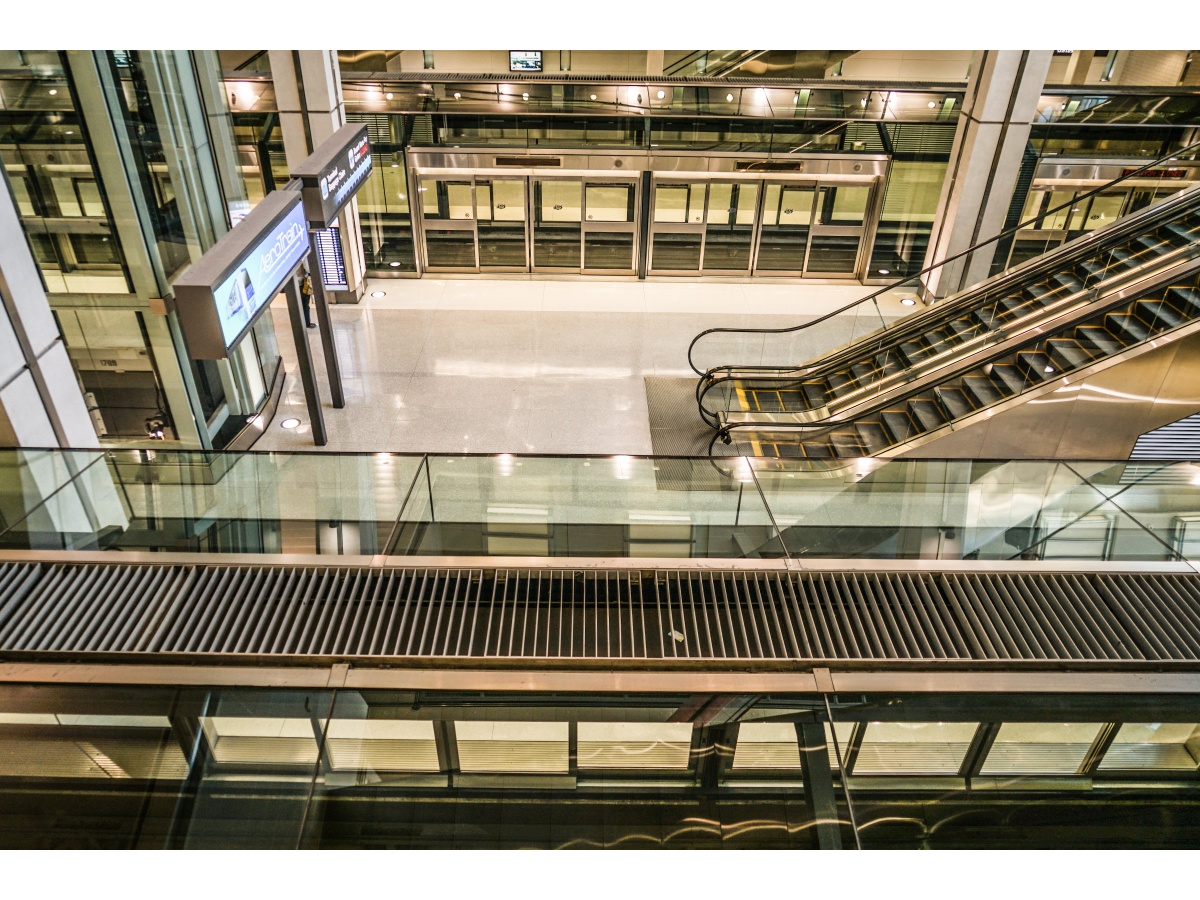

Construction Industry Applications

Wedge anchors can be specified for suitable secondary construction attachments, including:

• Handrails

• Guardrails

• Metal framing

• Steel brackets

• Equipment supports

• Building-service systems

• Architectural metalwork

• Safety barriers

They provide a practical mechanical fastening solution where a suitable solid concrete substrate is available.

Industrial Manufacturing Applications

Manufacturing facilities often require permanent fastening to concrete floors and equipment foundations.

Potential applications include:

• Machine supports

• Production equipment

• Conveyor supports

• Machine guarding

• Safety barriers

• Industrial cabinets

• Maintenance platforms

• Factory fixtures

For machinery generating continuous vibration, engineers should evaluate the fastening system for fatigue, dynamic loading, and potential loosening.

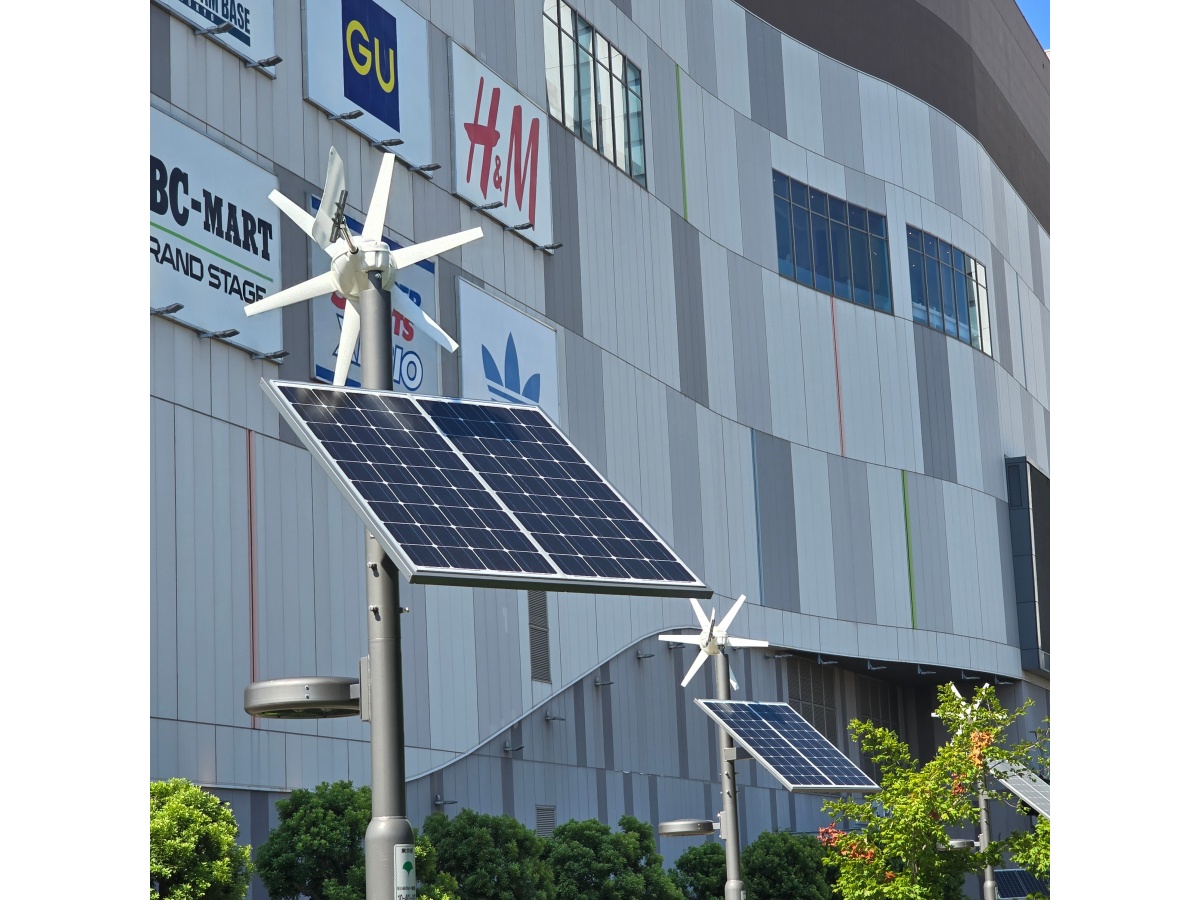

Infrastructure and Civil Engineering Applications

Heavy-duty concrete wedge anchors can be used for suitable infrastructure attachments.

Potential applications include:

• Roadside equipment

• Safety barriers

• Utility supports

• Infrastructure brackets

• Service equipment

• Signage systems

• Concrete support components

Outdoor infrastructure applications require appropriate corrosion protection and consideration of environmental exposure.

Precast Concrete Applications

Wedge anchors may be suitable for approved attachments to precast concrete components.

Potential applications include:

• Precast building systems

• Equipment brackets

• Service supports

• Construction accessories

• MEP components

Before installation, the engineer should confirm that the anchor is suitable for the actual precast concrete strength, thickness, and reinforcement arrangement.

Material and Surface Finish Selection

Selecting the correct material and surface treatment is important for long-term corrosion resistance.

Zinc-Plated Steel Wedge Anchors

Zinc-plated carbon steel is a common economical option for indoor applications and environments with limited moisture exposure.

It can provide basic corrosion protection while maintaining the mechanical properties required for many general-purpose applications.

Zinc-Yellow-Chromate-Plated Steel

Yellow zinc/chromate finishes may be used for applications requiring a traditional zinc-based protective finish.

The actual corrosion performance should be evaluated according to the specified coating system and environmental conditions.

Galvanized Steel Wedge Anchors

Galvanized steel provides enhanced corrosion resistance compared with standard zinc plating and is suitable for many outdoor and humid environments.

It can offer an economical alternative to stainless steel in environments that are not highly aggressive.

However, galvanized steel should not automatically be considered suitable for prolonged exposure to seawater or aggressive chemicals.

18-8 Stainless Steel

18-8 stainless steel is commonly selected for wet and outdoor applications where increased corrosion resistance is required.

Potential applications include:

• Outdoor construction

• Building services

• Architectural installations

• General wet environments

The exact stainless steel grade should be confirmed according to the product specification.

316 Stainless Steel

316 stainless steel generally provides greater corrosion resistance than common 18-8 stainless steel.

It may be considered for:

• Coastal environments

• Marine-adjacent applications

• High-humidity installations

• Outdoor infrastructure

• Certain chemical environments

Even 316 stainless steel should be evaluated based on the actual chemical exposure rather than described as universally corrosion-proof.

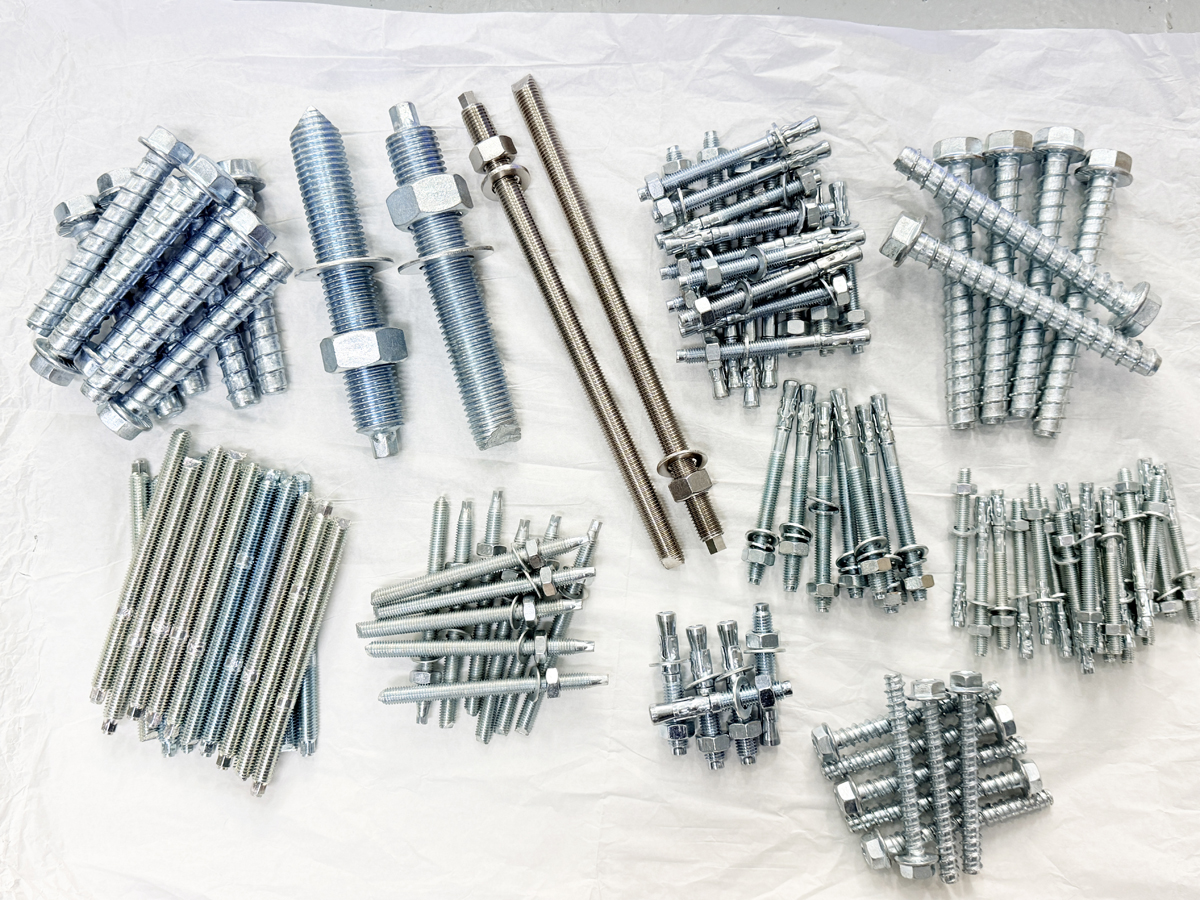

Wedge Anchor vs. Other Concrete Anchors

Choosing the correct concrete anchor requires understanding the different anchoring mechanisms.

These systems are not automatically interchangeable.

The correct choice depends on substrate, load, installation requirements, environmental exposure, and project specifications.

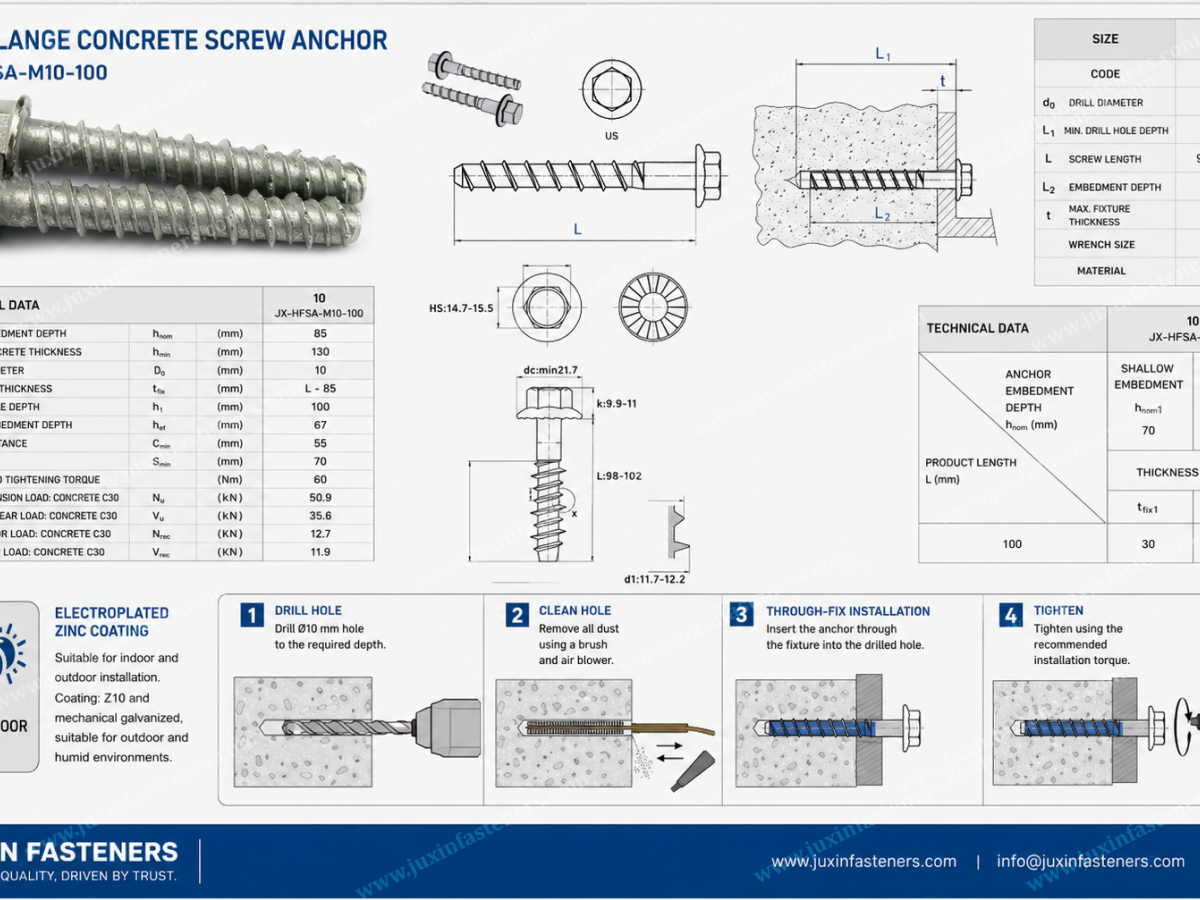

Wedge Anchor vs. Concrete Screw

The terms wedge anchor and concrete screw are sometimes used interchangeably by non-specialist buyers, but they describe different fastening mechanisms.

Wedge Anchor

The anchor expands mechanically inside the concrete hole.

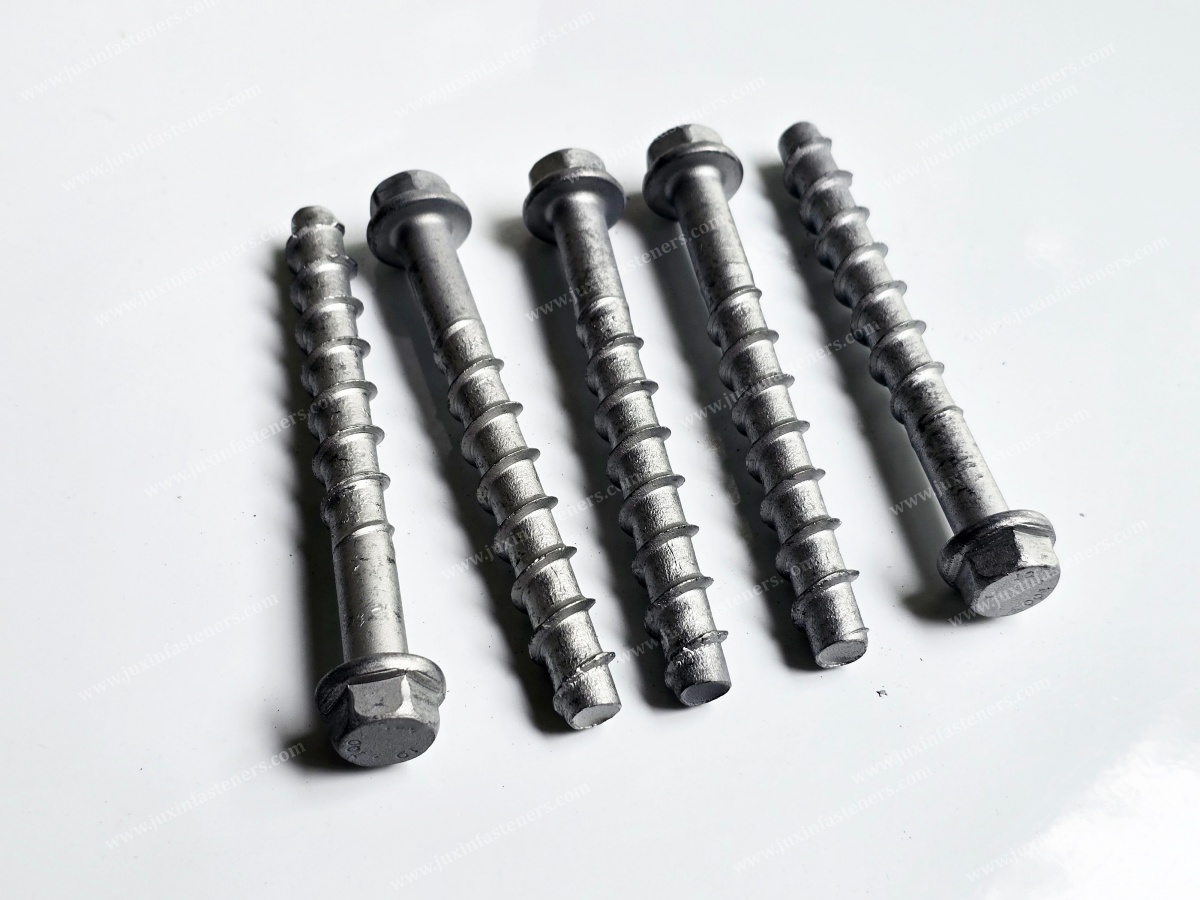

Concrete Screw

The hardened thread creates mechanical engagement directly in the drilled substrate.

A concrete screw can be advantageous where reduced expansion stress and fast installation are important.

A wedge anchor may be preferred for applications where a traditional expansion anchor system is appropriate.

Engineers should select the system based on the actual design requirements rather than assuming one type is universally stronger.

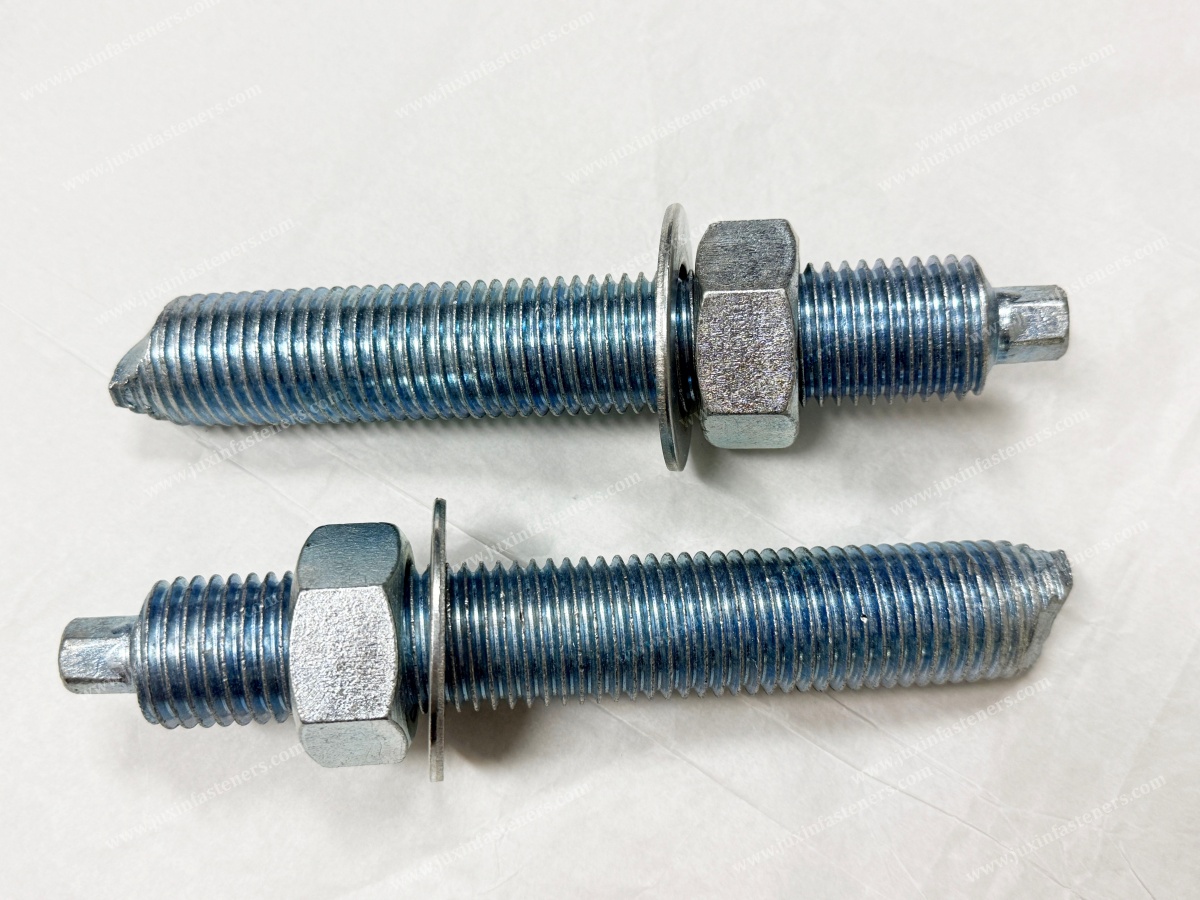

Wedge Anchor vs. Chemical Anchor

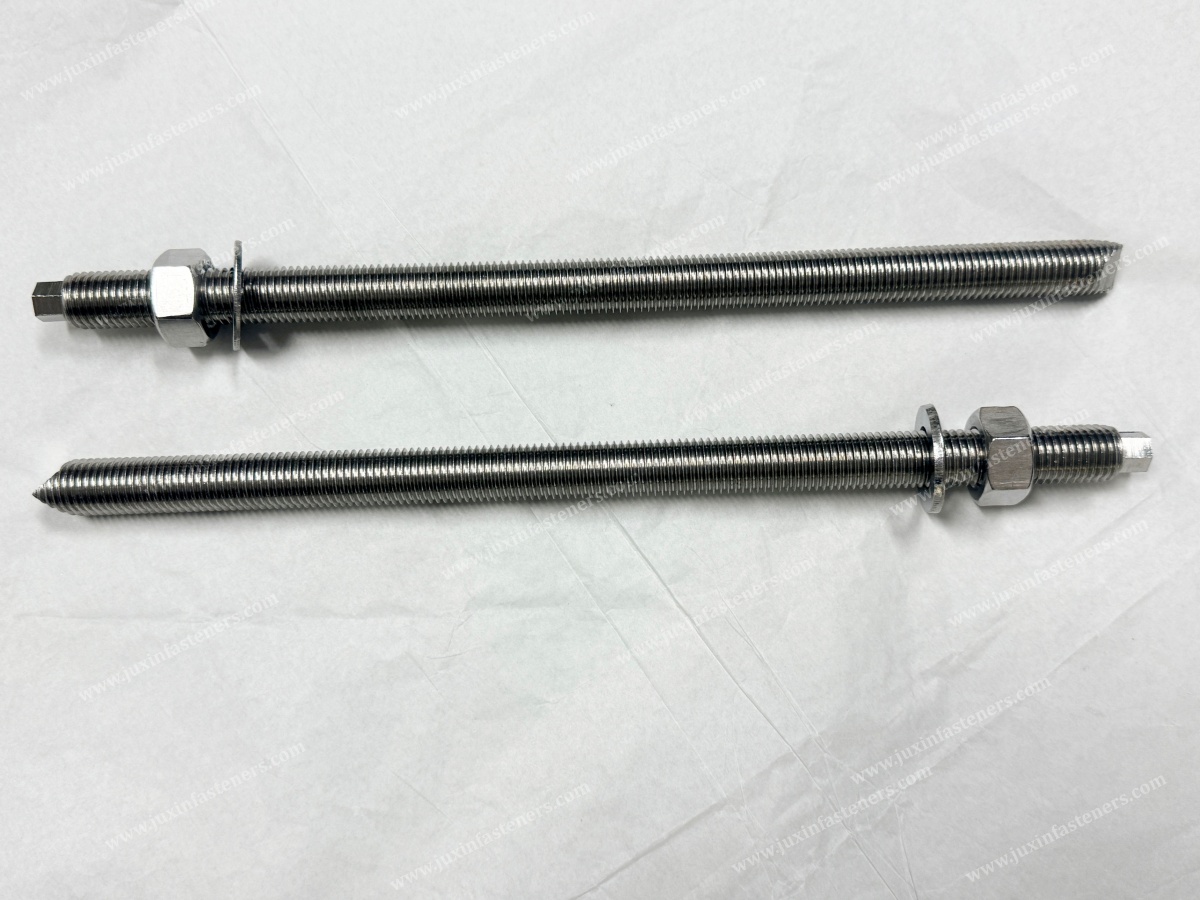

Chemical anchors use resin to bond a threaded rod or anchor element into the substrate.

They can be appropriate for applications involving specific design requirements, including certain cracked-concrete,

edge-distance or high-performance anchoring conditions when the complete system is appropriately qualified.

Wedge anchors offer a different solution:

• Mechanical installation

• No resin

• No curing time

• Immediate mechanical installation after proper tightening

• Straightforward inspection

Neither system is universally superior. The correct choice depends on the application.

Wedge Anchor Installation Procedure

Correct installation is critical to achieving reliable performance.

Step 1 — Confirm the Installation Location

Before drilling, check:

• Anchor spacing

• Edge distance

• Concrete thickness

• Reinforcement location

• Fixture position

Avoid drilling into reinforcement unless the engineering design specifically permits it.

Step 2 — Drill the Hole

Use the specified drill diameter.

The hole diameter must correspond to the anchor manufacturer's requirements.

The hole should also reach the required depth for the specified embedment.

Step 3 — Clean the Hole

Remove drilling dust and loose particles.

Hole cleaning is an important part of anchor installation because debris can interfere with proper seating and expansion.

Step 4 — Insert the Anchor

Insert the wedge anchor through the fixture and into the drilled hole.

Ensure the anchor reaches the specified embedment depth.

Step 5 — Position the Washer and Nut

Position the washer and nut against the fixture.

Step 6 — Tighten to the Specified Torque

Apply the manufacturer's specified installation torque.

The tightening process activates the wedge expansion mechanism.

Step 7 — Inspect the Installation

Verify:

• Anchor position

• Embedment

• Fixture contact

• Nut seating

• Installation torque

• Concrete condition

Common Wedge Anchor Installation Errors

Incorrect Drill Diameter

A hole that is too large can reduce the effectiveness of the expansion mechanism.

A hole that is too small can make installation difficult and may result in excessive installation force.

Insufficient Hole Depth

If the hole is too shallow, the anchor may not achieve the specified embedment.

Poor Hole Cleaning

Concrete dust and drilling debris can interfere with proper anchor installation.

Insufficient Embedment

Reduced embedment can lower the available anchoring performance.

Excessive Torque

Over-tightening can damage the anchor, fixture, or concrete.

Insufficient Torque

Under-tightening may prevent the expansion mechanism from developing the intended mechanical engagement.

Insufficient Edge Distance

Anchors installed too close to a concrete edge can increase the risk of concrete breakout.

Load Capacity and Safety Factors

A common mistake in general fastening information is to assign a universal "safe load" percentage to every concrete anchor.

There is no single rule that a wedge anchor's nominal strength should always be divided by four, six or eight.

Actual allowable or design capacity depends on the complete anchoring system and applicable engineering methodology.

Engineers should evaluate:

• Anchor steel strength

• Concrete breakout

• Pull-out resistance

• Concrete pry-out

• Shear capacity

• Combined tension and shear

• Concrete strength

• Effective embedment

• Edge distance

• Anchor spacing

• Fixture geometry

• Installation torque

• Environmental conditions

• Static or dynamic loading

For safety-critical applications, use the manufacturer's tested design values and the applicable anchor-design standard rather than applying an arbitrary reduction factor.

When Wedge Anchors Should Be Used With Caution

Wedge anchors are designed primarily for suitable solid substrates.

Hollow Brick

Standard wedge anchors may not be suitable because hollow masonry may not provide sufficient resistance to expansion.

Gypsum Board

Wedge anchors are not intended as general-purpose anchors for gypsum board.

Specialized drywall or hollow-wall anchors should be selected.

Soft or Weak Masonry

Soft or deteriorated masonry may not withstand the expansion pressure required by a wedge anchor.

Cracked Concrete

Applications involving cracked concrete require careful product selection and verification against the applicable technical requirements.

Seismic Applications

Seismic anchoring requires application-specific engineering.

Do not assume that a standard wedge anchor is automatically suitable for a seismic connection. The anchor, concrete condition, fixture,

and applied loads must be evaluated as a complete system.

Engineering Selection Checklist

Before purchasing concrete wedge anchors, engineers and procurement teams should confirm:

• Concrete type

• Concrete strength

• Cracked or uncracked concrete condition

• Anchor diameter

• Anchor length

• Effective embedment

• Fixture thickness

• Required tensile load

• Required shear load

• Combined loading

• Edge distance

• Anchor spacing

• Installation torque

• Surface finish

• Corrosion environment

• Temperature exposure

• Vibration or dynamic loading

• Applicable project standard

• Required certification or test documentation

• Required quantity

• Packaging requirements

Providing these details to the supplier can significantly improve product selection and quotation accuracy.

Professional Wedge Anchor Solutions by Industry

Why Choose JUXIN FASTENERS?

JUXIN FASTENERS provides industrial fastening solutions for professional construction, infrastructure, manufacturing, MEP and OEM applications.

Our Wedge Anchors for Concrete are positioned for engineering and procurement teams requiring mechanical anchoring solutions for suitable concrete substrates.

Product configurations can be evaluated according to:

• Anchor diameter

• Anchor length

• Thread configuration

• Material

• Surface finish

• Washer and nut configuration

• Corrosion requirements

• Packaging

• OEM requirements

• Bulk purchasing requirements

For project-specific requirements, customers can provide the substrate, anchor size, application, load conditions, environmental exposure, and required quantity.

Email: info@juxinfasteners.com

Website: www.juxinfasteners.com

Frequently Asked Questions

What are wedge anchors used for?

Wedge anchors are mechanical concrete anchors used to secure suitable fixtures, brackets, equipment supports, railings, barriers,

 and other components to solid concrete.

How does a concrete wedge anchor work?

A wedge anchor uses a mechanical expansion mechanism. As the nut is tightened, the threaded stud pulls the wedge into the expansion section,

creating radial contact with the concrete surrounding the drilled hole.

Are wedge anchors suitable for heavy loads?

Wedge anchors can be suitable for heavy-duty concrete fastening when the anchor size, embedment, concrete strength, edge distance, spacing,

 and loading conditions are appropriately designed and installed.

The term "heavy duty" should not be interpreted as a universal load rating.

Can wedge anchors be used in brick?

Standard wedge anchors are generally better suited to solid concrete than hollow or weak brick and masonry.

An anchor specifically designed and qualified for the actual masonry substrate should be considered.

Can wedge anchors be removed?

The attached component can generally be removed by loosening the nut. However, the installed wedge anchor itself is normally considered a

permanent anchor and should not be treated as a reusable fastener.

Do wedge anchors require chemical adhesive?

No. Standard wedge anchors are mechanical expansion anchors and do not require chemical adhesive or curing time.

What is the difference between a wedge anchor and a sleeve anchor?

A wedge anchor uses a wedge expansion mechanism, while a sleeve anchor uses an expanding sleeve. Both are mechanical anchors, but their geometry,

installation requirements and performance characteristics differ.

What is the difference between a wedge anchor and a concrete screw?

A wedge anchor expands mechanically inside the hole. A concrete screw creates thread engagement directly in the substrate.

They are different fastening systems.

Are stainless steel wedge anchors suitable for outdoor applications?

Stainless steel wedge anchors can be appropriate for many outdoor applications, depending on the grade and environment.

 316 stainless steel generally provides greater corrosion resistance than common 18-8 stainless steel and may be considered for more demanding environments.

Are wedge anchors suitable for seismic applications?

Only when the specific anchor system is designed, tested, and approved for the applicable seismic requirements.

 Standard wedge anchors should not automatically be assumed to be suitable for seismic loading.

How do I choose the correct wedge anchor?

Consider the concrete strength, anchor diameter, length, embedment, fixture thickness, tensile and shear loads, edge distance, spacing, installation torque and environmental conditions.

Request a Concrete Anchoring Solution

Looking for Wedge Anchors for Concrete, Concrete Wedge Anchors, Heavy-Duty Concrete Anchors, Concrete Expansion Anchors or Wedge Anchor Bolts?

JUXIN FASTENERS works with engineers, contractors, distributors, and purchasing teams to provide industrial fastening solutions for concrete, construction,

MEP, infrastructure, and manufacturing applications.

Send us your:

Substrate + Anchor Diameter + Anchor Length + Fixture Thickness + Application + Load Requirement + Surface Finish + Quantity

Our team can review the requirements and recommend an appropriate fastening configuration.

JUXIN FASTENERS
Industrial Fastening Solutions

Email: info@juxinfasteners.com
Website: www.juxinfasteners.com
