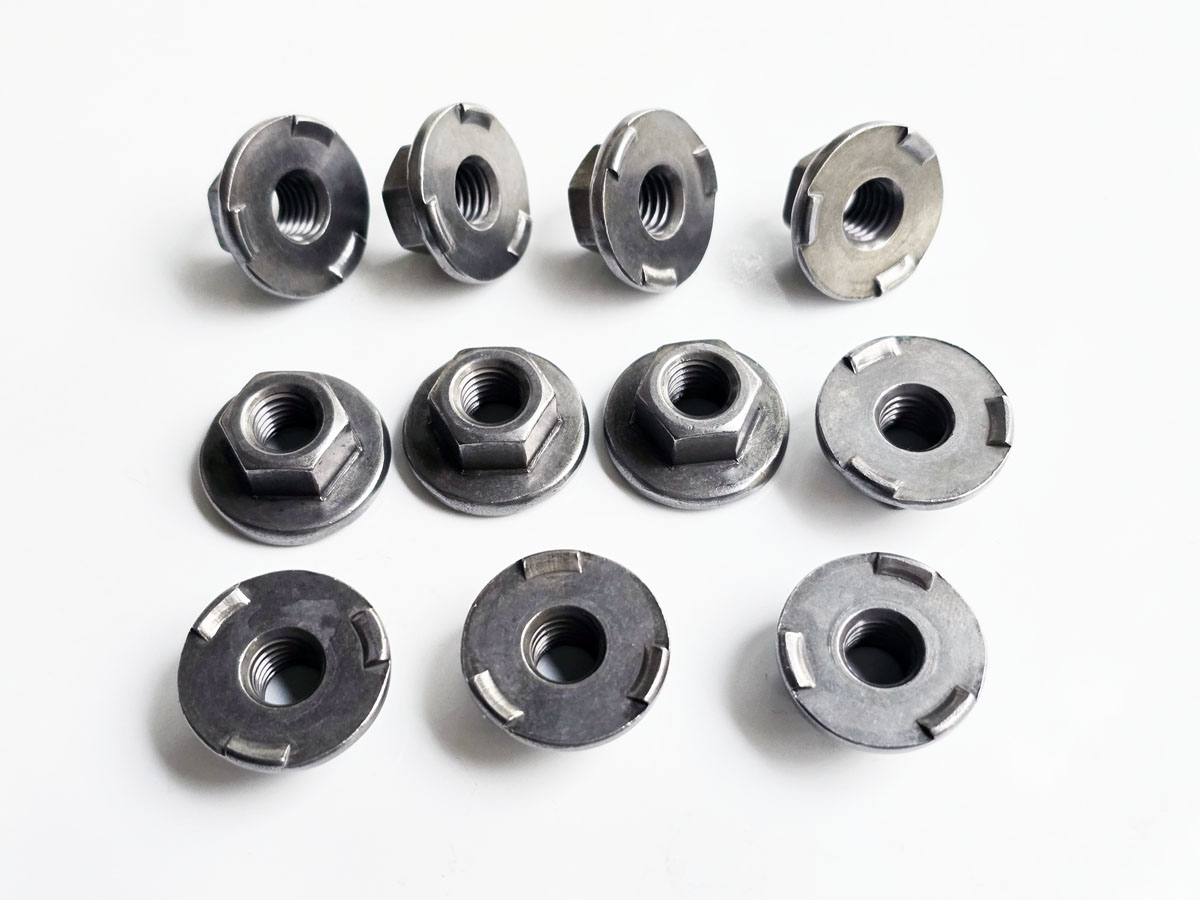

What Is a Hex Flange Welding Nut?

A Hex Flange Welding Nut is a weldable nut with a hexagonal body and an extended flange base. The flange increases the welding contact area and improves load distribution after welding.

During installation, the flange welding nut is positioned on a metal workpiece and permanently attached through welding processes such as resistance projection welding.

After welding, the internal thread allows bolts or screws to be assembled easily, creating a strong and stable fastening system.

Common standards include:

• DIN standards

• ISO standards

• GB standards

• BS standards

• JB standards

Juxin Fasteners supports customized production according to customer drawings, specifications and international standards.

Advantages of Hex Flange Welding Nuts

1. High Welding Strength

The flange design provides a larger welding area, improving connection strength between the nut and sheet metal.

Advantages:

• Strong resistance against vibration

• Improved torque performance

• Reduced risk of nut separation

This makes hex flange welding nuts suitable for:

• Automotive body structures

• Machinery equipment

• Industrial assemblies

2. Suitable for Various Material Thicknesses

Hex flange welding nuts can be applied to different sheet metal thicknesses.

Common applications:

• Thin sheet metal panels

• Medium thickness steel structures

• Heavy-duty equipment frames

The flange helps distribute welding pressure and reduces local deformation.

3. Permanent and Reliable Connection

Unlike loose nuts, welded flange nuts remain fixed on the workpiece.

Benefits:

• Faster assembly

• Reduced installation errors

• Improved production efficiency

• Suitable for automated manufacturing

Limitations of Hex Flange Welding Nuts

Although flange welding nuts provide excellent fastening performance, several factors must be considered.

1. Welding Heat May Cause Deformation

High welding temperatures may affect:

• Thin sheet metal

• Precision components

• Heat-sensitive materials

Solution:

• Optimize welding current

• Control welding time

• Use suitable fixtures

2. Special Materials Require Advanced Welding Processes

Materials such as:

• Aluminum alloy

• Magnesium alloy

• Titanium alloy

may require special welding technologies and parameter control.

Professional engineering support is recommended for these applications.

Hex Flange Welding Nut Installation Process

Step 1: Select the Correct Welding Nut

The correct flange welding nut should be selected according to:

• Workpiece material

• Thread specification

• Load requirements

• Operating environment

• Corrosion resistance requirements

Common materials include:

Carbon Steel Welding Nuts

Suitable for:

• General machinery

• Automotive structures

• Industrial equipment

Stainless Steel Welding Nuts

Suitable for:

• Corrosive environments

• Medical equipment

• Food machinery

• Marine applications

Alloy Steel Welding Nuts

Suitable for:

• High temperature environments

• Heavy-duty machinery

• High-strength applications

Step 2: Prepare the Welding Surface

Before welding, the workpiece surface must be clean and free from contamination.

Remove:

• Oil

• Rust

• Oxide layers

• Dust

• Manufacturing residues

A clean surface ensures:

• Stable electrical conductivity

• Better welding fusion

• Higher welding strength

Step 3: Position the Hex Flange Welding Nut

Correct positioning is critical.

Installation process:

1. Place the flange welding nut at the designed location.

2. Ensure the flange surface contacts the sheet metal evenly.

3. Use positioning tools or fixtures if necessary.

4. Prevent movement during welding.

Incorrect positioning may cause:

• Thread misalignment

• Poor assembly performance

• Reduced welding reliability

Step 4: Adjust Welding Parameters

Proper welding parameters determine the final connection quality.

Important factors include:

Welding Current

Controls heat generation.

Too low:

• Insufficient fusion

• Weak connection

Too high:

• Excessive melting

• Welding spatter

Welding Time

Controls heat duration.

Incorrect welding time may cause:

• Incomplete welding

• Workpiece deformation

Electrode Pressure

Ensures stable contact between:

• Welding electrode

• Flange nut

• Workpiece

Step 5: Welding Quality Inspection

After welding, inspection should be performed.

Common inspection methods include:

Visual Inspection

Check:

• Welding appearance

• Nut position

• Surface defects

Torque Testing

Verify:

• Thread strength

• Rotation resistance

Pull-Off Strength Testing

Evaluate:

• Welding joint strength

• Connection reliability

Dimensional Inspection

Check:

• Thread accuracy

• Nut dimensions

• Flange size

How to Select the Right Hex Flange Welding Nut?

1. Determine Thread Type and Size

Common thread systems:

Metric Threads

Examples:

• M5

• M6

• M8

• M10

• M12

Imperial Threads

Examples:

• UNC

• UNF

The correct thread specification ensures compatibility with assembly components.

2. Select Proper Material

Selection depends on application environment.

3. Consider Surface Treatment

Common coatings:

• Zinc plating

• Zinc nickel plating

• Black oxide

• Nickel plating

Benefits:

• Improved corrosion resistance

• Longer service life

• Better appearance

Hex Flange Welding Nut Industry Applications

Automotive Manufacturing

Hex flange welding nuts are widely used in:

• Vehicle body structures

• Car seats

• Doors

• Roof components

• Engine brackets

• Chassis systems

Advantages:

• Vibration resistance

• High production efficiency

• Reliable permanent fastening

EV Battery Pack Applications

Electric vehicle battery systems require secure fastening solutions.

Applications:

• Battery enclosure frames

• Cooling system brackets

• Electrical mounting structures

Hex flange welding nuts provide:

• Stable threaded connections

• Strong mechanical performance

• Long-term reliability

Rail Transit Applications

Rail vehicles operate under continuous vibration and dynamic loads.

Applications:

• Interior structures

• Equipment brackets

• Electrical systems

• HVAC mounting components

Benefits:

• High vibration resistance

• Durable welded connections

Aerospace Applications

Aerospace manufacturing requires:

• High precision

• Lightweight structures

• Reliable fastening performance

Customized flange welding nuts can support:

• Aircraft interior assemblies

• Equipment brackets

• Structural components

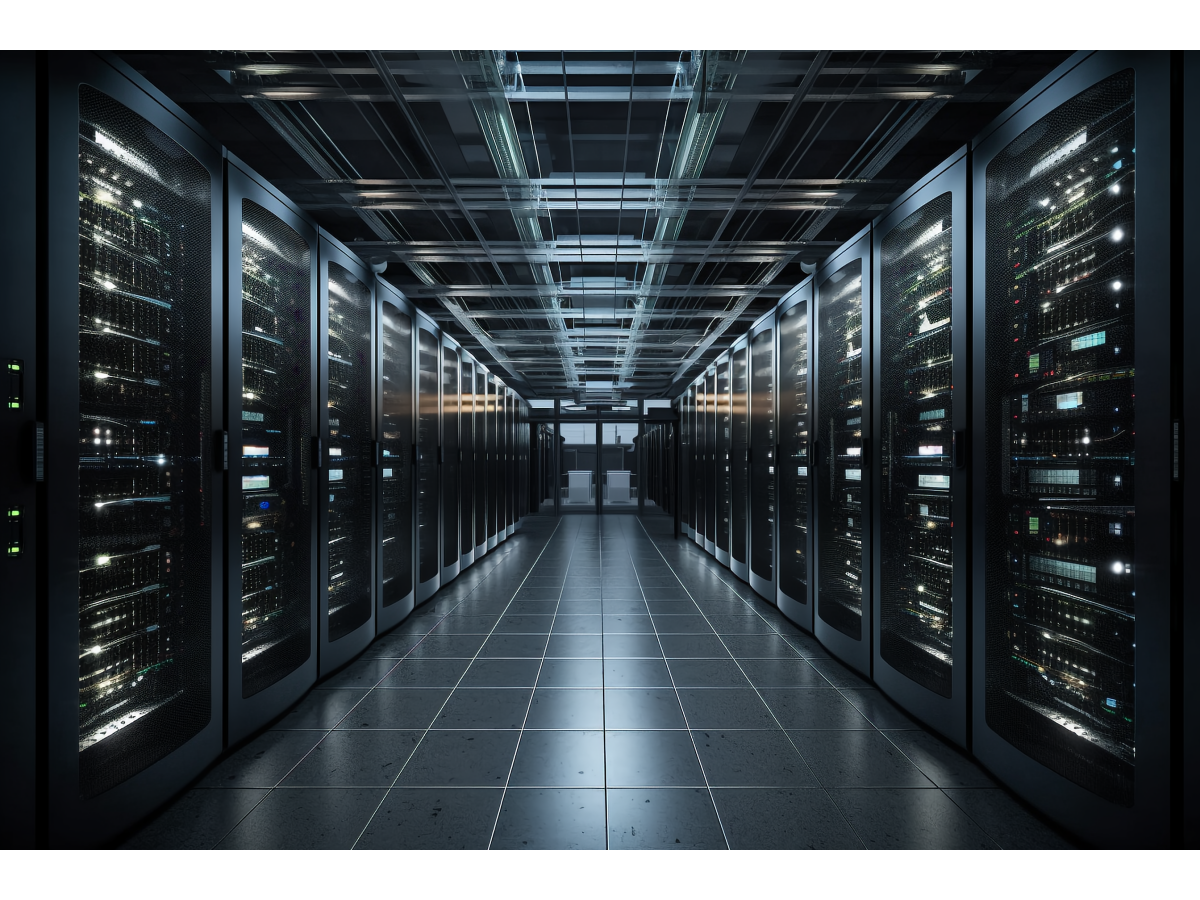

Electrical Cabinet and Sheet Metal Fabrication Applications

Hex flange welding nuts are widely used in:

• Control cabinets

• Industrial enclosures

• Communication equipment

• Sheet metal assemblies

Advantages:

• Simplified assembly

• Reduced installation time

• Improved production efficiency

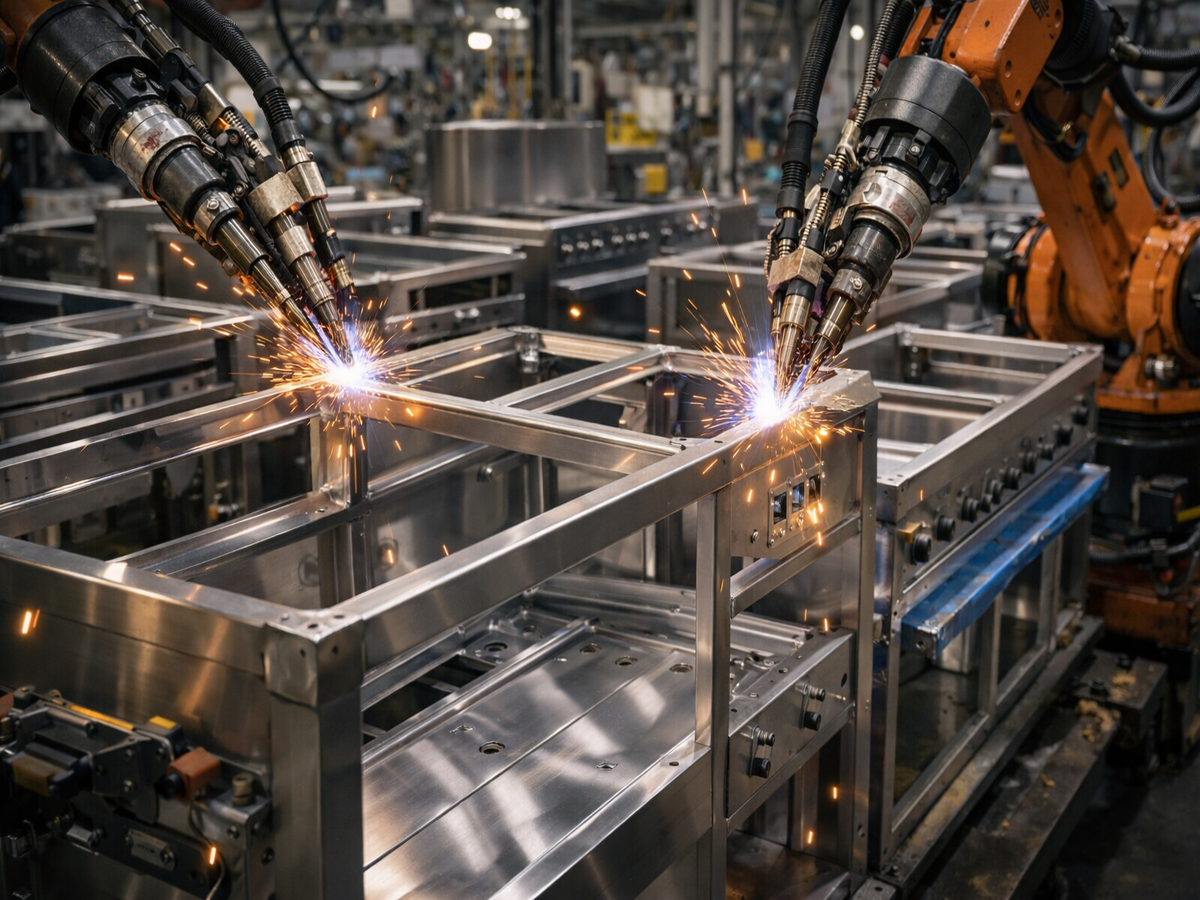

Machinery and Robotics Applications

Applications include:

• Machine frames

• Automation equipment

• Robot structures

• Industrial fixtures

Benefits:

• Strong fastening capability

• Suitable for high-load environments

Construction and Heavy Equipment Applications

Used in:

• Steel structures

• Construction machinery

• Heavy equipment assemblies

Advantages:

• High load capacity

• Stable connection performance

Why Choose Juxin Fasteners for Hex Flange Welding Nut Solutions?

Juxin Fasteners specializes in OEM fastening solutions for global industrial customers.

Our capabilities include:

✔ Professional weld nut manufacturing
✔ DIN / ISO standard production
✔ Custom designs according to drawings
✔ Automotive and EV supply experience
✔ Strict quality inspection system
✔ Global export experience

We provide complete fastening solutions from prototype development to mass production.

Conclusion

Hex Flange Welding Nuts provide an efficient and reliable solution for permanent threaded connections in modern manufacturing. Correct selection of material, thread specification, welding parameters and inspection methods ensures maximum fastening performance.

Juxin Fasteners supplies high-quality:

• Hex Flange Welding Nuts

• DIN 929 Hex Weld Nuts

• DIN 928 Square Weld Nuts

• Customized Automotive Weld Nuts

for:

Automotive / EV / Battery Pack / Rail Transit / Aerospace / Electrical Cabinets / HVAC / Medical Equipment / Construction / Machinery / Robotics / Sheet Metal Fabrication industries.

For OEM welding nut solutions and technical support, please contact our engineering team.
