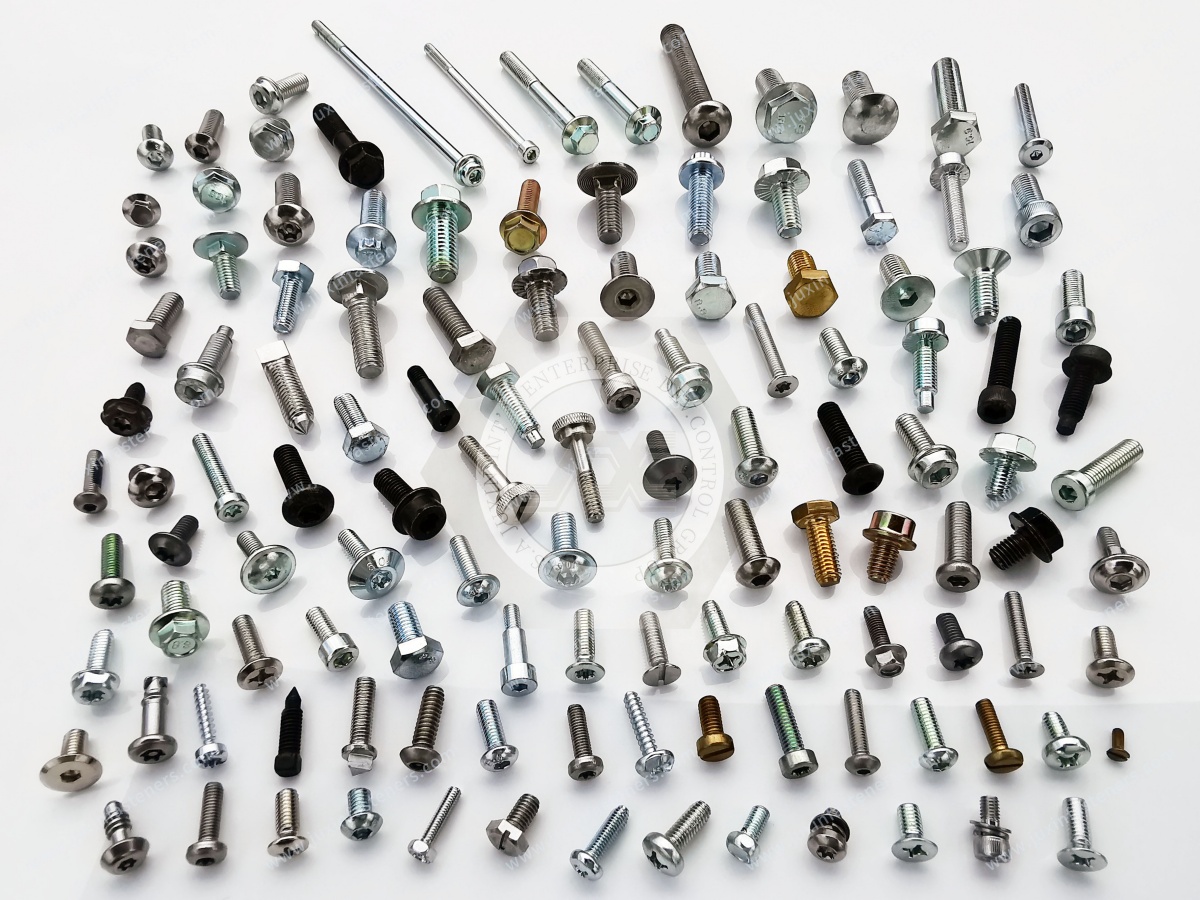

High-Strength Automotive Frame Bolts: Truck Chassis Fastening and OEM Solutions

Automotive frames and commercial vehicle chassis systems require reliable mechanical connections capable of transferring structural loads while accommodating vibration,

road impact, cyclic loading and environmental exposure.

High-strength automotive frame bolts are used in selected truck frame assemblies, chassis crossmembers, mounting brackets, heavy-duty vehicle structures and related mechanical equipment.

However, selecting a high-strength bolt involves more than choosing a tensile-strength class.

Engineers must consider the complete bolted joint, including the frame material, hole geometry, clamping force, friction conditions, joint stiffness, installation method and fatigue loading.

For commercial vehicle manufacturers, production managers and Tier suppliers, the fastening solution must also support repeatable installation,

efficient assembly, inspection and long-term supply continuity.

Juxin Fasteners supplies high-strength industrial and automotive fastening components, including hex head bolts, flange screws, alloy steel screws and drawing-specific OEM fasteners.

Specific designs, materials, coatings and production arrangements require project confirmation.

This guide explains the engineering and sourcing considerations for high-strength automotive frame bolts and heavy-duty chassis fastening systems.

Why Automotive Frames Require Carefully Engineered Bolted Joints

Vehicle frames experience a combination of static and dynamic loading.

Relevant conditions may include:

• Vehicle and payload weight

• Braking and acceleration forces

• Road impact

• Torsional frame movement

• Cyclic loading

• Vibration

• Temperature variation

• Corrosion exposure

Bolted connections may join crossmembers, brackets, support structures and other chassis components.

The fastening system must maintain the intended mechanical connection throughout the defined service conditions.

Important Engineering Principle

A stronger bolt does not automatically create a stronger frame joint.

Joint performance depends on the bolt, clamped components, mating threads, contact surfaces and installation conditions.

Automotive Frame Bolt Applications

High-strength bolts may be considered for several vehicle and industrial applications.

Engineering Recommendation

Define the actual load path and joint function before selecting the fastener geometry or strength class.

High-Strength Bolt Property Classes: 8.8, 10.9 and 12.9

Metric carbon steel and alloy steel bolts are commonly specified by property class.

ISO 898-1 defines mechanical-property requirements for applicable bolts, screws and studs.

Class 8.8 Automotive Bolts

Class 8.8 bolts may be used in selected mechanical connections where their specified mechanical properties satisfy the joint requirements.

They can offer a practical balance between mechanical strength and cost for suitable applications.

Class 10.9 High-Strength Bolts

Class 10.9 bolts are used in applications requiring higher specified mechanical strength.

Potential applications include selected chassis brackets, frame-related connections and heavy-duty mechanical assemblies.

Class 12.9 Alloy Steel Fasteners

Class 12.9 fasteners provide higher specified mechanical strength but are not automatically preferable for vehicle frames.

Higher strength may introduce additional considerations involving mating threads, coating processes, susceptibility to environmental effects and installation control.

Important Engineering Distinction

Property class describes defined mechanical characteristics of the fastener. It does not establish the fatigue life, corrosion performance or vibration resistance of the complete bolted joint.

Engineering Recommendation

Select the bolt property class according to the approved joint design and OEM requirements rather than assuming that Class 12.9 is always better than Class 10.9.

Hex Head Bolts for Truck Frames and Chassis Connections

Hex head bolts are widely used in mechanical assemblies where external wrench or socket access is available.

Potential applications include:

• Frame crossmember connections

• Chassis brackets

• Heavy-duty equipment mounting

• Commercial vehicle structures

• Mechanical support assemblies

Relevant design parameters include:

• Nominal thread diameter

• Thread pitch

• Grip length

• Threaded length

• Head dimensions

• Bearing surface

• Hole clearance

• Mating nut or internal thread

• Installation access

Partially Threaded Versus Fully Threaded Bolts

A partially threaded bolt may place an unthreaded shank through part of the joint.

A fully threaded bolt has a different thread distribution along its length.

The appropriate configuration depends on the connection geometry and load-transfer requirements.

Engineering Recommendation

Confirm the location of the shear plane and required grip length before approving a fully threaded or partially threaded alternative.

Flange Bolts for Automotive Chassis Assembly

Flange bolts incorporate a bearing flange beneath the head.

Depending on the design, the flange can provide a larger bearing area and reduce separate washer handling.

Potential advantages include:

• Simplified component handling

• Fewer loose assembly parts

• Improved suitability for selected automated fastening operations

• Defined bearing geometry

Important Limitation

A flange does not automatically eliminate the need for a washer or guarantee resistance to vibration loosening.

The bearing surface must be evaluated against the frame material and required clamp load.

Serrated Flange Bolts

Serrated flange bolts use a textured bearing surface that can increase resistance to rotation in suitable applications.

However, serrations may damage protective coatings or mating surfaces.

Engineering Recommendation

Use serrated flange bolts only where their effects on the joint surface, friction and service requirements have been validated.

Alloy Steel Socket Head Screws

Socket head cap screws may be suitable for compact mechanical assemblies where external wrench access is limited.

ISO 4762 defines dimensions for applicable metric hexagon socket head cap screws.

ASTM A574 addresses applicable alloy steel socket-head cap screws within its scope; it should not be treated as an interchangeable designation for every ISO metric product.

Potential applications include:

• Automotive production equipment

• Mechanical brackets

• Precision machinery

• Selected vehicle-related equipment

Important Limitation

A socket head screw should not automatically replace an approved hex head frame bolt.

Head geometry, bearing area, strength requirements and installation access must be reviewed.

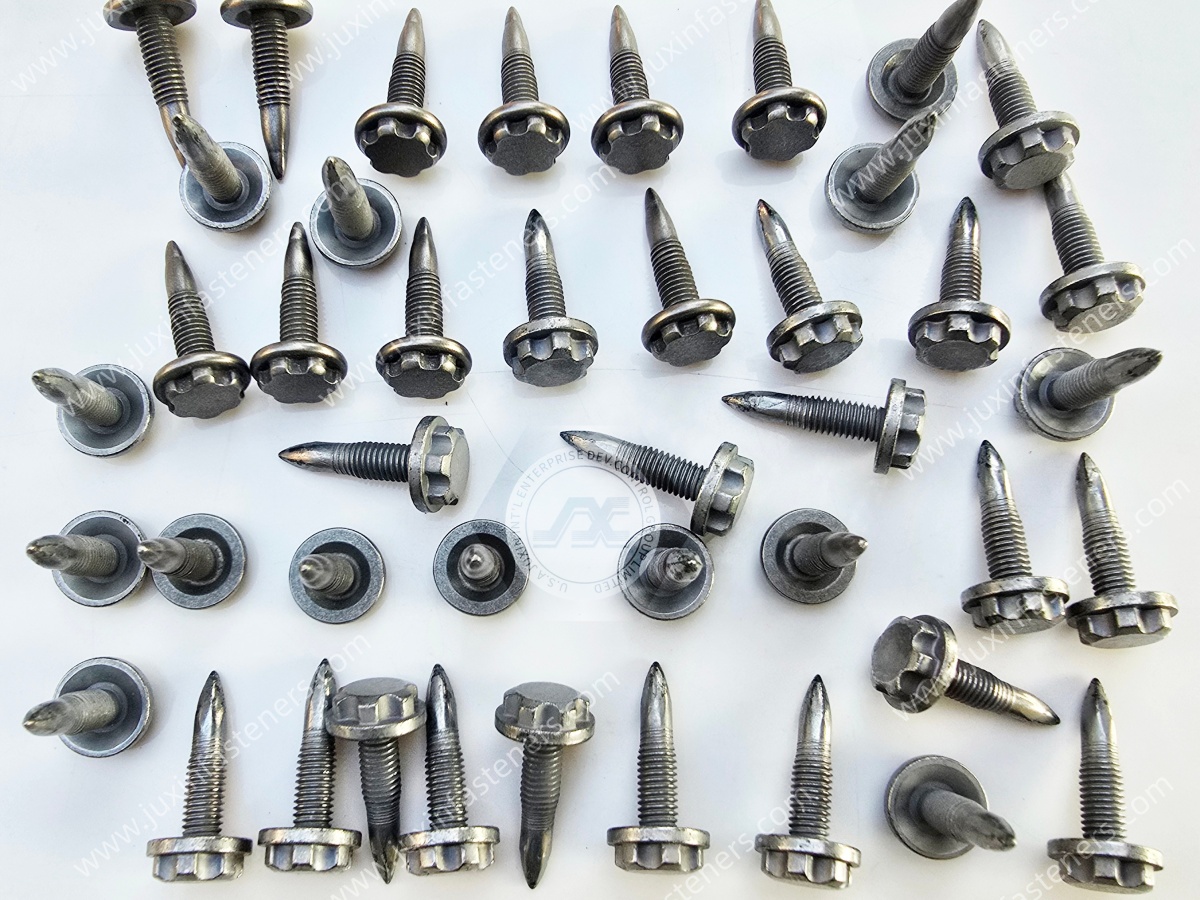

Torx Drive Screws for Automotive Equipment

Torx drive screws may provide effective tool engagement in selected automotive assemblies.

Potential advantages include:

• Positive drive engagement

• Compatibility with suitable power tools

• Reduced risk of certain drive-related installation problems

However, drive geometry does not independently establish bolt strength or suitability for structural chassis joints.

Production Recommendation

Select the drive system according to installation torque, available space, tool access and approved assembly requirements.

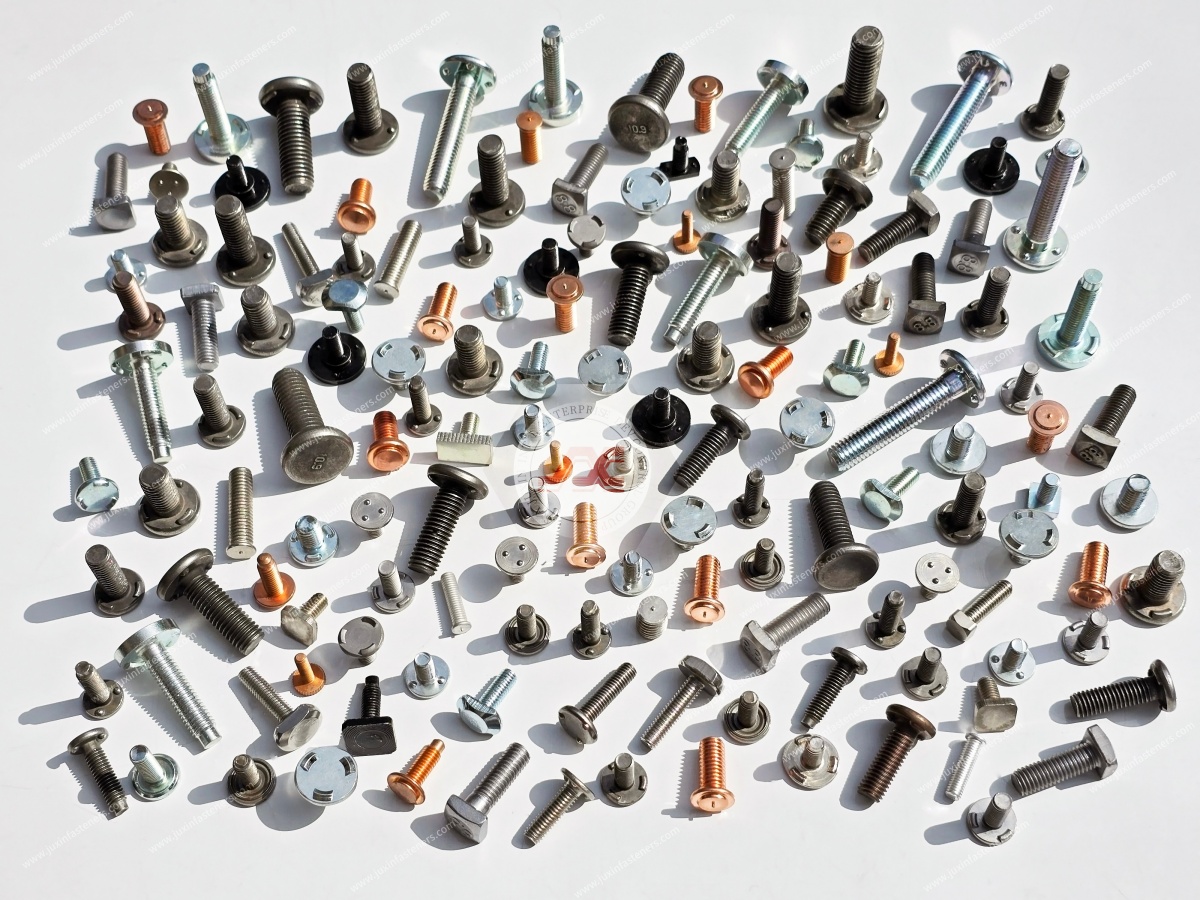

Weld Studs and Welded Fastening Components

Weld studs provide threaded attachment points through an appropriate welding process.

They may be used in suitable vehicle body, sheet-metal and equipment assemblies.

Potential applications include:

• Body panels

• Equipment brackets

• Interior support structures

• Selected sheet-metal components

Important Engineering Distinction

Weld studs are not direct substitutes for high-strength frame bolts.

Their load capacity depends on stud geometry, base material, weld process and joint design.

Engineering Recommendation

Evaluate weld integrity and parent-material compatibility before specifying a welded fastening solution.

Truck Frame Crossmember Bolted Connections

Crossmembers connect structural sections of a truck chassis and contribute to the overall frame system.

Bolted crossmember joints may experience:

• Shear loading

• Tensile loading

• Frame torsion

• Cyclic stress

• Joint movement

• Environmental exposure

The fastening system must be compatible with the intended frame behavior.

Information Gain: Frame Flexibility Changes Fastener Design Requirements

A truck frame may be designed to accommodate a defined amount of structural movement during operation.

A fastening change that increases local stiffness or changes load transfer can affect the behavior of the assembly.

Engineering Recommendation

Evaluate the frame manufacturer's joint design requirements before changing bolt diameter, property class, quantity or arrangement.

Friction-Dependent Versus Bearing-Type Bolted Connections

The way a bolted joint transfers load is a fundamental design consideration.

Friction-Dependent Load Transfer

In a friction-dependent connection, the intended resistance to relative movement comes from friction between clamped surfaces.

The available resistance depends on clamp load and the friction characteristics of the interface.

Bearing-Type Load Transfer

In a bearing-type connection, load may be transferred through contact between the fastener shank and the sides of the holes after relative movement occurs.

The design must account for fastener shear, hole bearing, edge distances and possible deformation.

Important Engineering Limitation

A joint should not be assumed to function as a friction-dependent or bearing-type connection without understanding the approved design.

Engineering Recommendation

Confirm the intended load-transfer mechanism before specifying tightening procedures or alternative coatings.

Bolt Preload and Clamp Load in Chassis Connections

Preload is the tensile force introduced into a bolt during tightening.

The corresponding clamp force compresses the connected components.

Appropriate preload can help maintain joint contact and reduce certain fatigue-related risks.

However, excessive preload may cause:

• Bolt yielding

• Thread damage

• Local bearing damage

• Deformation of clamped components

Insufficient preload may contribute to:

• Joint separation

• Relative movement

• Loss of friction-dependent load transfer

• Increased cyclic loading

• Loosening

Engineering Recommendation

Specify preload according to the approved joint design and validate the installation process.

Torque-Tension Relationship and Coating Friction

Tightening torque is commonly used to develop bolt preload.

However, torque is not a direct measurement of clamp load.

The resulting preload depends on:

• Thread friction

• Bearing surface friction

• Coating system

• Lubrication

• Mating components

• Installation method

Information Gain: Changing a Bolt Coating Can Change the Installed Clamp Load

Two bolts with the same dimensions and property class may develop different clamp loads at the same tightening torque if their friction conditions differ.

Production Recommendation

When changing coatings or suppliers, review torque-tension behavior before retaining the existing tightening parameters.

Joint Stiffness and Fatigue Performance

Bolted joints under cyclic loading may experience fatigue damage.

Fatigue performance depends on the relationship between bolt stiffness, clamped-part stiffness, preload and external loading.

A properly designed preloaded joint can reduce the variation in bolt tensile load under certain service conditions.

However, fatigue resistance cannot be established from bolt property class alone.

Engineering Considerations

• Load amplitude

• Joint stiffness

• Preload

• Thread geometry

• Stress concentration

• Joint separation

• Corrosion

• Manufacturing condition

Engineering Recommendation

Evaluate fatigue performance at the joint level for demanding automotive and heavy-duty applications.

Vibration Loosening in Truck Chassis Fasteners

Vehicle frames experience vibration and repeated mechanical loading.

Rotational loosening can occur when joint conditions permit relative movement and fastener rotation.

Potential locking approaches include:

• Suitable prevailing torque nuts

• Approved mechanical locking devices

• Application-specific locking features

• Thread-locking systems

• Appropriate joint preload

Important Limitation

A serrated flange, fine thread or higher bolt property class does not automatically prevent vibration loosening.

Engineering Recommendation

Select the locking method according to the approved joint design, installation requirements and service conditions.

Thread Engagement and Mating Material Strength

The strength of a bolted joint depends on both external and internal threads.

Relevant variables include:

• Thread diameter

• Thread pitch

• Engagement length

• Nut property class

• Internal thread material

• Thread tolerance

• Installation load

Information Gain: Higher Bolt Strength Can Shift Failure to the Mating Thread

A stronger bolt may remain intact while a weaker internal thread strips.

This risk can be particularly relevant when fastening into lower-strength materials.

Engineering Recommendation

Check mating-thread capacity before increasing the bolt property class.

Corrosion Protection for Automotive Frame Bolts

Truck chassis fasteners may be exposed to moisture, road salt, chemicals and outdoor operating conditions.

Suitable corrosion protection depends on the specified environment.

Zinc Electroplating

May be used for selected automotive and industrial fasteners where the coating system meets the application requirements.

Zinc-Nickel Coating

May be specified for applications requiring defined corrosion performance.

Zinc-Flake Coating

Non-electrolytically applied zinc-flake coatings are used in selected automotive and industrial fastening applications.

Black Oxide and Other Black Finishes

May be used where appearance or specific surface requirements justify the finish.

Black oxide alone should not be assumed to provide the same corrosion resistance as a qualified protective coating system.

Engineering Recommendation

Specify the coating system, thickness, corrosion criteria and friction requirements rather than relying on a generic finish name.

Hydrogen Embrittlement in High-Strength Steel Bolts

Hydrogen embrittlement is an important risk consideration for susceptible high-strength steel fasteners.

Potential contributing conditions include:

• Material strength and hardness

• Hydrogen-generating processing

• Certain surface-treatment operations

• Sustained tensile stress

• Aggressive environments

Important Engineering Limitation

Not all high-strength bolts experience hydrogen embrittlement, and risk depends on the material, manufacturing process and service conditions.

Engineering Recommendation

Review coating-process compatibility and applicable hydrogen-embrittlement controls when specifying susceptible high-strength fasteners.

Automotive Frame Bolt Installation on Production Lines

Production managers and manufacturing engineers must achieve consistent fastening results while maintaining assembly efficiency.

Important process variables include:

• Fastener identification

• Tool access

• Tightening sequence

• Torque or torque-angle strategy

• Coating condition

• Mating components

• Installation cycle time

• Inspection

• Rework control

Information Gain: Assembly Repeatability Can Be More Valuable Than Nominal Bolt Strength

A higher-strength bolt does not improve production quality if the installation process produces inconsistent clamp loads or frequent assembly defects.

Production Recommendation

Validate the fastener and tightening method together using representative production components.

Automated Tightening and Error Prevention

Depending on the application, production lines may use:

• Torque-controlled tools

• Torque-angle monitoring

• Fastener identification systems

• Positioning fixtures

• Error-proofing methods

• Inspection stations

Important Limitation

Automated installation does not eliminate the need for process validation.

Production Recommendation

Define acceptance criteria for the complete fastening operation.

Common Failure Modes in Truck Frame Bolted Joints

Bolt Fatigue Fracture

May result from cyclic loading, joint separation or other contributing conditions.

Thread Stripping

May occur when the mating thread lacks sufficient strength or engagement.

Preload Loss

May result from settlement, relaxation or incorrect tightening.

Rotational Loosening

May occur when joint movement and locking conditions permit rotation.

Corrosion Damage

May affect fastener condition and long-term reliability.

Hole Bearing or Local Deformation

May occur when load transfer exceeds the capacity of the surrounding frame material.

Engineering Recommendation

Investigate the complete joint and load path rather than evaluating the failed bolt alone.

High-Strength Frame Bolts for Commercial Vehicles

Commercial vehicles may require fastening solutions for:

• Truck frames

• Crossmember assemblies

• Equipment brackets

• Heavy-duty mechanical structures

• Selected chassis-related components

The required bolt design depends on vehicle architecture and OEM specifications.

Engineering Recommendation

Do not assume that a bolt approved for one truck model or frame configuration is suitable for another.

Heavy-Duty Machinery and Industrial Vehicles

Similar engineering considerations apply to selected industrial equipment.

Potential applications include:

• Construction machinery

• Agricultural equipment

• Mining machinery

• Industrial transport equipment

• Heavy mechanical assemblies

Relevant requirements may include high mechanical loading, vibration, corrosion protection and maintenance access.

Important Limitation

These applications may have different design and qualification requirements from road vehicles.

EV Structural and Lightweight Frame Assemblies

Electric vehicles may use mixed-material structures, including steel and aluminum.

Potential fastening applications include:

• Structural brackets

• Battery-related supports

• Equipment mounting

• Selected chassis assemblies

Engineering Considerations

• Dissimilar material contact

• Galvanic corrosion

• Thermal expansion

• Joint stiffness

• Preload retention

• Installation access

Information Gain: Mixed-Material Frames Require More Than Bolt Strength Verification

A high-strength steel bolt may be mechanically adequate while the aluminum mating component or contact interface becomes the limiting factor.

Engineering Recommendation

Evaluate the complete material combination and joint interface.

International Standards for Automotive Frame Fasteners

Applicable standards depend on the specific fastener and customer drawing.

ISO 898-1

Mechanical properties of applicable carbon steel and alloy steel bolts, screws and studs.

ISO 898-2

Mechanical properties of applicable nuts with specified property classes.

ISO 4014 and ISO 4017

Dimensional standards for applicable metric hexagon head bolts and screws.

ISO 4162

Dimensional requirements for applicable hexagon flange bolts.

ISO 4762

Dimensional requirements for applicable hexagon socket head cap screws.

ISO 965 Series

Tolerances for ISO general-purpose metric screw threads.

ISO 16047

Torque/clamp force testing for threaded fasteners within its applicable scope.

ISO 4042

Electroplated coating systems for fasteners within its applicable scope.

ISO 10683

Non-electrolytically applied zinc-flake coating systems for fasteners within its applicable scope.

Important Standards Principle

Dimensional standards, mechanical-property standards, coating requirements and application-specific OEM specifications serve different purposes.

Engineering Recommendation

Use the standards actually applicable to the approved fastener drawing.

Metric and Inch-Series Thread Compatibility

Metric threads, UNC threads, UNF threads, BSW threads and BSF threads belong to different thread systems.

They are not directly interchangeable.

Approximate inch conversions are reference values only.

Engineering Recommendation

Confirm the complete thread designation, tolerance and mating component before approving an alternative fastener.

Quality Verification for High-Strength Automotive Frame Bolts

Quality requirements should be defined according to the approved drawing and application.

Potential verification activities include:

• Dimensional inspection

• Thread verification

• Mechanical-property testing

• Hardness testing

• Coating verification

• Torque-tension testing where specified

• Material documentation

• Traceability

• Change control

Important Limitation

Specific inspection methods, documentation and production approval requirements must be confirmed for each OEM project.

Supplier Qualification and Alternative Sourcing

Procurement and supplier development teams should evaluate both technical conformity and supply reliability.

Technical Requirements

• Approved drawing

• Part number and revision

• Fastener geometry

• Material specification

• Property class

• Thread designation

• Coating system

• Inspection criteria

Production Requirements

• Manufacturing feasibility

• Prototype quantities

• Batch quantities

• Annual demand

• Packaging

• Delivery planning

Commercial Requirements

• MOQ

• Pricing

• Lead time

• Approved substitutions

• Long-term supply requirements

Information Gain: A Lower-Cost Bolt May Increase Total Assembly Cost

A cheaper bolt can create additional costs if its coating friction, geometry or dimensional variation affects tightening consistency, tooling or rework.

Procurement Recommendation

Compare the total installed and qualified cost rather than unit price alone.

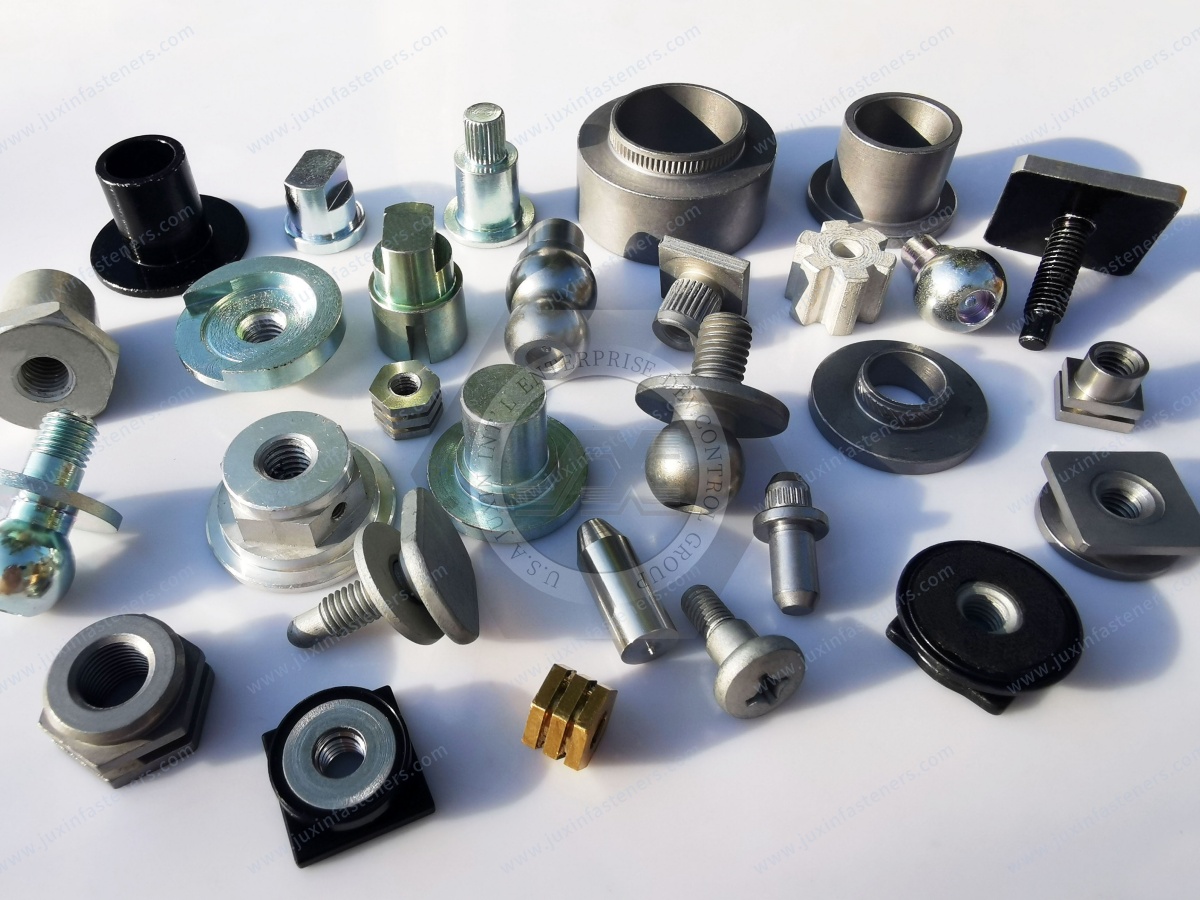

OEM Drawing Review for Custom Automotive Frame Bolts

Custom fastening projects should begin with a complete technical definition.

Recommended RFQ Information

• Approved drawing or applicable standard

• Part number and revision

• Fastener type

• Nominal diameter and thread pitch

• Length and grip requirements

• Head and flange geometry

• Material specification

• Mechanical-property class

• Coating requirements

• Mating material

• Joint loading information where available

• Tightening requirements

• Inspection criteria

• Prototype quantity

• Annual demand

• Target delivery schedule

Important Limitation

Custom dimensions, manufacturing methods, samples, testing, documentation, MOQ and delivery schedules require technical and commercial confirmation.

Frequently Asked Questions

What are automotive frame bolts?

They are bolts used in selected vehicle frame and chassis connections, including crossmembers, brackets and structural assemblies.

Are Class 10.9 bolts suitable for truck frames?

They may be suitable for certain approved designs, but suitability depends on the complete joint and OEM specification.

Are Class 12.9 bolts always better for heavy-duty vehicles?

No. Higher strength does not automatically improve fatigue resistance or joint reliability.

Can flange bolts replace conventional hex bolts and washers?

Only after confirming bearing geometry, friction, clamp load and customer approval.

Why do truck frame bolts loosen?

Possible causes include insufficient preload, joint movement, settlement and incompatible locking conditions.

Does zinc-nickel coating change tightening torque?

It can affect friction and the resulting torque-tension relationship.

What is the difference between friction-dependent and bearing-type connections?

Friction-dependent joints transfer the intended load through friction between clamped surfaces,

while bearing-type joints may transfer load through contact between the fastener and hole surfaces.

Can automotive frame bolts be substituted between different vehicle models?

Not without confirming the approved specifications and application requirements.

What should be included in a truck frame bolt RFQ?

Provide the drawing, property class, thread specification, geometry, coating, mating material, installation requirements, inspection criteria and purchasing quantities.

Juxin Fasteners: High-Strength Automotive Frame Bolt Supply

Juxin Fasteners supplies industrial and automotive fastening components for OEM manufacturing applications.

Relevant product categories include:

• High-strength hex head bolts

• Metric Class 8.8 bolts

• Metric Class 10.9 bolts

• Metric Class 12.9 screws

• Hex flange bolts

• Alloy steel socket head screws

• Torx drive screws

• Serrated flange screws

• Weld studs

• Custom OEM fastening components

Specific product dimensions, material grades, manufacturing processes, coatings, inspection documentation, samples,

MOQ and delivery schedules are subject to technical and commercial confirmation.

Safety-critical automotive applications require approved customer specifications and application-specific validation before production use.

Request a High-Strength Automotive Frame Bolt RFQ

Are you developing a truck chassis assembly, sourcing high-strength frame bolts or qualifying an alternative supplier for an existing automotive program?

Juxin Fasteners welcomes drawing-based inquiries from commercial vehicle OEMs, Tier-1 and Tier-2 suppliers, structural engineers, manufacturing engineers, production managers and procurement teams.

For technical review and quotation, please provide:

Approved drawing or standard + part number and revision + fastener type + nominal diameter and thread designation

+ length and grip requirements + head geometry + material specification + property class + coating requirements + mating material

+ joint and tightening requirements + inspection criteria + prototype quantity + annual demand + batch size + packaging + target delivery schedule.

Company: Juxin Fasteners

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Send your automotive frame bolt drawings and OEM RFQ to Juxin Fasteners for technical evaluation, specification confirmation and quotation.
